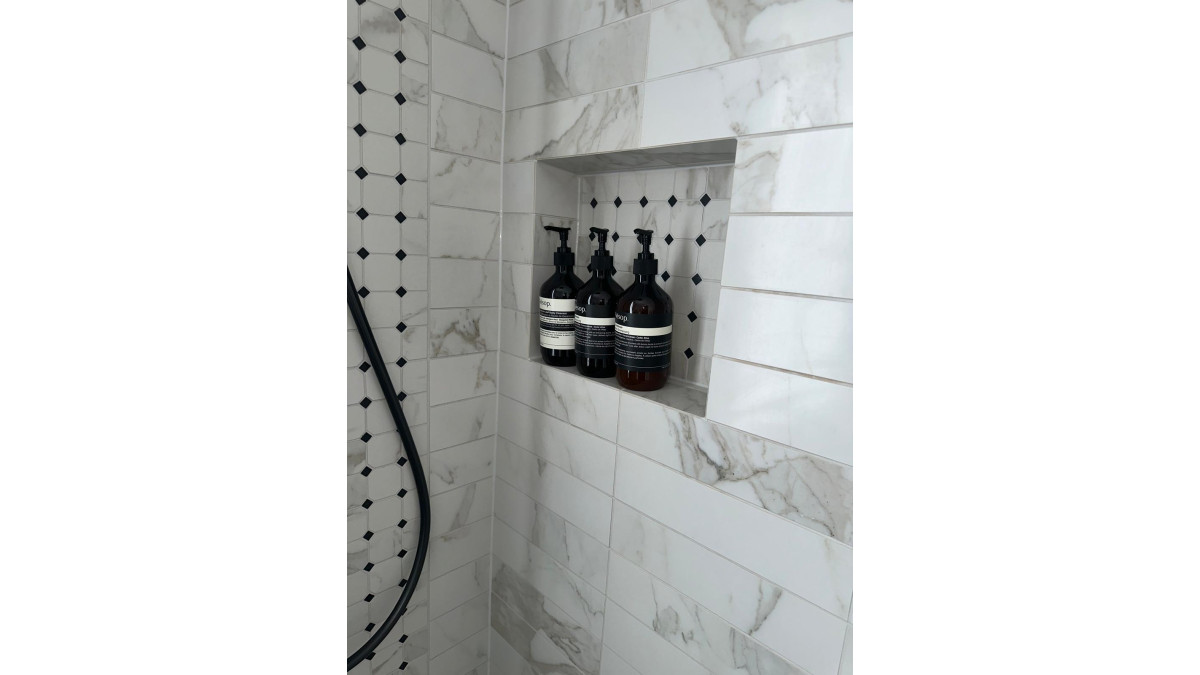

Marmox Shower Niche
Description

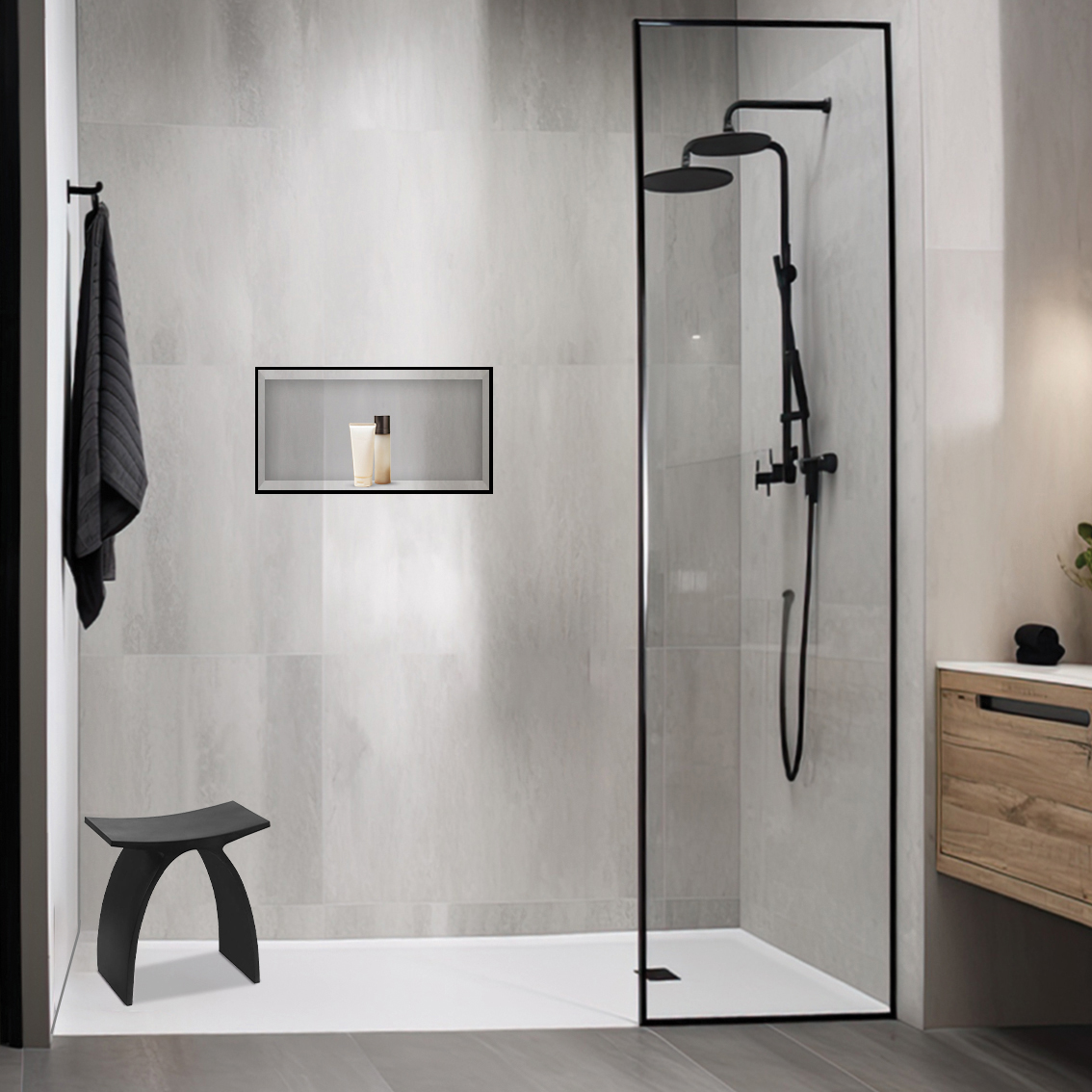

A Shower Niche is an elegant way to provide extra space for small shower items. The Marmox Shower Niche provides a low cost, easily installed and completely waterproof alternative for shower niche construction.

The Marmox Shower Niche is made from an extruded polystyrene core coated on either side with a thin but robust layer of fibreglass reinforced polymer concrete. It is available in flat packs which can be easily assembled.

Product: Size:

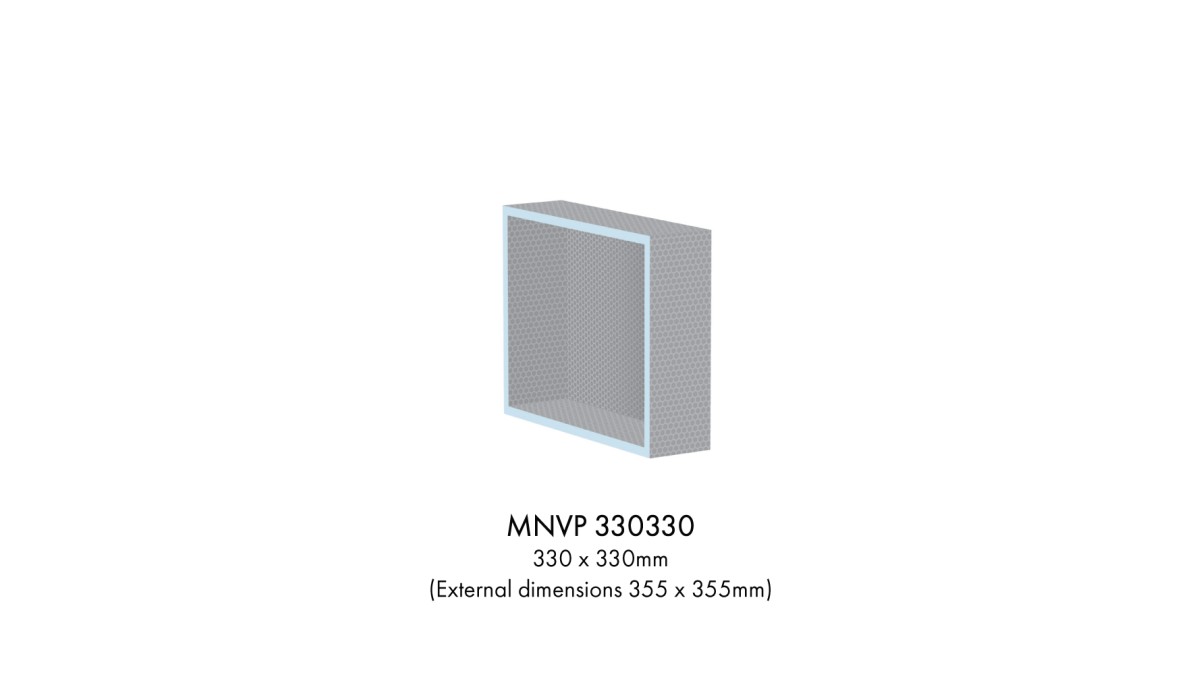

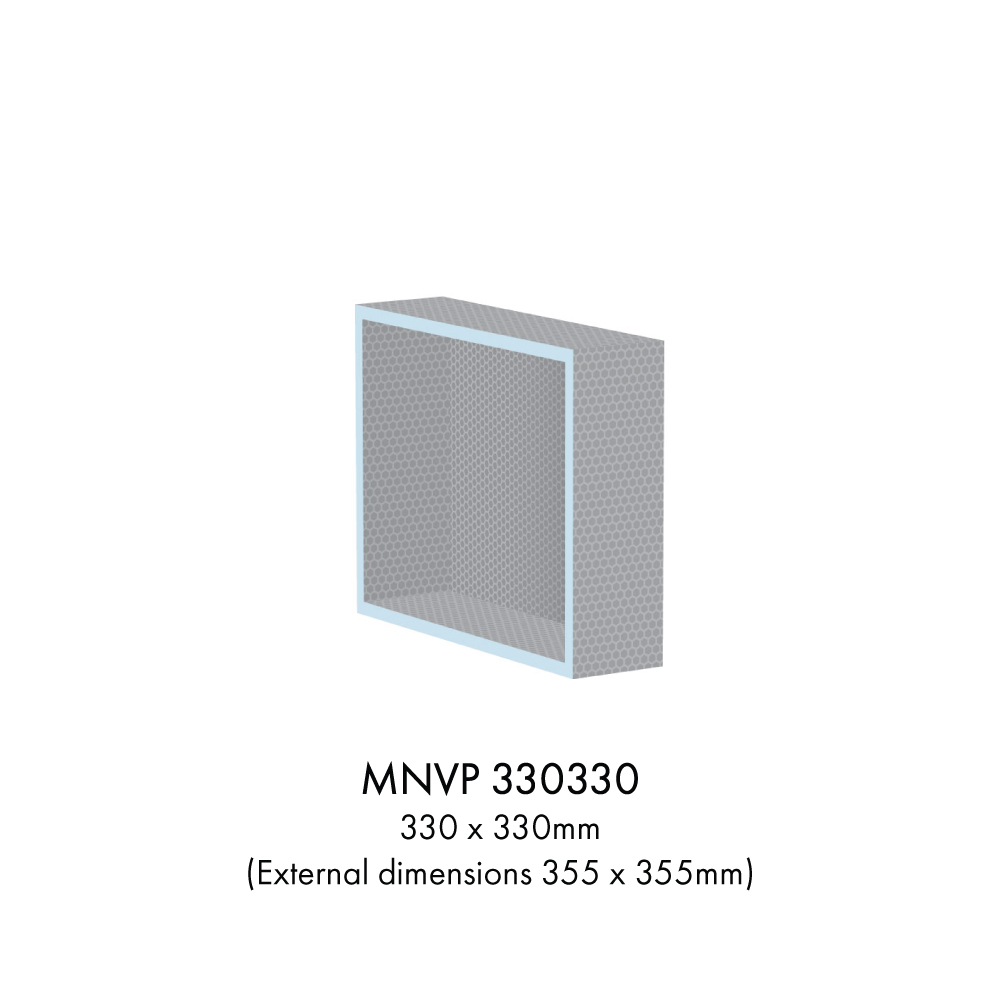

MNVP330330 330 x 330mm

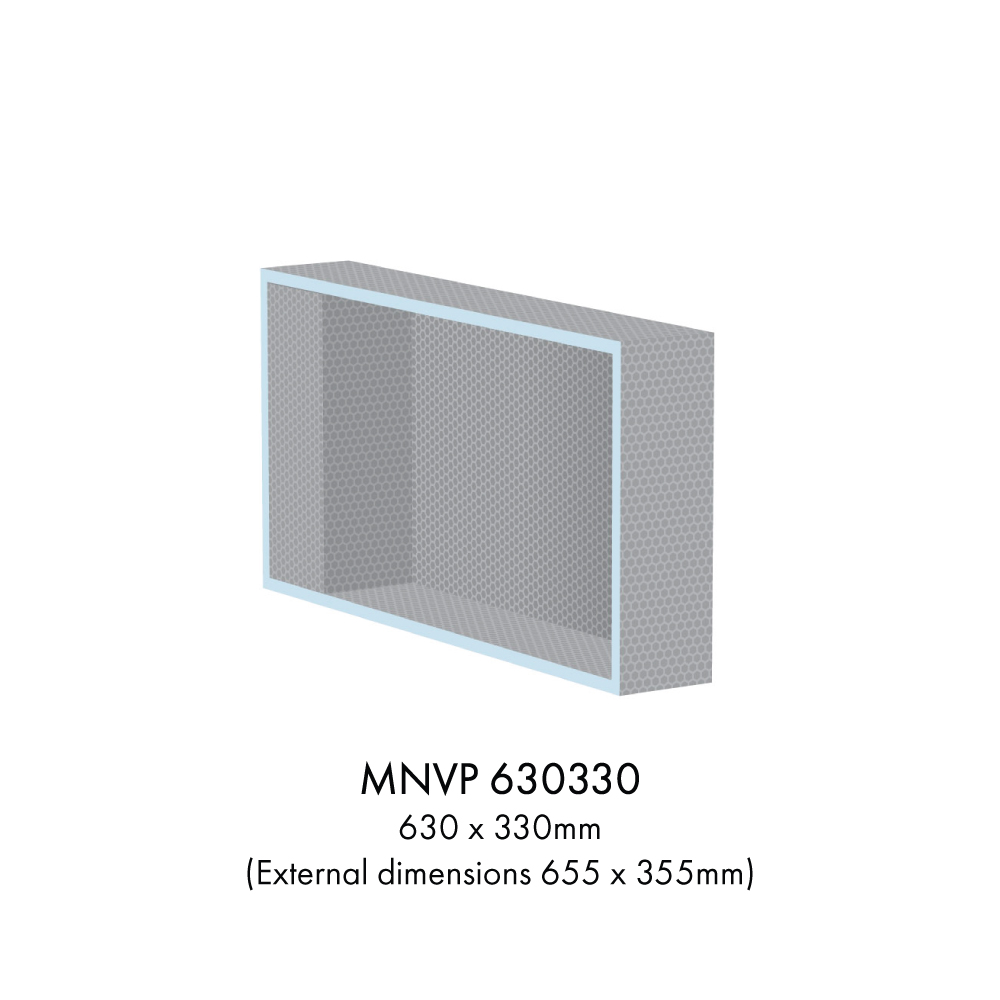

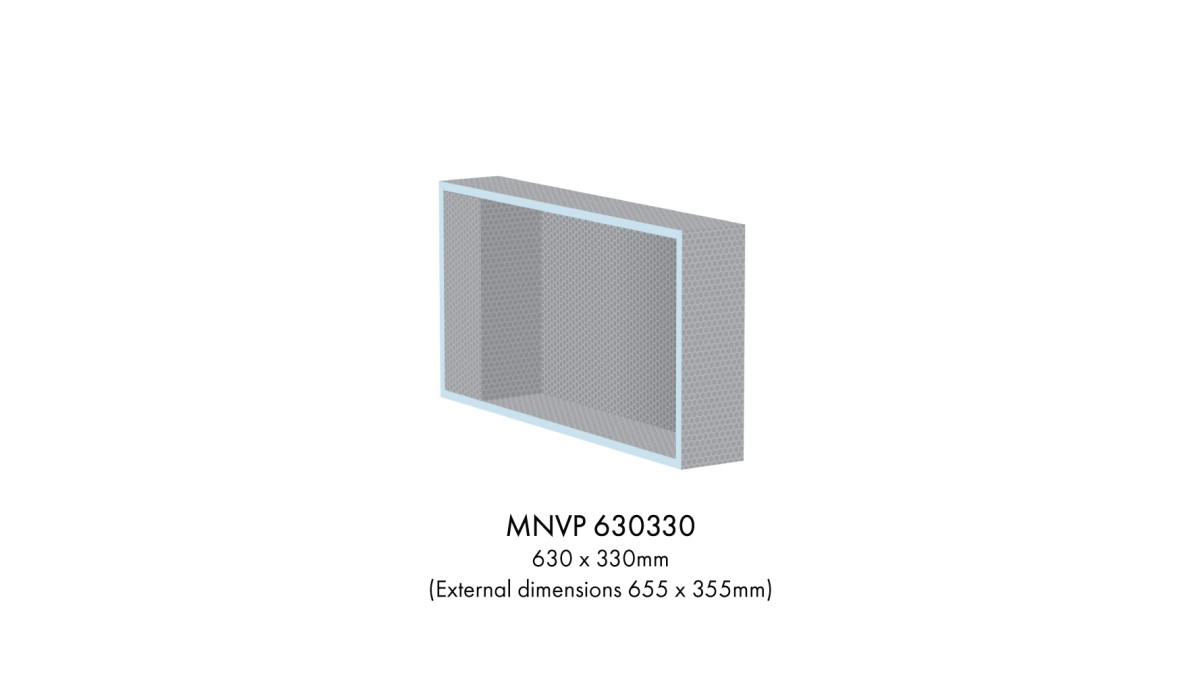

MNVP630330 630 x 330mm

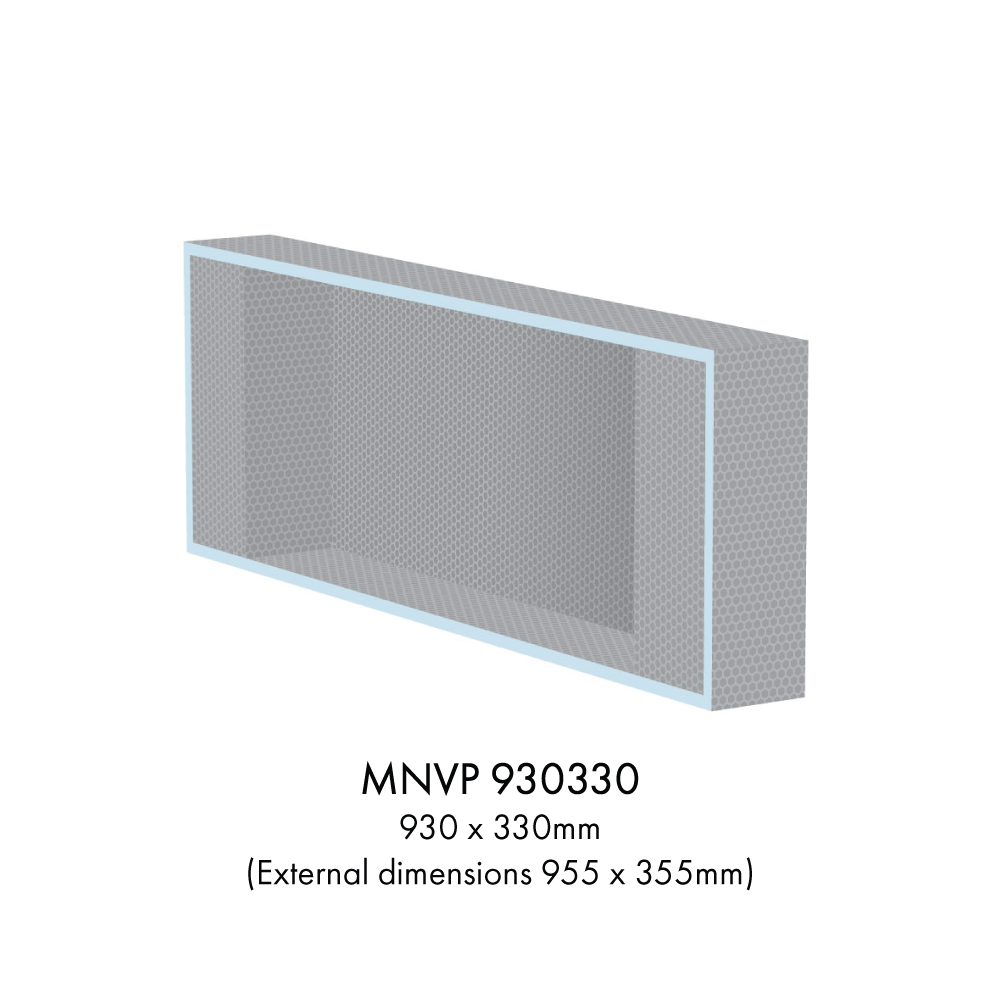

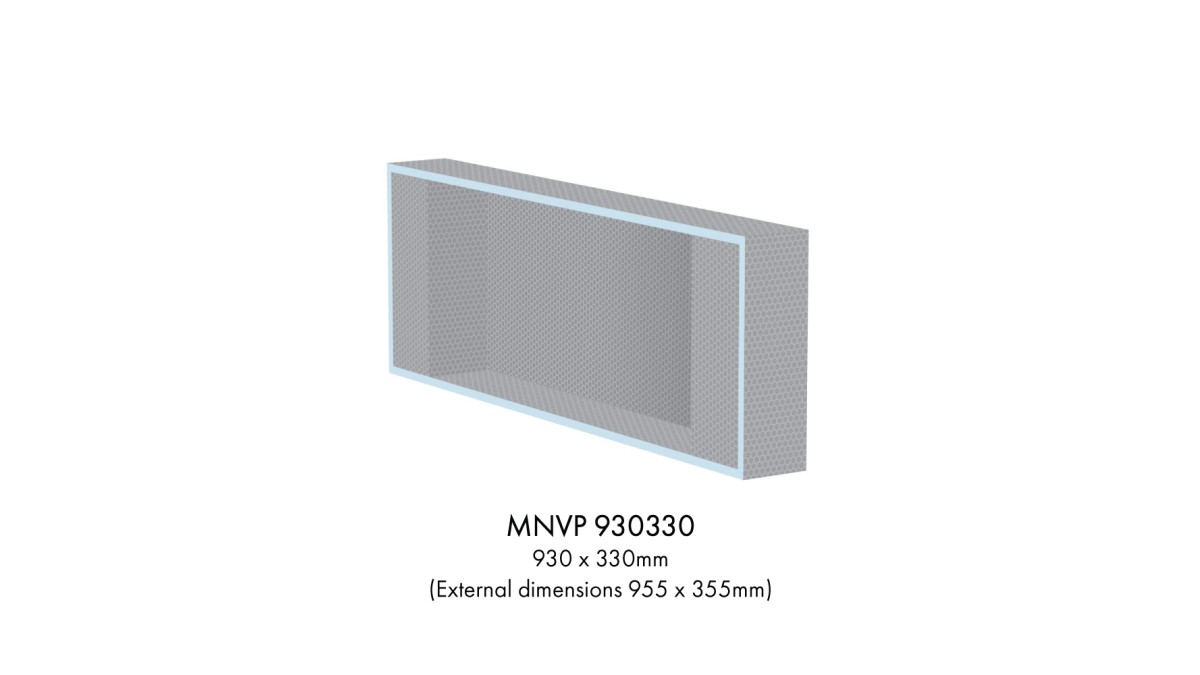

MNVP930330  930 x 330mm

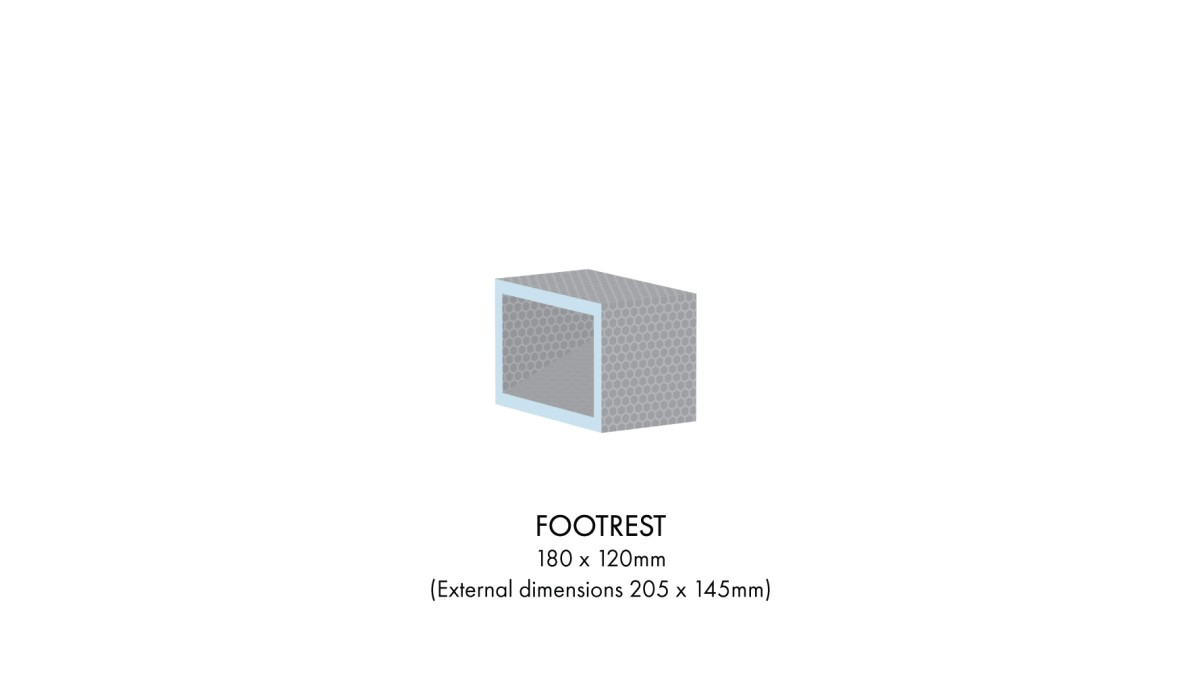

FOOTREST  180 x 120mm
Key Features
  • Available in flat packs which can be easily assembled
  • Made from an extruded polystyrene core coated on either side with a thin but robust layer of fibreglass reinforced polymer concrete
  • Ready to waterproof and then tile
  • Lightweight and easy to work with
  • 12.5mm thick and fits wall cavities 86mm or deeper
  • Can be used to form a recess for toiletries within showers and other wet areas
Scope of Use

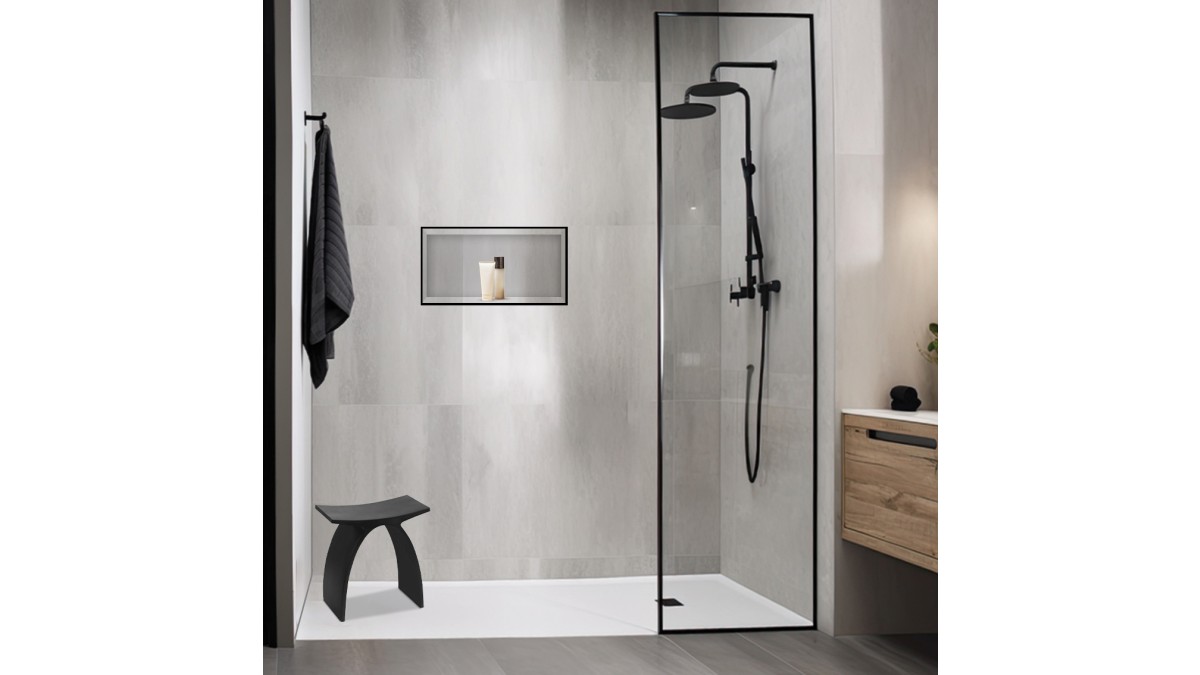

Marmox Shower Niches are intended for use in showers and bathrooms. They are installed within the shower enclosure to provide a convenient and waterproof storage space for toiletries, bath essentials and other items.

  • 12.5mm thick and fits wall cavities 86mm or deeper
  • Ready to waterproof and then tile
Limitations on Use
  • WARNING: Do not use solvent based adhesives to assemble this product
Statement of Building Code Compliance

As mentioned in the BRANZ appraisal, Marmox insulation products, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet or contribute to meeting the following provisions of the NZBC:

Clause B2 Durability — Performance B2.3.1 [b] 15 years and B2.3.2. Marmox insulation boards meet this requirement as they are used as an underlay for waterproofing membranes, they will be durable for at least 15 years, provided the tiling and waterproofing systems are maintained to ensure the boards and fixings remain dry in services.

Clause F2 Hazardous Building Materials: Performance F2.3.1. Marmox Insulation boards meet this requirement.

Documents
BRANZ Appraisal 895: Marmox Building Products

895 [2018] (Amended November 2020)

Installation instructions
Shower Niche 330 x 330mm
Shower Niche 630 x 330mm
Shower Niche 930 x 330mm
Shower Niche Footrest
