Pradis for Commercial Occupancy Types C1,C2,D
Description

PRADIS is the new generation of point fix stand off fittings, PRADIS is the new EUROANCHOR.

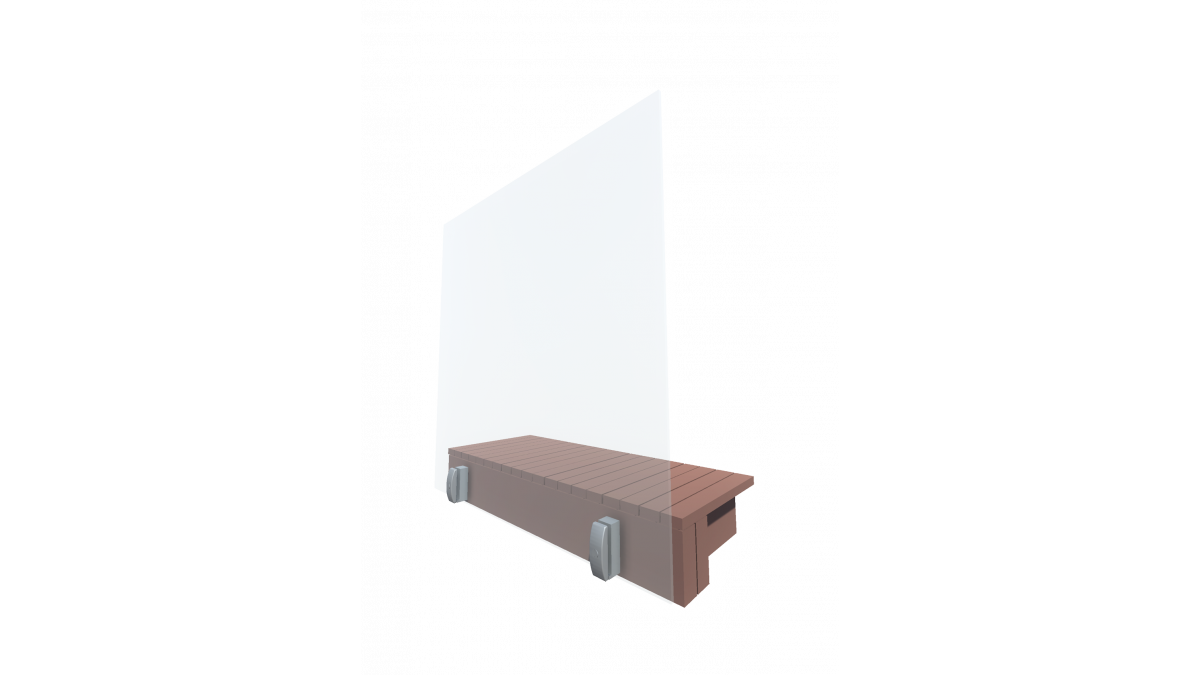

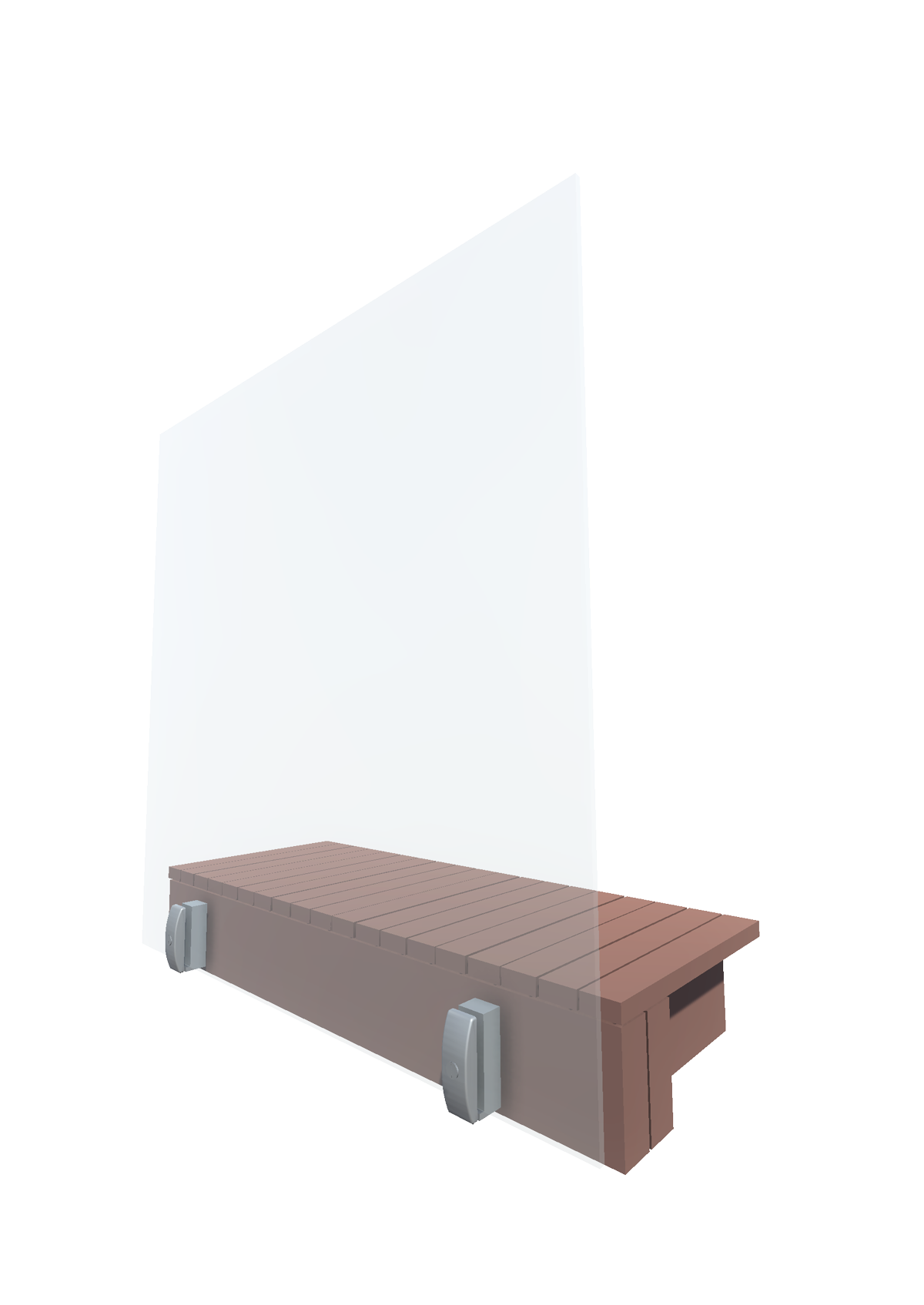

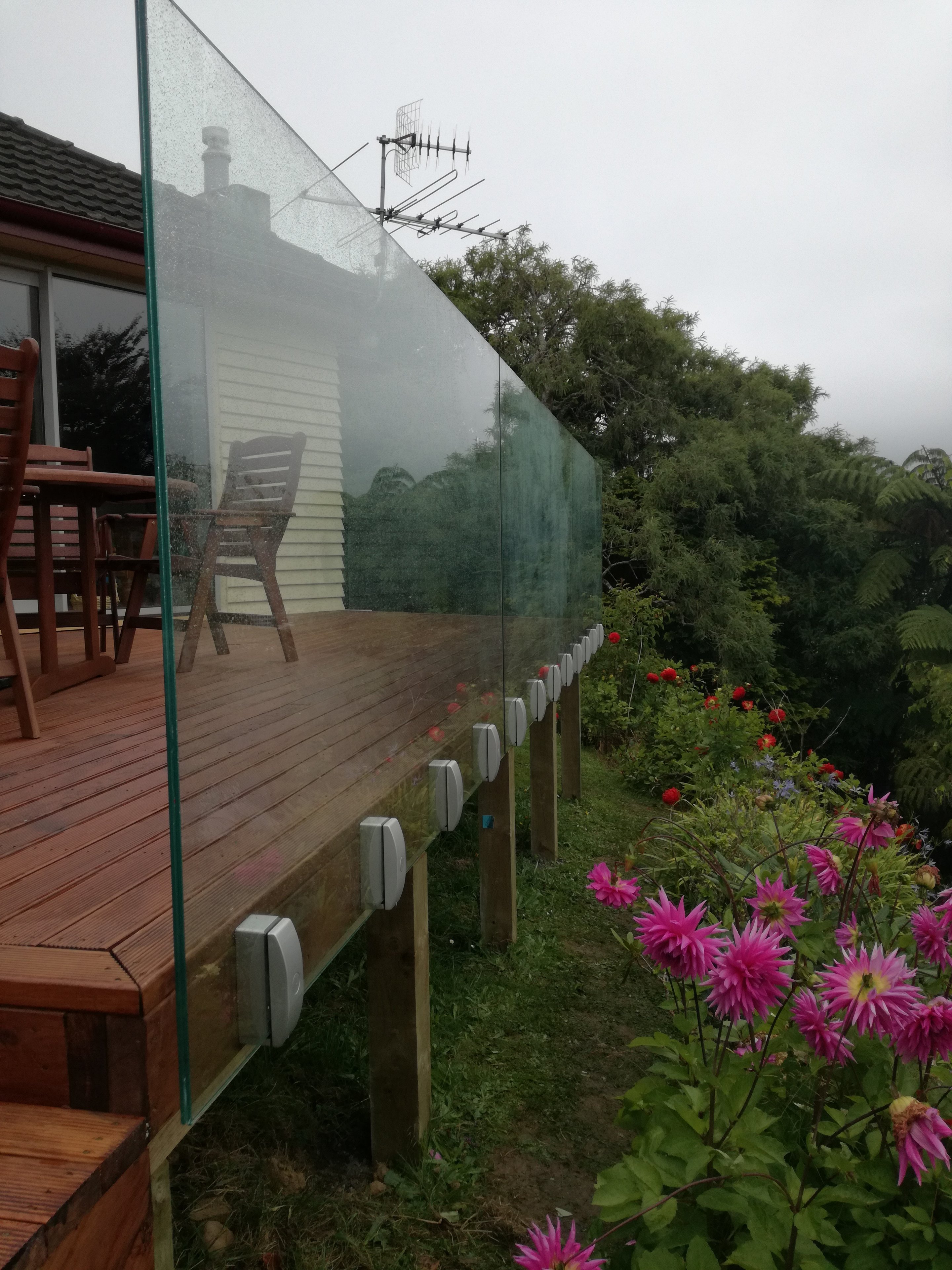

PRADIS is a face mounted cantilevered frameless glass barrier system.



Key Features
  • PRADIS is stronger than other conventional systems; anchors, single disc etc
  • Quick to install and easy to adjust
  • PRADIS can be fixed to a 150mm tall substrate
Scope of Use

PRADIS is designed to be used as;

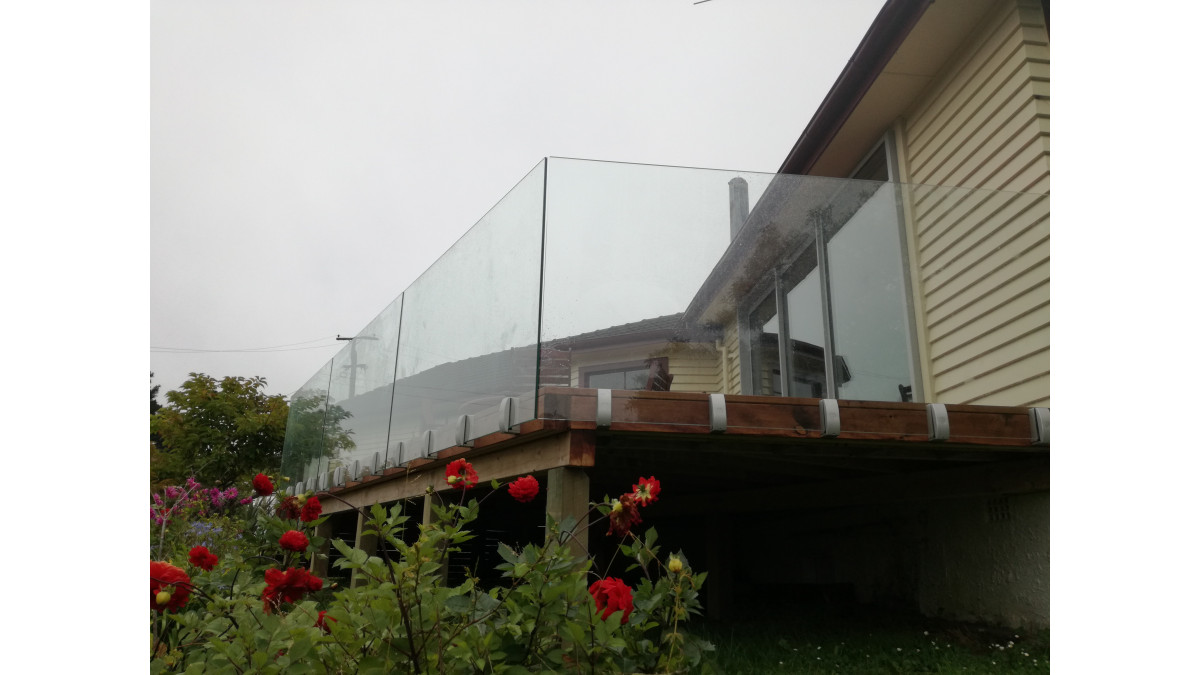

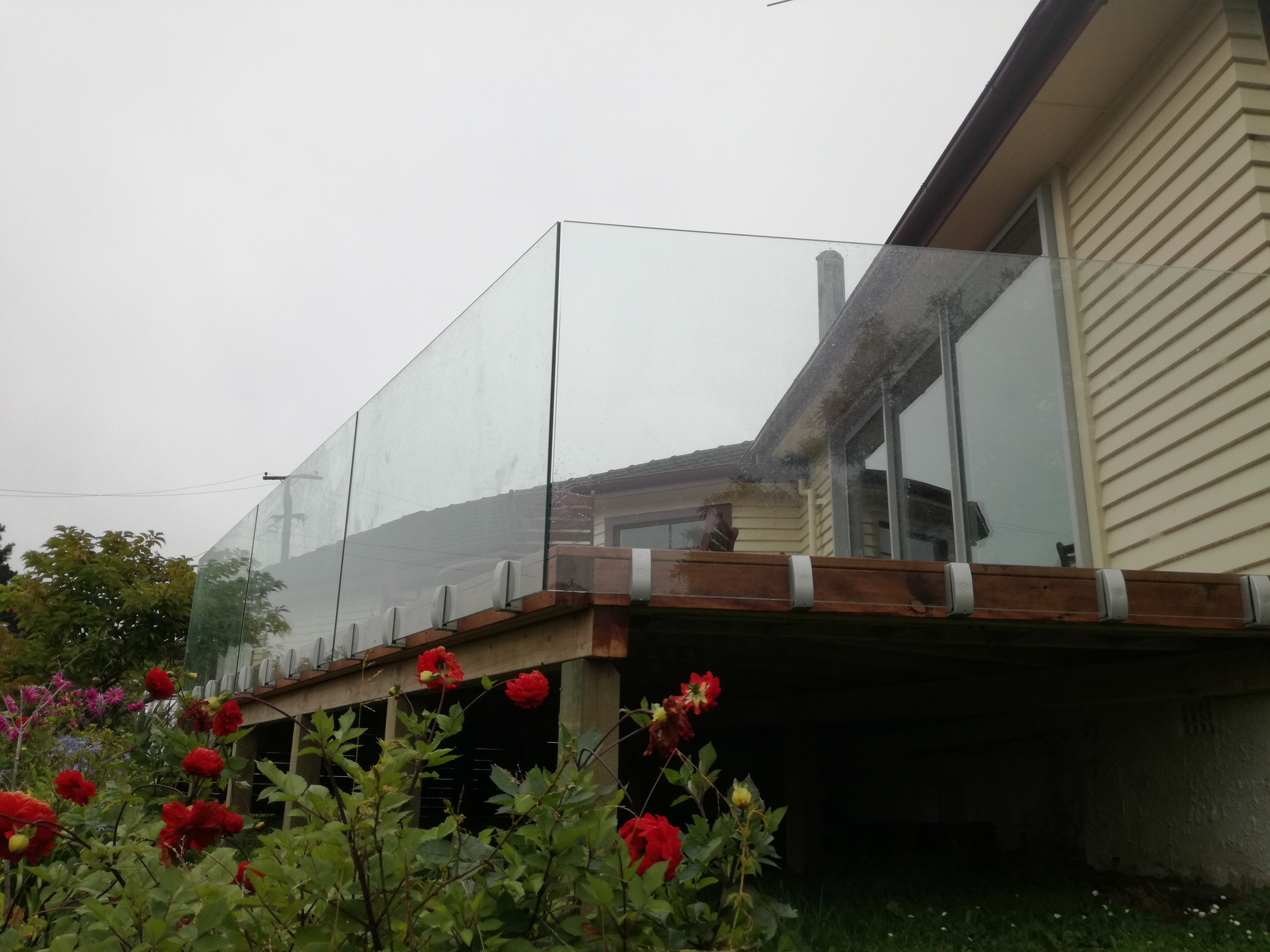

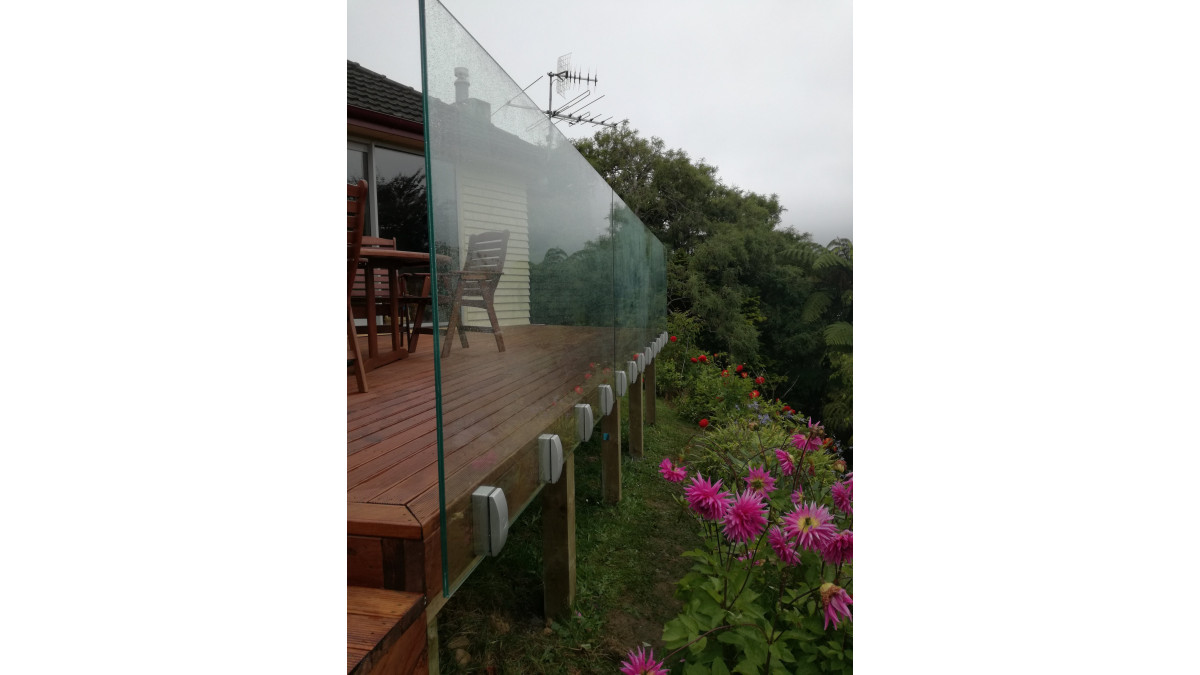

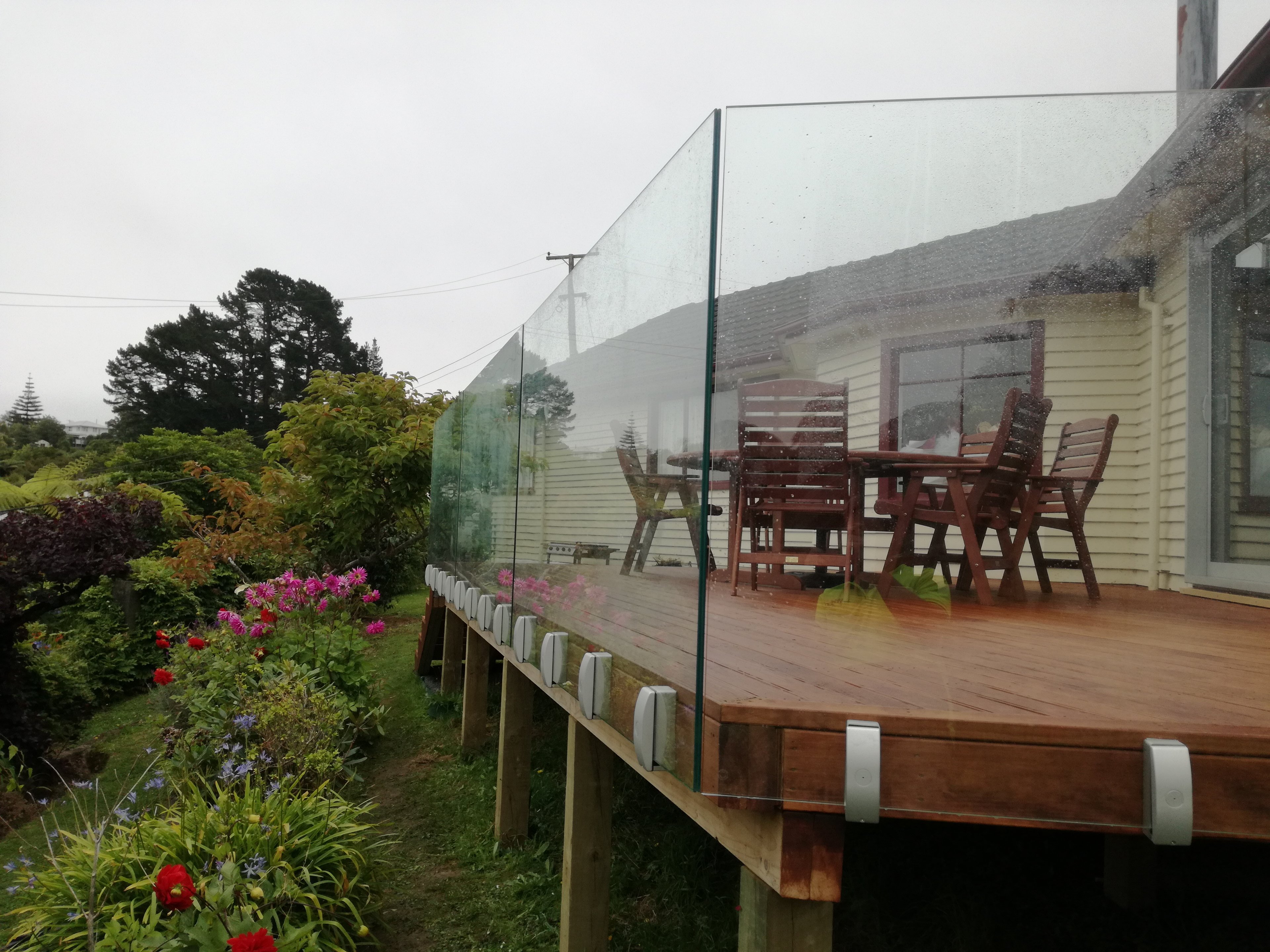

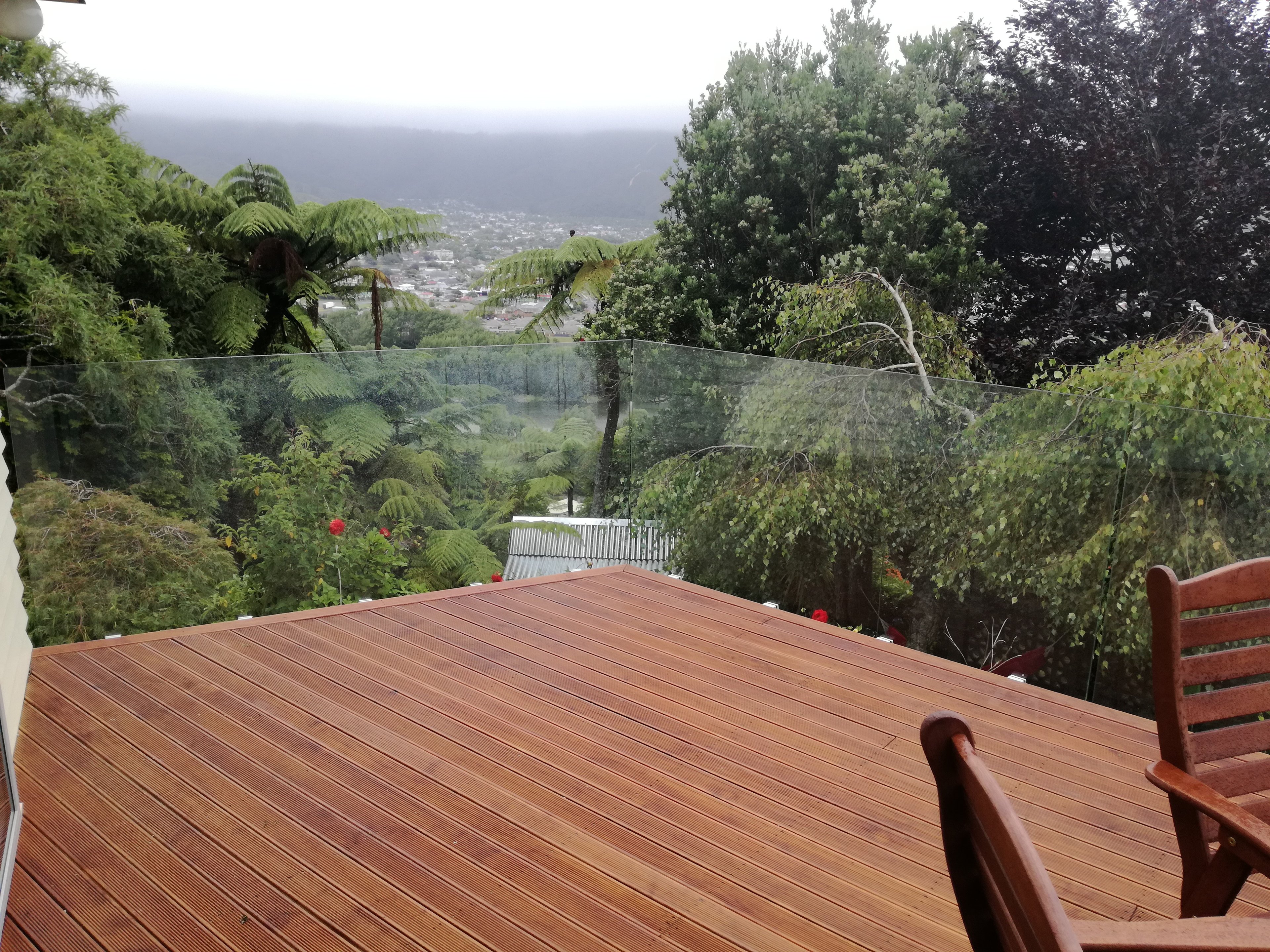

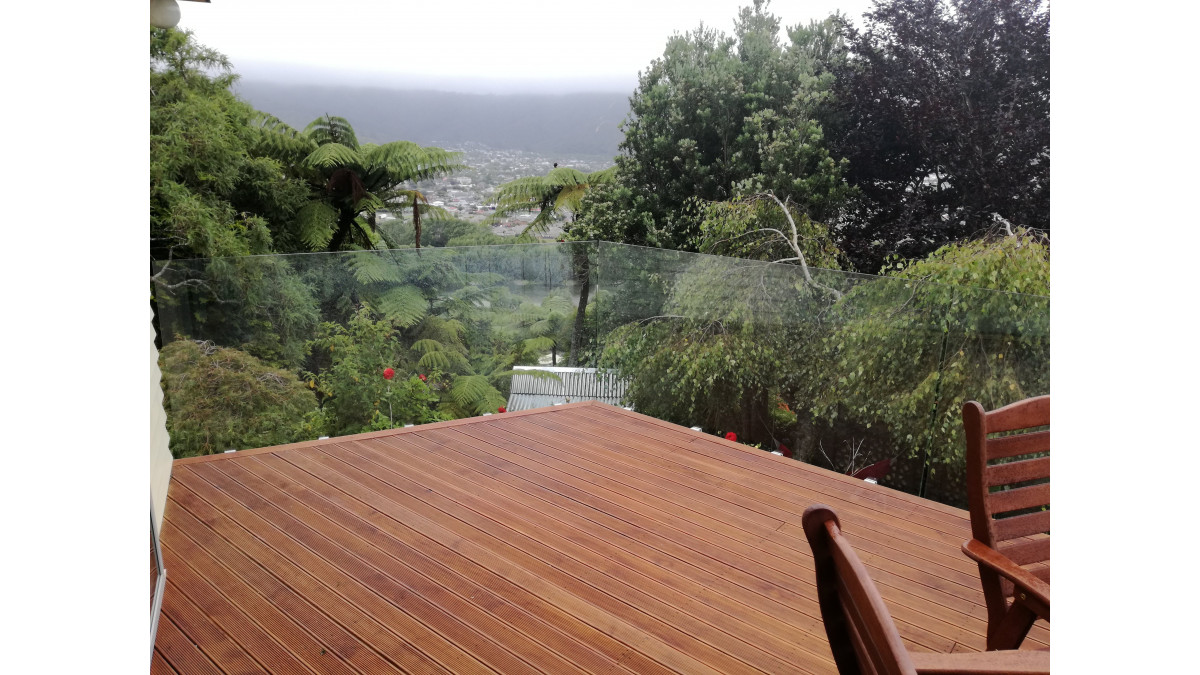

 - Balustrades for External Decks and Stairwells

 - Balustrades for Internal Decks, Stairwell, Landings and Mezzanine Floors



PRADIS can be attached to the following substrates;

 - Concrete

 - Timber

 - Steel



PRADIS complies with the New Zealand building code and glazing standards used in conjunction with the following Viridian Glass types and Euroglass systems;

SAFE: Viridian's toughened safety glass and Euroglass interlinking rail system. Euroglass offers three interlinking rail systems;

 1) Squareline

 2) Roundline

 3) Archline

SAFEST: Viridian's toughened SENTRYGLAS® laminated safety glass with Euroglass gap clamps.  SENTRYGLAS® incorporated with a Euroglass System offers a pure clean and clear traditional frameless barrier.



PRADIS is bright marine anodised with 10 year warranty.



You can also powder coat PRADIS, there are many powder coat colours to choice from to match your colour scheme.

Statement of Building Code Compliance

Rated to be used up to a extra high wind zone (2.13Kpa or less)



This proprietary balustrade system complies with New Zealand Building Code Clauses;

 B1 - Structure and B1/VM1

 B2 - Durability

 F2 - Hazardous Building Materials

 F4 - Safety from Falling

 D1 - Access routes (complies with the use of a handrail in accordance with NZBC D1/AS1)



Based on barrier loads taken from AS/NZS1170.0 PRADIS can be used for Commercial Occupancy Types;

C1 & C2 - Areas with tables or fixed seating.

Areas with fixed seating adjacent to a balustrade, restaurant, bars etc.

D - Retails areas.

All retail areas including public areas of bank/building societies, (see C5 for areas where overcrowding may occur).

Taken from table 3.3 AS/NZS1170.1



Maximum glass height from the top of the clamp to the top edge of the glass is 1100mm using Viridian's safety glass options according to 22.4.3 and Table 14 of NZS4223.3:2016 are;

 - 15mm toughened safety glass with interlinking rail



 - 17.52mm toughened SENTRYGLAS® laminated safety glass with Euroglass gap clamps  (SENTRYGLAS® is a stiff interlayer that complies with 22.4.3 (c) of NZS4223.3:2016)
