Milano: Pool Fence or Wind Break
Description

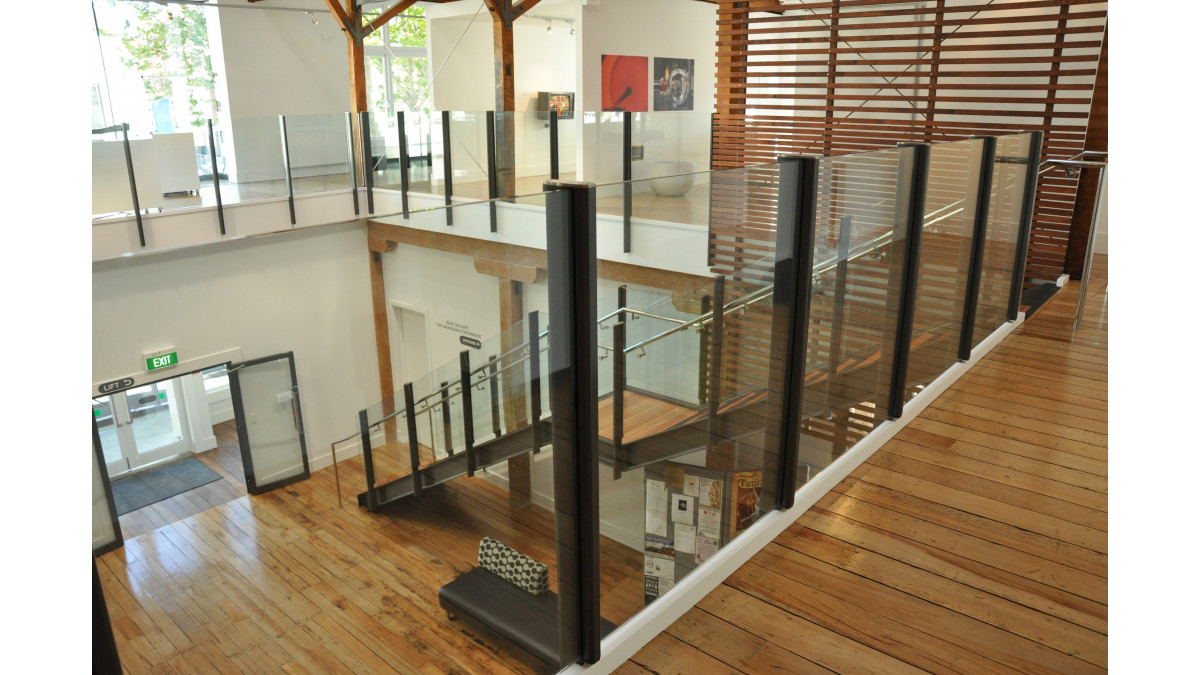

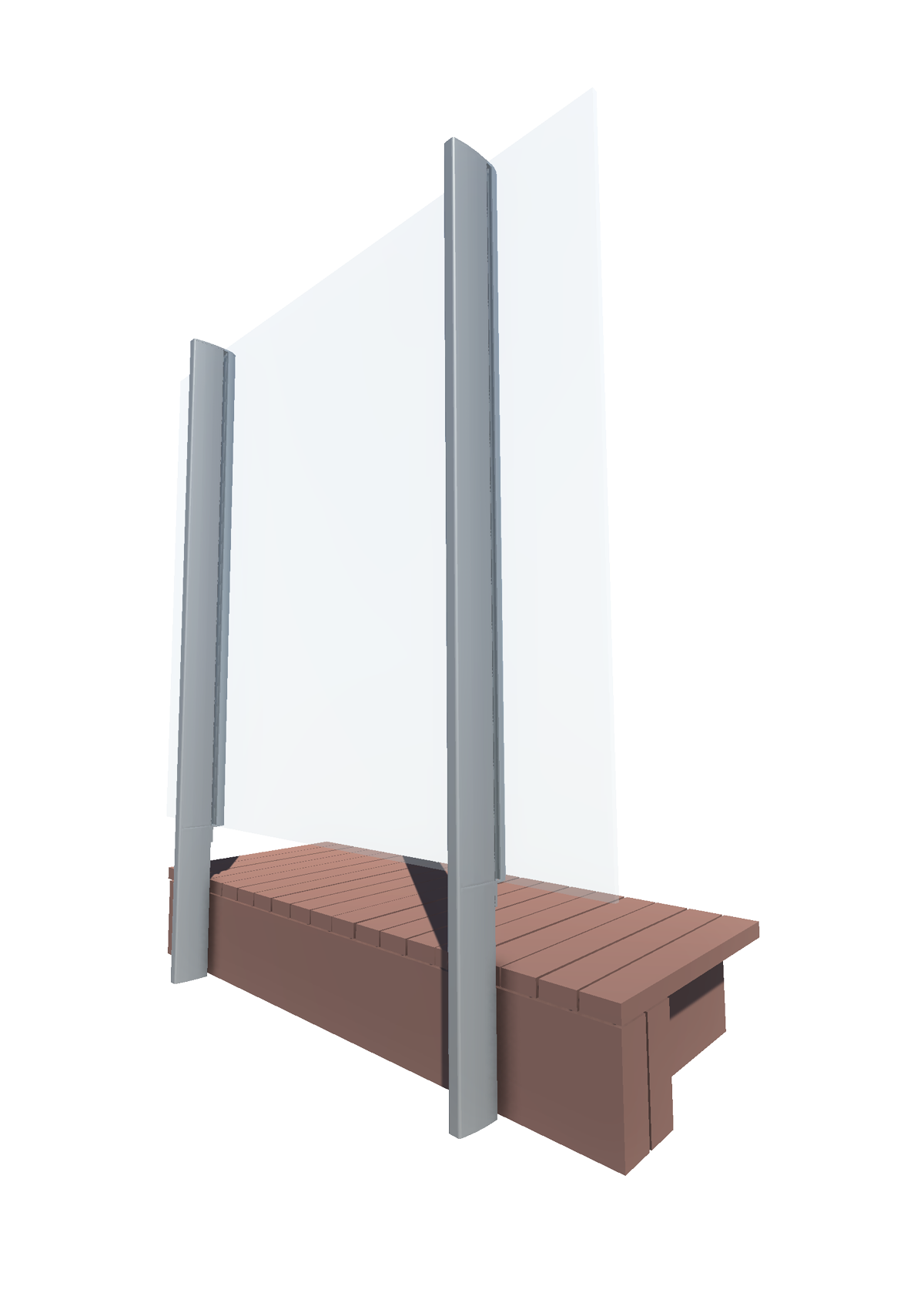

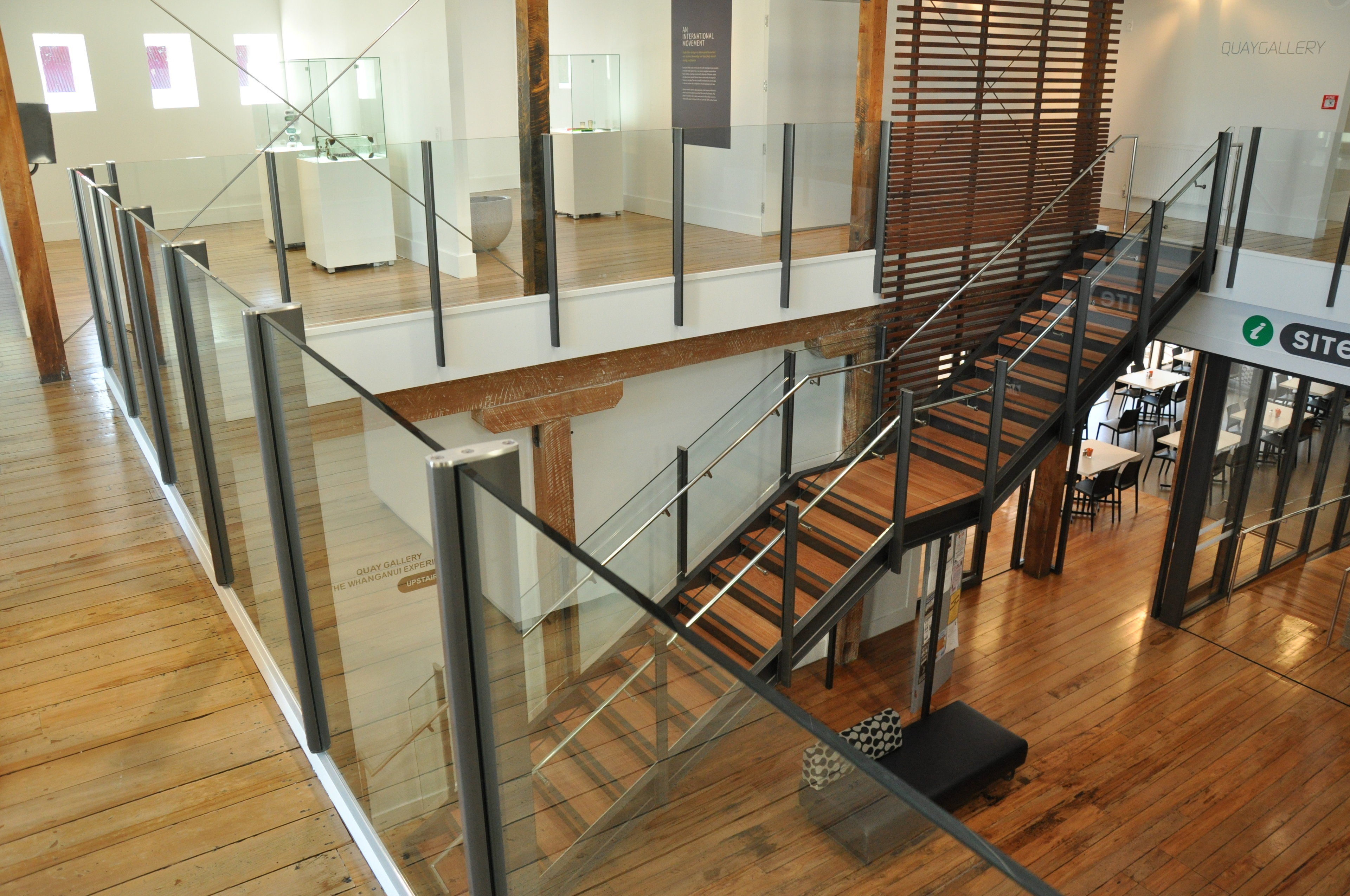

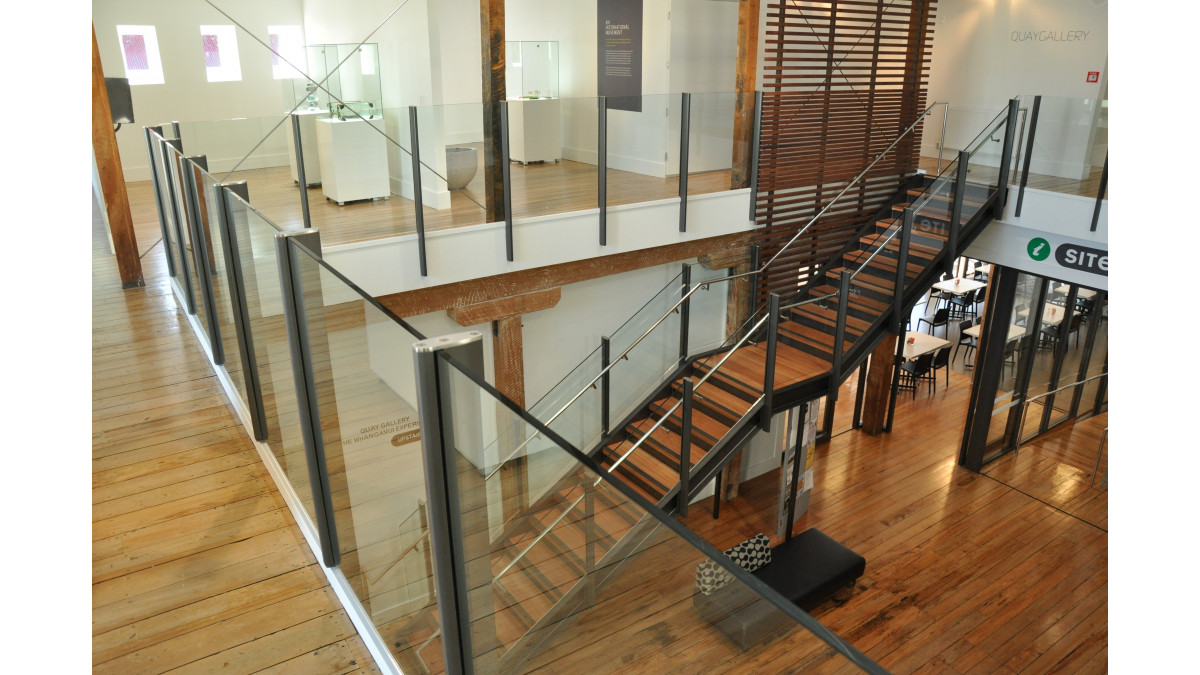

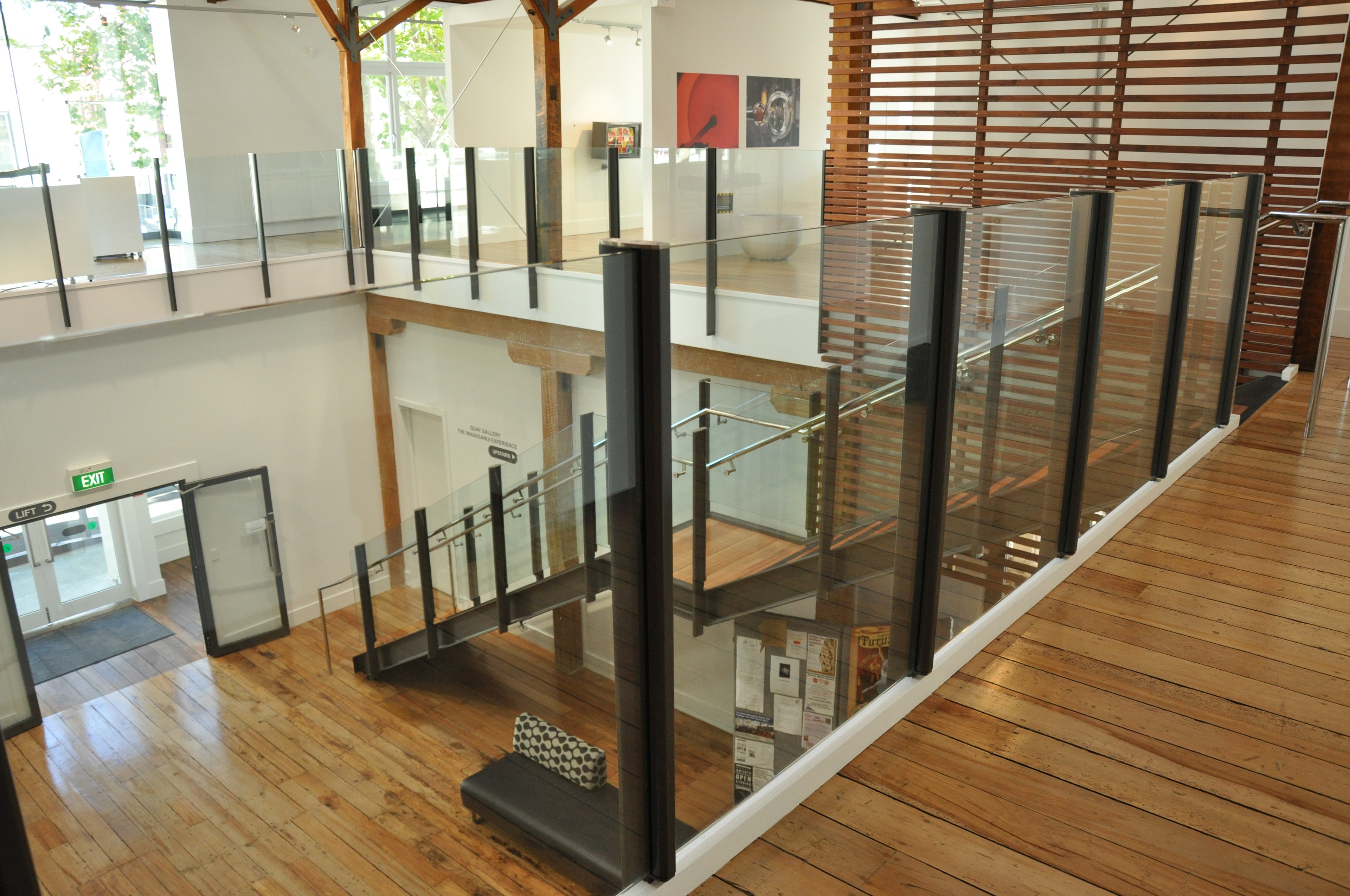

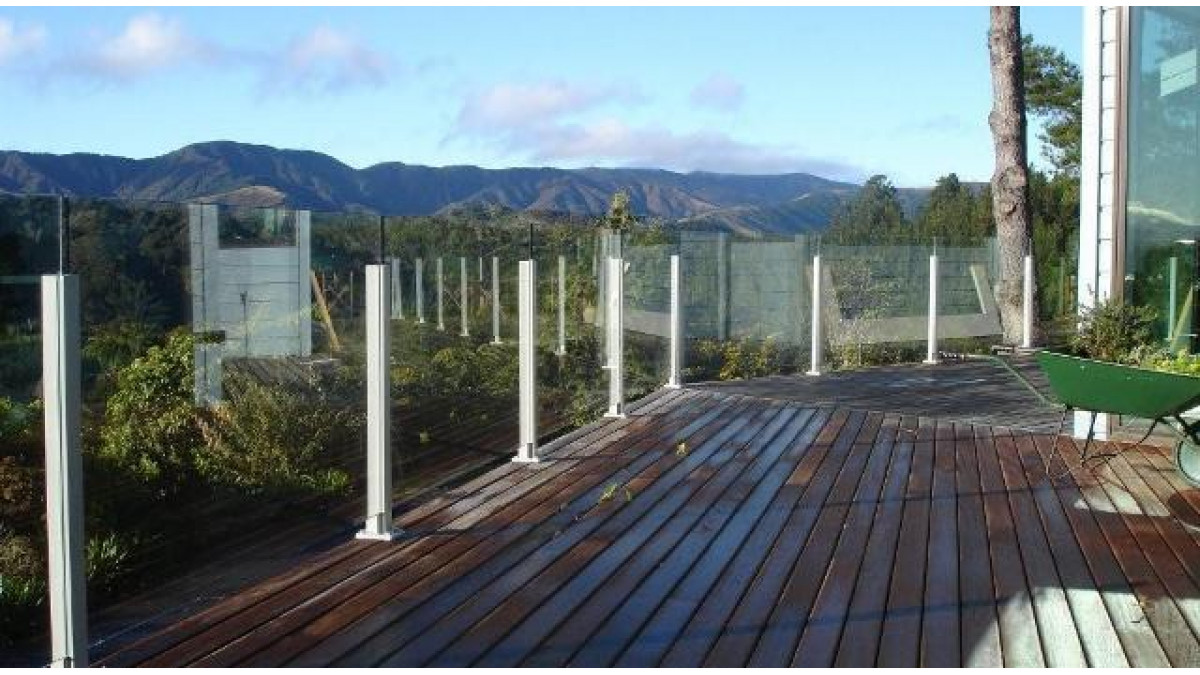

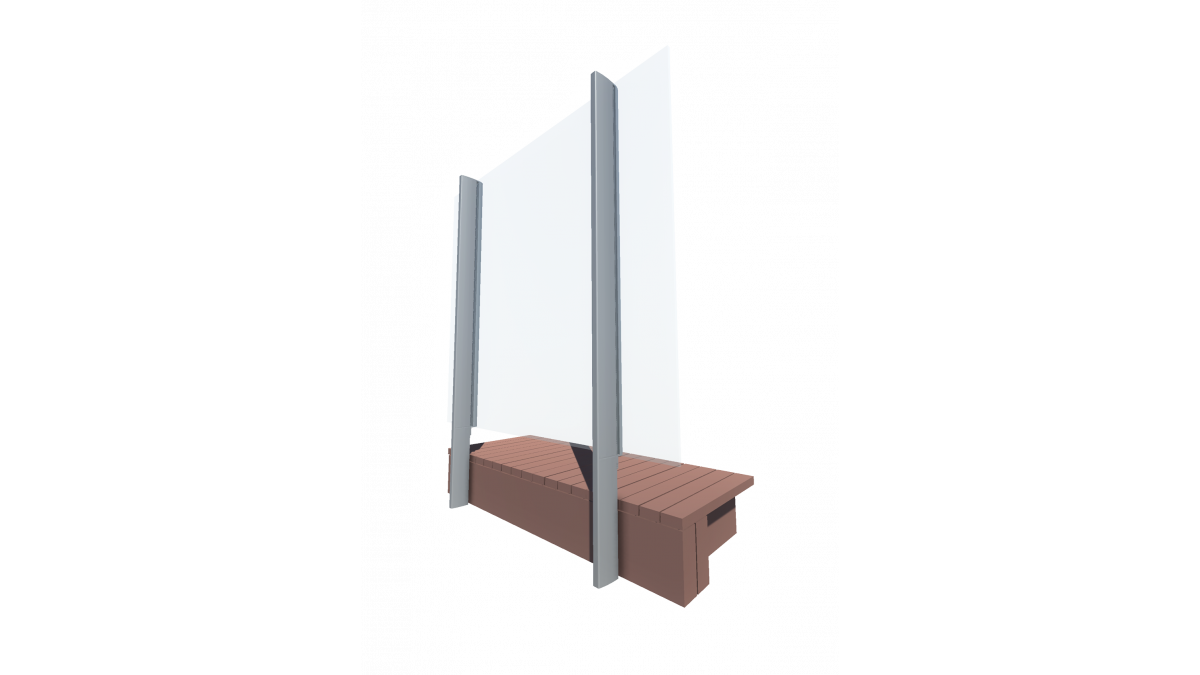

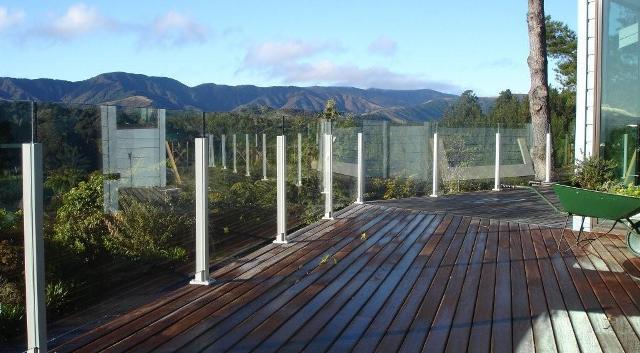

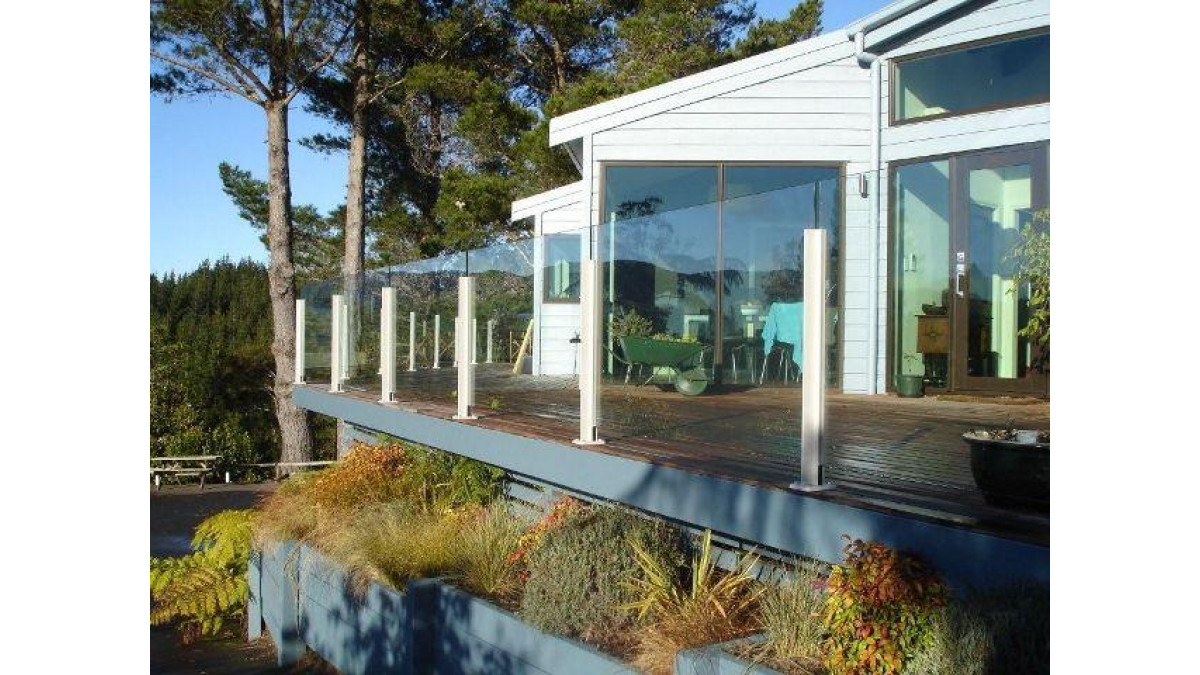

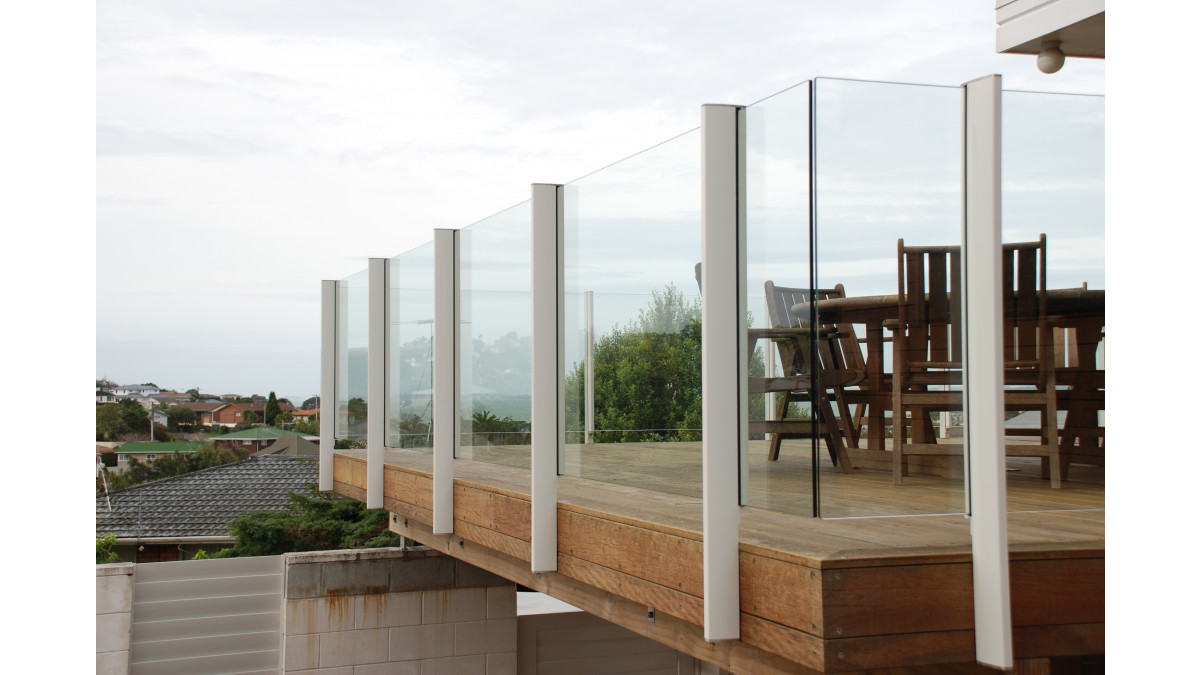

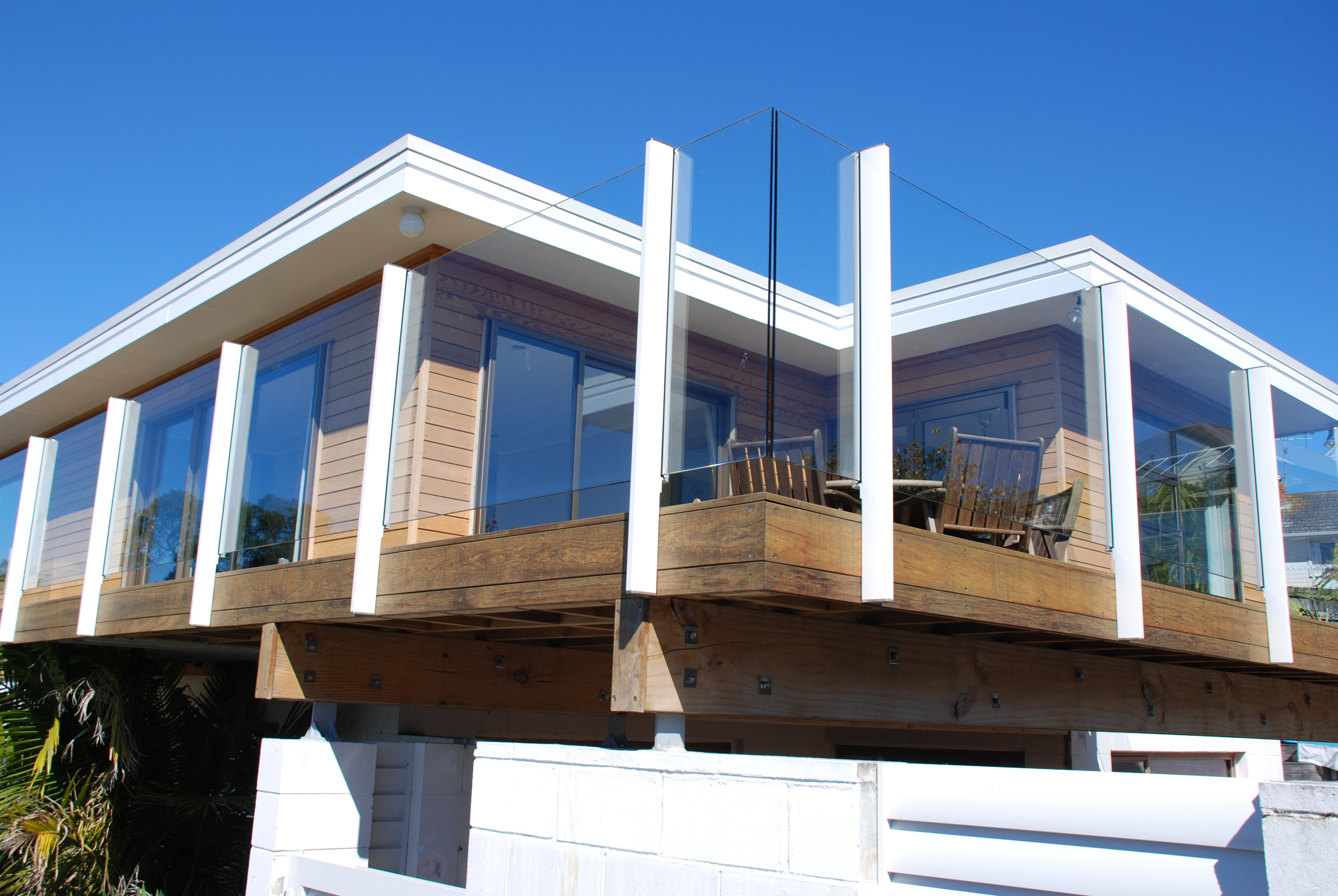

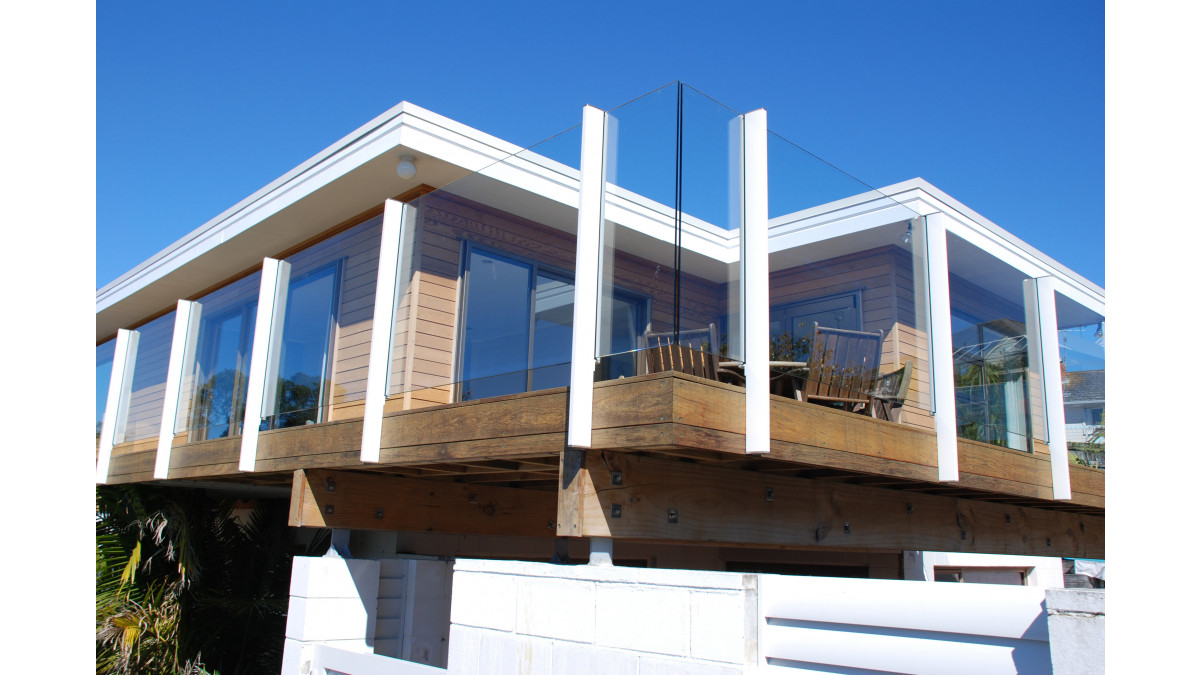

MILANO is a frameless full height post system where the top and bottom edges of the glass are exposed.

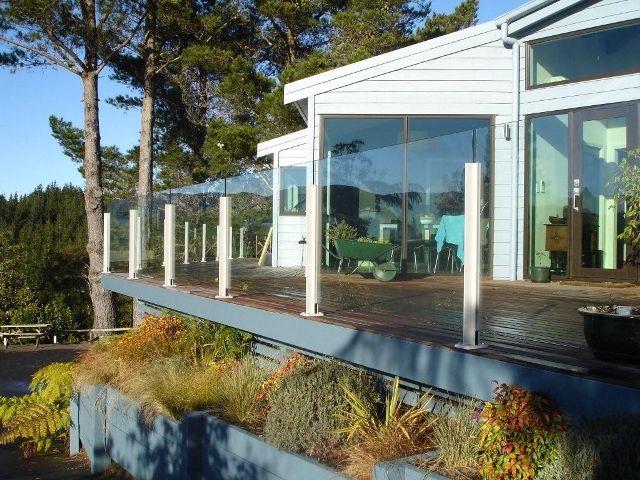

MILANO can be used as a pool fence or as a wind break.



Unlike other systems our MILANO posts can be fixed up to 2350mm apart which reduces the amount posts required across the deck (MILANO post locations are based on the wind zone).

Key Features

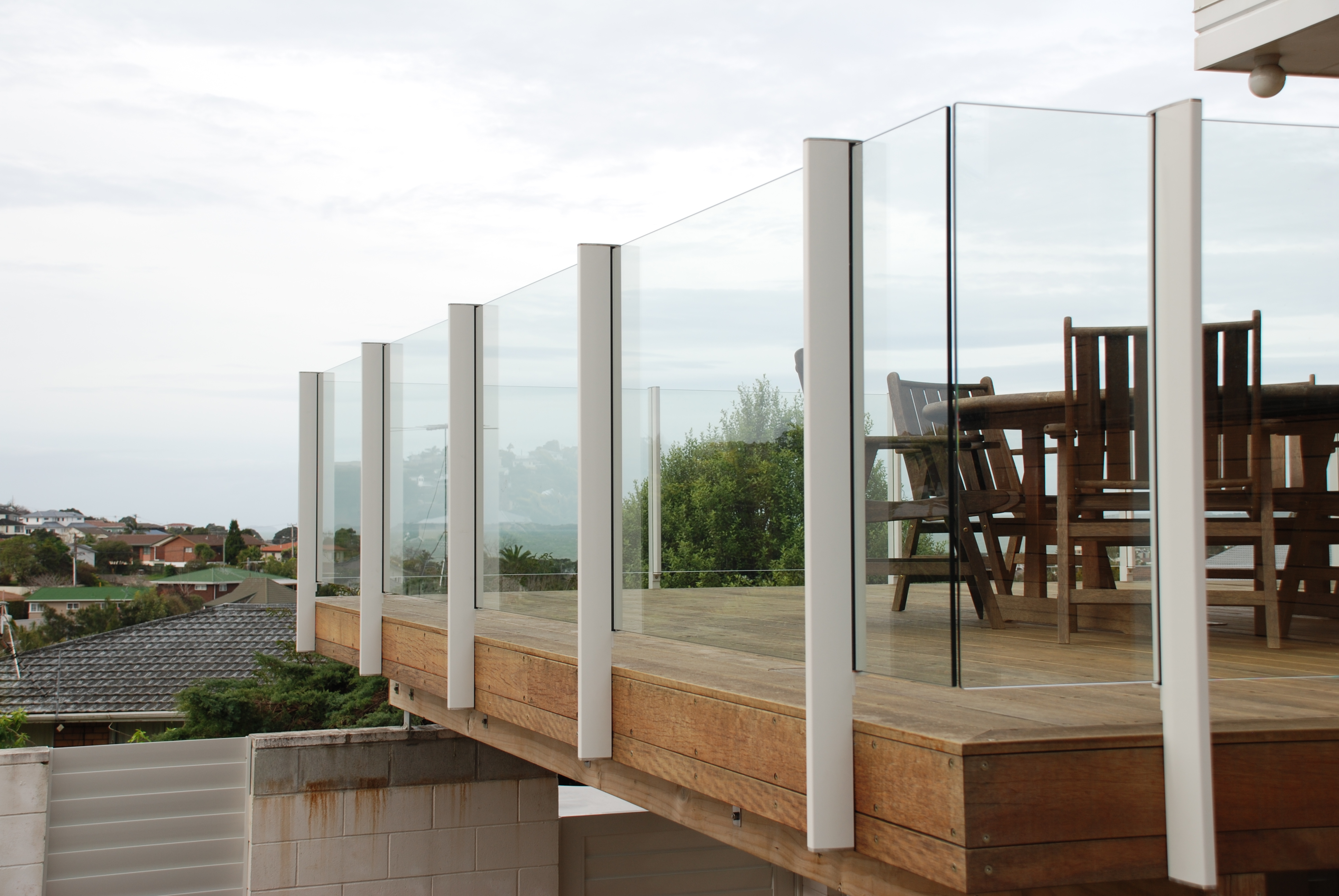

 - MILANO posts can be face or floor mounted

 - Large post fixing spans – please refer to our technical data sheets.

 - No need for corner posts, the glass can span horizontally through the end post. The maximum overhang of glass is 500mm.



 - No holes or notches are required. The glass is clamped to the post

Scope of Use

MILANO is designed to be used as;

 - Internal and External Pool Fences

- Wind Breaks

MILANO can be attached to the following substrates;

 - Concrete

 - Timber

MILANO comply with the New Zealand building code and glazing standards used in conjunction with the following Viridian Glass types and Euroglass systems;

-          Viridian's toughened safety glass

-          SENTRYGLAS® incorporated with a Euroglass System offers a pure clean and clear traditional frameless barrier



MILANO is Anotec powder coated with a 10 year warranty. There are many powder coat colours to choice from to match your colour scheme.

Statement of Building Code Compliance

Rated to be used up to an extra high wind zone (2.13Kpa or less)

The minimum height for a fence to prevent access into a pool area is 1.2m from the finished floor level. Please refer to NZS8500:2006 for design and safety requirements to meet the building code.

This proprietary pool fence system complies with New Zealand Building Code Clauses;

 B1 - Structure and B1/VM1

 B2 - Durability

 F2 - Hazardous Building Materials

F4 – Safety from Falling (see note below)



Based on 330N point load from NZS8500:2006, maximum heights for the glass MILANO spacing’s are provided within our Technical Data Sheets.

Viridian safety glass options are;

- 10mm toughened safety glass

- 11.5mm toughened laminates safety glass



Note: This pool fence or wind break can be used to safeguard a fall of a metre or more providing the occupancy is A (other) or C3 and the posts are no further than 1650mm apart.

Documents
Pool fence or wind break - Milano commercial Europosts 1-16
Euroglass - Request for pool fence PS1 form v1
Maintenance: Euroglass Glass Aftercare
Maintenance: Euroglass Stainless Steel
Maintenance: Powder Coated Surfaces
Modern Living With Glass
Options: Euroglass Catalogue Pool Gate Hinges and Latches

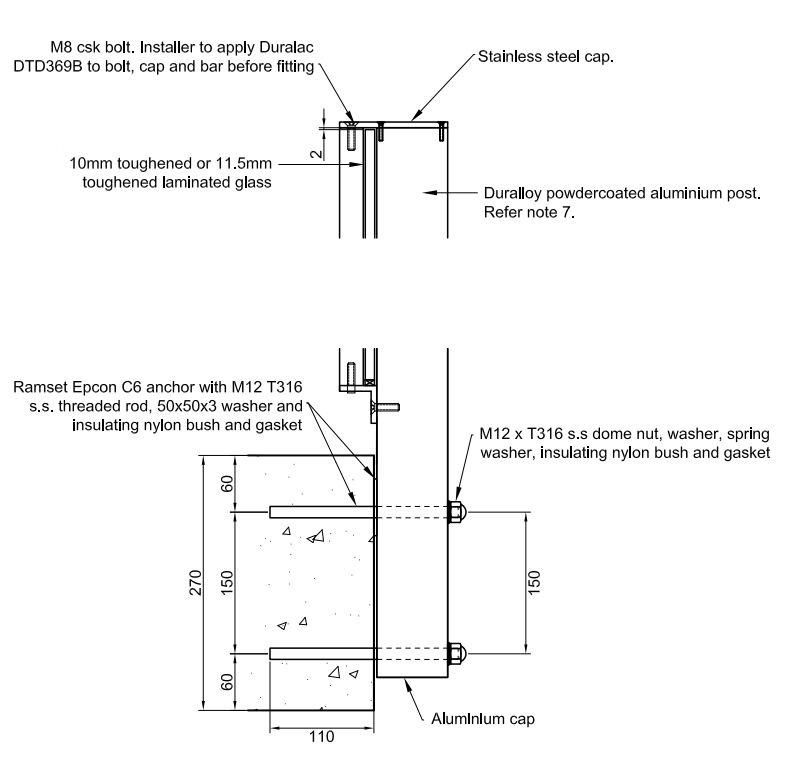

CAD/PDF Details
Pool fence - Milano Europosts for specifiers
