Lugano: Pool Fence & Wind Break
Description

Our Lugano Pool Fence system is our most popular cantilevered frameless glass pool fence.

Key Features

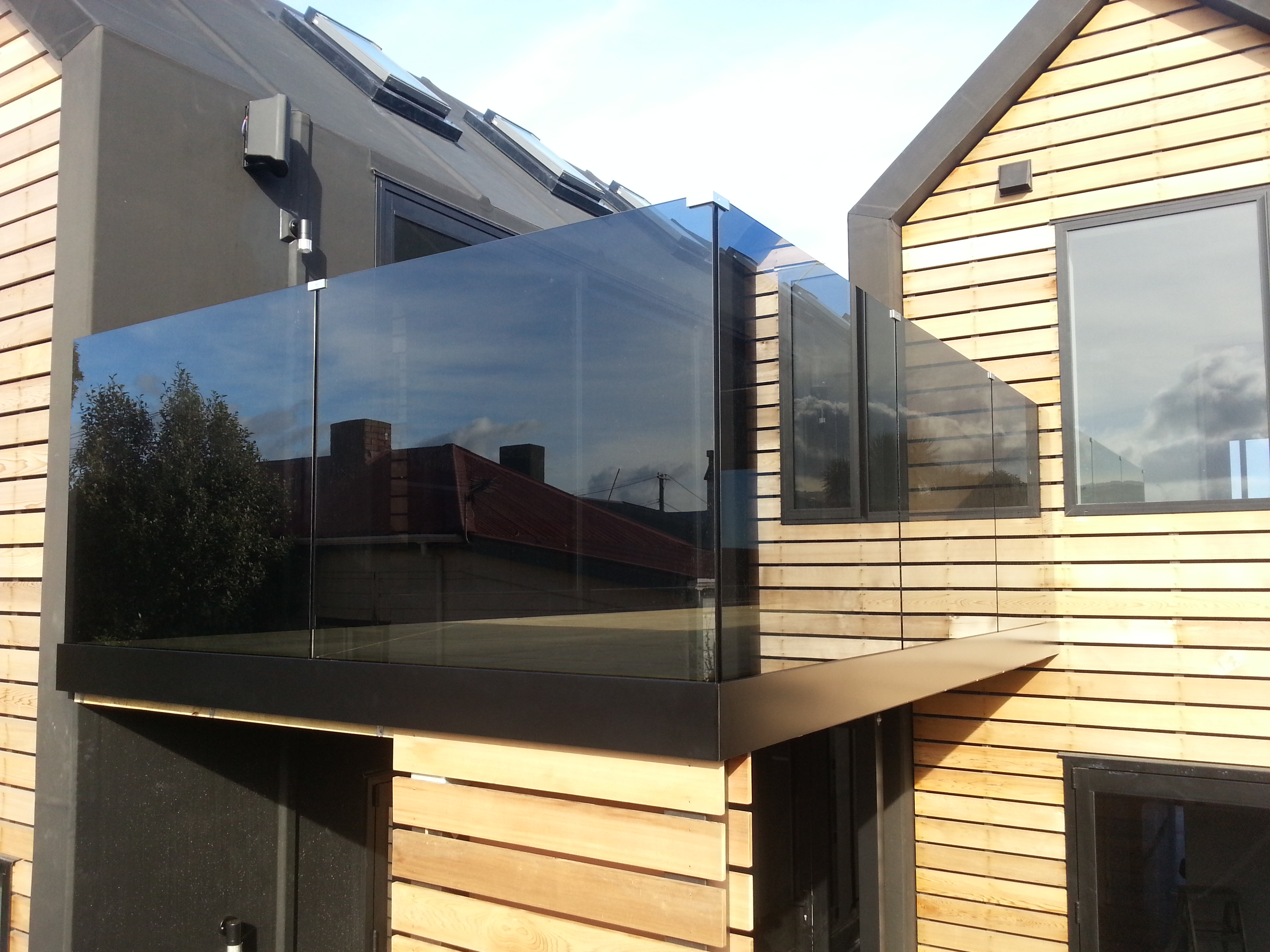

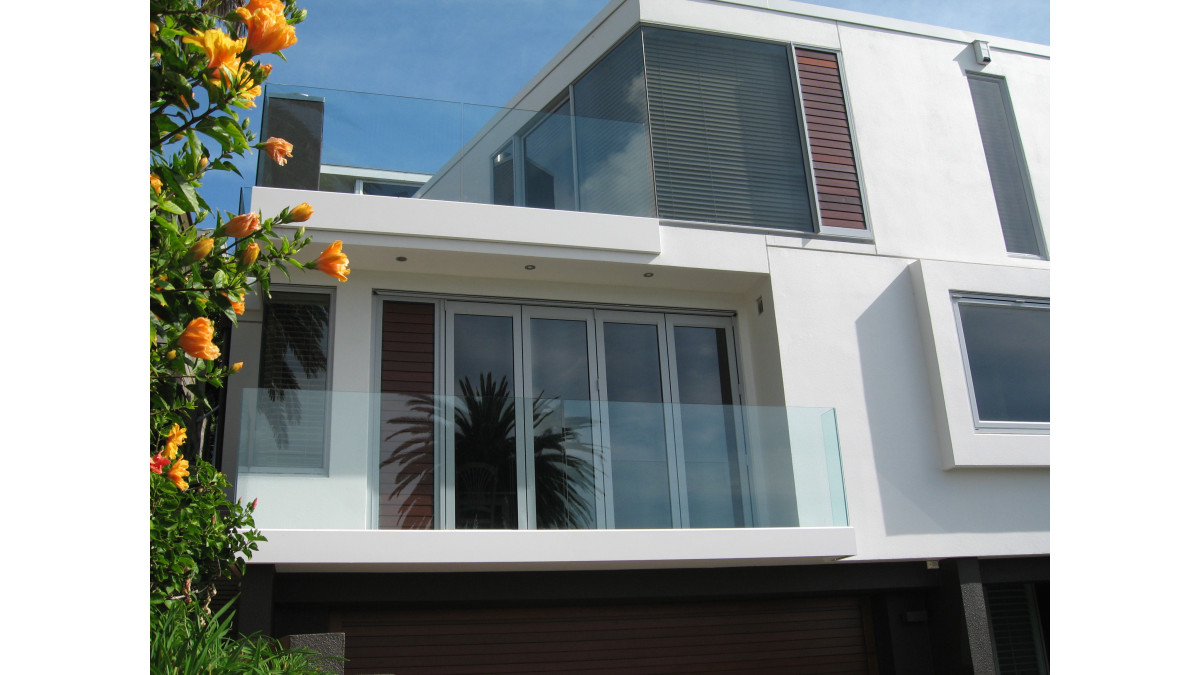

  - LUGANO is a aluminium system for fascia fixed balustrades. It reflects the trend for sleek flush surfaces, square edges and continuous sightlines.

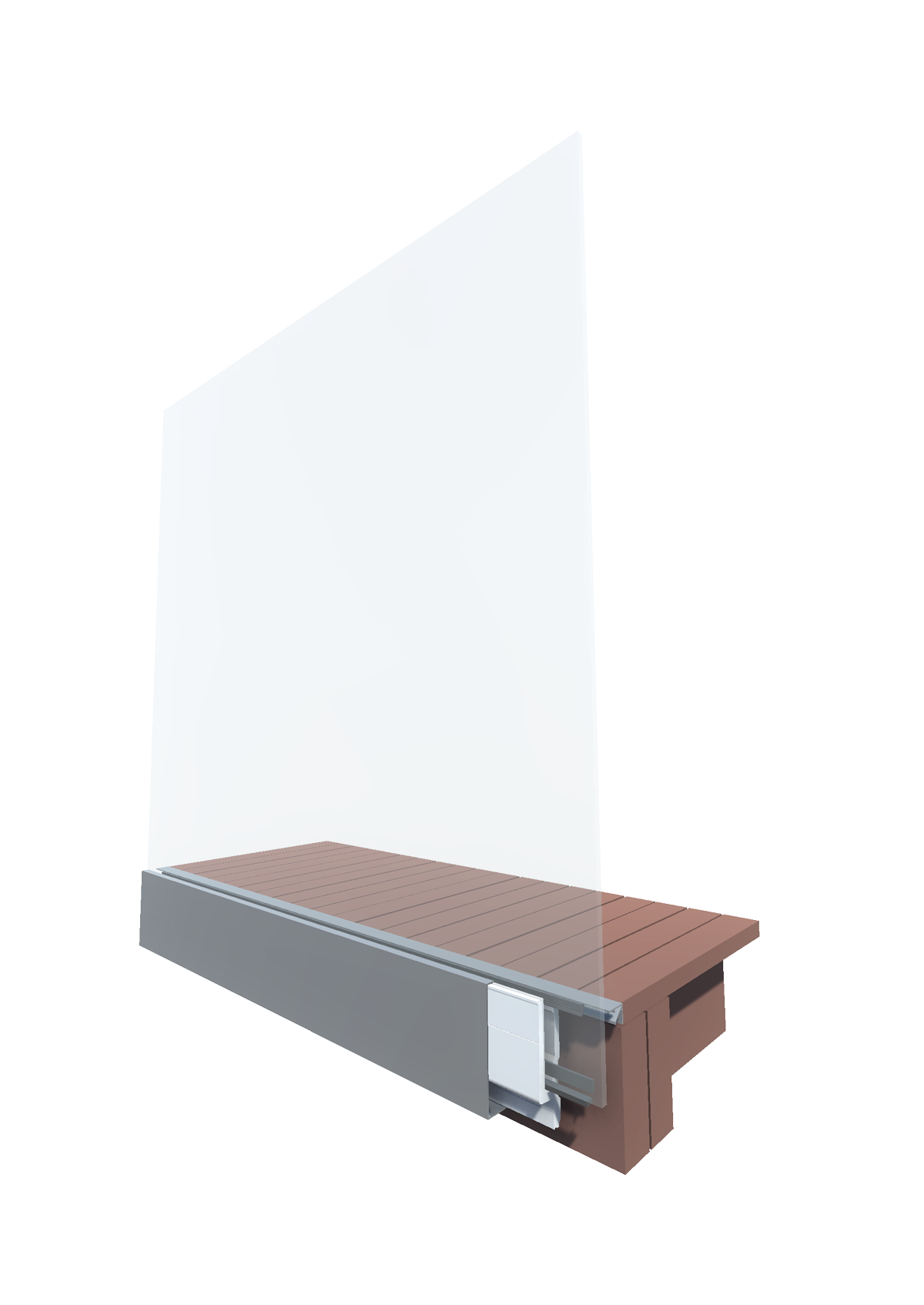

 - LUGANO creates a seamless blend. When standing on the deck all you see is glass spanning up from the edge of the deck.

 - All the fixings are concealed beneath the face plate which can be powder coated any colour to blend in with the building structure.

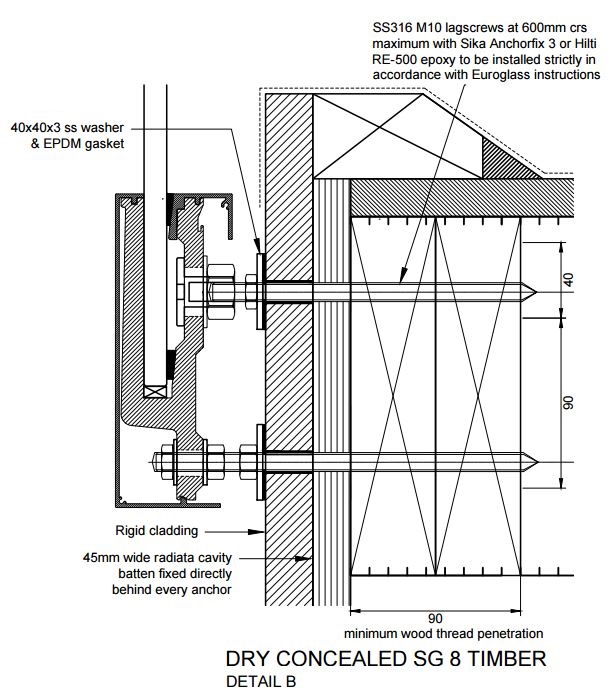

 - The LUGANO base channel is face fixed and sits 25mm off the substrate. This creates a cavity for water to run off the floor surface to egress away from the pool or spa enclosure



 - LUGANO can be attached to most standard building materials. i.e. timber, concrete, steel and weather boards.

Scope of Use

LUGANO is designed to be used as;

 - Internal and External Pool Fences

LUGANO can be attached to the following substrates;

 - Concrete

 - Timber

 - Steel

 - Weather boards



LUGANO complies with the New Zealand building code and glazing standards used in conjunction with the following Viridian Glass types and Euroglass systems;

-          Viridian's toughened safety glass

-          Viridian’s toughened laminated safety glass

-          SENTRYGLAS® incorporated with a Euroglass System offers a pure clean and clear traditional frameless barrier



LUGANO is Anotec powder coated with a 10 year warranty. There are many powder coat colours to choice from to match your colour scheme

Statement of Building Code Compliance

Rated to be used up to a very high wind zone (1.36Kpa or less)

The minimum height for a fence to prevent access into a pool area is 1.2m from the finished floor level. Please refer to NZS8500:2006 for design and safety requirements to meet the building code.

This proprietary pool fence system complies with New Zealand Building Code Clauses;

 B1 - Structure and B1/VM1

 B2 - Durability

 F2 - Hazardous Building Materials

E2 - External Moisture (must be designed and installed in accordance with our technical data sheets)



Based on 330N point load from NZS8500:2006, maximum heights for the glass above the Lugano clamp is;

Viridian safety glass options are;

- 12mm toughened safety glass

- 13.5mm toughened laminated safety glass with Euroglass gap clamps

 - 13.52mm toughened SENTRYGLAS® laminated safety glass (SENTRYGLAS® is a stiff interlayer that complies with 22.4.3 (c) of NZS4223.3:2016)



In the unlikely event of glass failure or to make allowance for the consequence of failure required by clause B1.3.4 of the Building Code B1, Viridian’s toughened SENTRYGLAS® laminated safety glass is recommended to be used.

Documents
Pool fence or wind break - Lugano 1-16
Euroglass - Request for pool fence PS1 form v1
Maintenance: Euroglass Glass Aftercare
Maintenance: Euroglass Stainless Steel
Maintenance: Powder Coated Surfaces
Modern Living With Glass
Options: Euroglass Catalogue Pool Gate Hinges and Latches
CAD/PDF Details
Pool fence - Lugano for specifers
