Anzio: Residential Balustrade (Max Height 1300mm)
Description

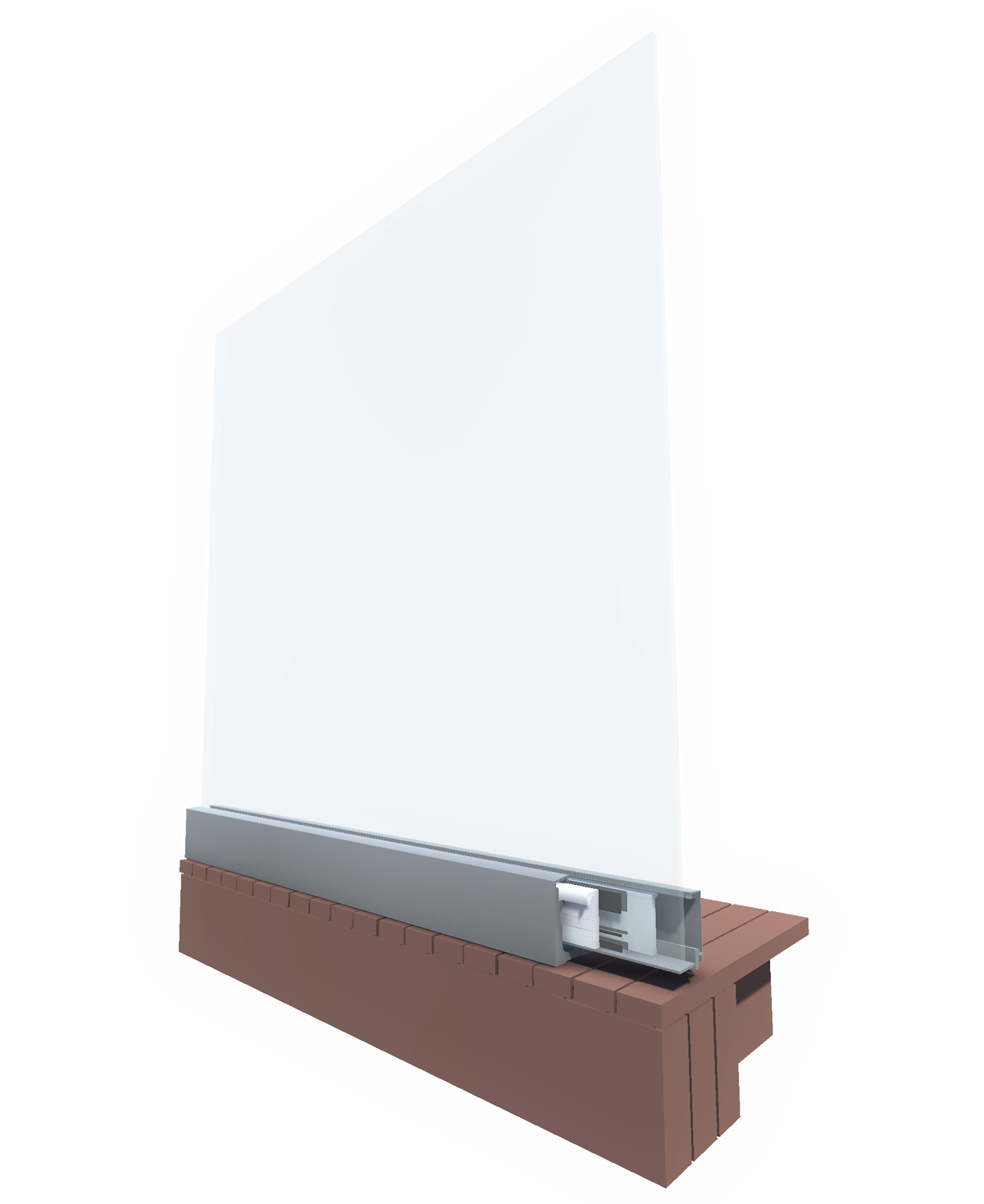

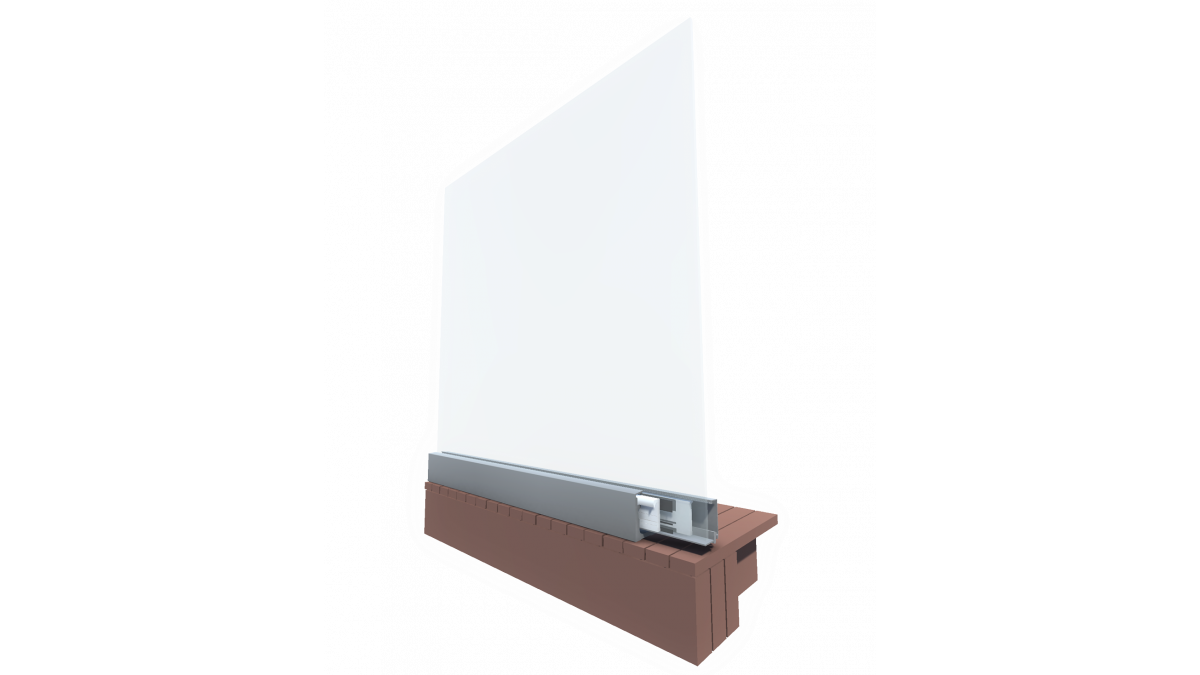

Anzio is the latest innovation on frameless glass barrier design.

Key Features
  • No need for scaffolding — Anzio is easily installed from the deck without the need for ladders or scaffolding
  • Quick to install and easy to adjust — fastest floor mounted system Euroglass have designed to date
  • Architecturally designed with square edges — the square shaped profile allows for flooring to be easily butted up against Anzio for a tidy seamless look
  • Powdercoated to suit colour scheme
Scope of Use
  • Anzio is designed to be used as:

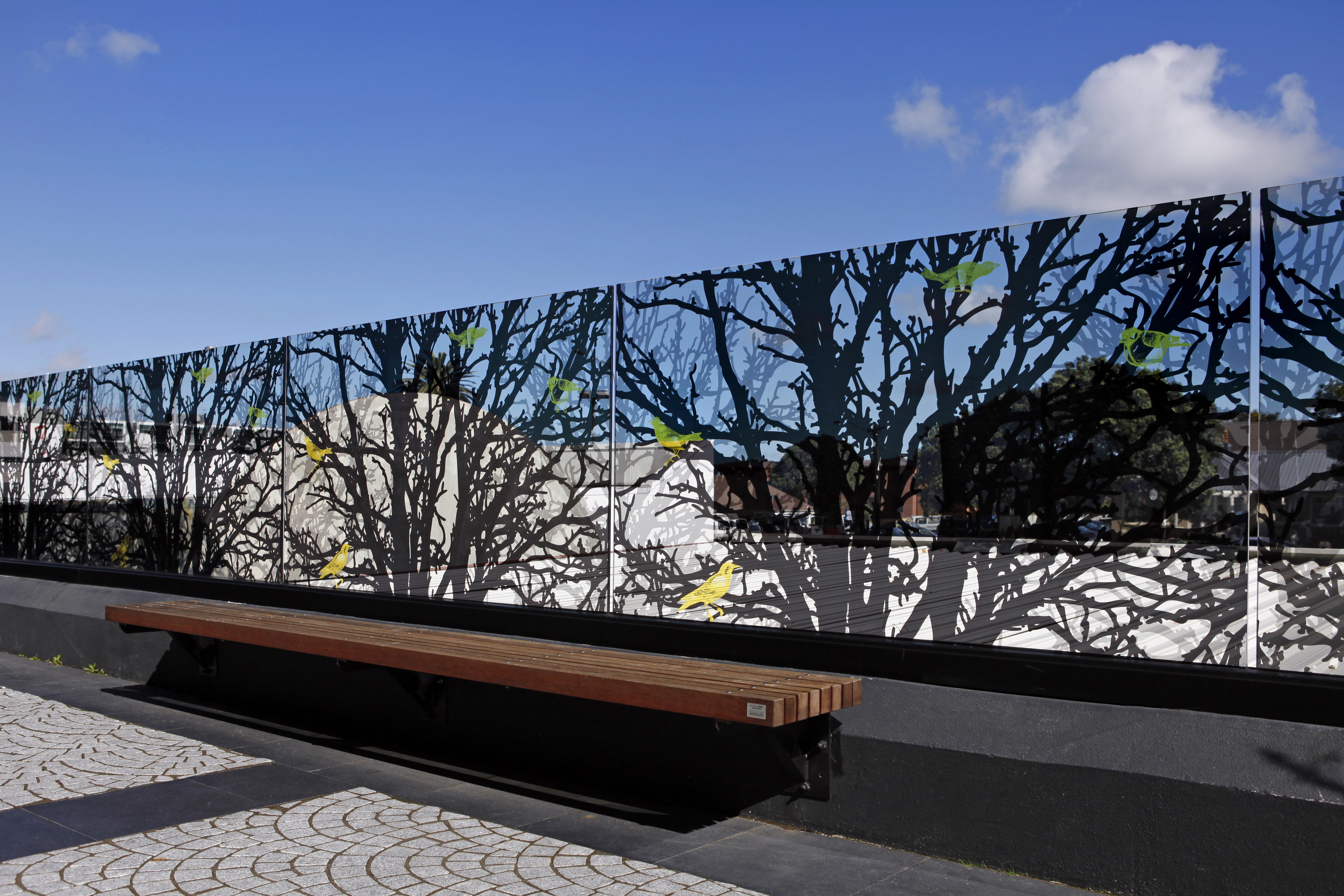

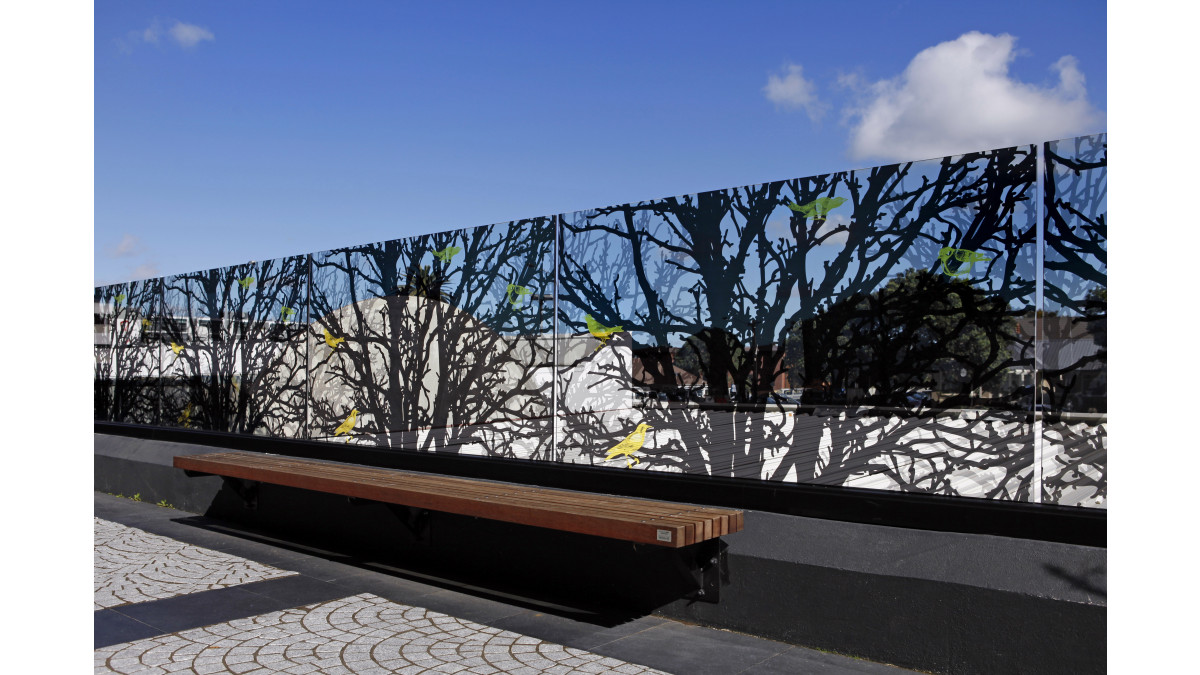

    • Balustrades for exterior decks and stairwells
    • Balustrades for interior landings, stairwells, and mezzanine floors
  • Rated to be used up to a extra high wind zone (2.13Kpa or less)

 ANZIO can be attached to the following substrates:

  • Concrete
  • Steel

Based on barrier loads taken from AS/NZS1170.0 ANZIO can be used for Residential Occupancy Types:

  • A, Domestic and residential activities — All areas within or serving exclusively one dwelling including stairs, landings etc. but excluding external balconies and edges of roofs (see C3)
  • A, Other — Domestic and residential activities,
  • Other Residential (see also C)

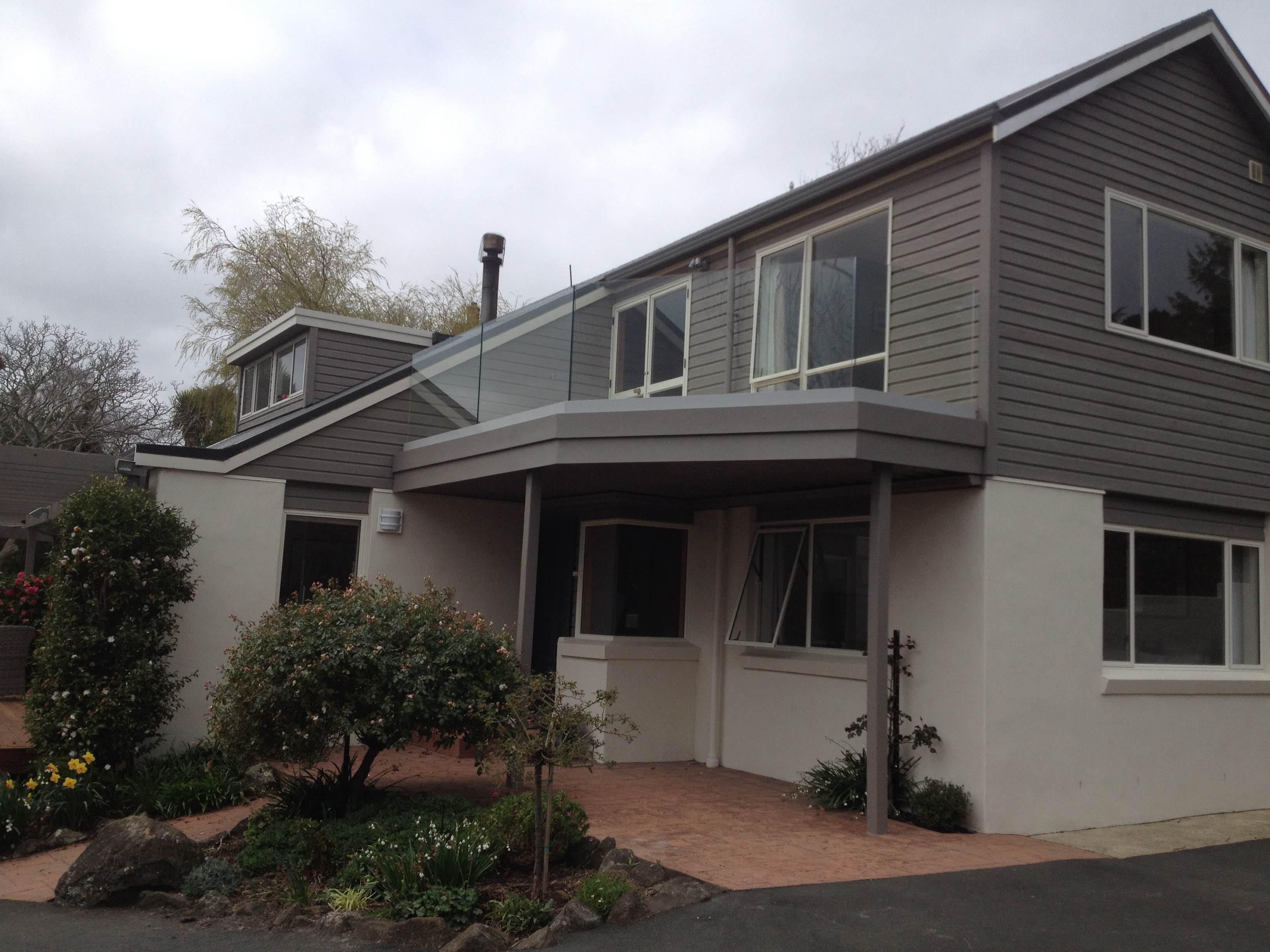

  • C3 — Areas without obstacles for moving people and not susceptible to overcrowding
  • Stairs, landings, external balconies, edges of roofs
  • Taken from table 3.3AS/NZS1170.1





Limitations on Use

 Maximum glass height from the finished floor level is 1300mm using Viridian's safety glass options according to 22.4.3 and Table 14 of NZS4223.3:2016 are;

  • 15mm toughened safety glass with interlinking rail
  • 17.2mm toughened laminated safety glass with interlinking gap clamps



Statement of Building Code Compliance

This proprietary balustrade system complies with New Zealand Building Code Clauses;

  • B1 — Structure and B1/VM1
  • B2 — Durability
  • F2 — Hazardous Building Materials
  • F4 — Safety from Falling
  • D1 — Access routes (complies with the use of a handrail in accordance with NZBC D1/AS1)

Anzio complies with the New Zealand Building Code and glazing standards used in conjunction with the following Viridian Glass types and Euroglass systems;

  • Safe: Viridian's toughened safety glass and Euroglass interlinking rail system. Euroglass offers three interlinking rail systems:
    • Squareline
    • Roundline
    • Archline
  • Safer: Viridian's toughened EVA laminated safety glass and Euroglass gap clamps
  • 17.52mm toughened SENTRYGLAS laminated safety glass  (SENTRYGLAS is a stiff interlayer that complies with 22.4.3 (c) of NZS4223.3:2016)





Other Performance Attributes
  • ANZIO is Anotec powder coated with a 10 year warranty
Documents
Balustrade - Anzio residential balustrade A and C3 12-5-17
Occupancy Table AS/NZS 1170
Selection of Side Mounted Interlinking Rails to NZS 4223.3

2016 version 7

Selection of Top-Capped Interlinking Rails to NZS 4223.3

2016 version 3

Euroglass - Request for balustrade PS1 v6
Maintenance: Euroglass Glass Aftercare
Maintenance: Euroglass Stainless Steel
Maintenance: Powder Coated Surfaces
Euroglass Handrail Range 2017
Modern Living With Glass
Hardware

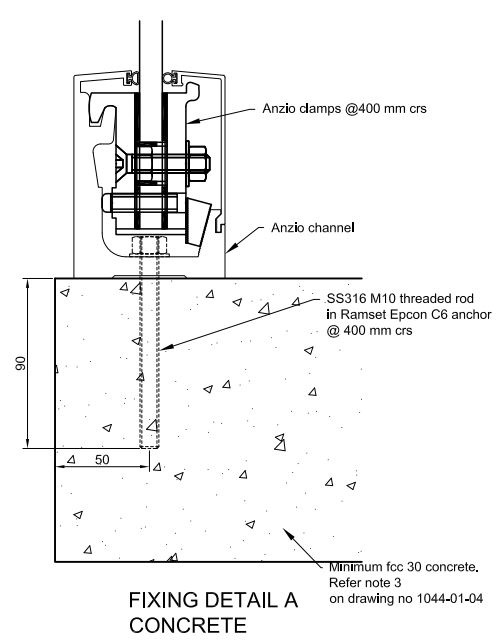

CAD/PDF Details
Anzio for specifier
