Anzio: Pool Fence & Wind Break
Description

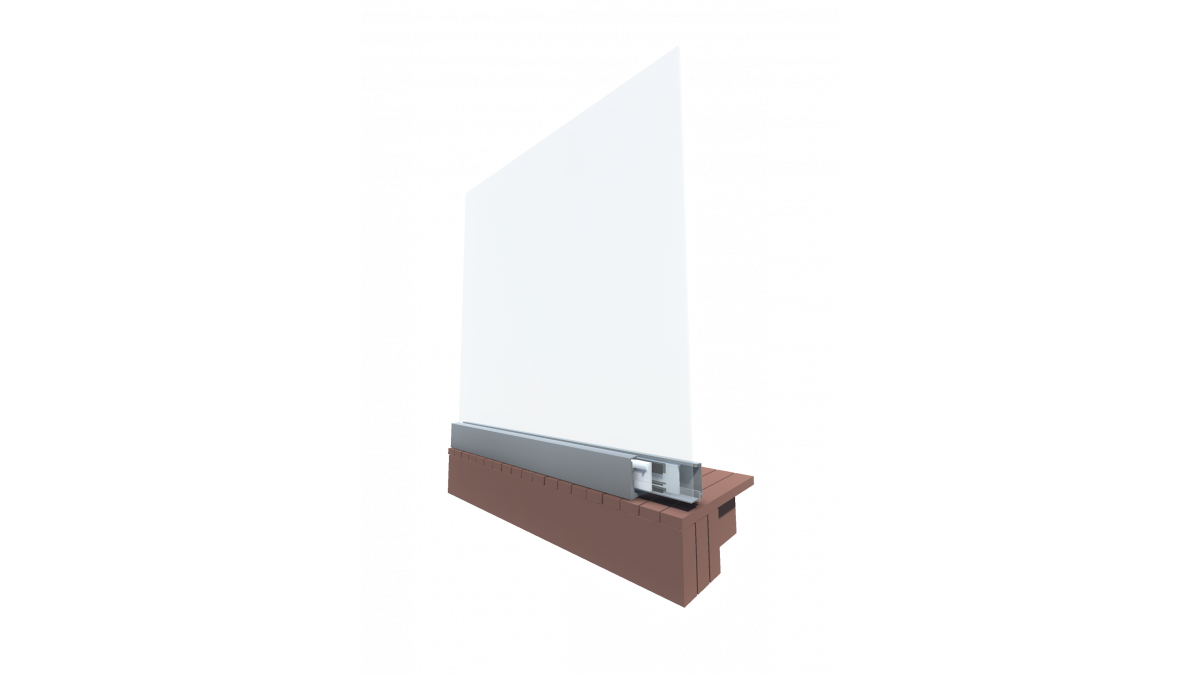

Anzio is the latest innovation on frameless glass pool fence design. Anzio is a floor mounted cantilevered frameless glass pool fence system.

Key Features
  • No need for scaffolding — Anzio is easily installed from the deck without the need for ladders or scaffolding
  • Quick to install and easy to adjust — fastest floor mounted system Euroglass have designed to date
  • Architecturally designed with square edges — the square shaped profile allows for flooring to be easily butted up against ANZIO for a tidy,seamless look
  • Powdercoated to suit colour scheme
Scope of Use
  • Anzio is designed to be used as interior and exterior pool fencing
  • Rated to be used up to a Very High Wind Zone (1.76Kpa or less)

Anzio can be attached to the following substrates:

  • Concrete
  • Timber
  • Steel



Limitations on Use

The minimum height for a fence to prevent access into a pool area is 1.2m from the finished floor level. Please refer to NZS8500:2006 for design and safety requirements to meet the Building Code.

Based on 330N point load from NZS8500:2006; Maximum height for the glass of an Anzio Pool Fence is provided within Euroglass' Technical Data Sheets.

In the unlikely event of glass failure or to make allowance for the consequence of failure required by clause B1.3.4 of the Building Code B1, Viridian’s toughened SENTRYGLAS laminated safety glass is recommended to be used.

Statement of Building Code Compliance

This proprietary pool fence system complies with New Zealand Building Code Clauses;

  •  B1 — Structure and B1/VM1
  •  B2 — Durability
  •  F2 — Hazardous Building Materials

Anzio complies with the New Zealand building code and glazing standards used in conjunction with the following Viridian Glass types and Euroglass systems;

  • Viridian's toughened safety glass
  • SENTRYGLAS incorporated with a Euroglass System offers a pure clean and clear traditional frameless barrier

In the unlikely event of glass failure or to make allowance for the consequence of failure required by clause B1.3.4 of the Building Code B1, Viridian’s toughened SENTRYGLAS laminated safety glass is recommended to be used.

Other Performance Attributes
  • ANZIO is Anotec powdercoated with a 10 year warranty

 Viridian safety glass options are:

  • 12mm or 15mm toughened safety glass
  • 13.52mm or 17.52mm toughened SENTRYGLAS laminated safety glass (SENTRYGLAS is a stiff interlayer that complies with 22.4.3 (c) of NZS4223.3:2016)
Documents
Pool fence or wind break - Anzio 14-9-16
Euroglass - Request for pool fence PS1 form v1
Maintenance: Euroglass Glass Aftercare
Maintenance: Euroglass Stainless Steel
Maintenance: Powder Coated Surfaces
Modern Living With Glass
Options: Euroglass Catalogue Pool Gate Hinges and Latches

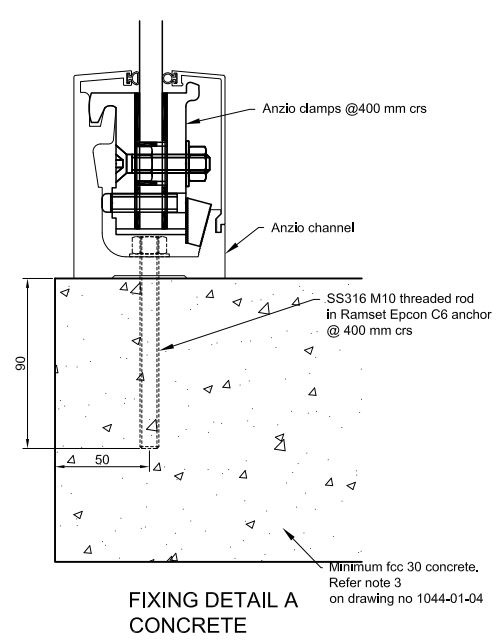

CAD/PDF Details
Anzio for specifier
