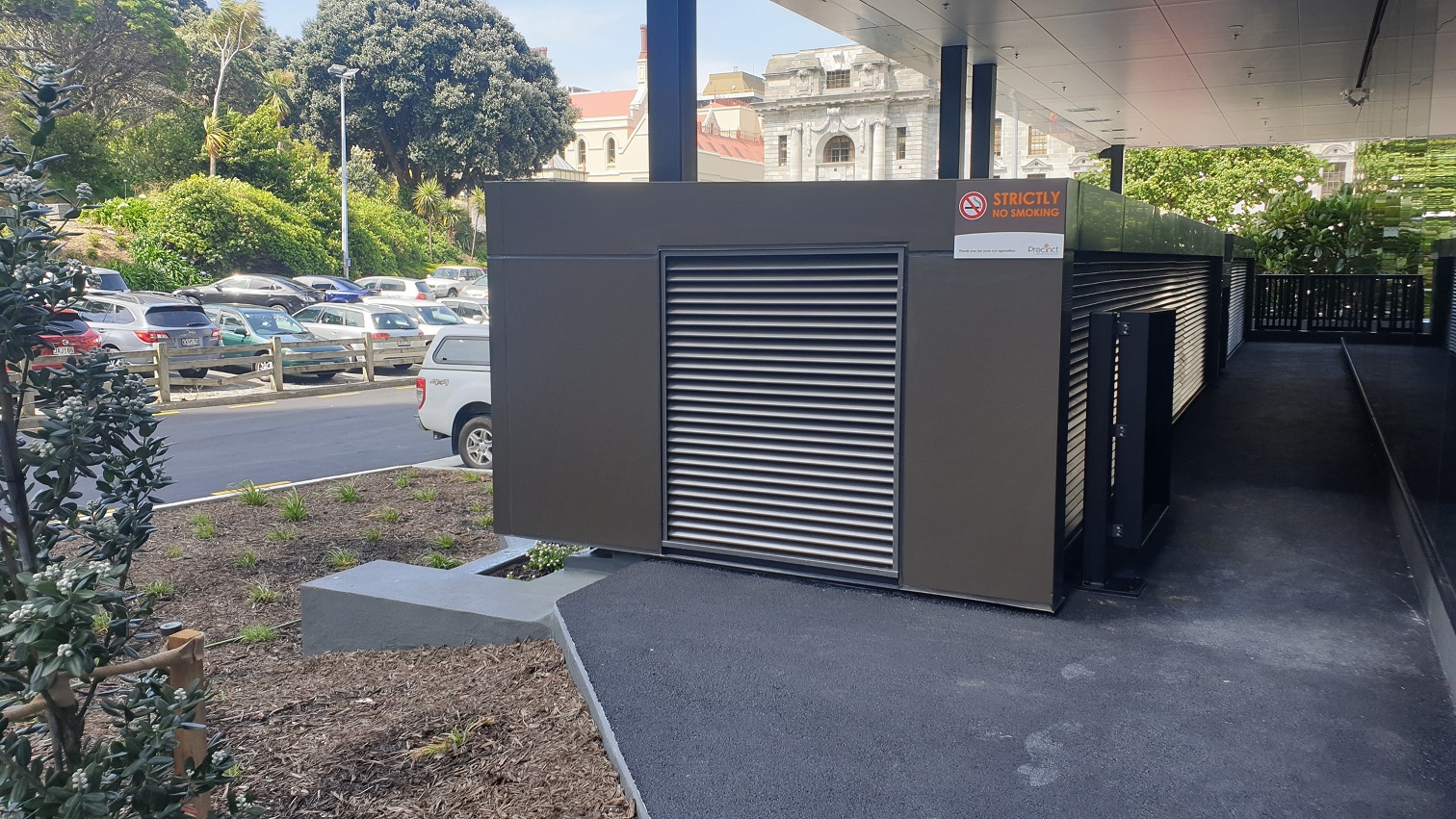

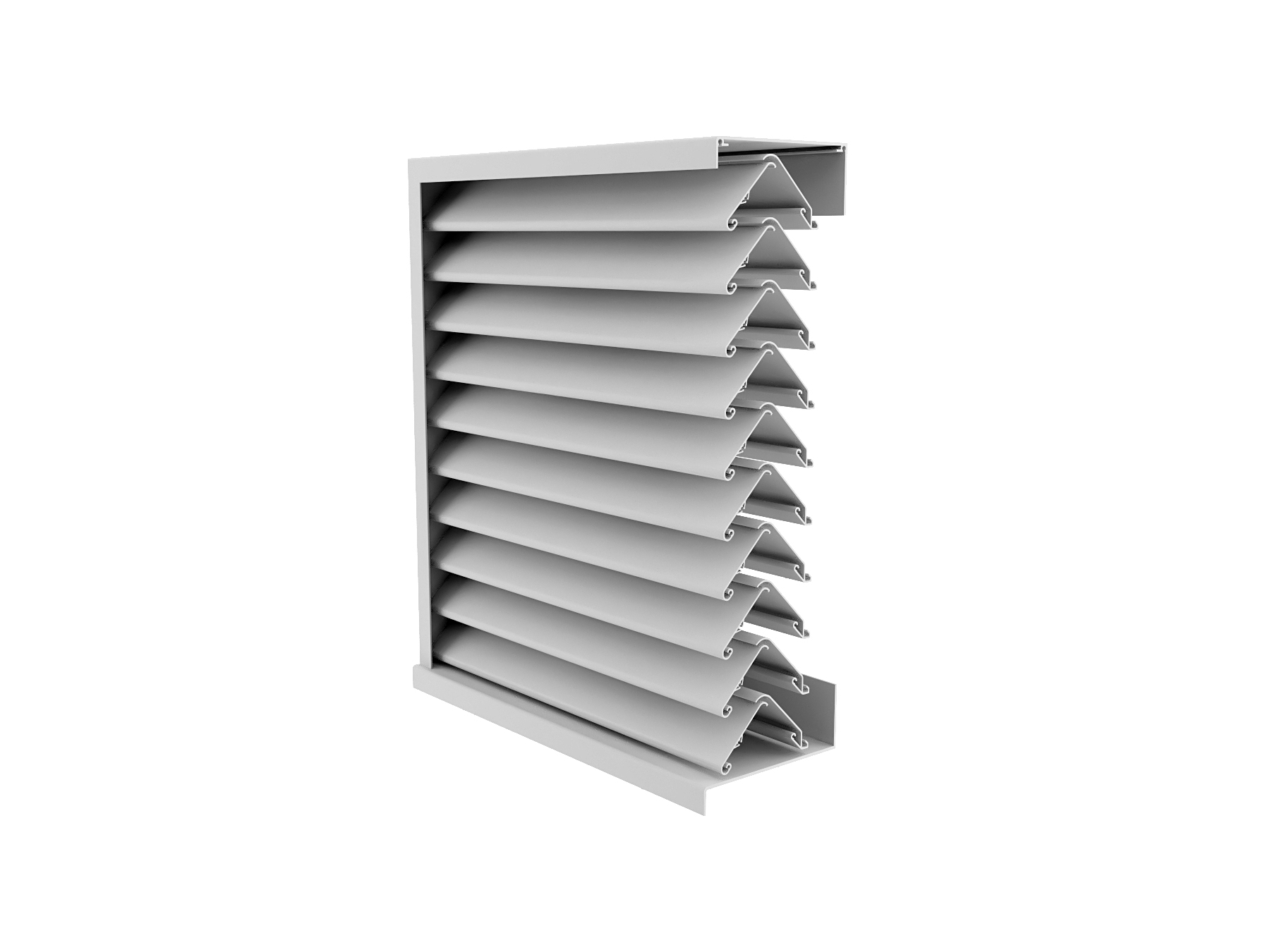

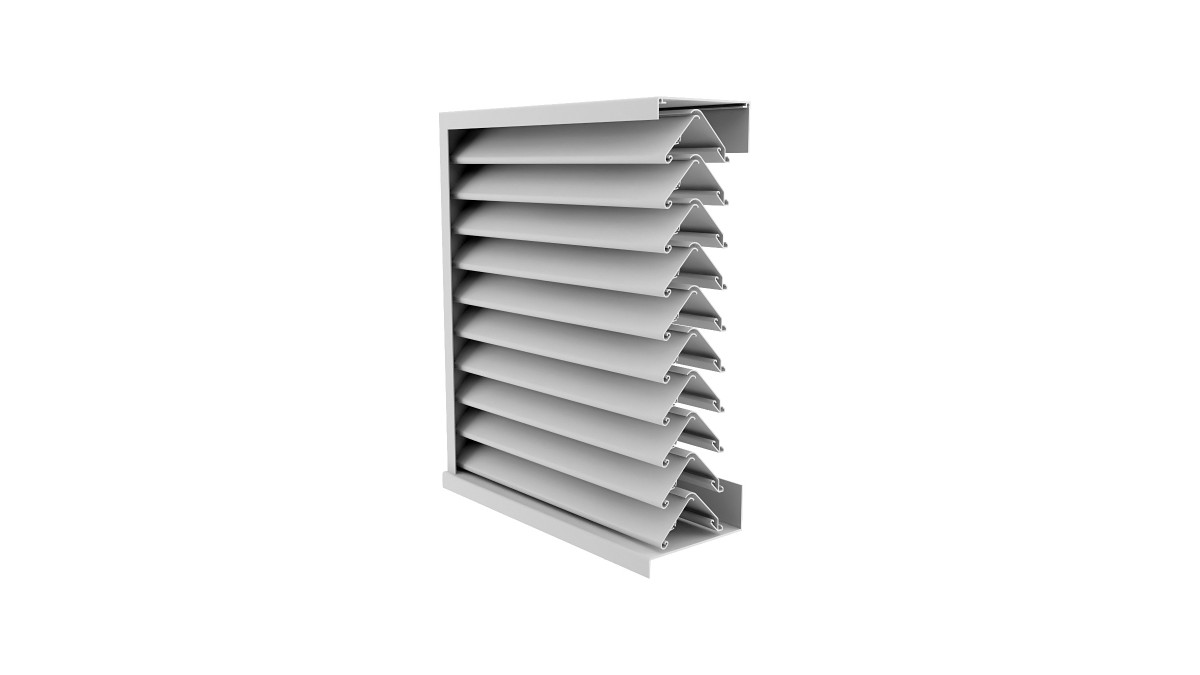

• Best in its class, the Ventüer VL-2SD is a high performing two-stage weather louvre that provides optimum rain defence
• High resistance to wind driven rain, suitable for high wind zones and exposed locations
• Self-draining via rear blade profiles and concealed mullions, suitable for tall louvre panels
• No size limitations. Panels can be modulised and assembled on site to and dimension, with the clip-fixed front blade profile providing a continuous appearance
• The extruded aluminium louvre blades are supported on a two-piece pressure equalised mullion system, and bordered by a 150mm frame that ejects captured water to the front of the panel
• Like the VL-3SD triple bank system, it can be combined with the VL-50CM louvre system to provide cost savings in inactive (blanked off) areas, and can also be fitted with bird mesh, insect mesh or dust filters
• Available in a wide range of standard powdercoat colours, the VL-2SD is manufactured to order and can be fabricated in a wide range of sizes
• Independently tested and certified to BS/EN:13030

Due to its relatively high pressure loss, the VL-2SD should be used with care when mechanical plant is operating near the limit of its design capacity. If a lower pressure loss is required and a moderate level of water ingress is acceptable, consider using the VL-104D louvre system instead.

Installation Requirements

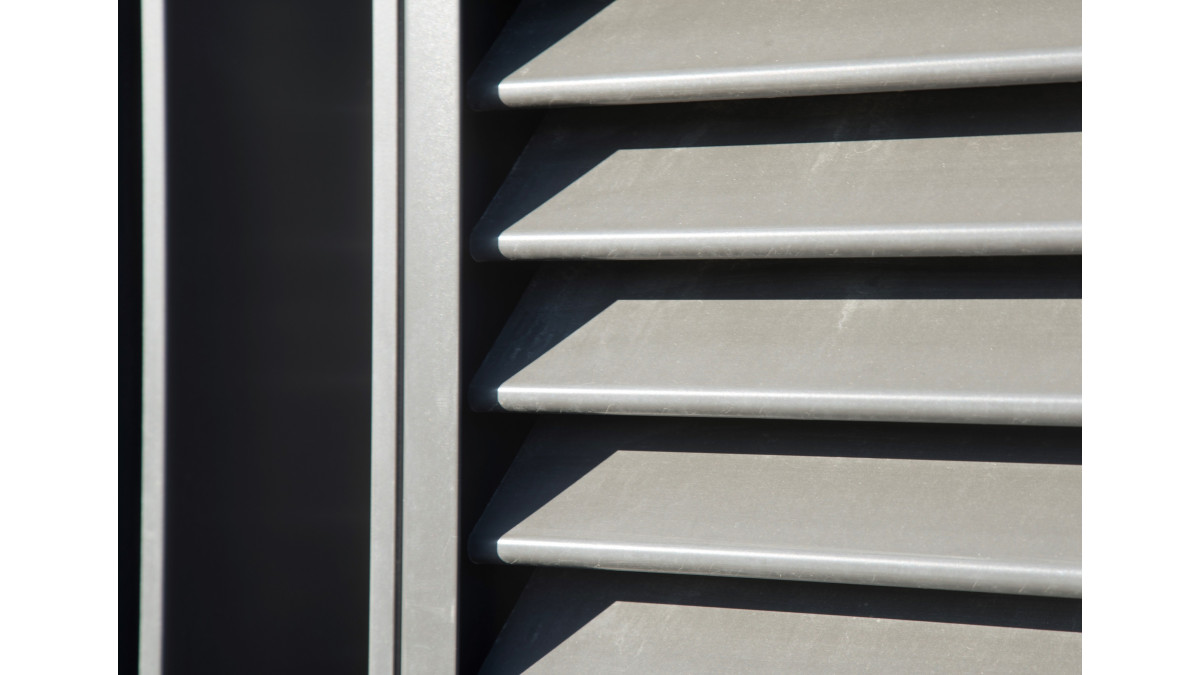

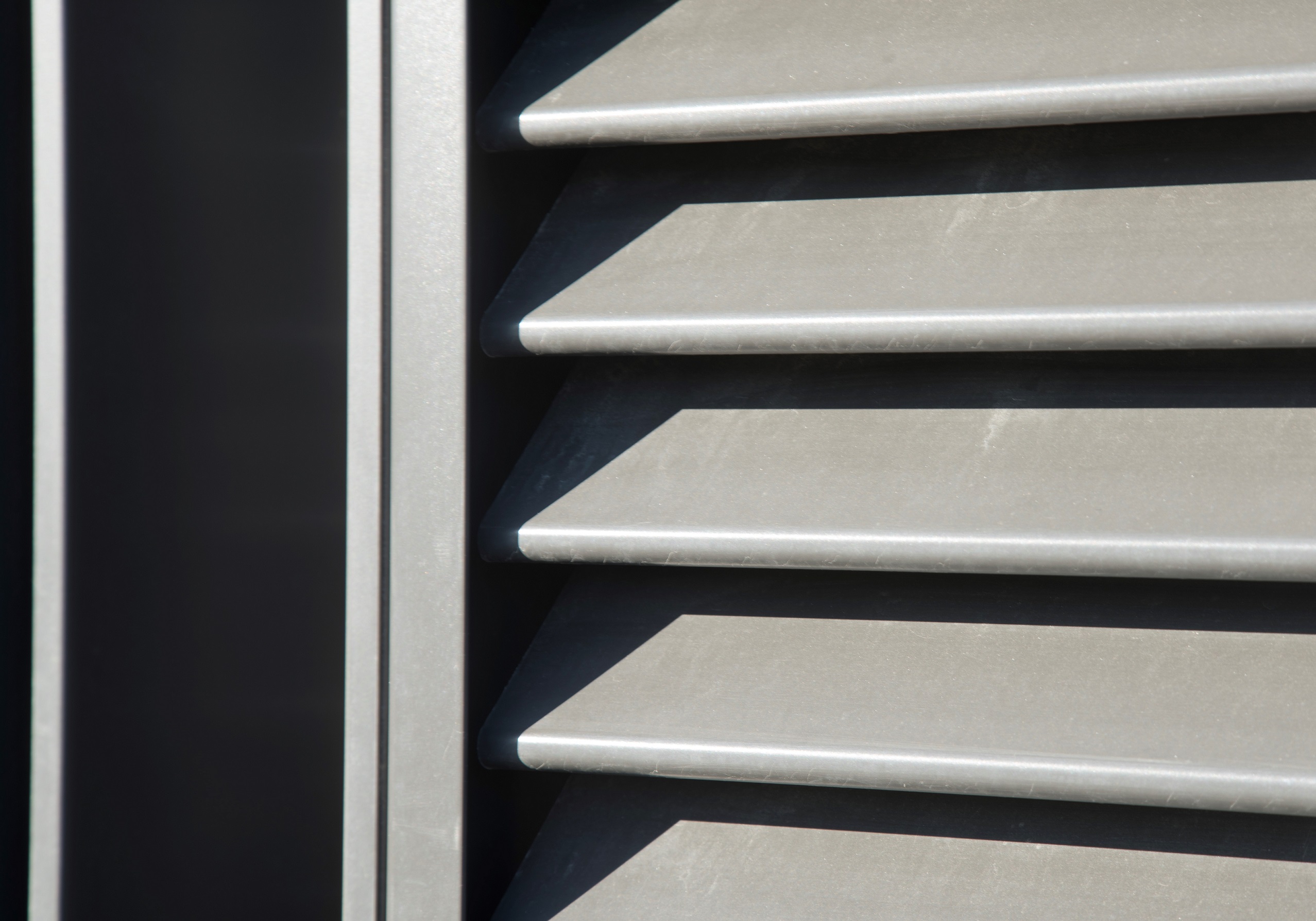

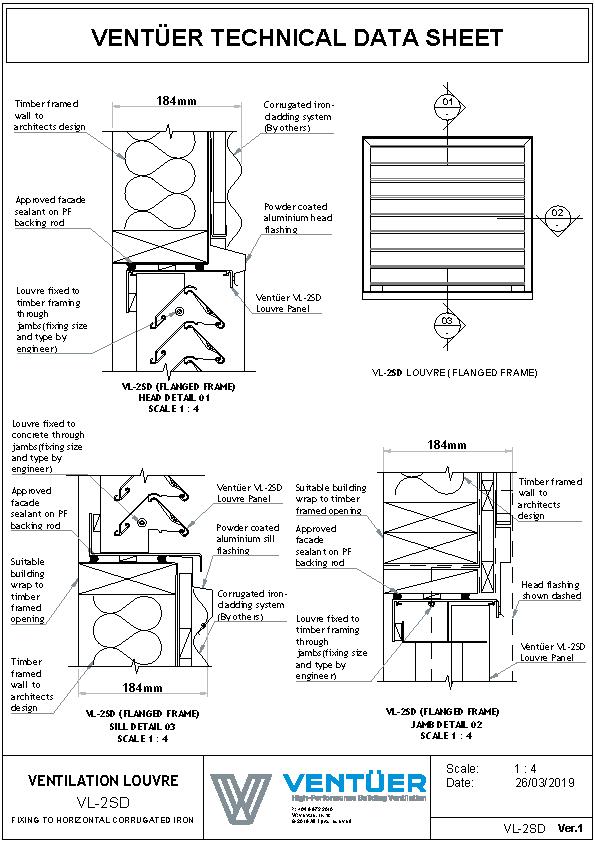

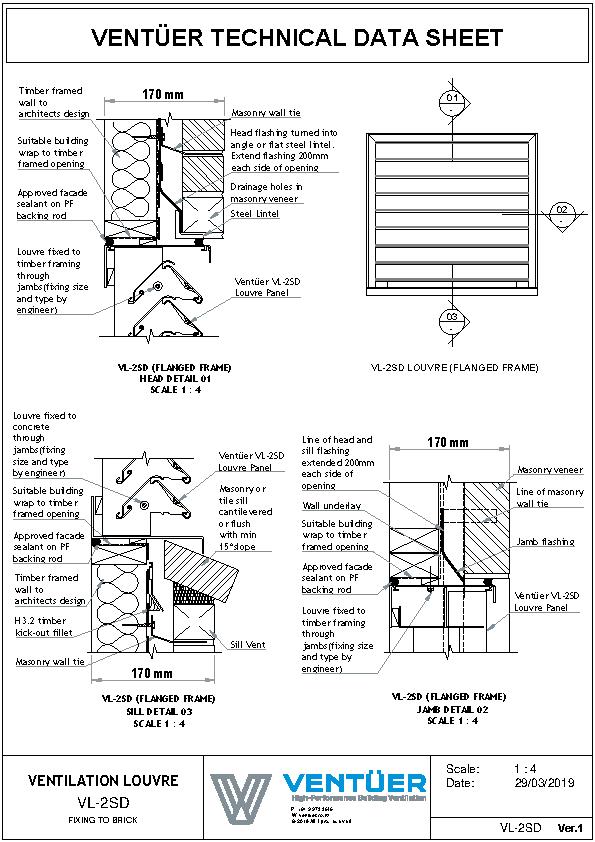

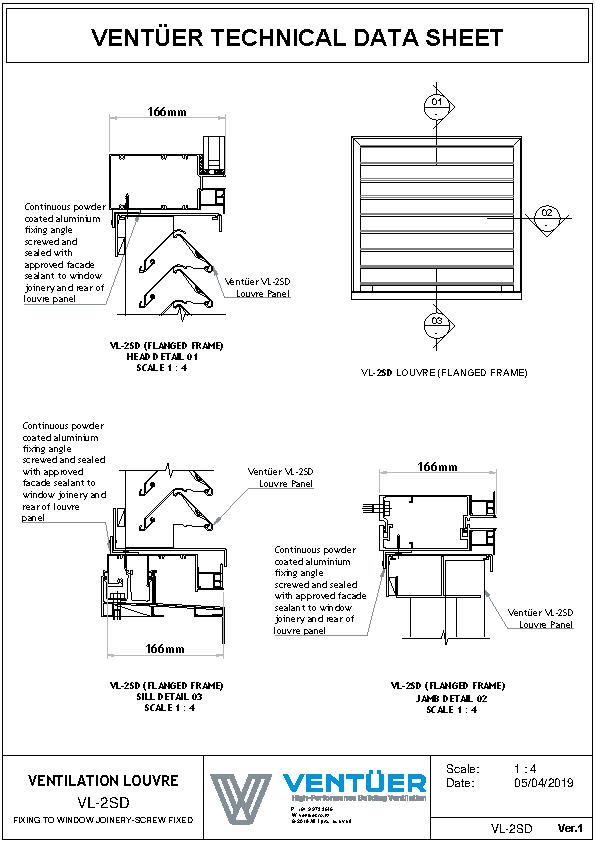

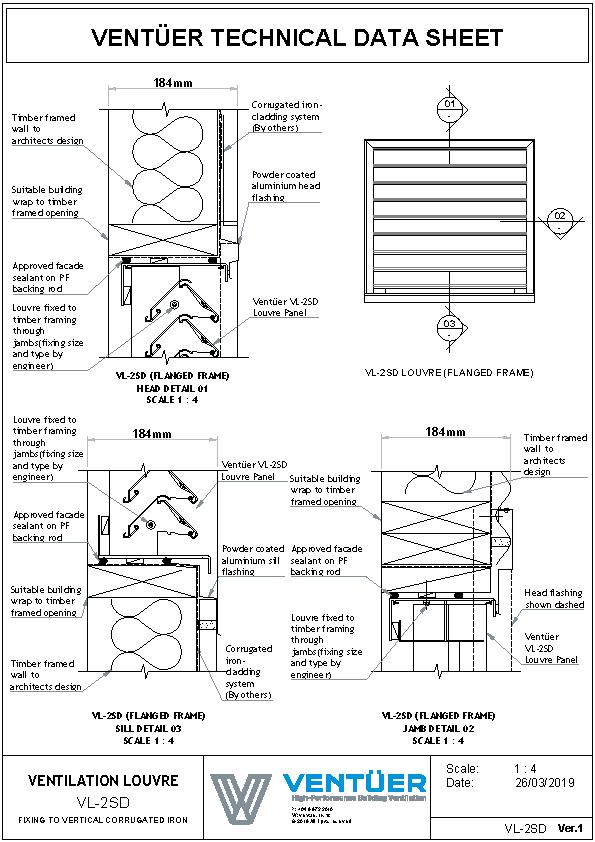

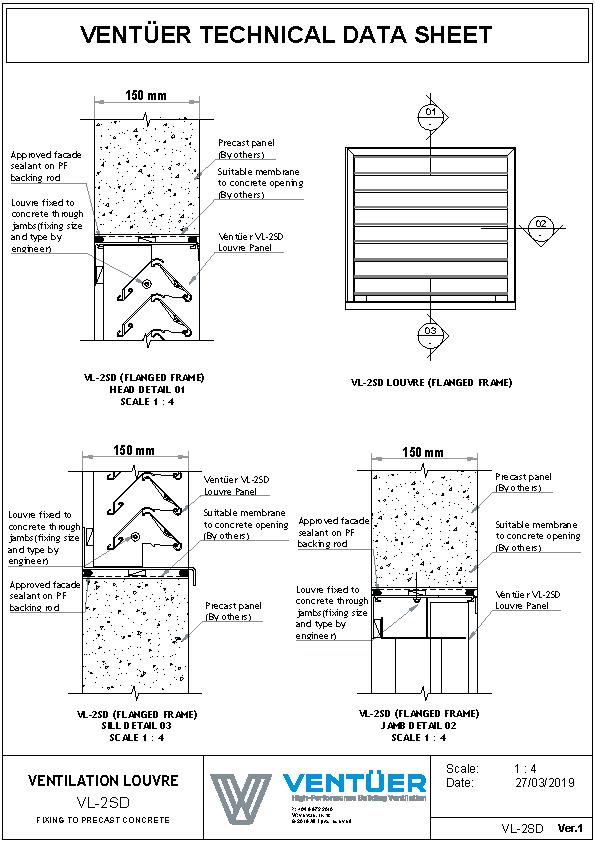

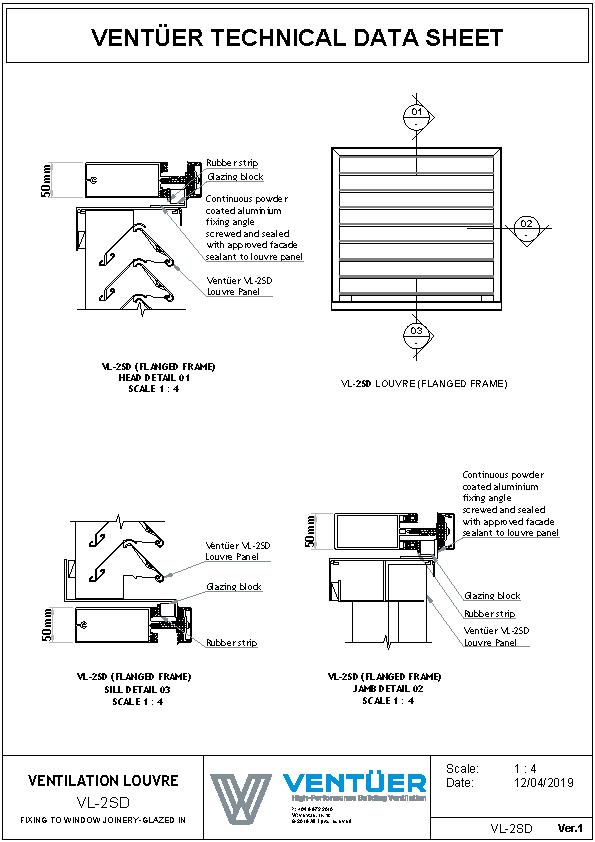

Installation requirements for the VL-2SD louvre system vary dependent on the site wind loads, louvre panel sizes, cladding type and primary structure detailing. Ventüer provides full shop drawings for all installations which show sequencing, fixing type and sizing, flashing requirements and sealant details. Installers should make themselves fully conversant with these shop drawings prior to installation commencing.

• When sized correctly, the VL-2SD louvre system complies with the requirements for natural ventilation of buildings under the New Zealand Building Code clause G4
• When installed in accordance with Ventüer technical literature, shop drawings and site-specific engineering the VL-2SD louvre system complies with the requirements for structure under the New Zealand Building Code clause B1
• When installed in accordance with Ventüer technical literature and shop drawings the VL-2SD louvre system complies with the requirements around external moisture as outline in New Zealand Building Code clause E2

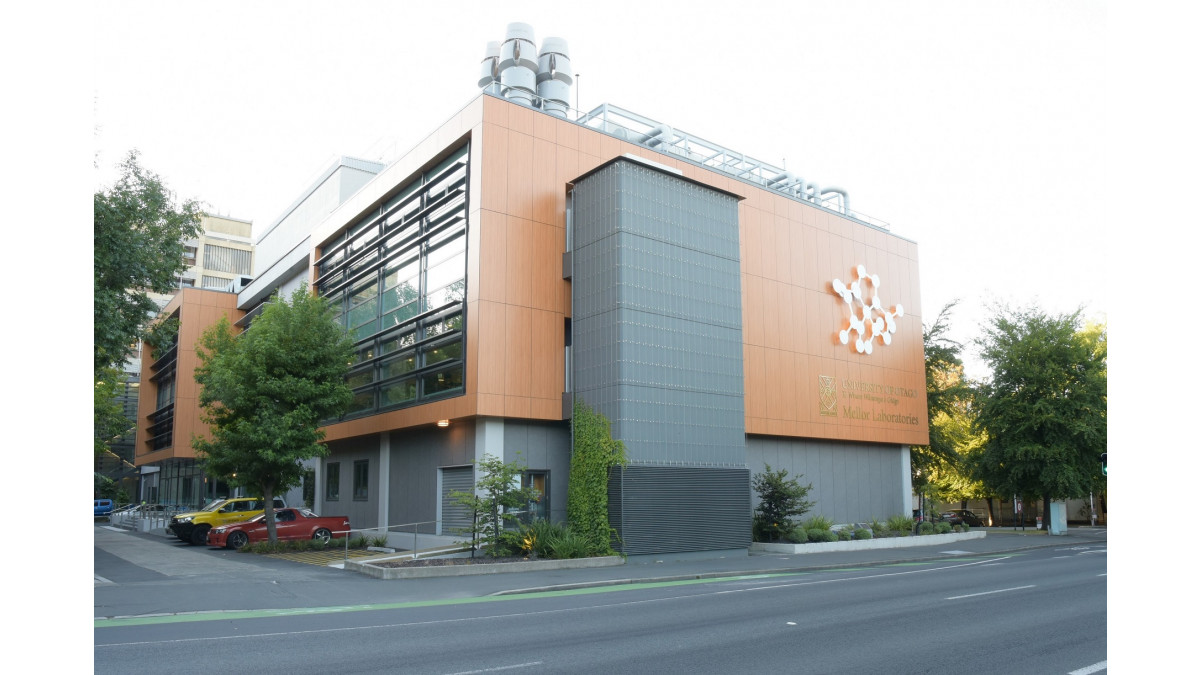

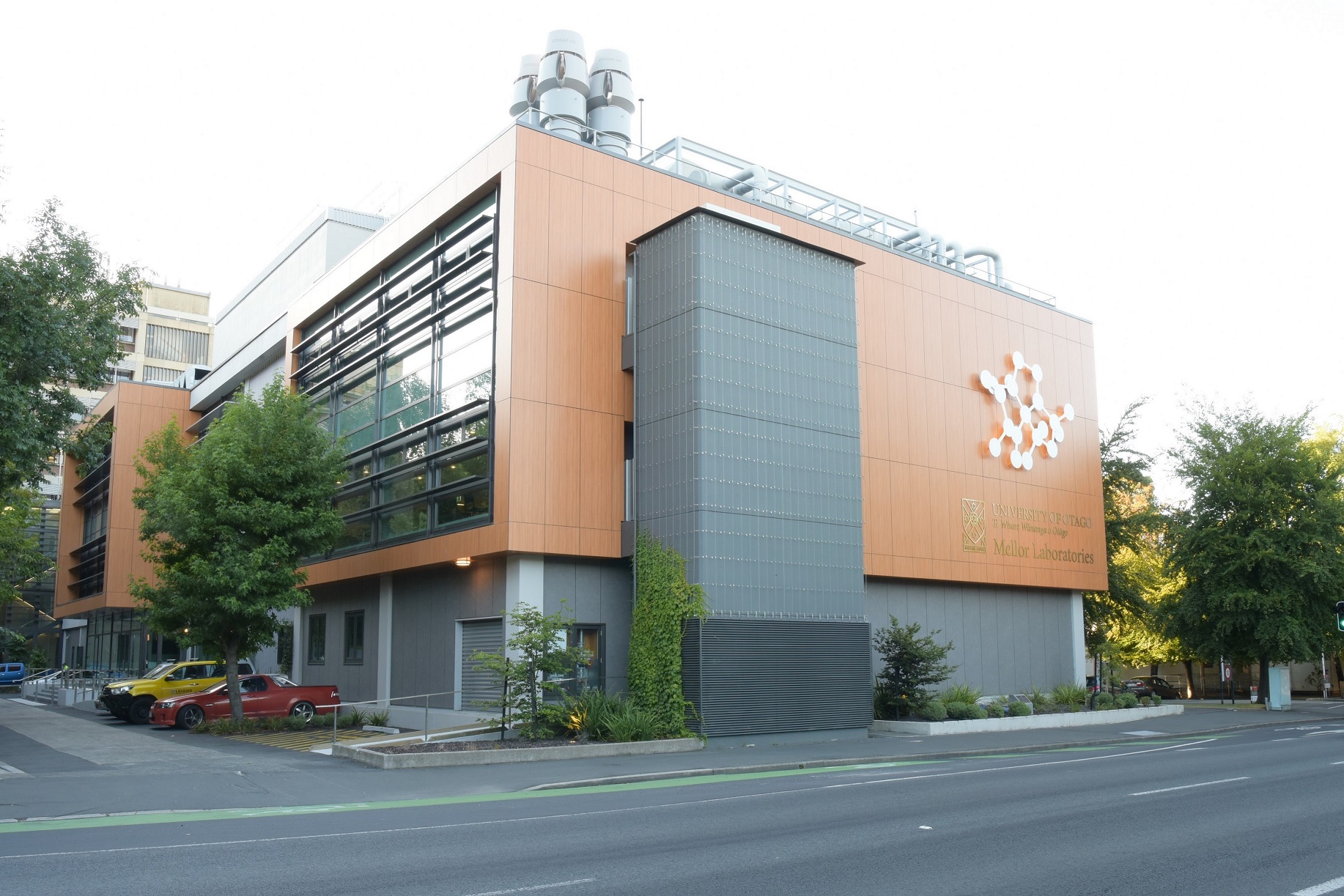

The VL-2SD louvre system was developed in New Zealand in 2013. Since that time it has been used extensively on a wide range of projects including hospitals, apartments, commercial office towers and events centres throughout New Zealand. Refer to the Ventüer website for detailed case studies.

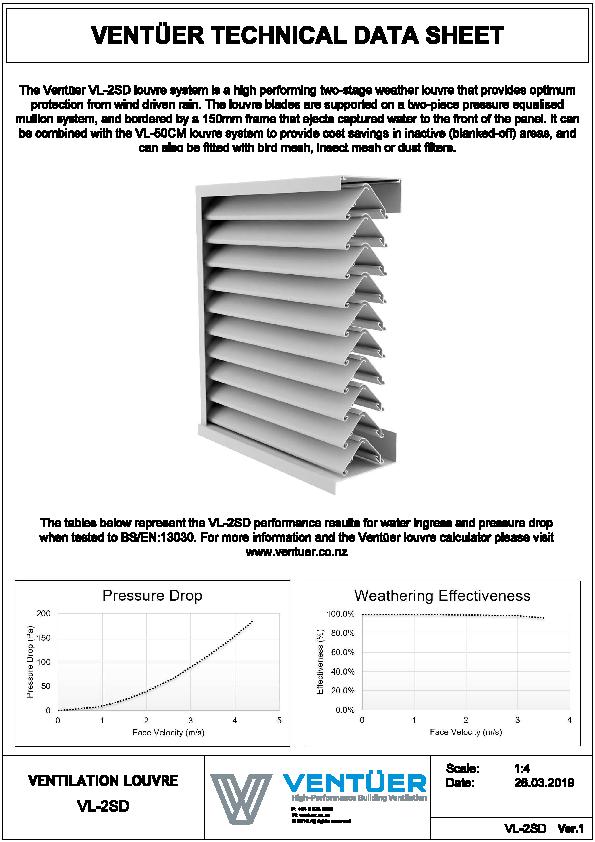

• Performance tested for weather resistance and airflow performance to BS/EN:13030, the VL-2SD is classified as follows:
• Aerodynamic Coefficients:
  • Air Inlet: 0.247, Class 3
  • Air Extract: 0.260, Class 3
• Rainwater Penetration:
  • Class A - up to 1.5m/s suction velocity
  • Class B - up to 3.5m/s suction velocity

Engineered to withstand site-specific structural, seismic and wind loads in accordance with NZS:1170

Fixings, flashings and sealant details are designed to comply with NZ Building Code Clause E2

Warranty and Maintenance

Warranty information and maintenance requirements to comply with B2 can be found in the Ventüer Aluminium Ventilation Louvre Operation & Maintenance Manual.

Environmental Information

All Ventüer ventilation louvre systems are fabricated from aluminium which is extruded locally here in New Zealand. The majority of this aluminium is "green aluminium", meaning that the electricity for smelting is supplied from renewable energy sources (such as is the case with Tiwai Point, which relies on hydro-power).

Any waste generated during manufacture is fully recycled, as can be any louvres at the end of their useful life.
All powdercoating of louvre components is carried out by certified applicators and the use of chromate treatment processes is strictly avoided.

Effective use of passive ventilation devices such as louvre systems can significantly reduce the energy consumption of a building, reducing both its carbon footprint and whole of life cost.
