Applicable to residential projects including:

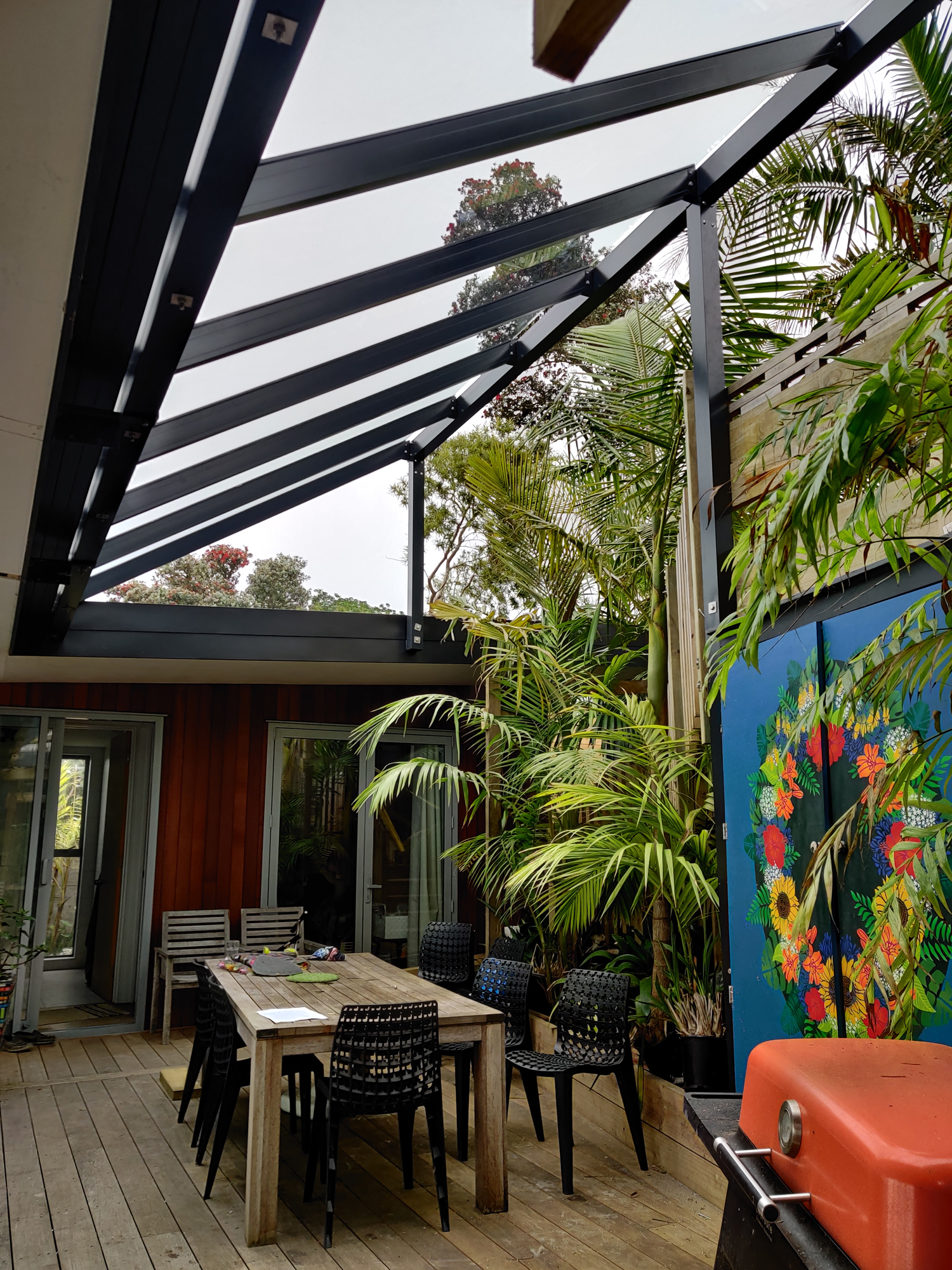

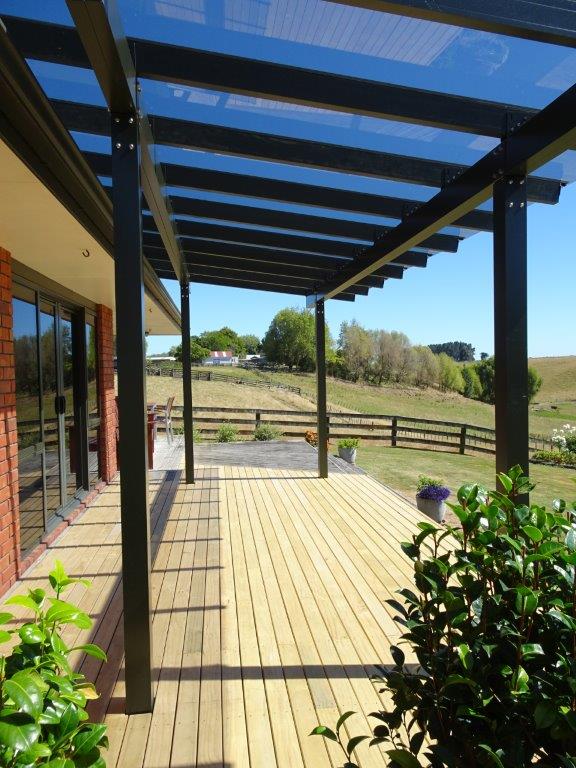

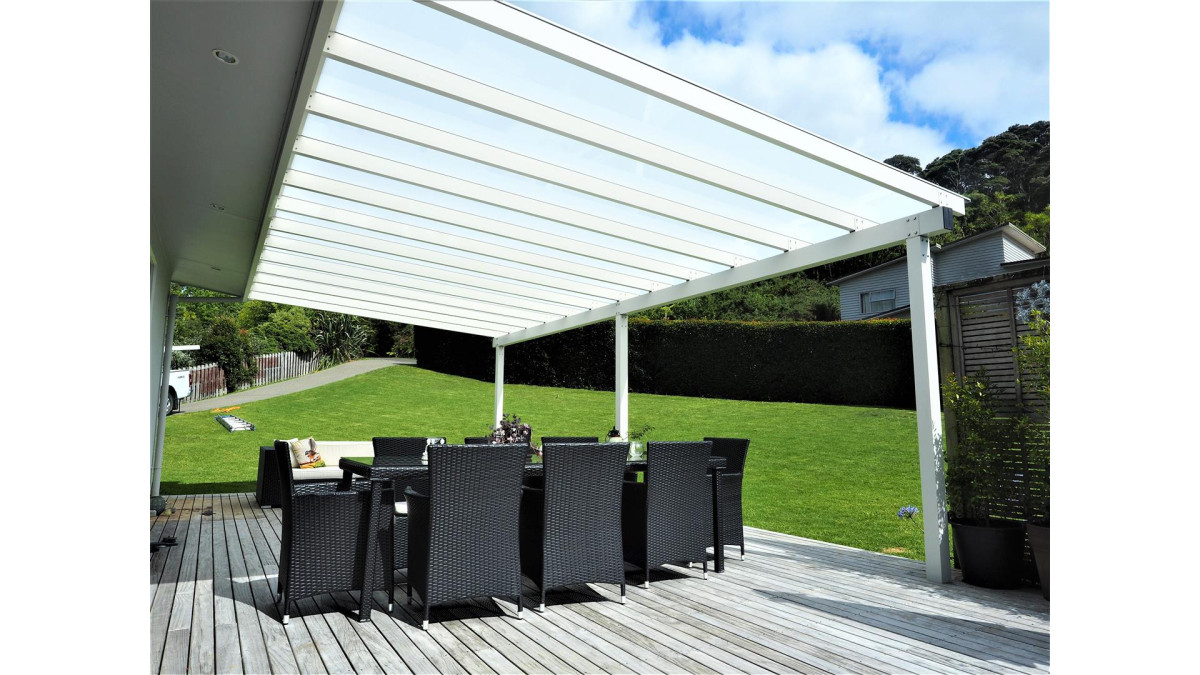

• Outdoor living areas

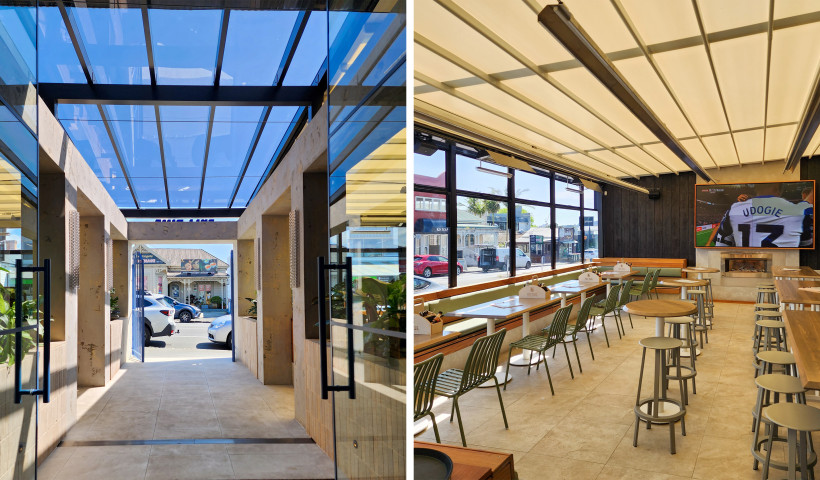

• Covered Walkways
• Canopies, awnings and pergolas
• Gazebos
• Greenhouses
• Carports
• Pool covers
• Conservatories

Suitable for new builds and retrofitting existing structures.

Maximum Spans by Wind Zone

• A minimum 3 degree pitch is required on all Clearspan systems
• An engineers report may be needed for larger projects

The Clearspan systems are designed to cover most sizes but the following will be taken into consideration to meet specifications and span charts:

• Wind Zone
• Glazing spacings
• Thickness of glazing
• Span limitations

• Clause B1 — STRUCTURE: Performance B1.3.3, B1.3.2 and B1.3.4
• Clause B2 — DURABILITY: Performance B2.3.1(b) 10 years
• Clause F2 — HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

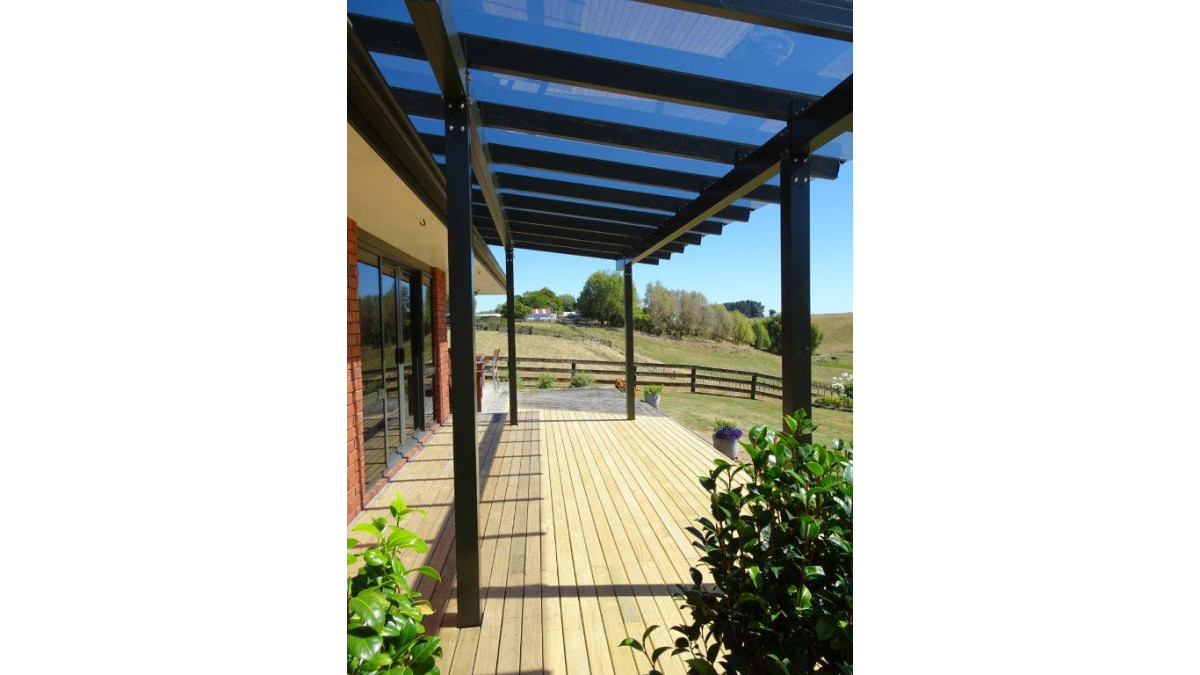

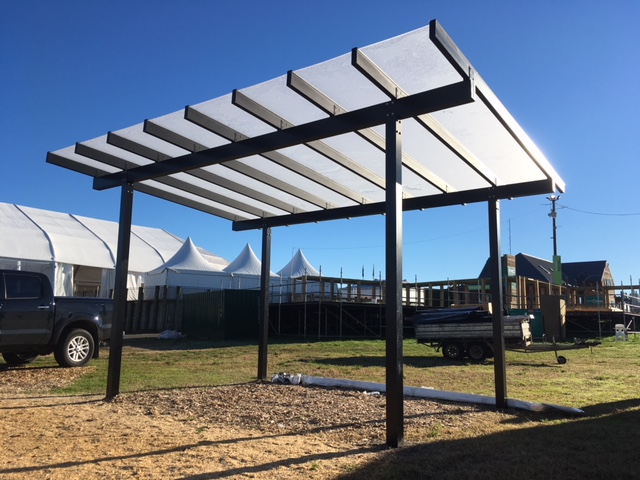

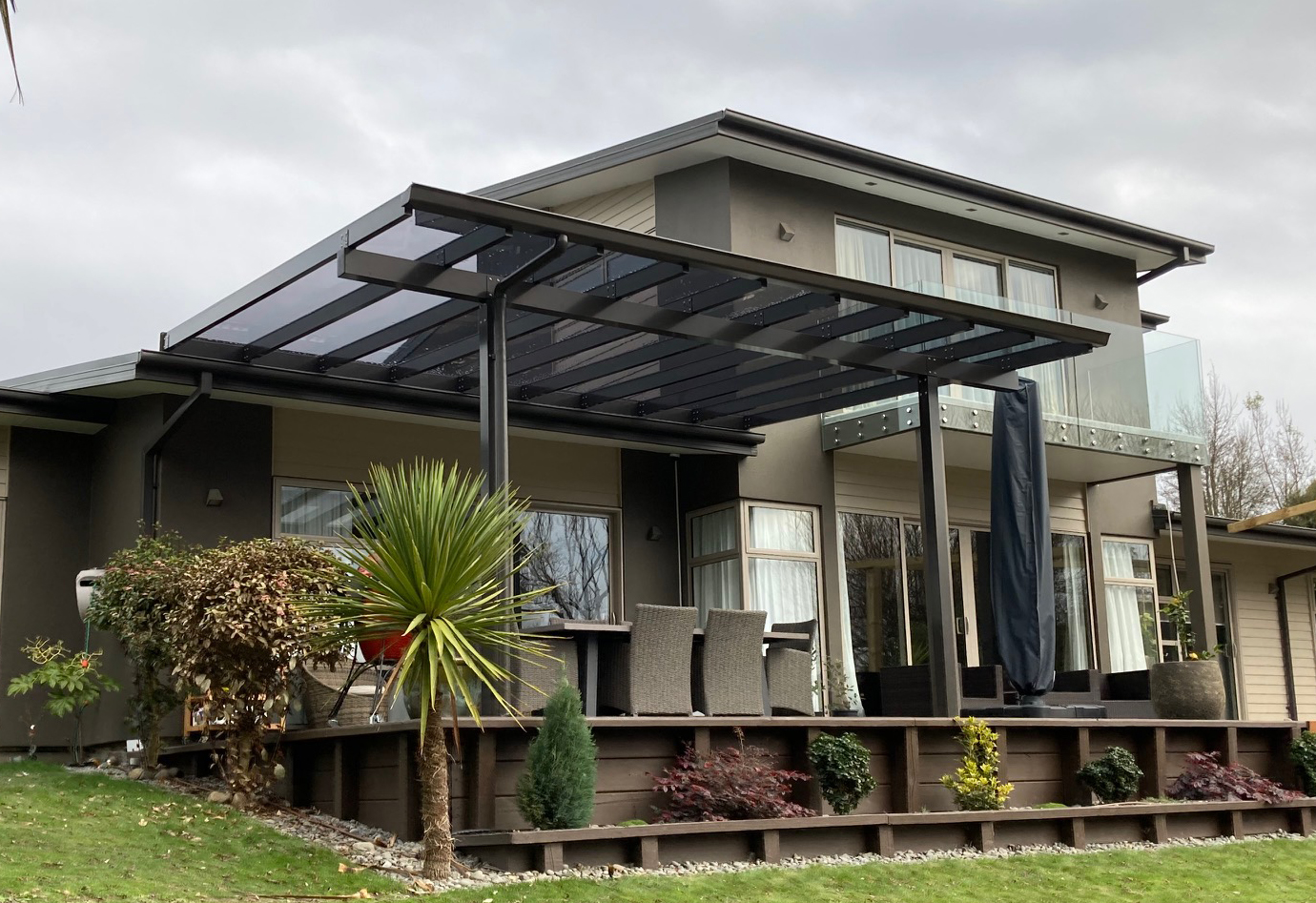

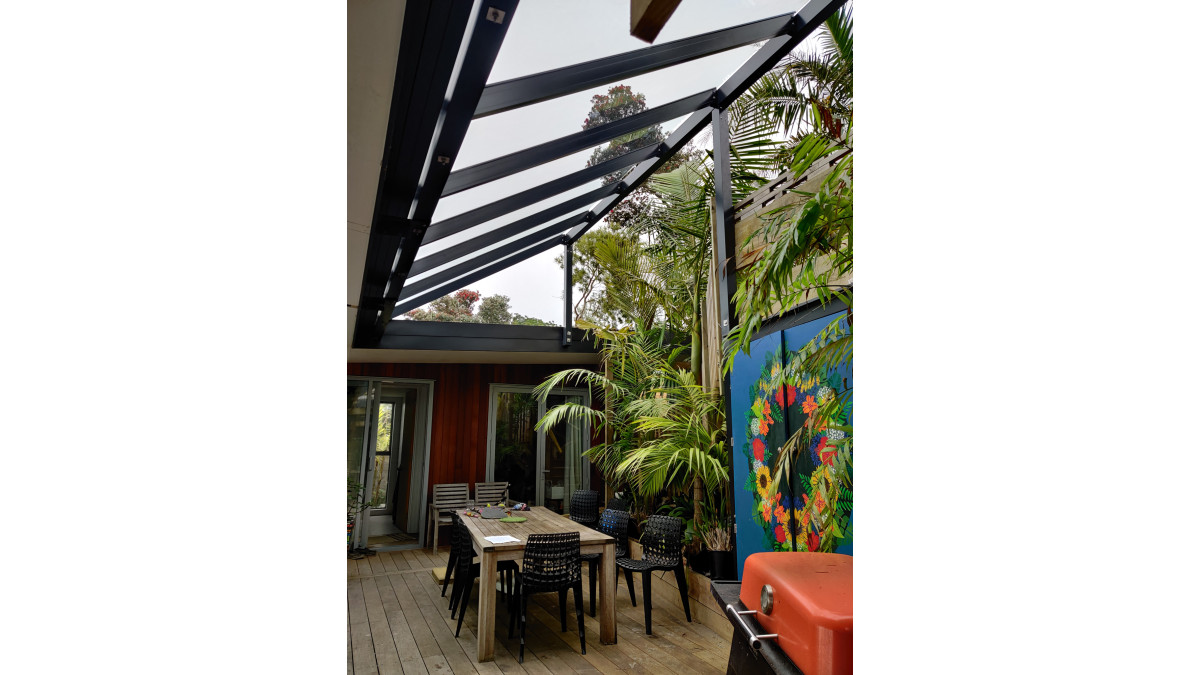

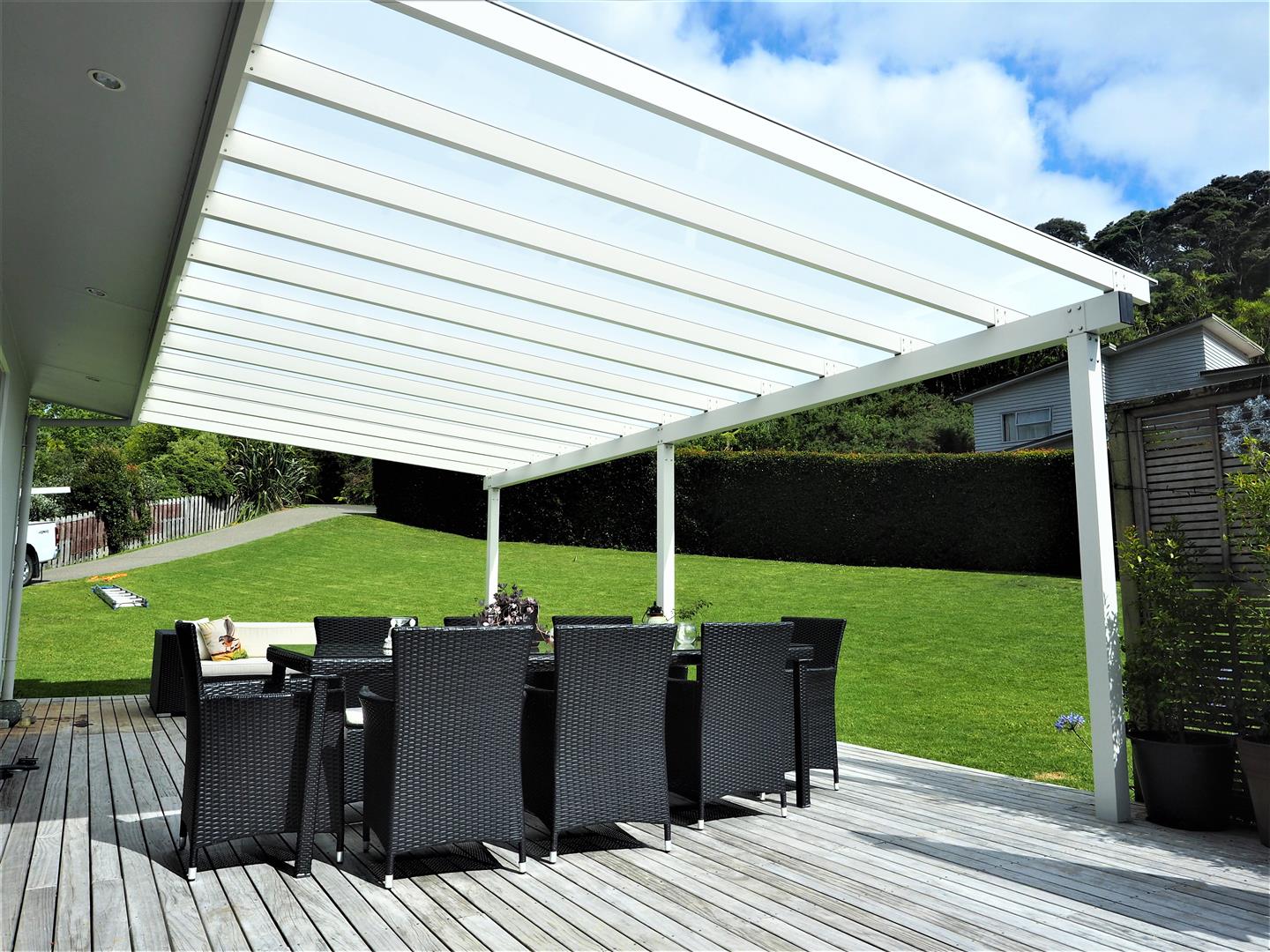

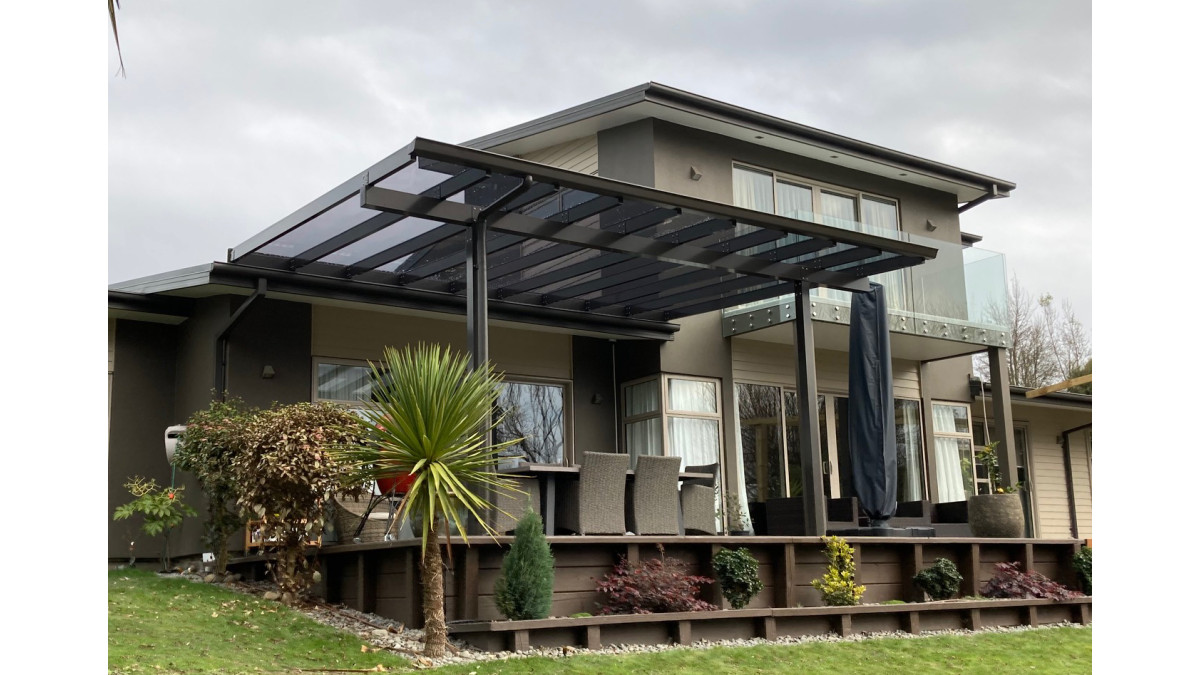

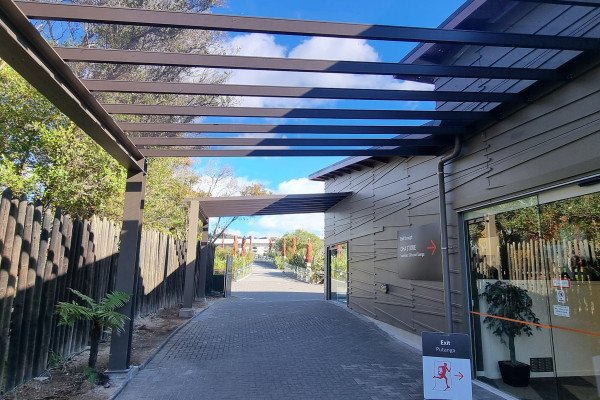

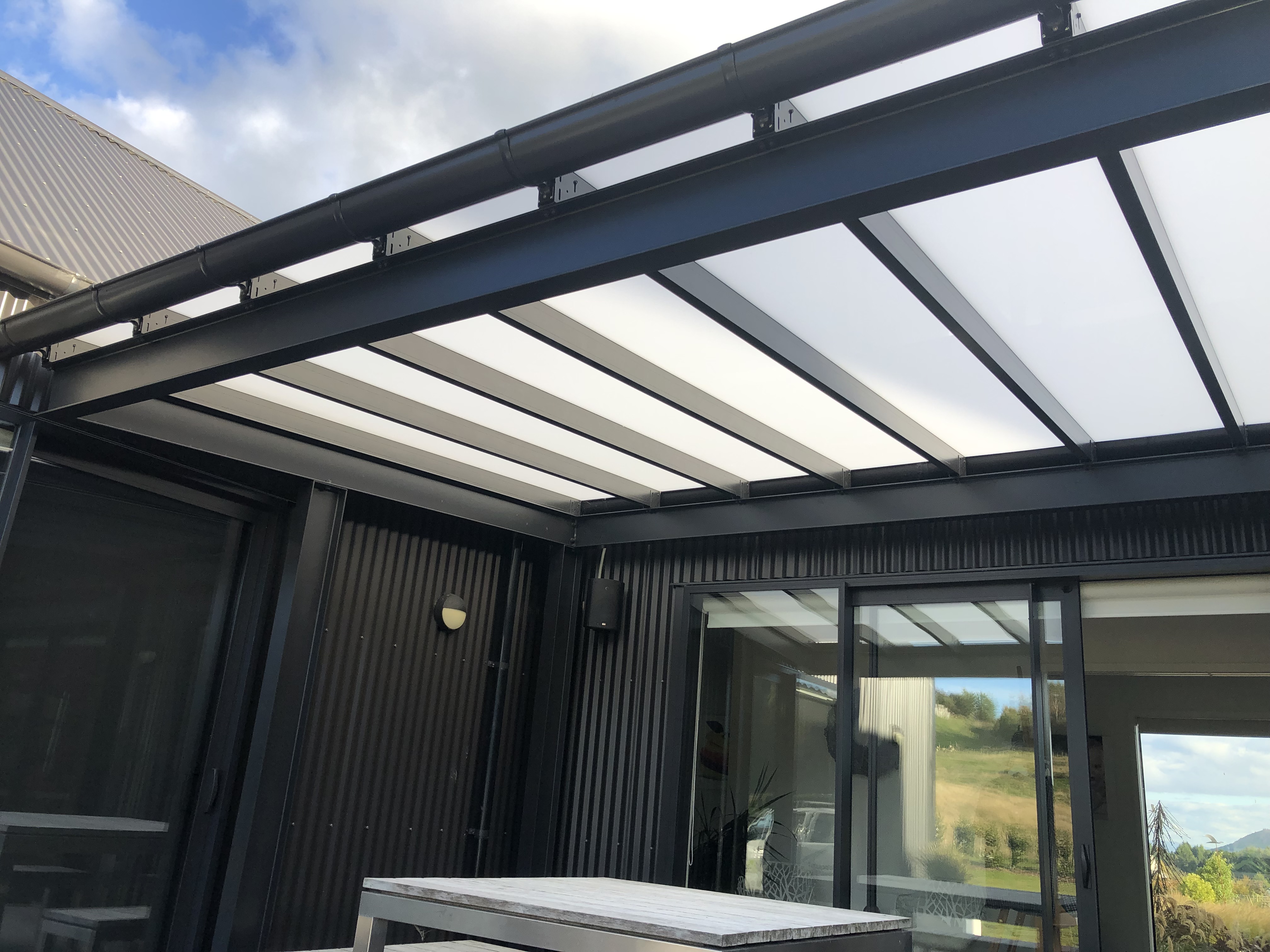

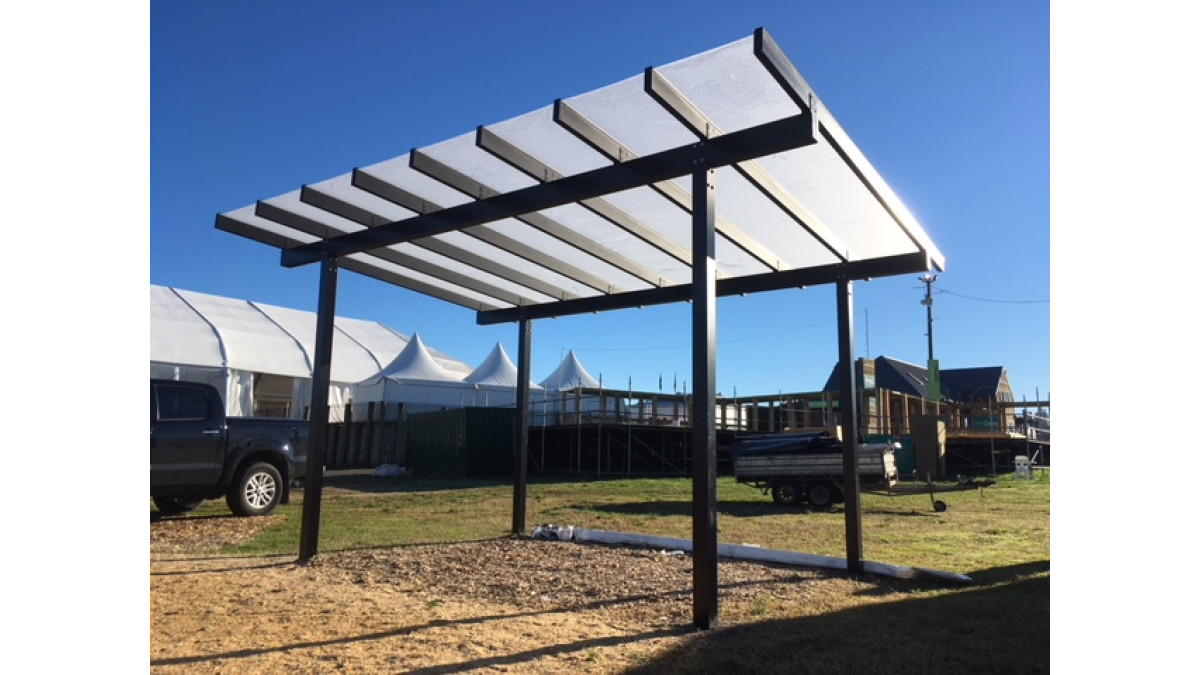

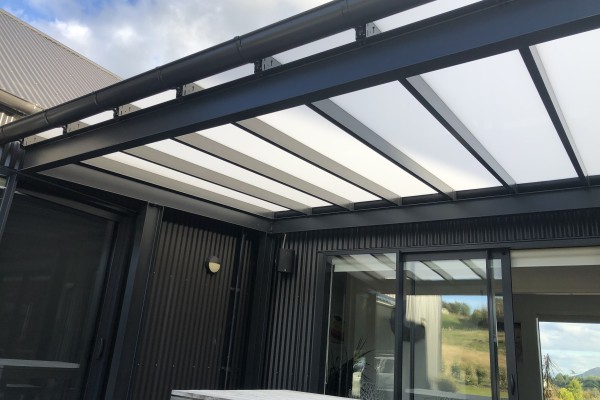

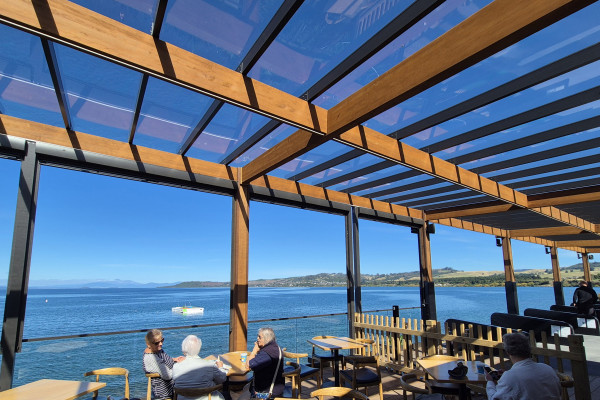

Since 2018, Universal Glazing Systems has supplied pergolas across hundreds of locations across New Zealand.  From coastal remote locations to the Auckland waterfront, from 10m²-150m² and across all wind zones, the Clearspan Box system can be used for almost any project.

• Polycarbonate sheets currently under BRANZ testing

Warranty

• 10 year warranty on aluminium
• 10 year warranty on powder coating
• 10 year warranty on polycarbonate
• 15 year warranty on acrylic
• 30 year warranty on glass
