EPR — Wind Uplift Exposed Paver Retainer
Tileworks
All products
IMG 0383
IMG 0384
IMG 0385
Description

VersiJack® Exposed Paver Retainer (EPR) system is designed to provide a high wind uplift resistance for elevated roof pavers.

Key Features

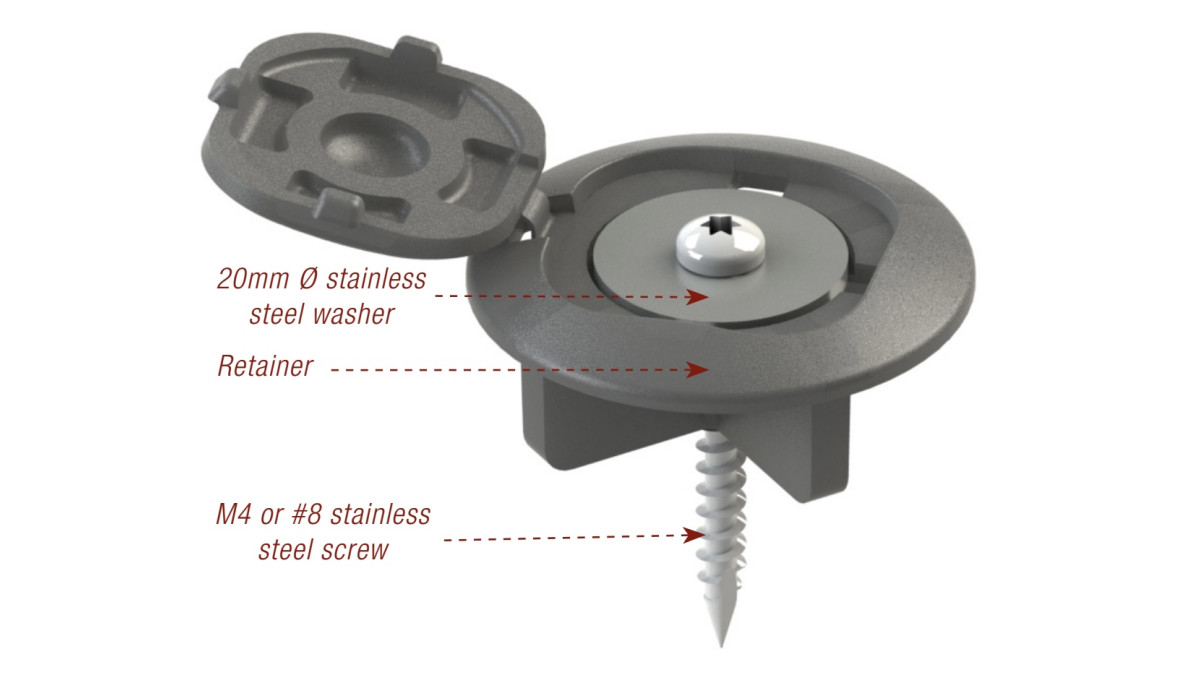

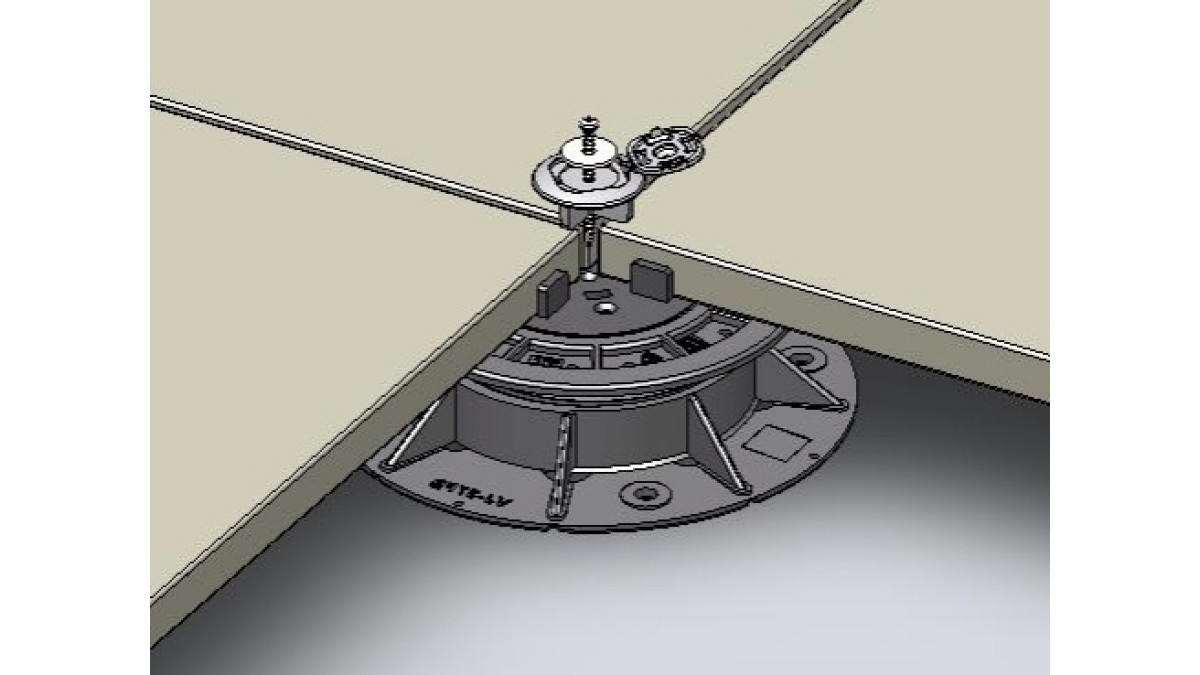

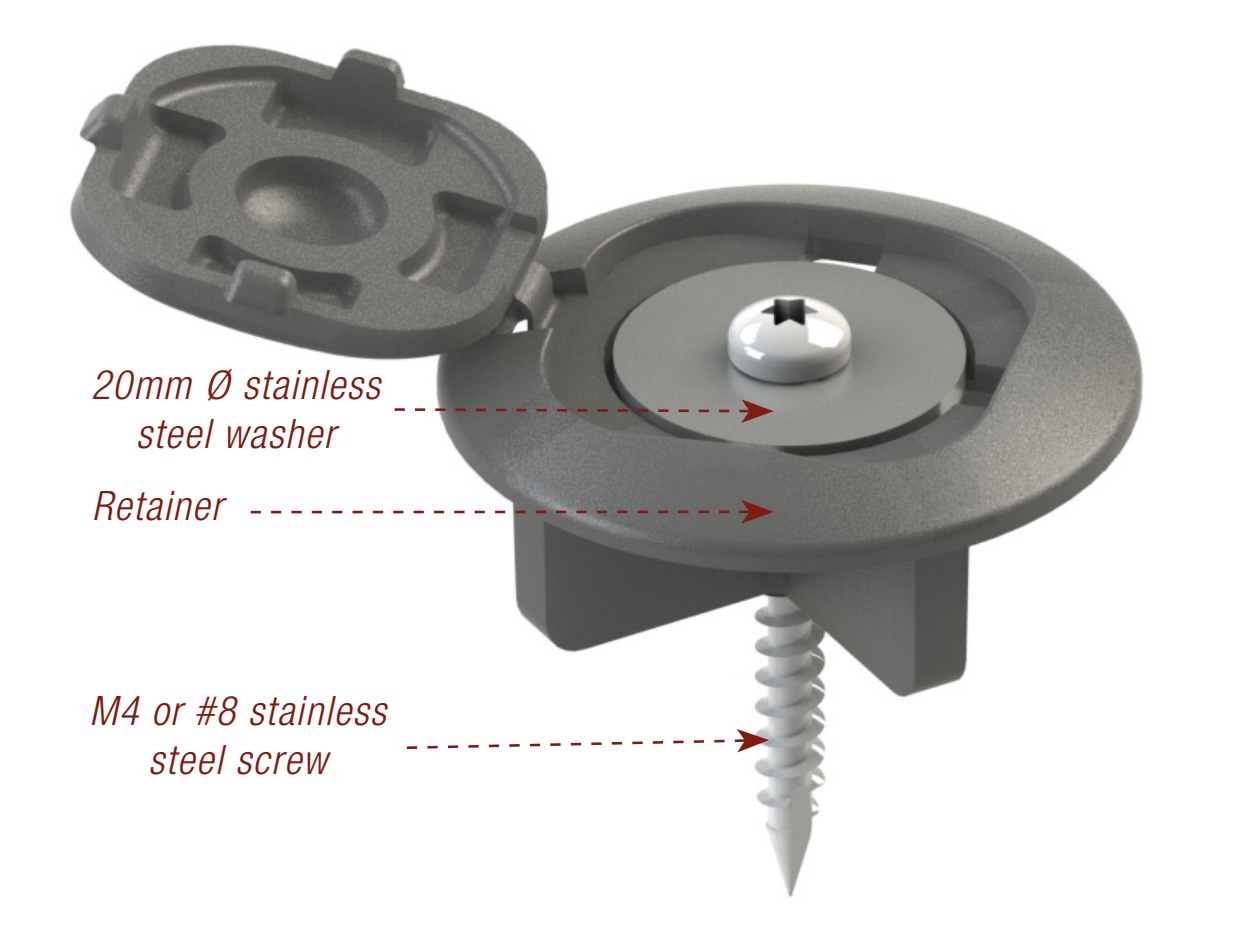

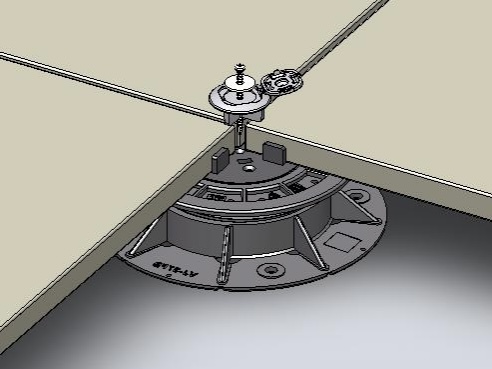

  • Comprises a Retainer fastened with a M4 or #8 stainless steel screw and a 20mm diameter stainless steel washer to a proprietary Locking Spacer Tab attached to an Elmich pedestal

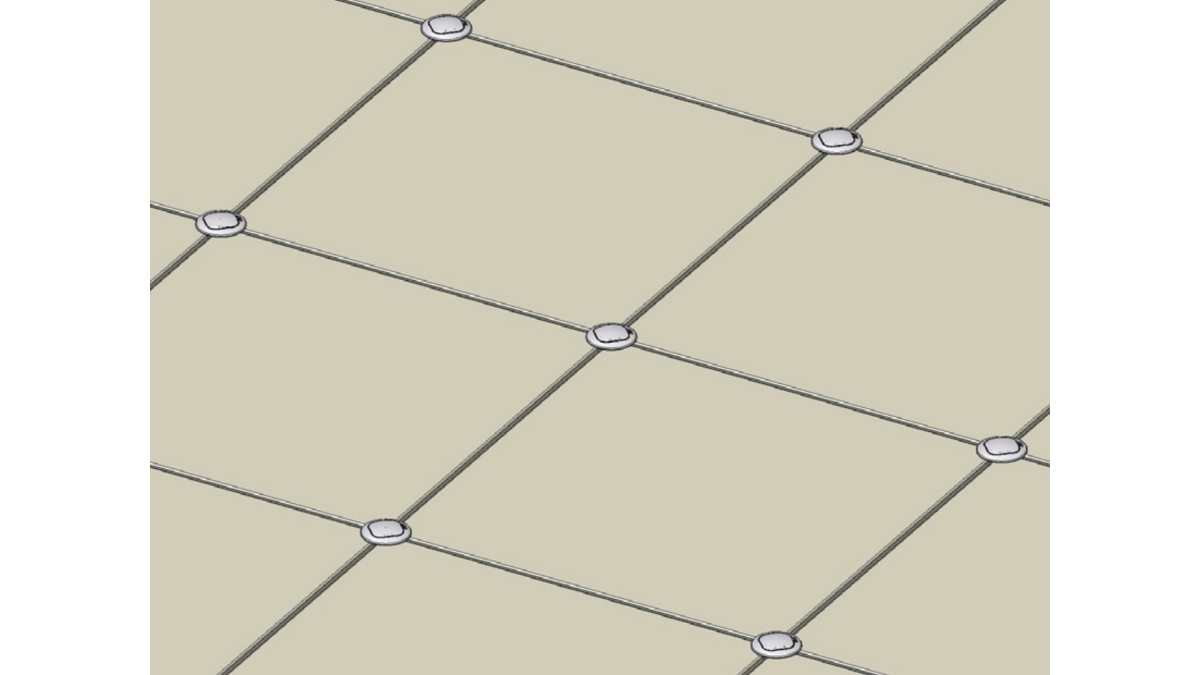

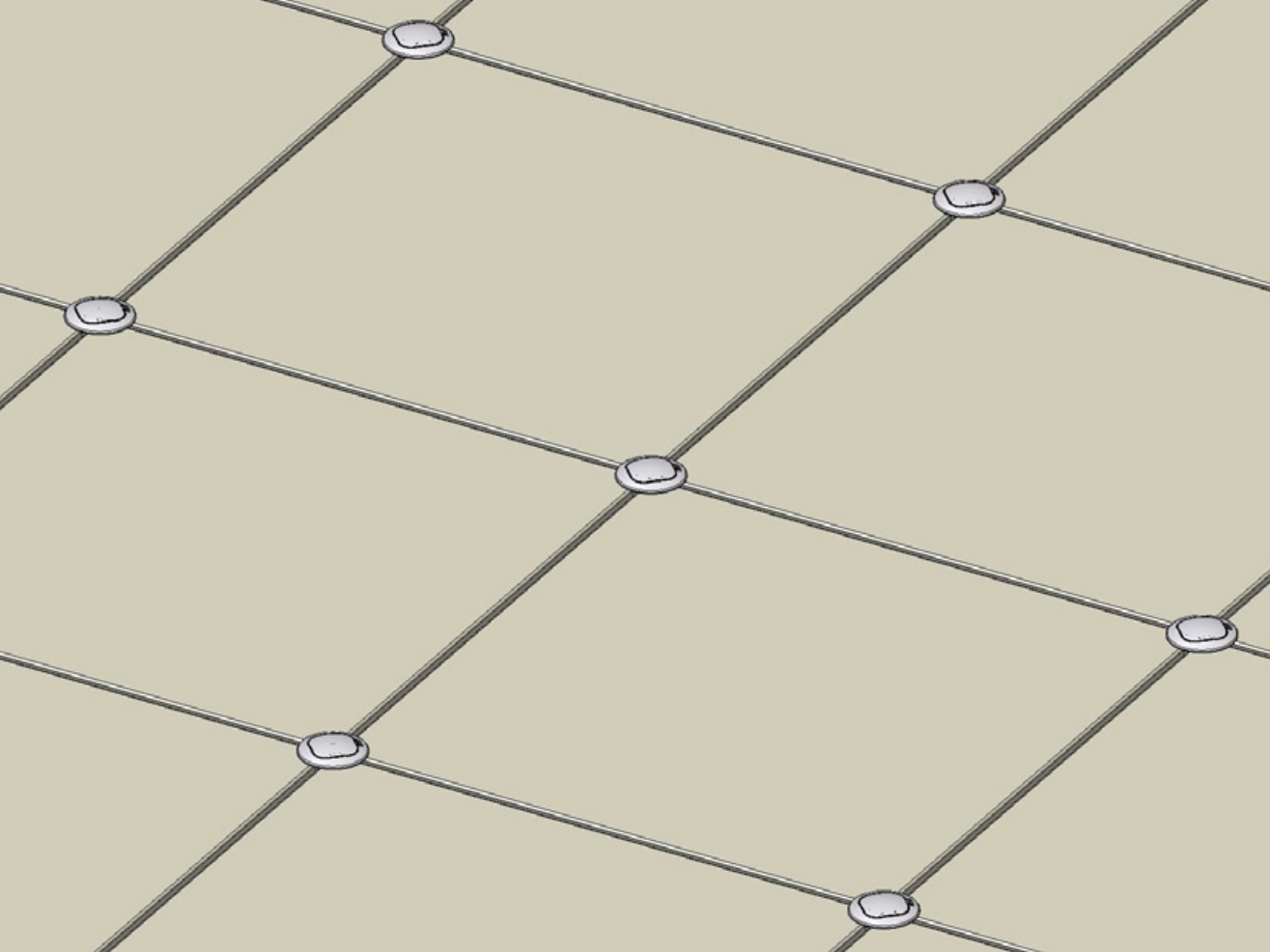

  • The overall diameter of the Retainer is 40mm and, upon installation, the height above the surface of the pavers is 6mm
  • Ribs on the underside of the Retainer separate the pavers at 4mm apart
  • The hinged Retainer is designed to close tightly; and requires a small screwdriver or similar flat tool to pry it open
  • The Retainer is injection moulded from engineered plastics and can be colour matched or contrasted with the pavers
Categories
Roofing and Decking Ancillaries Decking Tile Ancillaries
Ranges
Elmich Pedestals
Scope of Use
  • VersiJack® EPR system increases wind uplift resistance for roof pavers on pedestals
Limitations on Use

The VersiJack® EPR system is designed to increase but under no circumstances guarantee absolute wind uplift resistance. The specifier and/ or user should take into consideration other variables of site conditions that may determine the effectiveness of the system.

Documents
BPIR Statement: EPR
pdf
Brochure
pdf
