Description

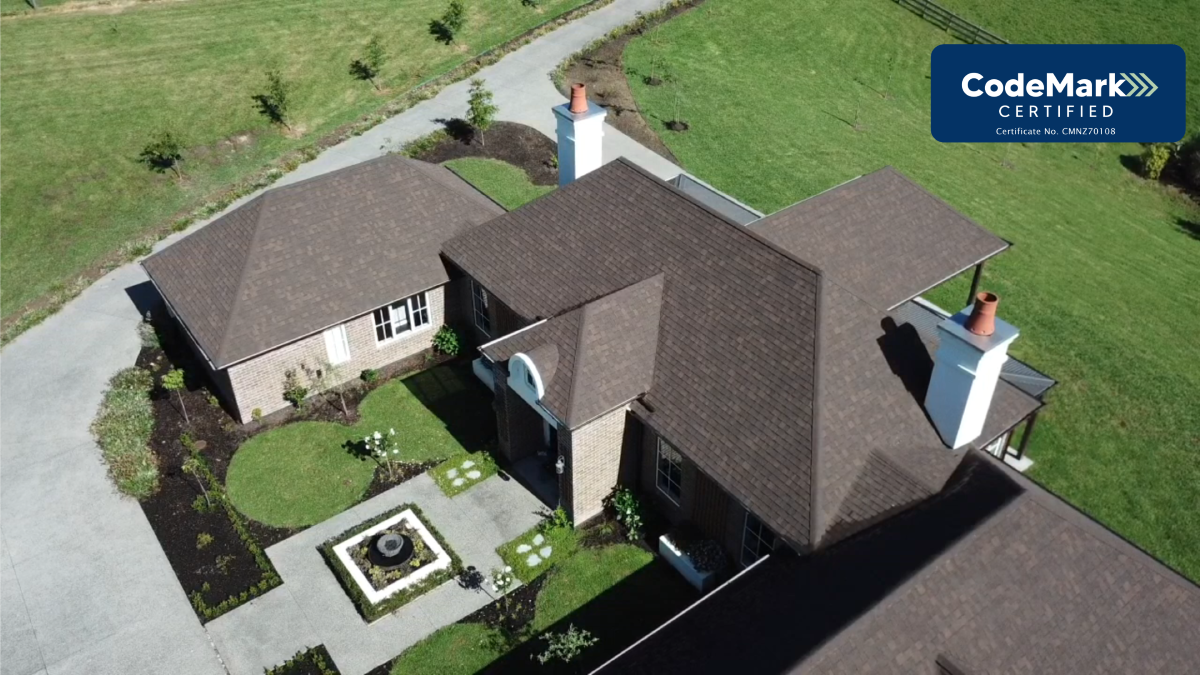

Owens Corning Asphalt Shingles are the only CodeMark Certified Shingle in New Zealand. Owens Corning laminated shingles are specially formulated to provide dramatic colour contrast and dimension to any roof and are available in a variety of popular colours with a Class 'A' Fire Rating.

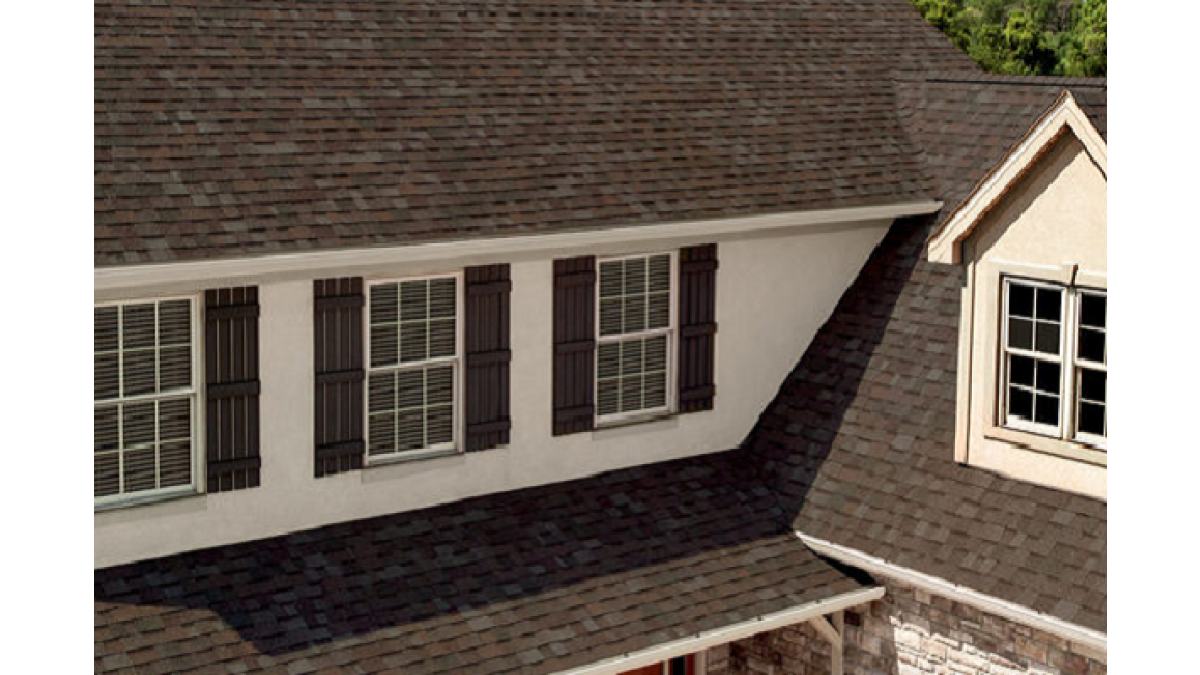

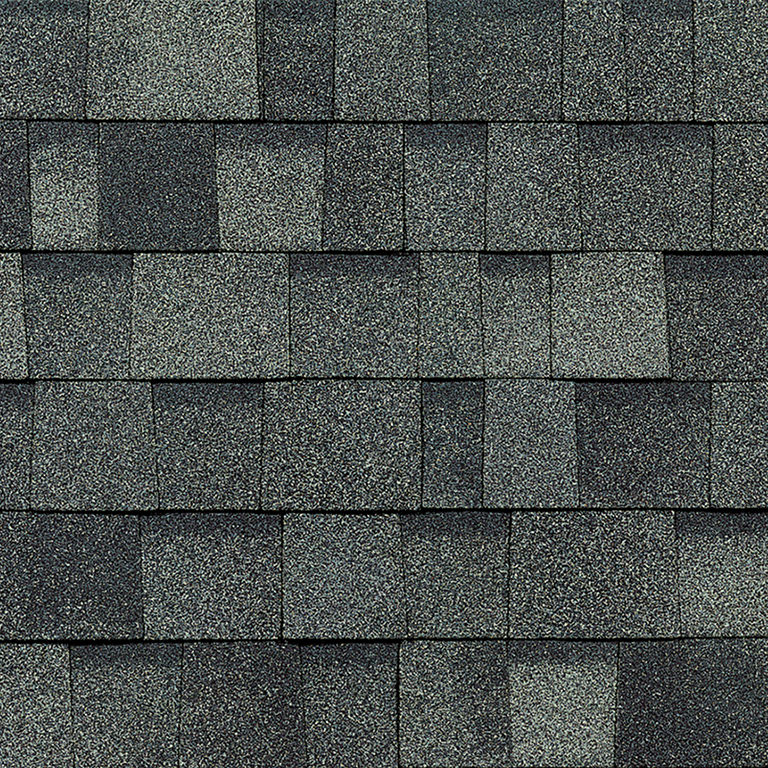

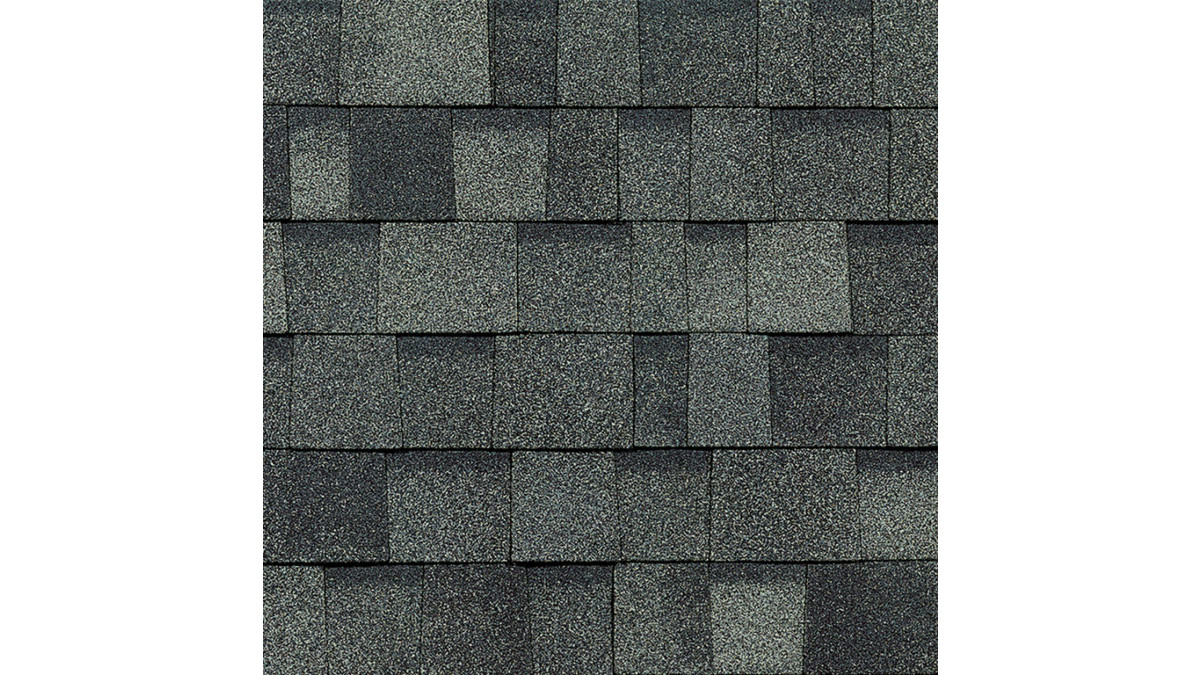

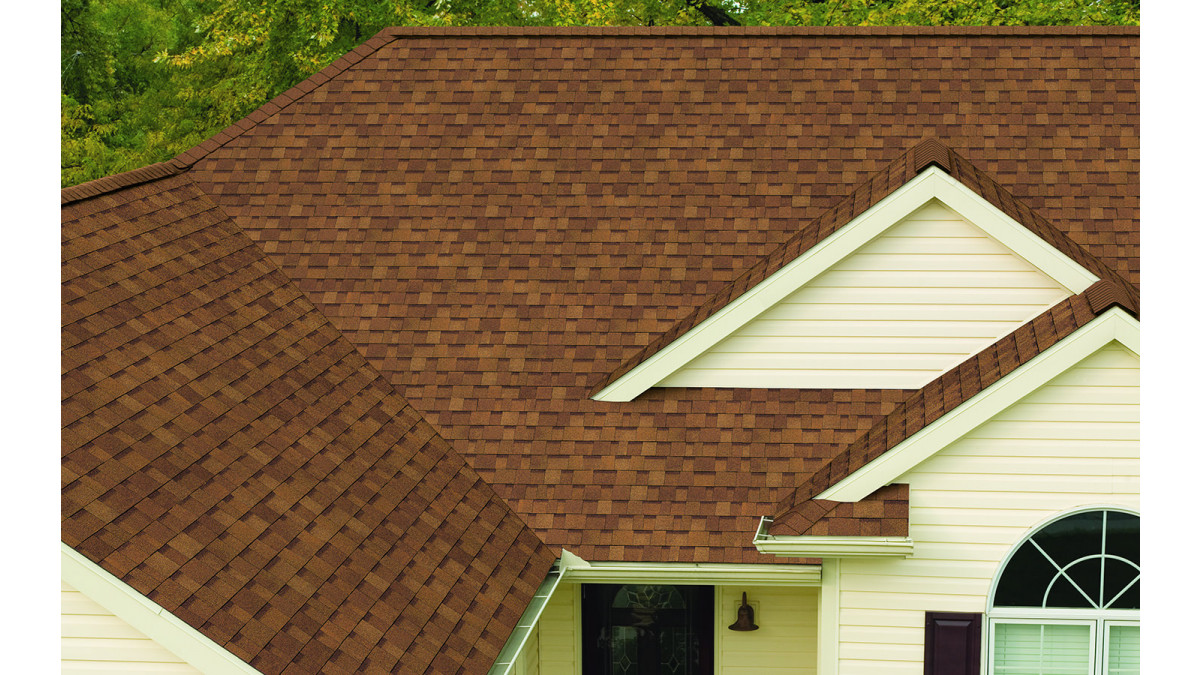

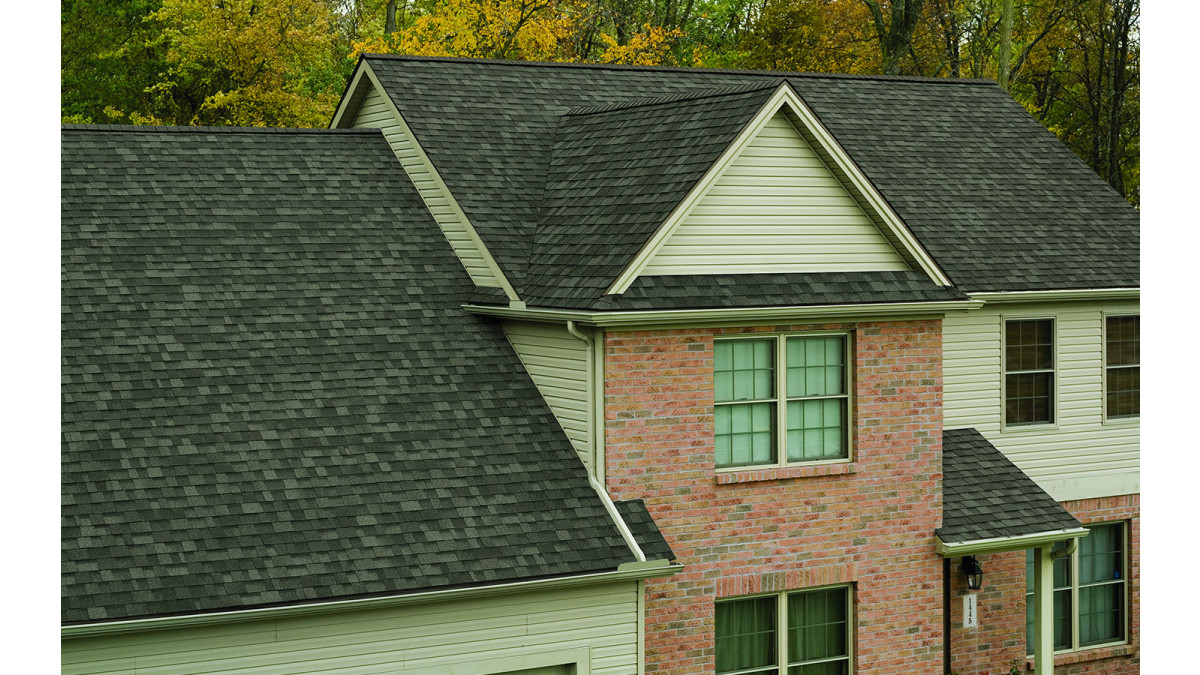

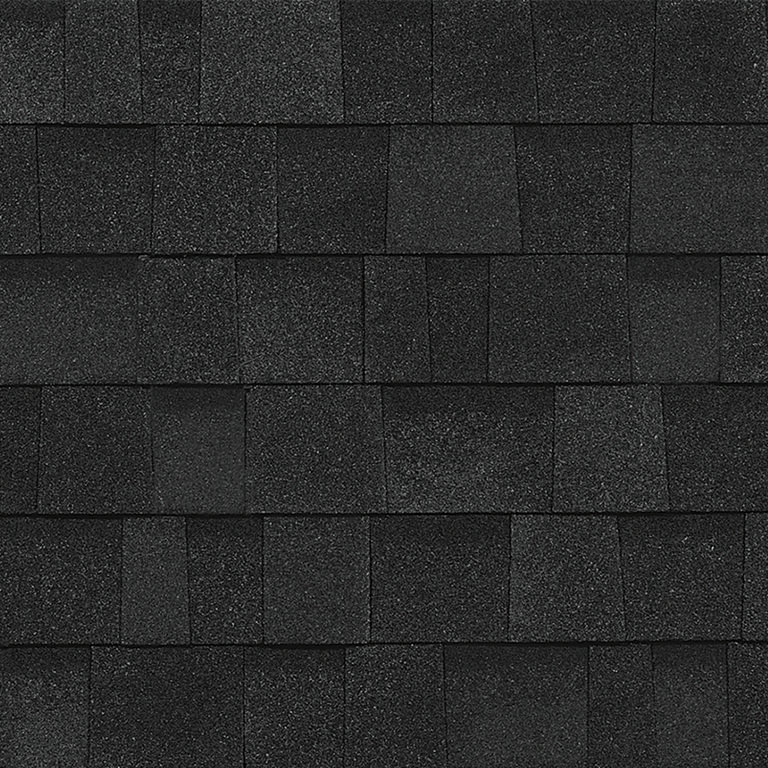

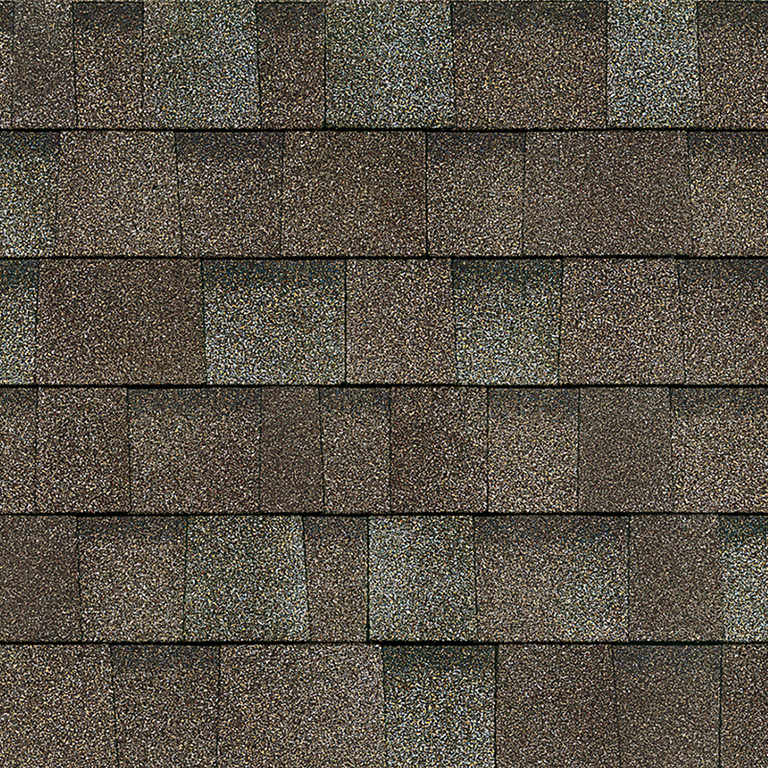

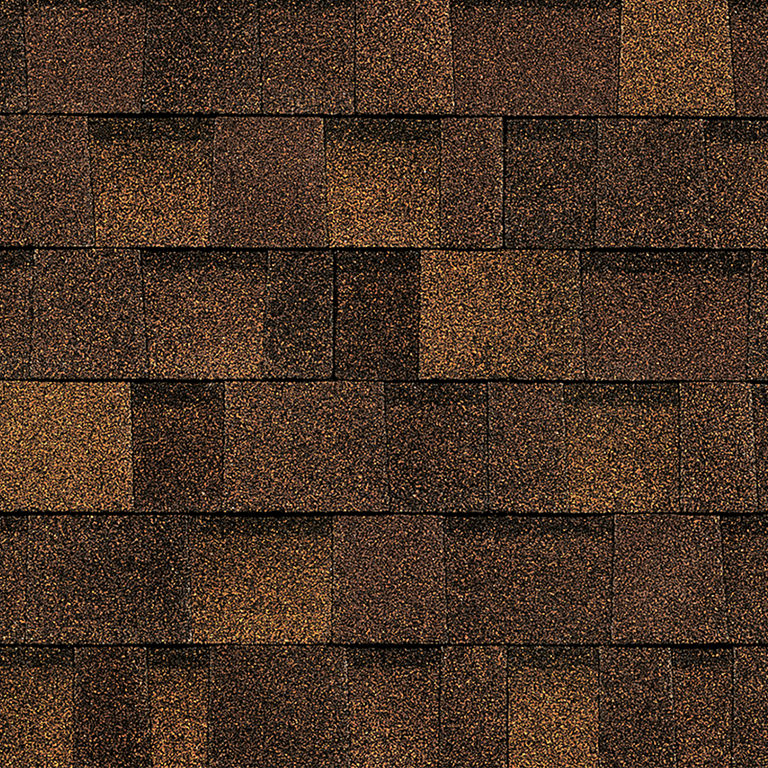

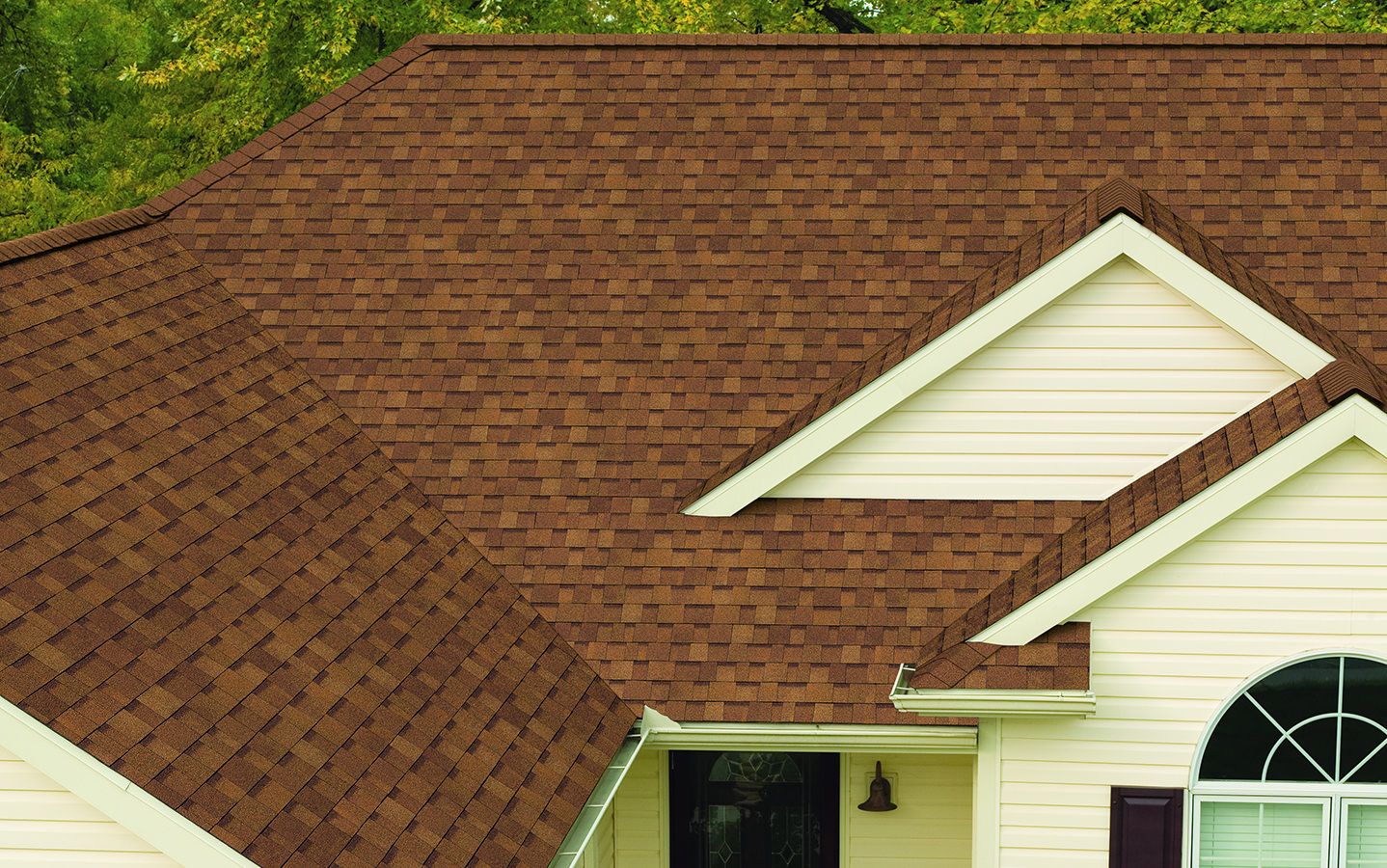

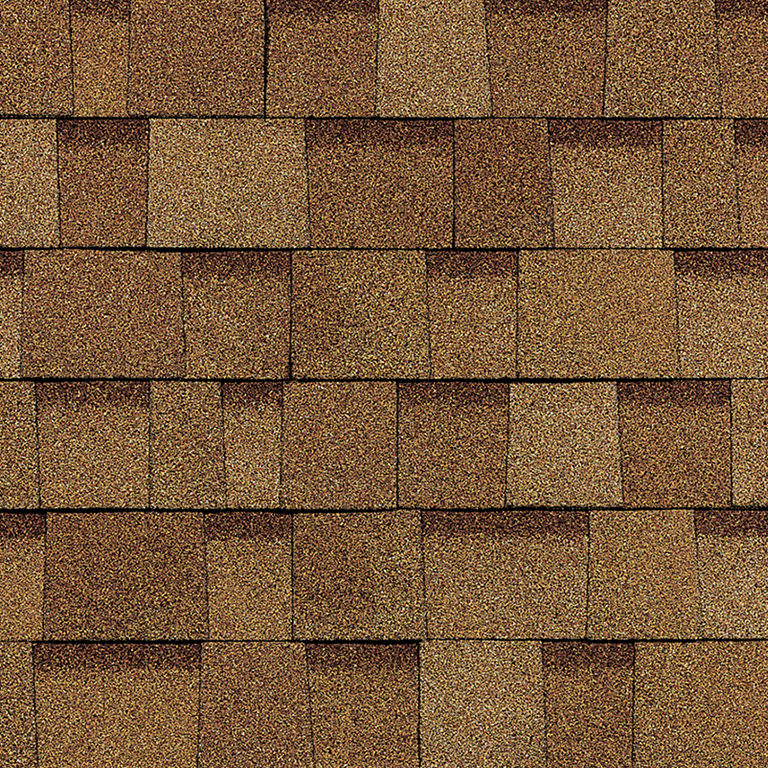

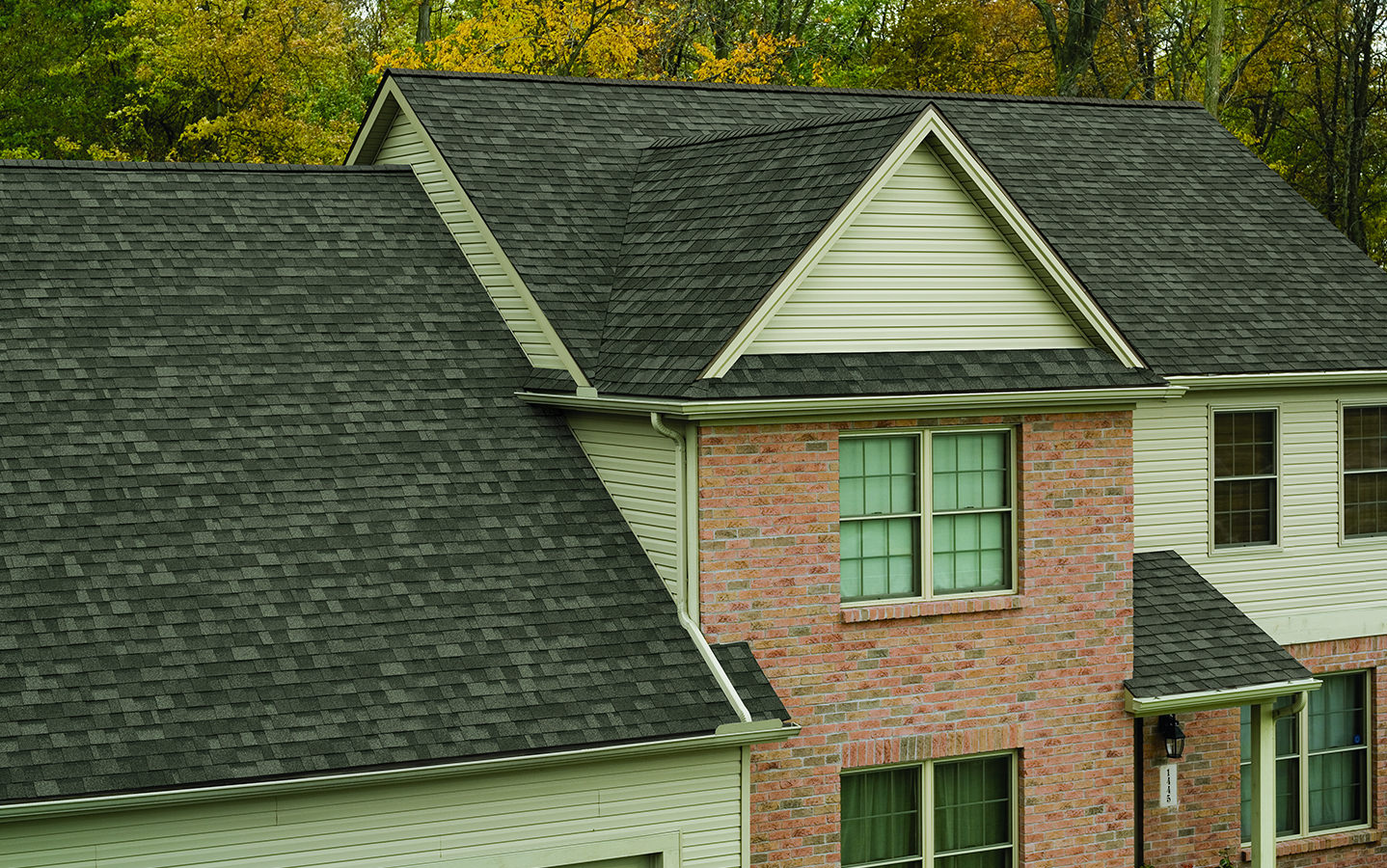

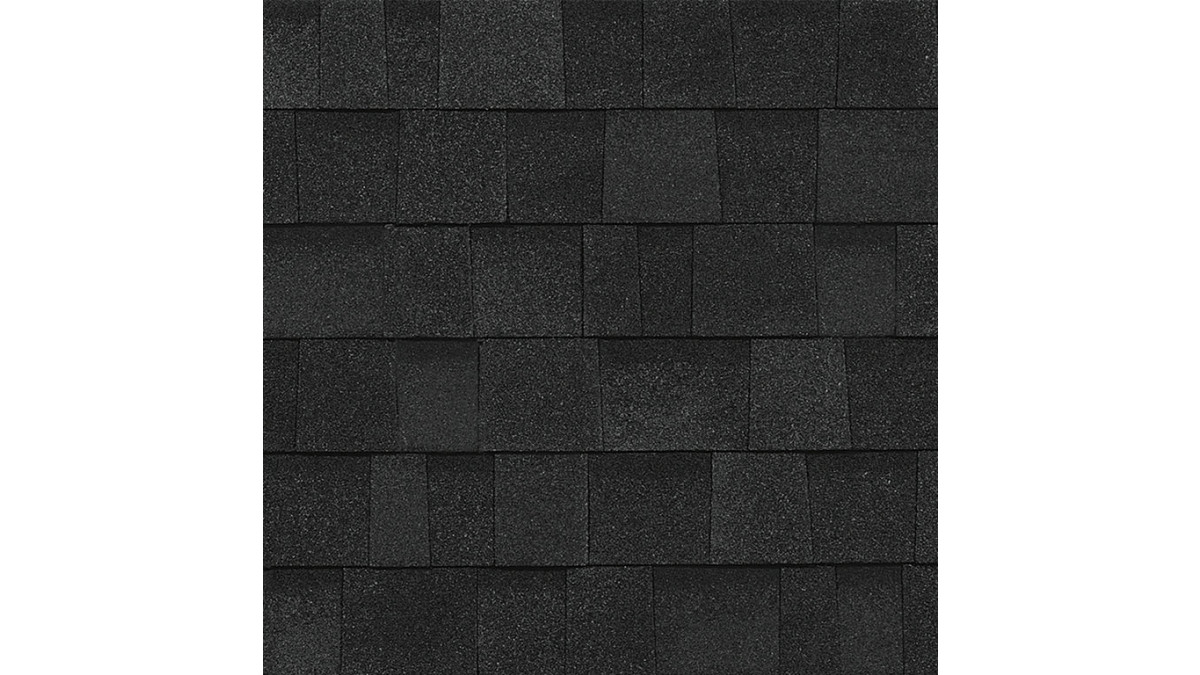

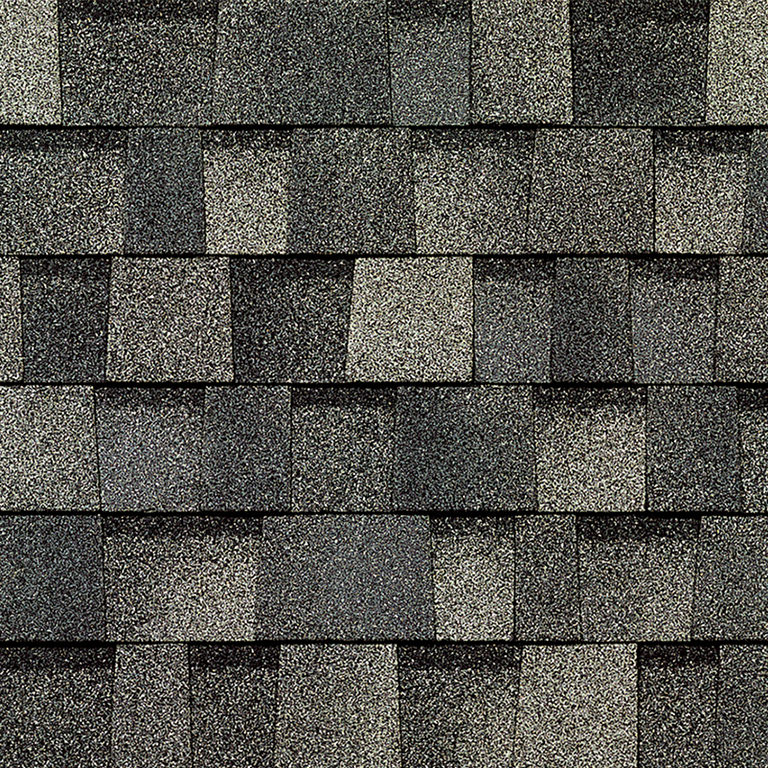

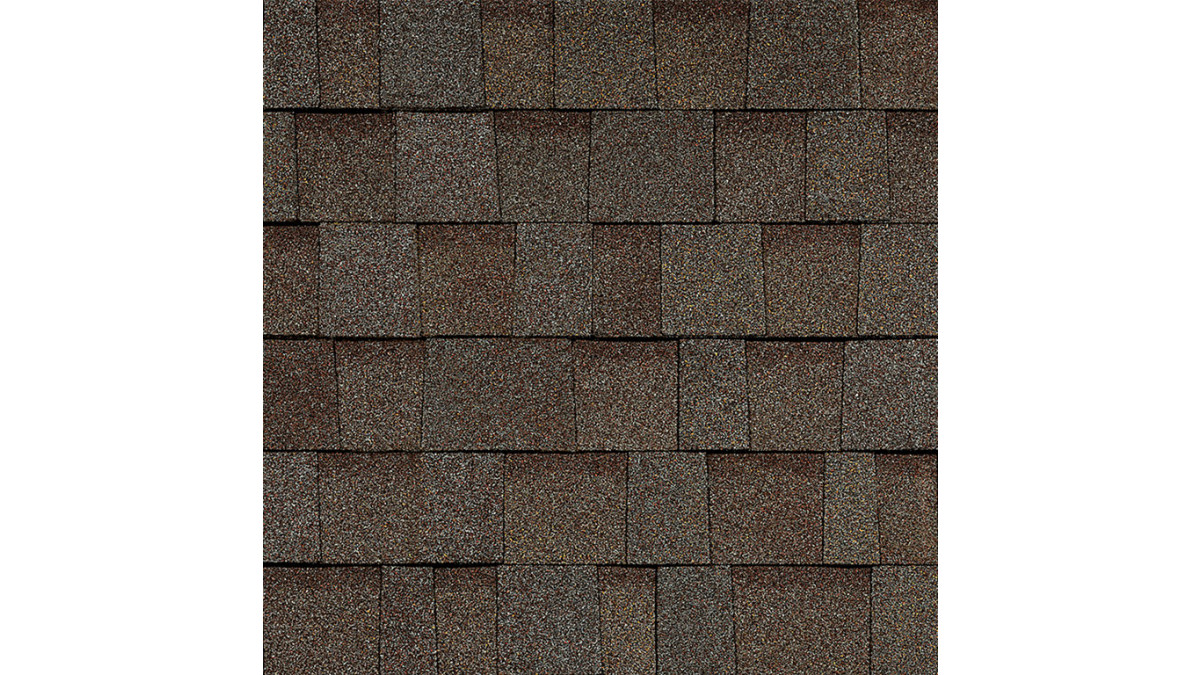

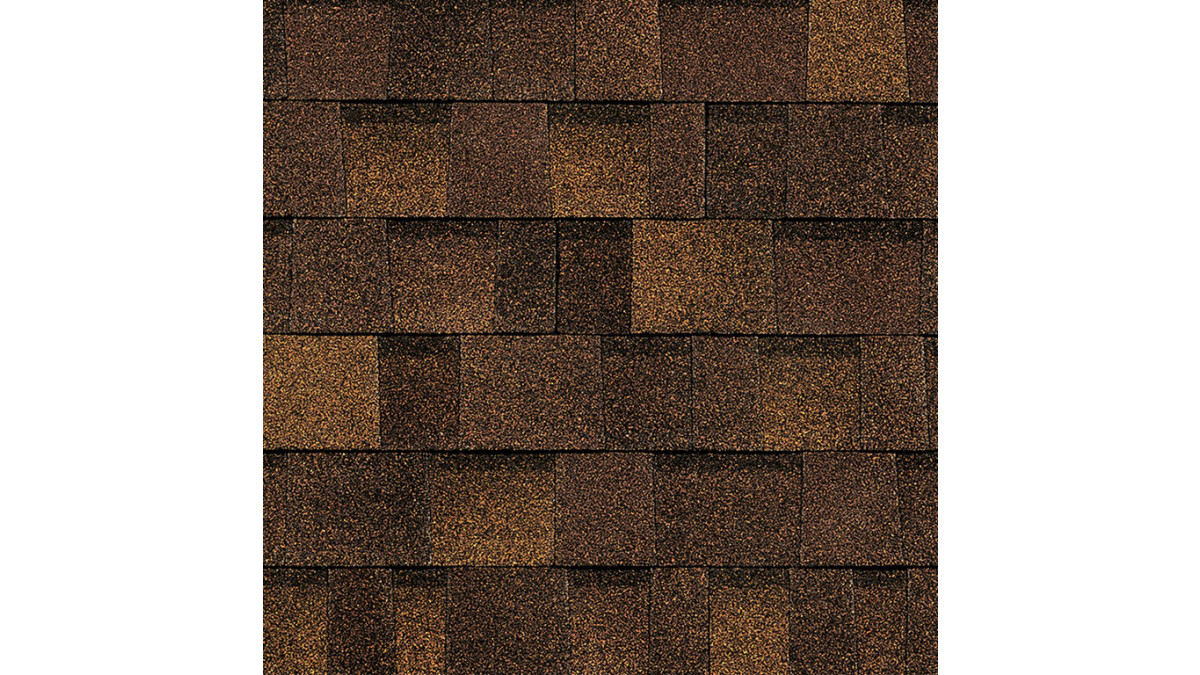

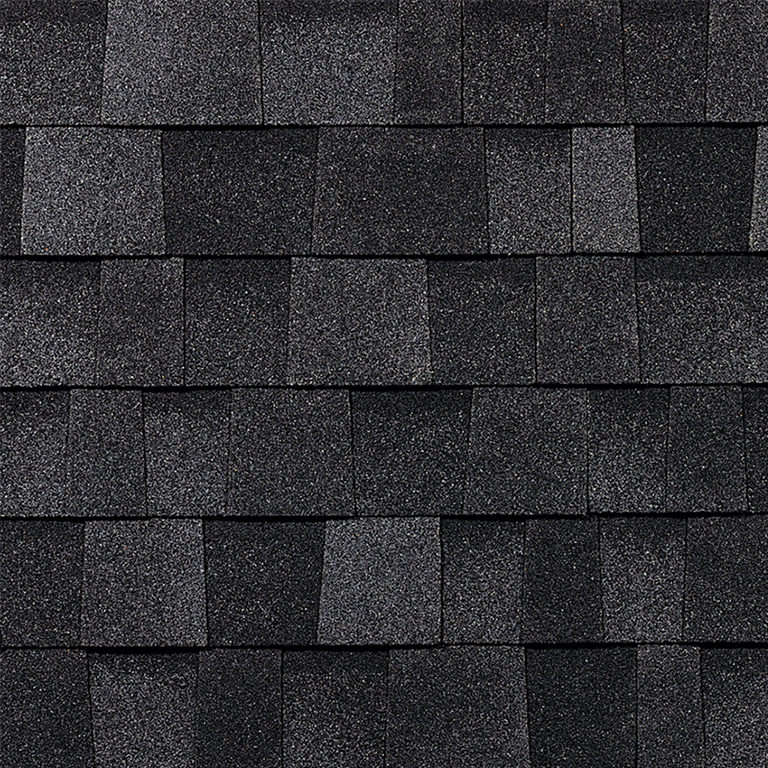

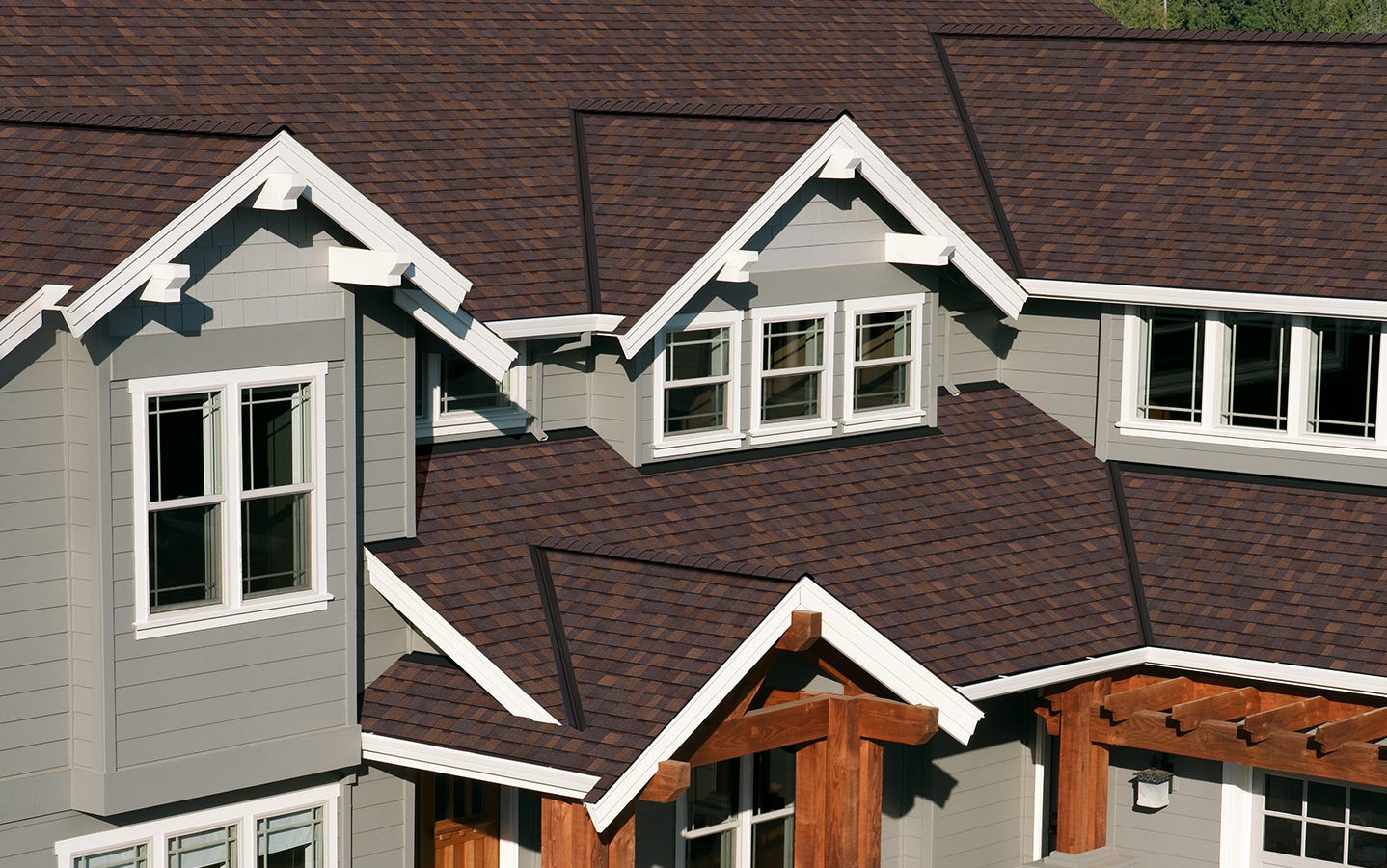

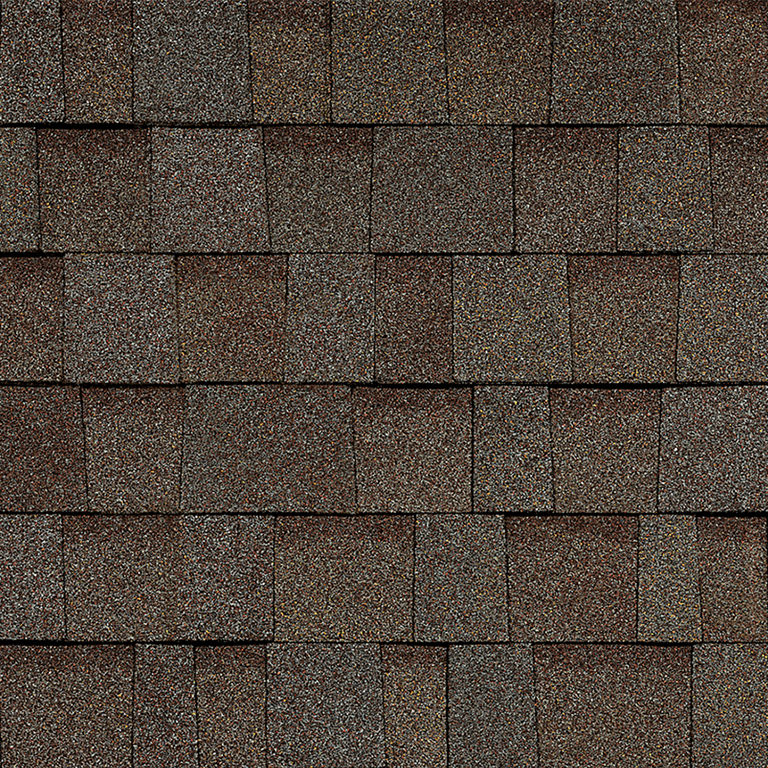

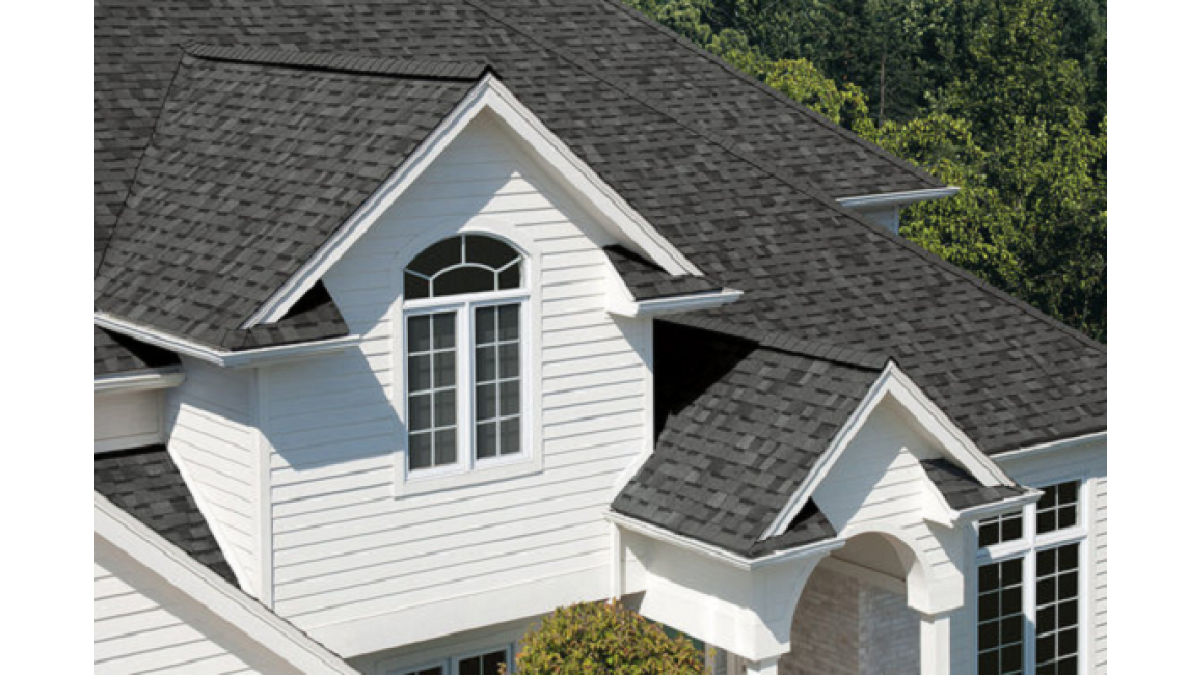

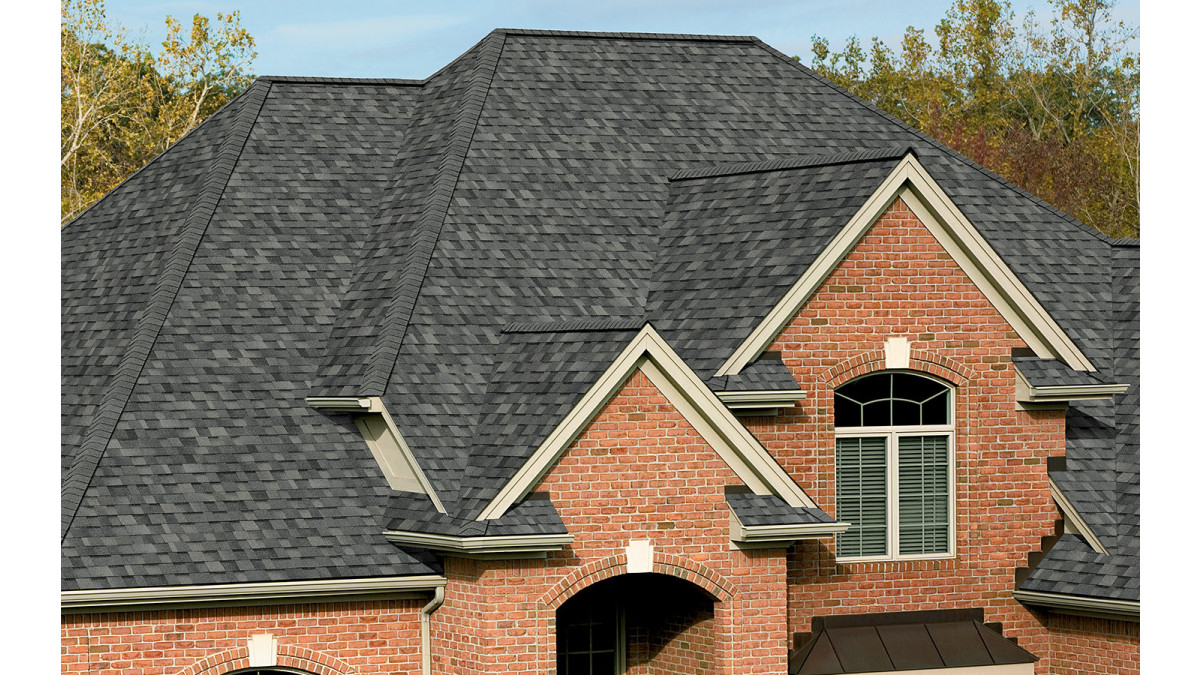

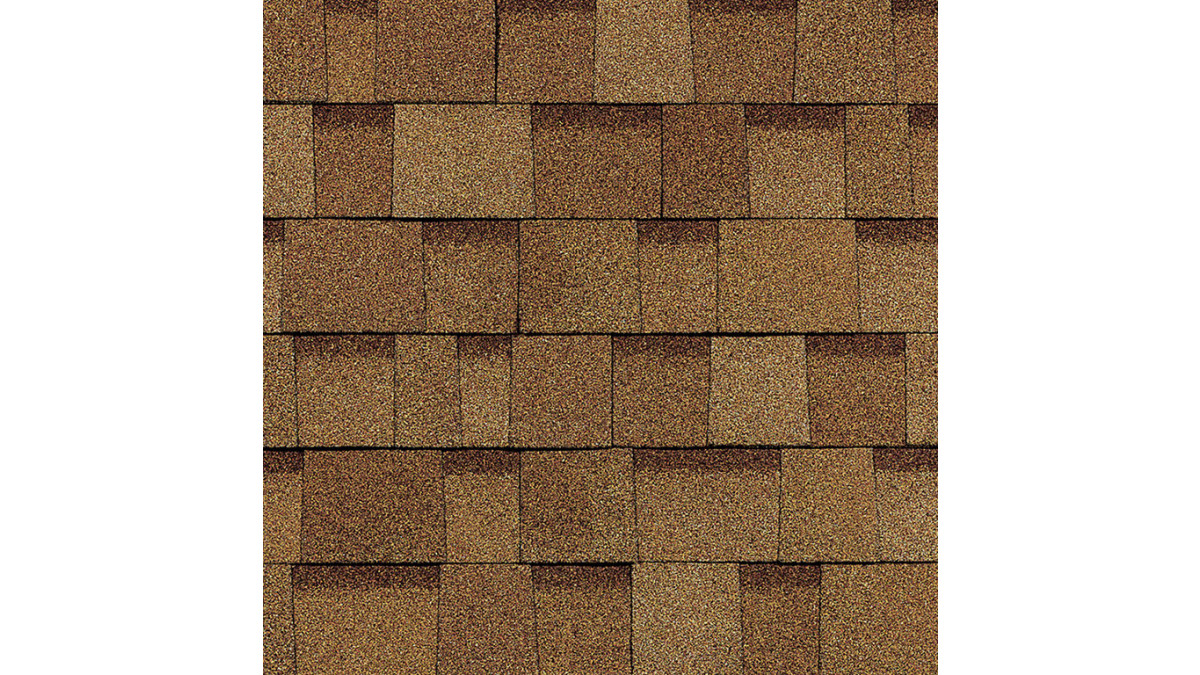

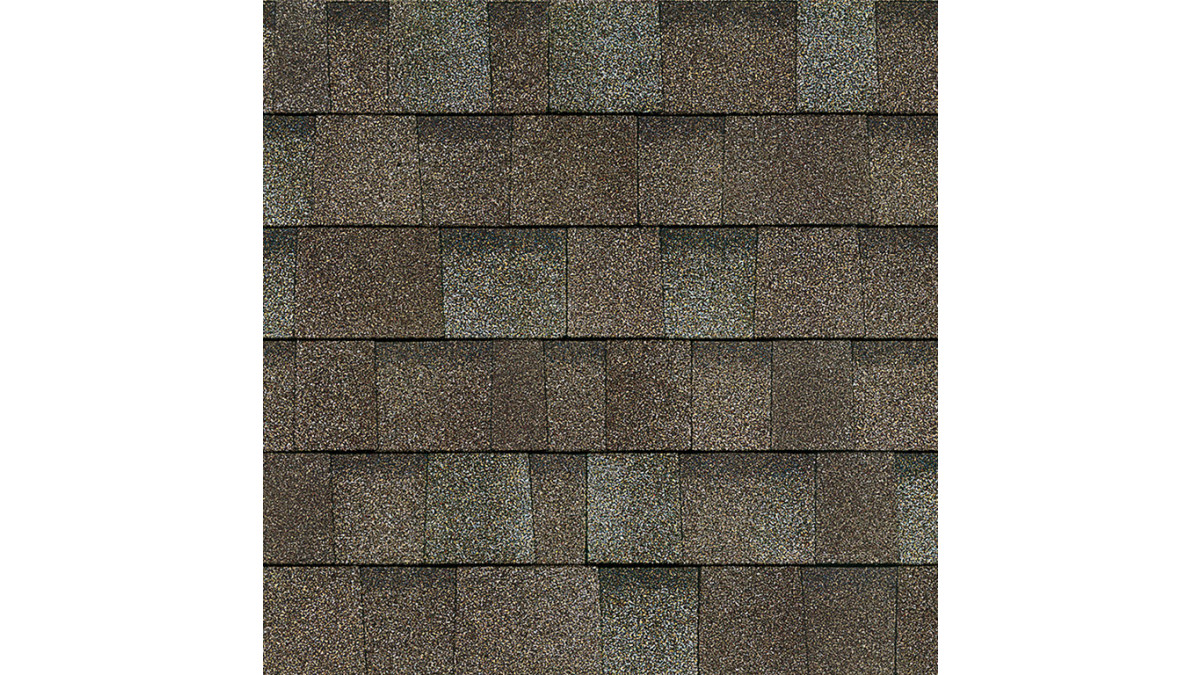

Available in two styles, Duration, and Oakridge, both come with a Lifetime Limited Warranty, are algae-resistant, and have a High Wind Warranty up to 210kph, and 180kph respectively.

NOTE: For a total high-performance roofing system, it is recommended to use SureGuard Synthetic Ice & Water Barrier with the Owen's Corning Asphalt shingles. SureGuard ice and water barrier has a specially designed peel and stick membrane that acts as an additional line of protection. The patented SureFoot Slip-resistant surface ensures excellent traction and safe installation. This is a must for all low-slope roofing applications. For use under metal, timber, tile, and shingle roofs.

Key Features

CodeMark CMNZ70108
Product Warranties of up to 50 years

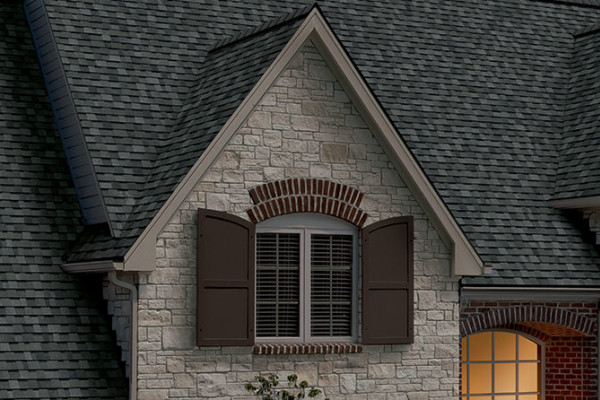

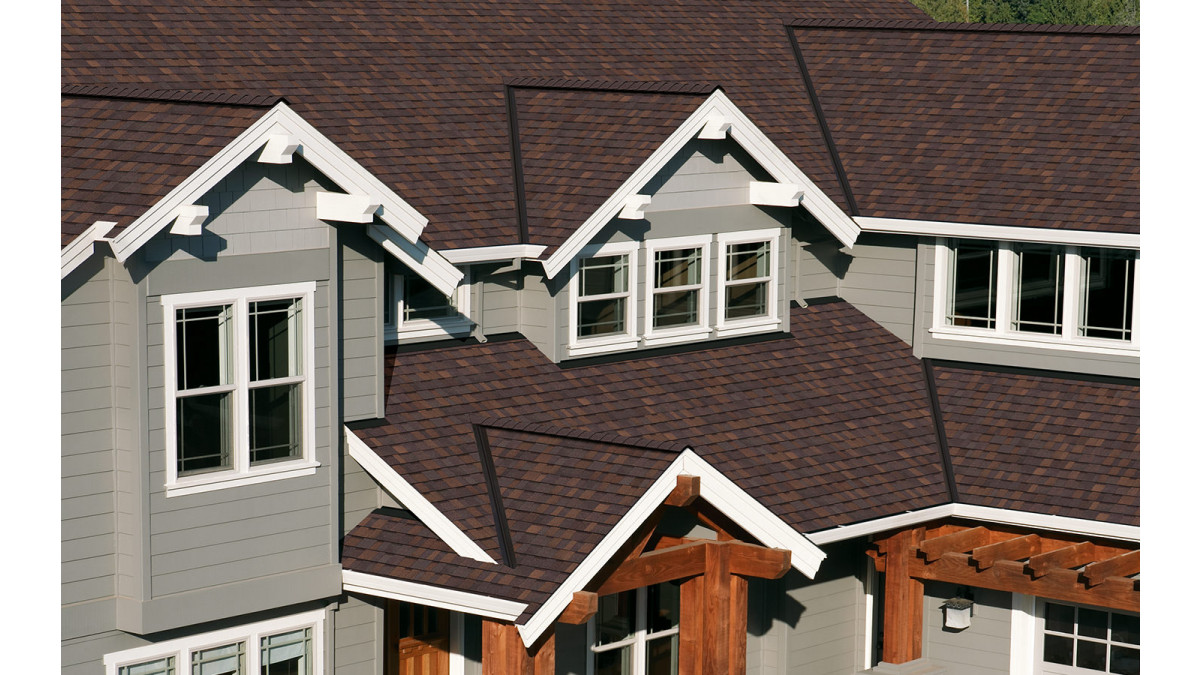

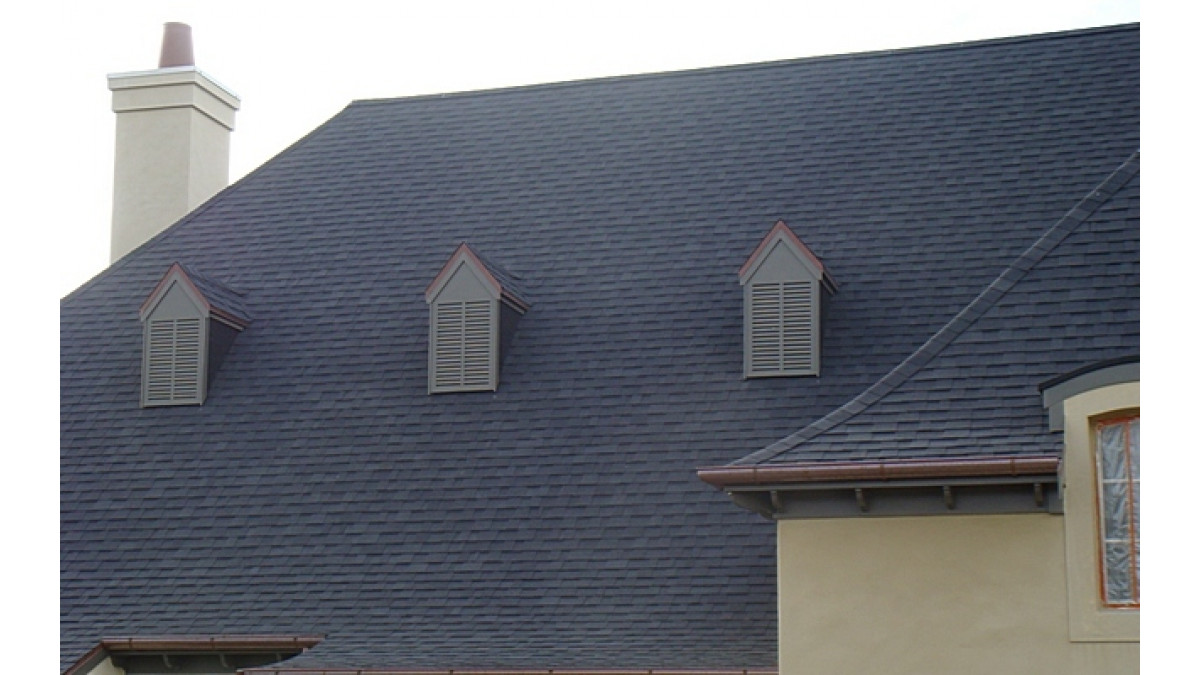

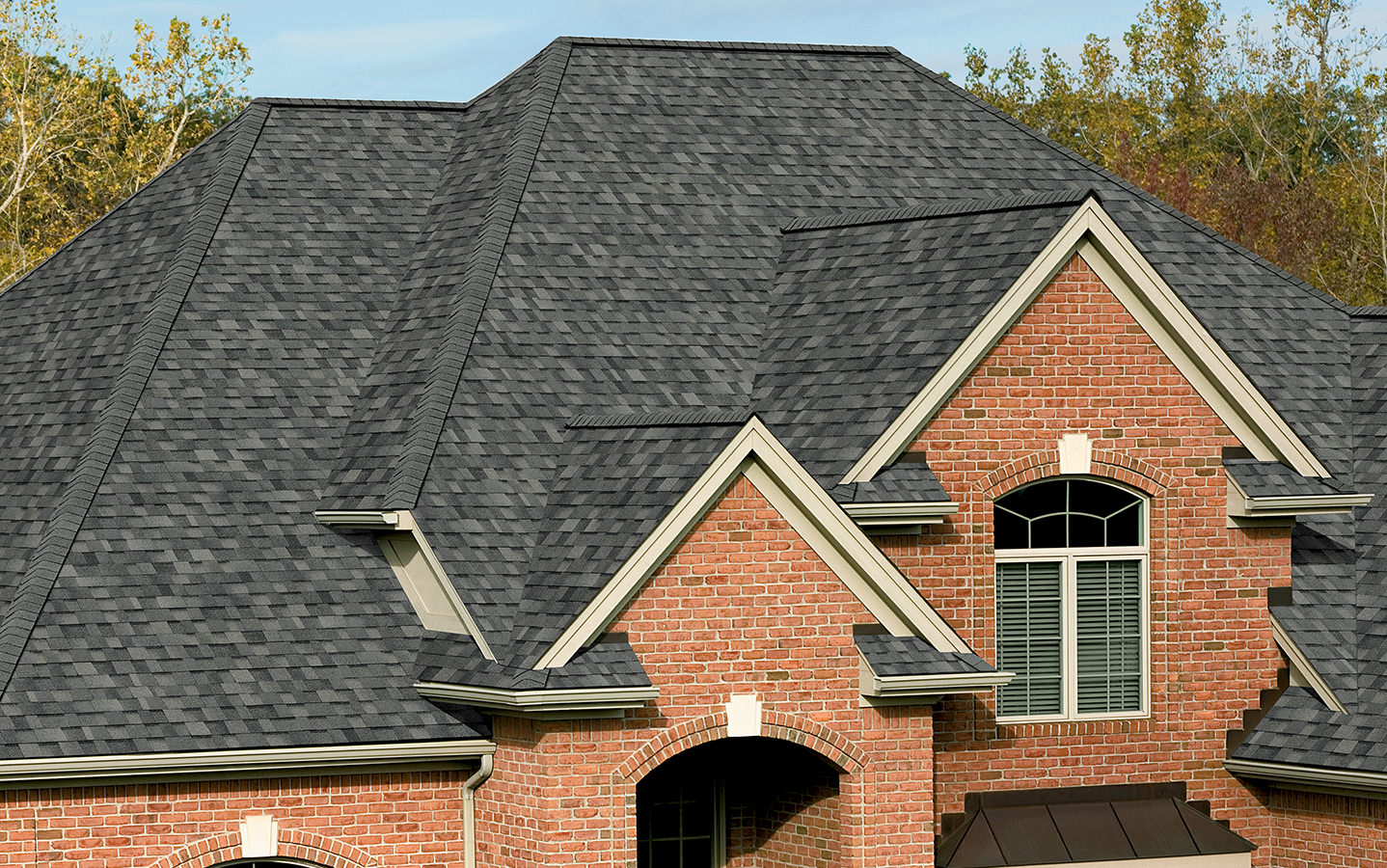

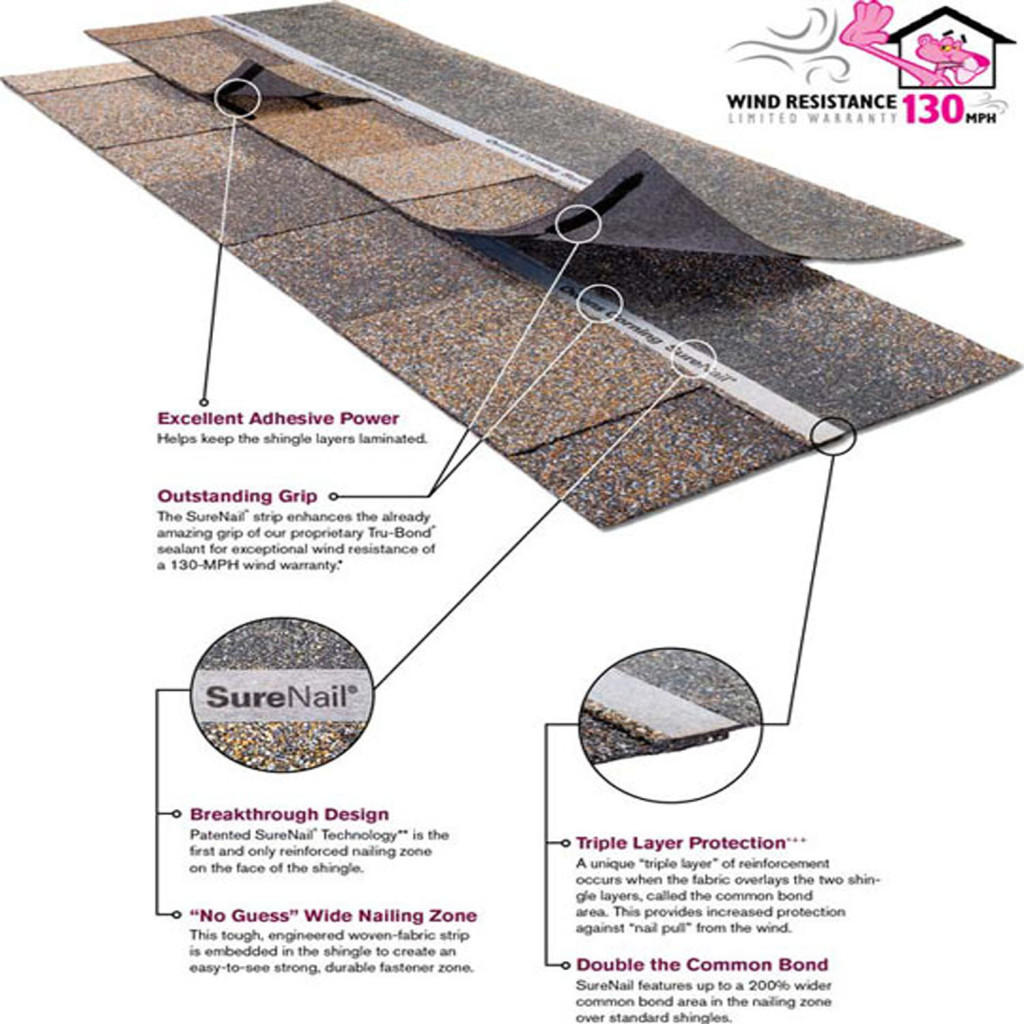

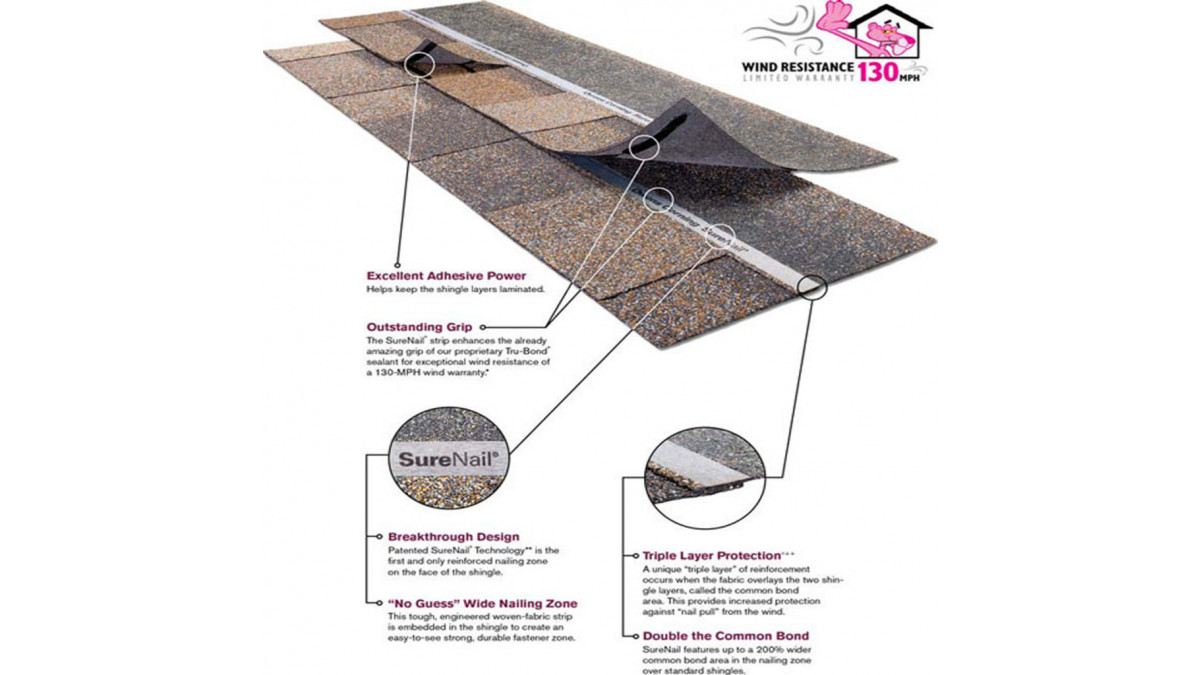

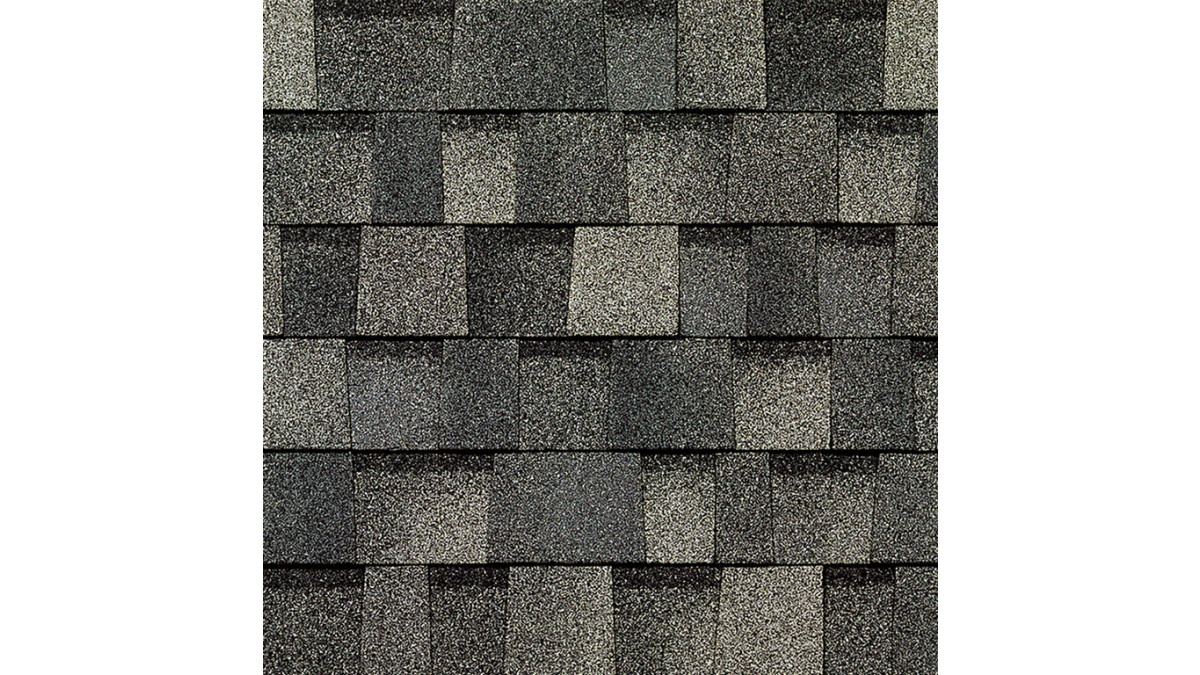

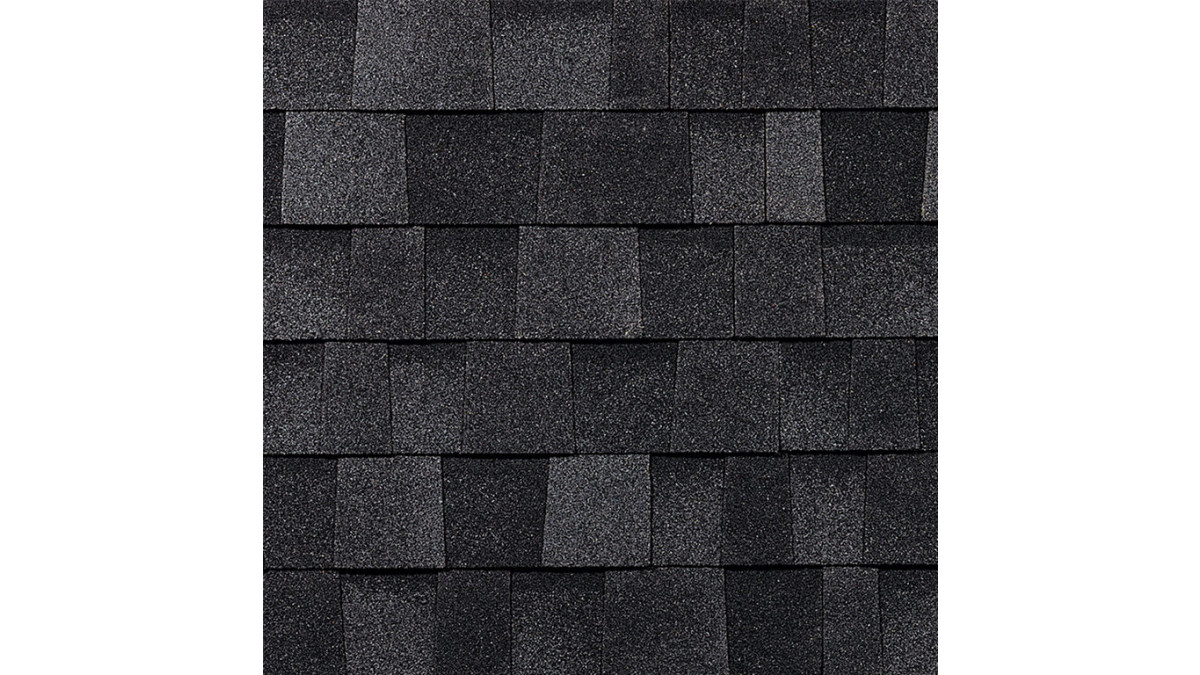

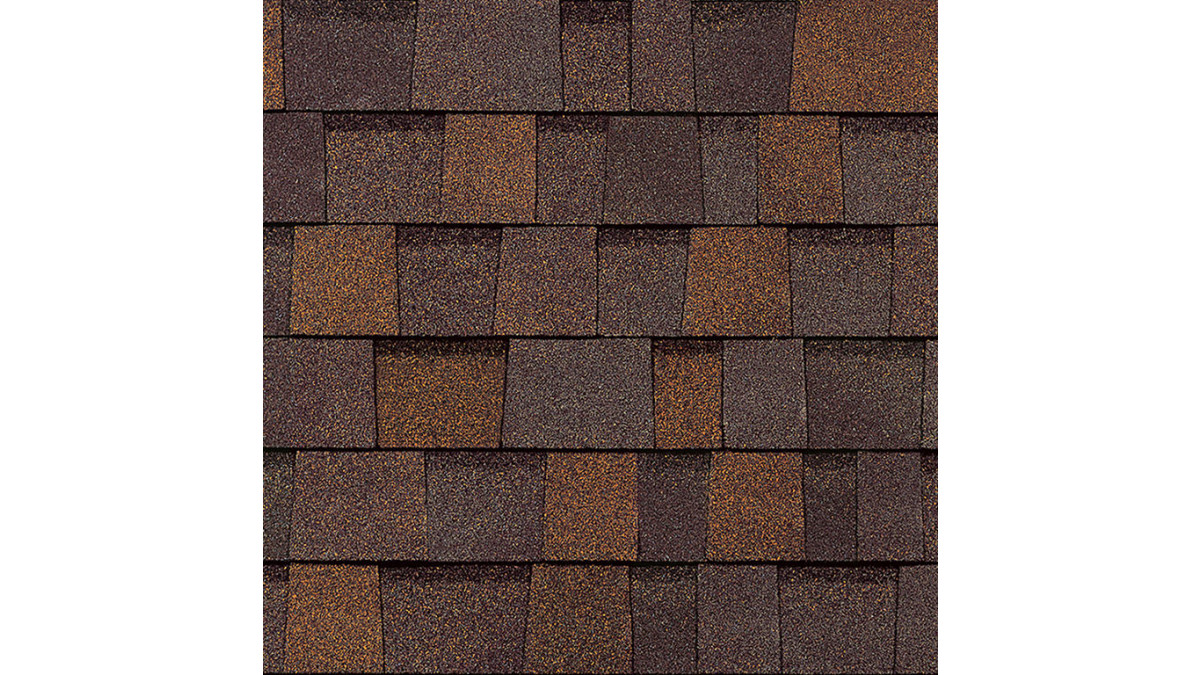

Duration Premium Asphalt Shingles with SureNail Technology offer bold, dimensional look, with impressive durability. The unique fabric strip in the nailing area on every Duration Series shingle provides outstanding gripping power
Algae Resistant Warranties of 10 years
StreakGuard Algae Resistance Protection keeps roofs looking like new. Blending copper-lined granules into Owen's Corning colourful granules helps resist algae growth.
Wind Resistance Warranties of up to 210 km/h
The quality and performance of the sealant on a shingle helps to play an important part in wind resistance performance. Owen's Corning certifies shingles to industry recognised wind resistance standards through independent third-party testing laboratories.
Assessed by the Underwriters Laboratory (U.L.), assessing their collective resistance to wind, uplift, UV and impact and complies with E2 as an Alternative Solution.
Nominal Size — 336.55mm x 984mm*
Exposure — 143mm*
Shingles per square — 64*
Bundles per square — 4*
Coverage per square — 9.01m²*

*See actual warranty for complete limitations and requirements

Ranges

Roofing

Scope of Use

Owens Corning Asphalt roofing shingles have been appraised as a roof cladding for buildings within the following scope:

The scope limitations of NZBC Acceptable Solution E2/AS1 Paragraph 1.1, with regard to floor plan area and building height; and,
Constructed with timber roof framing and plywood sheathing complying with the NZBC; and,
Where the roof slope is 9.5 degrees or greater; and,
Situated in NZS 3604 Wind Zones up to and including Very High, or Extra High for the Duration Premium shingle.

Limitations on Use

Refer CodeMark CMNZ70108

For a total high-performance roofing system, it is recommended to use SureGuard Synthetic Ice & Water Barrier with the Owen's Corning Asphalt shingles. SureGuard ice and water barrier has a specially designed peel and stick membrane that acts as an additional line of protection. The patented SureFoot Slip-resistant surface ensures excellent traction and safe installation. This is a must for all low-slope roofing applications. For use under metal, timber, tile, and shingle roofs.

Statement of Building Code Compliance

The product will, if installed in accordance with The Building Agency installation and maintenance requirements, assist with meeting the following provisions of the NZBC.

Clause B1 Structure: Performance Clauses B1.3.1, B1.3.2, B1.3.3 (b, j, g, h),B1.3.4
Clause B2 Durability: Performance Clauses B2.3.1 (b)
Clause E2 External moisture: Performance Clauses E2.3.1 (contributes to), E2.3.2, E2.3.7
Clause F2 Hazardous building materials: Performance Clauses F2.3.1
Clause G12 Water supplies: Performance Clauses G12.3.1 (contributes to)

Refer CodeMark CMNZ70108

In-Service History

The company, which became known simply as Owens Corning, continued to innovate and form partnerships to expand and strengthen their capabilities in the years that followed. As they found new uses for their materials, Owens Corning launched their roofing and asphalt business in the 1960s and composites in the 1990s. Other businesses were created and divested as they grew. Owens Corning survived a hostile takeover attempt in the 1980s, supported global architectural feats throughout the 1900s and 2000s, and have consistently earned numerous awards and distinctions for safety, sustainability, corporate leadership, and product quality.

Other Performance Attributes

Product Warranties of up to 50 years
Algae Resistant Warranties of 10 years
StreakGuard Algae Resistance Protection keeps roofs looking like new. Blending copper-lined granules into Owen's Corning colourful granules helps resist algae growth.
Wind Resistance Warranties of up to 210 km/h
The quality and performance of the sealant on a shingle helps to play an important part in wind resistance performance. Owen's Corning certifies shingles to industry recognised wind resistance standards through independent third-party testing laboratories.
