ALUCOLUX A1 — Solid Aluminium Panels
Description

The Alucolux A1 is a 3mm thick solid aluminium panel without a polymer core, and installed as part of a rainscreen cladding system. Developed from the optimum marine grade aluminium, Alucolux is the perfect combination of temper and hardness. Architectural cladding applications require the correct combination of these properties to perform when exposed to wind loads and pressure. Alucolux provides a non-combustible cladding solution for compliance and safety with no complications. Deemed non-combustible and certified to AS1530.1.

Alucolux A1 provides solutions for architects, designers, developers, builders and construction companies looking for a premium solid aluminium façade panel they can safely specify for commercial, educational, aged care and residential projects without compromising design.

Alucolux A1 is available in a wide range of colours, and is also available in embossed surfaces, wood and stone looks.

Key Features
  • A1 Classification in accordance to AS1530.1-1:2007+A1:2009
  • Non Combustible or not combustible when tested to AS1530.1 or ISO1182
  • Full wall assembly fire test to BS8414-2 and BR135 Annex B when installed on The Building Agency DAB System
  • Custom sizes, colours and finishes
  • Guaranteed premium PVDF finish
  • High quality marine grade aluminium specifically developed for architectural facades.
  • Easy to fabricate
Scope of Use
  • High and Low-rise applications
  • Re-cladding or refurbishing
  • Health care facilities
  • Public offices and civic centres
  • Residential applications
Limitations on Use
  • Refer to the BRANZ Appraisal 528 (2024)
Statement of Building Code Compliance

The Building Agency Alucobond® Cladding System, if designed, used, installed and maintained in accordance with the statements and conditions of BRANZ Appraisal 528 (2024), will meet or contribute to meeting the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. The Building Agency Alucobond® Cladding System meets the requirements for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)].
  • Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years. The Building Agency Alucobond® Cladding System meets this requirement.
  • Clause C3 FIRE AFFECTING AREAS BEYOND THE FIRE SOURCE: Performance C3.5 The Building Agency Alucobond® Cladding System can contribute to meeting this requirement.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. The Building Agency Alucobond® Cladding System meets this requirement.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Building Agency Alucobond® Cladding System meets this requirement.

Refer to the BRANZ Appraisal 528 (2024)

In-Service History
  • High and Low-rise applications
  • Re-cladding or refurbishing
  • Health care facilities
  • Public offices and civic centres
  • Residential applications
Other Performance Attributes
  • 3mm solid non-combustible aluminium
  • Coil coated for colour consistency
  • Surfaces can be textured
  • 1500mm wide sheet size up to 6000mm long can be provided
BRANZ Appraised
BRANZ Appraised
Independent Assessment
Independent Assessment
Documents
Engineer Compliance Statement - Oculus Architectural Engineering

2019

BRANZ Appraisal 528

528 (2024)

Additional Information

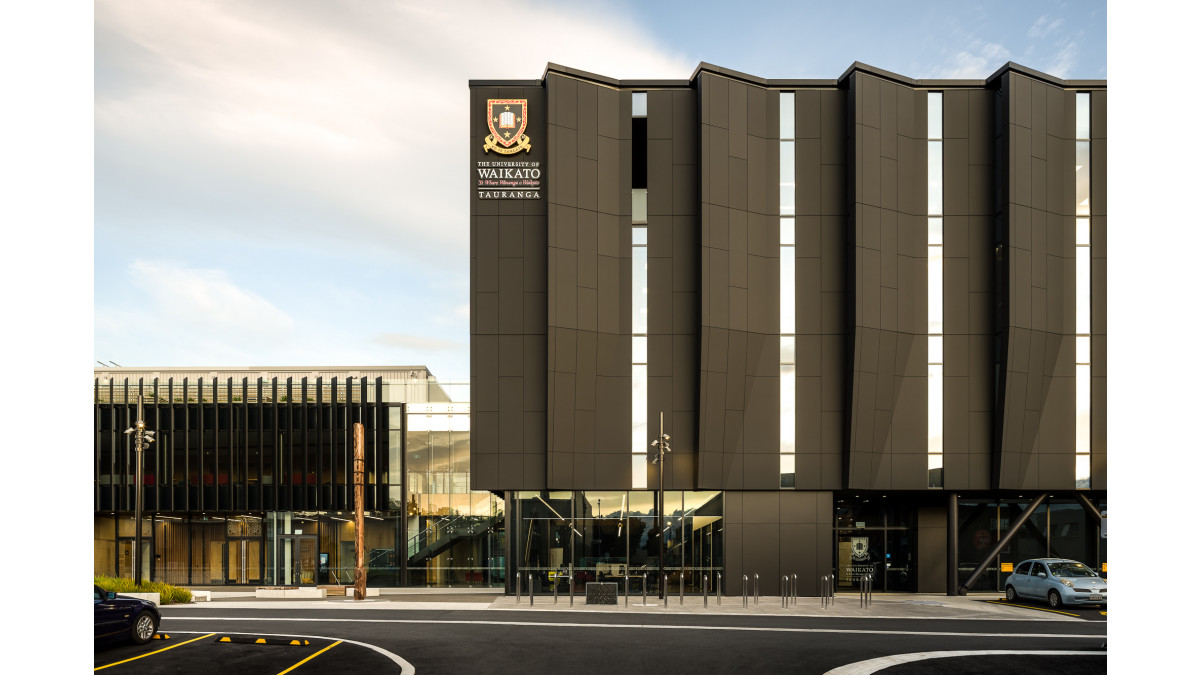

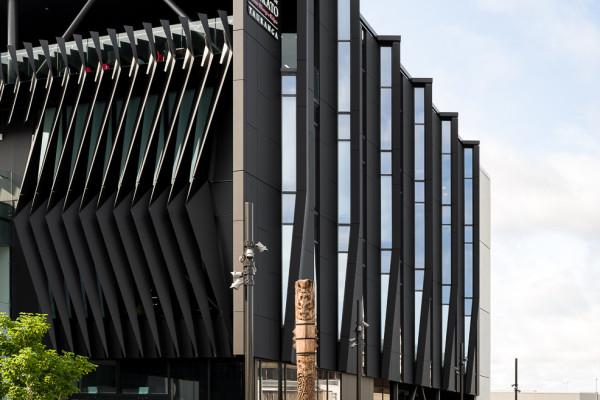

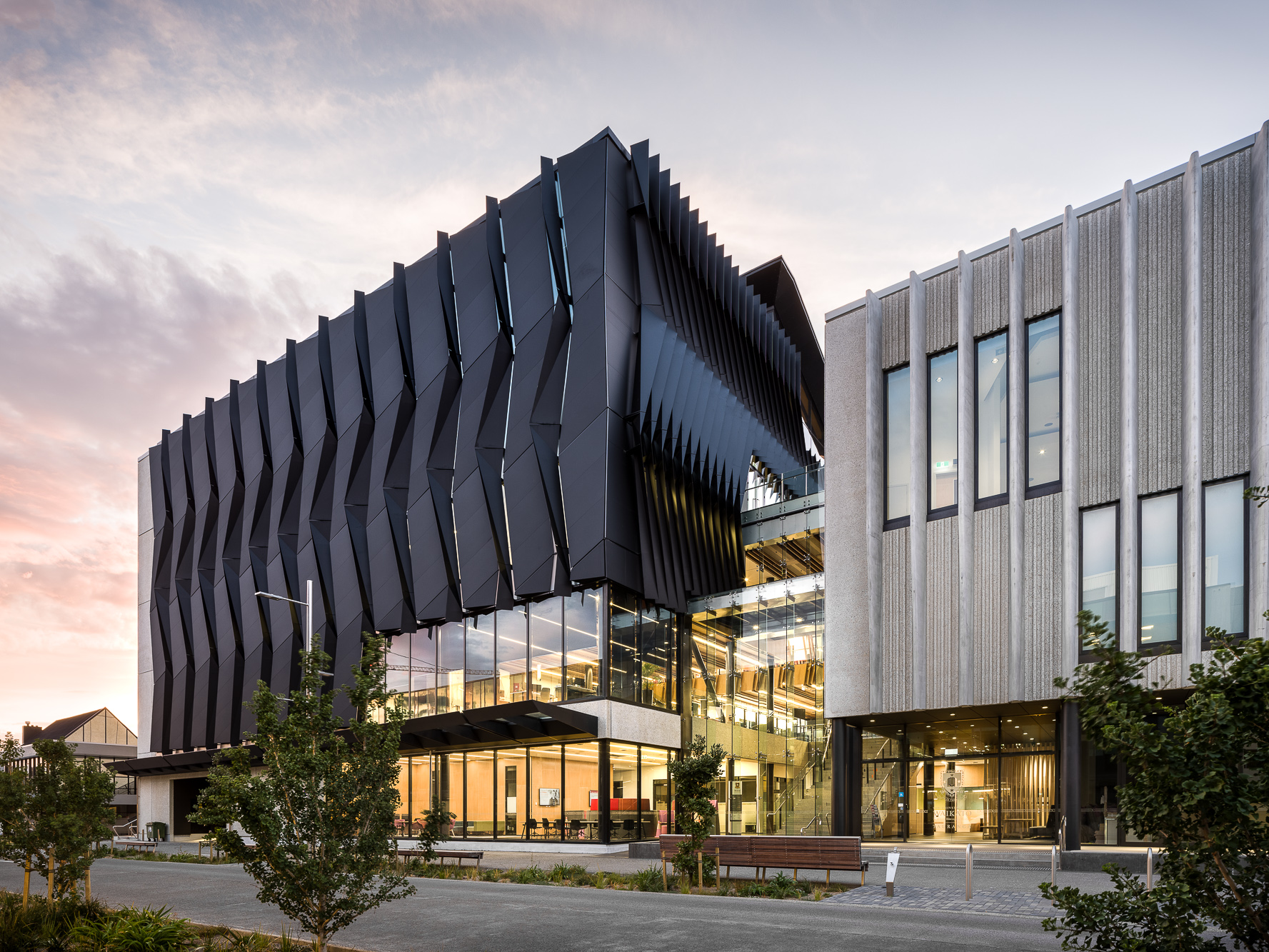

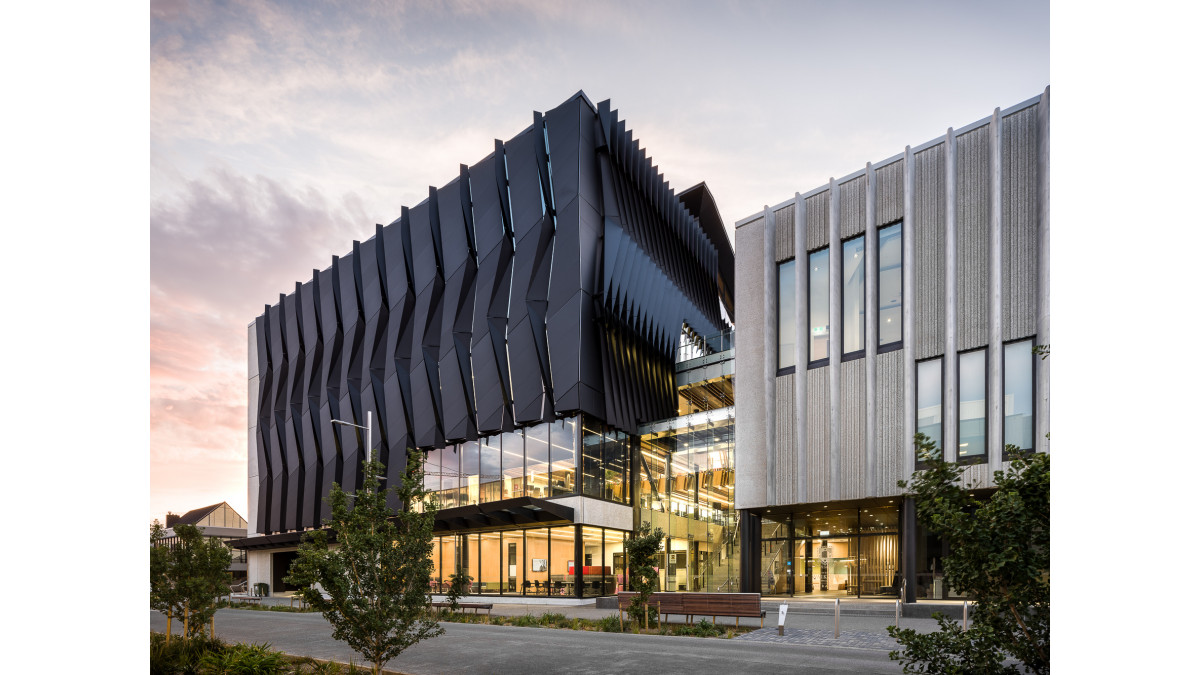

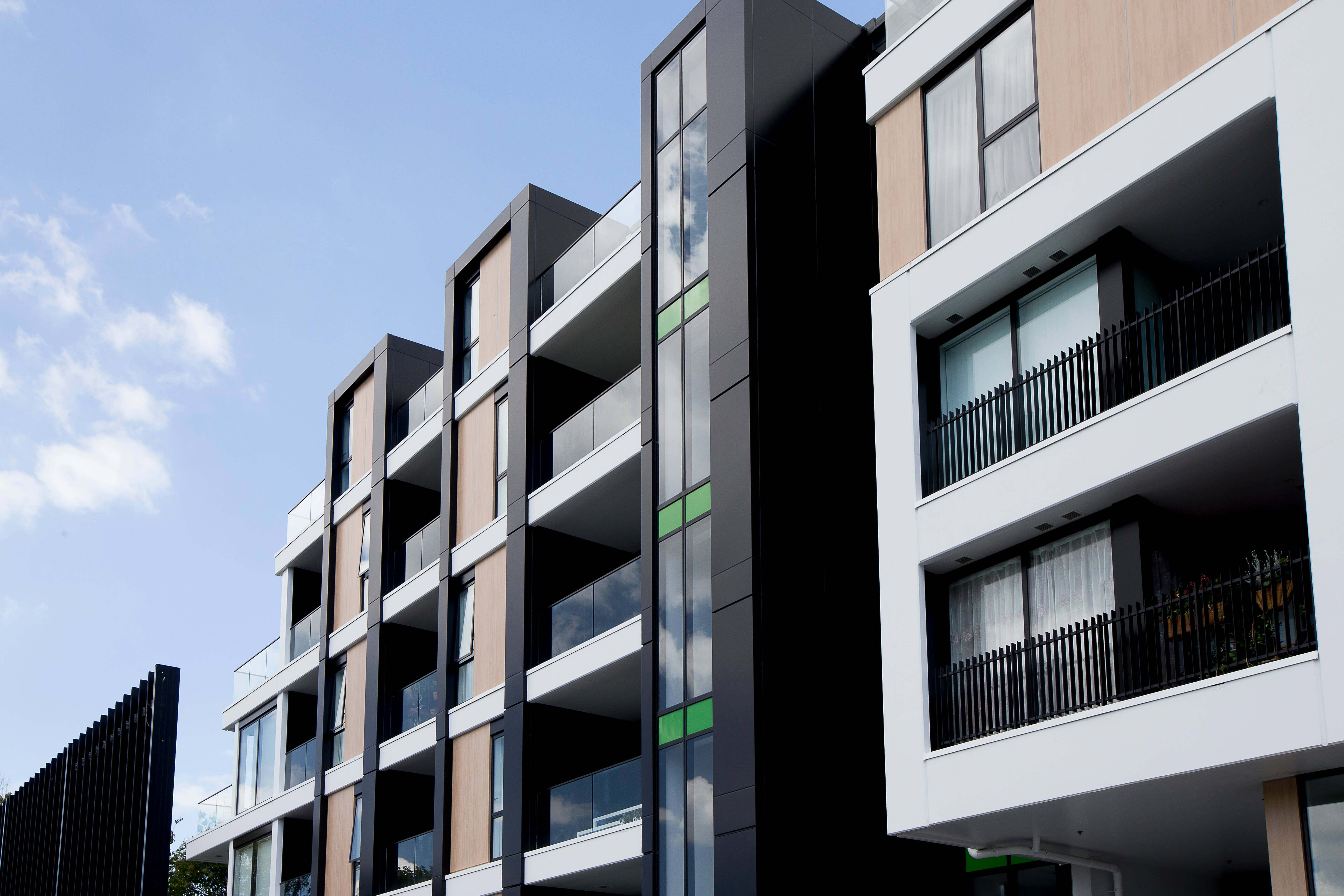

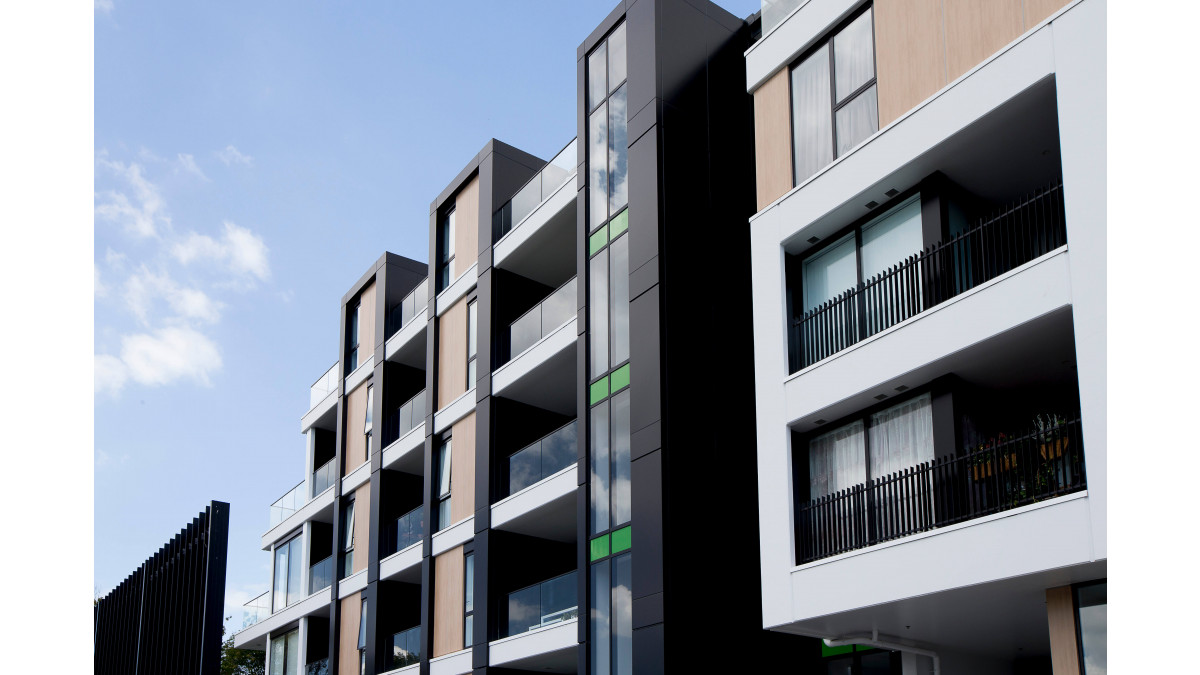

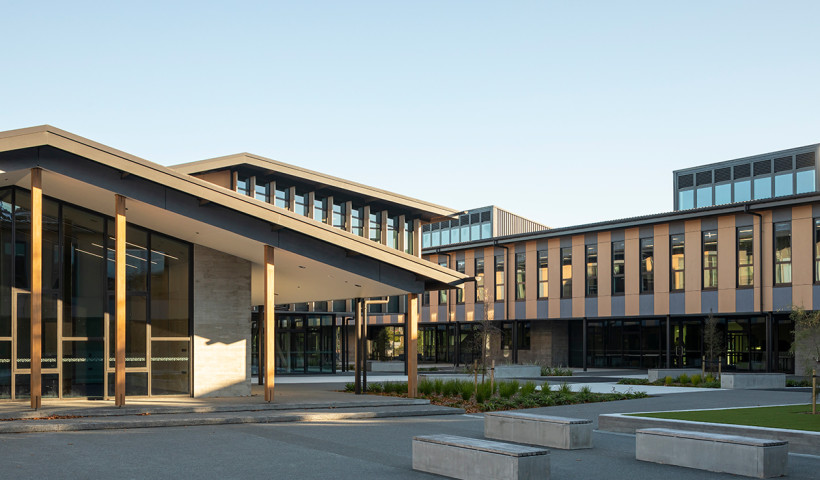

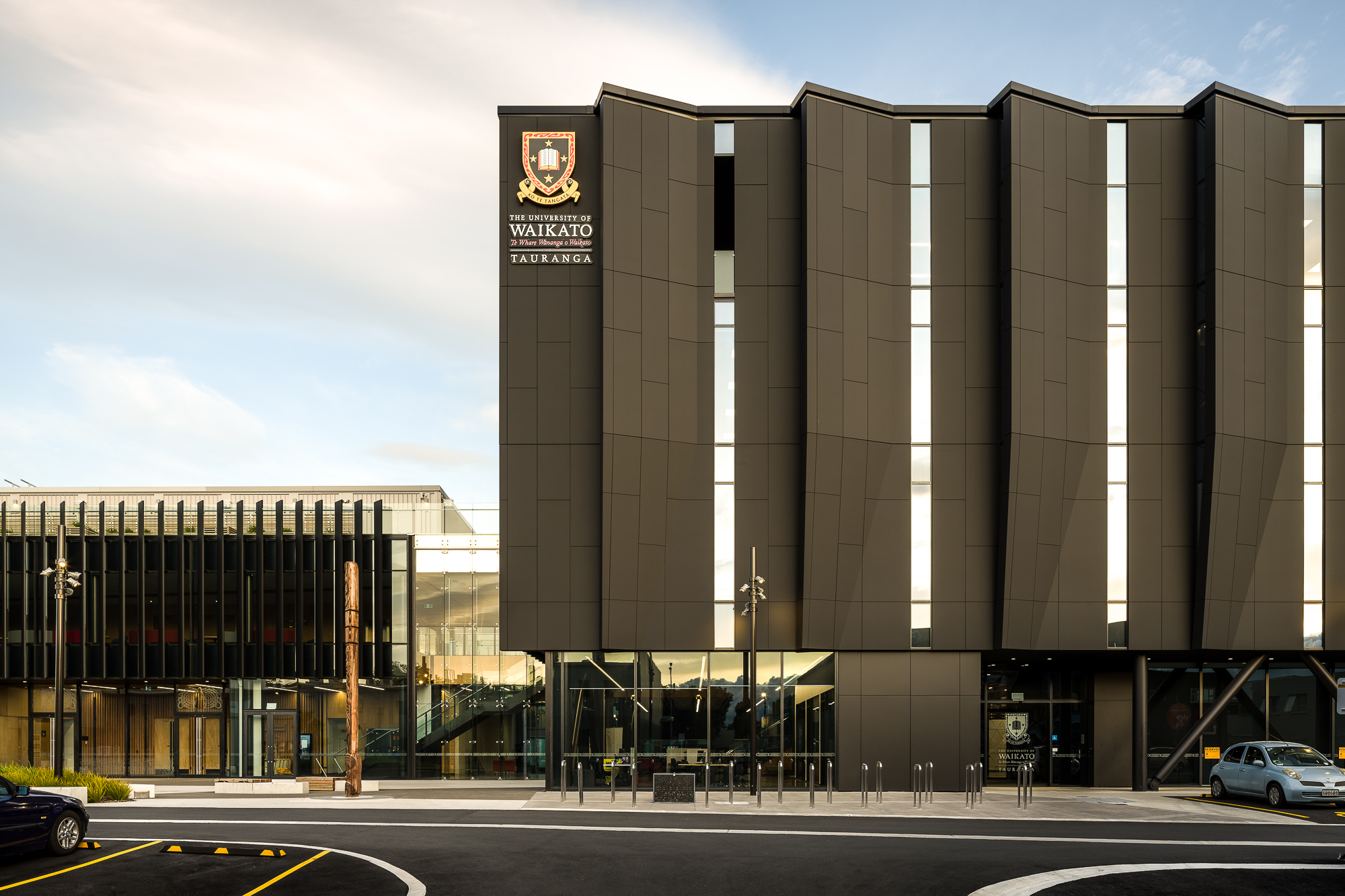

Project Gallery
CAD/PDF Details
WAB System Fabrication -Installation Systems

TBA

Importer and distributors of shingle roofing, cladding, screening and lining across New Zealand, with brands including Owens Corning, AliClad, Innowood, Equitone, Frontek, and Alucobond.

Product Enquiries

News from The Building Agency

Elevate Your Interior Vision with Digitally Printed EQUITONE [inspira] NEW

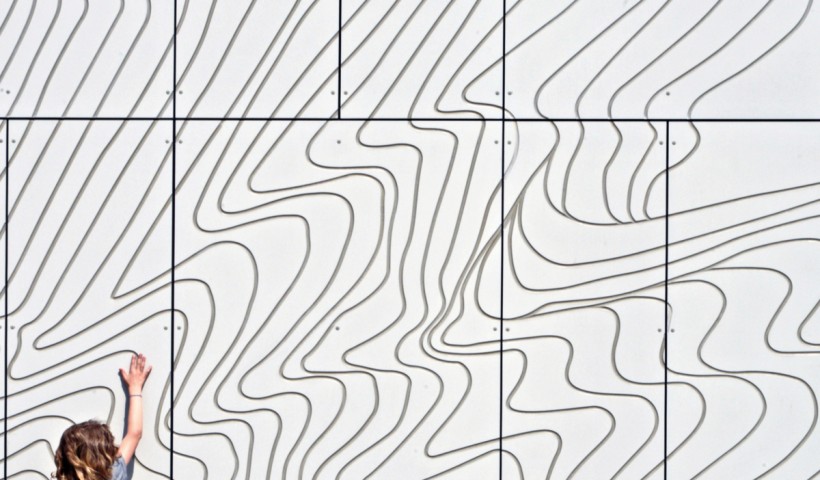

Equitone for the Education Sector
