Clearspan Slat Balustrade
Description

Clearspan Slat Balustrade is a variant on the popular balustered Aluminium balustrade. Slats provide excellent privacy, superior wind protection and a different aesthetic when compared to Settler or Heritage styles.

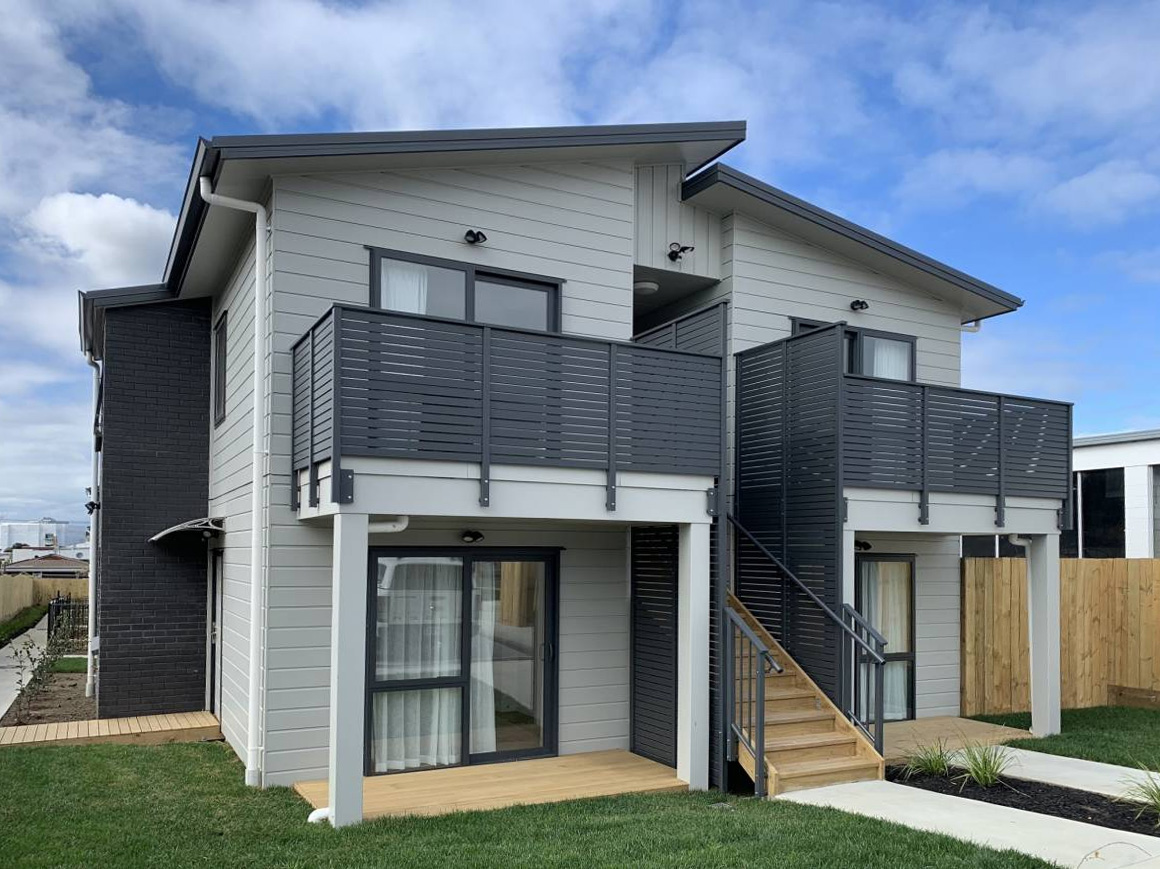

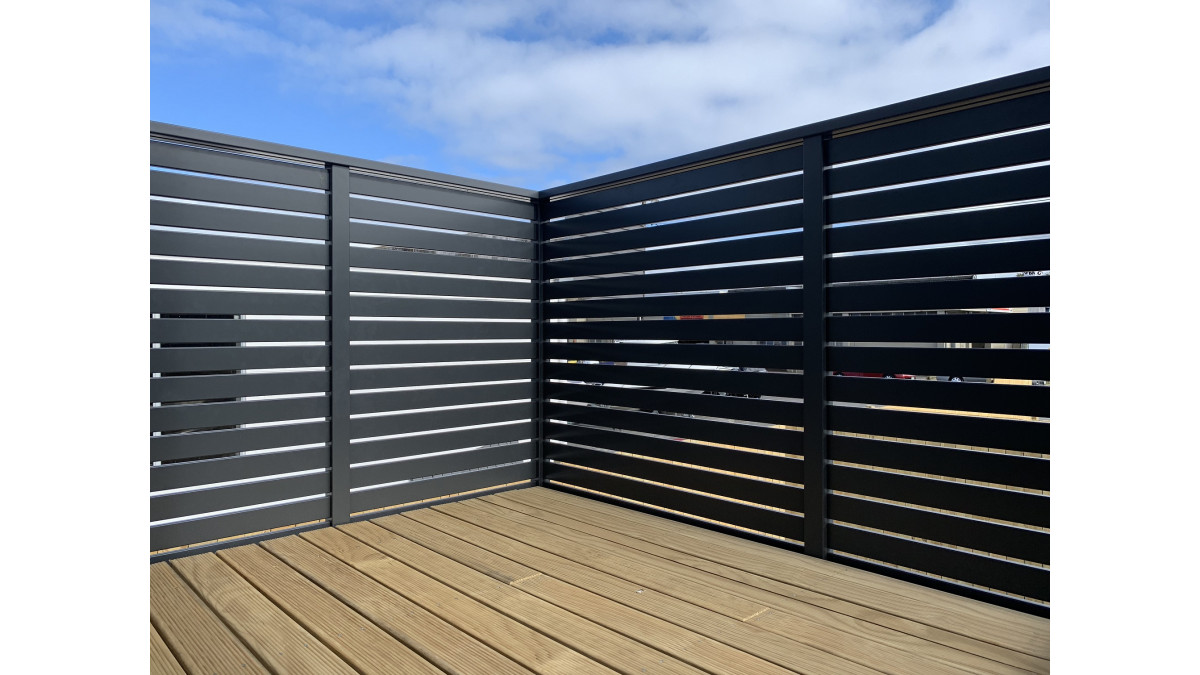

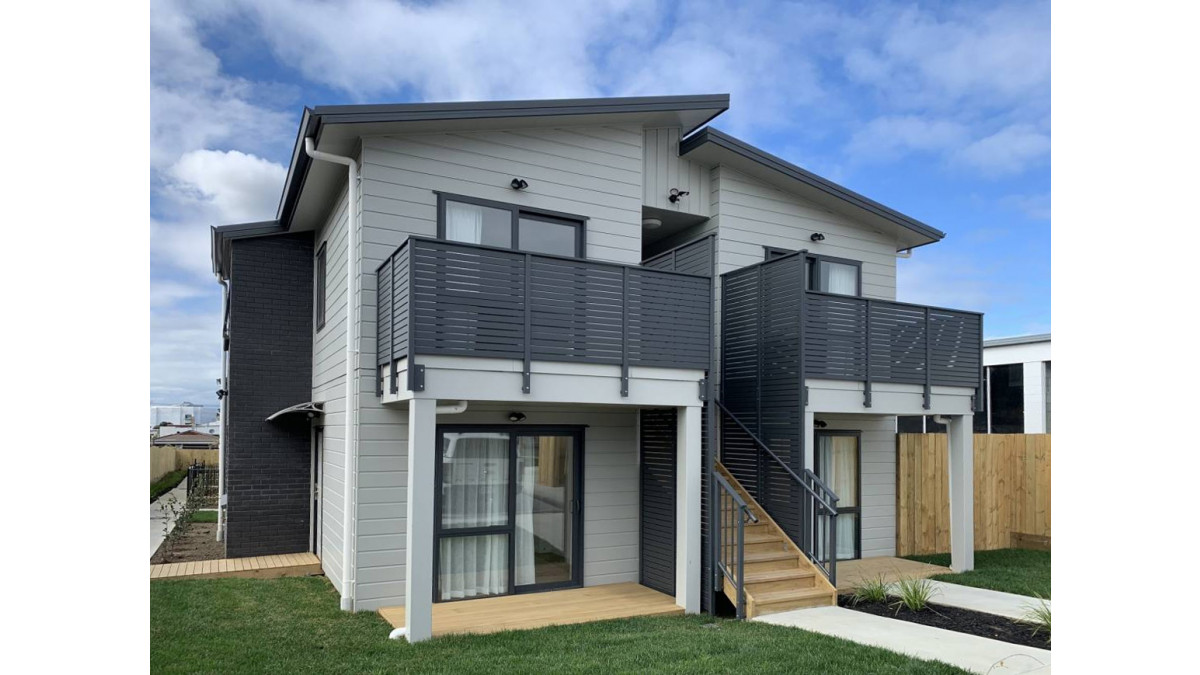

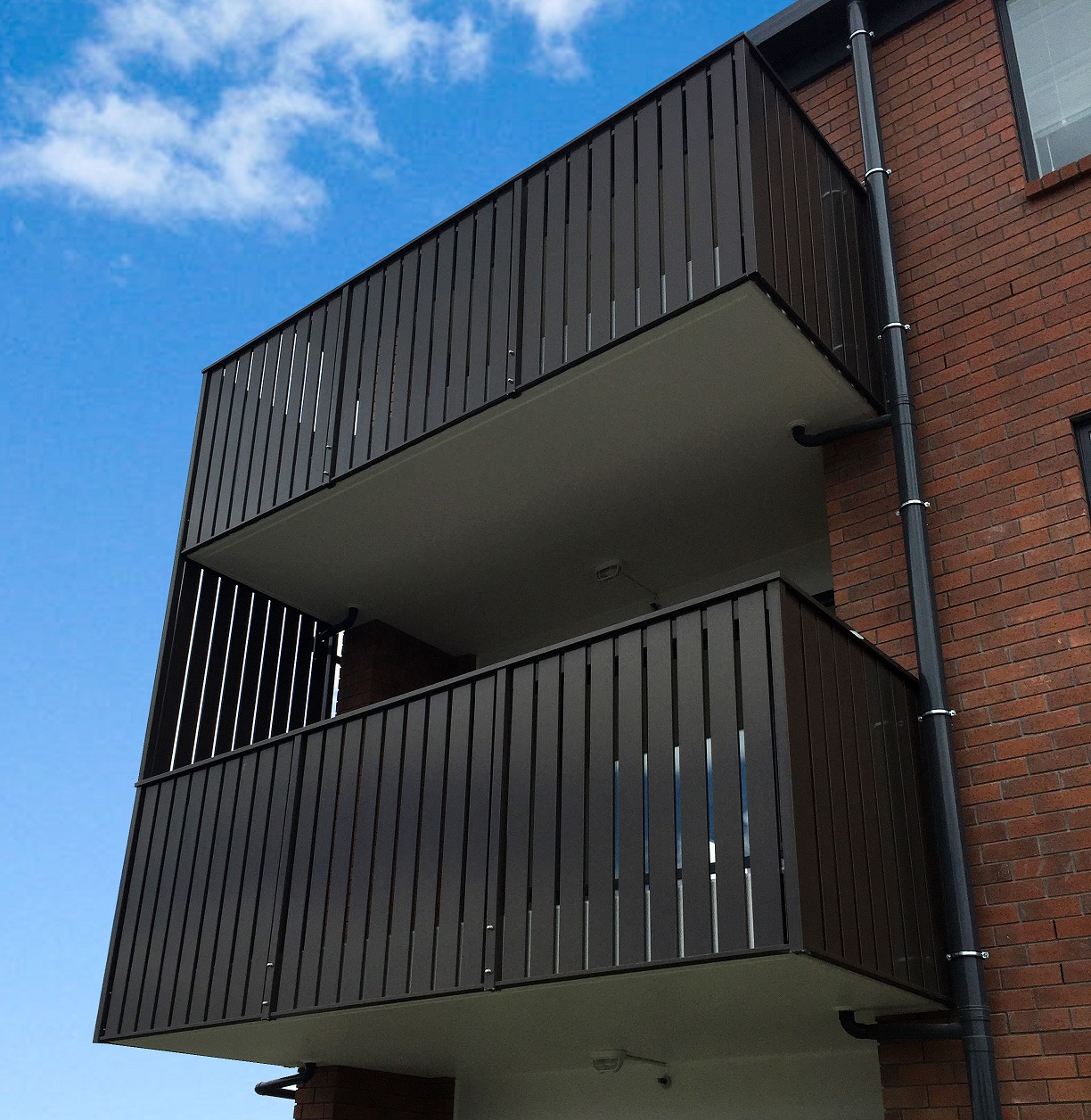

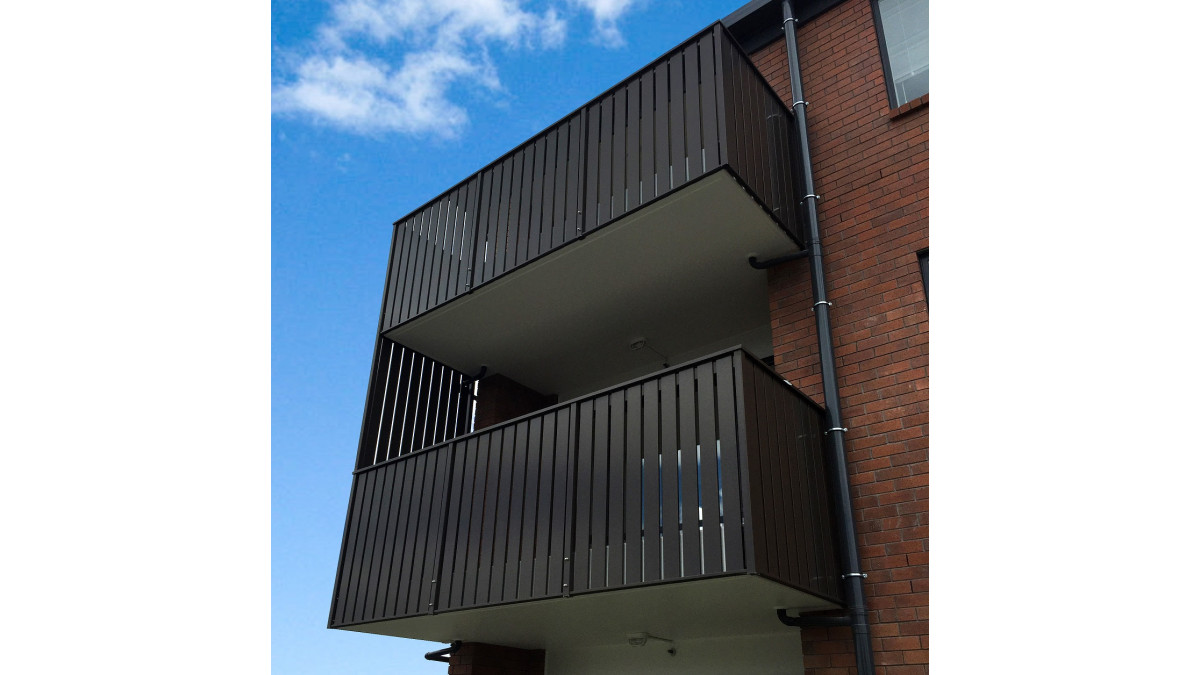

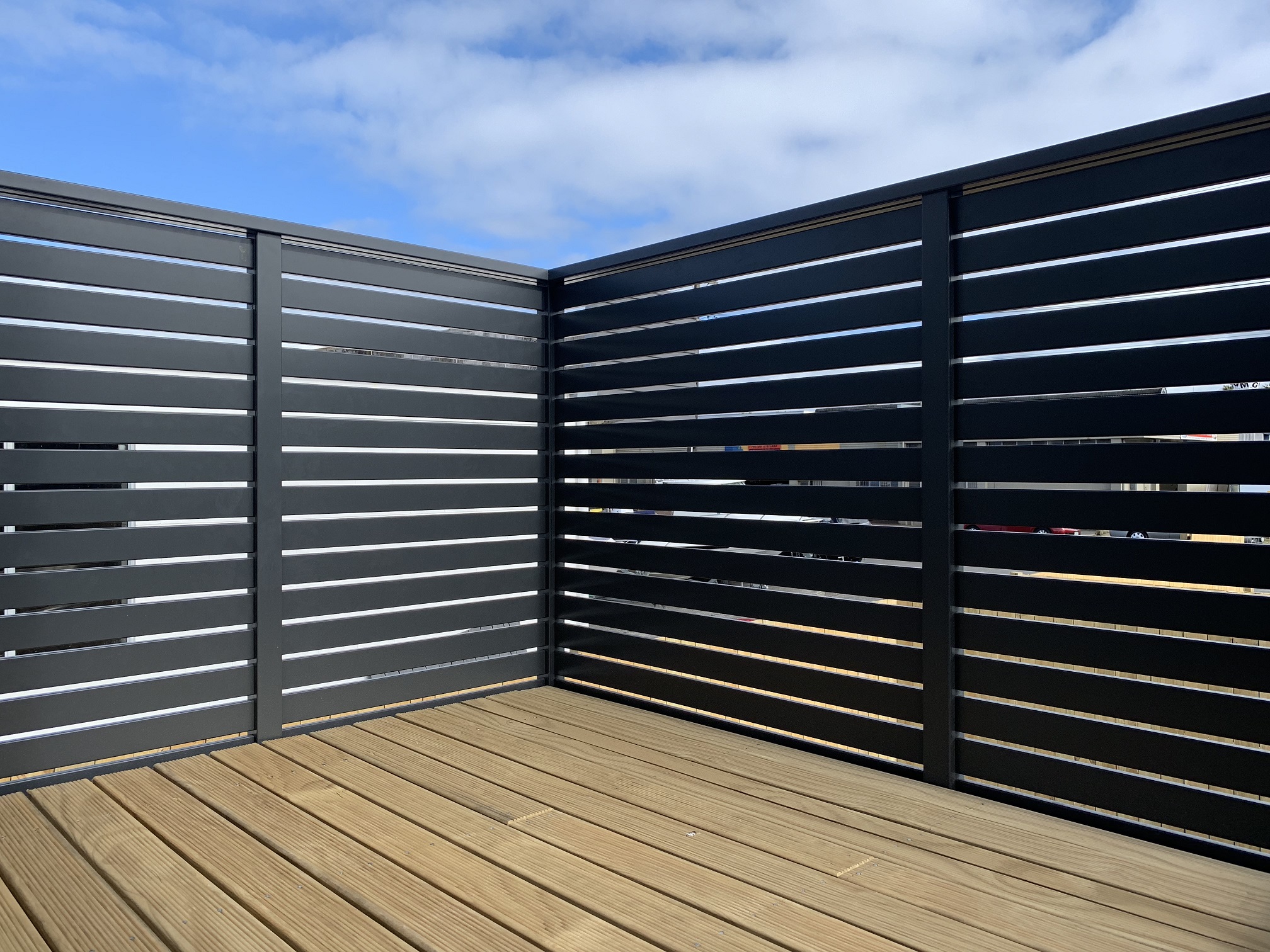

Slats can be installed in vertical or horizontal orientation with varying slat sizes available.

Key Features
  • Slats provide excellent privacy, superior wind protection
  • Slats can be installed in vertical or horizontal orientation with varying slat sizes available.
  • All Clearspan styles offer varying handrail options and fixing methods
  • Aluminium is extruded locally and fixings are high grade 316 stainless steel.
  • All components are made using the highest grades of aluminium and stainless steel
  • Speed of installation
  • Seven year material defects warranty and two year workmanship warranty available
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • The system is suitable for residential, commercial, external, internal and pool fence applications
  • This product can also be used for privacy screens or decorative facades
  • This system is suitable for A, B, E & C3 occupancy types
  • Slats can be installed in vertical or horizontal orientation
Limitations on Use

This system is not suitable for the following occupancy types:

  • C1/C2: Areas where people may congregate with tables and fixed seating (e.g. restaurants, bars)
  • C5: Areas susceptible to over-crowding
  • D: Retail areas
Statement of Building Code Compliance

Complies with the following provisions of the New Zealand Building Code:

  • Clause B1 Structure
  • Clause B2 Durability
  • Clause D1 Access Routes
  • Clause E2 External Moisture
  • Clause F2 Hazardous Building Materials
  • Clause F4 Safety from Falling
Other Performance Attributes

Spectrum Balustrade Systems meets and exceeds all reference standards:

  • NZS 8500:2006: Safety Barriers and Fences Around Swimming Pools, Spas and Hot Tubs
  • AS/NZS 1170:2011: Structural Design Actions

Warranty:

  • Seven year material defects warranty and two year workmanship warranty available
B1 Structure compliant
Structure
B2 Durability compliant
Durability
D1 Access Routes compliant
Access Routes
F2 Hazardous Building Materials compliant
Hazardous Building Materials
F4 Safety from Falling compliant
Safety from Falling
Documents
Material Safety Data Sheet
Producer Statement
Maintenance Instructions
Warranty
Brochure

Rev A. 30.4.20

CAD/PDF Details
Face Fixed to Timber 90deg Corner
Clearspan Face fixed to timber Coachscrew

3.1.1

Clearspan Top fixed to steel

3.1.11

Clearspan Top fixed to narrow steel

3.1.12

Clearspan - Castaway face fixed to timber (Coachscrew)

3.1.13

Clearspan - Castaway face fixed to timber (Bolt through)

3.1.14

Clearspan - Castaway face fixed to concrete

3.1.15

Clearspan - Castaway face fixed to steel

3.1.16

Clearspan - face fixed to 160mm concrete

3.1.17

Clearspan Face fixed to timber Bolt

3.1.2

Clearspan - face fixed to dry timber (bolt through with stiffener)

3.1.21

Clearspan - Castaway face fixed to wet timber (bolt through with stiffener)

3.1.22

Clearspan - Top fixed to 75mm steel (2x M12)

3.1.24

Clearspan - face fixed to steel RHS with Rivnut

3.1.25

Clearspan Face fixed to 200mm concrete

3.1.3

Clearspan Face fixed to steel

3.1.4

Clearspan Top fixed to timber

3.1.5

Clearspan Top fixed to concrete

3.1.7

Clearspan Top fixed to thin concrete

3.1.9

Clearspan Top fixed to thin concrete

3.1.9
