ESYLUX DEFENSOR PIR Sensor by Simx
Simx
All products

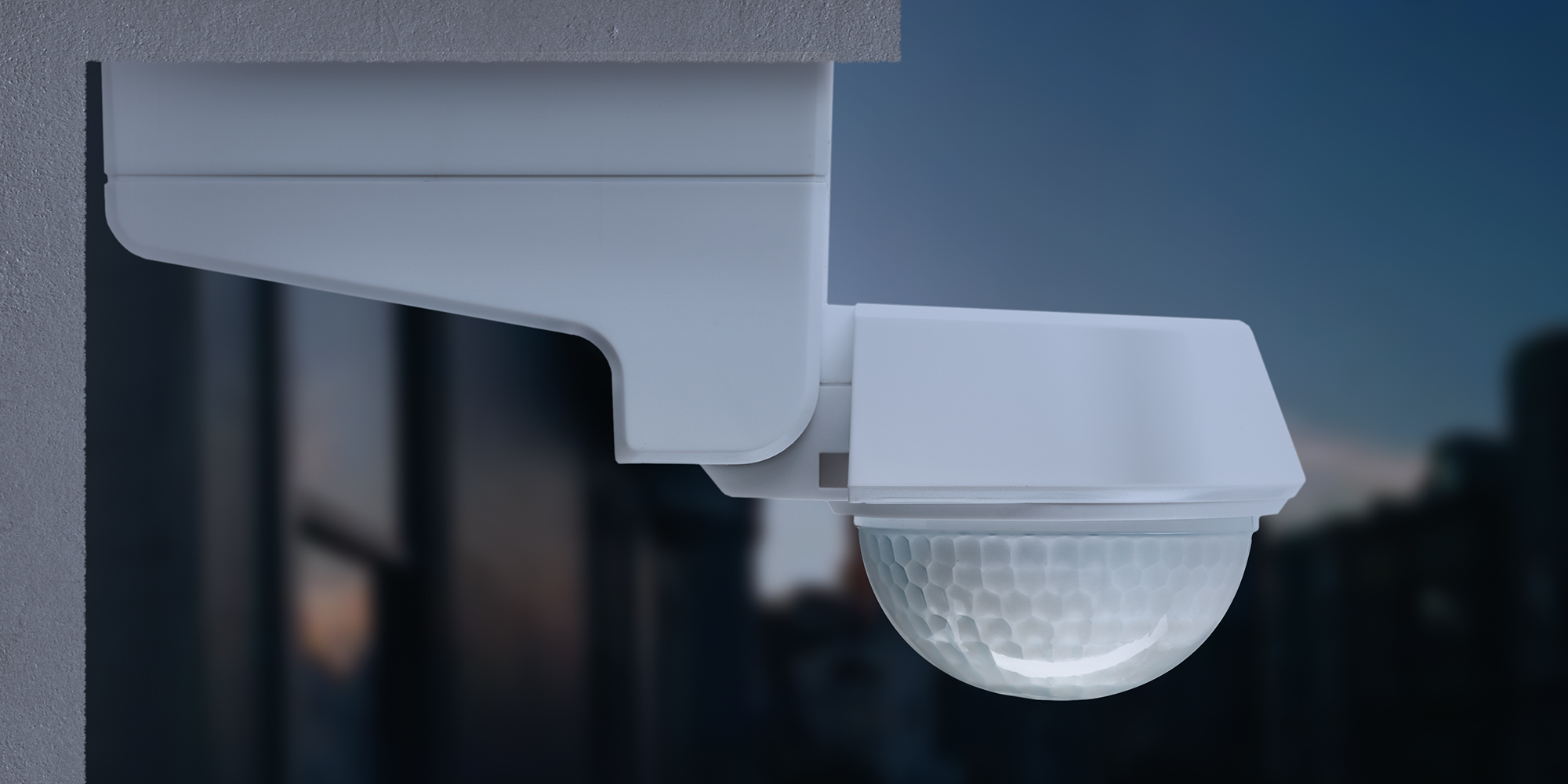

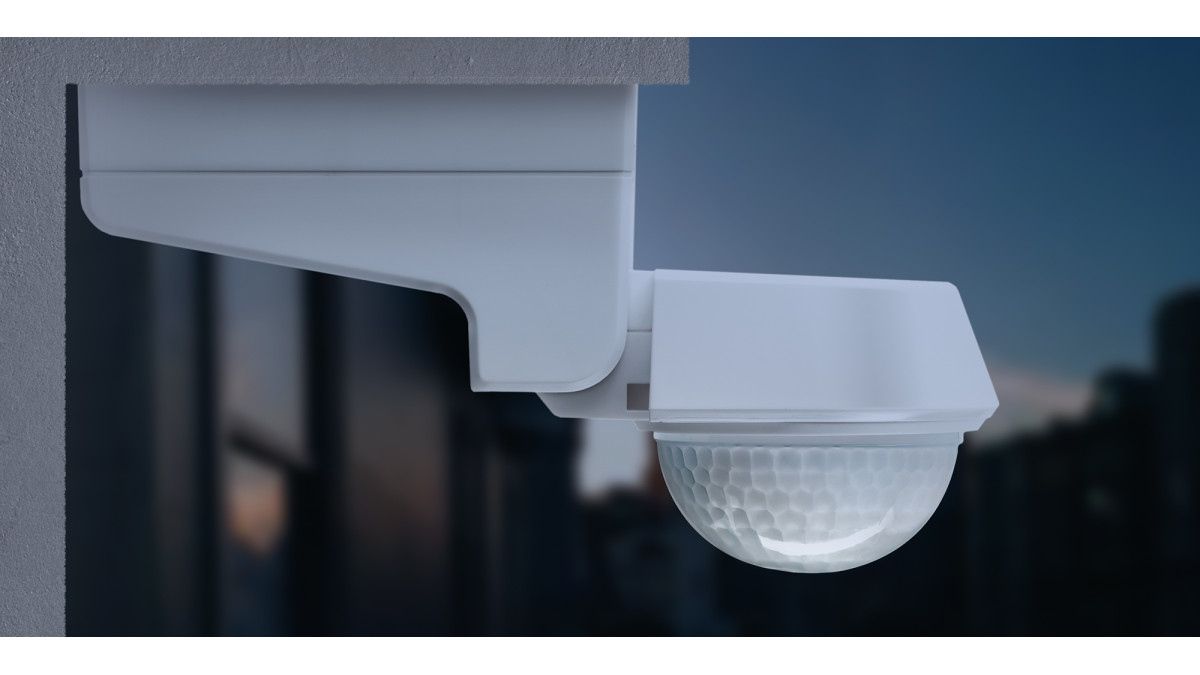

Defensor insitu

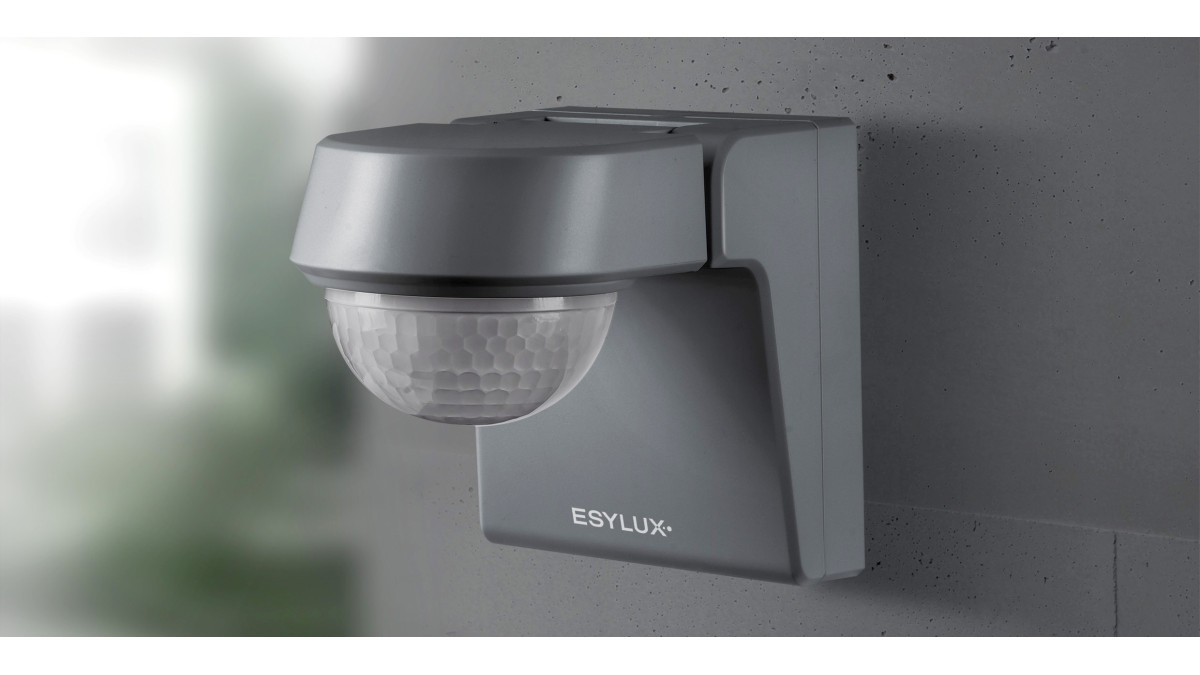

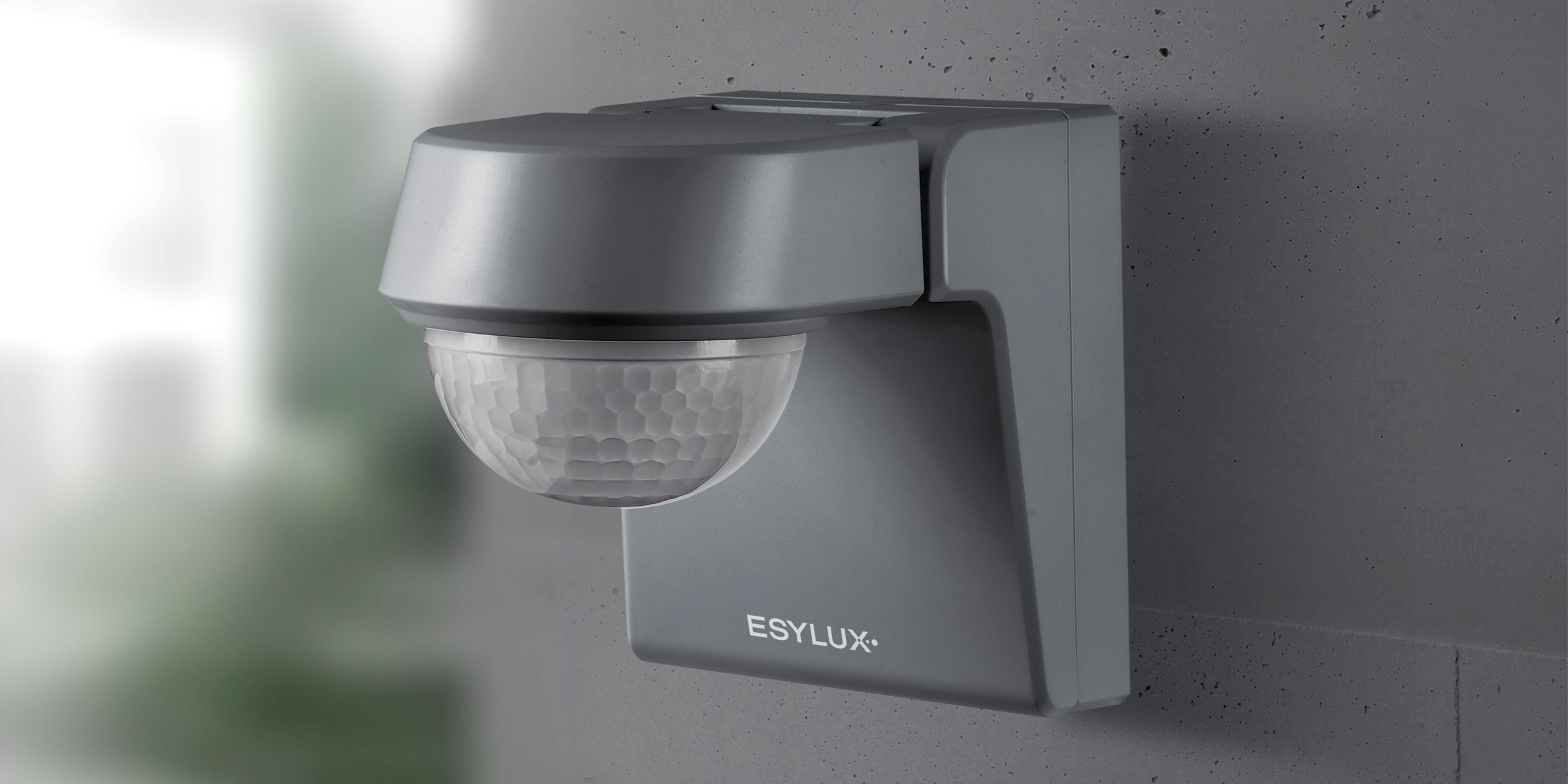

Defensor insitu 2

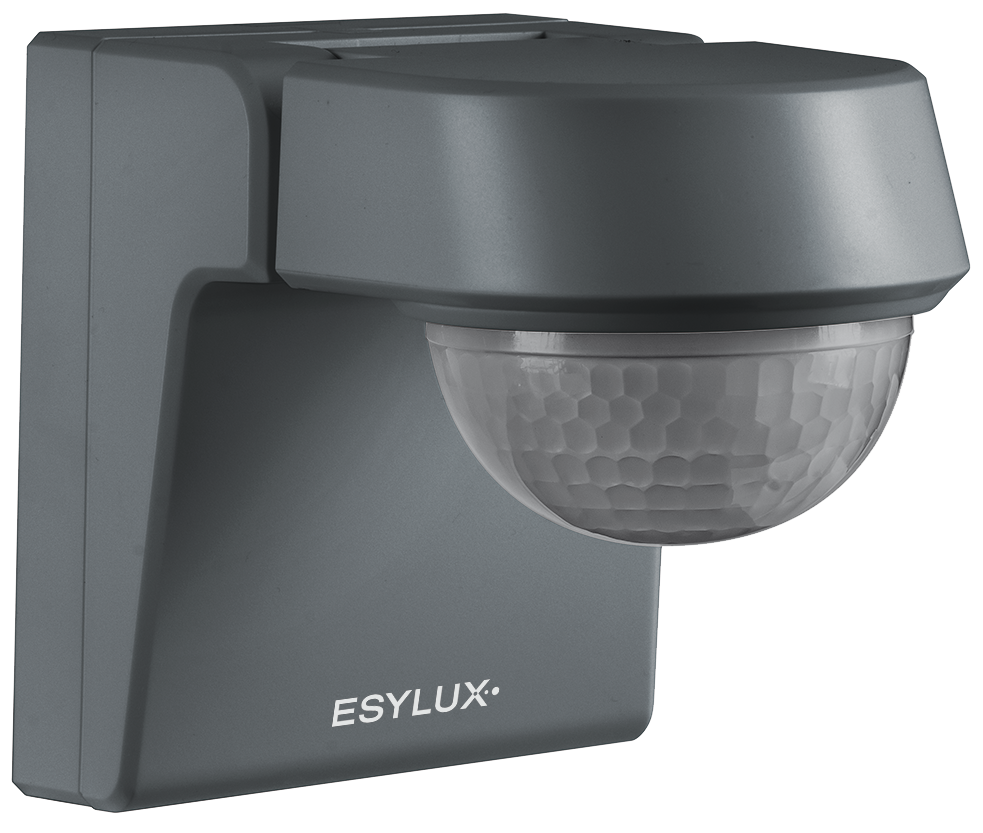

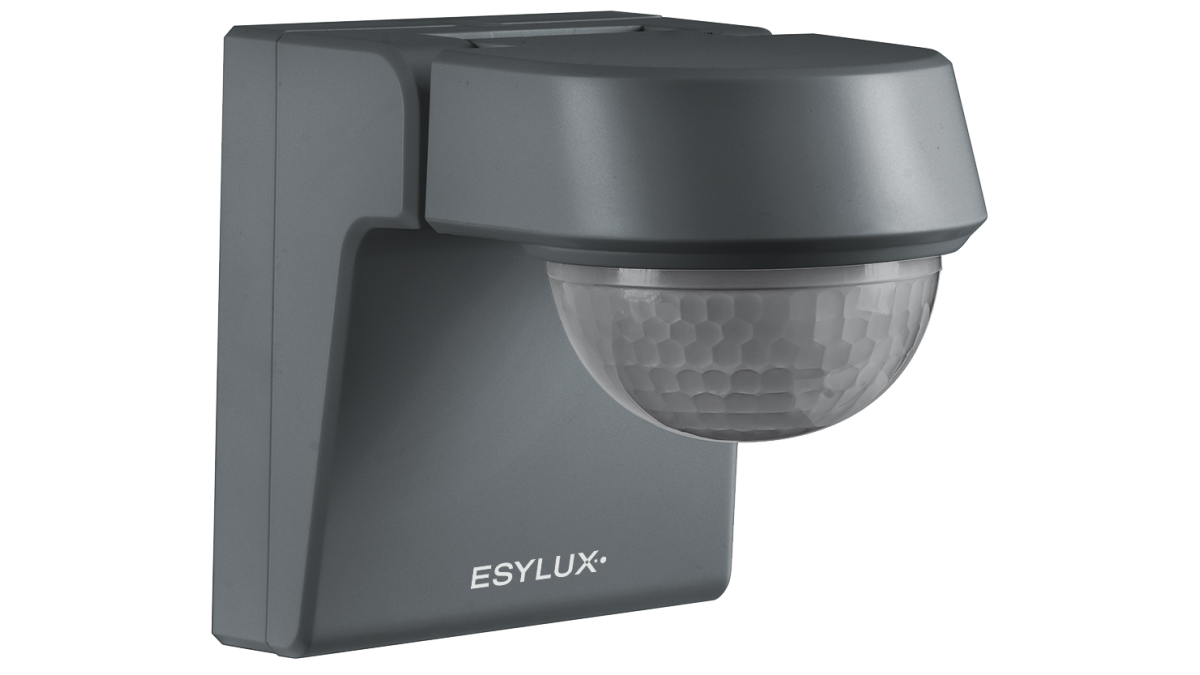

LHT1138 Defensor Anthracite

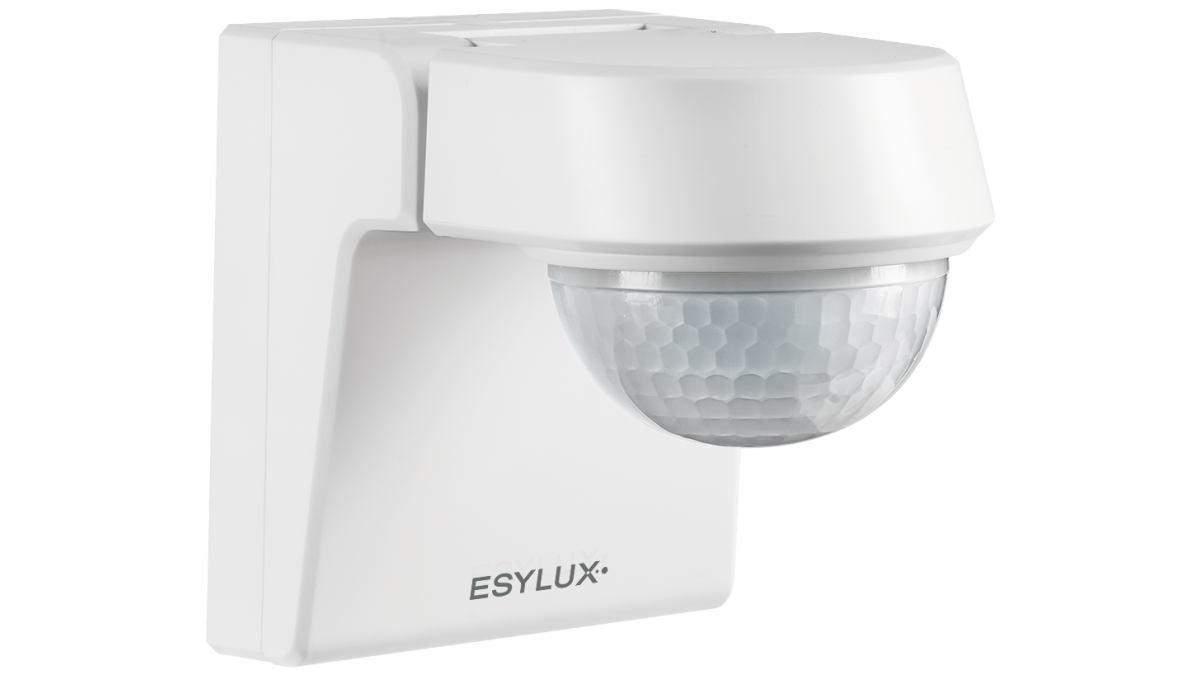

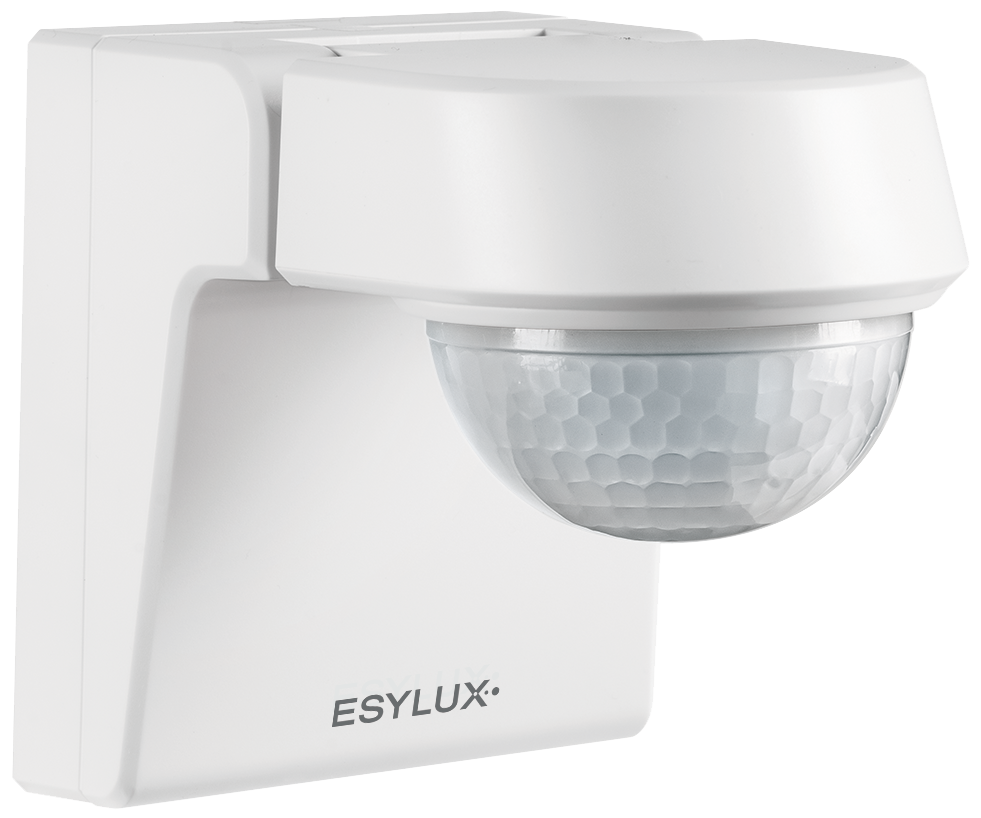

LHT1139 Defensor White
Description

Wall or ceiling mountable PIR movement sensor, constructed from polycarbonate, primarily for presence detection and automated activation of lighting for safety, security and navigation.

DEFENSOR offers more setting options than any other exterior sensor including time dependant operating modes, sabotage and password protection, and switch-off delay times based on direction of movement

Key Features
  • Optionally 230° or 280° maximum detection angle
  • 20metre radius detection
  • Time-dependent operating modes ( 2 time slots per 24hrs )
  • 360° creep protection (can be deactivated)
  • Switch-off delay times based on motion direction detection up to 240mins
  • Zero-cross switching for LED switching that protects the relay
  • 600watt LED switching capacity
  • Corner mount bracket as accessory
  • An IP55 housing for exterior exposed locations
  • Available in White or Anthracite finish
Categories
Electrical Lighting Accessories and Systems
Ranges
Lighting and Electrical
Scope of Use

Excellent solution for educational facilities and institutional sites. Also applicable for use in all commercial and industrial applications.

  • Corner mount bracket as accessory
  • An IP55 housing for exterior exposed locations
  • Settings configure via APP with password protection against unauthorised parameterisation
  • Intelligent vandalism and sabotage protection (light switches on in the event of a malfunction or breakage)
Limitations on Use
  • Do not install to locations lower than -25° C
Statement of Building Code Compliance

SDoC compliance to AS/NZS 60669-1 & 2.1; AS CISPR 15

Additionally conforms to RoHs, REACH, and WEEE directives.

Compliance documentation available upon request.



In-Service History

ESYLUX are a German based manufacturer of Lighting and Automation Controls for over 30years. Their business is accredited to ISO9001 and ISO14001.

Simx have been supplying electrical products to the electrical trade in New Zealand since 1983. They have been the exclusive New Zealand distributor of ESYLUX products since 2016.



Other Performance Attributes
  • Intelligent vandalism and sabotage protection (light switches on in the event of a malfunction or breakage)
  • High overvoltage protection (surge 2 kV, burst 4 kV)
  • A 5 year manufacturer warranty provides assurance of high quality
Documents
Installation manual: DEFENSOR
pdf
Brochure: DEFENSOR
pdf

Providing the trade and consumers with innovative products for air extraction and ventilation, and clever lighting and sensor lighting products.

Product Enquiries

News from Simx

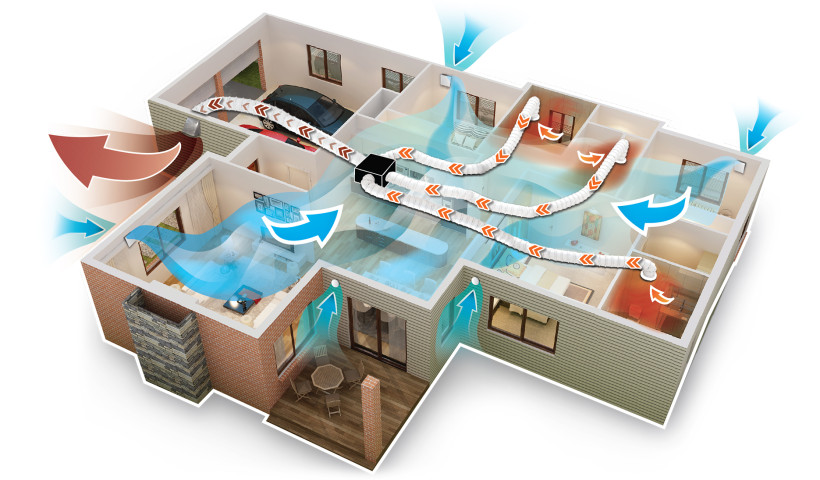

MultiVent Stops Homes from Becoming Goldfish Bowls NEW
