LED Downlights
Description

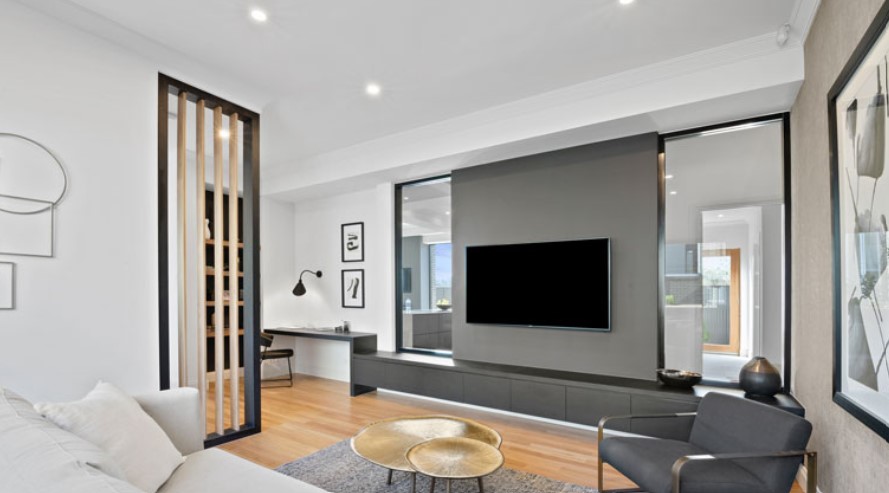

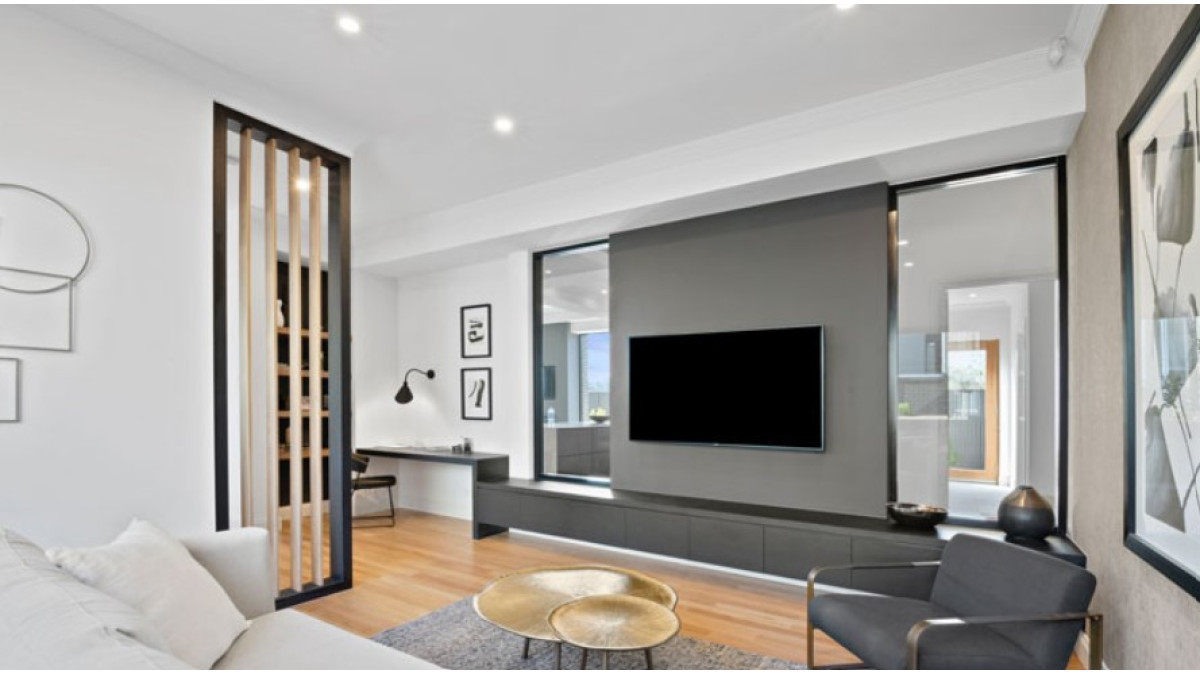

These low profile LED downlights are designed to reduce glare, soften output and provide the ultimate contemporary look with 3 colour trims available — white, black and brushed chrome.

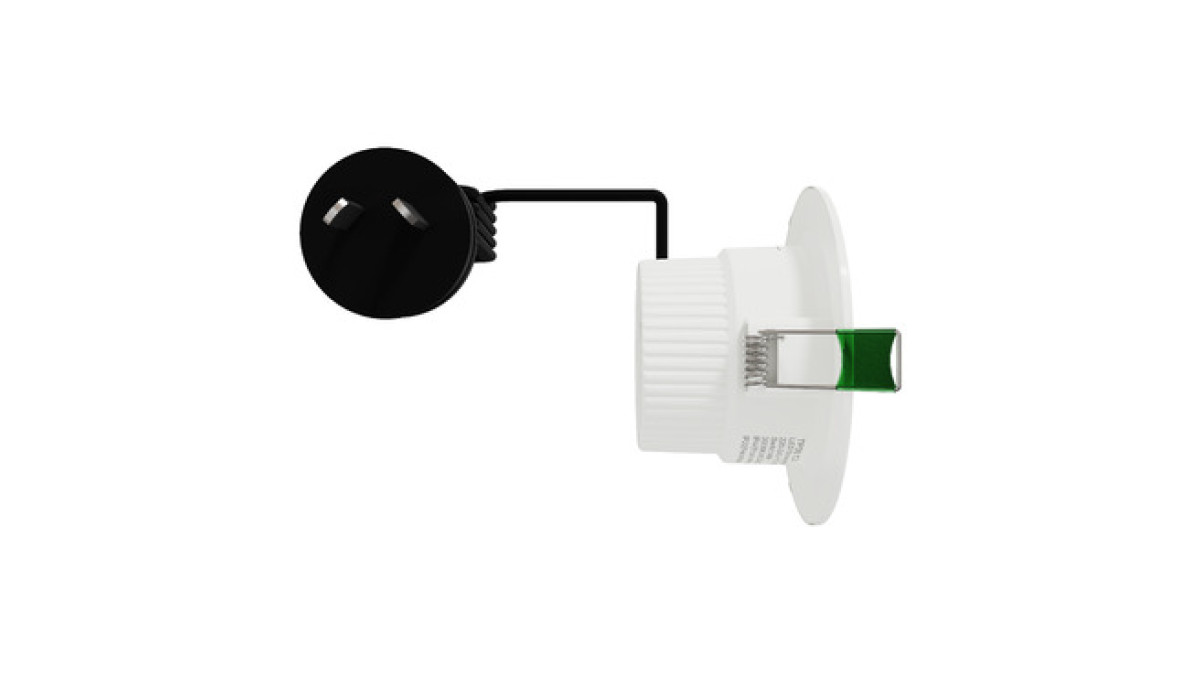

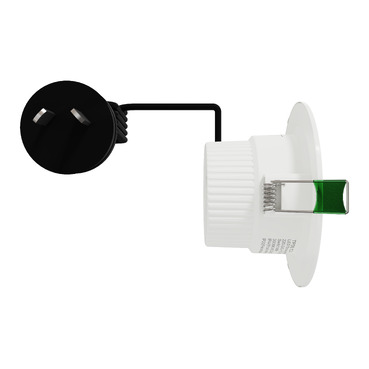

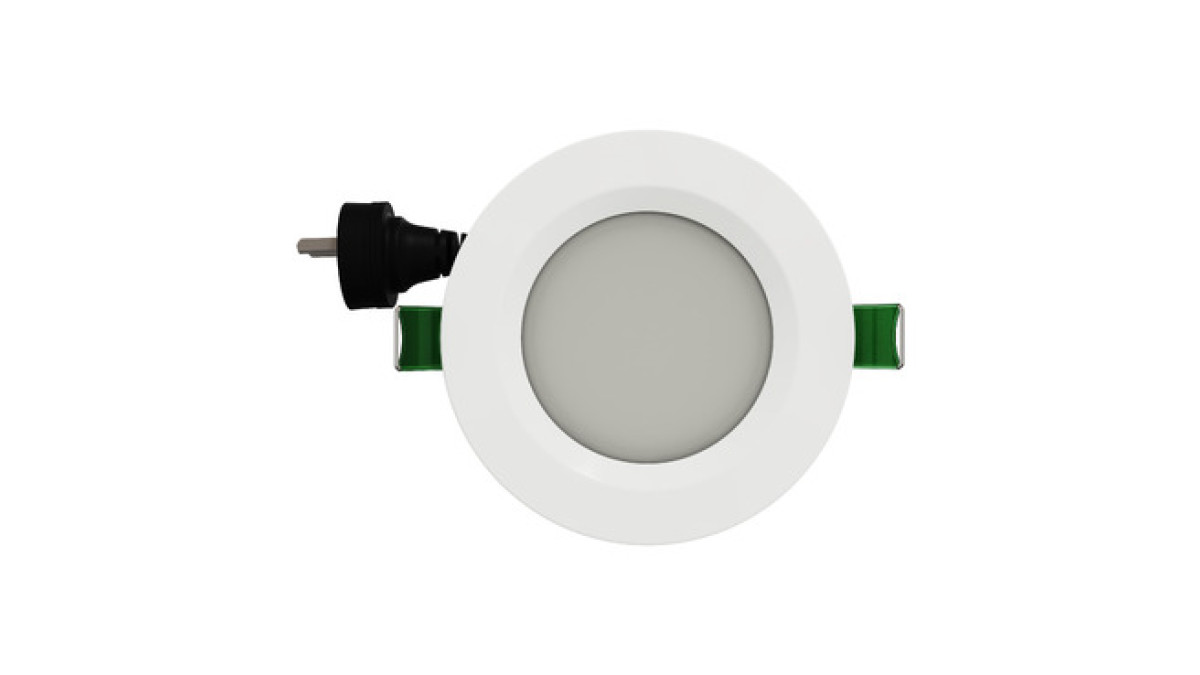

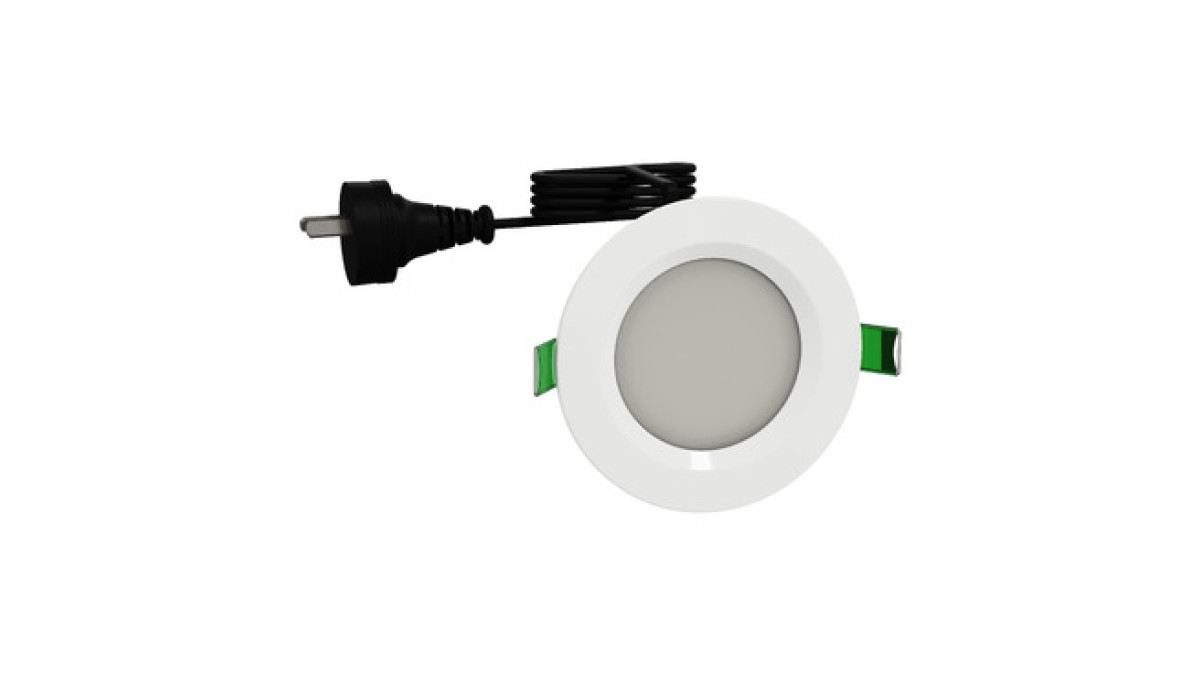

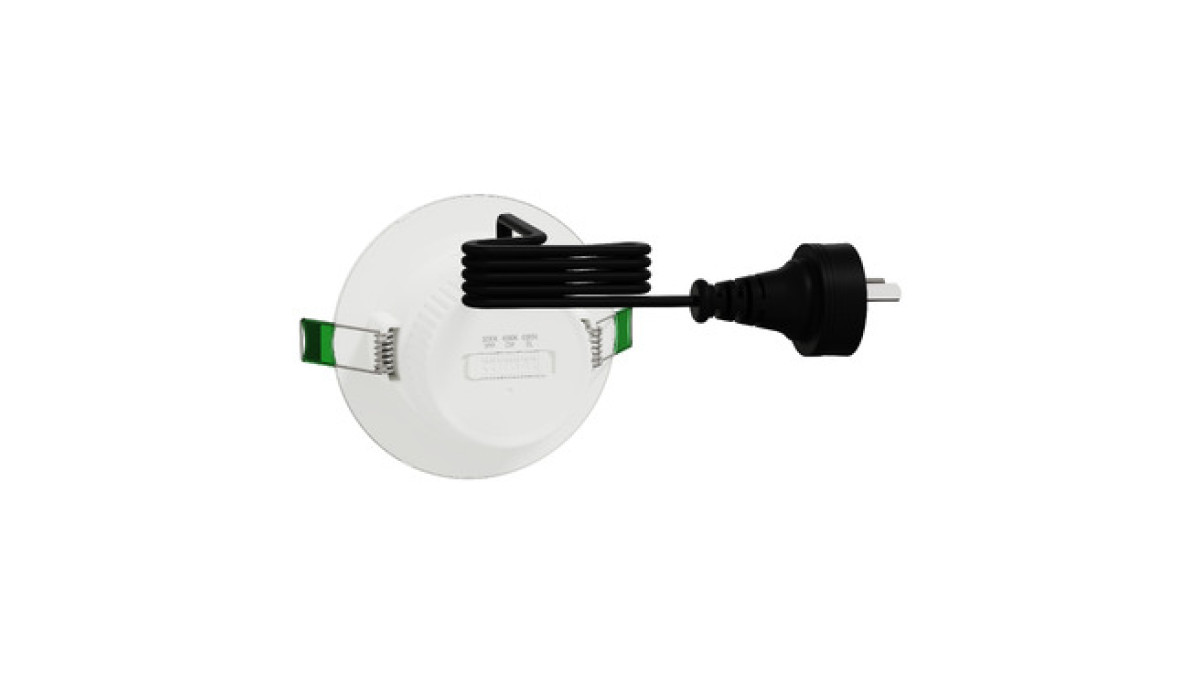

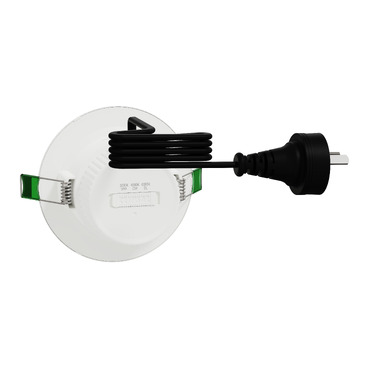

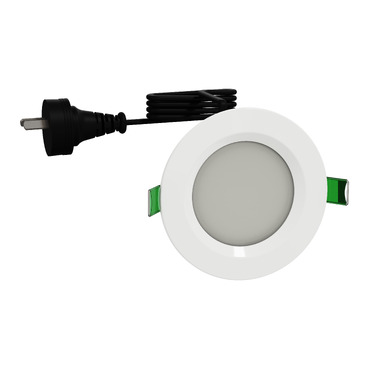

The TPDL1C3 LED Downlight is suitable for multiple illumination applications from residential to commercial buildings. The slightly recessed frosted diffuser ensures reduced glare and soft glow output. The integrated colour temperature selector switch enables the choice of 3000K, 4000K and 6000K outputs to ensure the perfect illumination for a wide variety of installations.

Key Features
  • 3000K, 4000K & 6000K lamp temperature options
  • 50,000 hours rated lamp life to L70
  • 100˚ beam spread
  • Integral dimmer driver
  • Trim width 110mm
  • 90mm cut-out
  • Mounting depth 58mm
  • IP44 rating
  • Easy to install
  • Supplied with flex and plug
  • 3-year warranty
  • Easily retro-fitted into most existing light fittings
  • Compatible with Clipsal & PDL conventional phase dimmers or C-Bus
  • Advanced thermal protection system: keeping products cool
  • Compliant with New Zealand and International standards
Categories
Recessed Lighting
Ranges
Lighting
Scope of Use
  • Residential & commercial
  • Suitable for indoor & outdoor use — IP44 rated
Statement of Building Code Compliance
  • Supplier Declaration of Conformity available
  • Schneider Electric Green Premium Product
Documents
TPDL1C3 Downlight Technical Catalogue
Warranty
