InteriorInterior
Exposed Ceiling Tiles
Description

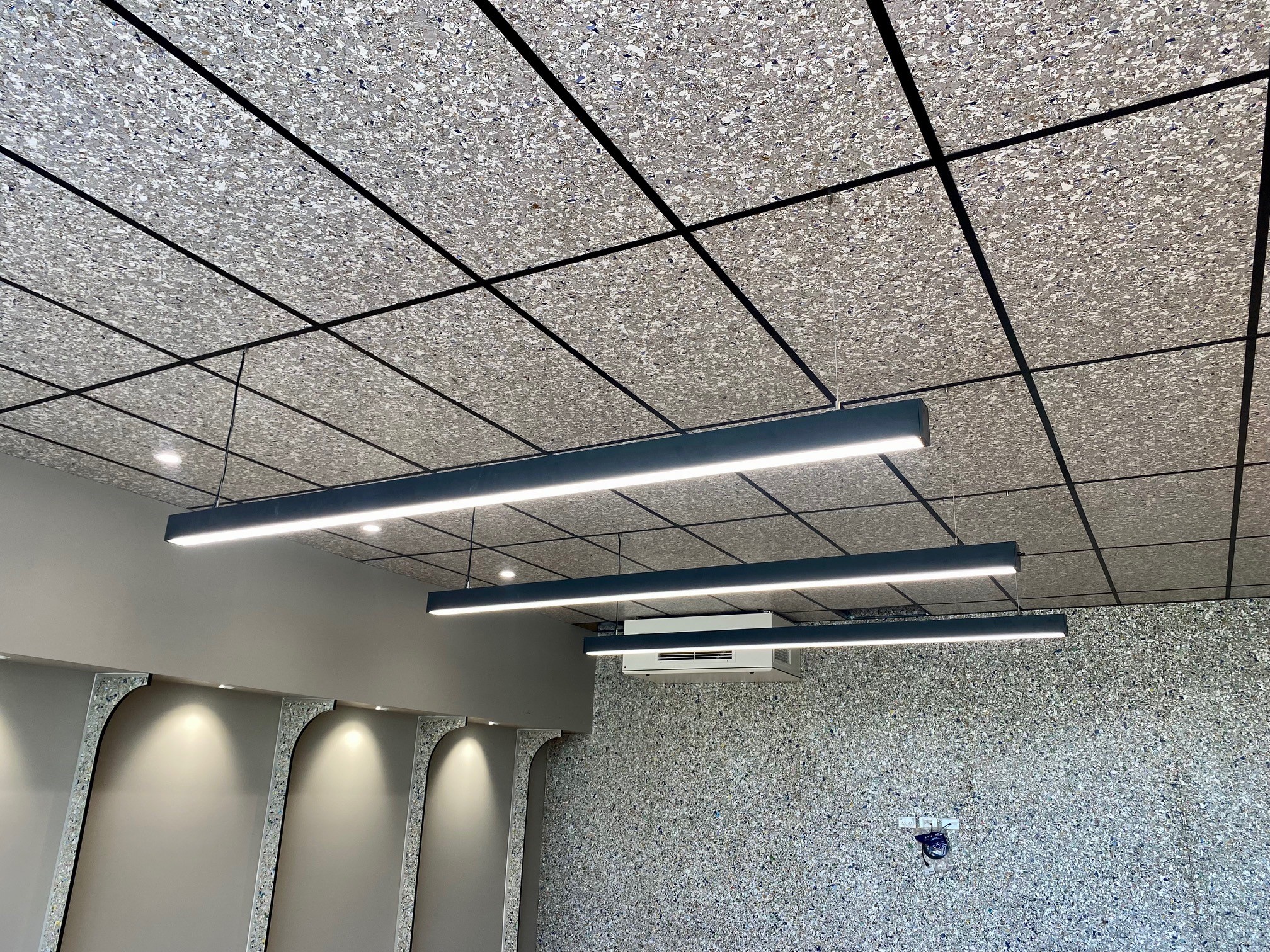

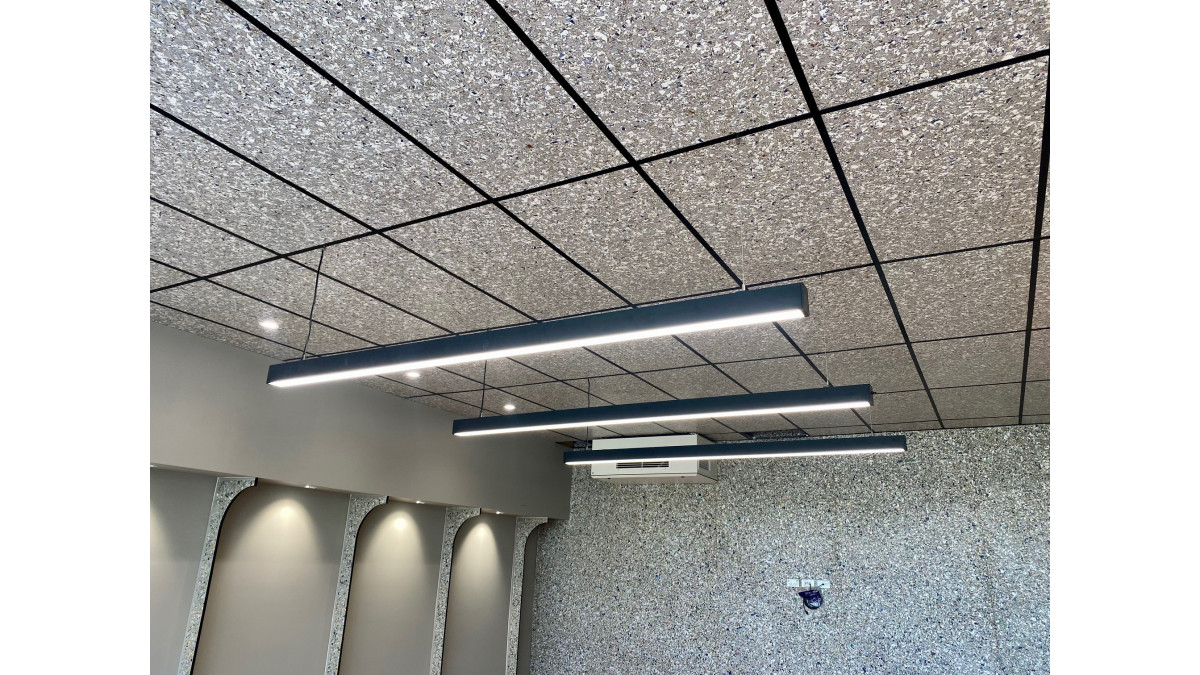

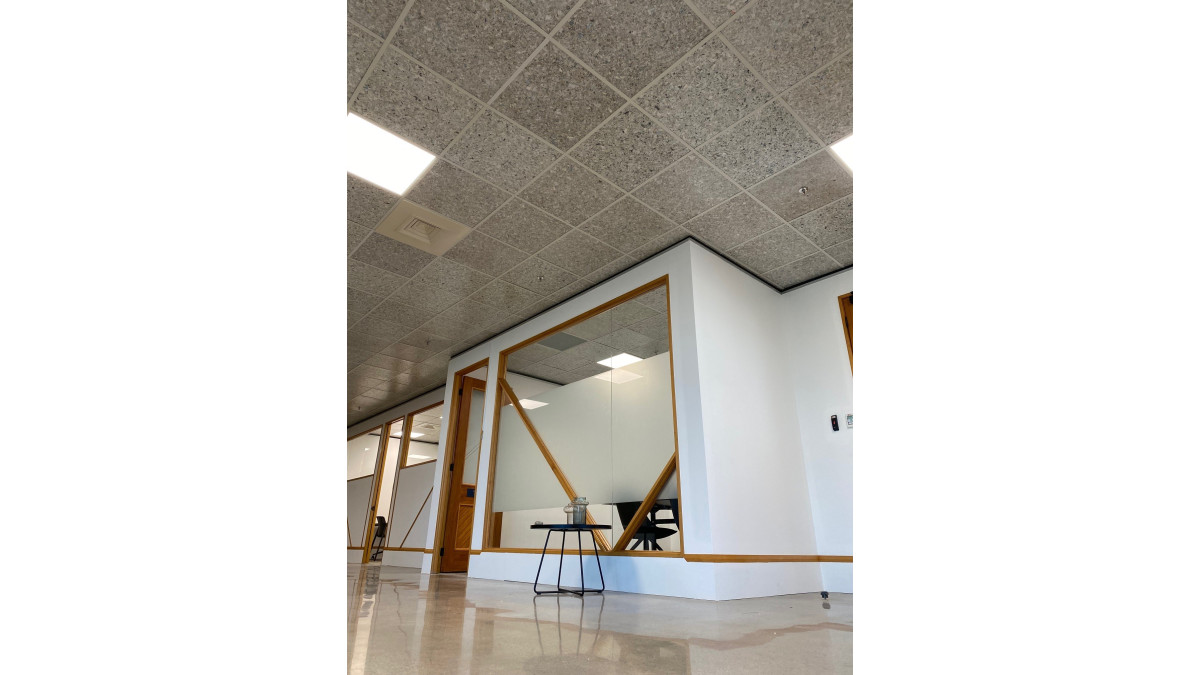

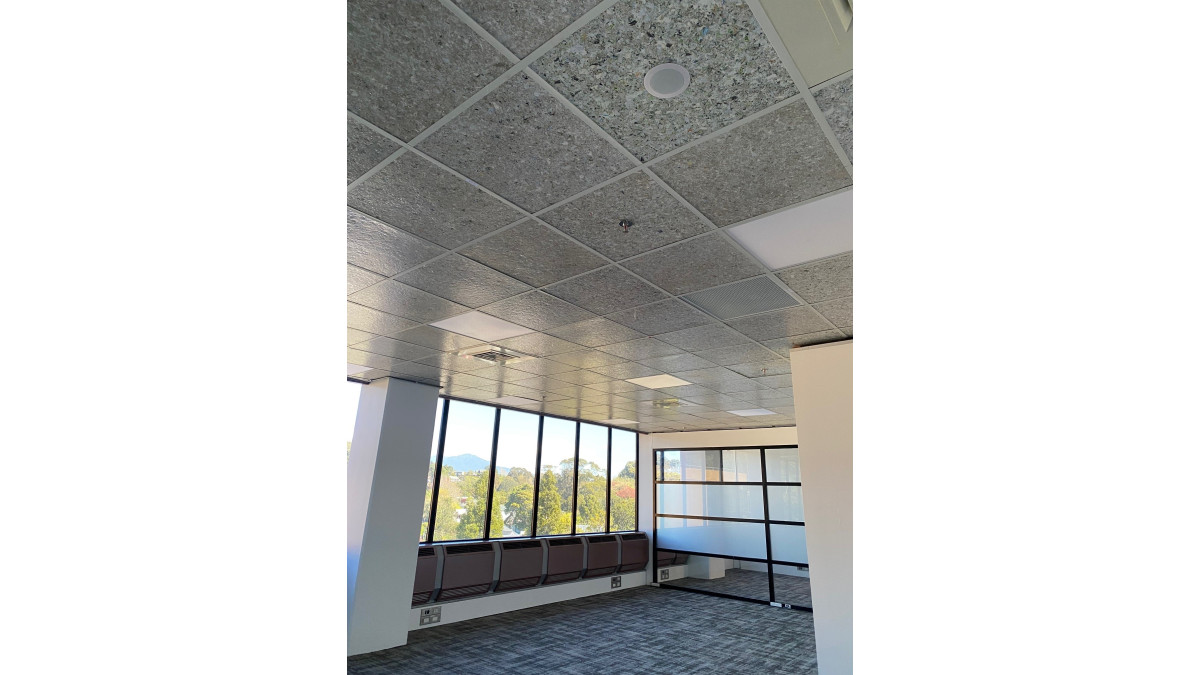

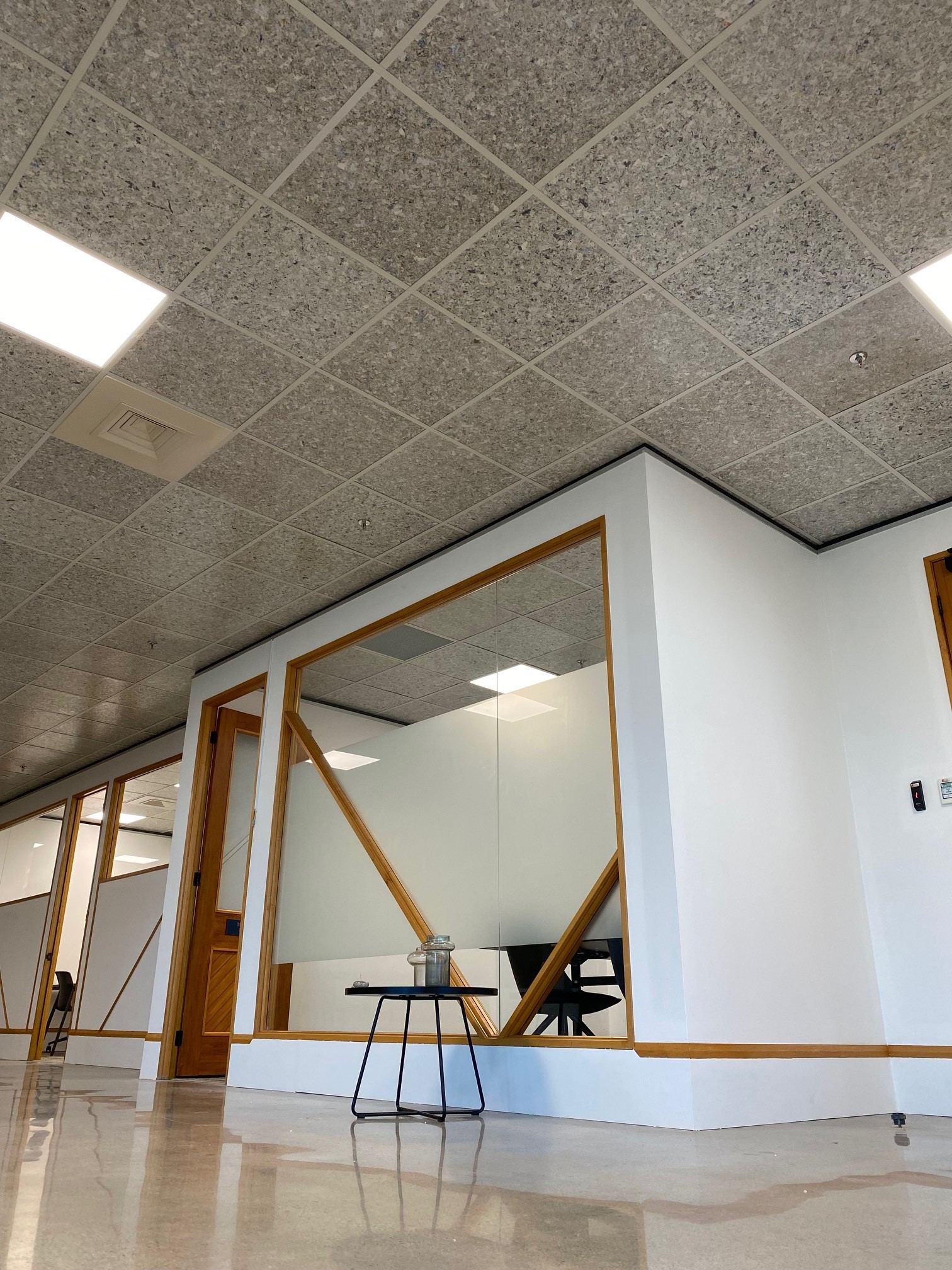

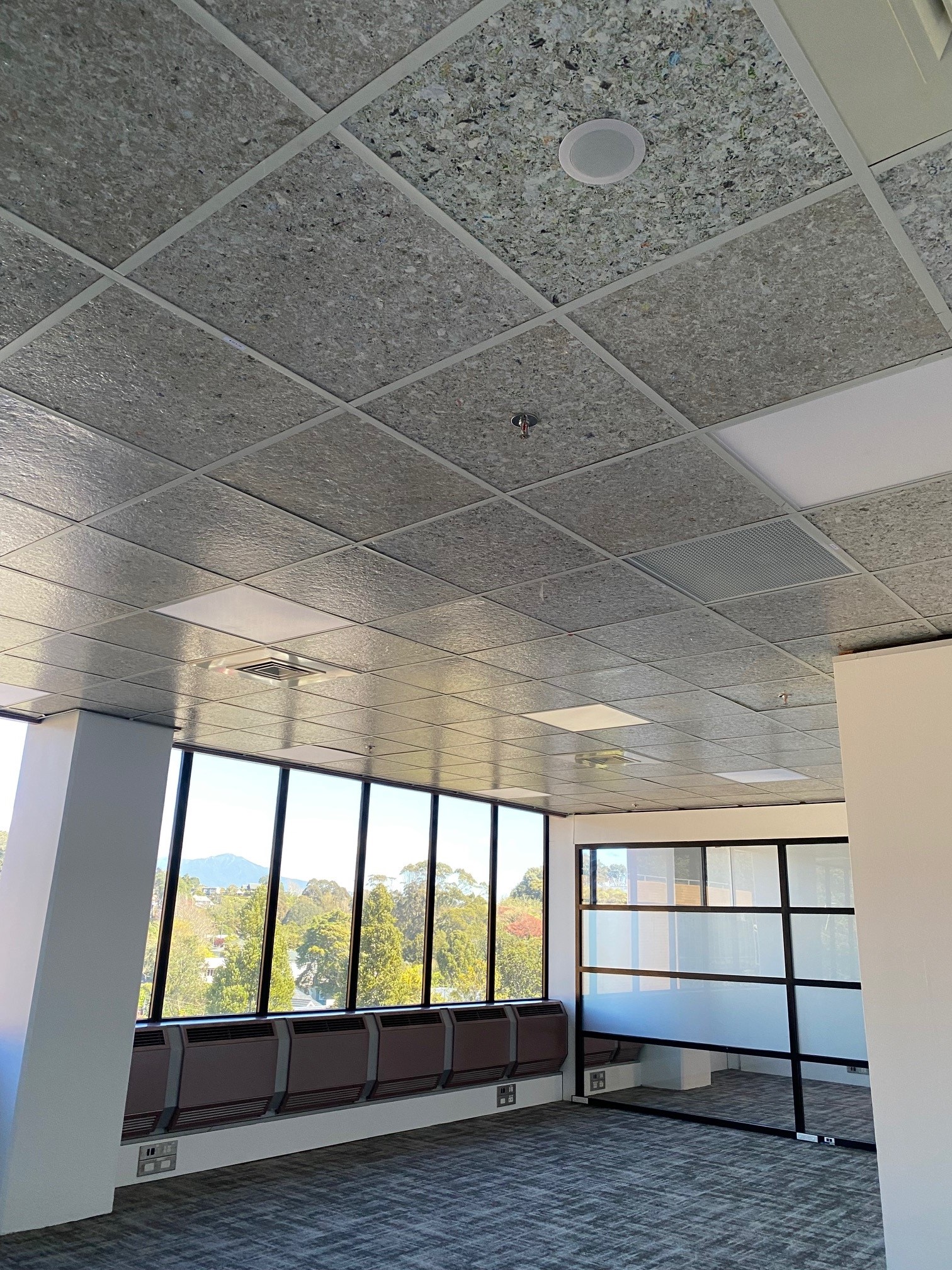

Ceilings tiles are cut from saveBOARD Exposed 10mm panels into standard grid sizes.

  • 1195 x 595 x 10mm: 5.4kg/tile
  • 595 x 595 x 10mm: 2.4kg/tile
  • STC: 30dBa (tested tile only)

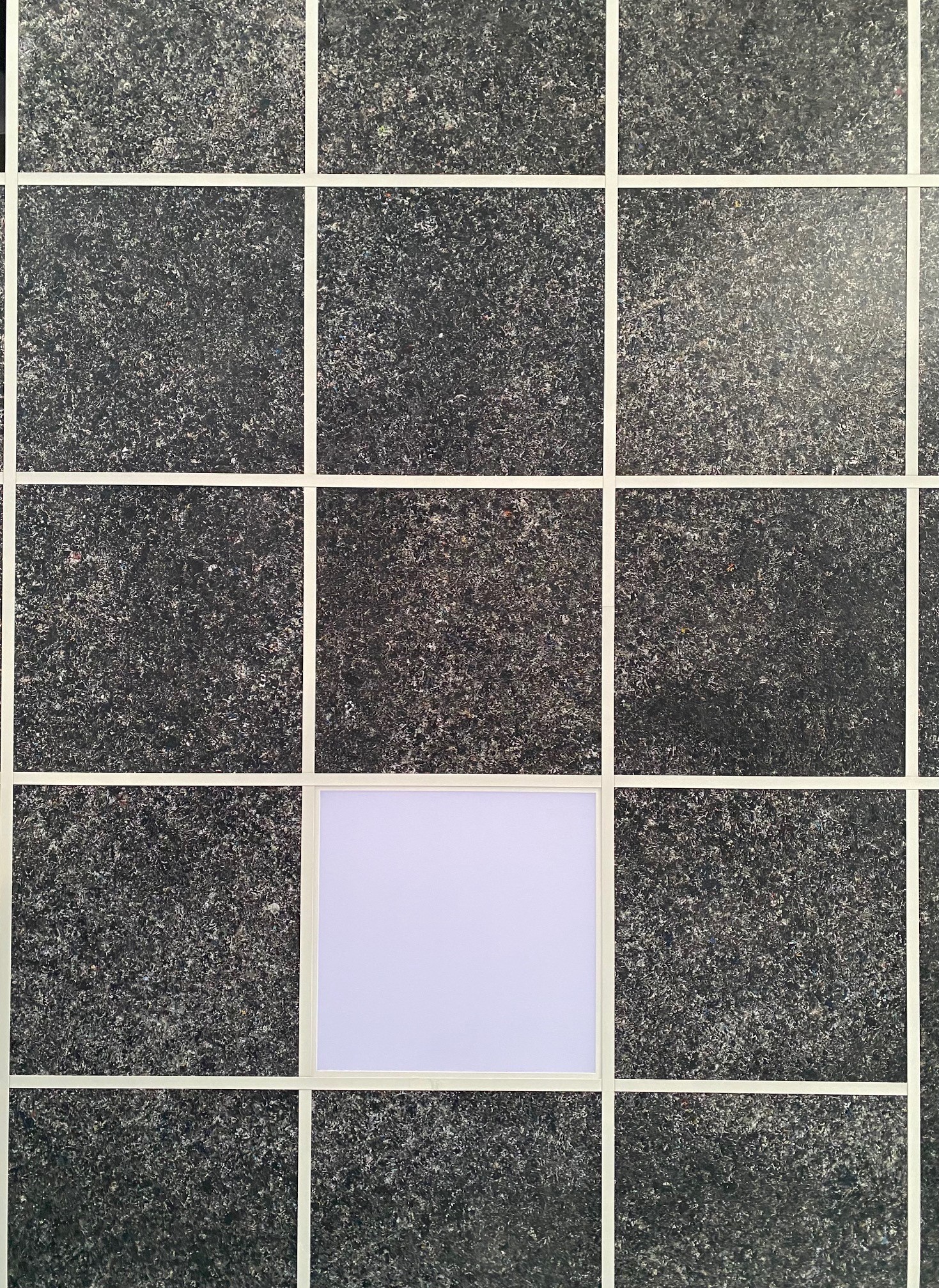

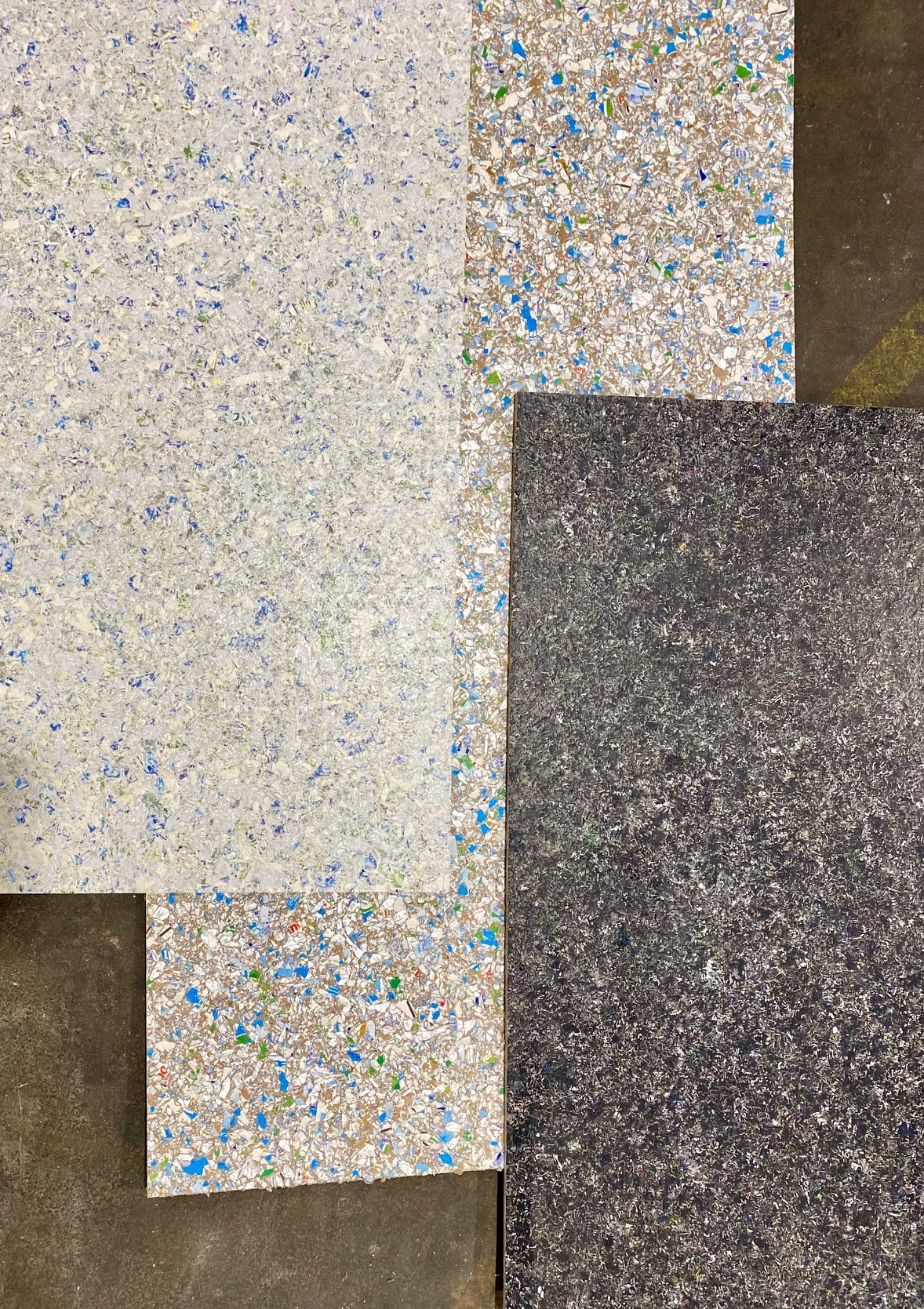

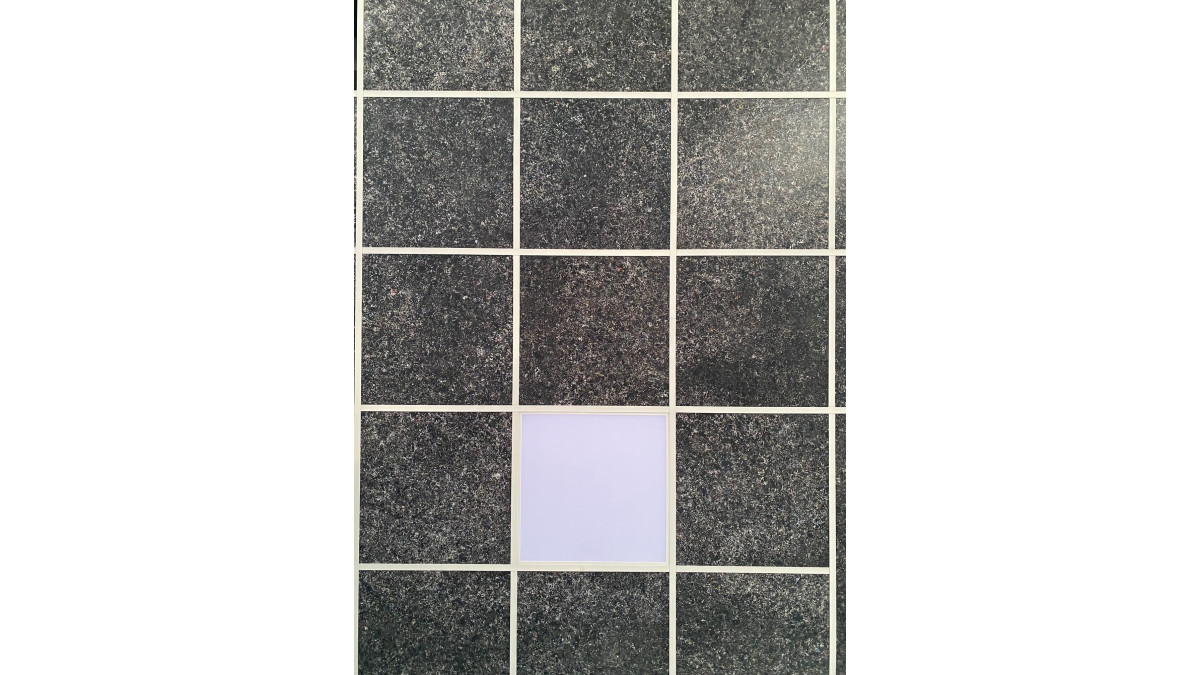

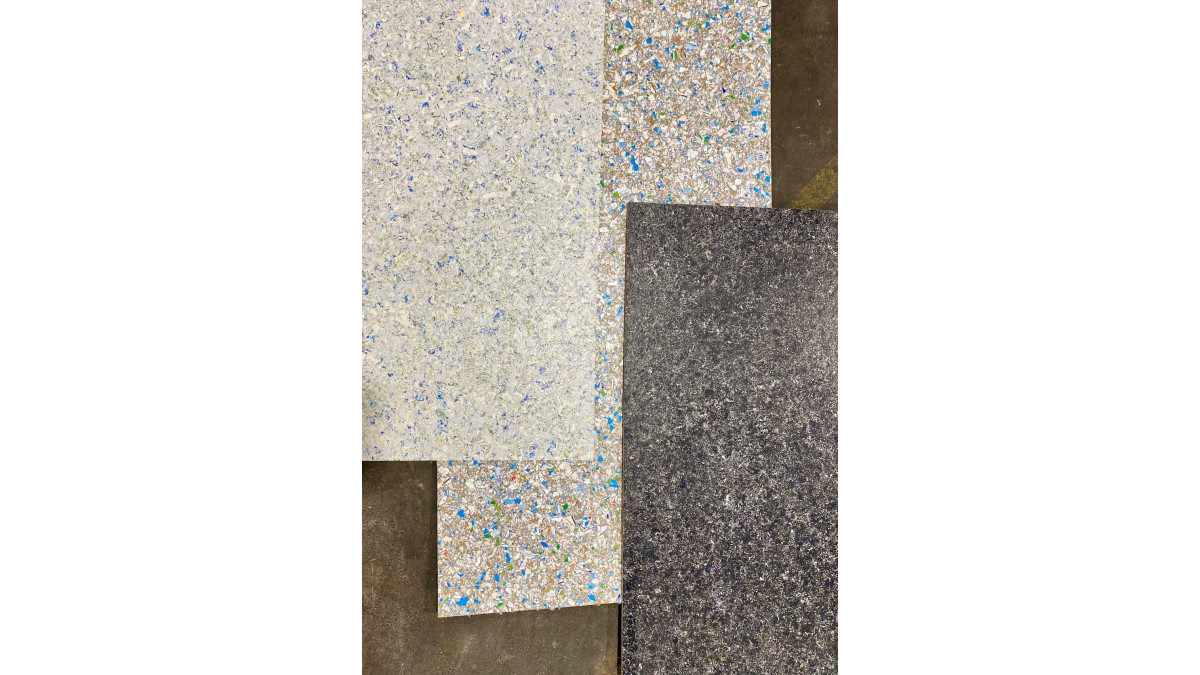

  • Colours:  White Noise, Black, Blue, Waitoa, Custom

saveBOARD Exposed is  made from 99% recycled materials, the core is made from shredded and compressed composite packaging and soft plastics, finished with a recycled LDPE plastic face and a recycled paper back.

Key Features
  • NZ Made from 99% recycled recycled composite packaging and soft plastics
  • Water resistant, won't stain
  • Low carbon
  • Direct fix light fixtures and services
  • Declare Red List approved, and Eco Choice Aotearoa certified
  • The use of saveBOARD products will earn, or contribute towards earning, Green Star credits
  • EPD pending, complete July 24
  • Can be custom made using end-user waste (creates a brand aligned tile)
Declare LBC Red List Approved
Declared LBC Red List Approved
Eco Choice Aotearoa (ECNZ) Licensed
Eco Choice Aotearoa
Homestar / Green Star (Envirospec) Compliant
Homestar / Green Star
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
NZ Made
NZ Made
Scope of Use
  • Suitable for use a commercial ceiling tile
  • Direct fix light fixtures and services
Limitations on Use
  • Not suitable for wet areas
  • For internal use only
Statement of Building Code Compliance

SaveBOARD Exposed panels are cut for use as Ceiling Tiles.  Exposed contributes to meeting the following provisions of the NZ Building Code:

  • Clause B1 Structure: Performance Clauses B1.3.1, B1.3.2, B1.3.3(b, f, h, j), B1.3.4
  • Clause B2 Durability: Performance Clauses B2.3.1(a), B2.3.2
  • Clause C3 Fire affecting areas beyond the fire source: Performance Clauses C3.4(a)
  • Clause E3 Internal moisture: Performance Clauses E3.3.1 (contributes to), E3.3.4, E3.3.5
  • Clause F2 Hazardous building materials: Performance Clauses F2.3.1
  • Clause H1 Energy efficiency: Performance Clauses H1.3.1(b) (contributes to)
In-Service History

The same plant and recipes that saveBOARD uses for manufacture in New Zealand and Australia originates from the USA, where it has been in operation for 14 years.  The product is the USA is installed in the harshest climates and has proven its unmatched resilience. The most iconic project to date is the USA is the roof underlay of the Tesla Gigafactory One in Sparks Nevada.

saveBOARD Exposed Ceiling tiles are specified by Woolworths and KFC for the long term programme of new builds and fit outs across New Zealand and Australia.  Several District Councils, national corporates and retail chains across New Zealand choose saveBOARD for the low carbon impact and also utilise the circular opportunity enabled by saveBOARD by recycling their operational waste into Exposed Ceiling Tiles used throughout their buildings.

For more information refer to saveBOARD Case Studies page on the website

Other Performance Attributes
  • STC Rating of 30dBA at 10mm thickness tile only
  • Material Group 3 fire rating
Interior Fire Rating 3
3
Documents
saveBOARD Material Safety Data Sheet

2024

Exposed Ceiling Tiles Product Technical Statement

V1:2

CodeMark Product Certificate

CMNZ70148

Declare Certification

SVB-0001

Eco Choice Aotearoa Certification

3223189

saveBOARD Embodied Carbon

2023

Claiming Green Star Credits
