H-Rail Configurations
Description

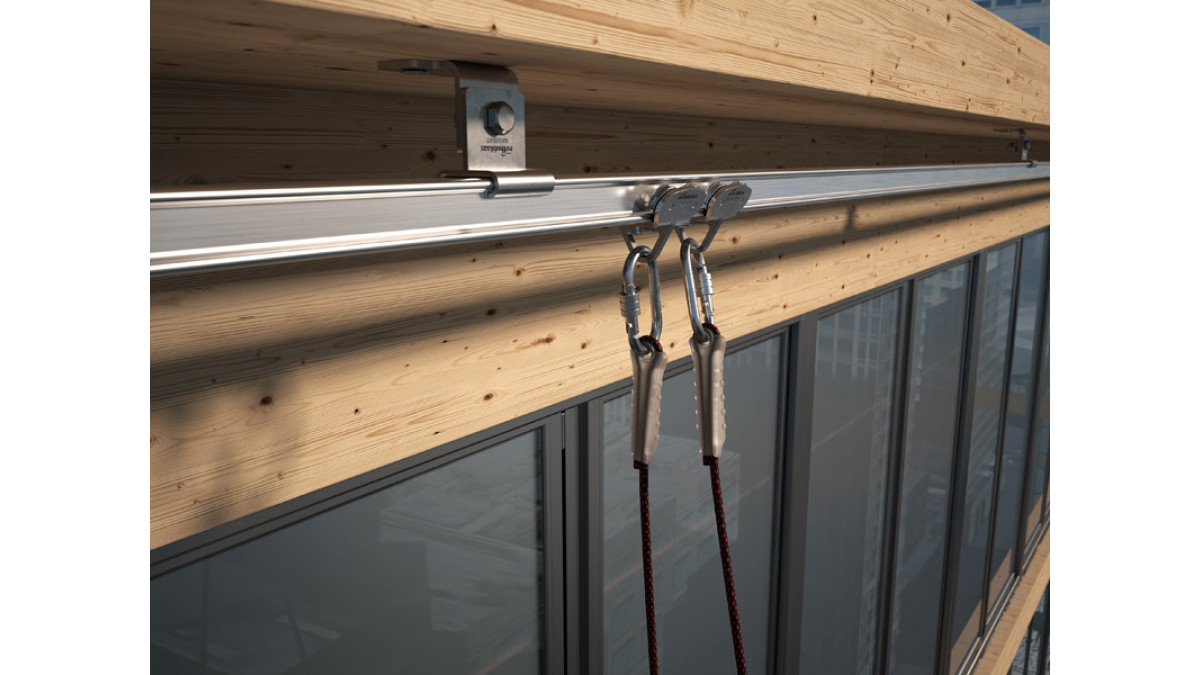

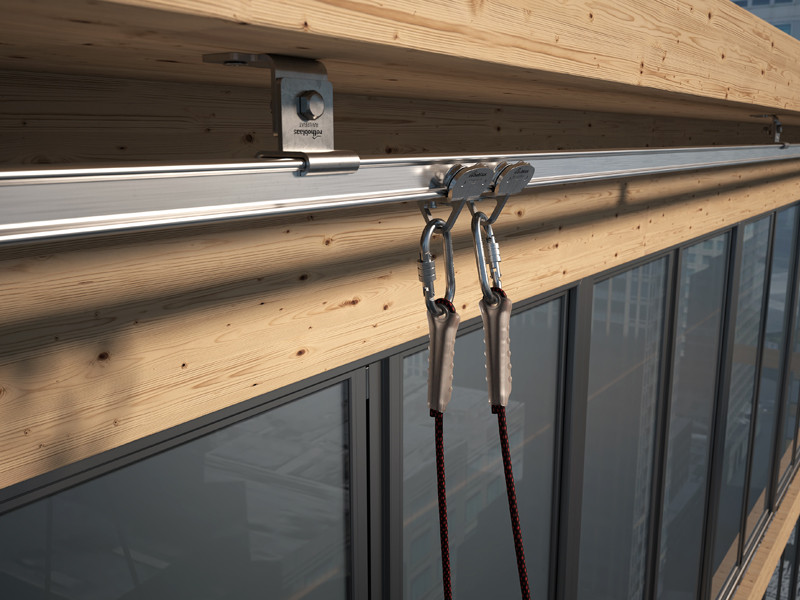

This system for fall protection and suspension work relies on a rigid H-Rail anchor line with a sliding unit. It may be installed overhead, or on walls or floors to create horizontal, curved or straight anchor lines. The H-Rail may be fixed to timber, concrete or steel substrates with fixing systems that determine the distance of the H-Rail from the substrate and are specific to the substrate and environmental conditions.

Key Features
  • Fall protection or suspension work
  • Up to 4 persons per span
  • Requires few fastening points and allows the creation of rigid anchor lines in different configurations
  • Ability to set distance of the line from building to overcome obstacles and for optimal worker positioning

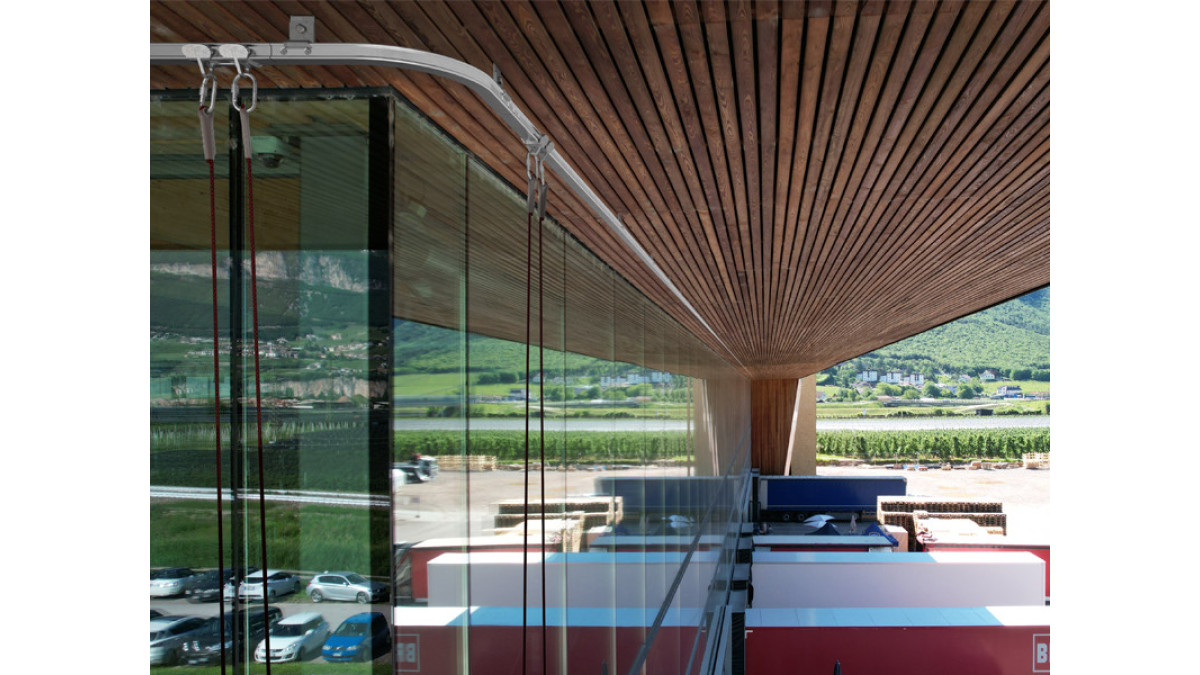

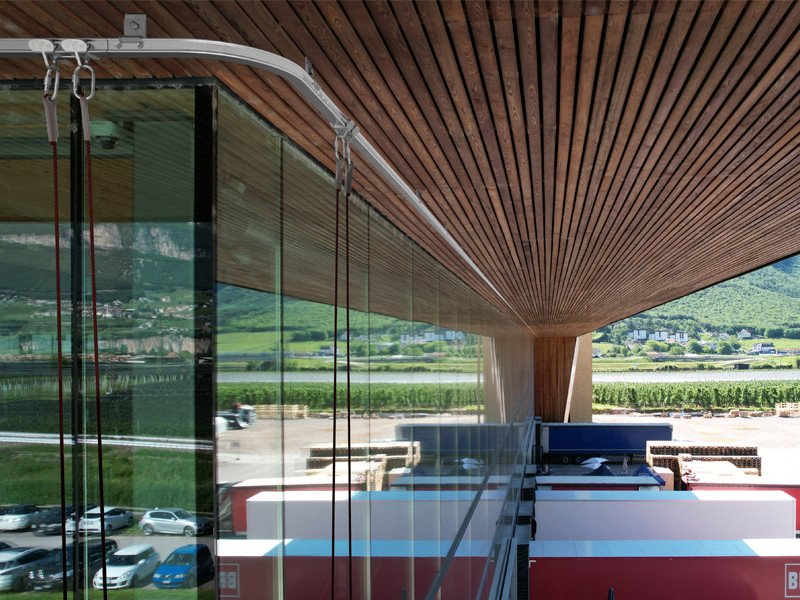

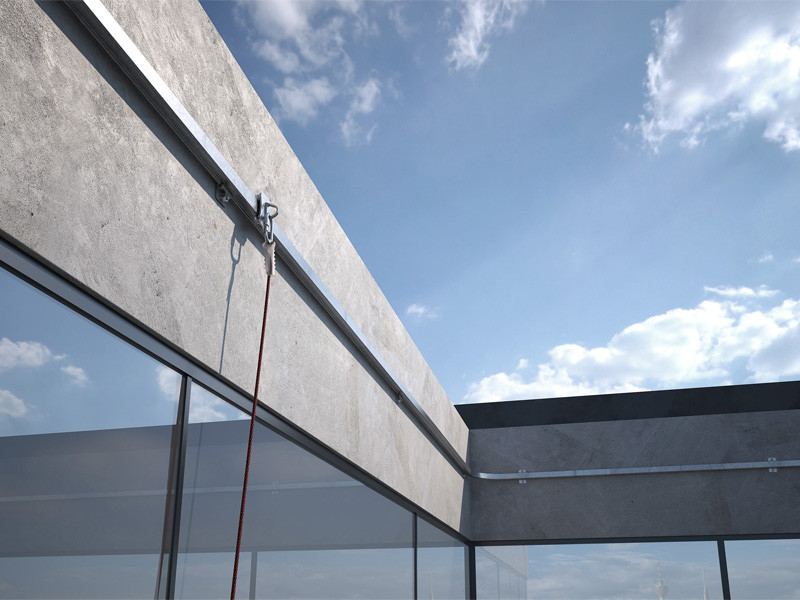

  • Overhead installation, or from walls or floors
  • Curved or straight lines
Scope of Use

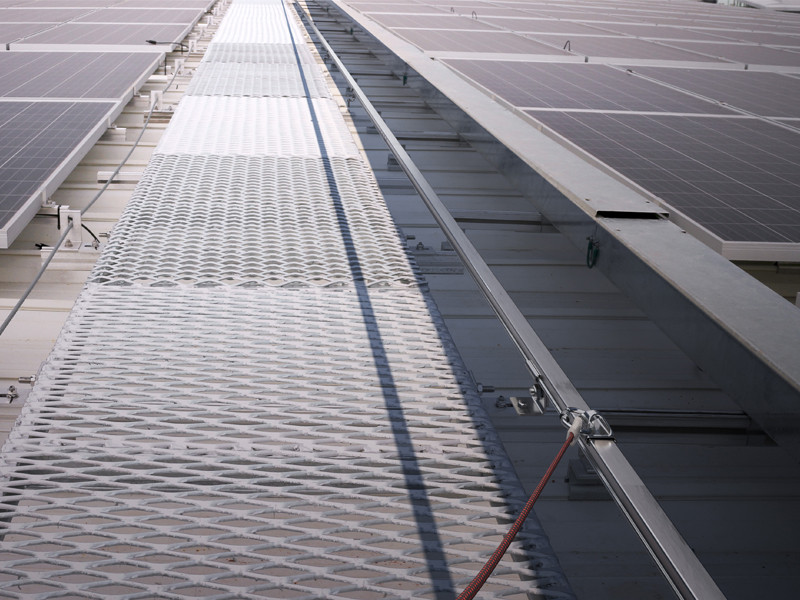

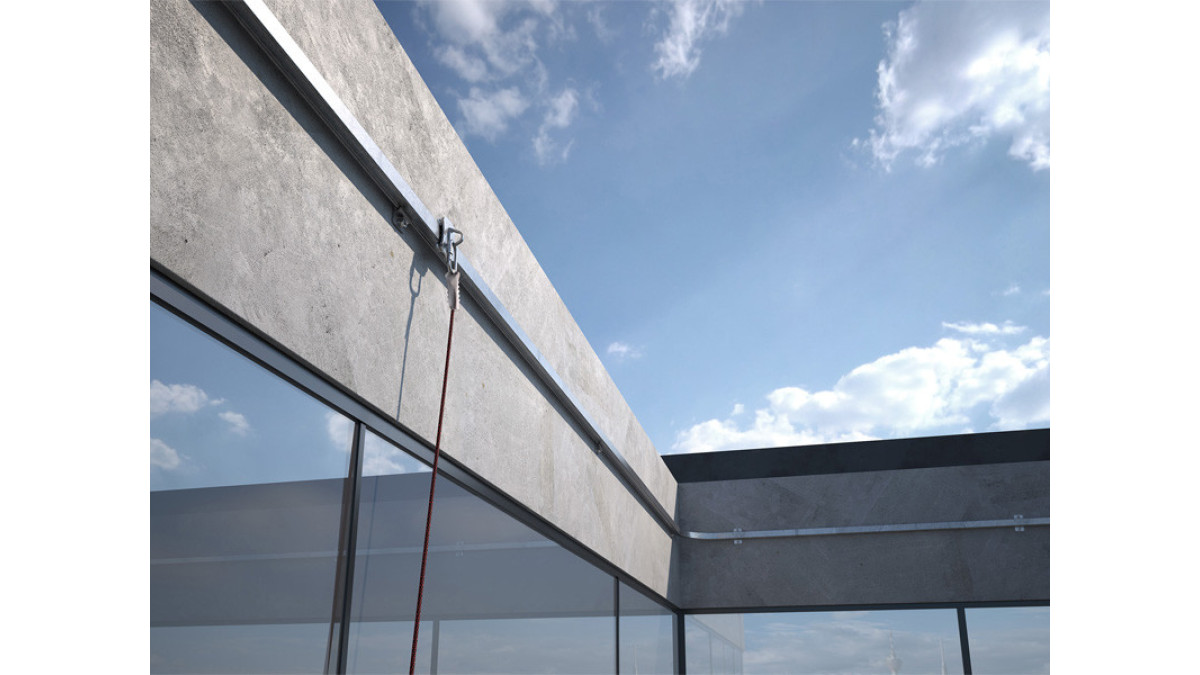

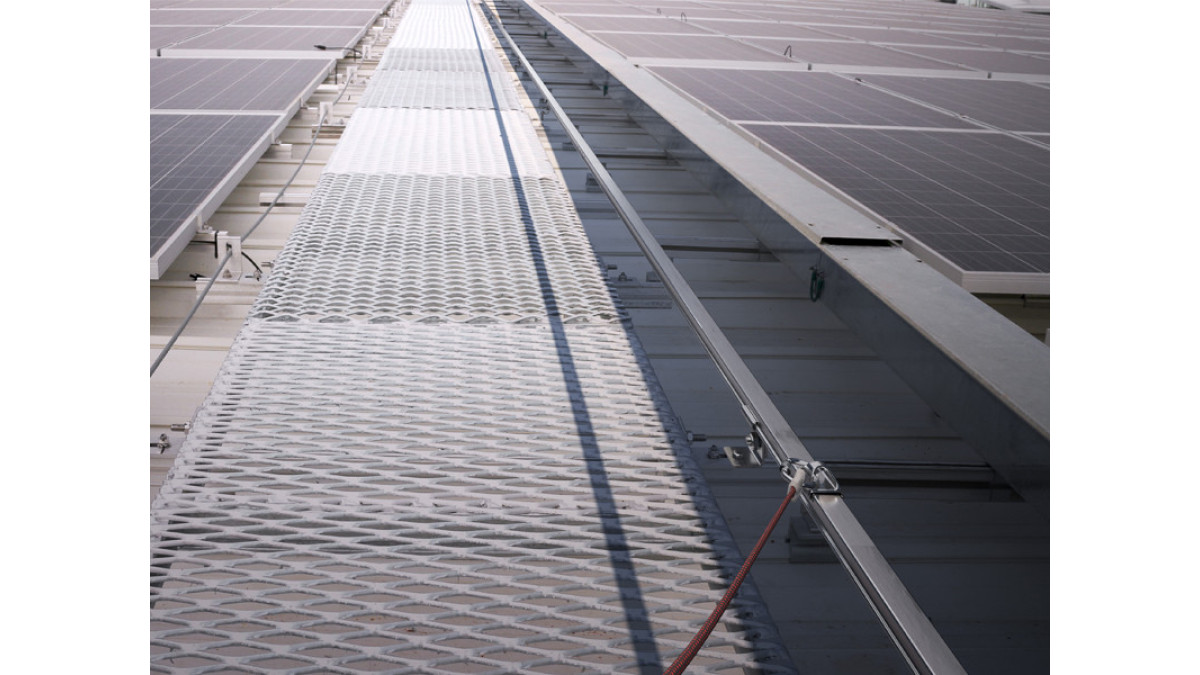

  • H-Rail configurations may be fixed overhead, to walls, to floors
  • Up to 4 persons per span
  • Spacing of up to 6m between supports
  • Can be installed for horizontal, curved, or straight anchor lines
  • Timber, concrete, or steel substrates
  • Fixing options can be suited specific substrate and environmental conditions

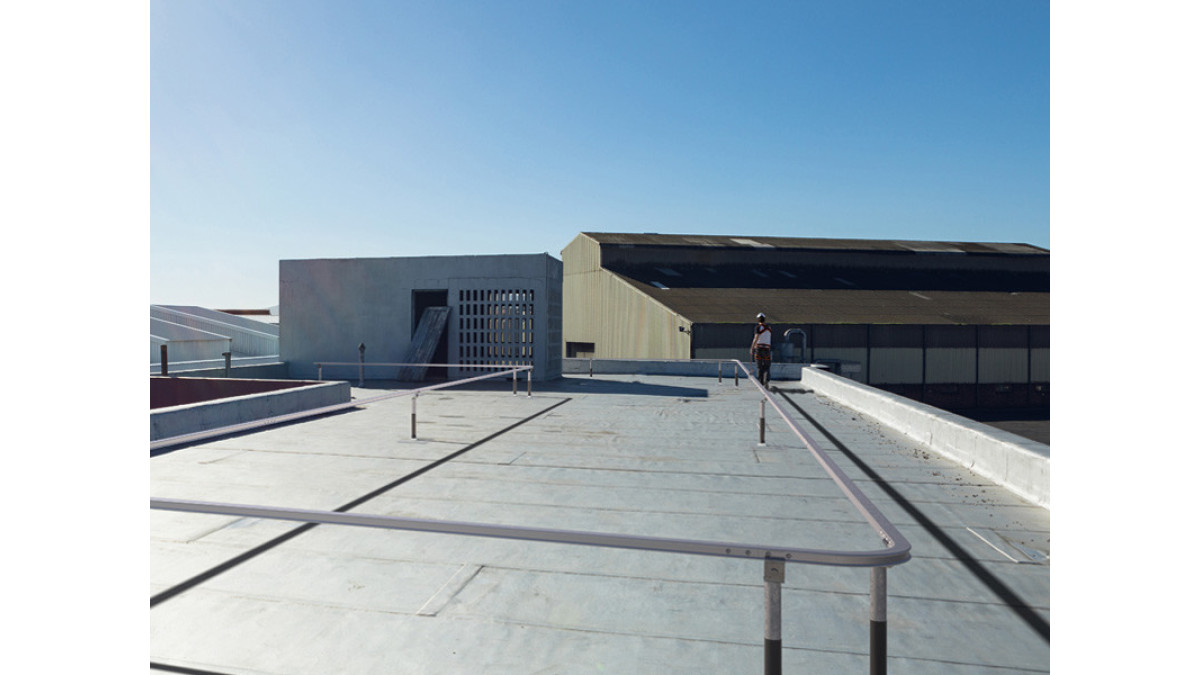

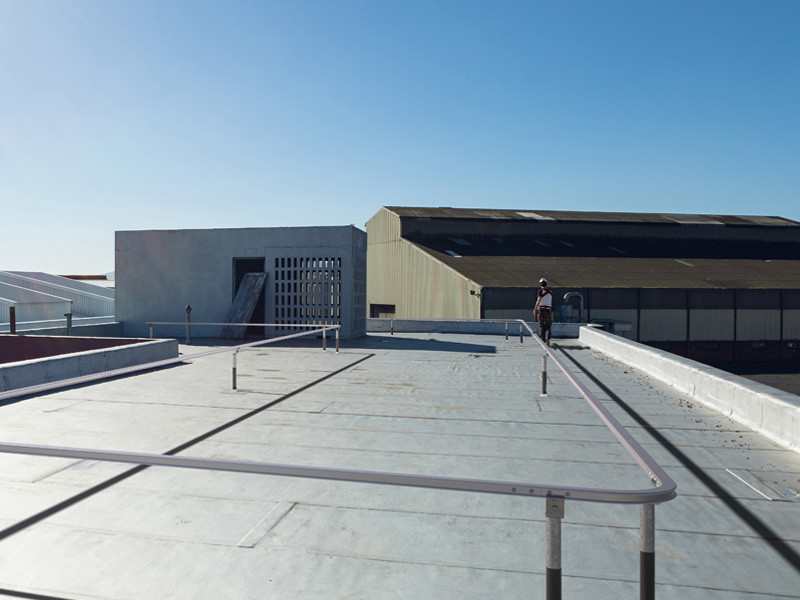

  • Can be supported on a tower to provide additional distance from the building to help provide optimal working space and to avoid obstacles
Limitations on Use
  • Must be installed and maintained in accordance with Rothoblaas technical literature
Statement of Building Code Compliance

When installed in building work, Rothoblaas fall protection systems will comply with or contribute to compliance with the following building code clauses:

  • B1 (Structure). B1.3.1, B1.3.2 B1.3.3 (a, b, c, e, f, h, j, m, q).
  • B2 (Durability). B2.3.1(b), B2.3.2(b).
  • F2 (Hazardous Building Materials). F2.3.1.
  • F4 (Safety from Falling). F4.3.1.
In-Service History

Founded in 1991, Rothoblaas now supplies products to more that 70 countries.

Other Performance Attributes

All Rothoblaas Fall Protection systems conform with AS/NZS 1891:2009 which is cited in D1/AS1 through AS/NZS 1657:2013, and are manufactured from AISI 304 or AISI 316 stainless steel unless otherwise stated.

Documents
BPIR Product Declaration: Fall Protection

2024 v1.0

Data Sheet: H-Rail
Installation Manual: H-Rail
Installation Videos: Fall Protection
CAD/PDF Details
Fall Protection CAD (DXF)
Fall Protection CAD (SAT)
BIM
Fall Protection BIM (IFC)
Fall Protection BIM (RFA)

Rothoblaas is a global company whose product range encompasses fastening, airtightness, water and soundproofing, fall protection systems, and tools and machines for timber industry professionals.
