Optima Mains Pressure Vitreous Enamel Electric Hot Water Cylinders
Description

Rheem Optima mains pressure hot water cylinders have a Colorbond® steel exterior making them suitable for indoor or outdoor installation. The vitreous enamel lining provides  resistance to corrosion from a wide range of water conditions including varying pH levels, high chlorides, hard water and MIC (Microbiological Induced Corrosion) as found in parts of NZ or in areas with untreated bore water. Models range from 180 litre to 400 litre capacity.

Key Features
  • Abundant mains pressure hot water
  • Colorbond steel exterior jacket enables either indoor or outdoor installation
  • Inner steel cylinder coated with vitreous enamel to suit a wide range of water conditions
  • Fitted with a sacrificial zinc/magnesium anode to provide additional corrosion protection to the cylinder in adverse water conditions
  • Solstice Green insulation helps maintain the optimum water temperature, reducing energy use and providing economic and environmental benefits
  • Designed and manufactured in New Zealand (excluding 400 litre model)
  • 300L and 400L models are fitted with non-simultaneous twin elements where only one element will come on at any one time supplying hot water boosting 24 hours a day
  • 12 year domestic cylinder warranty

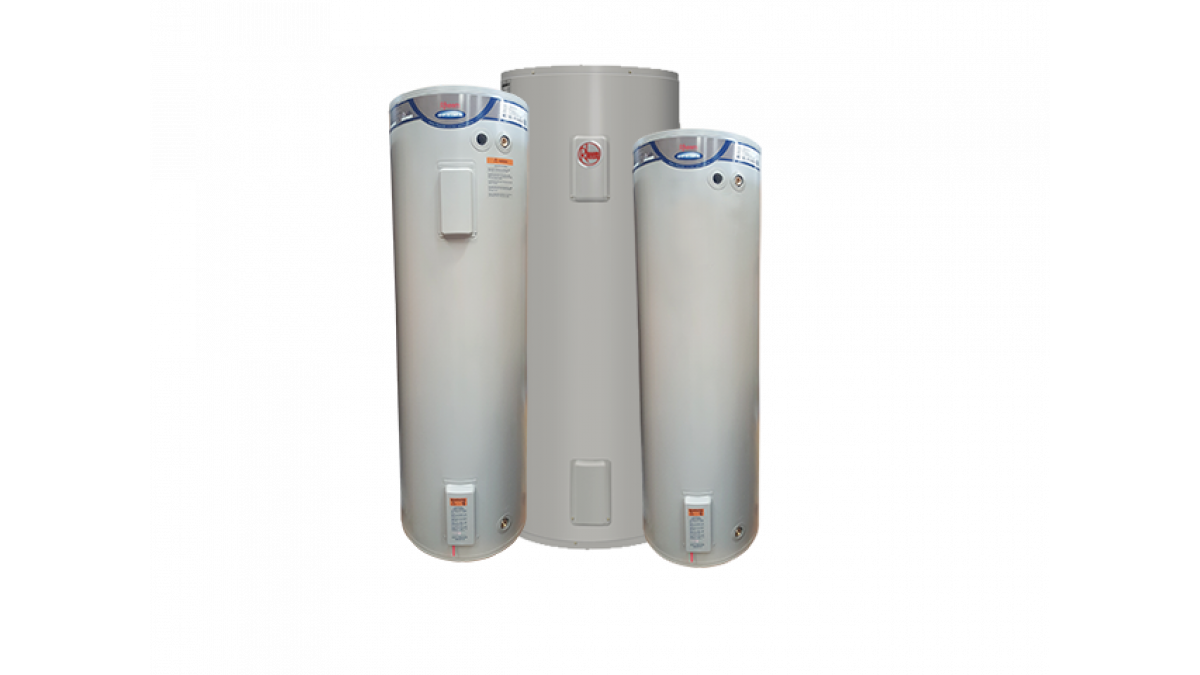

Available in the following model configurations:

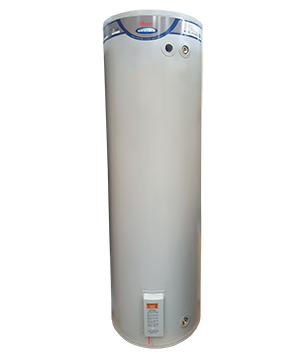

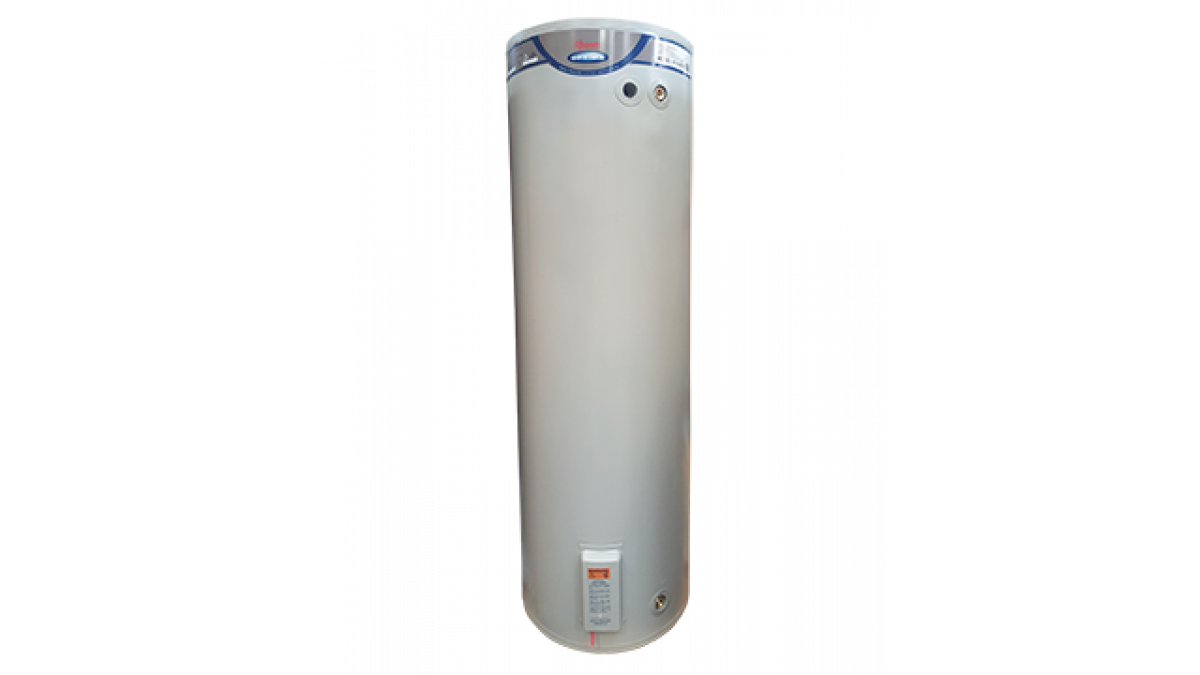

  • Optima 91318015 | 180L | 1720 x 490mm | 3.0kW

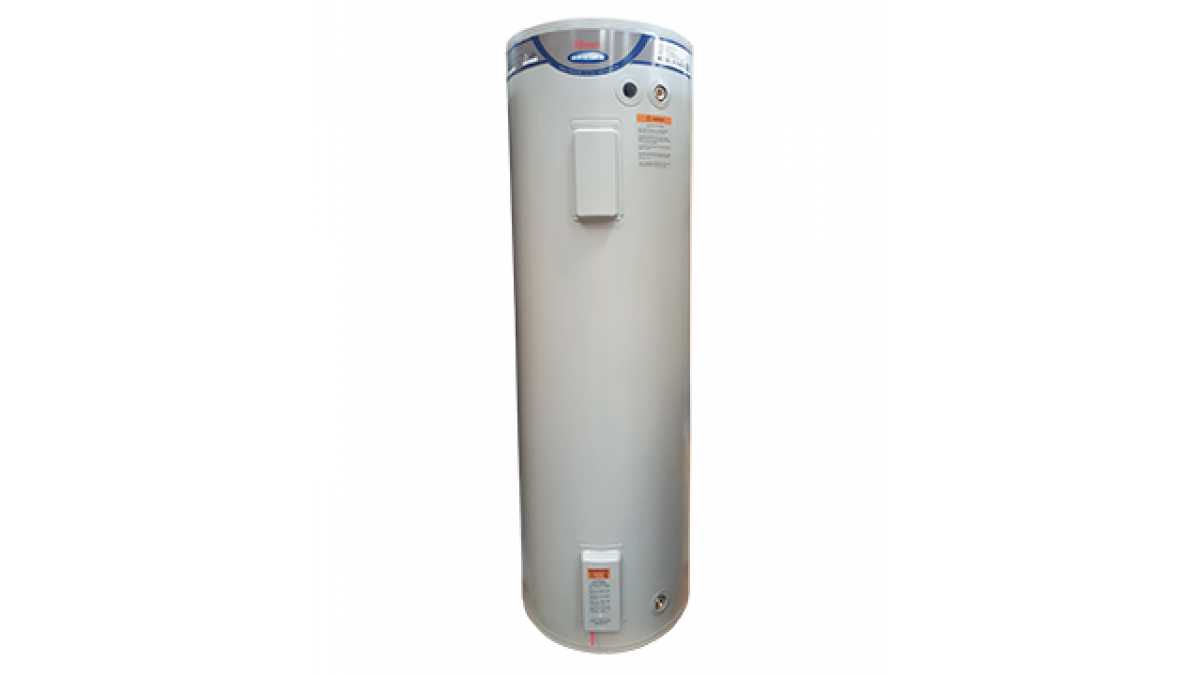

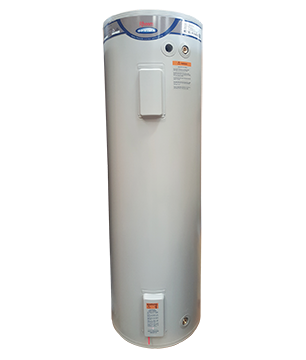

  • Optima 91330025 | 300L | 1820 x 580mm | 2 x 3.0kW non-simultaneous

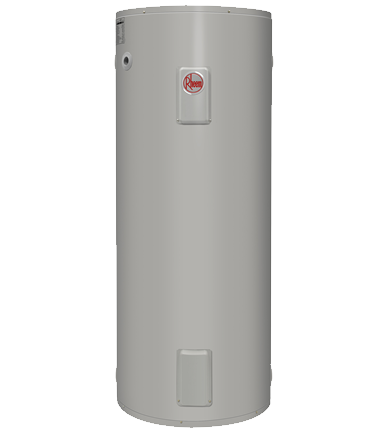

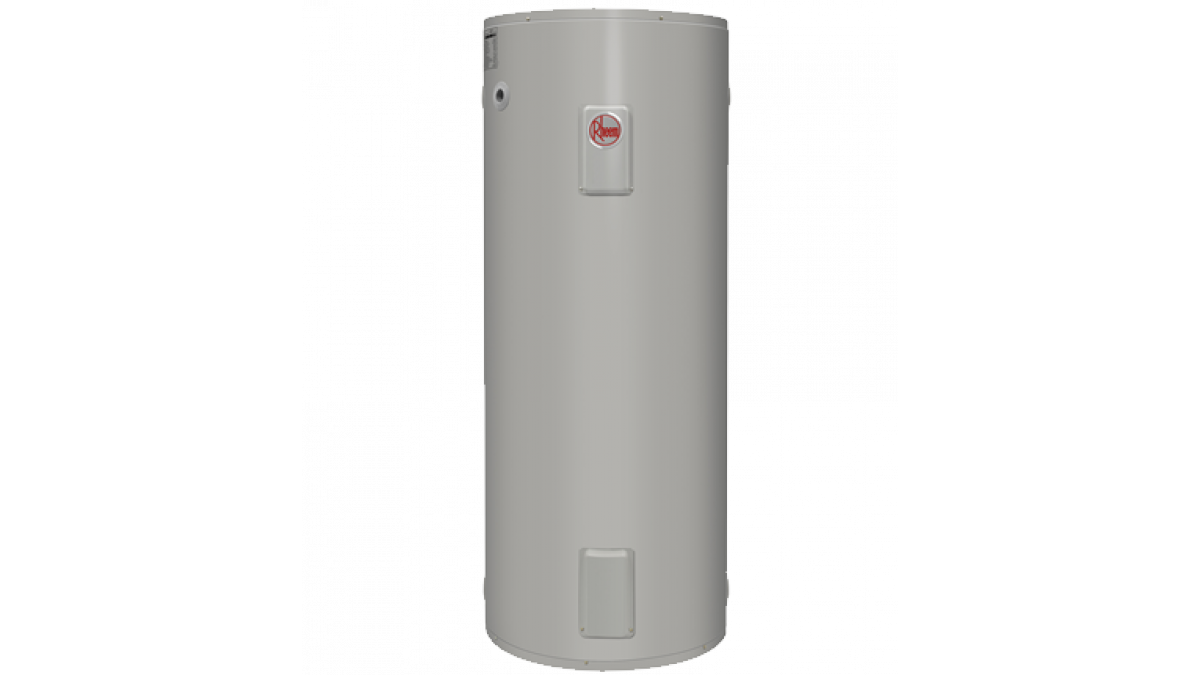

  • Optima 492400G8 | 400L |1840 x 690mm | 2 x 4.8kW non-simultaneous
NZ Made
NZ Made
Scope of Use
  • Most commonly used in domestic dwellings
  • Indoor or outdoor installation
  • 180 Litre model is suitable for 2-3 people in moderate climates
  • 400 litre model is suitable for 5-9 people in moderate climates
  • Suitable for all water pressures
  • Suitable for a wide range of water conditions including varying pH levels, high chlorides, hard water and MIC (Microbiological Induced Corrosion) as found in parts of NZ or in areas with untreated bore water
Limitations on Use
  • Not suitable for uncontolled heat source (solar/wetback)
Statement of Building Code Compliance
  • NZ MEPS Compliant
Other Performance Attributes
  • Domestic Warranty: Cylinder/Tank (Replacement): 12 year
  • Domestic Warranty: Cylinder/Tank (Labour): 5 year
  • Domestic Warranty: Parts (Parts/Labour): 3 year
Documents
Data Sheet
Supplier Declaration of Conformity
Installation Instructions & Owner's Guide (180L - 300L)
Installation Instructions & Owner's Guide (400L)
Warranty
Brochure: Hot Water For Your Home
Additional Information

Rheem provides reliable, efficient water heating and now also the latest in Solar PV heating.
