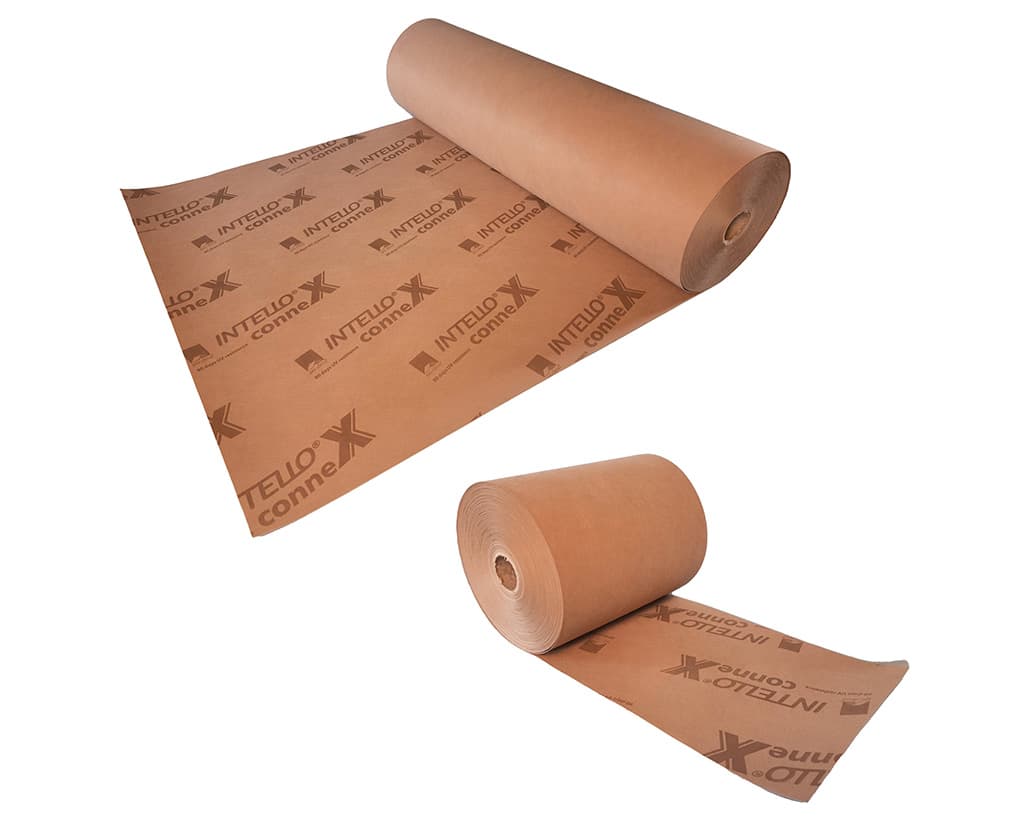

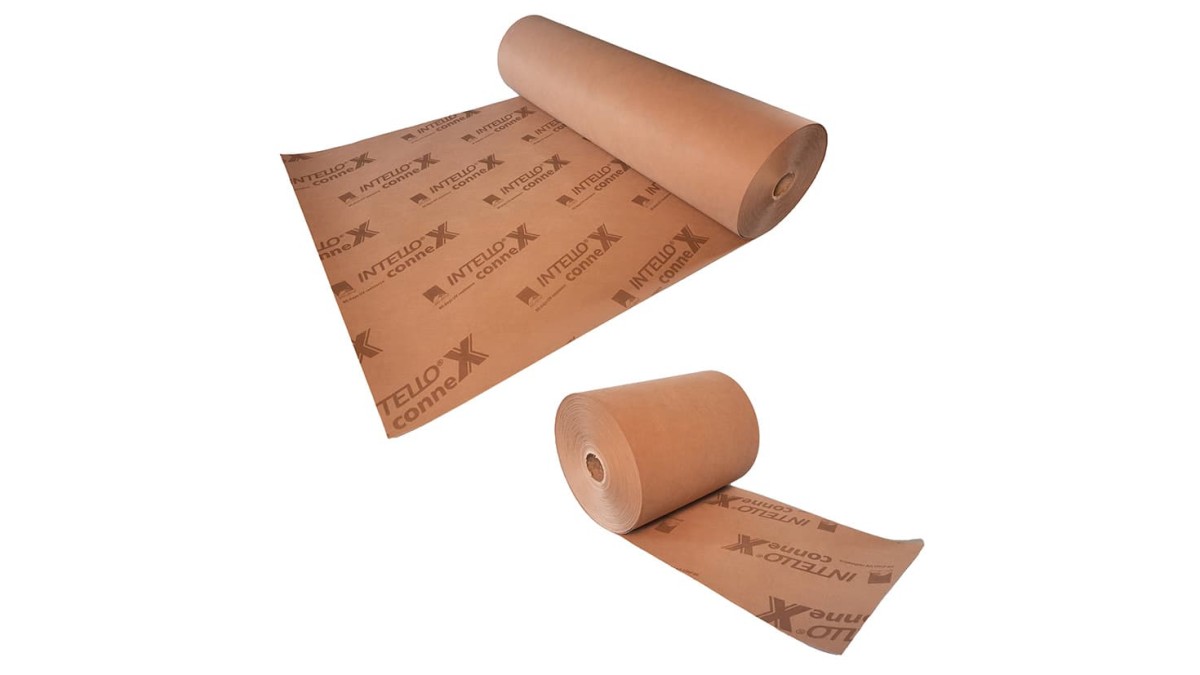

INTELLO conneX Airtightness Connection Strip
Description

INTELLO® conneX is a specially formulated UV-stabilised humidity-variable strip. It is the missing link for Intelligent Air Barrier (IAB) systems. INTELLO conneX is designed to ensure the continuity of the INTELLO and INTELLO PLUS Intelligent Air Barrier (IAB) systems at difficult junctions. Intended for use at intermediate floor junctions and internal to external wall junctions.

It's strong and durable allowing up to 90 days of UV exposure prior to being covered by internal linings or external cladding. With humidity-variable functionality and UV stability of up to 90 days, INTELLO conneX enables the IAB system to perform for the life of the building.

Key Features
  • Promotes superior drying capacity with Hydrosafe® technology
  • UV exposure stability of up to 90 days on both sides of the membrane
  • Highly diffusion-resistant in winter climate
  • Superior back-diffusion capacity in summer
  • Available in multiple widths for differing applications
Declare LBC Red List Free
Declare LBC Red List Free
Scope of Use
  • Use with Rigid Air Barrier systems
  • Intended for use at intermediate floor junctions and internal to external wall junctions
  • Up to 90 days of UV exposure prior to being covered by internal linings or external cladding — humidity-variable functionality and UV stability of up to 90 days
  • See BRANZ Appraisal 1149 [2021] for full information
Statement of Building Code Compliance

In the opinion of BRANZ, INTELLO Humidity Variable Intelligent Airtightness System, if used, designed, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet, or contribute to meeting the following provisions of the NZBC:

  • Clause B2 DURABILITY: Performance B2.3.1 (a) not less than 50 years, B2.3.1 (b) 15 years and B2.3.2. The INTELLO Humidity Variable Intelligent Airtightness System meet these requirements. See Paragraphs 9.1 and 9.2.
  • Clause E3 INTERNAL MOISTURE: Performance E3.3.1. When used with an adequate combination of thermal resistance, ventilation and space temperature in habitable spaces, the INTELLO Humidity Variable Intelligent Airtightness System contributes to meeting this requirement. See Paragraphs 12.1-12.3.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The INTELLO Humidity Variable Intelligent Airtightness System meets this requirement.
  • Clause H1 ENERGY EFFICIENCY: Performance H1.3.1 (b) limiting uncontrollable airflow. The INTELLO Humidity Variable Intelligent Airtightness System contributes to meeting this requirement. See Paragraph 15.1.

See BRANZ Appraisal 1149 [2021] for full information

BRANZ Appraised
BRANZ Appraised
Documents
Data Sheet
BRANZ Appraisal 1149: INTELLO Humidity Variable Intelligent Airtightness System

1149 (2021)

Red List Free Confirmation letter

December 2024

Warranty
