Rondo WHI Suspension Rod Hanger Acoustic Isolators
Description

The Rondo WHI Rubber Hanger Isolators are an effective way to reduce sound transmission through a suspended ceiling, acting as a simple buffer from the noise above.

Rondo's range of acoustic hanger isolators include two new isolators to better accommodate lighter weight ceiling systems and provide the all-important Impact Sound Insulation of areas beneath trafficable floors.



Key Features

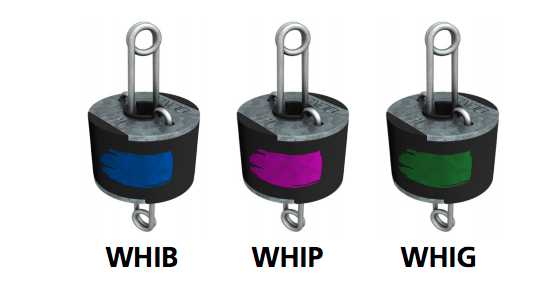

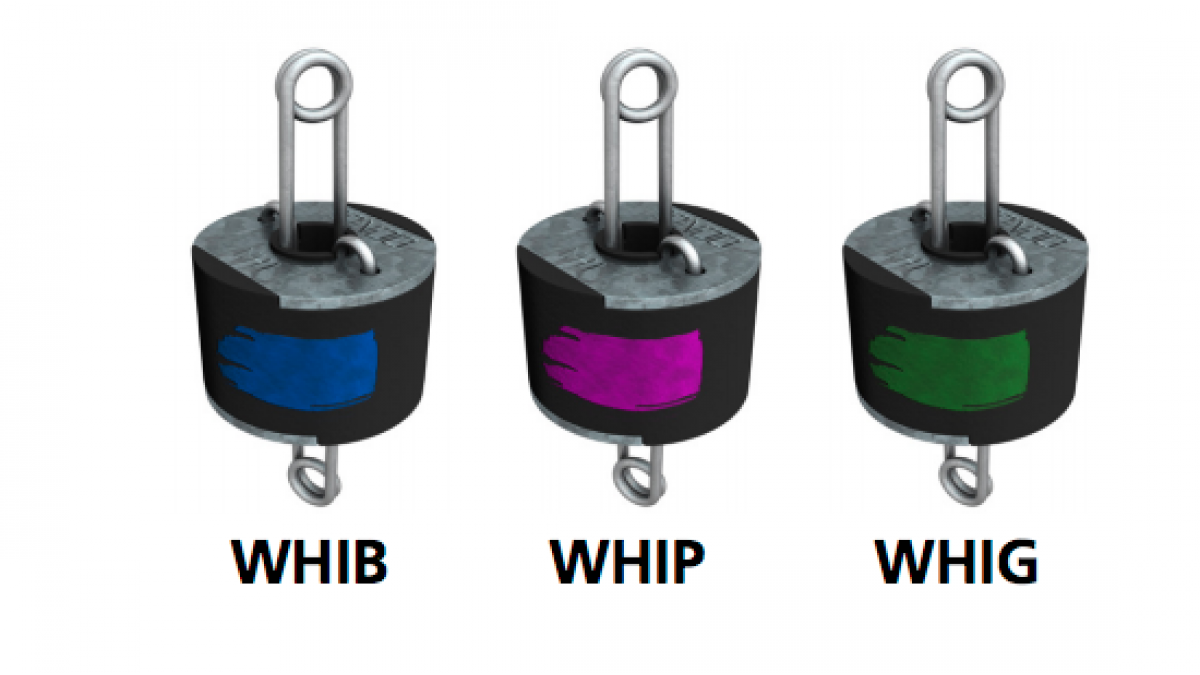

In order of ceiling self-weight lighter to heavier:  Blue, Pink and Green

  • Ceilings ranging from mineral fibre exposed grid systems (WHIB)
  • Plasterboard tiles in exposed grid or in single layer plasterboard concealed grid systems (WHIP)
  • Multiple layer plasterboard ceilings (WHIG)
Scope of Use

The Rondo WHI Acoustic Isolators can be used with the KEY-LOCK Concealed Ceiling System and DUO Exposed Grid Ceiling System as an effective way to reduce sound transmission through a suspended ceiling, acting as a simple buffer from the noise above.

Limitations on Use

The grade of plasterboard and insulation specified will provide a significant impact upon the overall performance of a ceiling

Statement of Building Code Compliance

The 'ultimate' structural or mechanical capacity of the isolator element is another issue entirely. The relevant Australian and New Zealand Standard AS/NZS 2785 requires a minimum capacity of 50kgs per hanger element, and our WHI Isolator has been tested and the product meets and exceeds that standard. But remember, that should not be the sole criteria against which these Acoustic Mounts are specified.

Documents
Data Sheet
