Hyne 15C Beams

New Zealand Wood Products Ltd

All products

Product Enquiries

Description

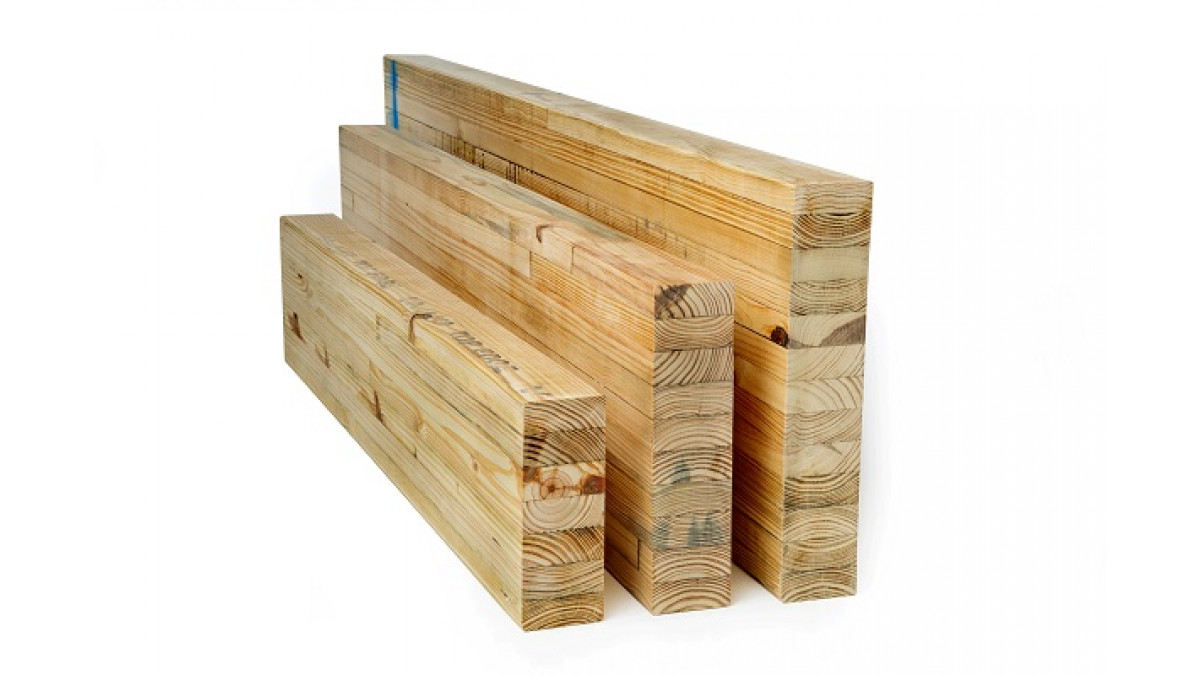

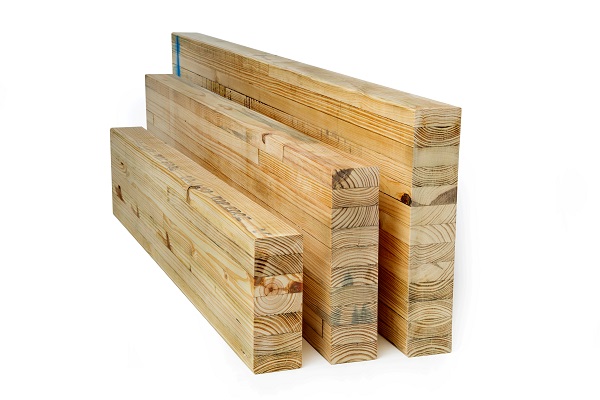

The new Beam 15C by Hyne Timber is a glue-laminated (glulam) beam, manufactured from Slash Pine (Pinus Elliottii) in accordance with AS/NZS 1328 by Hyne Timber in Queensland, Australia. All components are assembled using only durable, exterior grade adhesives.

Beam 15C is supplied with the same standard with camber (C) to a 600m radius and in a structural (STR) non-appearance grade. Straight beams and Select (SEL) visual grades are available on request, manufacturing and shipping times will apply. Beam 15C is only available treated to H3.1 (LOSP). Glulam beams are perfectly suited to all internal structural applications including bearers, roof beams, lintels and portals.

Available in 85mm and 130mm widths, and from 190mm deep up to 525mm deep. Custom depths and widths are also available on special order.

Key Features

Dimensional stability
The ability to have long spans
Available up to 11.4m long
Strongest softwood glulam beam available (E16.7 Mpa)
EWPAA certified
PEFC Chain of Custody

Ranges

Hyne

PEFC Certified

Scope of Use

Hyne 15C Beams are suitable for internal use only
Hyne Beams are treated to H3.1 (LOSP) as standard

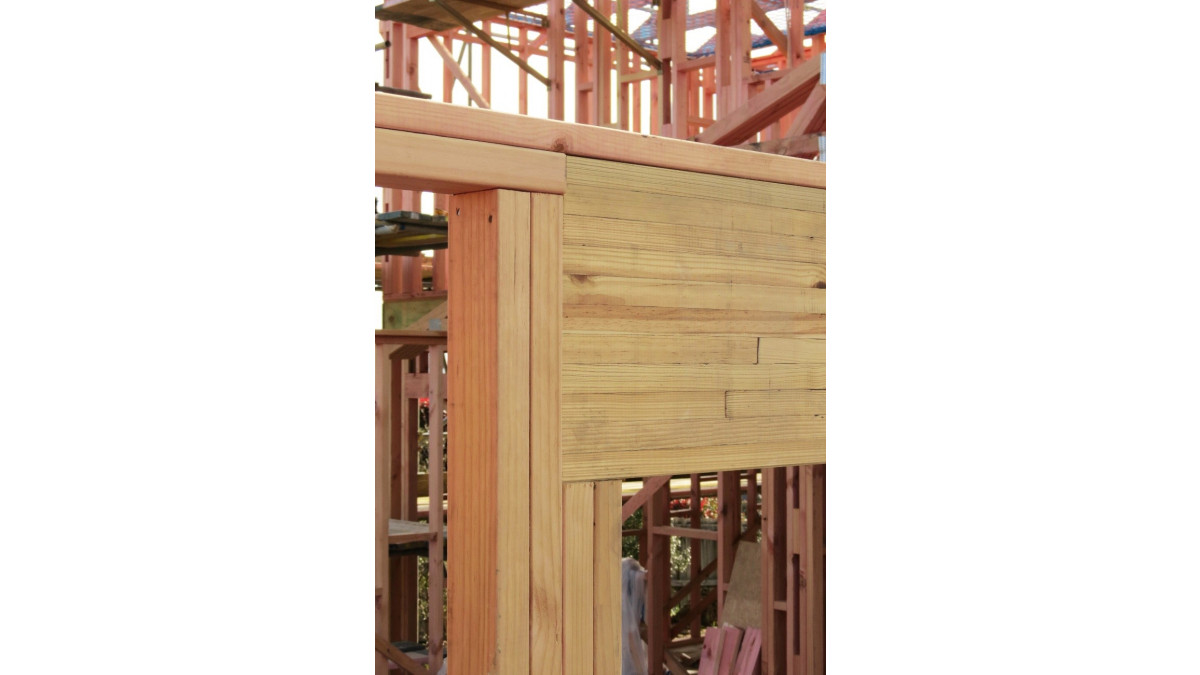

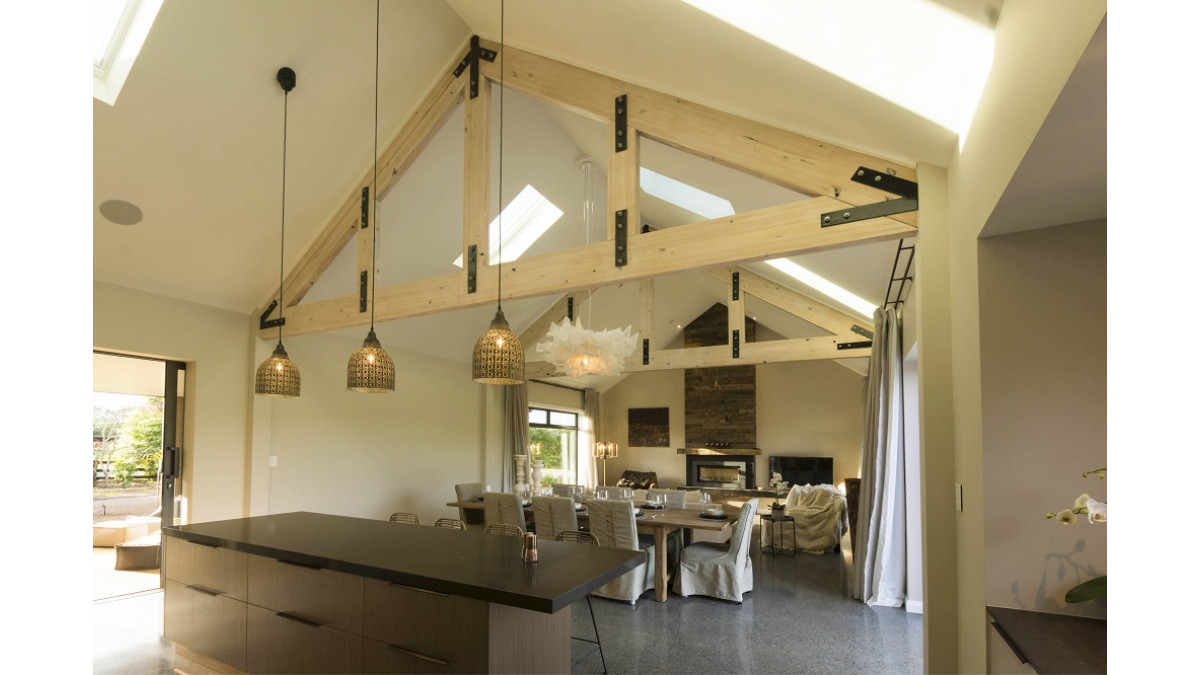

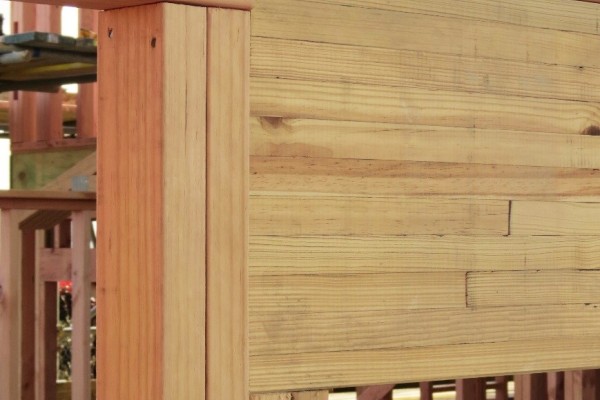

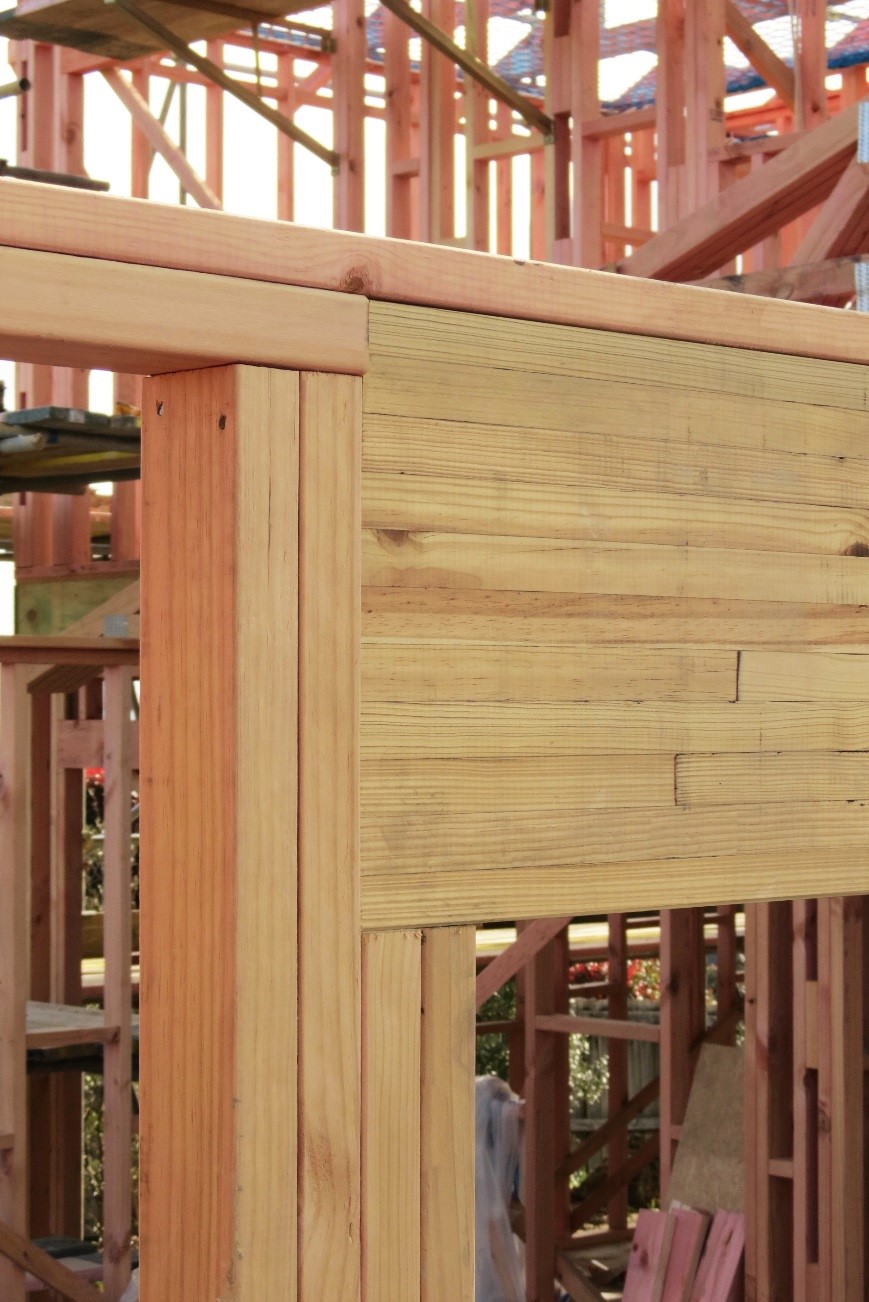

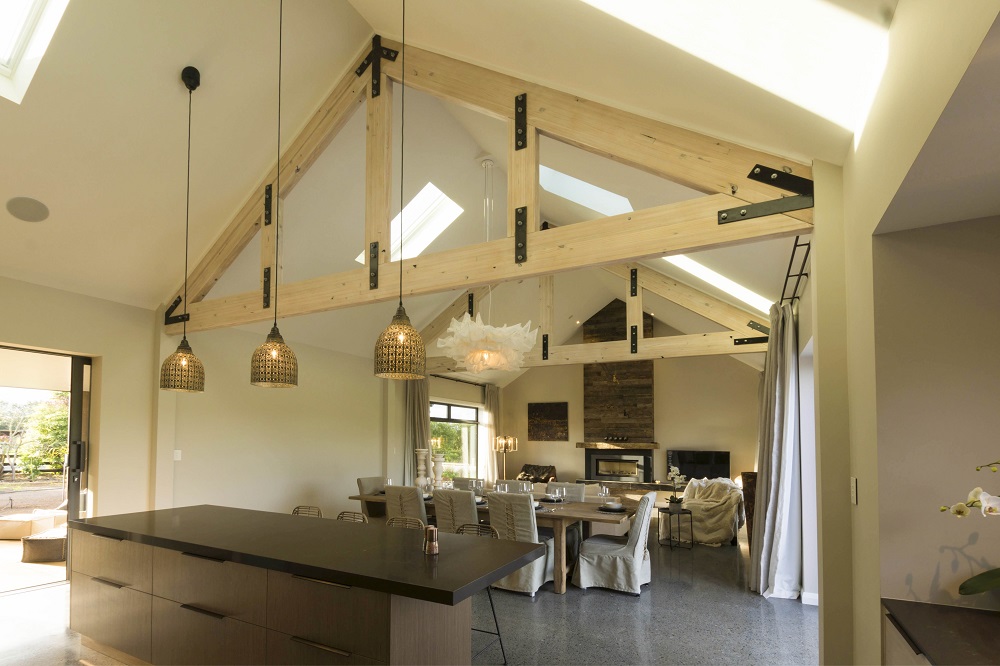

Hyne Beam 15C is commonly used as lintels, bearers, roof beams, rafters, curves, columns and portal frames
Available up to 11.4m long

Limitations on Use

Hyne 15C Beams should not be used in weather-exposed situations

Statement of Building Code Compliance

HYNE BEAM 15 products are high grade glued-laminated timber beams formed from Australian pine.

All components are assembled using only durable, exterior grade adhesives that comply with Service Class 3 as per AS/NZS 4364-2010
The beams are specified as cambered (C) to 600 m radius
HYNE 15C is available in two grades in accordance with AS/NZS1328.1-1998. STR — Structural Grade/Appearance C and SEL —Select Grade/Appearance A
HYNE 15C is available treated to H3.1
Third party certified through the Glue Laminated Timber Association of Australia (GLTAA)
Hyne Timber’s Glue Laminated Timber (GLT) has been independently certified by Bureau Veritas, a JAS-ANZ accredited third-party Certification Body, under their ‘S’ Mark Product Certification Scheme. The 'S' Mark is an Australasian stamp of assurance, confirming to the design and construction industry that Hyne Timber’s GLT is audited and certified to the applicable Standard ‘AS/NZS 1328.1:1998, Glue Laminated Structural Timber.’

Other Performance Attributes

HYNE produce a range of Glued-laminated products (Glulam)
Glulam products are produced by finger jointing and gluing shorter and small cross section timber together to make a larger cross section final product
All HYNE Glued-laminated products are produced at the Maryborough Glulam plant (Australia) and are manufactured in accordance with AS/NZS 1328.1-1998
The site operates an AS4707-2006 Chain of Custody compliant management system that covers all laminated products produced at the site as well as holding ISO9001-2006 accreditation for its manufacturing systems
EWPAA certified
PEFC Chain of Custody
