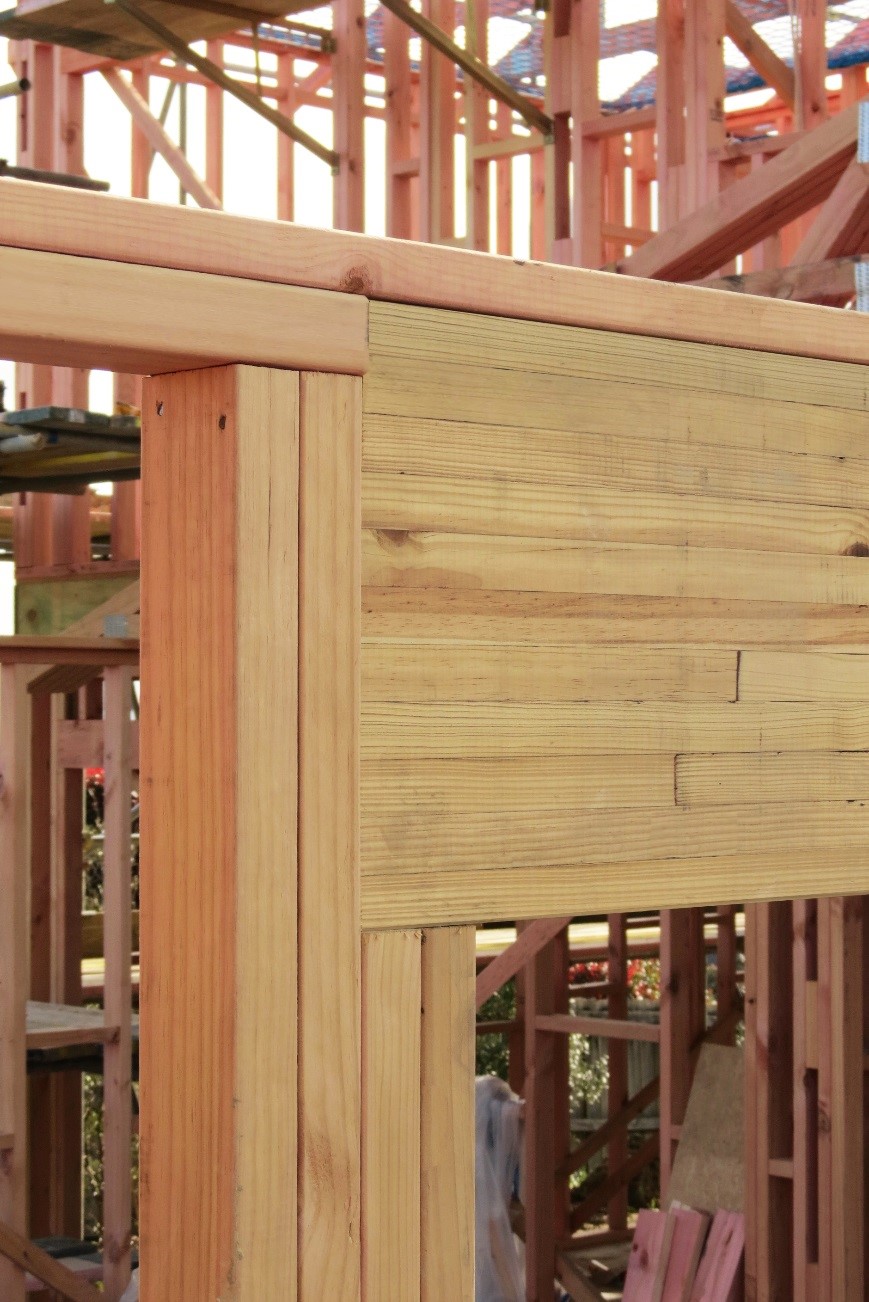

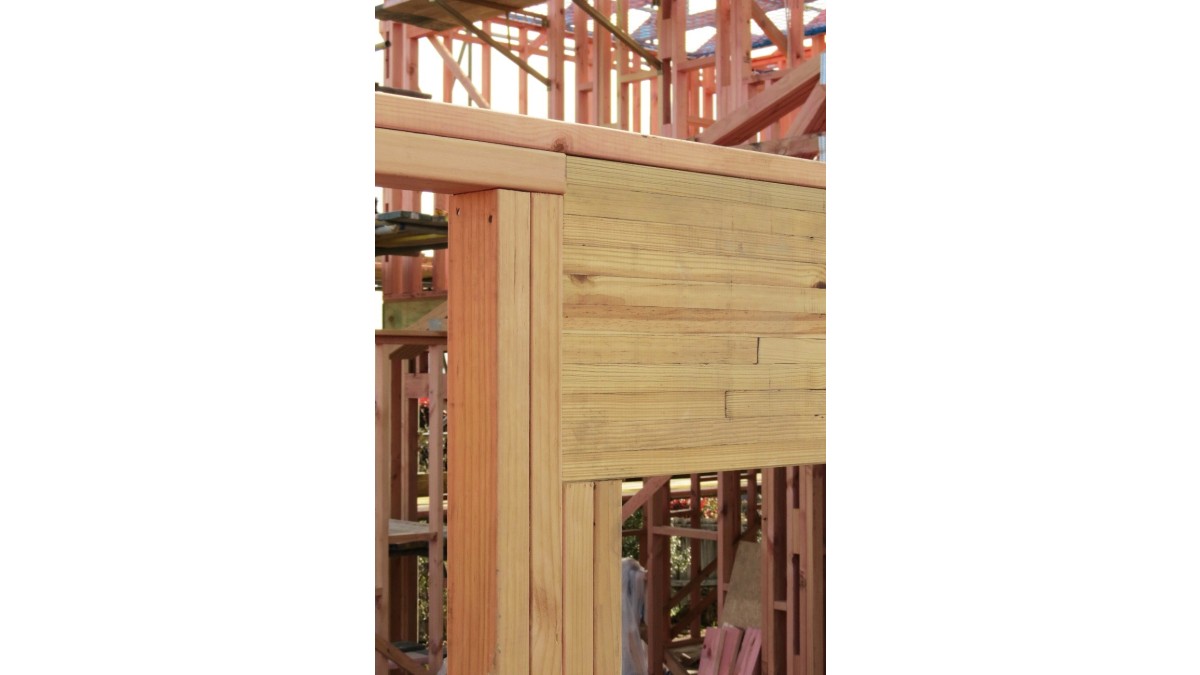

I-Built 15C Glulam Beam Offers Proven Performance

15C Glulam is manufactured with high grade plantation grown Slash Pine (Pinus Elliottii) in accordance with AS/NZS 1328 by Hyne Timber. Its proven performance gives it broad appeal in both residential and commercial applications.

All components are assembled using only durable, structural grade adhesives. In-house strength testing is validated by EWPAA third-party compliance testing and it also carries ‘S’ mark certification. 15C is supplied pre-cambered to a standard 600m radius and is available treated to H3.1 (LOSP) so it is suitable for use in all internal structural applications.

IBuilt’s Auckland warehouse stocks a wide range of commonly used sizes making it a great substitute for other engineered timber beam options such as 90mm LVL and flitch beams that may be harder to source.

The stocked range includes:

85mm width: 195, 230, 260, 295, 330, 360, 395, 425, 460
130mm width: 230, 260, 295
Other cross section sizes are available for order.

15C Glulam can be specified by using Hyne Design 7.7 software which is a free download. For specifiers not familiar with using Hyne Design, IBuilt have developed a lintel span table covering the most common spans and loads. This makes specification simpler, it even covers the hold-down fixing strength required. For any further information on 15C glulam, span tables or for a Hyne Design software demo please contact the team at IBuilt.

Hyne 15C Beams

New Zealand Wood Products Ltd

View Product

The new Beam 15C by Hyne Timber is a glue-laminated (glulam) beam, manufactured from Slash Pine (Pinus Elliottii) in accordance with AS/NZS 1328 by Hyne Timber in Queensland, Australia.

PEFC Certified

Hyne 15C Beams are suitable for internal use only
Hyne Beams are treated to H3.1 (LOSP) as standard
Hyne Beam 15C is commonly used as lintels, bearers, roof beams, rafters, curves, columns and portal frames
Available up to 11.4m long

HYNE BEAM 15 products are high grade glued-laminated timber beams formed from Australian pine.

All components are assembled using only durable, exterior grade adhesives that comply with Service Class 3 as per AS/NZS 4364-2010
The beams are specified as cambered (C) to 600 m radius
HYNE 15C is available in two grades in accordance with AS/NZS1328.1-1998. STR — Structural Grade/Appearance C and SEL —Select Grade/Appearance A
HYNE 15C is available treated to H3.1
Third party certified through the Glue Laminated Timber Association of Australia (GLTAA)
Hyne Timber’s Glue Laminated Timber (GLT) has been independently certified by Bureau Veritas, a JAS-ANZ accredited third-party Certification Body, under their ‘S’ Mark Product Certification Scheme. The 'S' Mark is an Australasian stamp of assurance, confirming to the design and construction industry that Hyne Timber’s GLT is audited and certified to the applicable Standard ‘AS/NZS 1328.1:1998, Glue Laminated Structural Timber.’

Hyne Design Software

New Zealand Wood Products Ltd

View Product

IBuilt's Hyne Design (HD) is an industry standard for alternative structural timber design.

Enhanced functionality: HD now incorporates the latest changes from the relevant structural standards — Improved design procedures and updated product properties.

Multi-platform compatible: Now available to all platforms including PC, Mac, desktop, and tablet.

Online availability: Hyne Design is now online, so there is no need to install updates. Cloud-based storage is also offered, users can access their designs, reporting, and certifications online.

Improved support portal: The support portal has been updated to include more How-To and guides than ever before.

Compliance reporting: Generates custom reports covering design loads, deflection, and engineering calculations for uplift connection selection and building consent.

Product range: Compare product performance from major manufacturers effortlessly. HD covers all of the products available in the IBuilt engineered timber range including:

NZ made structural LVL 11 & 13
Hyne Beam15
Stress graded (SG8) framing
and IBuilt's JJ-IJoist
