Nuraply 3PC — Carpark System
Description

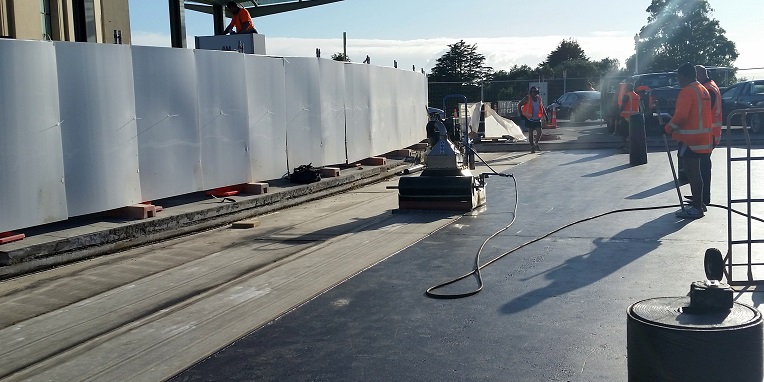

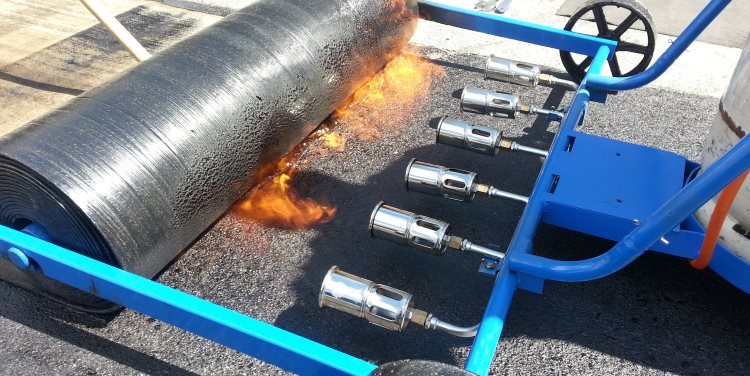

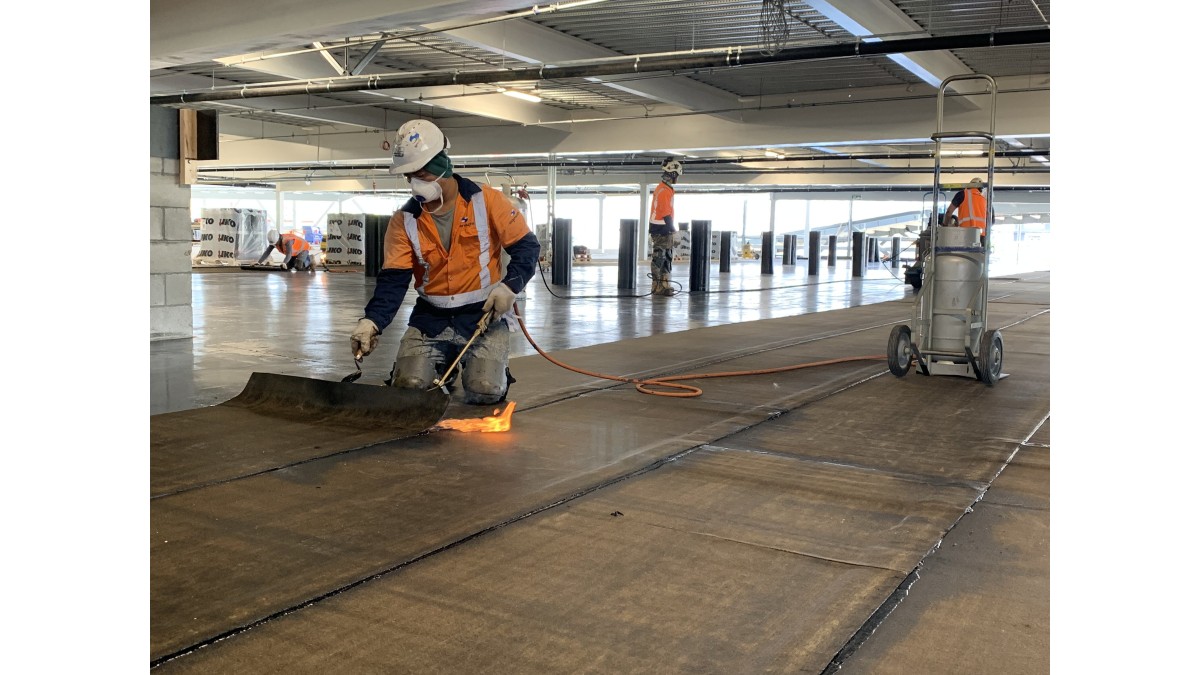

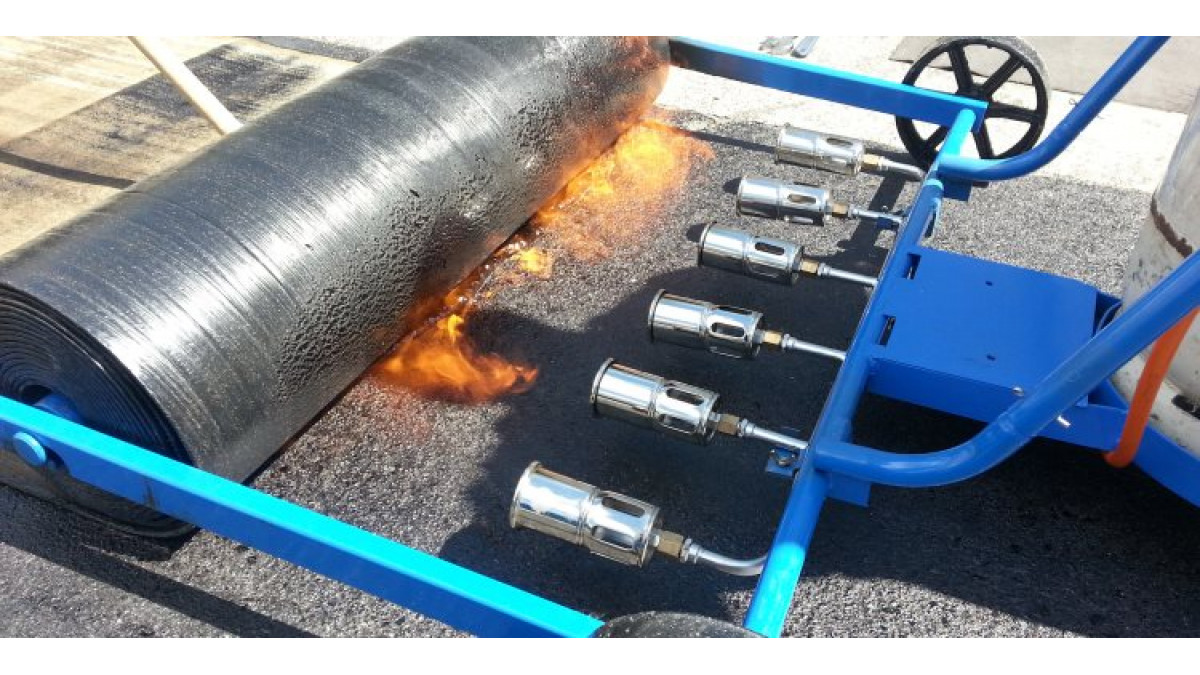

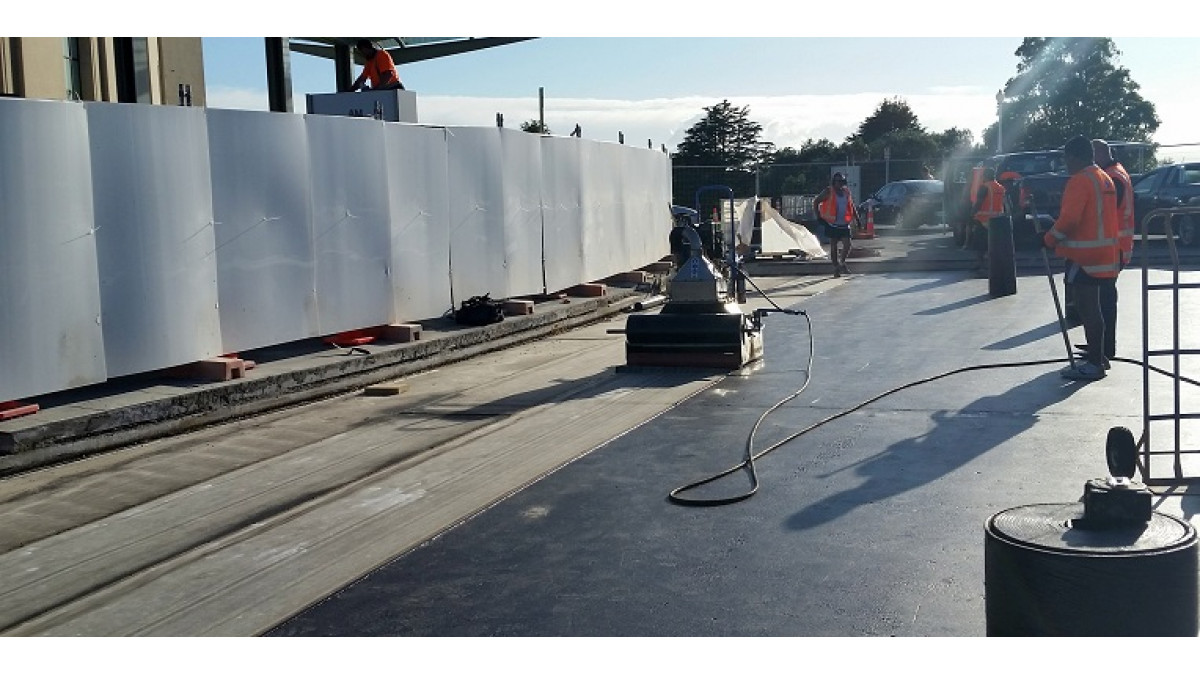

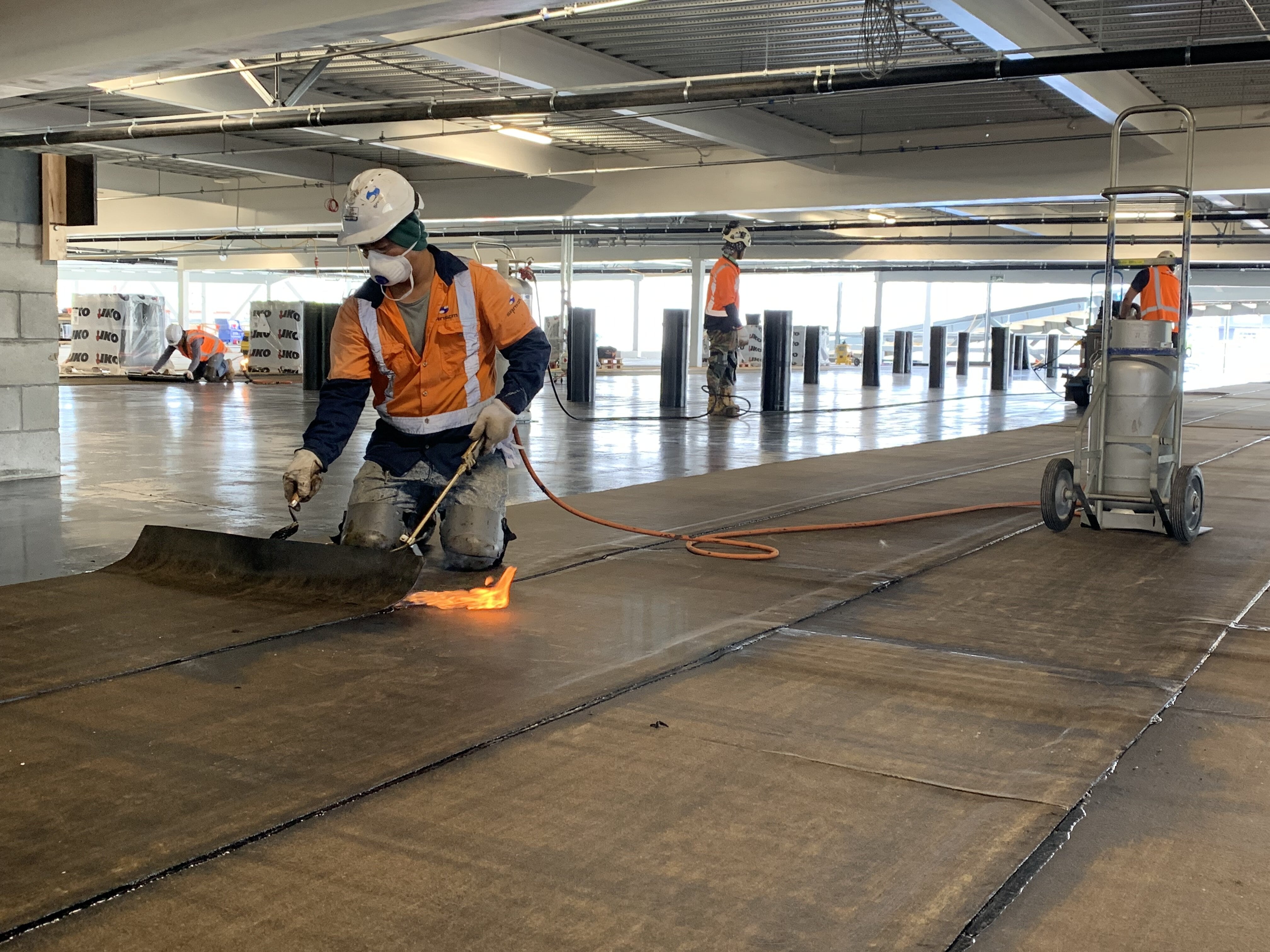

Nuraply 3PC is serious waterproofing for car and bridge decks. A 5mm thick sheet of APP modified bitumen, heat fused onto the substrate with heat welded lap joints and talc upper surface.

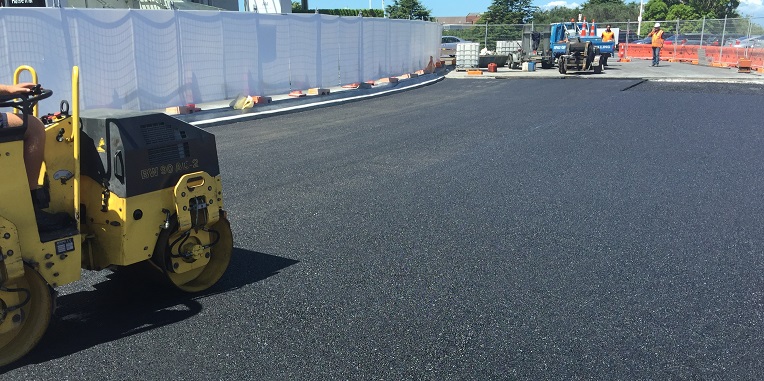

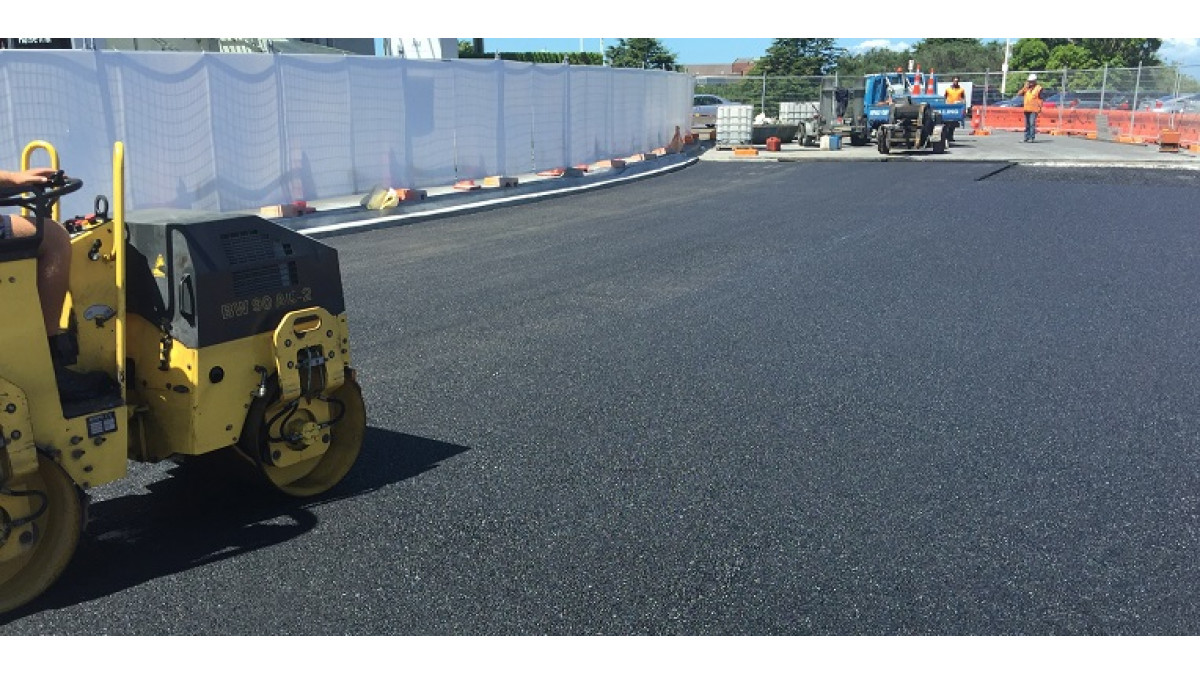

Nuraply 3PC consists of an impregnated carrier with combination of polyester and glassfleece (280 g/m² for 5 mm thick), covered at the bottom side with flexible polymer bitumen. The finish of the top surface of this membrane, talcum, admits direct application of road asphalt at a temperature of max. 160°C‐200°C or mastic asphalt with a temperature of approximately 250°C.

Key Features
  • Robust and durable system solution
  • Robust, 5mm membrane solution
  • Complete warranted membrane and WABO expansion joint system
  • A complete 20-year product warranty
Scope of Use

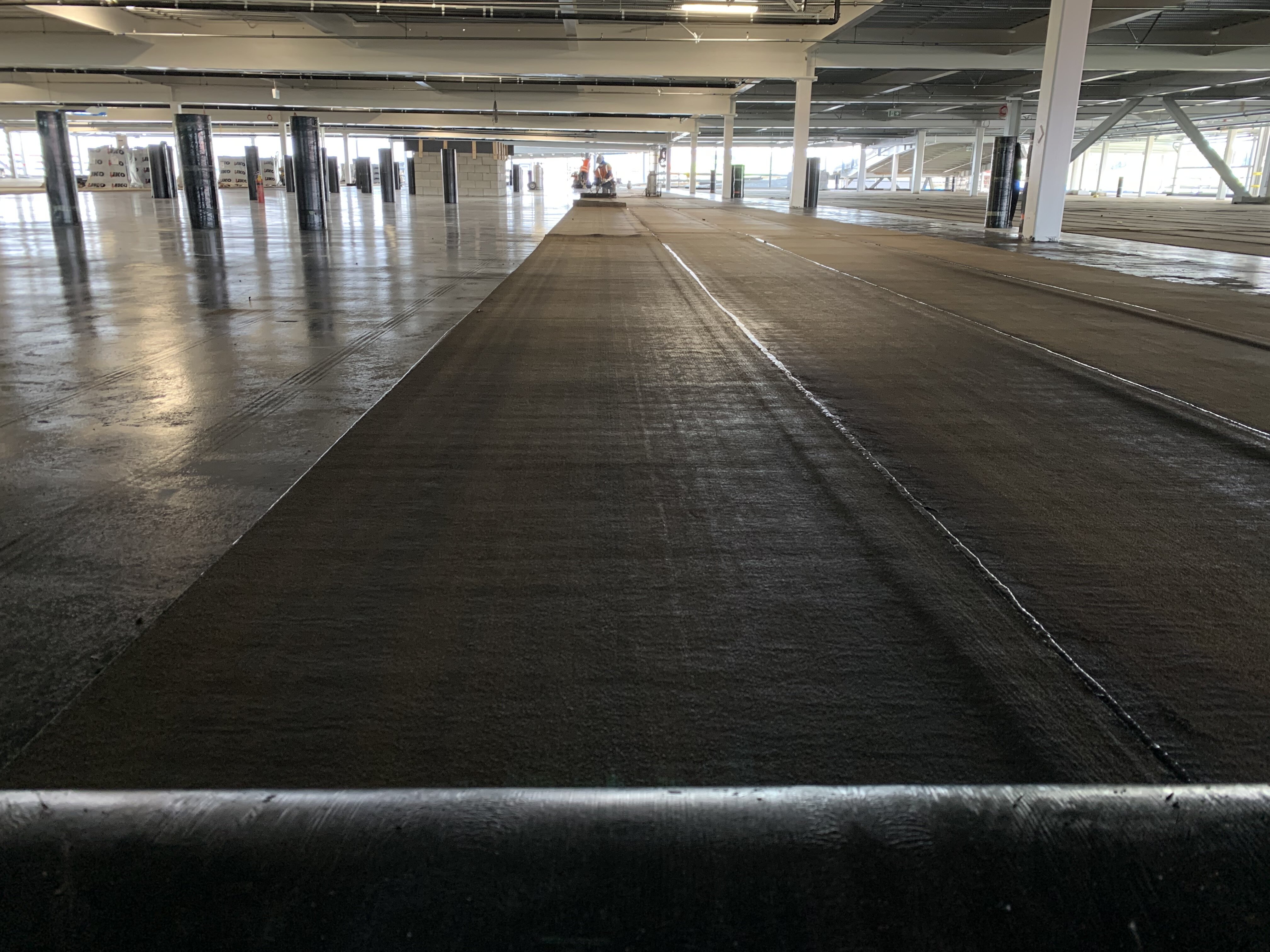

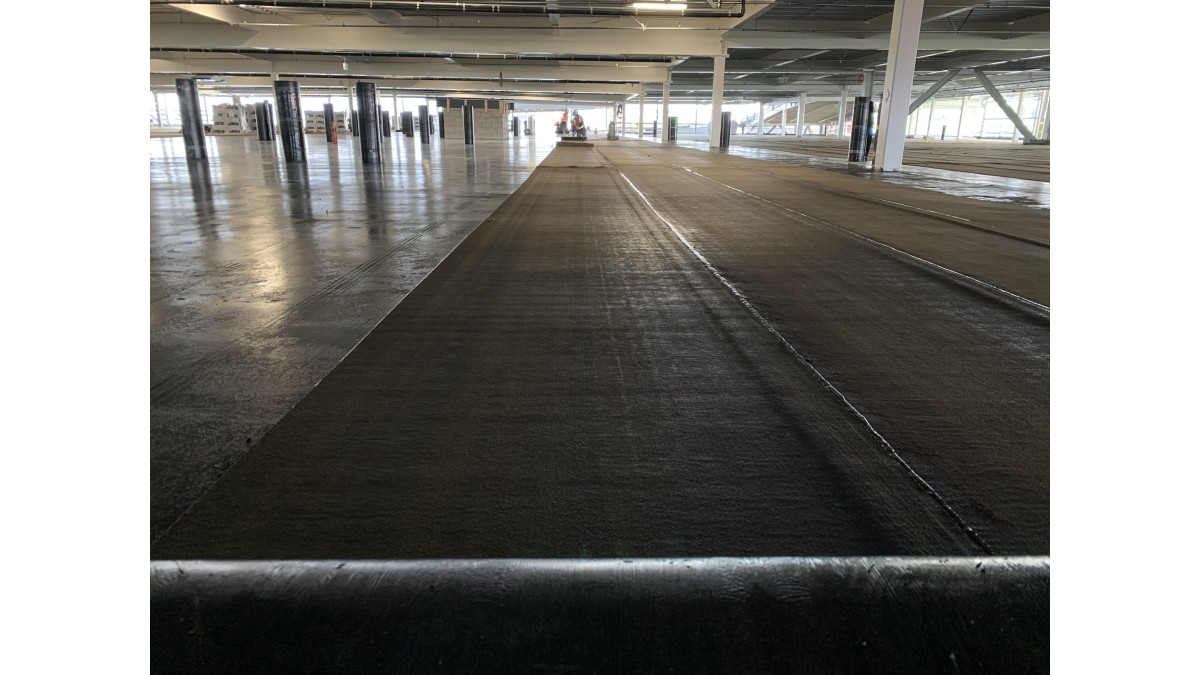

  • Ideal waterproofing for car parking and bridge decks
In-Service History

As a New Zealand owned and operated company, Nuralite has provided membrane roofing, decking and tanking solutions within the architectural industry for over 40 years.

Documents
Data Sheet
Nuraflux Premseal Primer Datasheet
Substrate readiness checklist

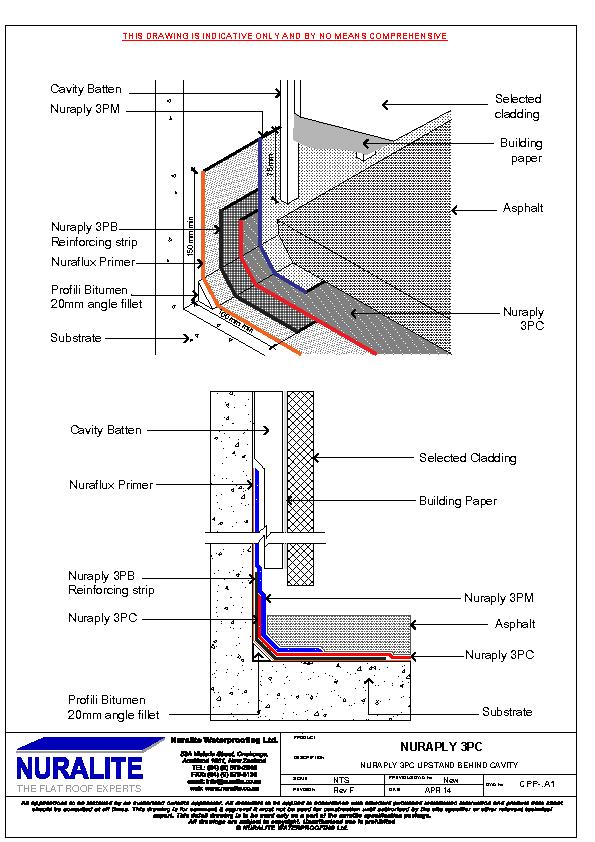

CAD/PDF Details
Carpark Details

Membrane waterproofing is not hard when combined with Nuralite's range of system solutions and experienced team of technical experts.
