Point Fix PF150 — Glass Balustrade System
Metro Performance Glass
All products

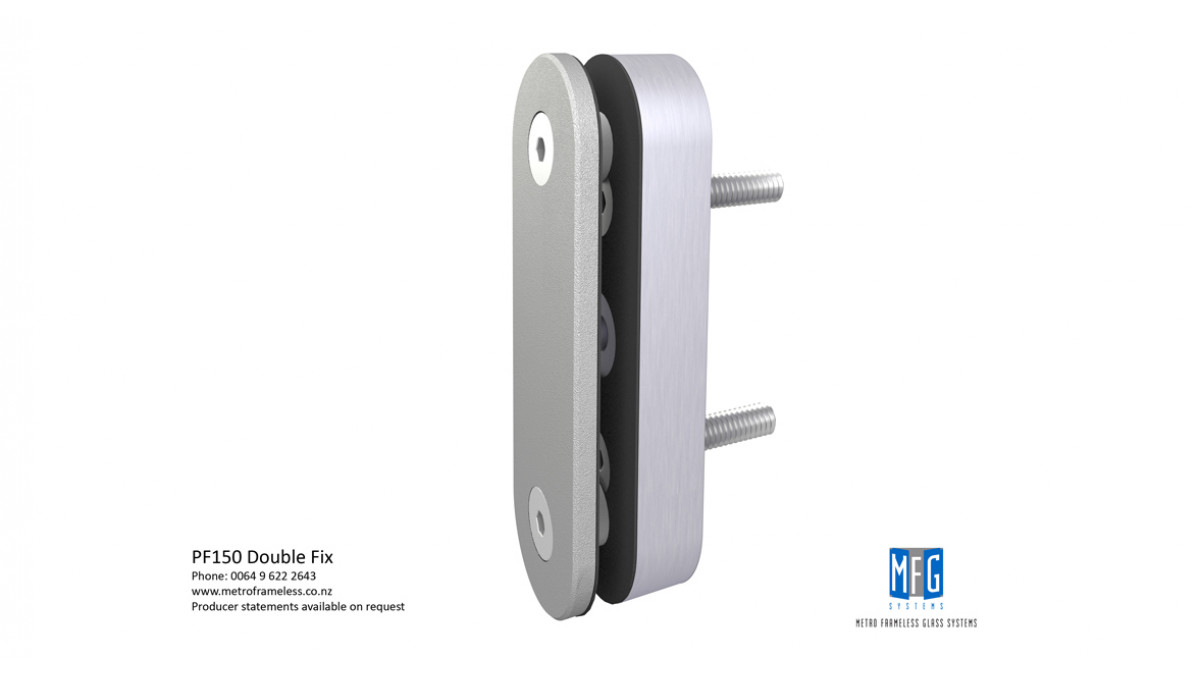

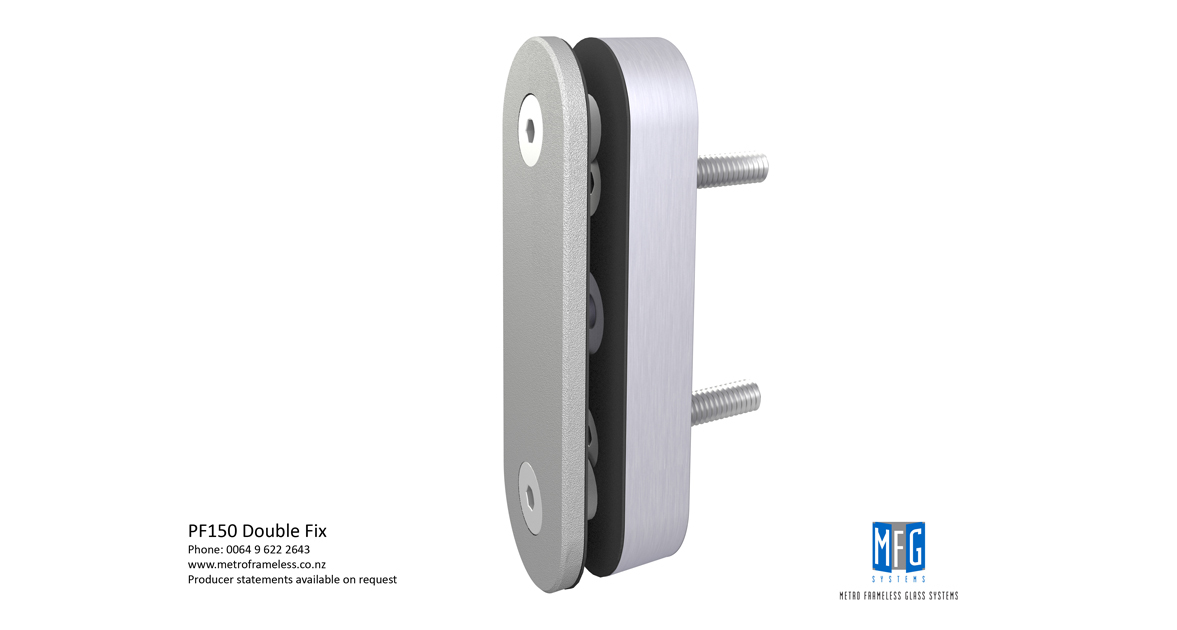

2 PF150 Double Assembled HIGHRES rvsd

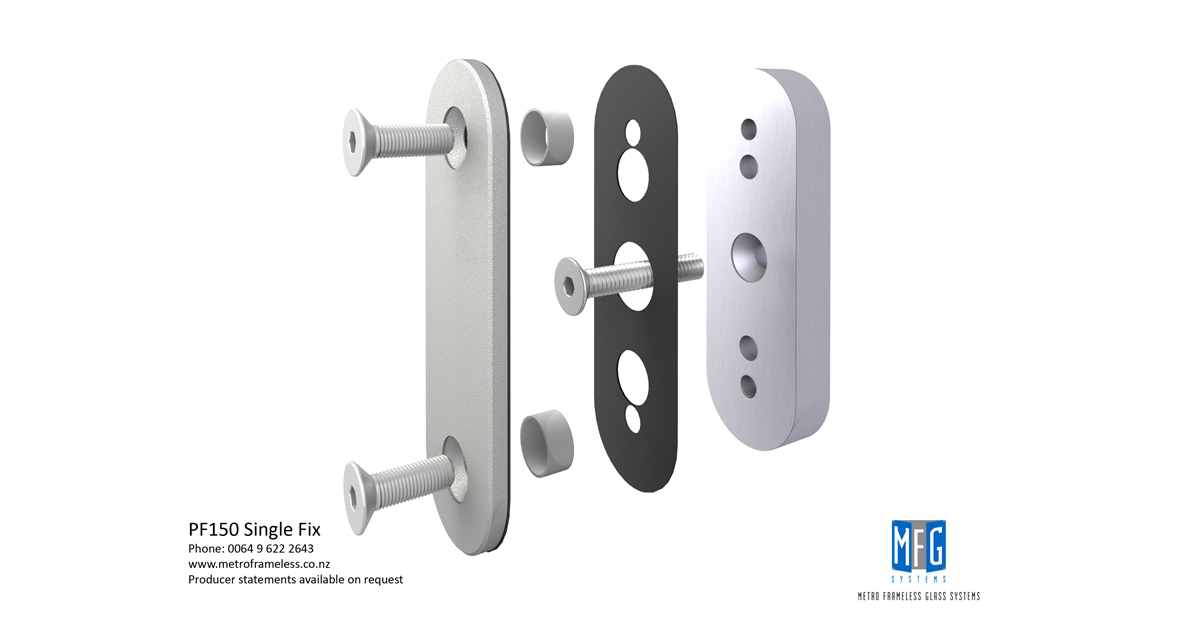

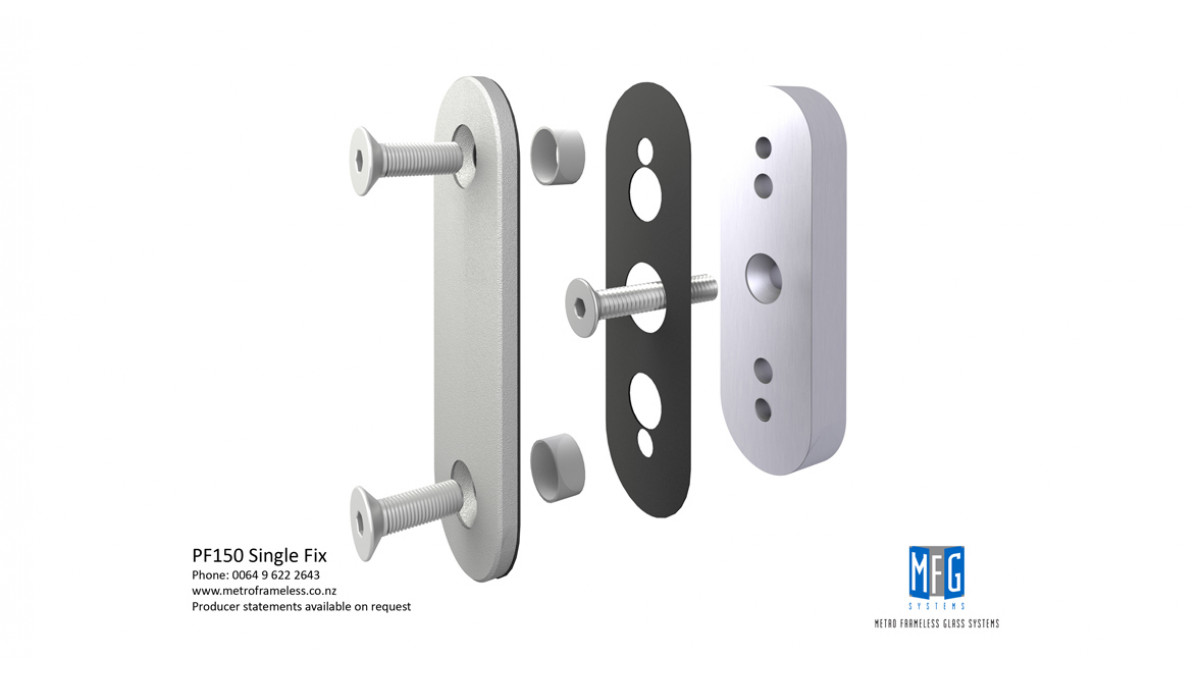

1 PF150 Single Exploded HIGHRES

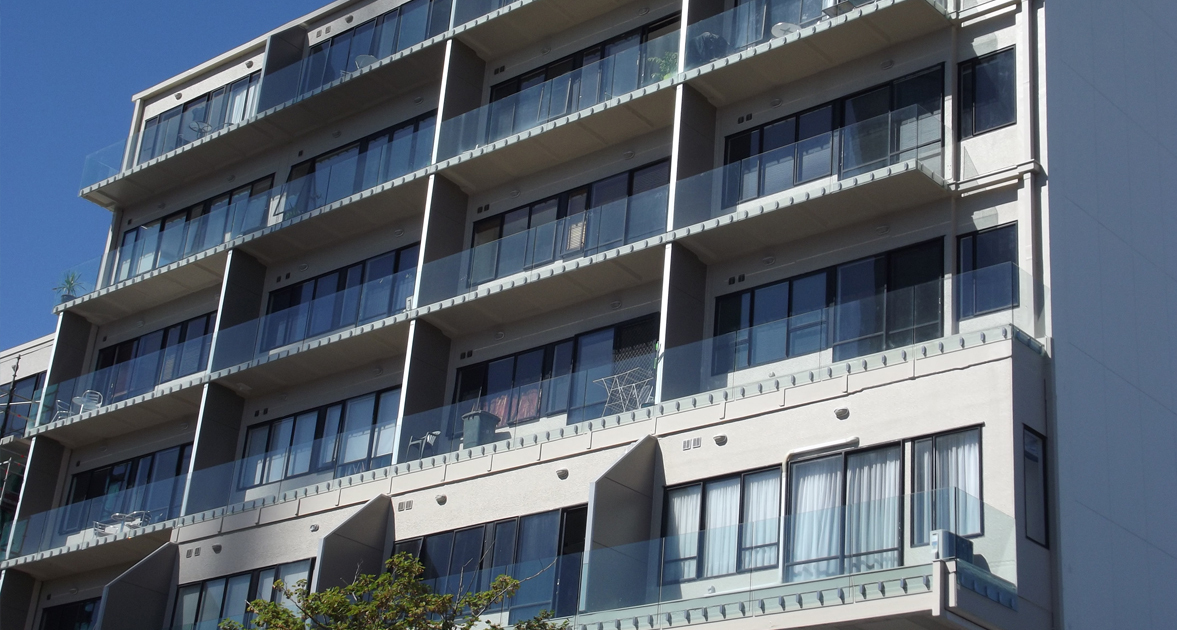

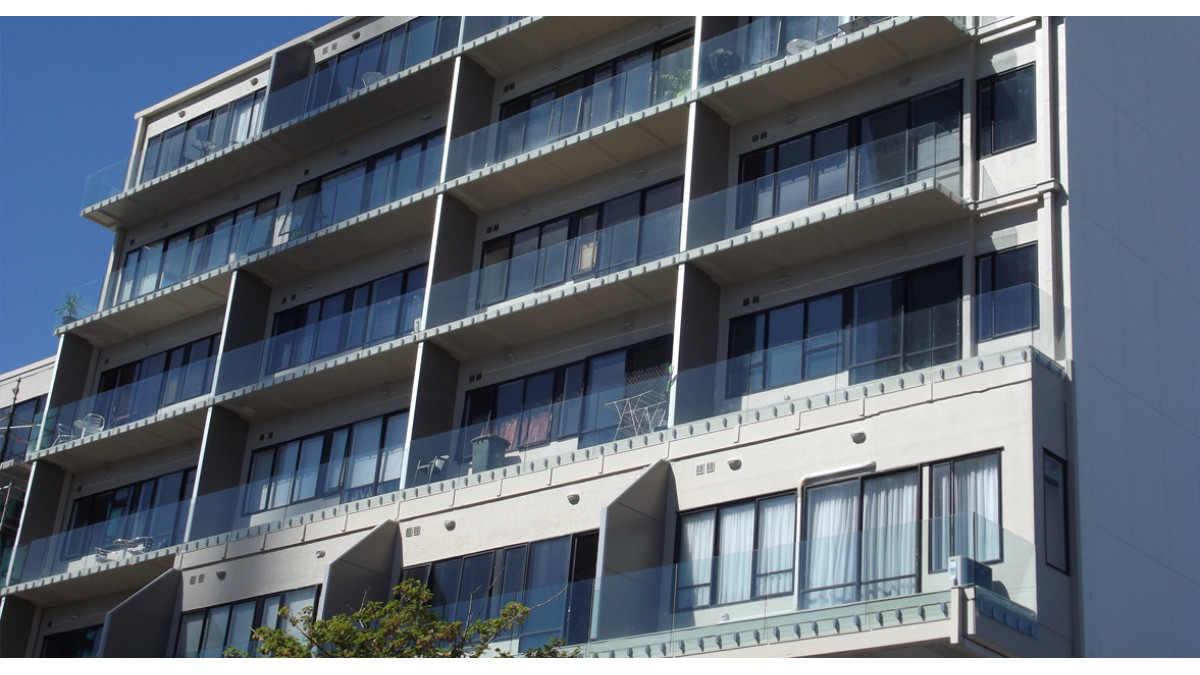

PF150 Main rvsd

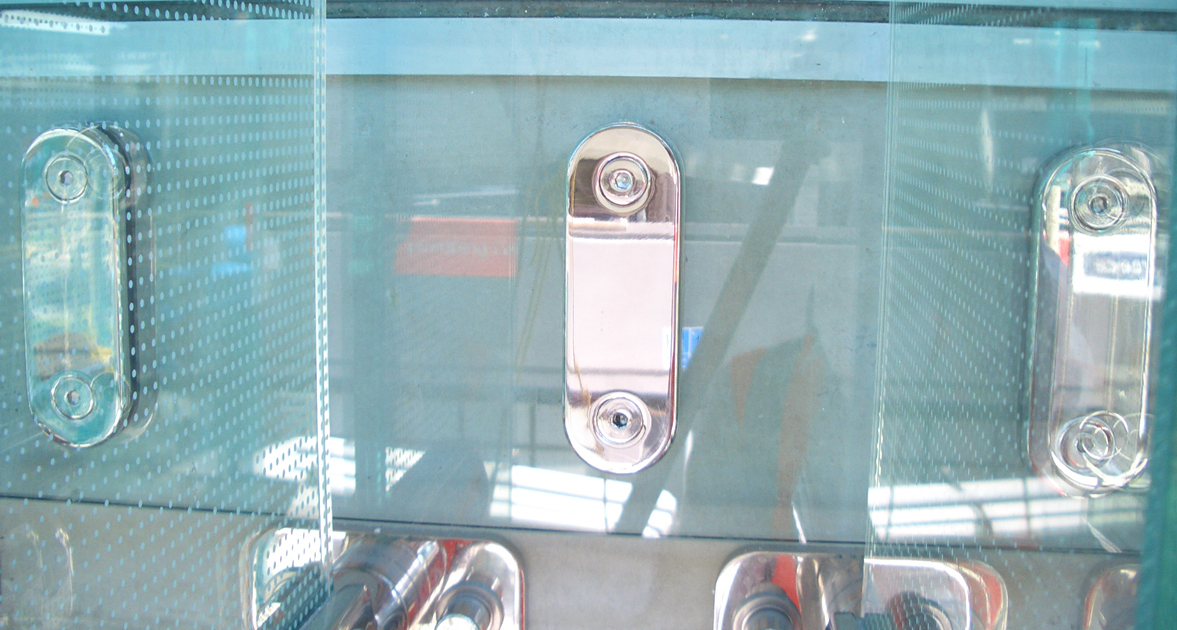

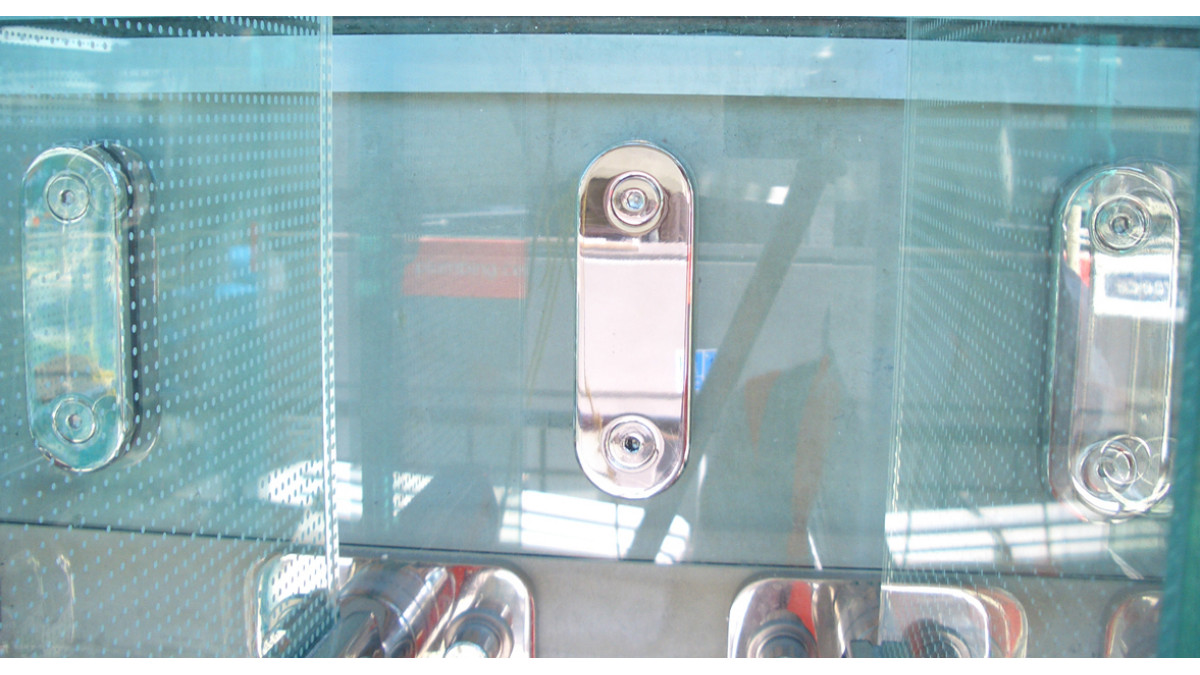

PF150 close up 1

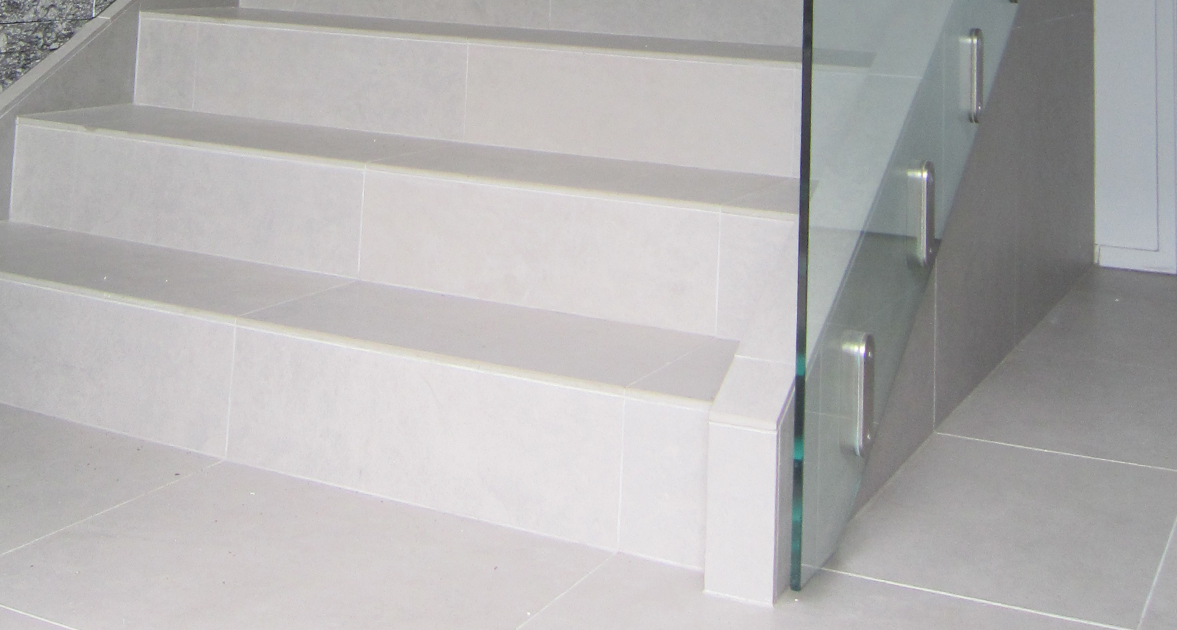

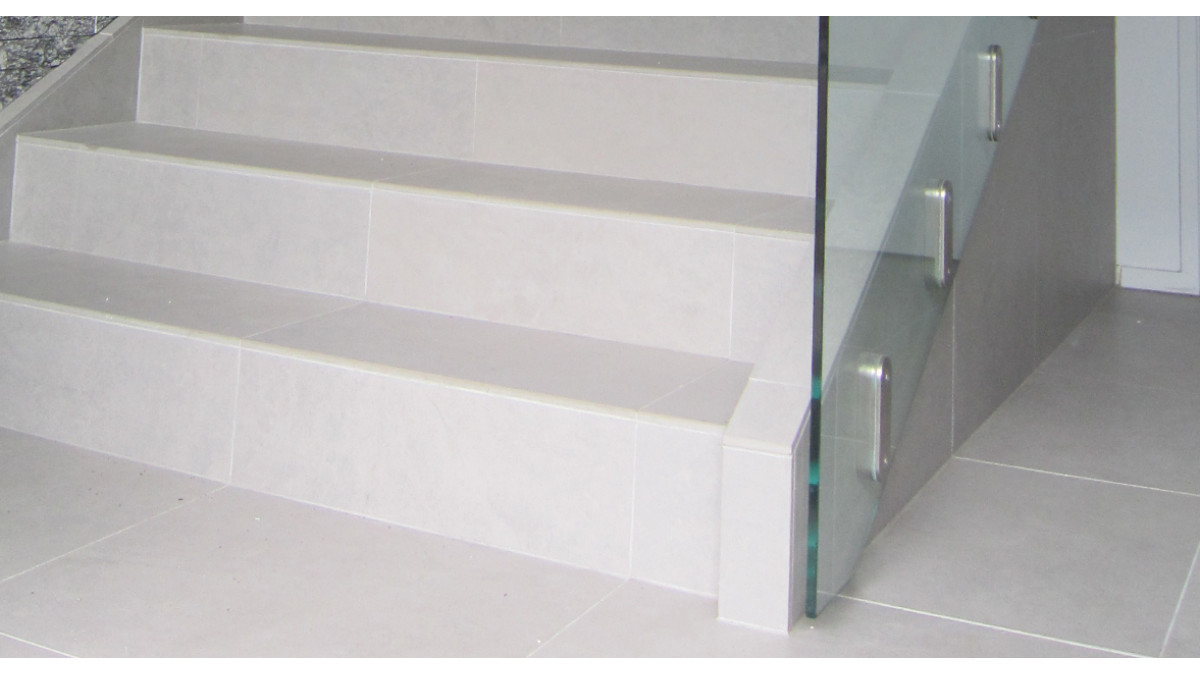

PF150 inset rvsd

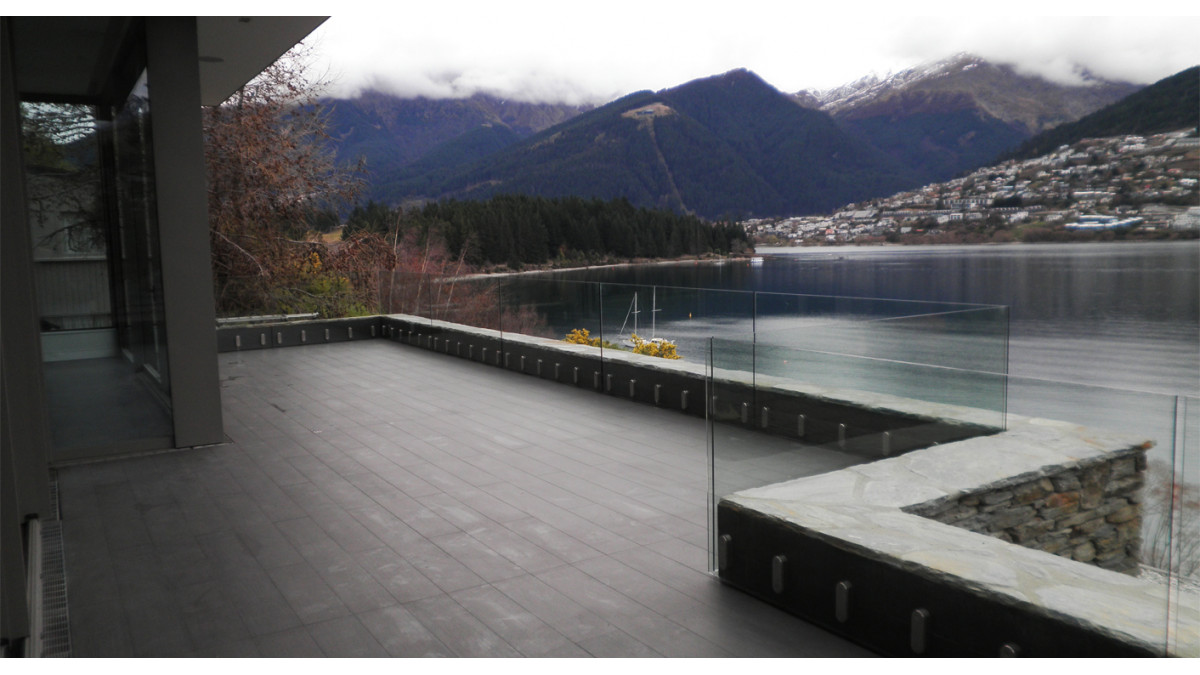

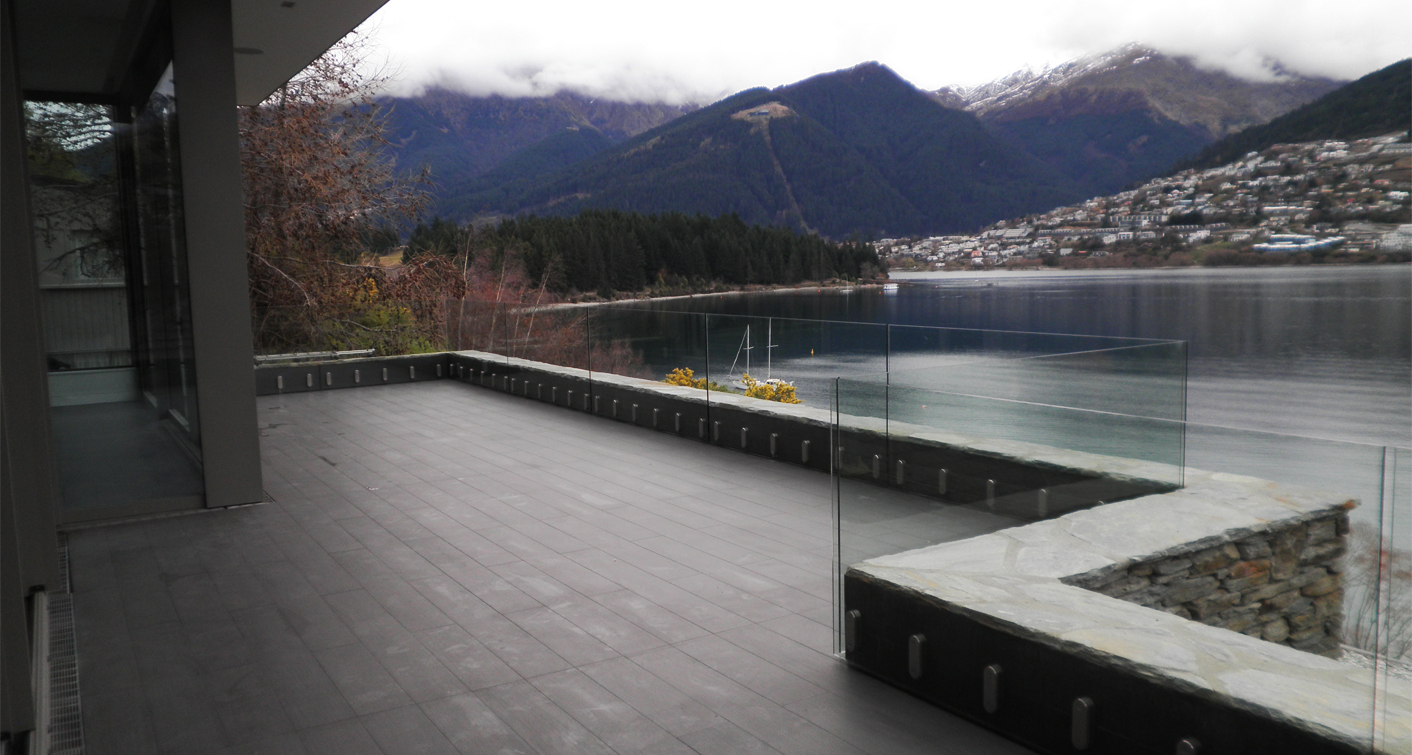

P8150102 rvsd

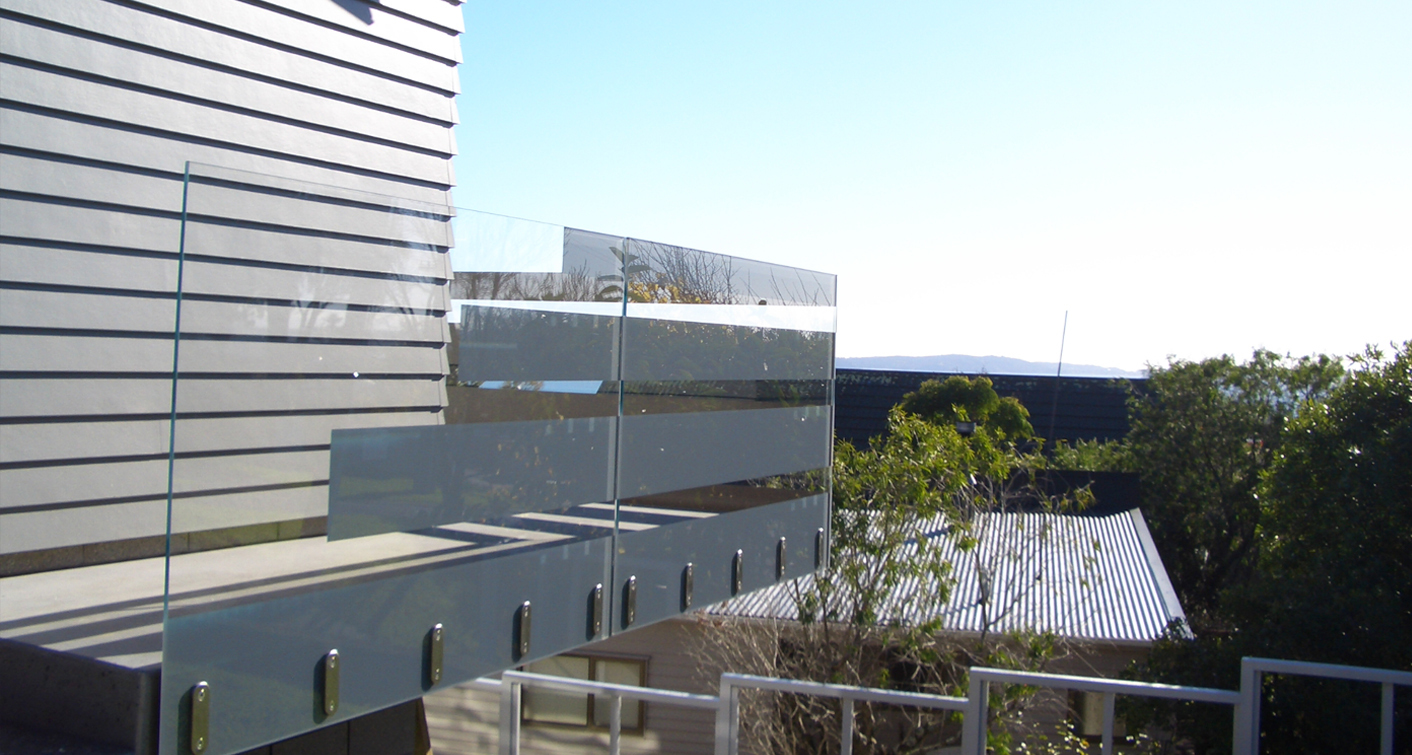

CIMG2617 rvsd
Description

The PlateFix PF150 (Metroview Point-Fix) was born from the double-disc fixings by joining the discs into a single piece profile base plate with an outer clamping plate for a stronger multipurpose balustrade fixing. This enables the PF150 to be used with single or double fixings and it can be used vertically, horizontally, angled or a combination of the above.

The Metro Glass Generic PS1 System covers most standard installations for fast PS1 turnaround generally just a few days.

Key Features
  • The PlateFix PF150 Balustrade system is side fixed for (face) mounted applications.
  • The PlateFix PF150 is 150mm high and 50mm wide with radius ends.
  • The inner spacer is 20mm thick and the outer plate 6mm thick.

Material Finish

  • Made from 316 grade stainless steel
  • Available in satin or polished finish. A special bead blast finish is available
  • Powdercoated upon request. Note: Powder coating is available in a wide range of colours with commercially available surface integrity warranties from 10 to 30 years
  • All fixings must be Stainless Steel

Interlinking Rail

  • All monolithic toughened frameless glass balustrades must have an Interlinking Rail to conform to NZS 4223.3.2016, including the latest amendment of NZBC B1
  • See Railing and Handrail Systems for options
Categories
Glass Hardware
Ranges
Balustrade Hardware
Scope of Use

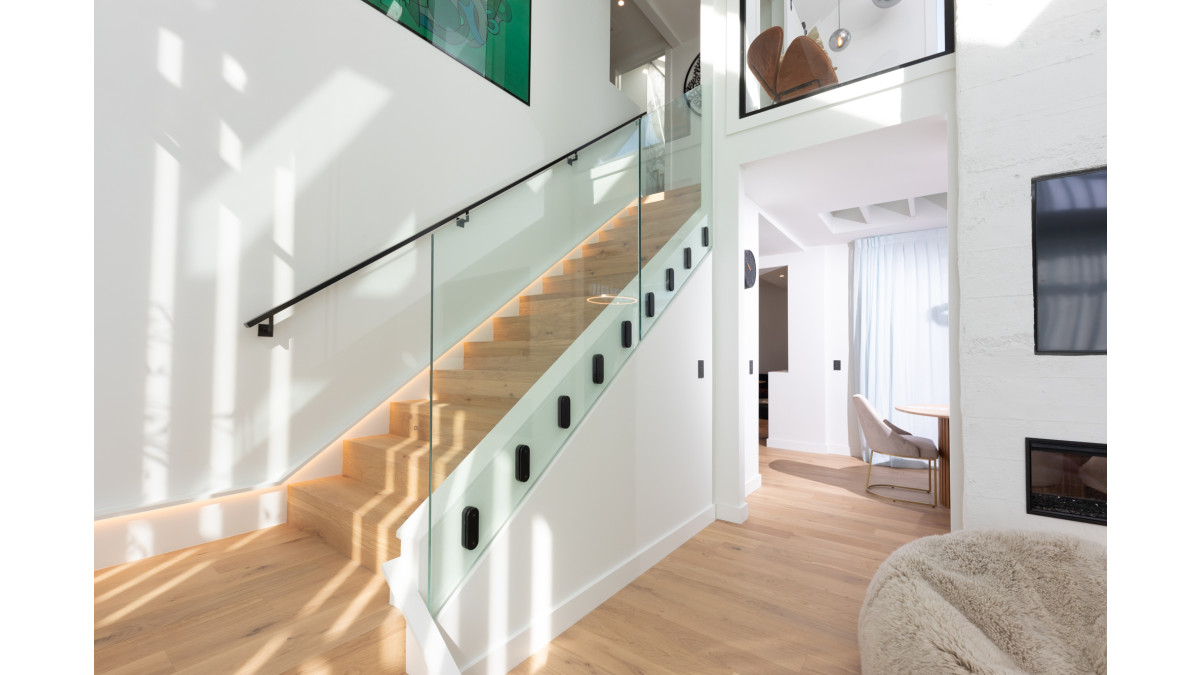

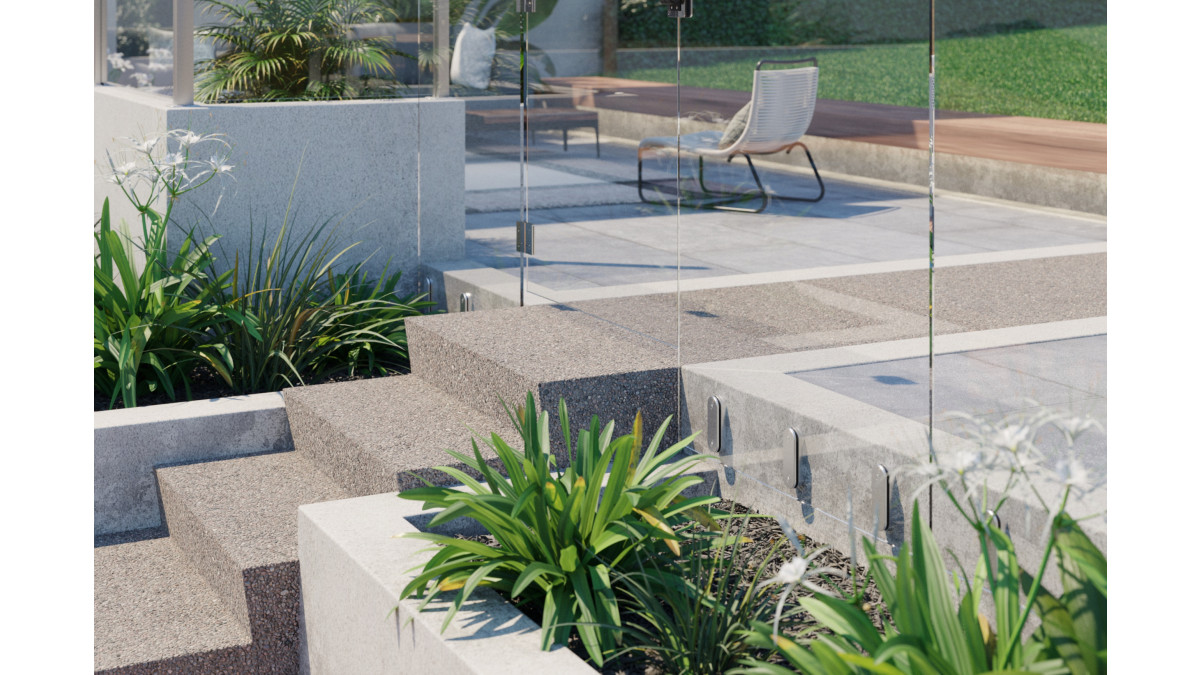

  • The PlateFix PF150 system is ideal for external balconies and stairs — as well as for internal stairs and landings. It can be fixed directly to either timber, steel or concrete surfaces
  • When required an interlinking top rail finishes off the system, producing a low profile modern look
  • See PF150 Install Instructions
Limitations on Use

Occupancy Type

  • Suitable for occupancy types A, B, E, and C3. (subject to glass & fixing type)
  • Occupancy Types as per AS/NZ 1170.1.2002.

Windzone

  • Exceeds the wind loading for all Wind Zones up to and including Very High Wind Zone as set out in NZS 3604:2011
  • Max design Wind pressure subject to glass type and fixing method.
Statement of Building Code Compliance
  • Complies with AS/NZS 1170:2002, NZS 4223.3.2016
  • NZ Building Code B1, F2, F4 and F9
Documents
PF150 Install Instructions & Balustrade Parts
URL
Point Fix PF150 Balustrade System Elevation Setout
URL
Point Fix PF150 Balustrade System Overview
URL
Point Fix PF150 Balustrade System Rails and Brackets
URL
Point Fix PF150 Balustrade System Design Tables
URL
Metro Glass PS1 System
URL
Railing and Handrail Systems
URL
CAD/PDF Details
View full

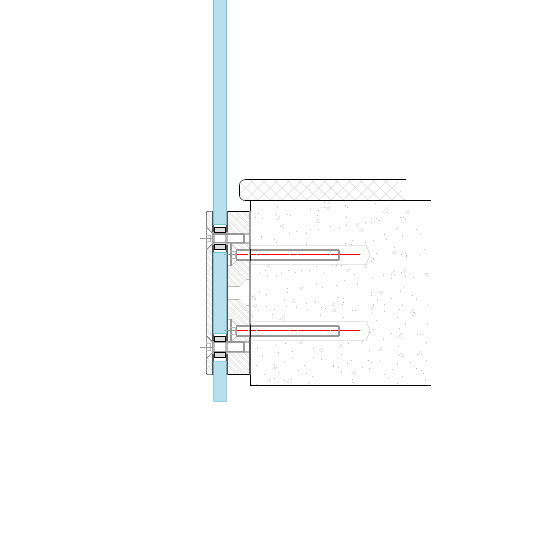

PF150 Concrete RA M10
Point Fix PF150 Concrete Threaded Rod and Anchor M10
dwg
PF150 Concrete RA M12
Point Fix PF150 Concrete Threaded Rod and Anchor M12
pdf

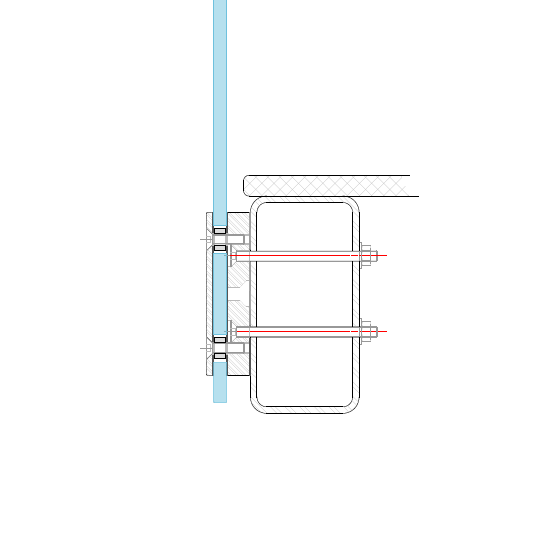

PF150 Steel hollow BN M10
Point Fix PF150 Steel (Hollow) Bolt and Nut M10
dwg

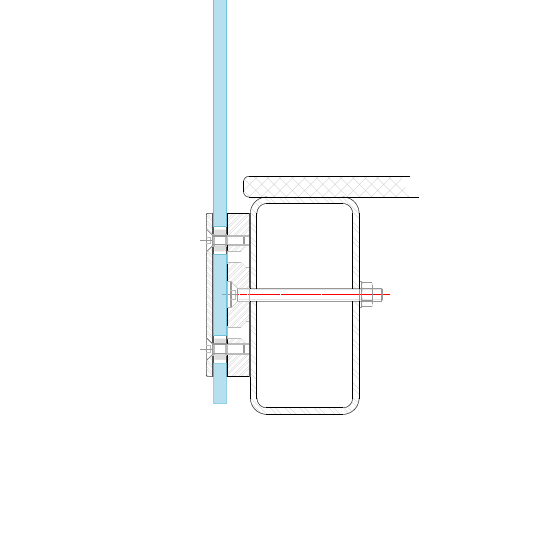

PF150 Steel hollow BN M12
Point Fix PF150 Steel (Hollow) Bolt and Nut M12
dwg

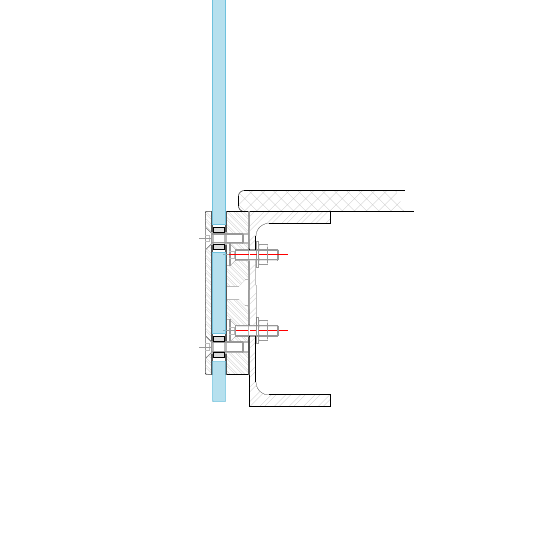

PF150 Steel open BN M10
Point Fix PF150 Steel (Open) Bolt and Nut M10
dwg

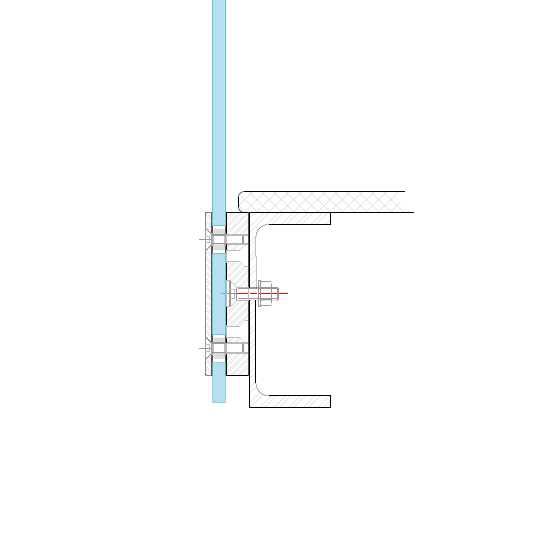

PF150 Steel open BN M12
Point Fix PF150 Steel (Open) Bolt and Nut M12
dwg
PF150 Timber BN M10
Point Fix PF150 Timber Bolt and Nut M10
dwg

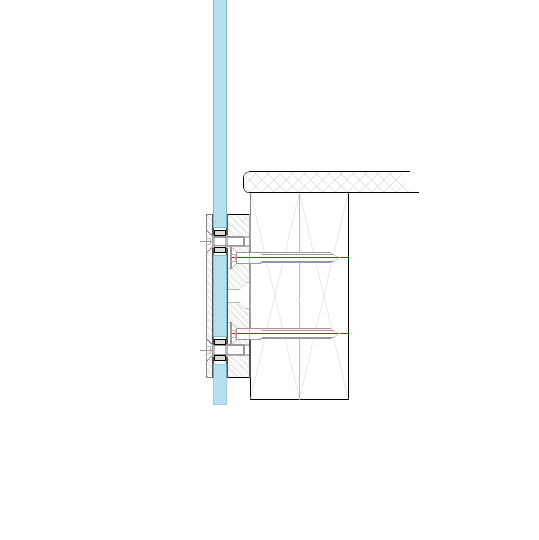

PF150 Timber CS M10
Point Fix PF150 Timber Lag Screw M10
dwg
