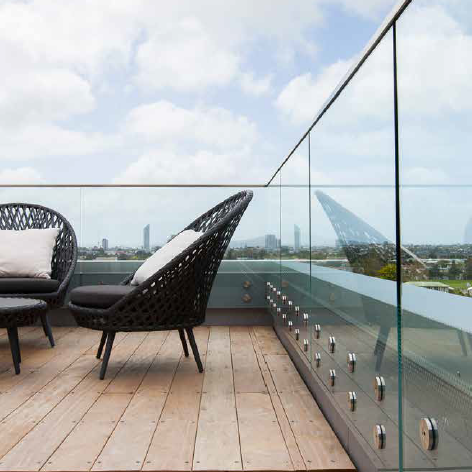

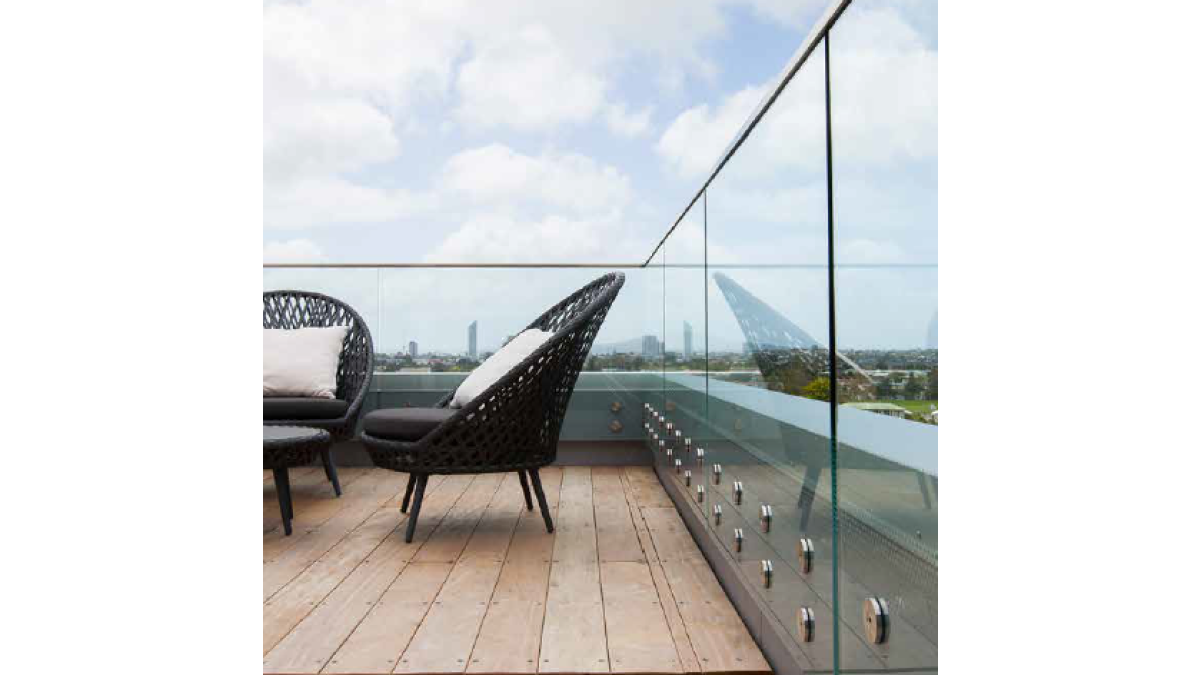

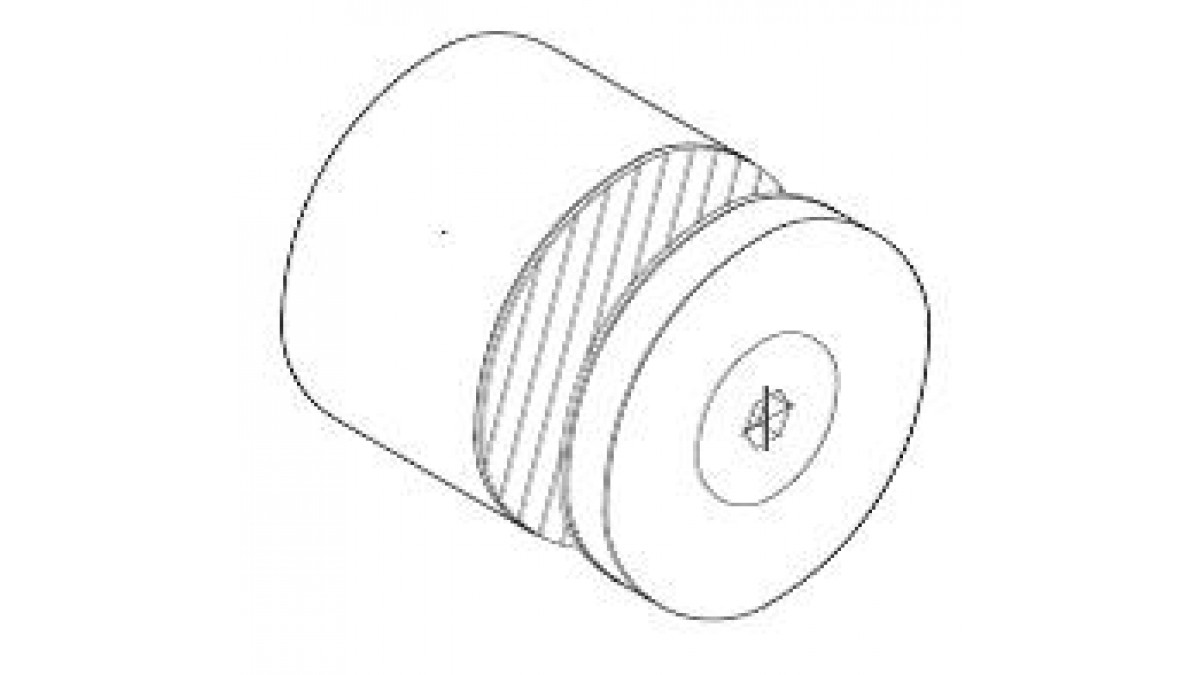

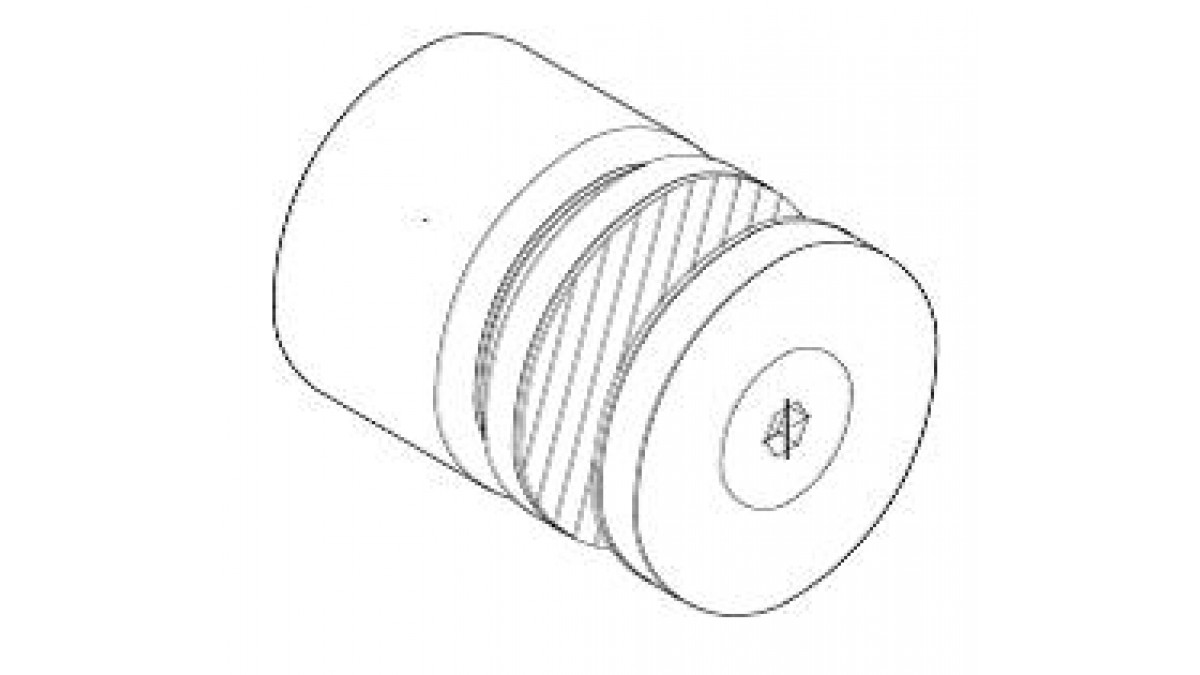

• The DoubleDisc Anchor is a 50mm diameter traditional stainless steel anchor fixing offering, ideal for those seeking a more industrial looking Frameless Glass Balustrade aesthetic
• The 30mm long body sets the 12mm/17.52mm toughened glass panels out from the deck to assist with water draining and cleaning

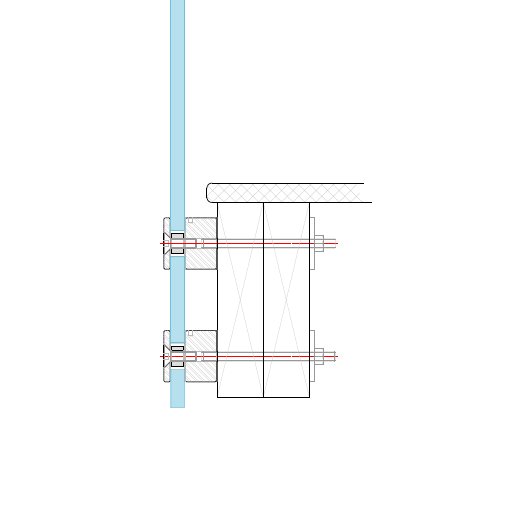

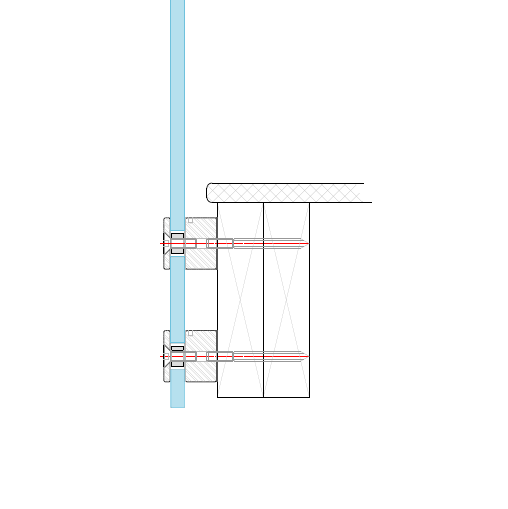

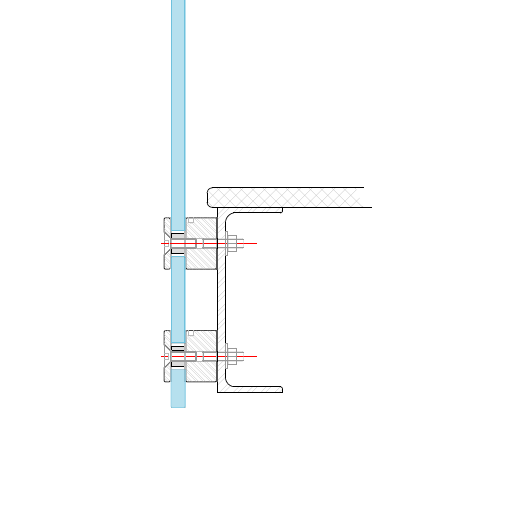

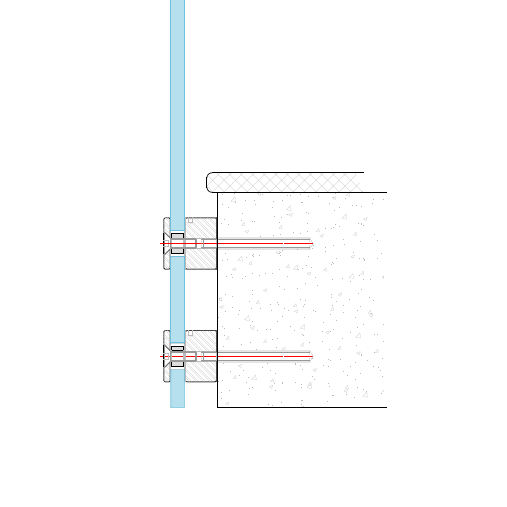

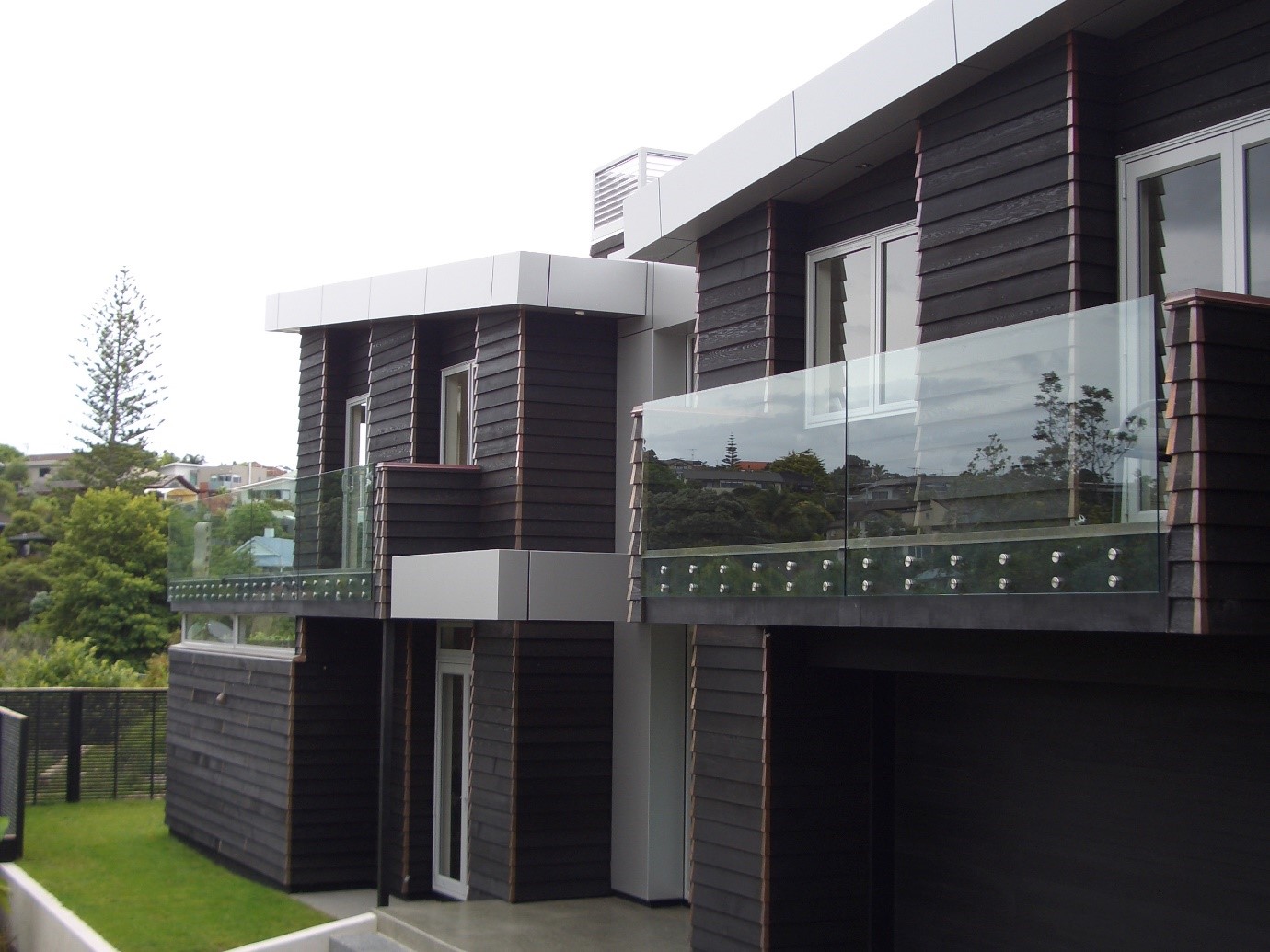

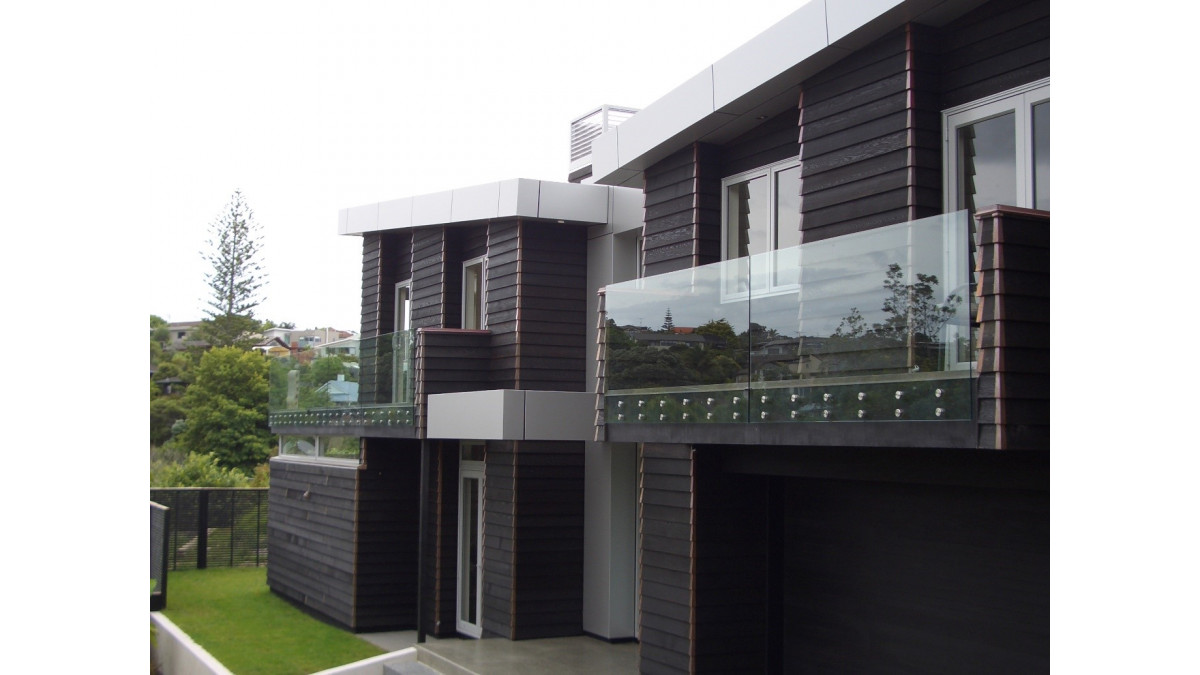

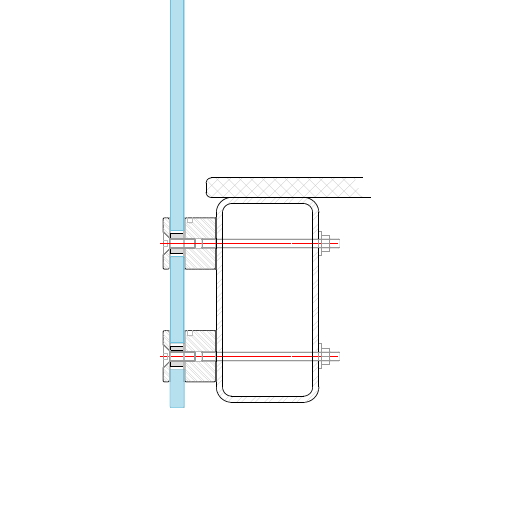

• The DoubleDisc Anchor system is ideal for external balconies and stairs — as well as for internal stairs and landings. It can be fixed directly to either timber, steel or concrete surfaces
• An interlinking top rail finishes off the system, producing a low profile modern look

Occupancy Type:

Suitable for occupancy types A, A Other B, E, and C3.

• Occupancy Types as per AS/NZ 1170.1.2002.

Windzone:

• Exceeds the wind loading for all Wind Zones up to and Including Extra High Wind Zone as set out in NZS 3604:2011.
• Max design Wind pressure subject to glass type and fixing method.

• Complies with AS/NZS 1170:2002, NZS 4223.3.2016, NZ Building Code B1, F2, F4 and F9

The System has been tested in NZ to AS/NZS 1170 barrier loadings in accordance with B1/VM1 Amendment 8.
