Euro Wall Hook Seam by Metal Design Solutions

Euro Wall Hook Seam

Metal Design Solutions

All products

Product Enquiries

Description

Hook Seam is formed with once folded flat seams at panel edges. Limited in length and width, it offers the designer many options for their façade design. Panels are mechanically attached to the substrate using concealed clips. This profile may be completed in a range of materials including Copper, Zinc, pre-painted Aluminium and pre-painted steel.

Key Features

Supported
Concealed fixings
Available in copper, zinc, pre-painted steel and pre-painted aluminium

Ranges

Vertical Wall Cladding Horizontal Wall Cladding

Scope of Use

Residential and Commercial cladding
Installed vertically and horizontally
Concealed fixings

Limitations on Use

Pan widths are limited in size

Statement of Building Code Compliance

Installation of the profile is undertaken by an experienced Metal Design Solutions installers with installation carried out in accordance Metal Design Solutions standard details and in compliance with the NZ Metal Roof and Wall Cladding Code of Practice.

This product, if installed in accordance with the manufacturer's standard installation details, will on reasonable grounds meet the requirements of the following New Zealand Building Code clauses:

Clause B1: Structure, Performance, B1.3.1, B1.3.2, B1.3.3 (a, b, c, d, g, i), B1.3.4 (a, b, c, d, e)
Clause B2: Durability, Performance, B2.3.1 (b), B2.3.2 (b)
Clause C3: Fire, Performance C3.4(a), C3.7(a)
Clause E2: External Moisture E2.3.1, E2.3.2, E2.3.5, E2.3.7 (a, b, c)
Clause F2: Hazardous Building Materials, Performance, F2.3.1

Other Performance Attributes

Regular maintenance is required to maximise the lifespan of this profile and components
Full maintenance guides are available based on material selection
Product warranties and material selection are available on request for specific projects
Metal Design Solutions warranty period is 5 years from the date of Practical Completion of the Contract Works for installation and workmanship

Documents

BPIS Hook Seam Horizontal Wall

1.1

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Introducing QBT450: Steel & Tube's New High-Performing Tray Roofing

New Te Ao Mārama Whare Bridges Culture and Sustainability at Rangiora High School

Tantalising Brutalism: A Kitchen of Grandeur and Craft Featuring a Bespoke Corian Island

SECTIONS

Why is Housing Getting More Expensive?

Designing Tiled Showers to Meet E3/AS2

The Rising Pressure On Cost in Construction

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

Other Performance Attributes

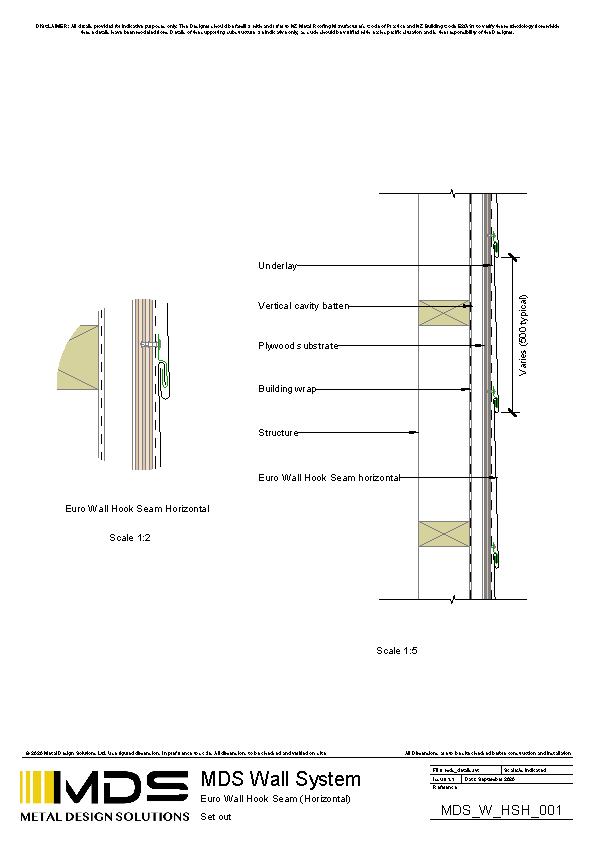

Euro Wall Hook Seam (Horizontal) - Set Out

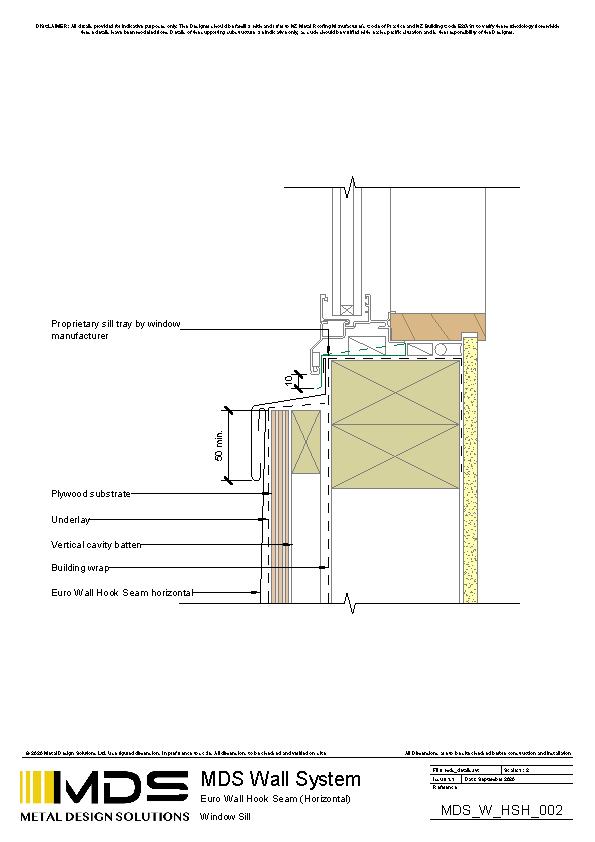

Euro Wall Hook Seam (Horizontal) Window Sill

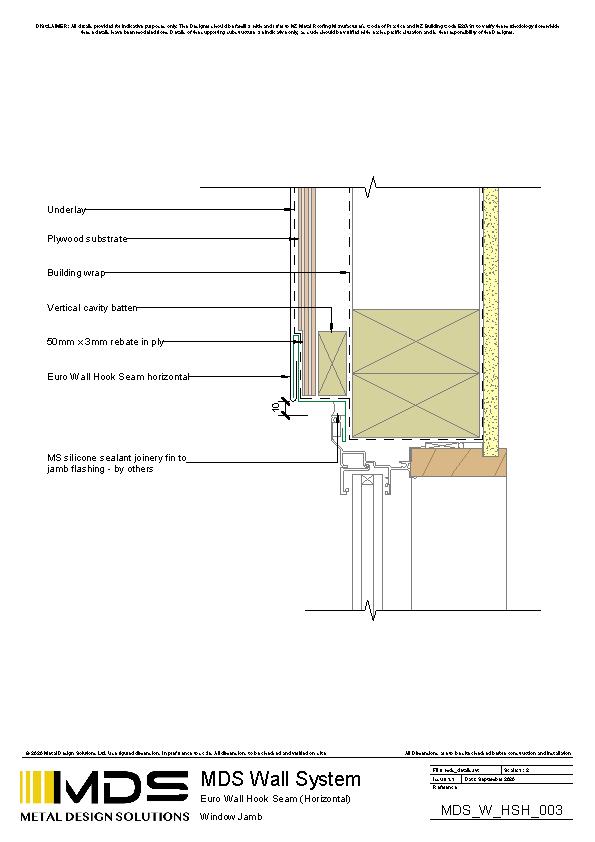

Euro Wall Hook Seam (Horizontal) Window Jamb

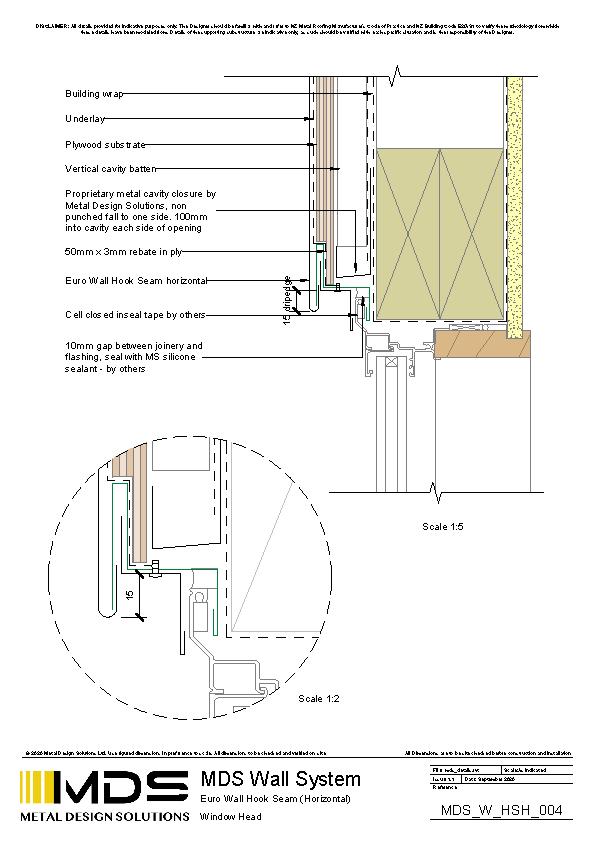

Euro Wall Hook Seam (Horizontal) Window Head

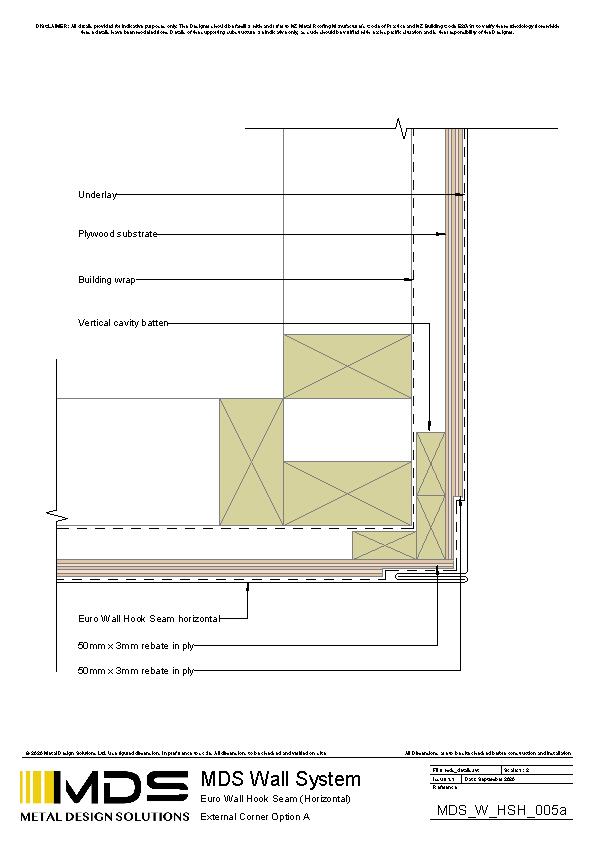

Euro Wall Hook Seam (Horizontal) External Corner Option A

Euro Wall Hook Seam (Horizontal) External Corner Option B

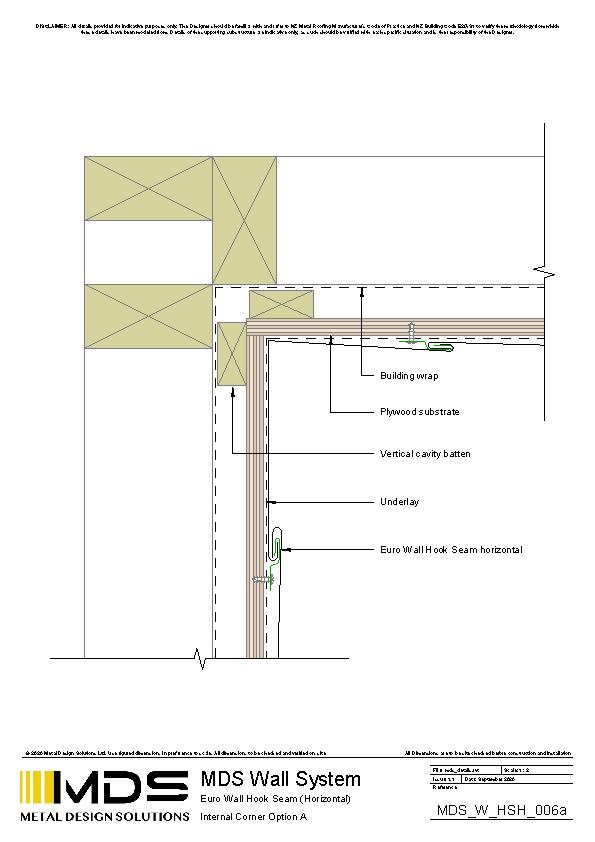

Euro Wall Hook Seam (Horizontal) Internal Corner Option A

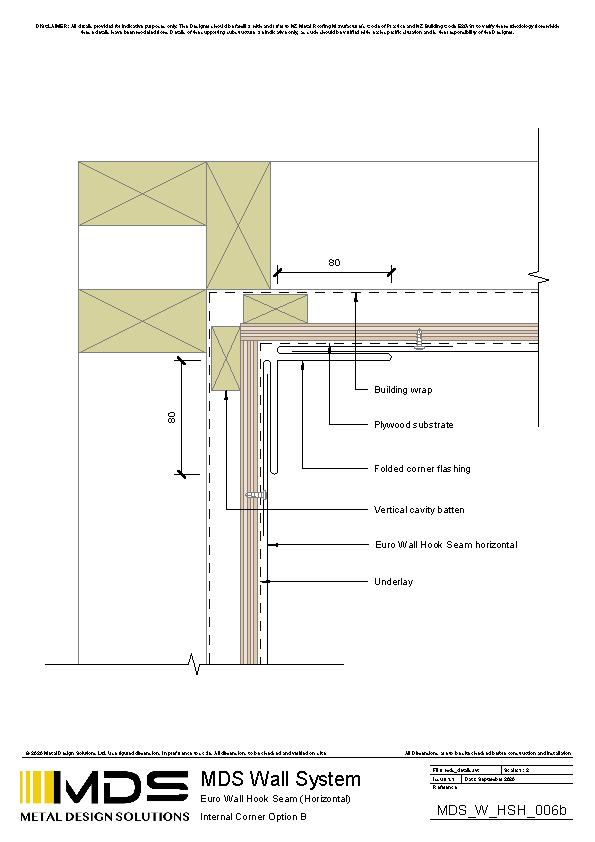

Euro Wall Hook Seam (Horizontal) Internal Corner Option B

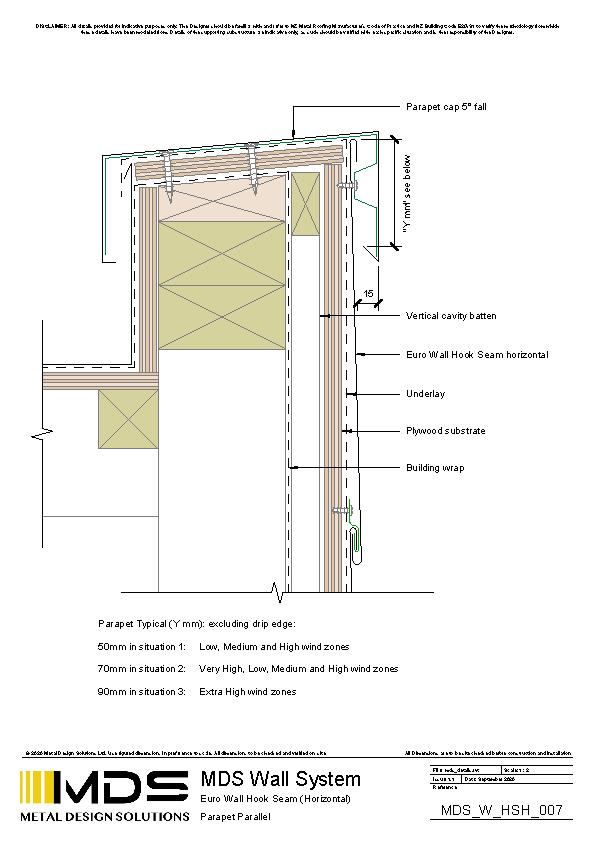

Euro Wall Hook Seam (Horizontal) Parapet Parallel

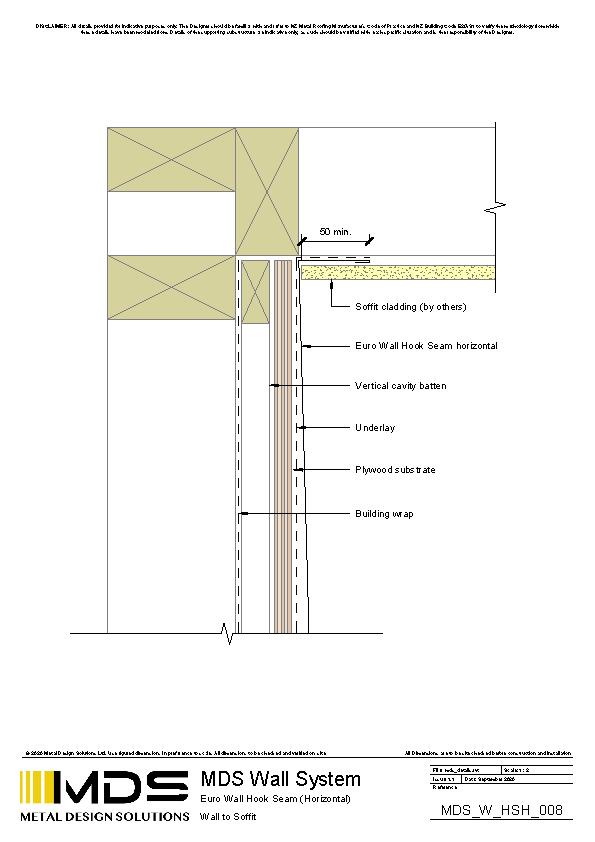

Euro Wall Hook Seam (Horizontal) Wall to Soffit

Euro Wall Hook Seam (Horizontal) Base of Wall

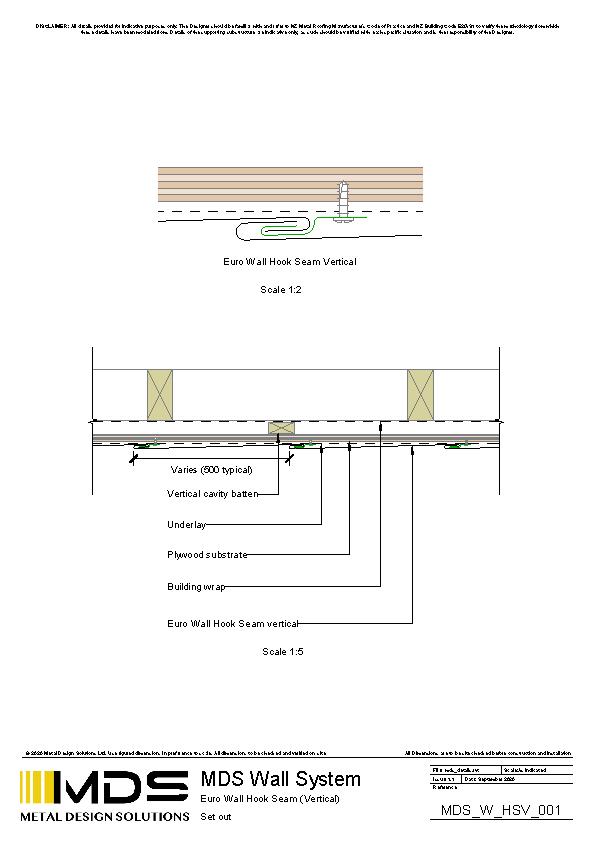

Euro Wall Hook Seam (Vertical) Set out

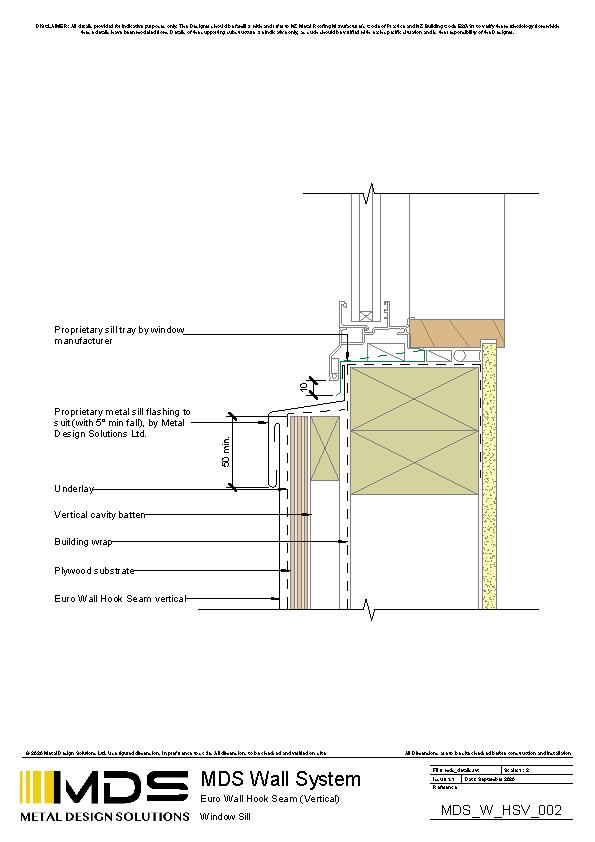

Euro Wall Hook Seam (Vertical) Window Sill

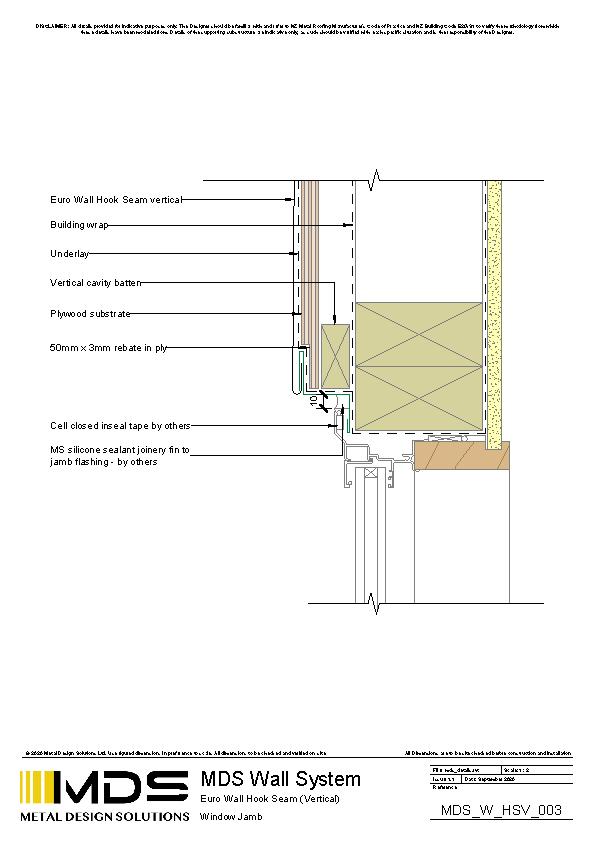

Euro Wall Hook Seam (Vertical) Window Jamb

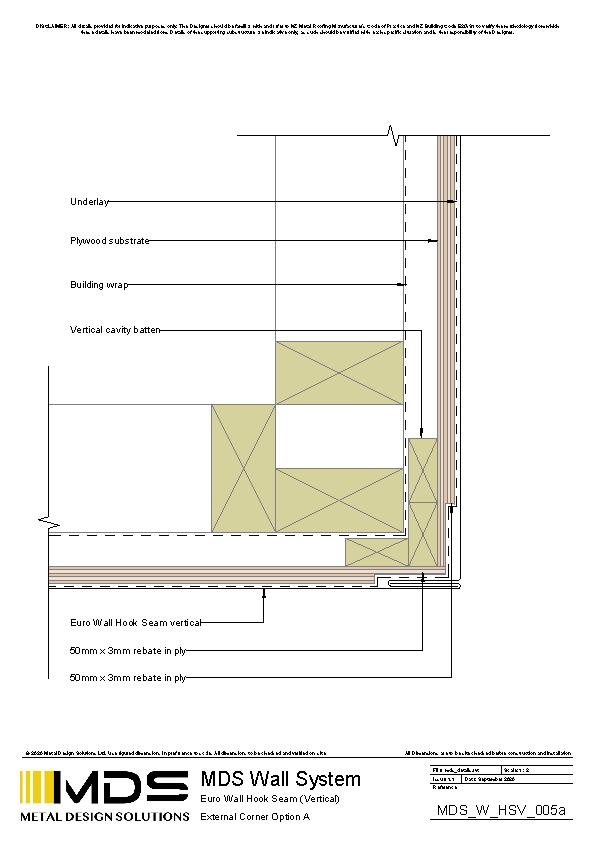

Euro Wall Hook Seam (Vertical) External Corner Option A

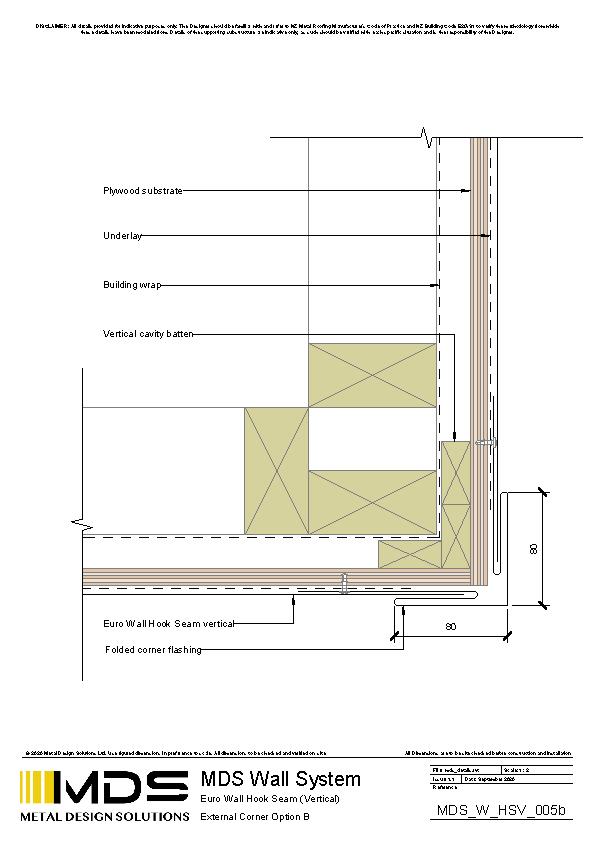

Euro Wall Hook Seam (Vertical) External Corner Option B

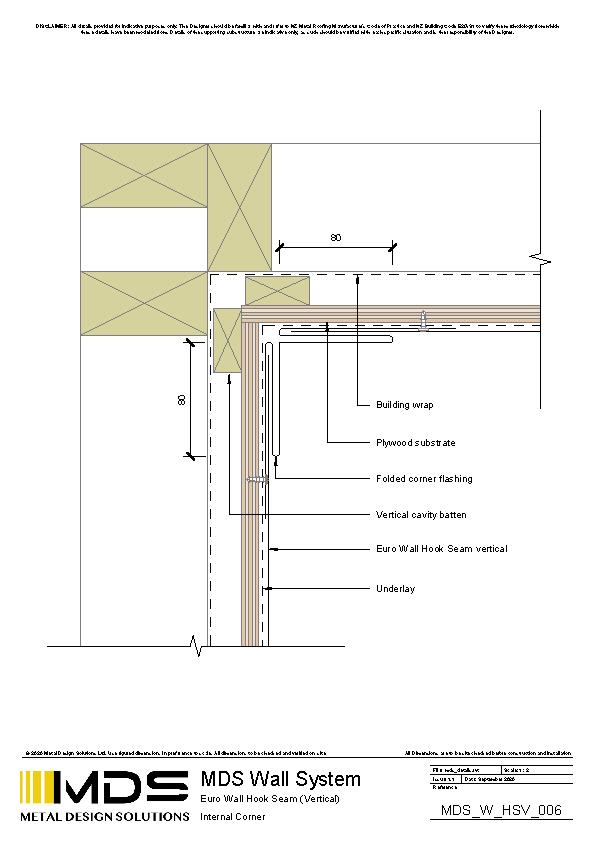

Euro Wall Hook Seam (Vertical) Internal Corner

Euro Wall Hook Seam (Vertical) Parapet Parallel

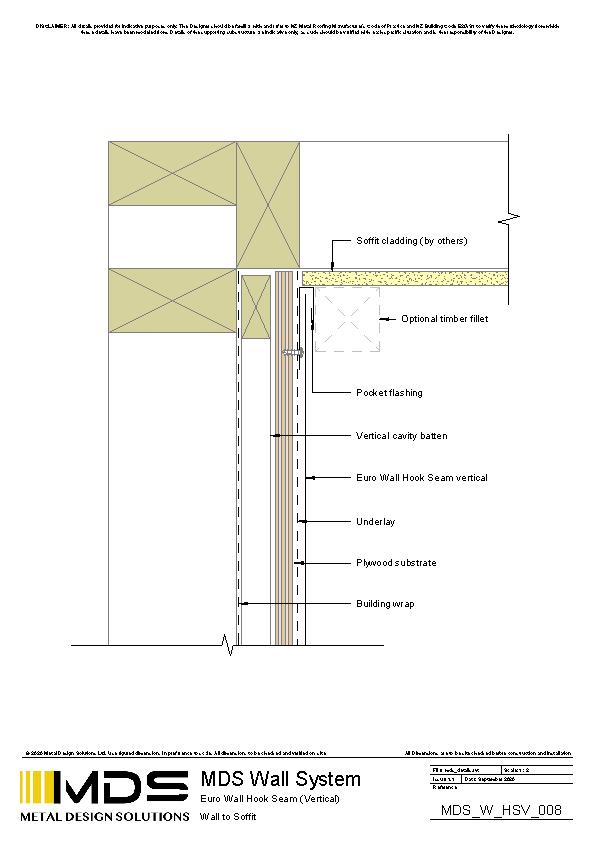

Euro Wall Hook Seam (Vertical) Wall to Soffit
