Description

The FPS panel offers a modern and flat appearance. As a self supporting system it relies on the panels being connected by way of interlocking groove. This gives the elegant appearance of a recessed joint. The FPS system can be installed horizontally or vertically and is fixed with concealed clips directly over cavity battens. This profile will be completed in heavier gauge materials allowing the designer the ability to achieve wider panels than the cassette panel system. Typically this profile will be completed in 1,60mm – 2mm Aluminium which can be powder coated to suit the required colour. It may also be formed in heavy gauge pre-painted steel.

Key Features

Unsupported
Concealed Fixings
Heavier Gauge Material such as 1.6mm Aluminium

Ranges

Vertical Wall Cladding Horizontal Wall Cladding

Scope of Use

Residential and Commercial Cladding
Installed Vertically and Horizontally
Concealed Fixings

Limitations on Use

Heavier Gauge Material
Wider Pan Widths
Powdercoated finish

Statement of Building Code Compliance

Installation of the profile is undertaken by an experienced Metal Design Solutions installers with installation carried out in accordance Metal Design Solutions standard details and in compliance with the NZ Metal Roof and Wall Cladding Code of Practice.

This product, if installed in accordance with the manufacturer's standard installation details, will on reasonable grounds meet the requirements of the following New Zealand Building Code clauses:

Clause B1: Structure, Performance, B1.3.1, B1.3.2, B1.3.3 (a, b, c, d, g, i), B1.3.4 (a, b, c, d, e)
Clause B2: Durability, Performance, B2.3.1 (b), B2.3.2 (b)
Clause C3: Fire, Performance C3.4(a), C3.7(a)
Clause E2: External Moisture E2.3.1, E2.3.2, E2.3.5, E2.3.7 (a, b, c)
Clause F2: Hazardous Building Materials, Performance, F2.3.1

Other Performance Attributes

Regular maintenance is required to maximise the lifespan of this profile and components
Full maintenance guides are available based on material selection
Product warranties and material selection are available on request for specific projects
Metal Design Solutions warranty period is 5 years from the date of Practical Completion of the Contract Works for installation and workmanship

Documents

E2 Evaluation

Version 1

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Caesarstone: Redefining Surface Excellence with Crystalline Silica Free Formulations

NZ's Largest Mass Timber Office Building: The Sustainable Timber Engineering Behind 90 Devonport Rd

Terra Lana Insulation for a World-Leading Hospital Targeting Zero Carbon Certification

SECTIONS

Exploring Options for Self-certification of Building Work

Complaints Not Upheld

From Windows to Warm Roofs: How Can We Make the New Insulation Standards Work?

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

Other Performance Attributes

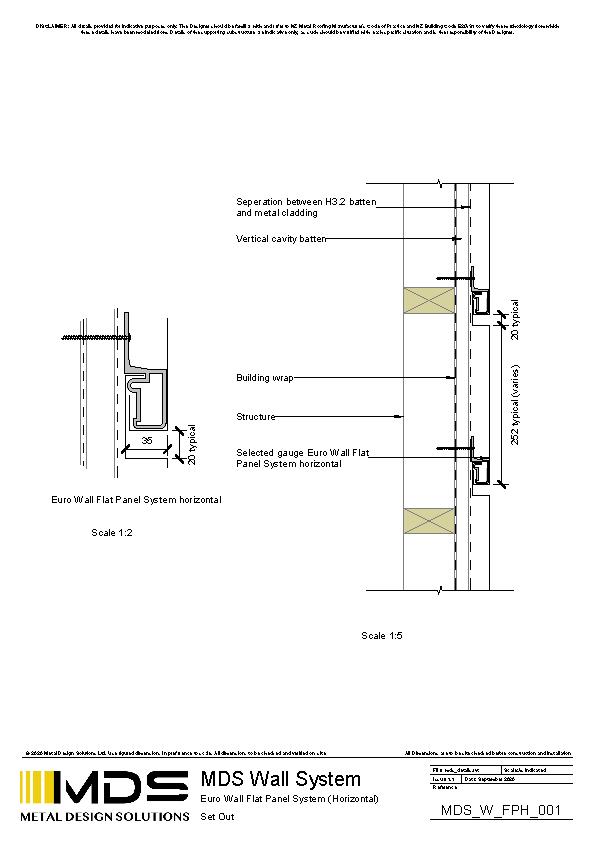

Euro Wall Flat Panel System (Horizontal): Set Out

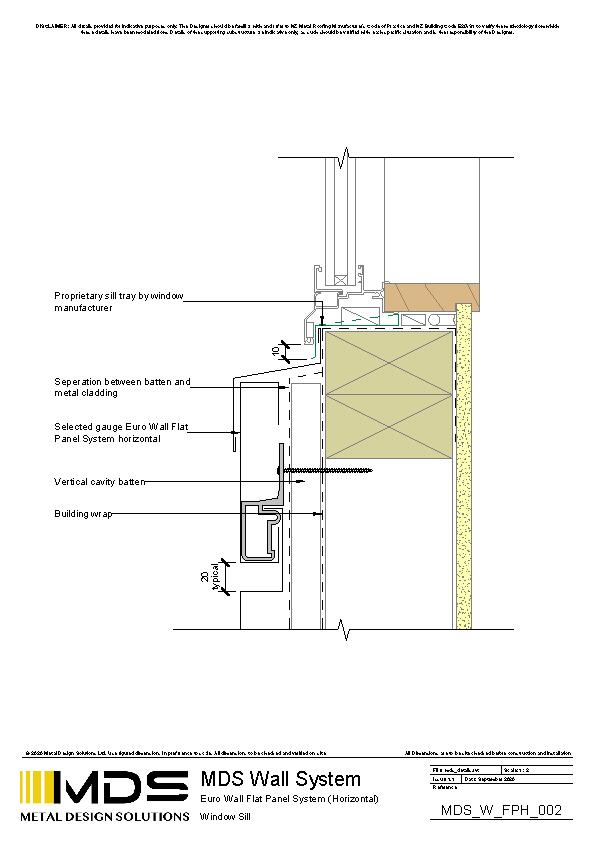

Euro Wall Flat Panel System (Horizontal): Window Sill

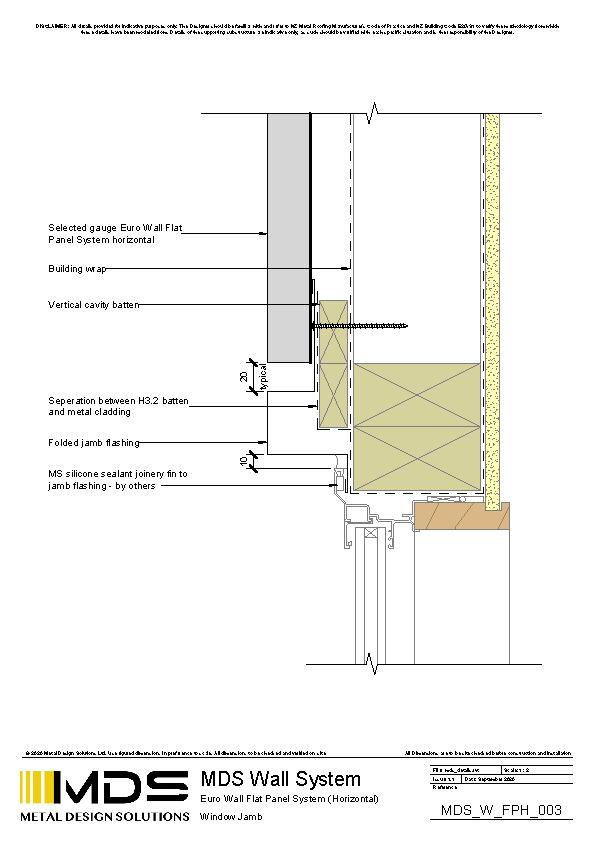

Euro Wall Flat Panel System (Horizontal): Window Jamb

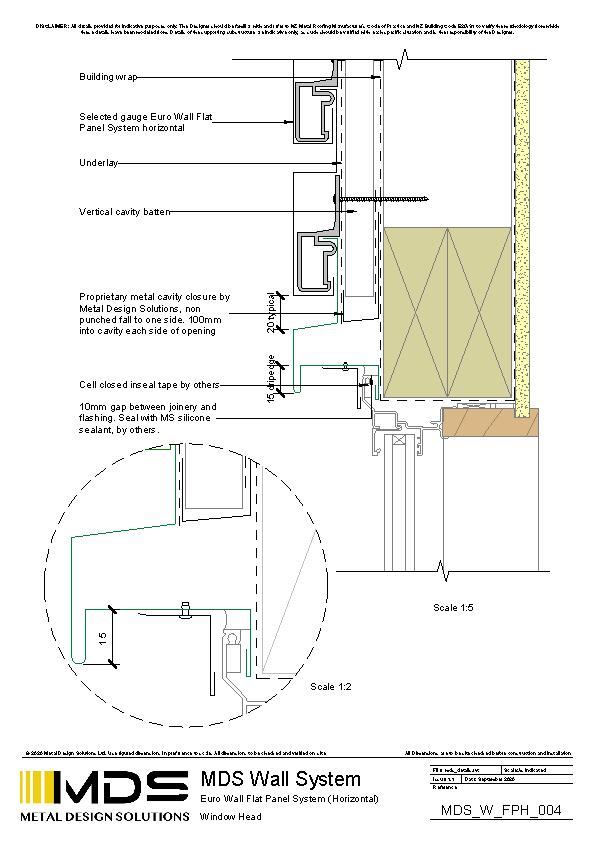

Euro Wall Flat Panel System (Horizontal): Window Head

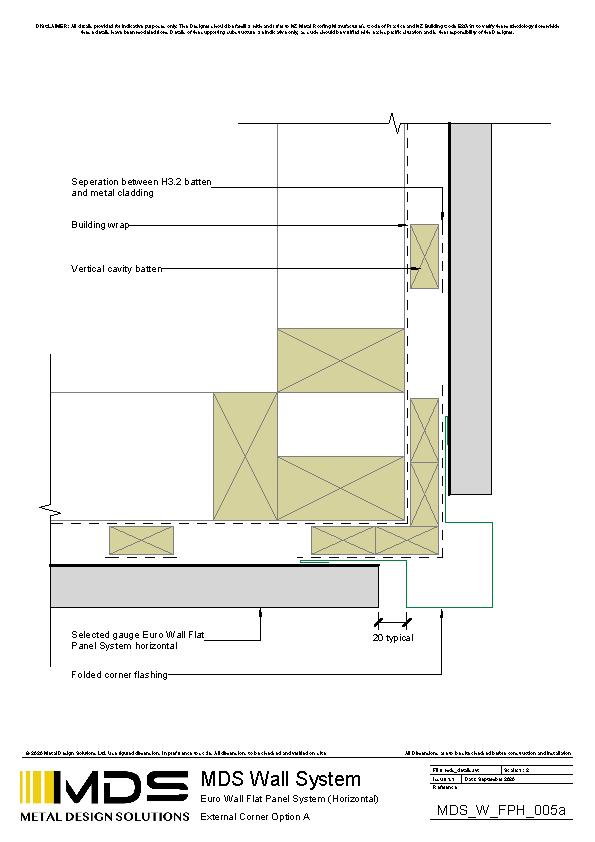

Euro Wall Flat Panel System (Horizontal): External Corner Option A

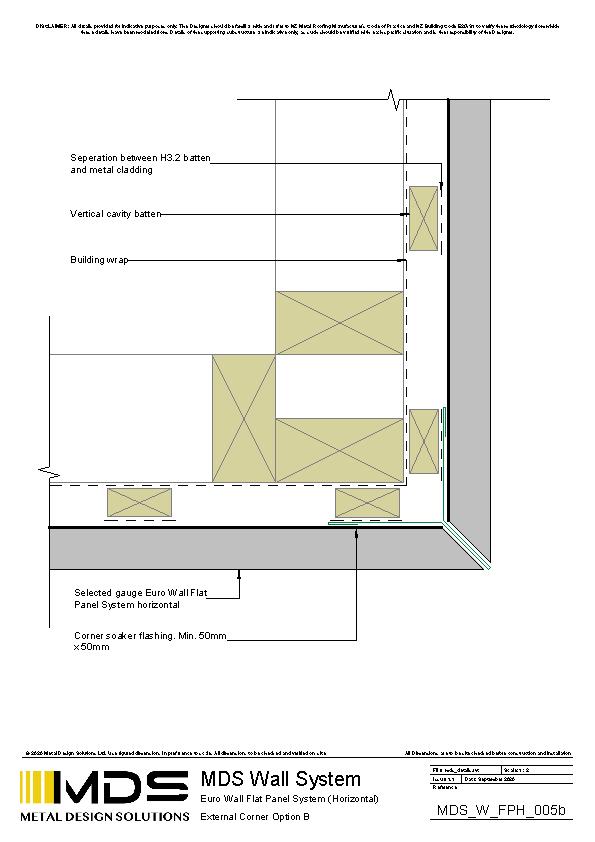

Euro Wall Flat Panel System (Horizontal): External Corner Option B

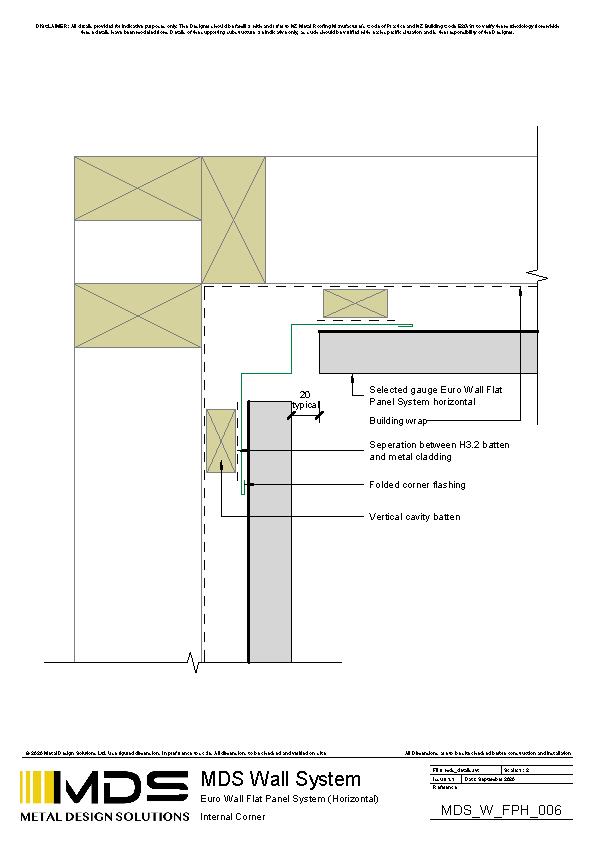

Euro Wall Flat Panel System (Horizontal): Internal Corner

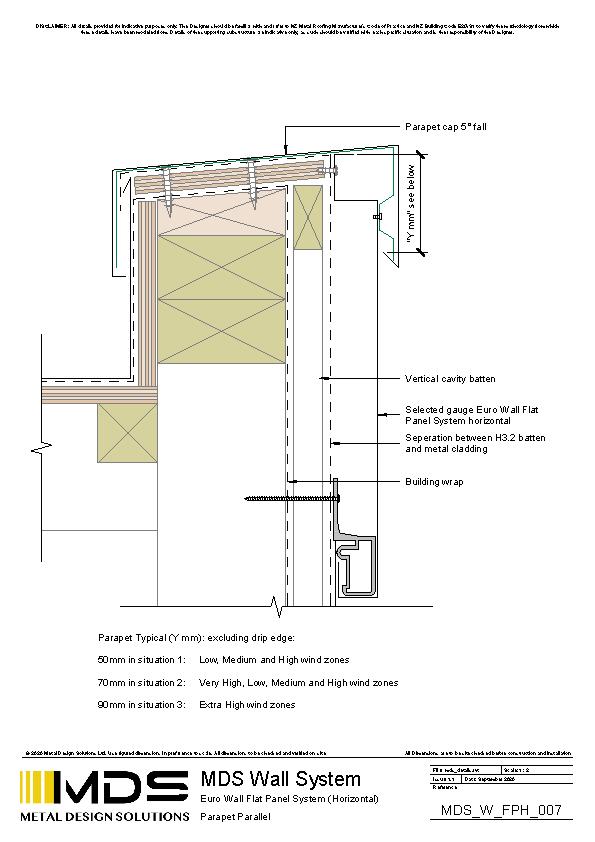

Euro Wall Flat Panel System (Horizontal): Parapet Parallel

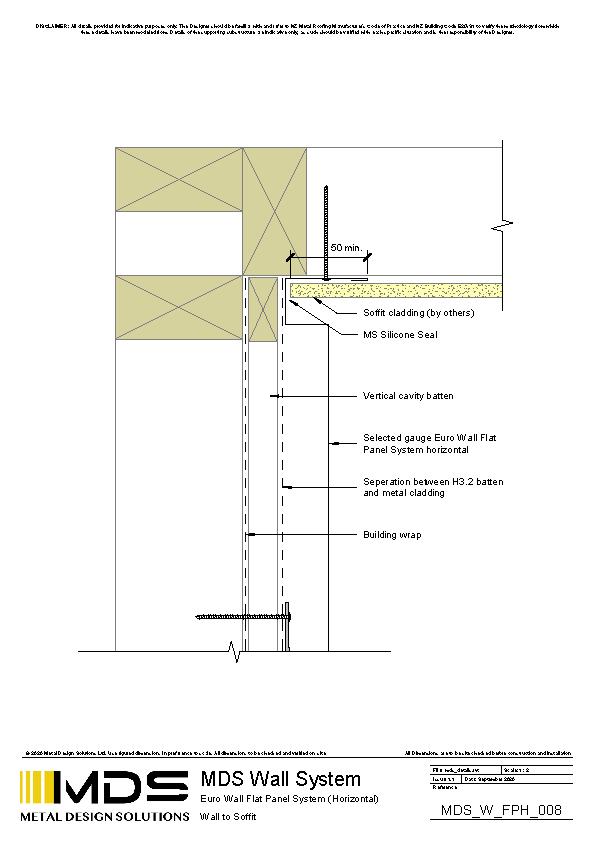

Euro Wall Flat Panel System (Horizontal): Wall to Soffit

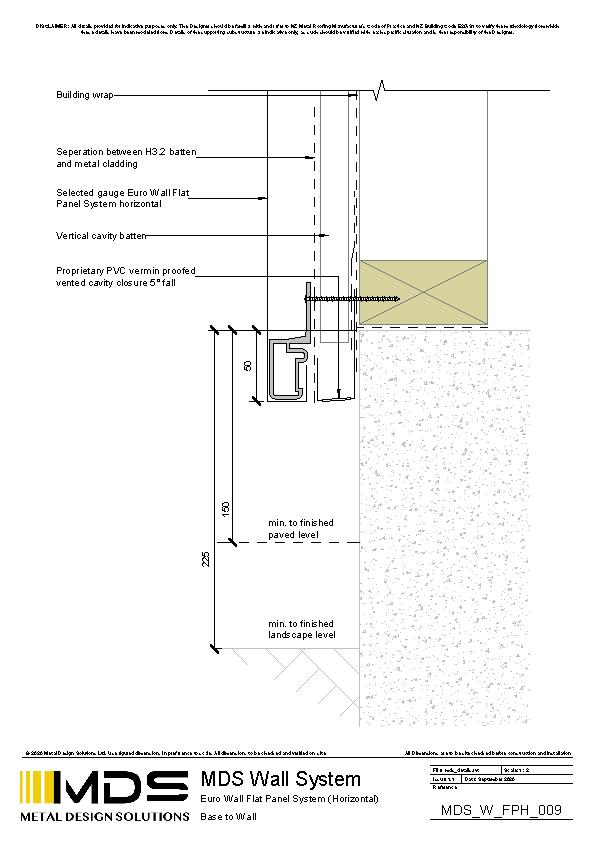

Euro Wall Flat Panel System (Horizontal): Base of Wall

Euro Wall Flat Panel System (Horizontal): Full Set
