For scope of use, limitations, conditions and statement of building code compliance, refer to the Masons Intertenancy Wall System PASS Product Statement.

Simple — easy to use, flexible and fast:

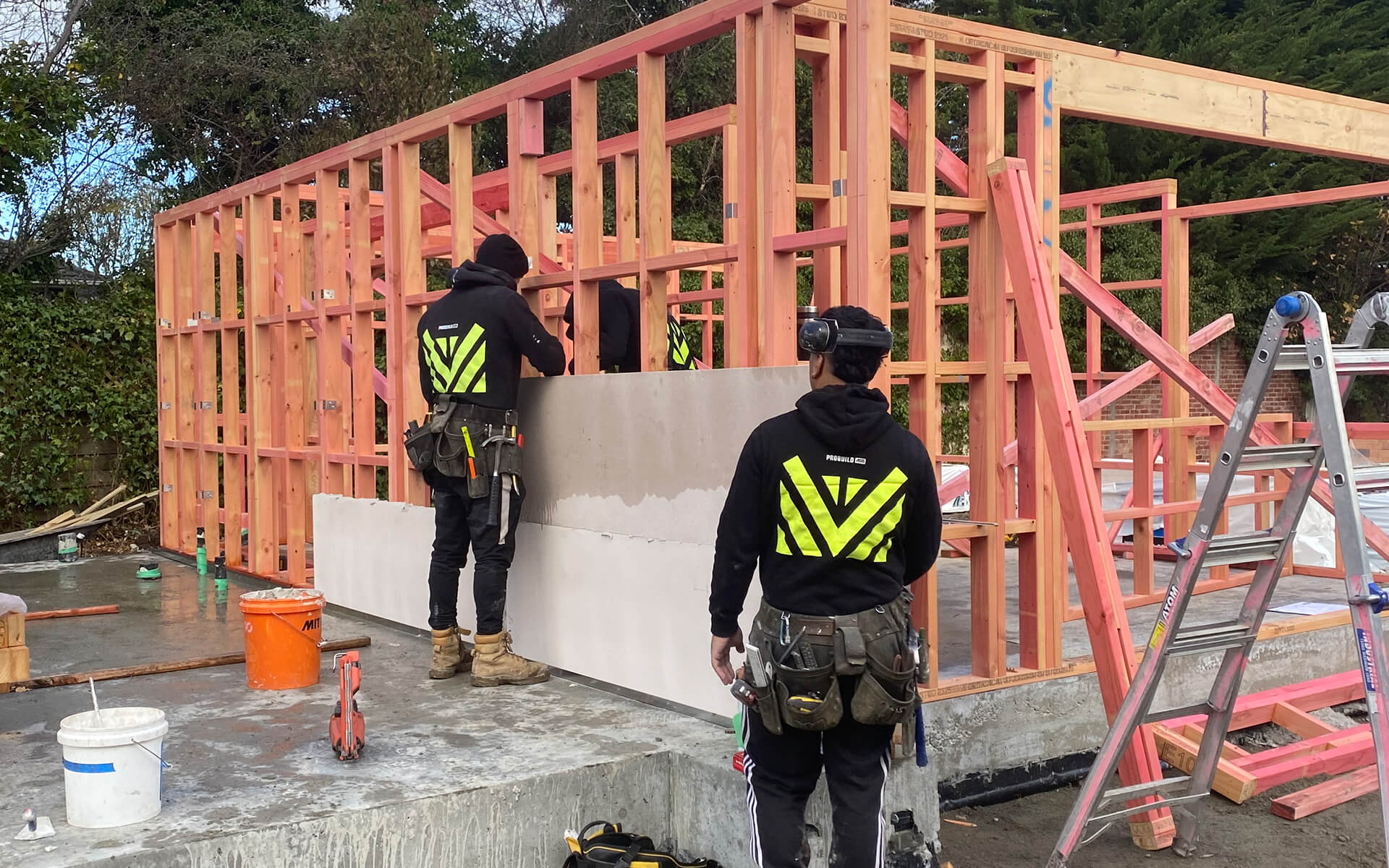

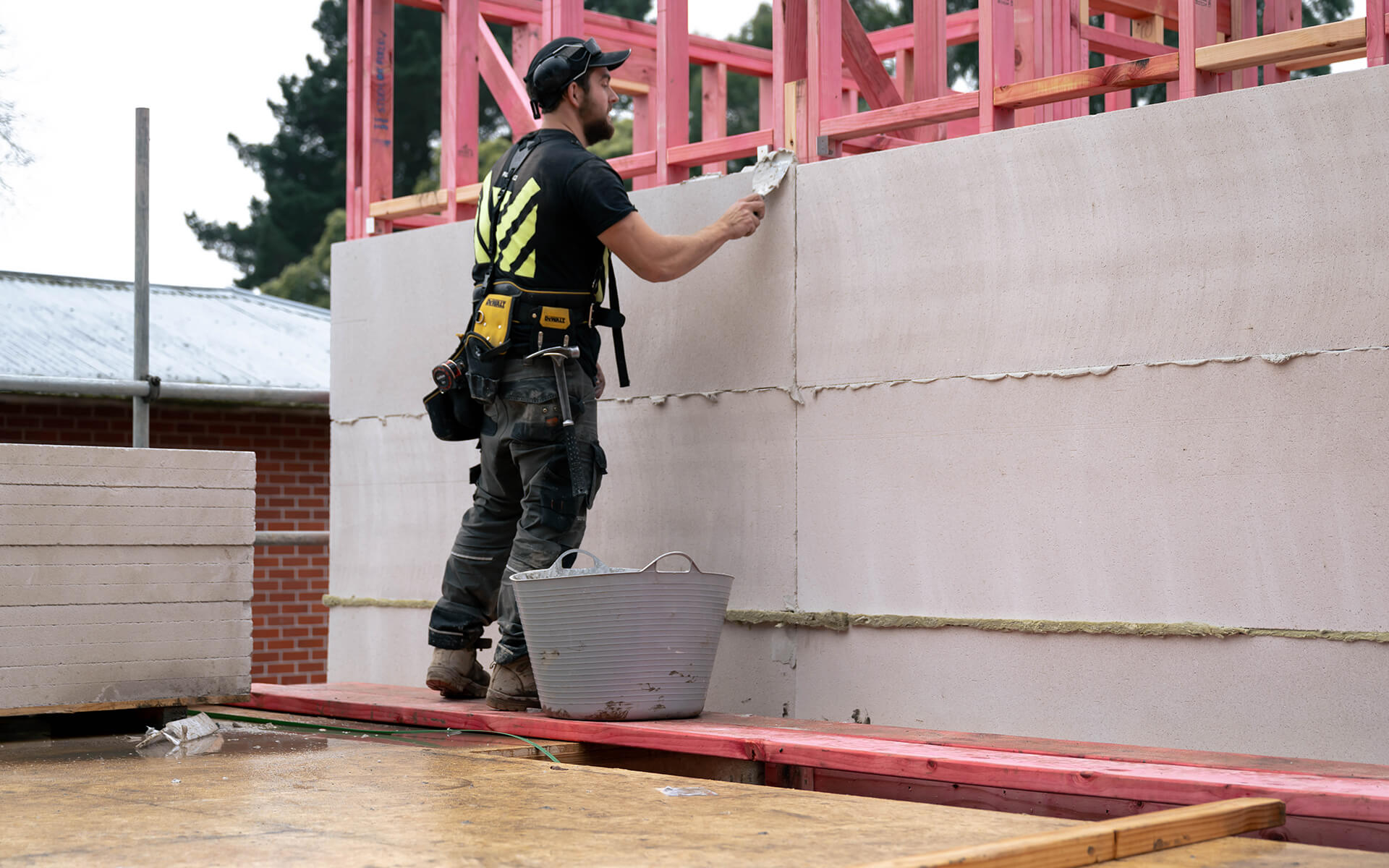

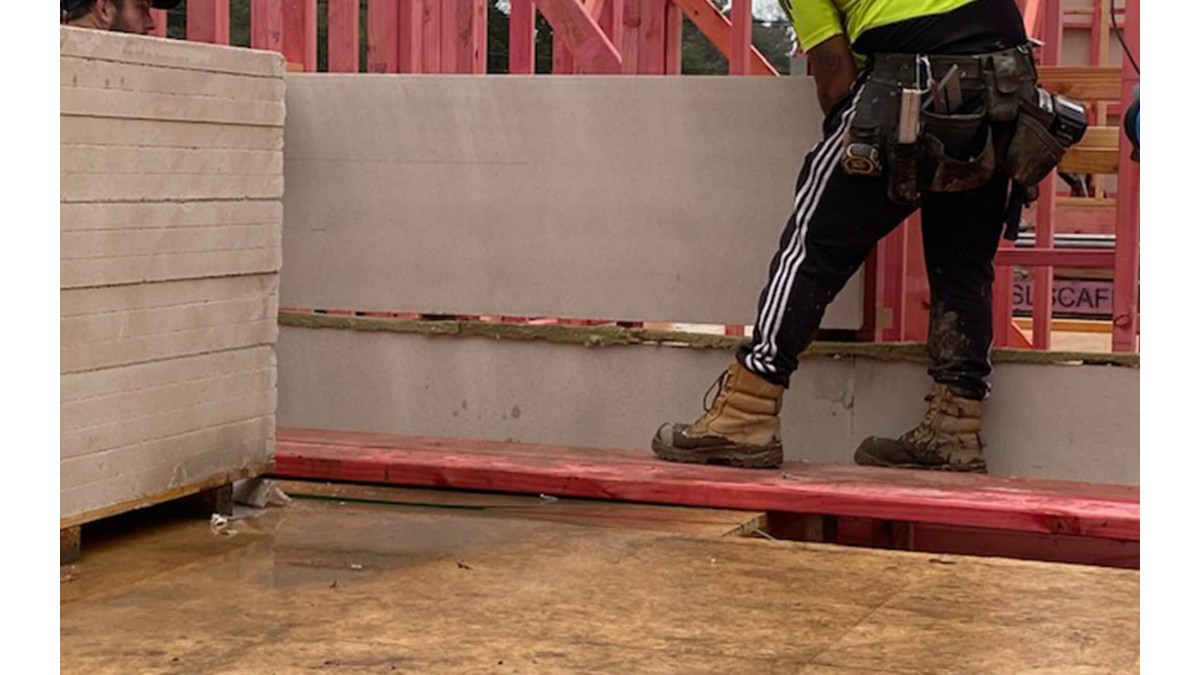

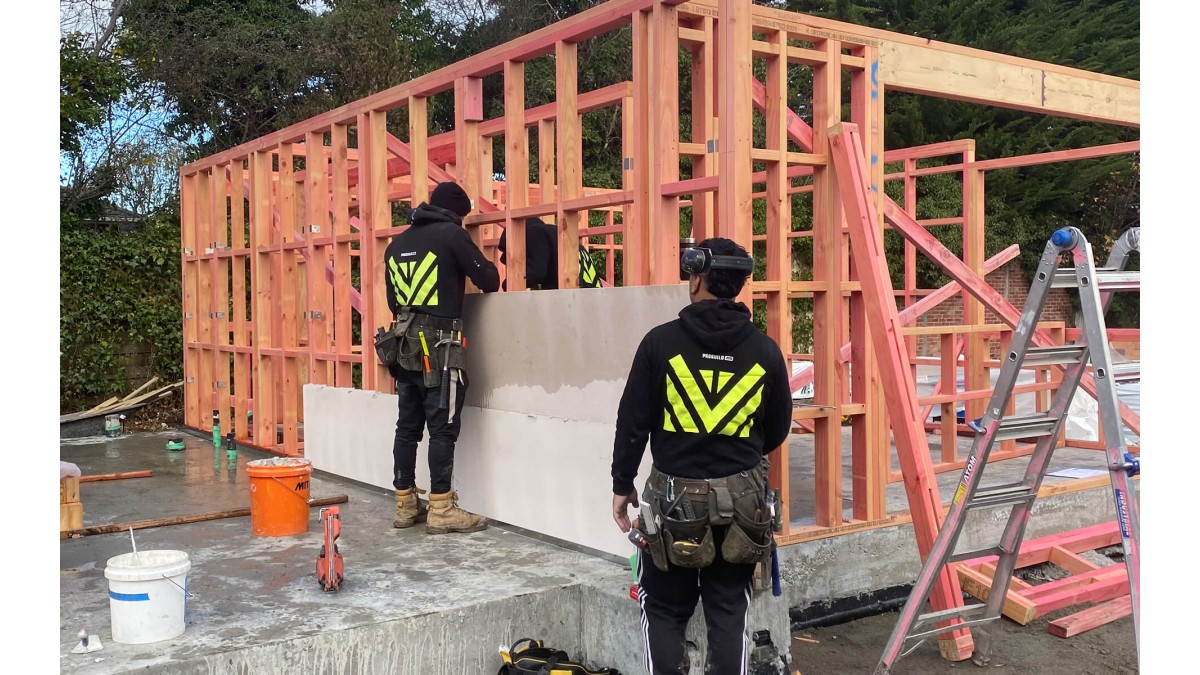

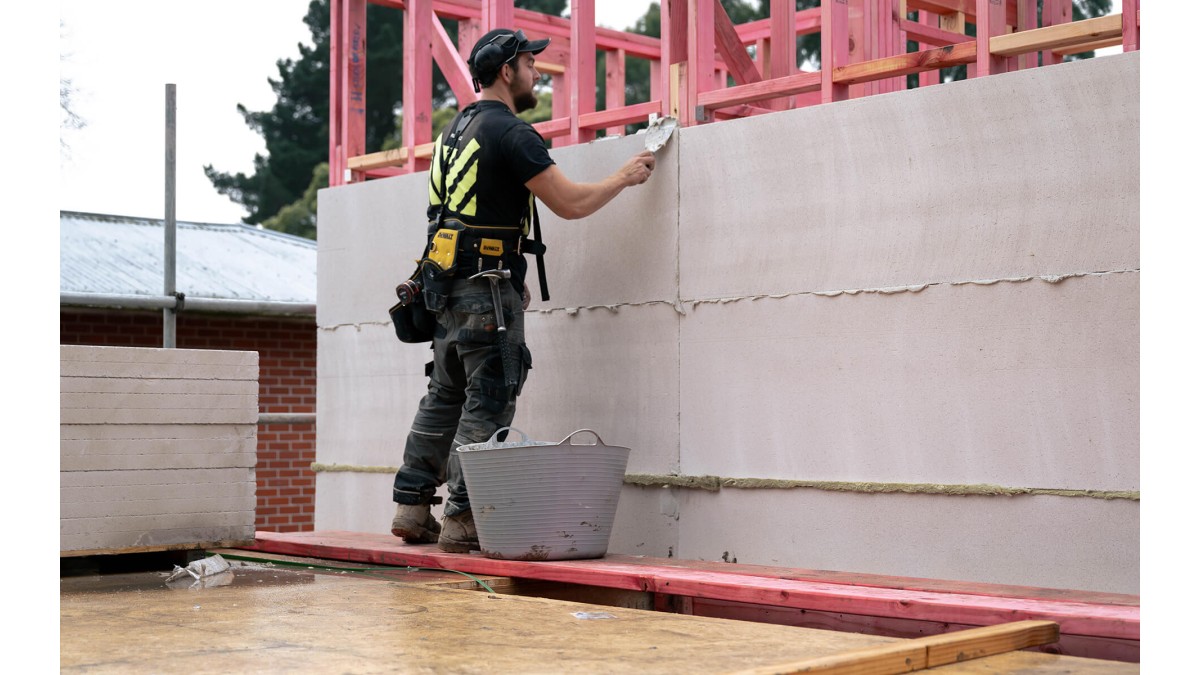

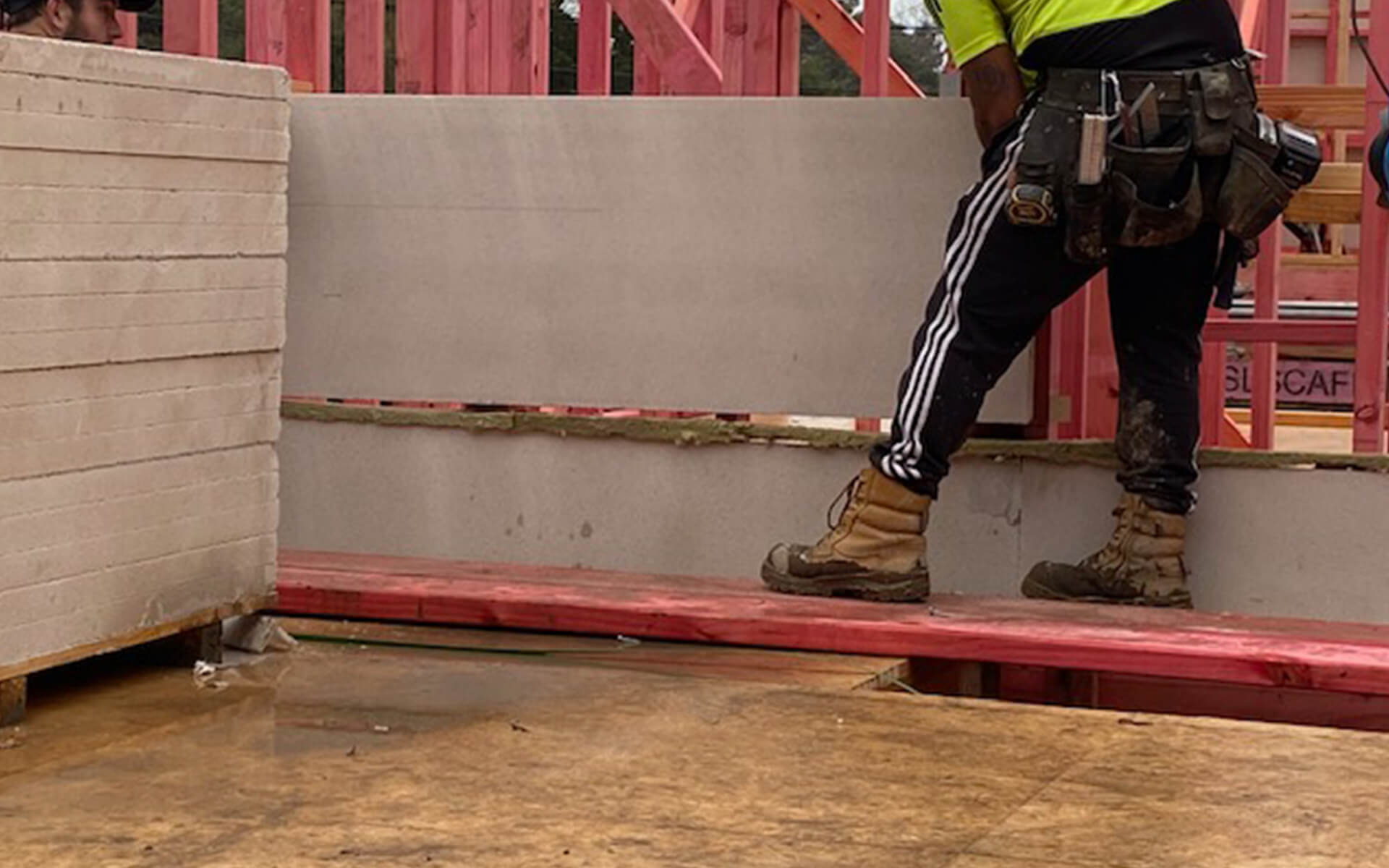

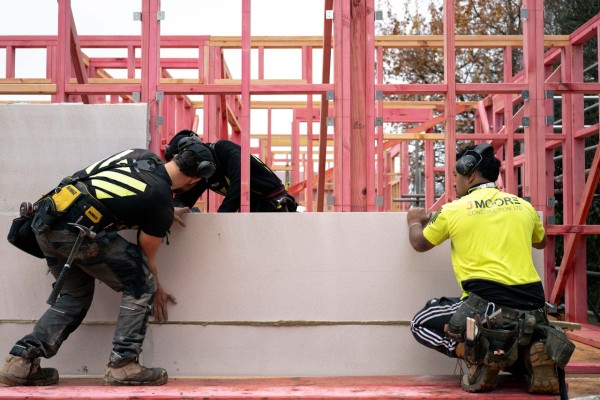

The Masons system is construction friendly and designed for simplicity and flexibility. As few as two builders can install the system, and installation can be flowed around other work on-site. No weather protection is needed for the AAC panels when work stops, making on-site storage simple.

Fast — designed for buildability:

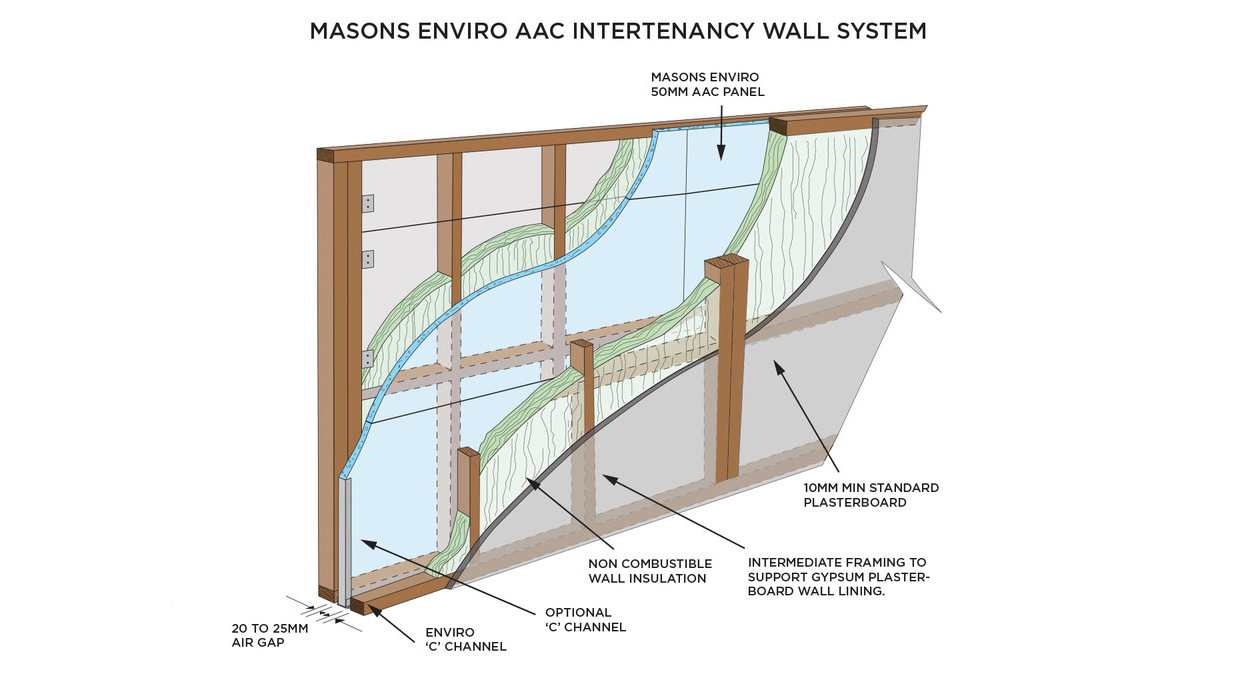

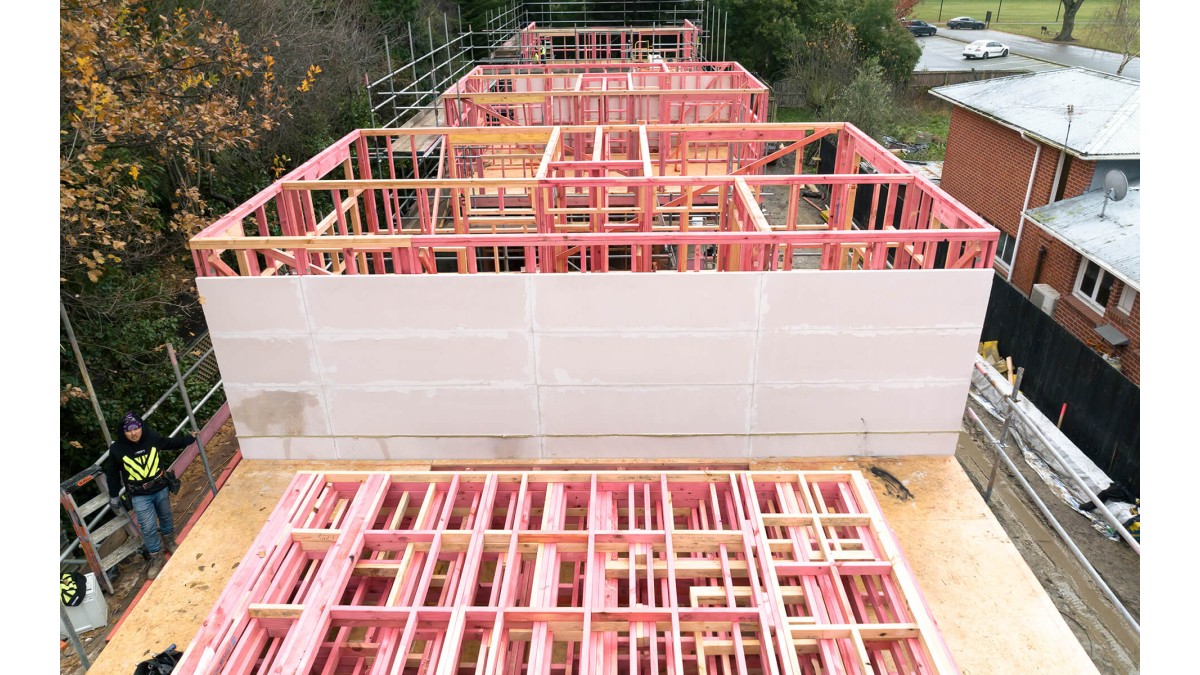

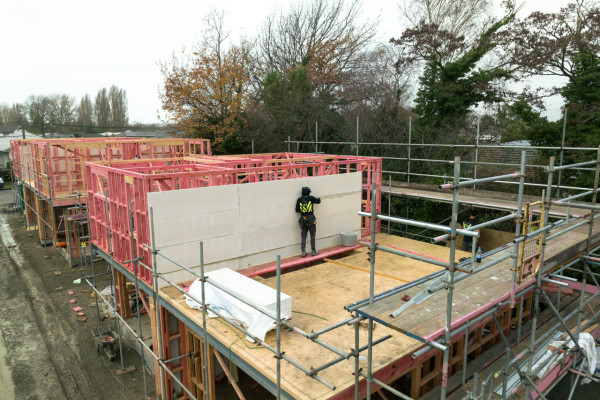

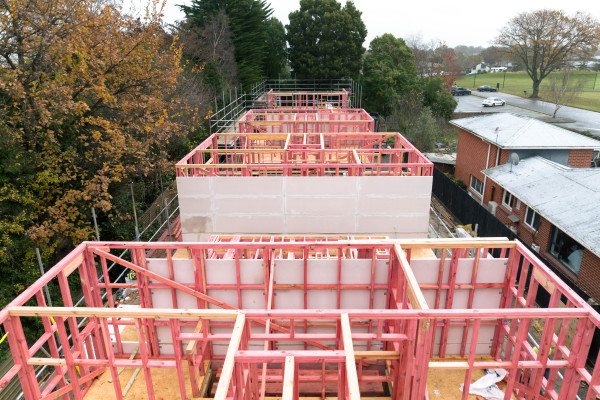

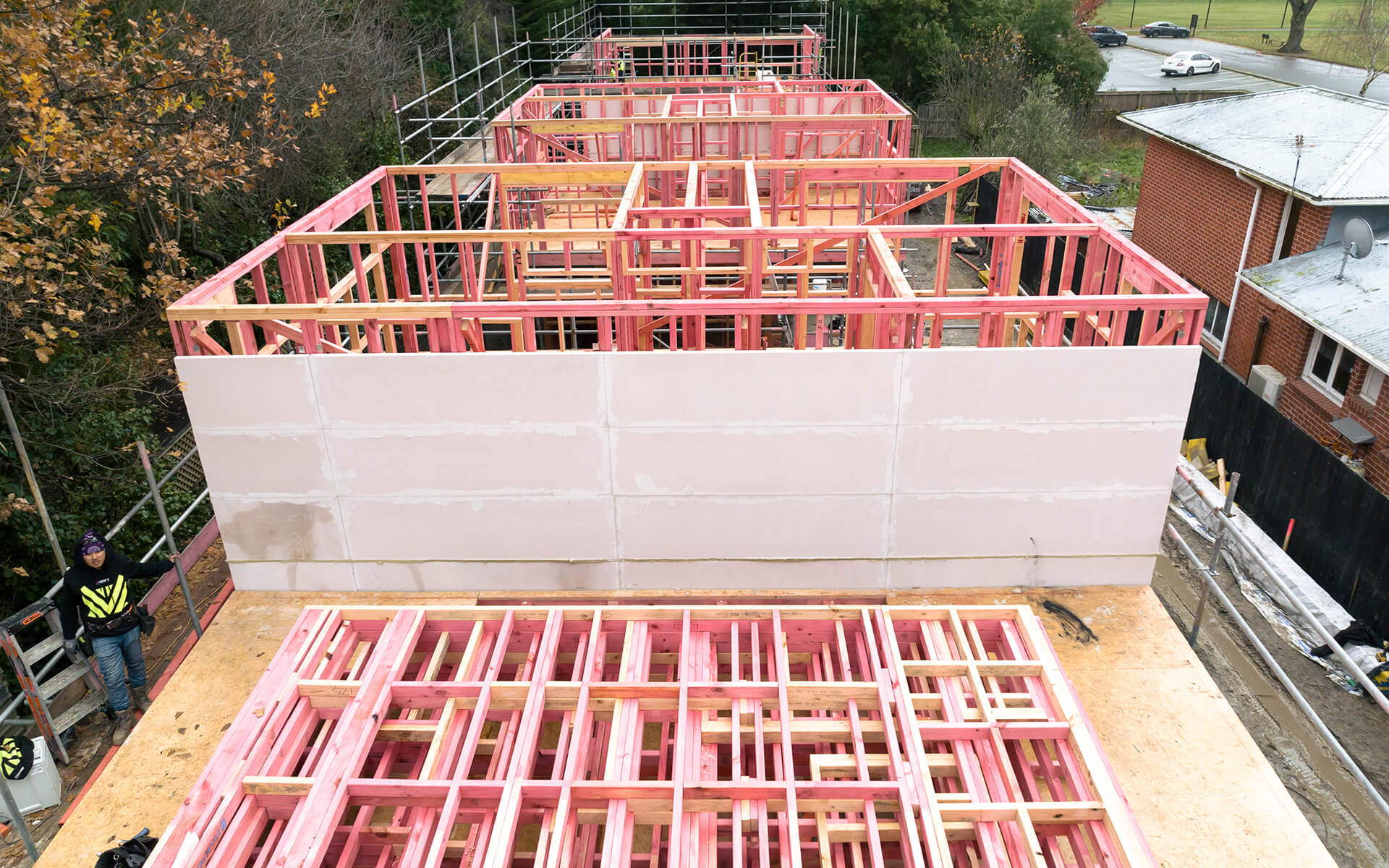

The system can be installed up to three stories continuously, without interruption, and there is often no need for extra accessories or fiddly work at mid-floors junctions. Services can be run down the framing on either side of the AAC panels, and materials are carried in smaller parts when site access is difficult. The ACC system is easier for everyone on the job.

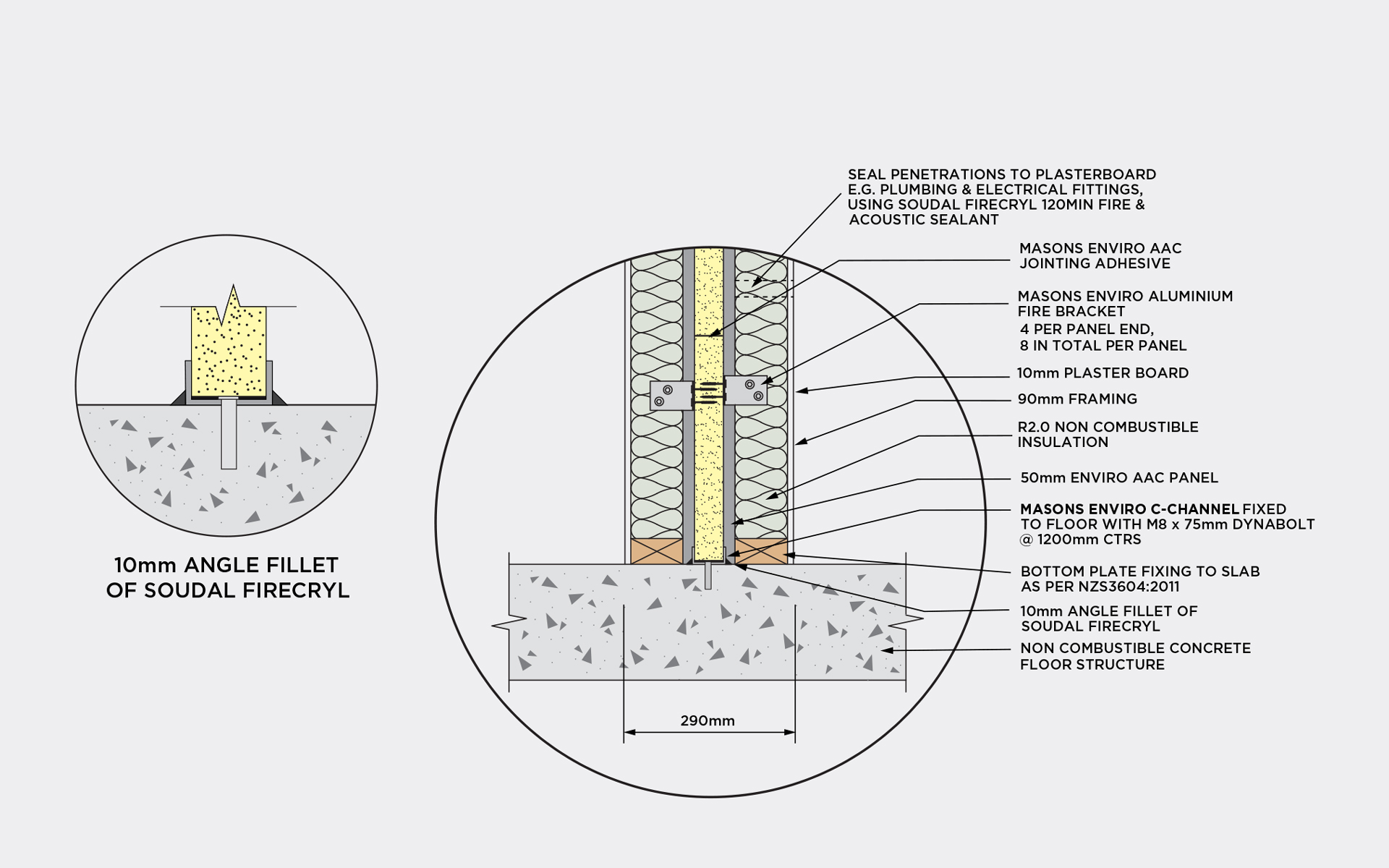

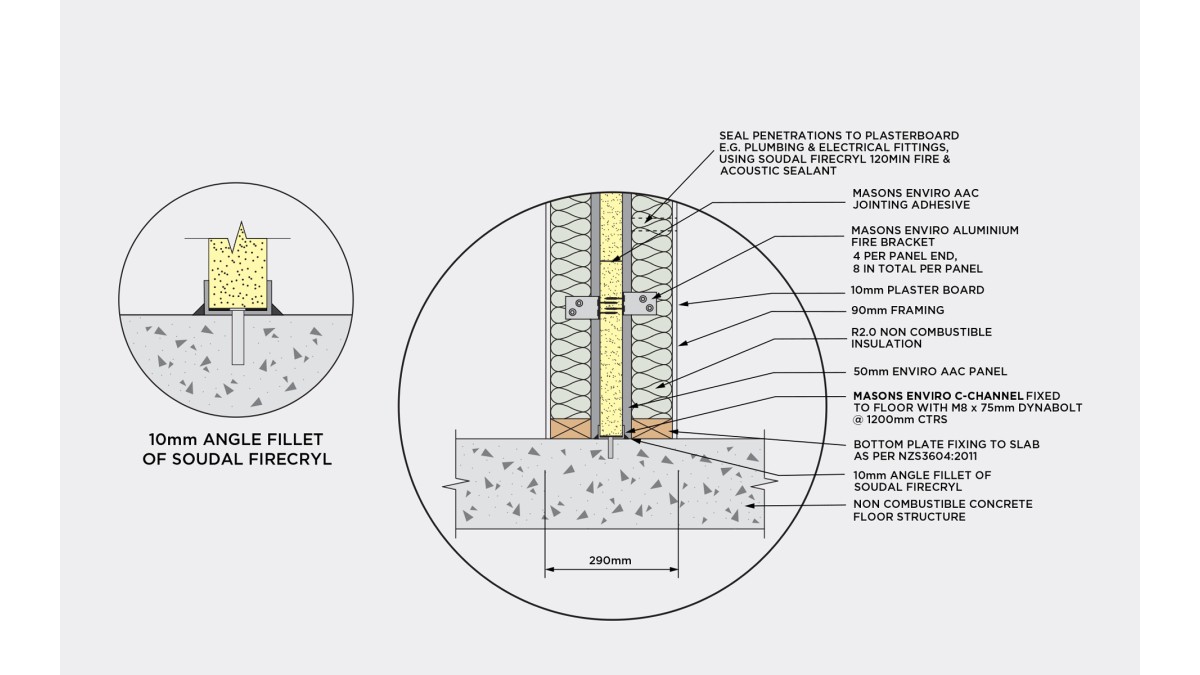

Penetrations to the Masons Intertenancy Wall System: fire and acoustic must be engineered for fire rating and to preserve acoustic performance and installed by suitably qualified persons.

Exceeds code — fully FRR & STC compliant:

• This system meets and/or exceeds the New Zealand Building Code's minimum requirements for both fire resistance rating and sound transmission class.

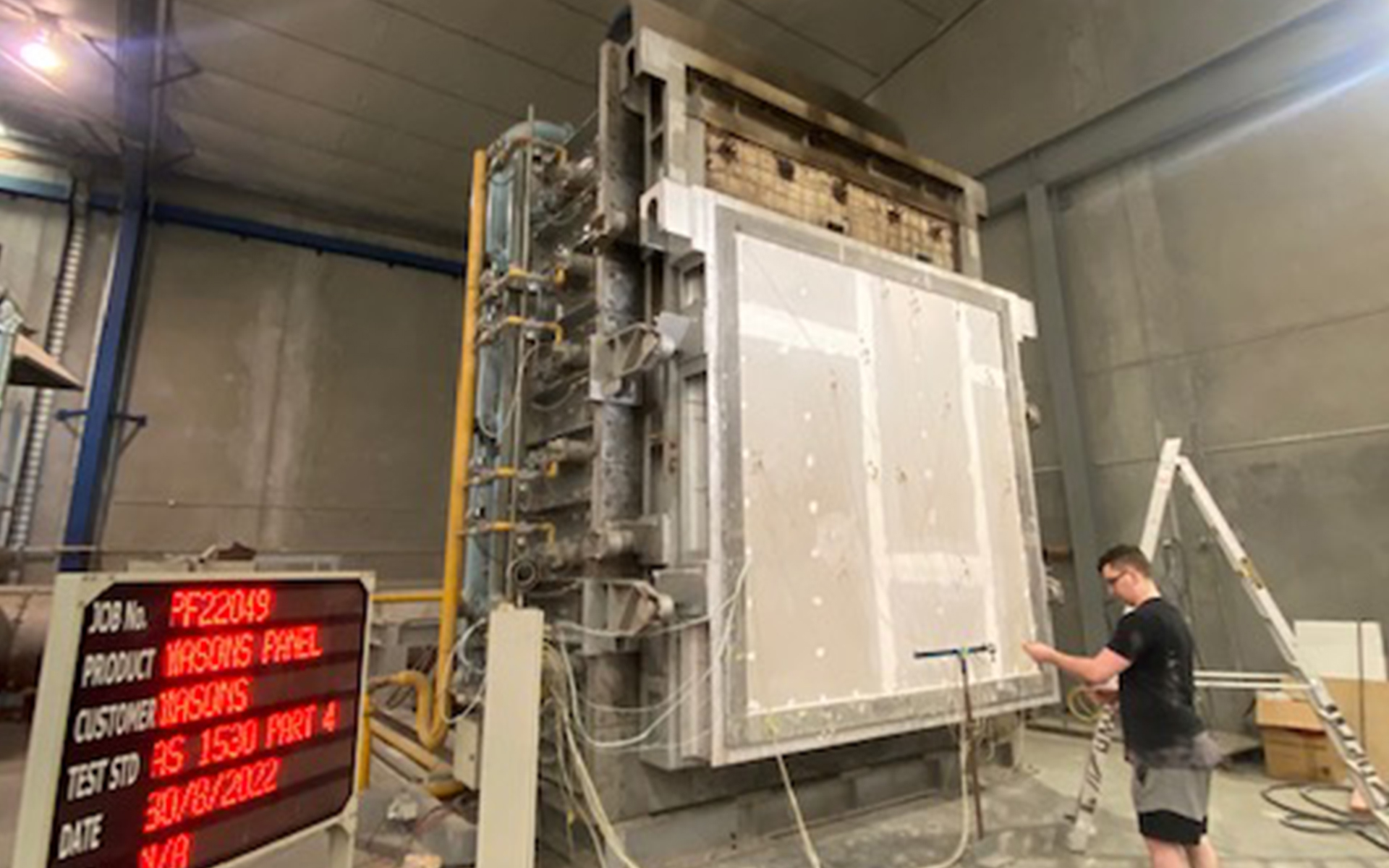

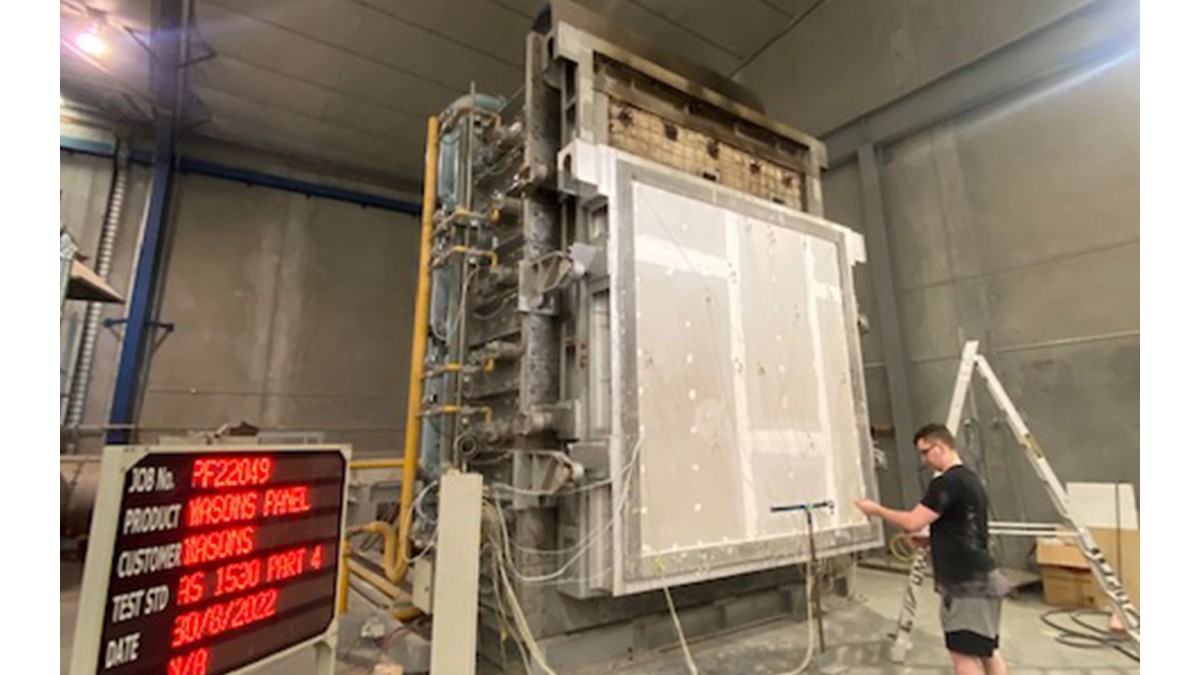

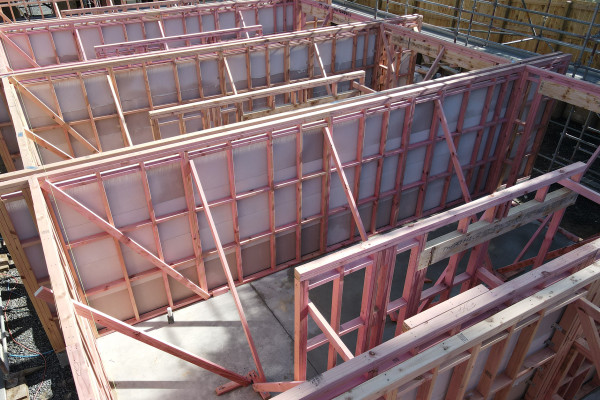

• It scored a rating of -/120/120 for walls up to 10 m high. FRR -/120/120 for timber frame, and -/90/90 for light steel framing.
• Acoustic engineers Marshall Day reported a lab performance of 64 dB — higher than the minimum STC requirement of 55 dB for intertenancy walls.

For scope of use, limitations, conditions and statement of building code compliance, refer to the Masons Intertenancy Wall System PASS™.

Simple — easy to use, flexible and fast

The Masons system is construction friendly and designed for simplicity and flexibility. As few as two builders can install the system, and installation can be flowed around other work on-site. No weather protection is needed for the AAC panels when work stops, making on-site storage simple.

Fast — designed for buildibility

The system can be installed up to three stories continuously, without interruption, and there is often no need for extra accessories or fiddly work at mid-floors junctions. Services can be run down the framing on either side of the AAC panels, and materials are carried in smaller parts when site access is difficult. The ACC system is easier for everyone on the job.

* Penetrations to the Masons Intertenancy Wall System: fire and acoustic must be engineered for fire rating and to preserve acoustic performance and installed by suitably qualified persons.
