Masons Barricade Weather Defense System
Description

A premium weather-resistive rigid air-barrier system for residential and commercial buildings.

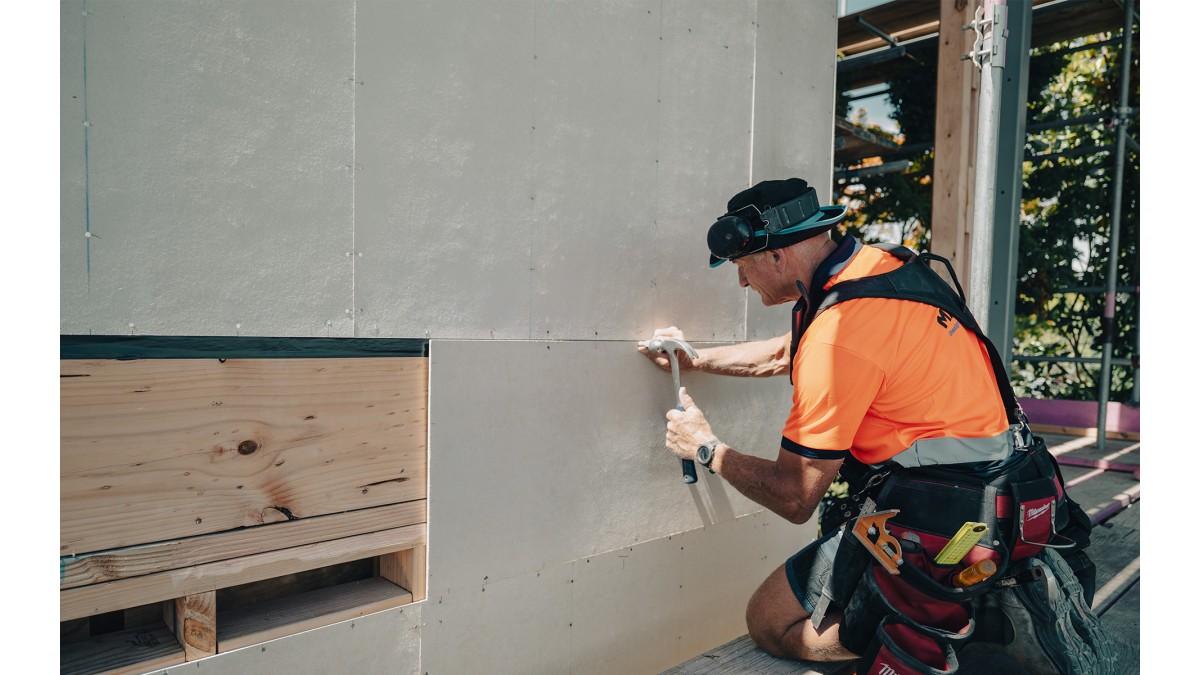

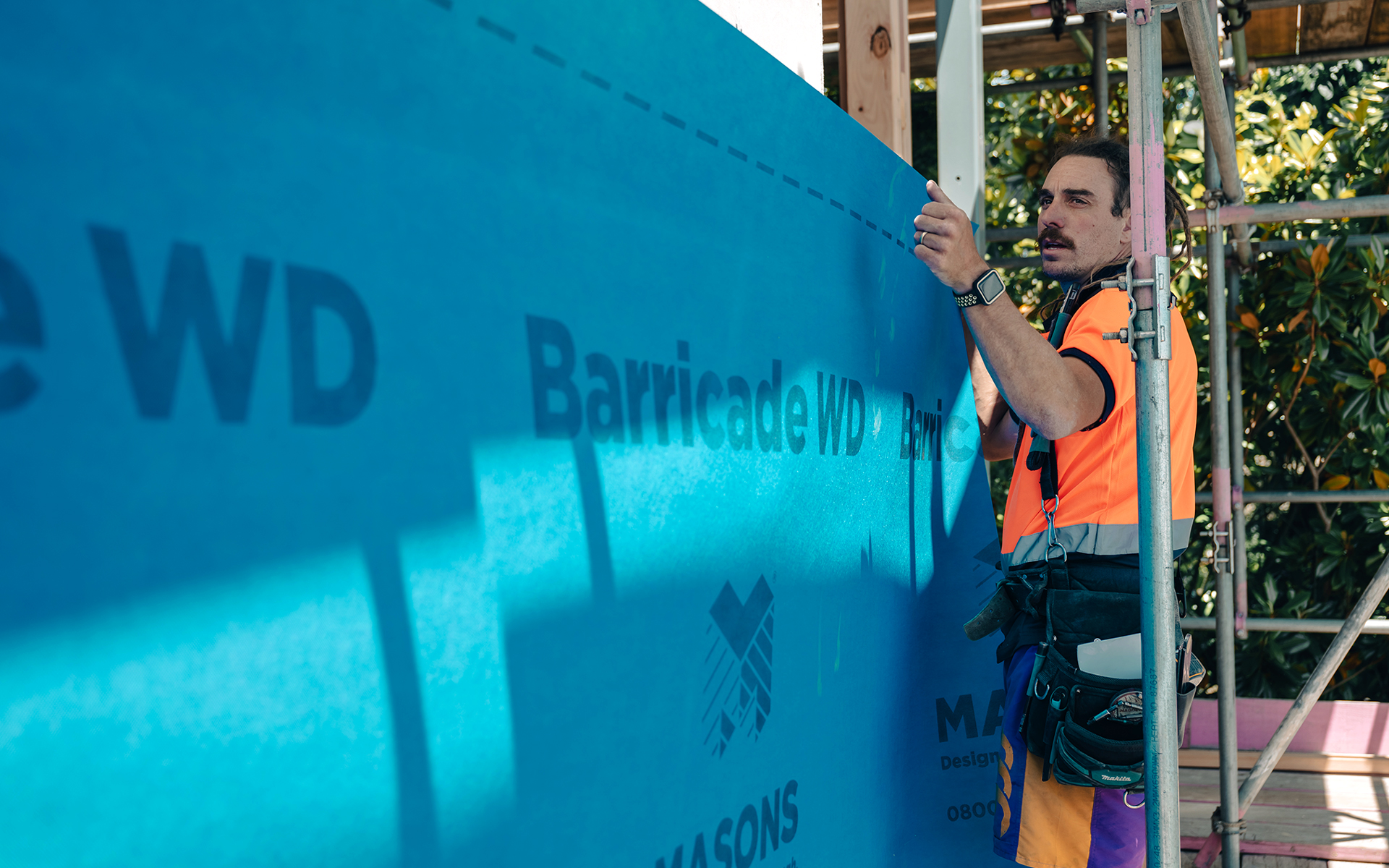

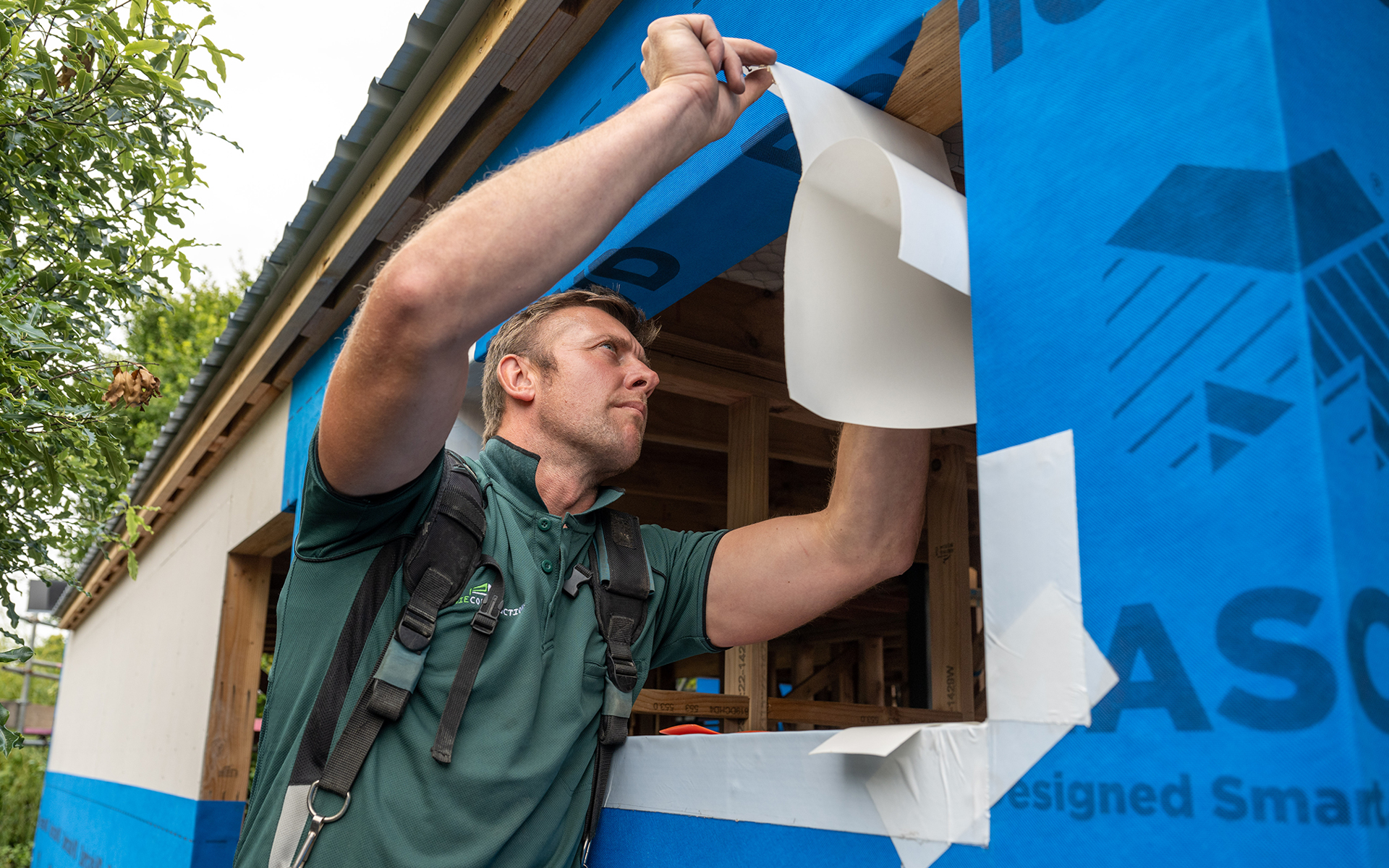

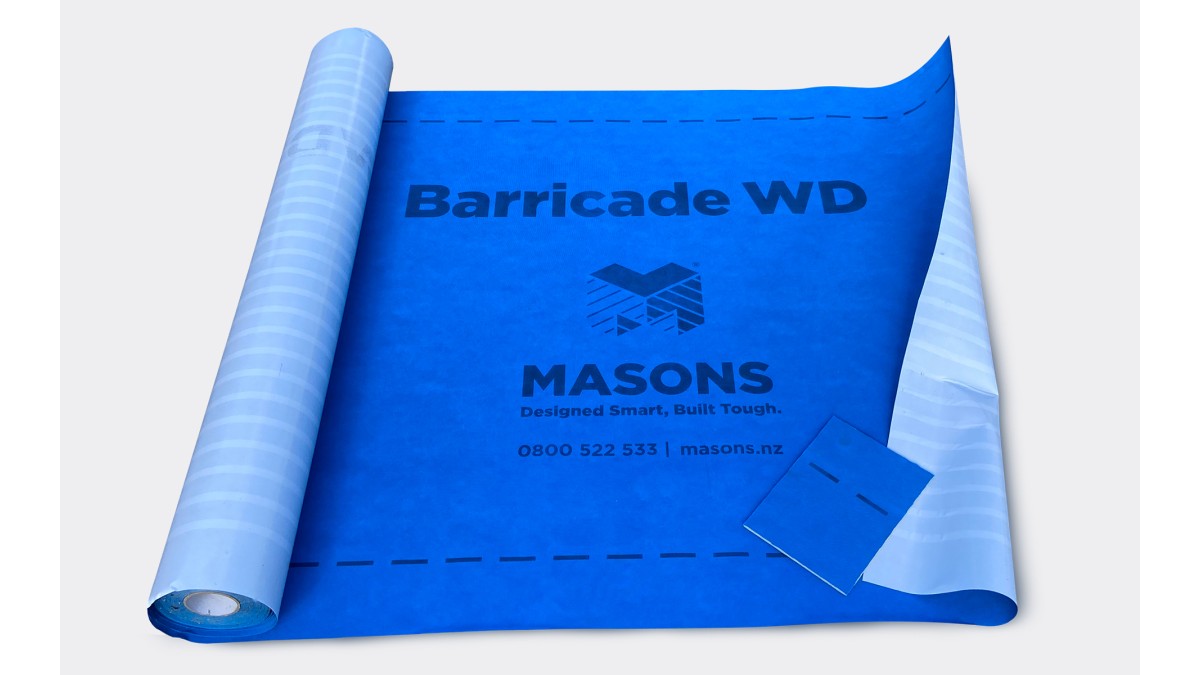

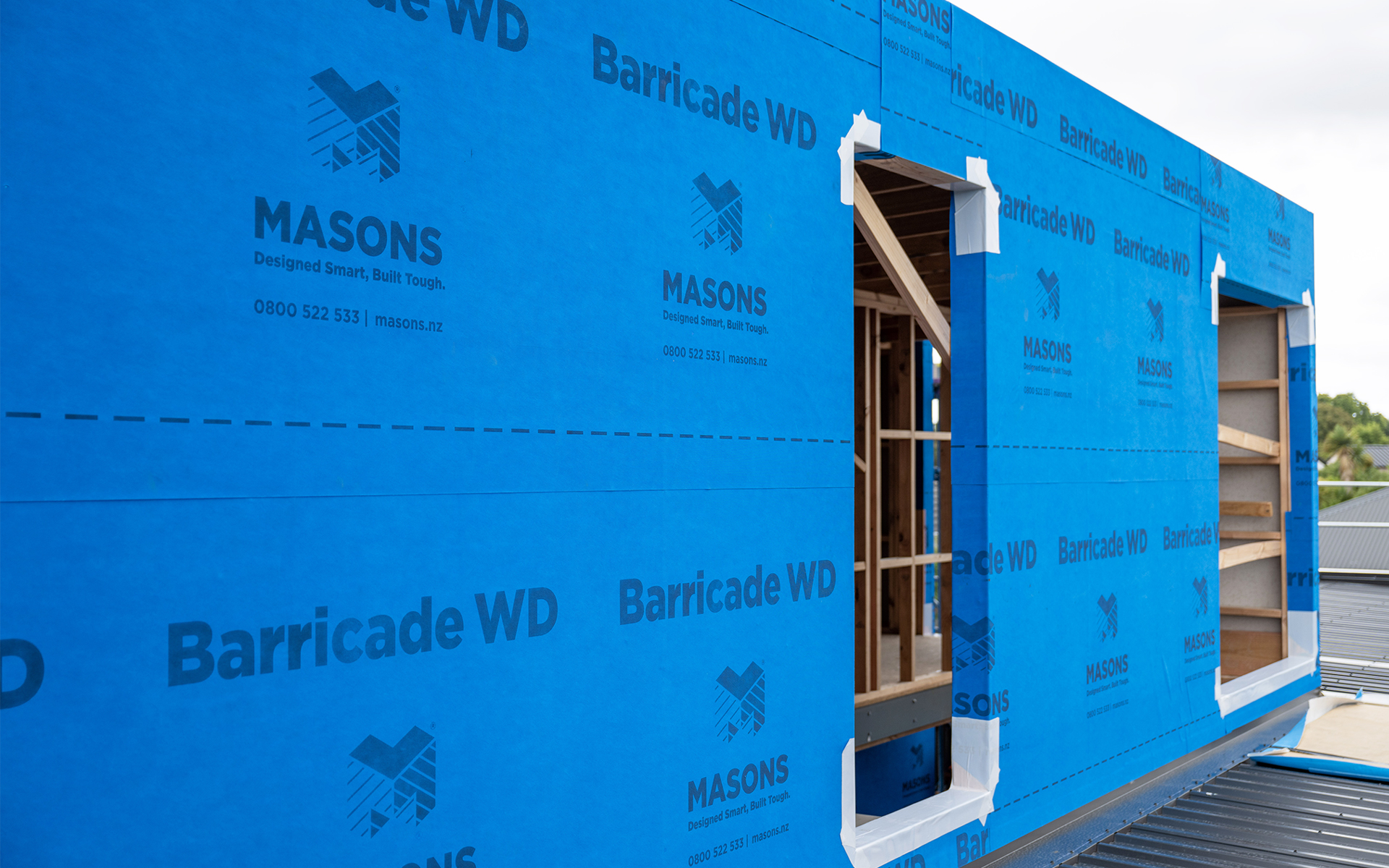

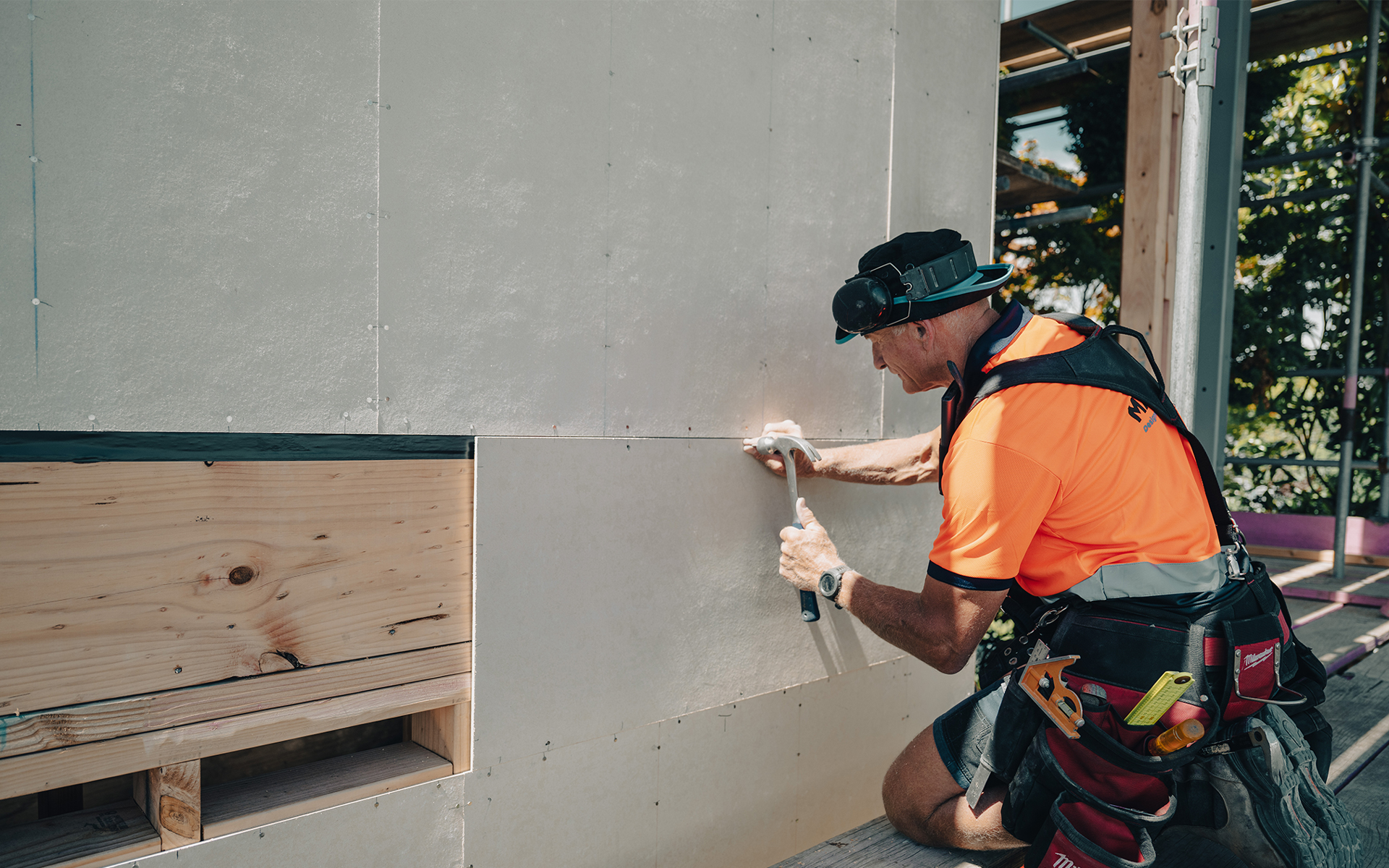

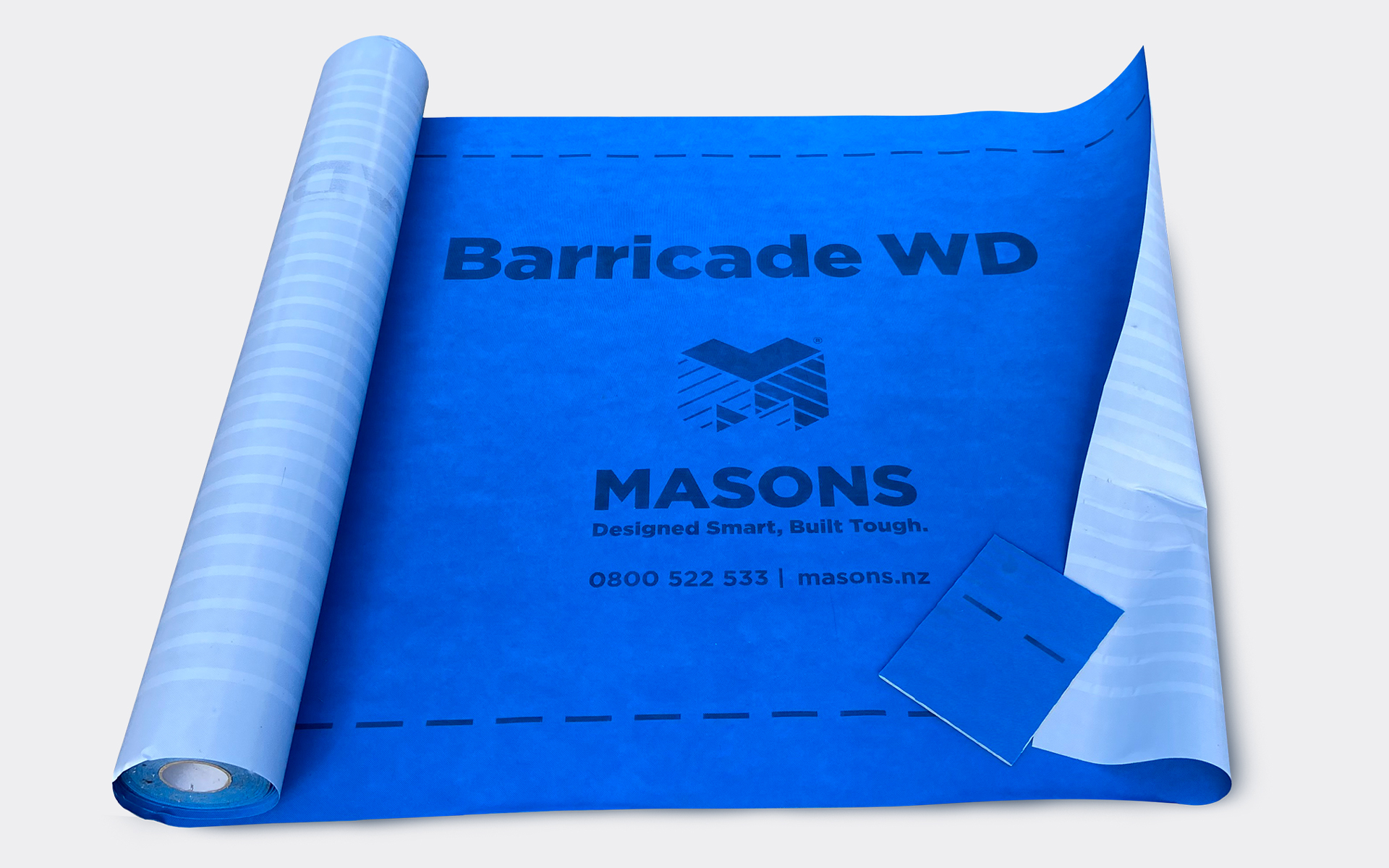

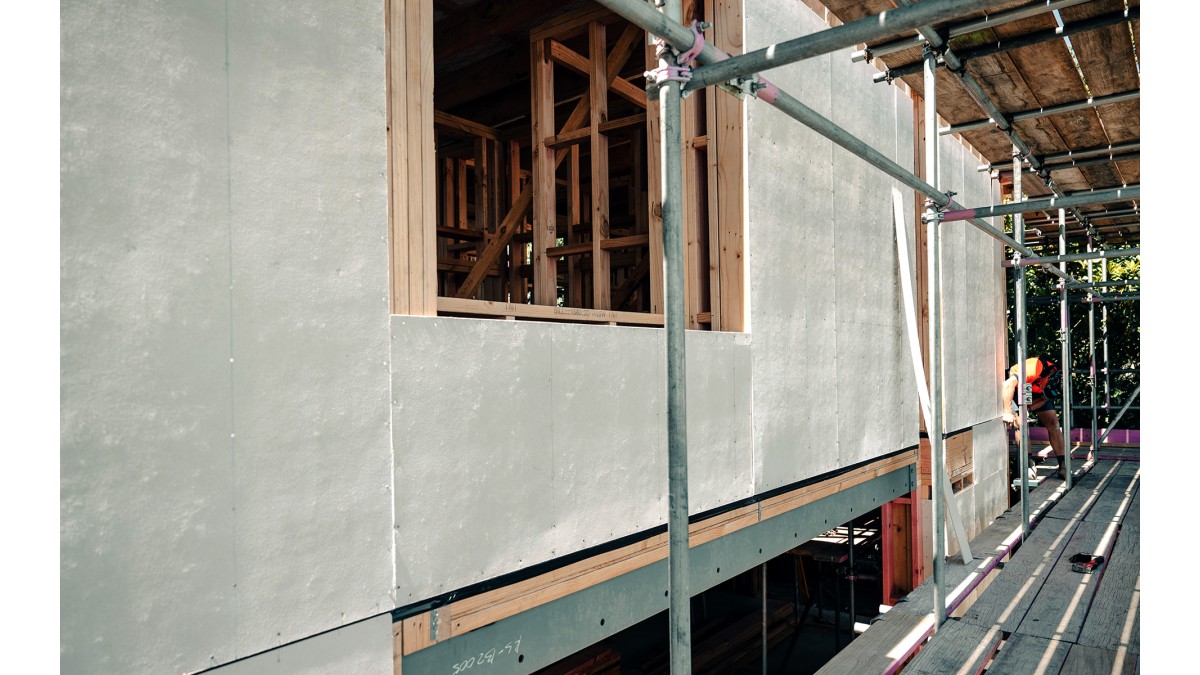

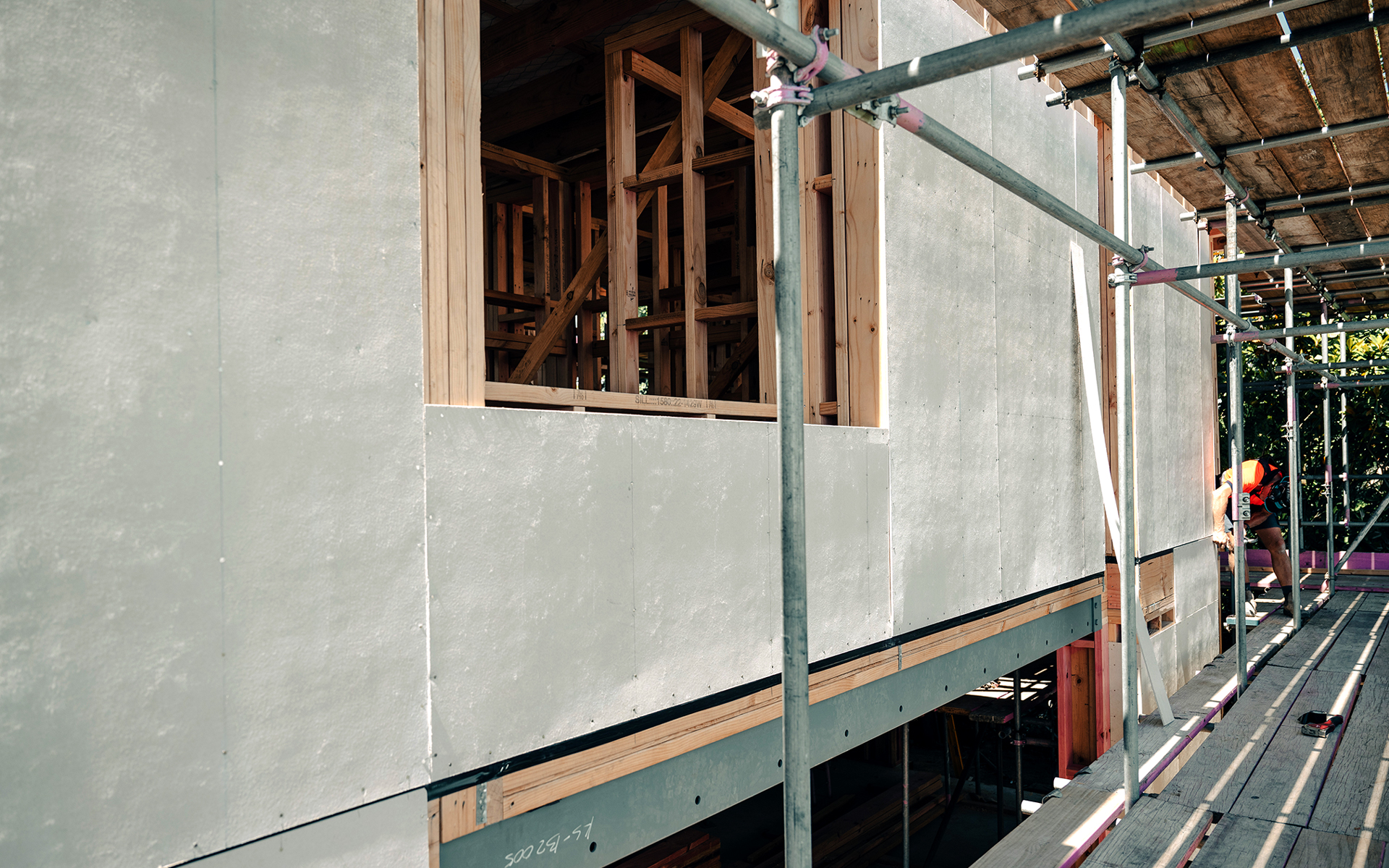

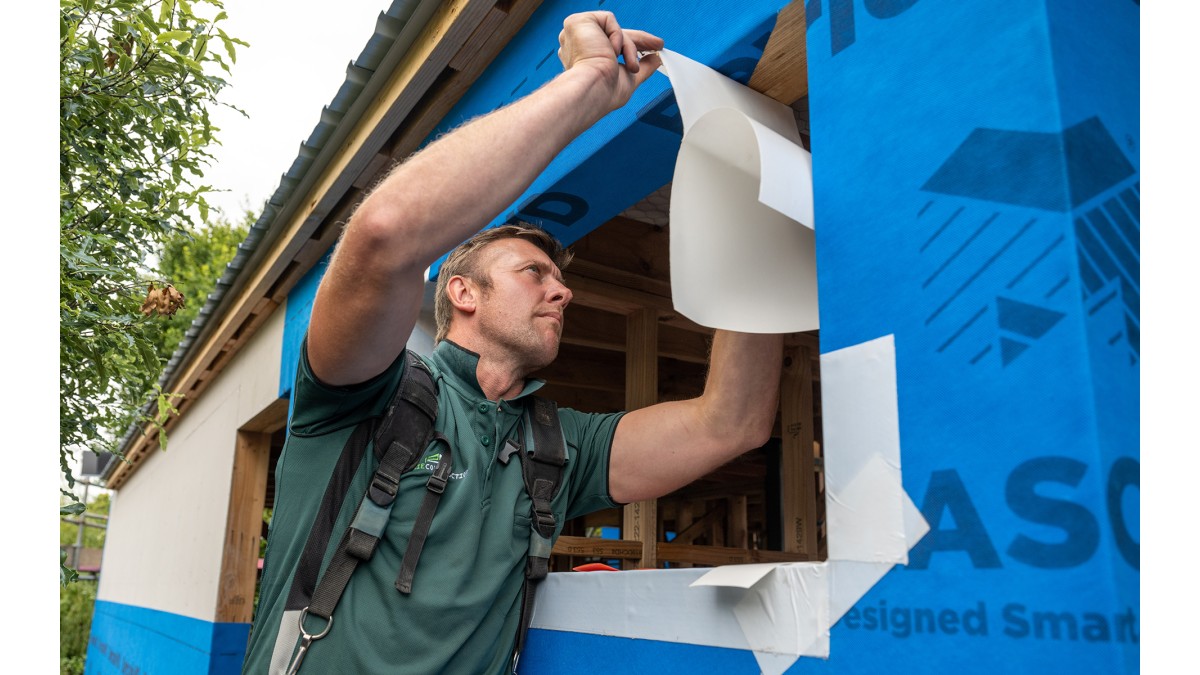

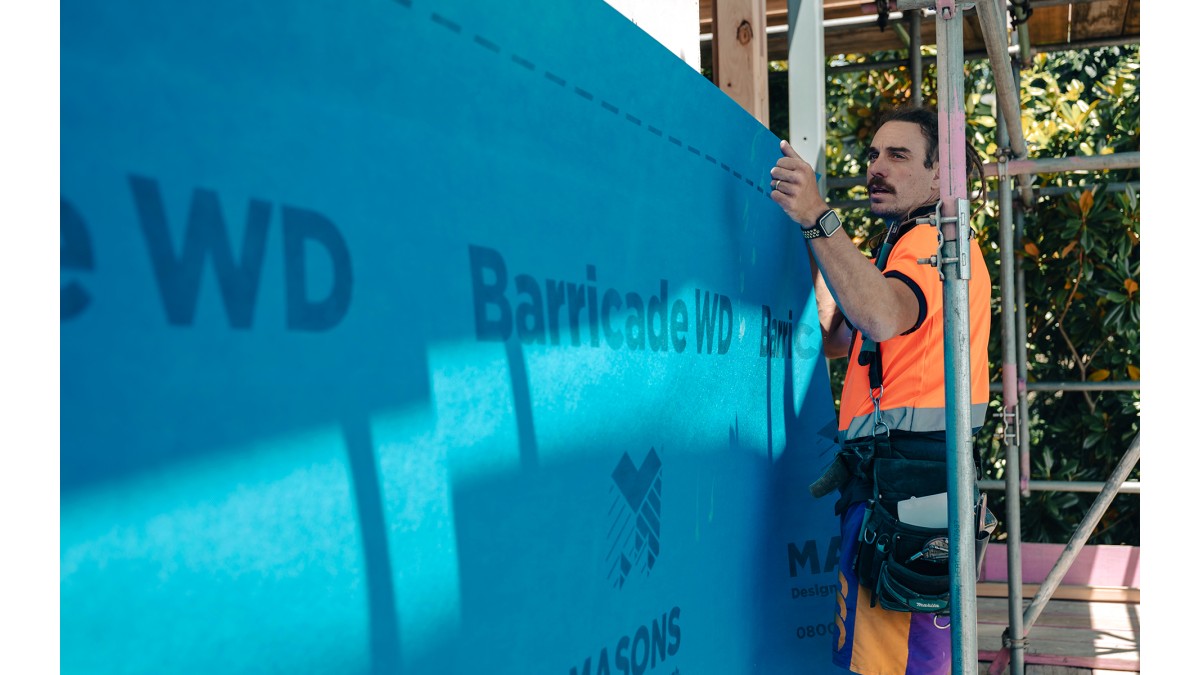

Masons Barricade Weather Defense is a three-part system, comprising Masons' 6mm and 9mm fibre cement panels, Barricade Weather Defense self-adhesive weather-resistive barrier wrap, and flashing tapes for openings.

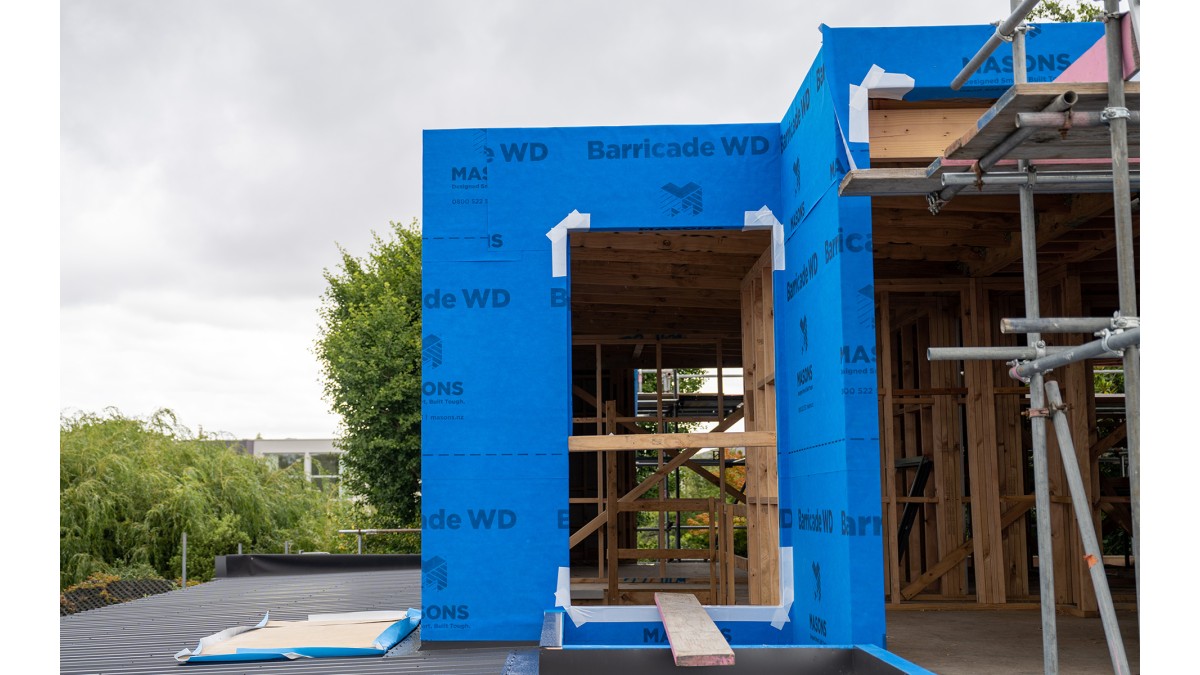

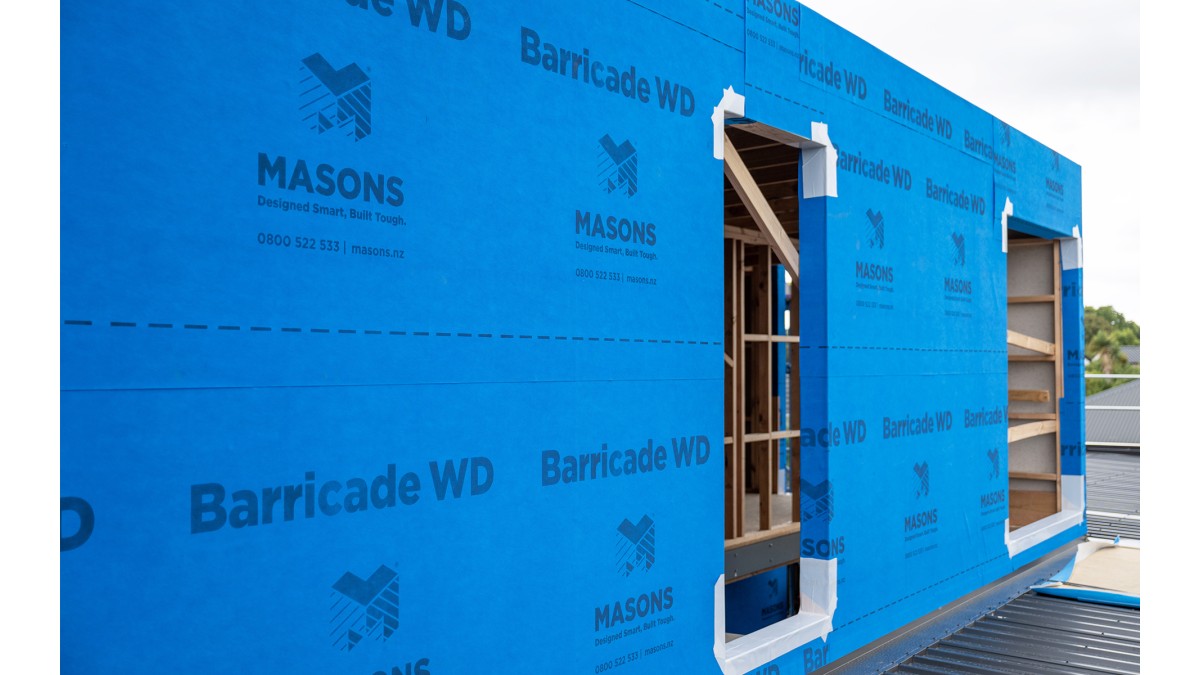

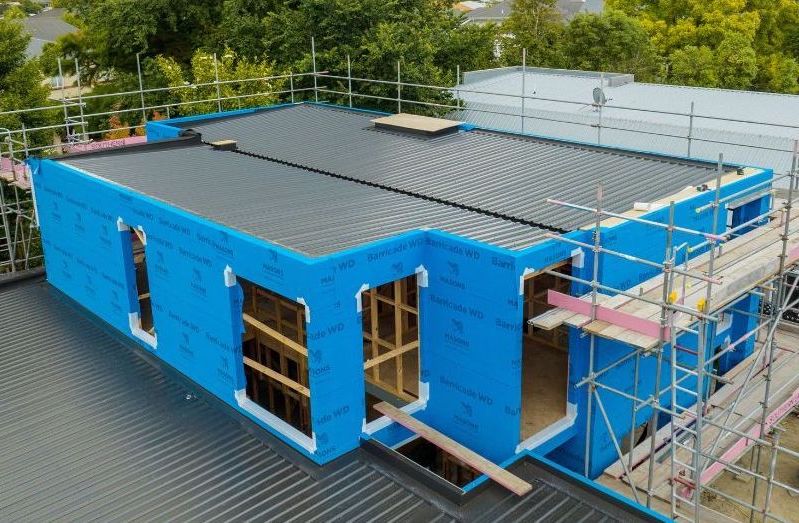

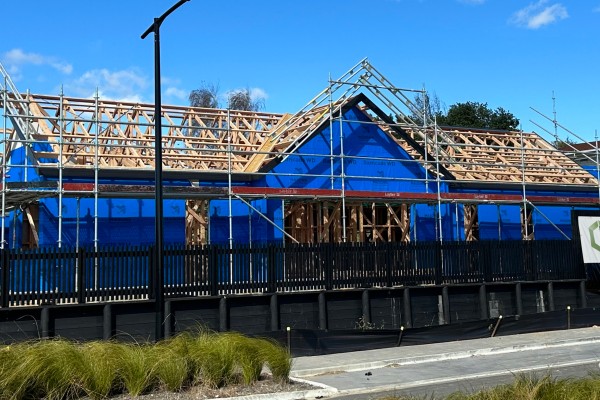

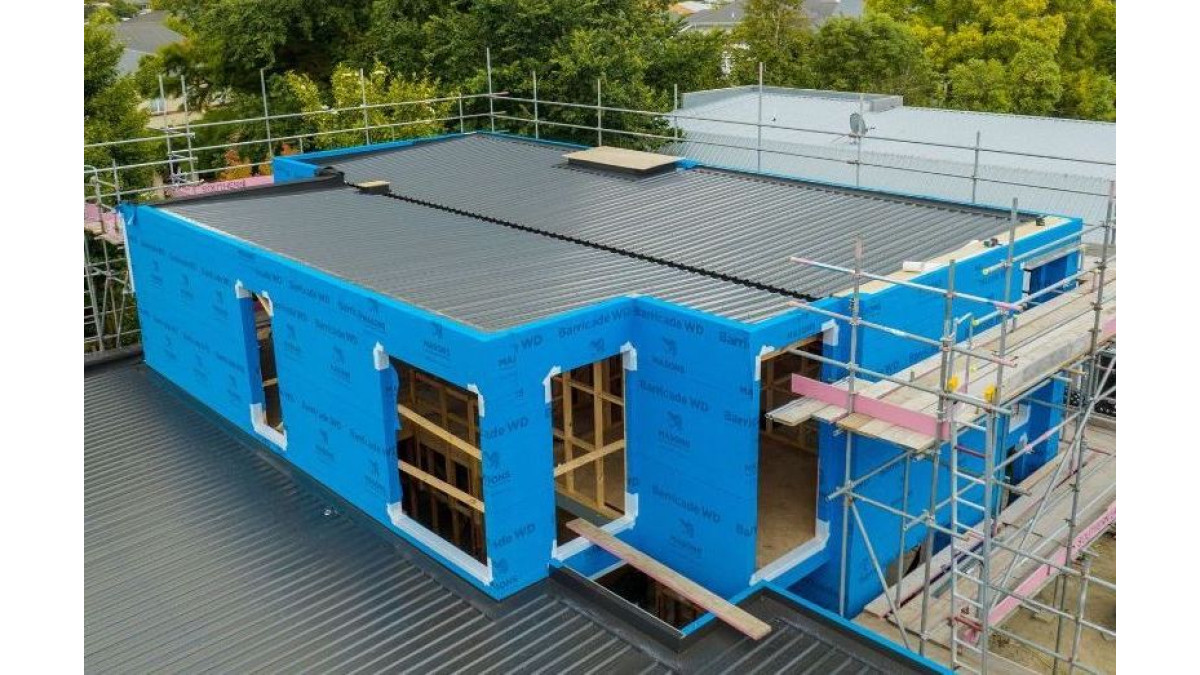

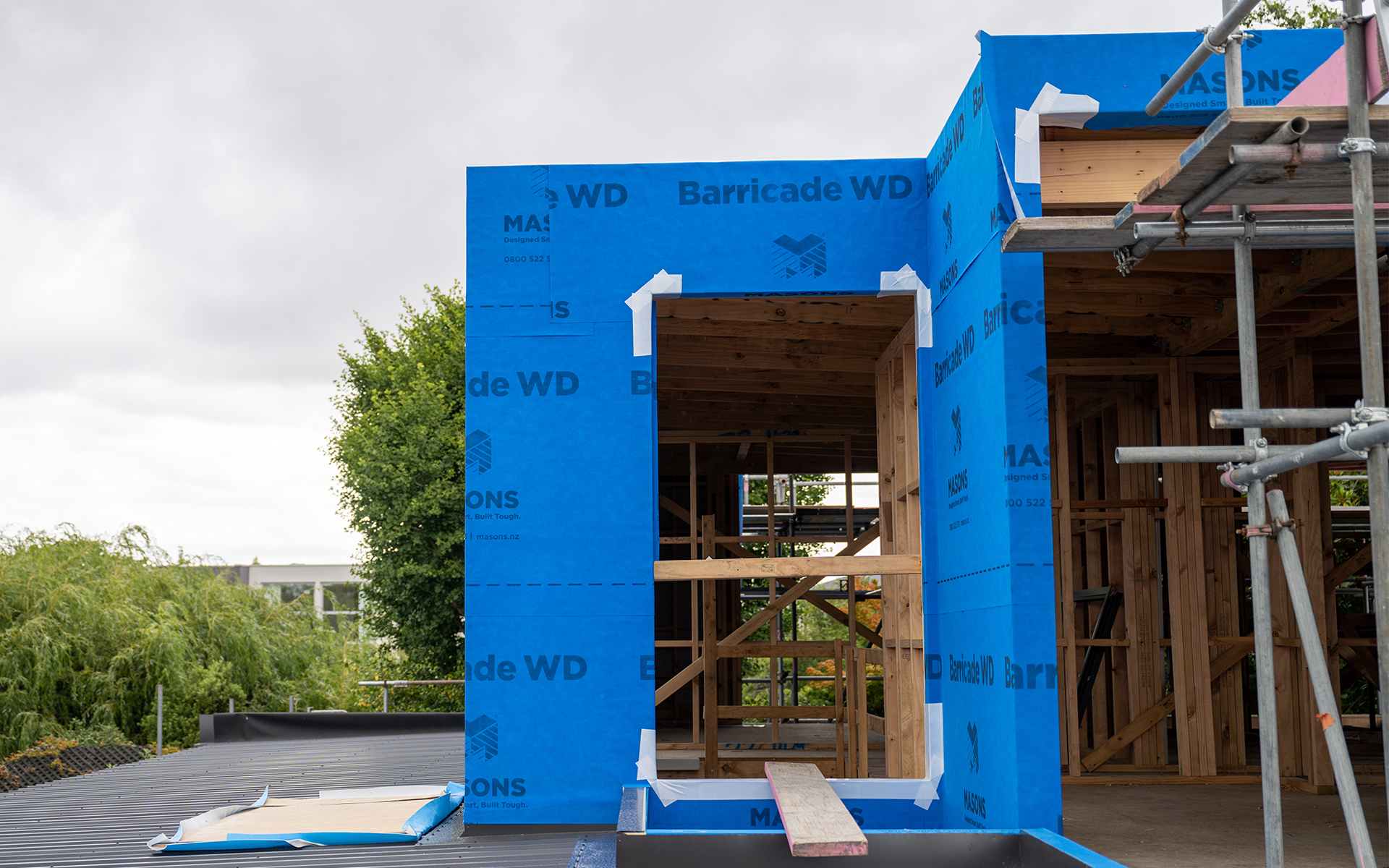

The rigid underlay, covered with our water, air and UV resistant self-adhesive wrap, allows construction work to get started inside the building. Interior and exterior trades can work in parallel to speed up programmes, while protecting the building from weather whilst there is no cladding in place.

Masons Barricade Weather Defense contributes to the building moisture management design. It provides a substantial secondary defense against intrusion of moisture and air for the life of the building.

Key Features
  • Allows building to stay on track if cladding is delayed
  • Temporary weather protection for up to 150 days
  • Strong — suitable for all wind zones
  • Robust and secure
  • Earthquake and wind bracing units
NZ-Owned Business
NZ-Owned Business
Scope of Use

The rigid underlay, covered with water, air and UV resistant self-adhesive wrap, allows construction work to get started inside the building. Interior and exterior trades can work in parallel to speed up programmes, while protecting the building from weather whilst there is no cladding in place.

  • Temporary weather protection for up to 150 days
  • Suitable for all wind zones
Statement of Building Code Compliance
Statement of Building Code Compliance

Masons Barricade Weather Defense System meets or exceeds the requirements of the NZBC.

  •  CodeMark Certified (CMNZ70128)

If designed, installed and maintained in accordance with all Masons Plastabrick's requirements, the Barricade Weather Defense System will comply with or contribute to compliance with the following performance claims:

  • B1 Structure: B1.3.1, B1.3.3, B1.3.3(a, b, f, h), B1.3.4
  • B2 Durability: B2.3.1(a), B2.3.2 (a)
  • C3 Fire affecting areas beyond the fire source: C3.6 (contributes to), C3.7 (contributes to)
  • E2 External moisture: E2.3.2 (contributes to), E2.3.5 (contributes to), E2.3.6 (contributes to), E2.3.7
  • F2 Hazardous building materials: F2.3.1
  • H1 Energy efficiency: H1.3.1(b) (contributes to)
PASS
PASS
Test Results
Test Results
Documents
BPIR
Specification Guide
TD sheet of Barricade WD
CodeMark
Masons Barricade Weather Defense System Wind Report
PASS
Soudall Seal Test
Alternative nail type and fixing method
Barricade WD Installation Guide
Masons Barricade Weather Defense Installation Guide
Masons Barricade Weather Defense Visual Installation Guide
Barricade Weather Defense Warranty
Brochure Barricade WD
Masons Barricade Weather Defense System Brochure
Bracing calculator
Bracing Calculator Instructions
Design guide
Fibre Cement Sheets
