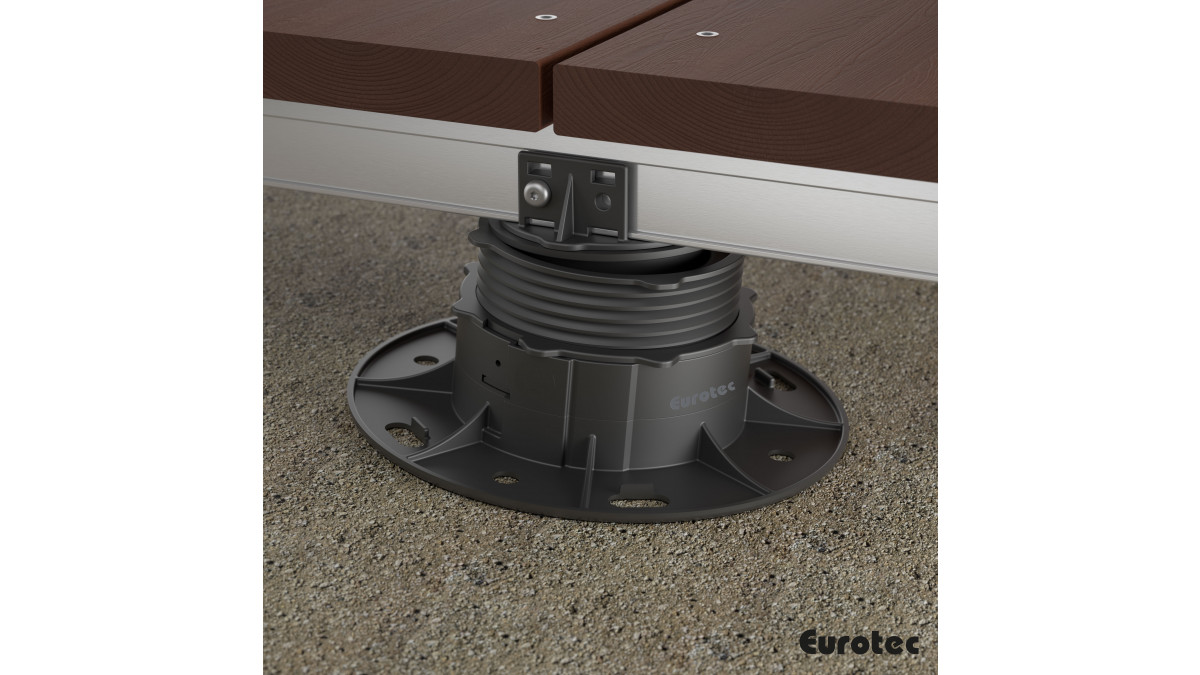

ProFoot Adjustable Deck Support System
Description

ProFoot is a multifunctional and adjustable deck support system for use with timber or composite decking, stone, or tiles, with click-together components for quick installation.

Depending upon the particular application this system provides support through:

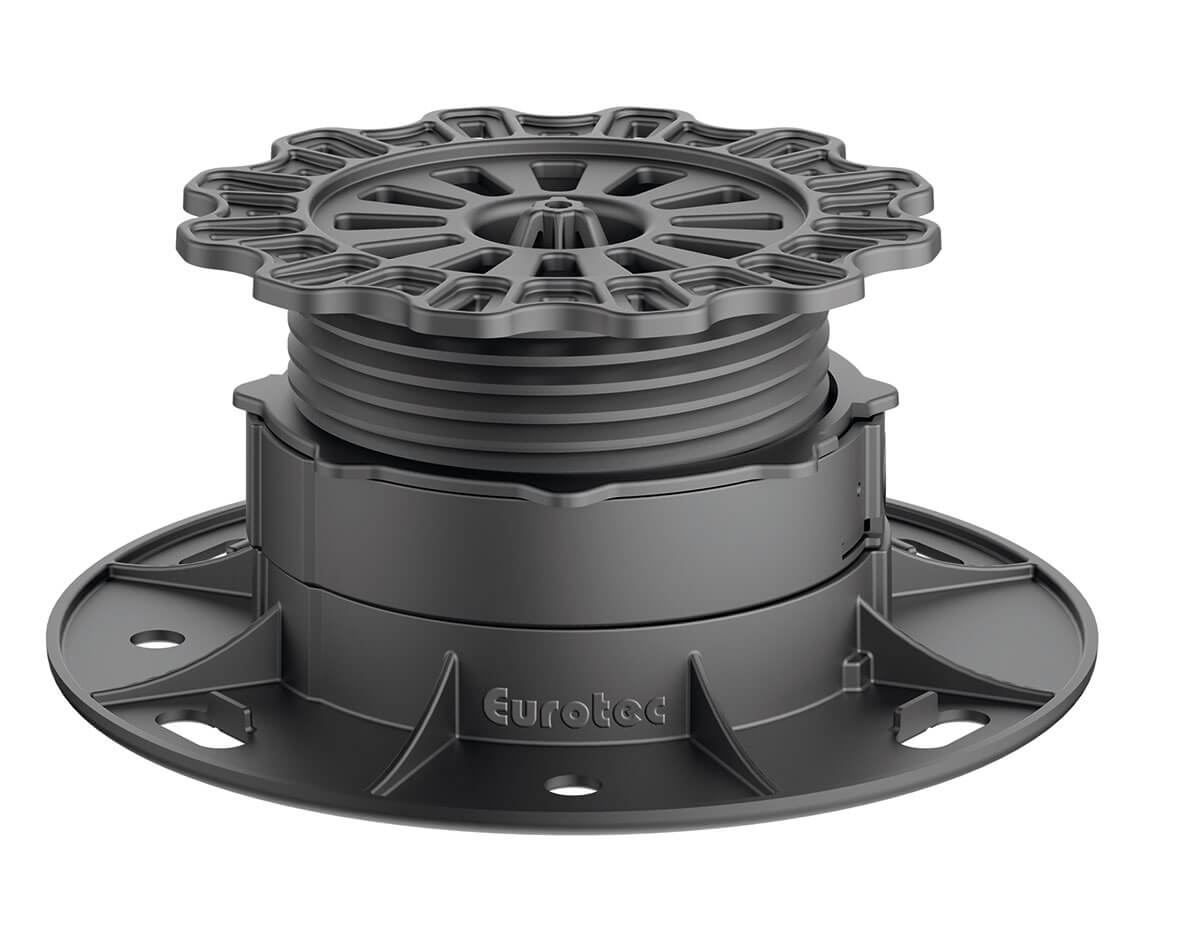

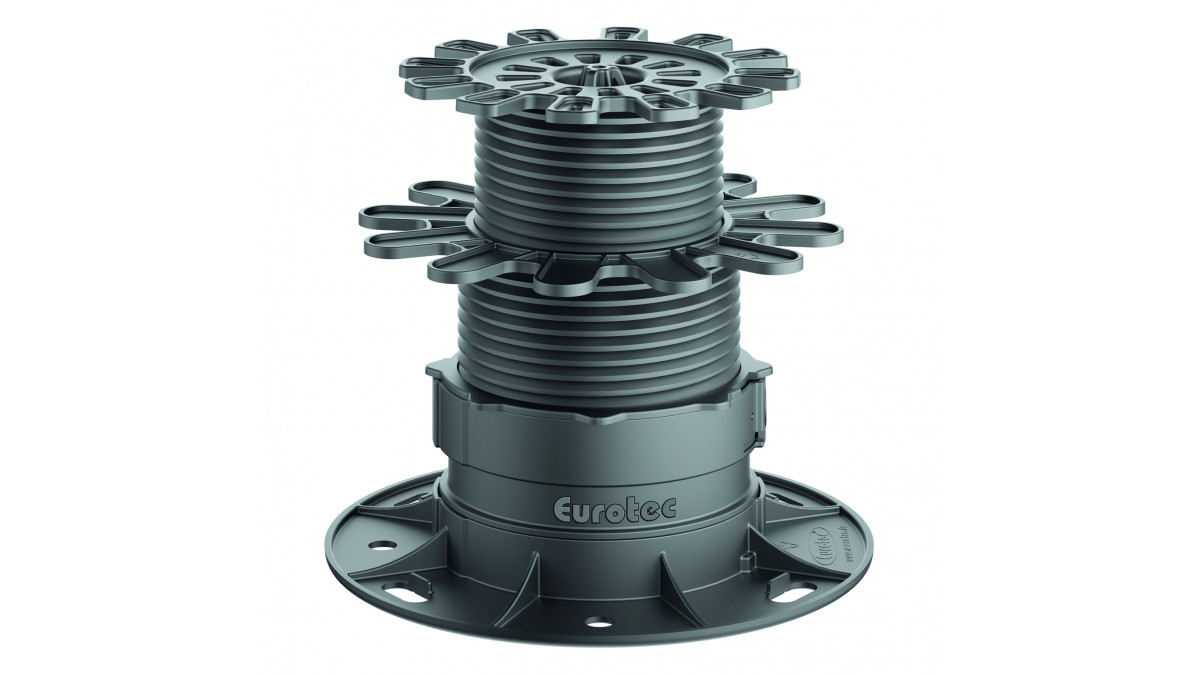

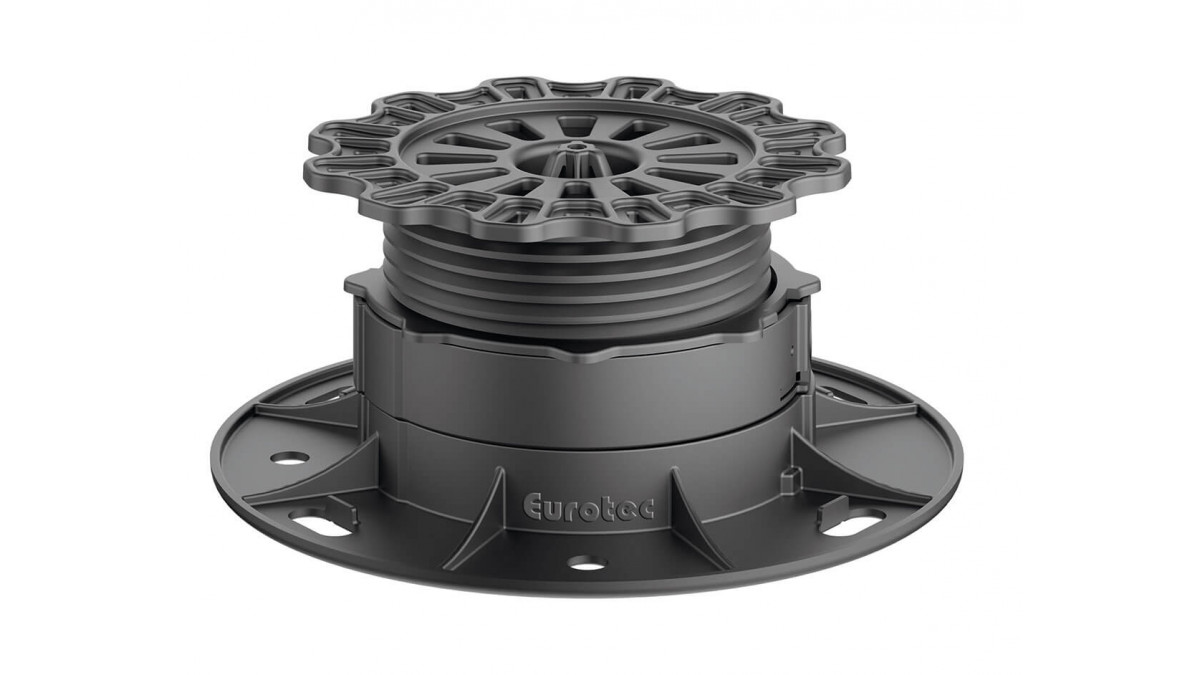

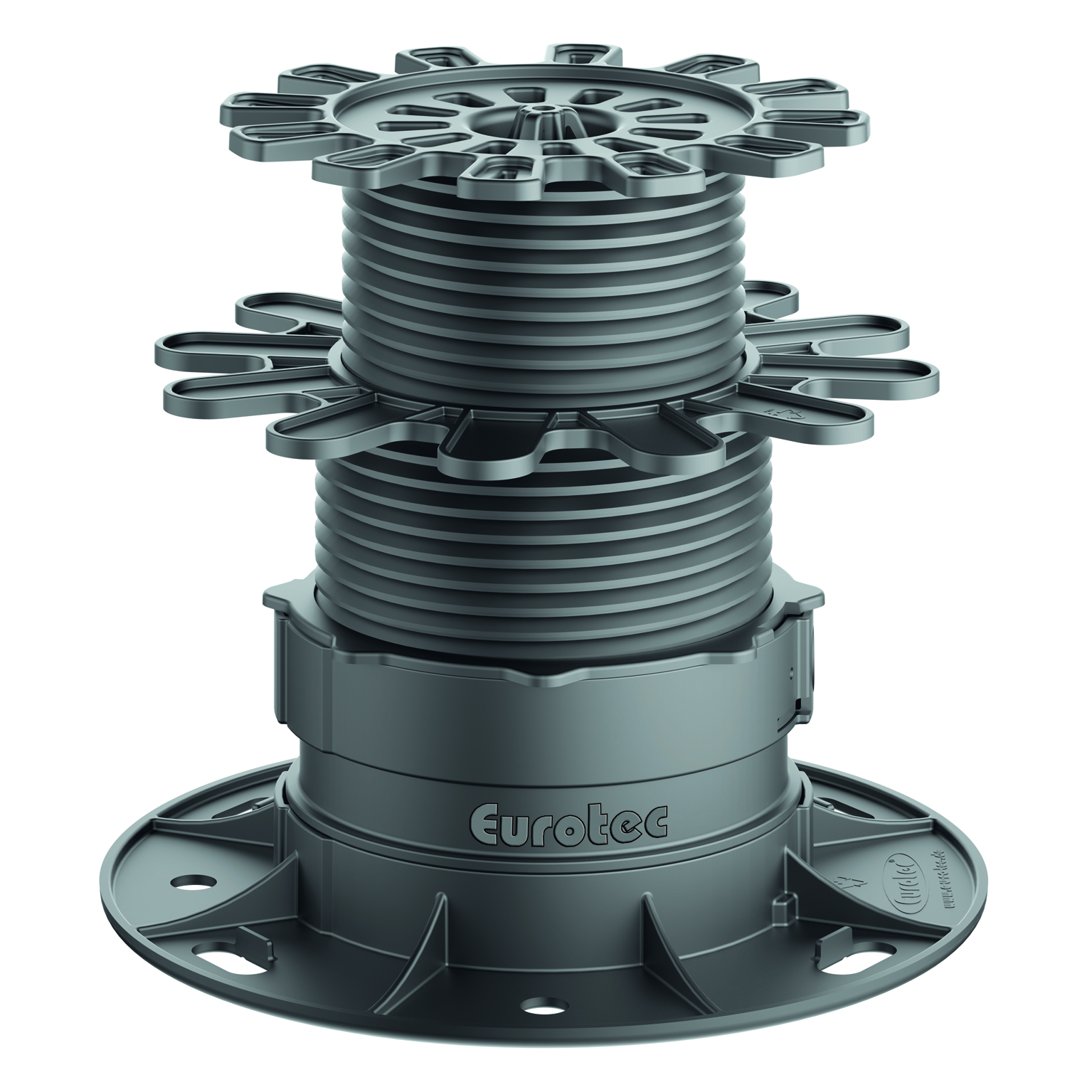

  • a system of height adjustable, UV Resistant pedestals (from 10mm-500mm+) and accessories

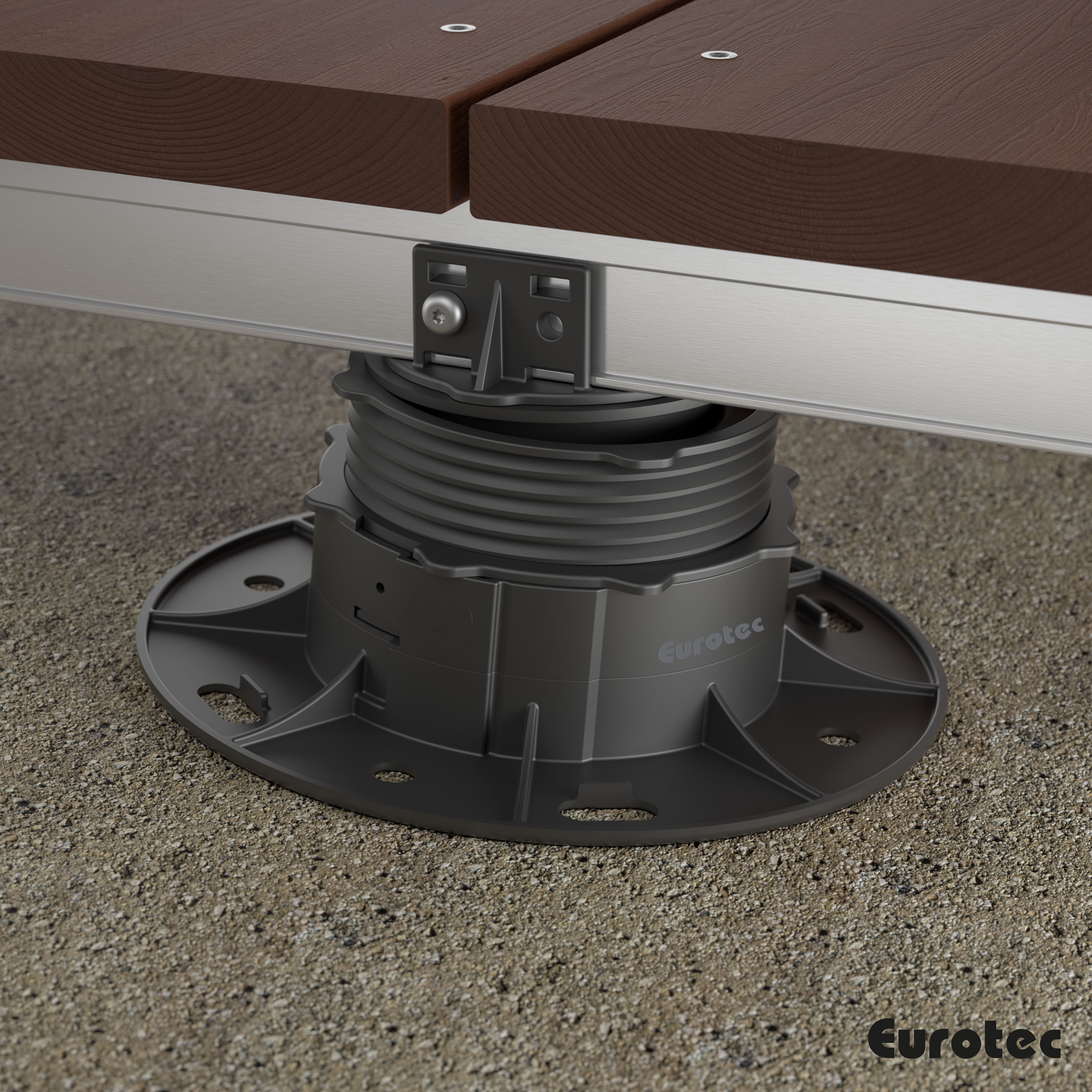

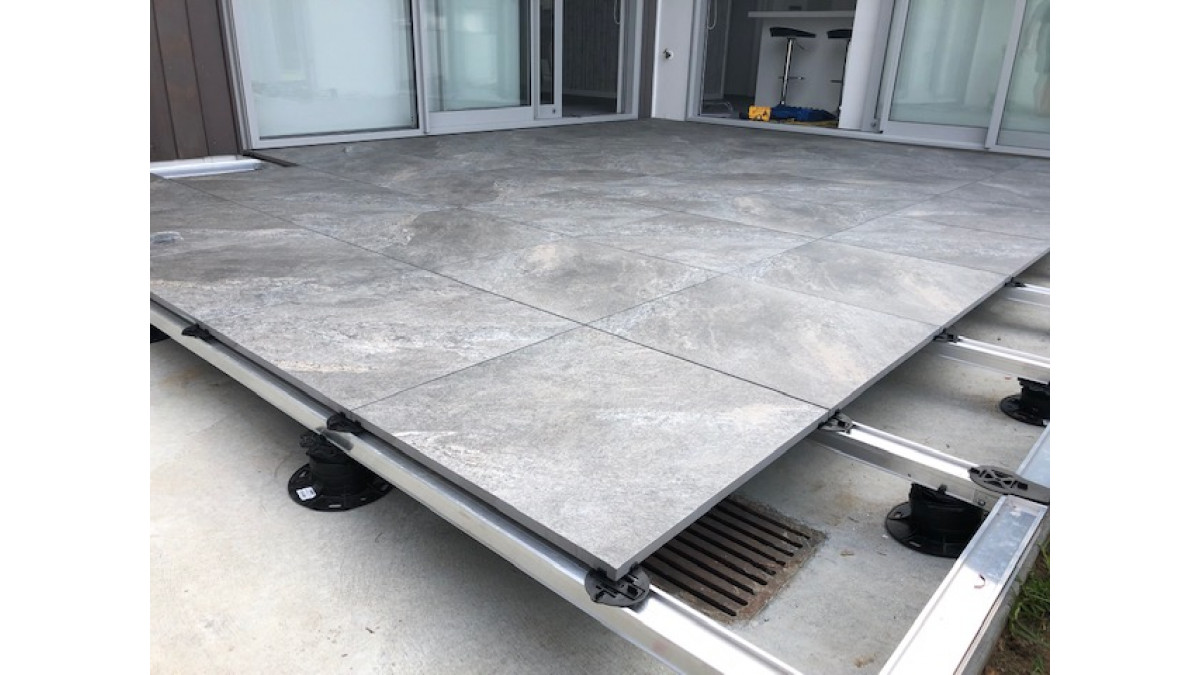

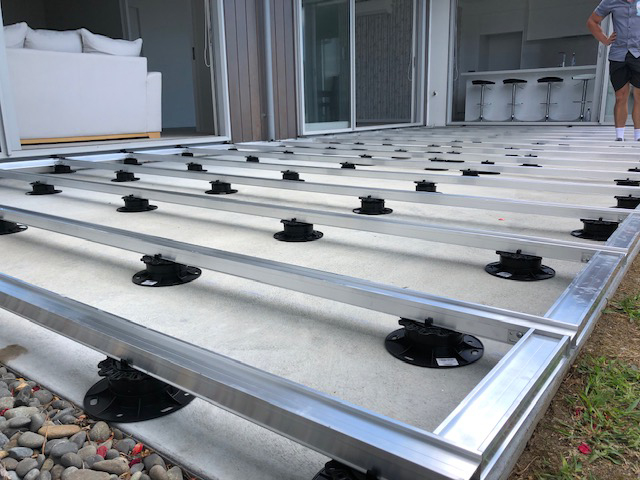

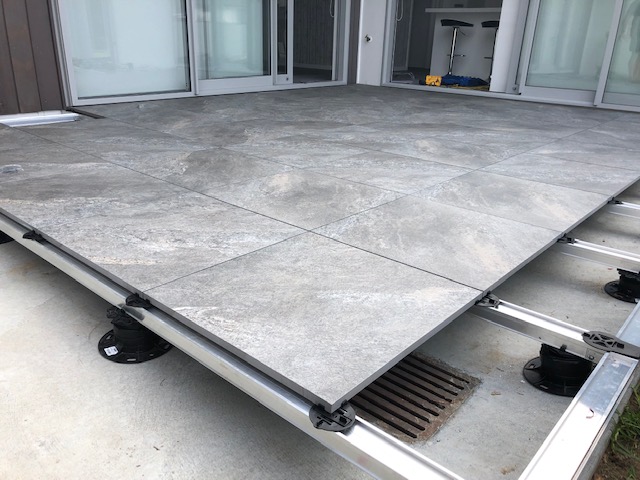

  • and 3 x optional EVO aluminium sub-structure frame systems (and accessories allowing design flexibility)
Key Features
  • Height adjustable (range 10mm - 500mm+)
  • Quick and easy assembly
  • Resistant to weather, UV exposure, insects, and rot

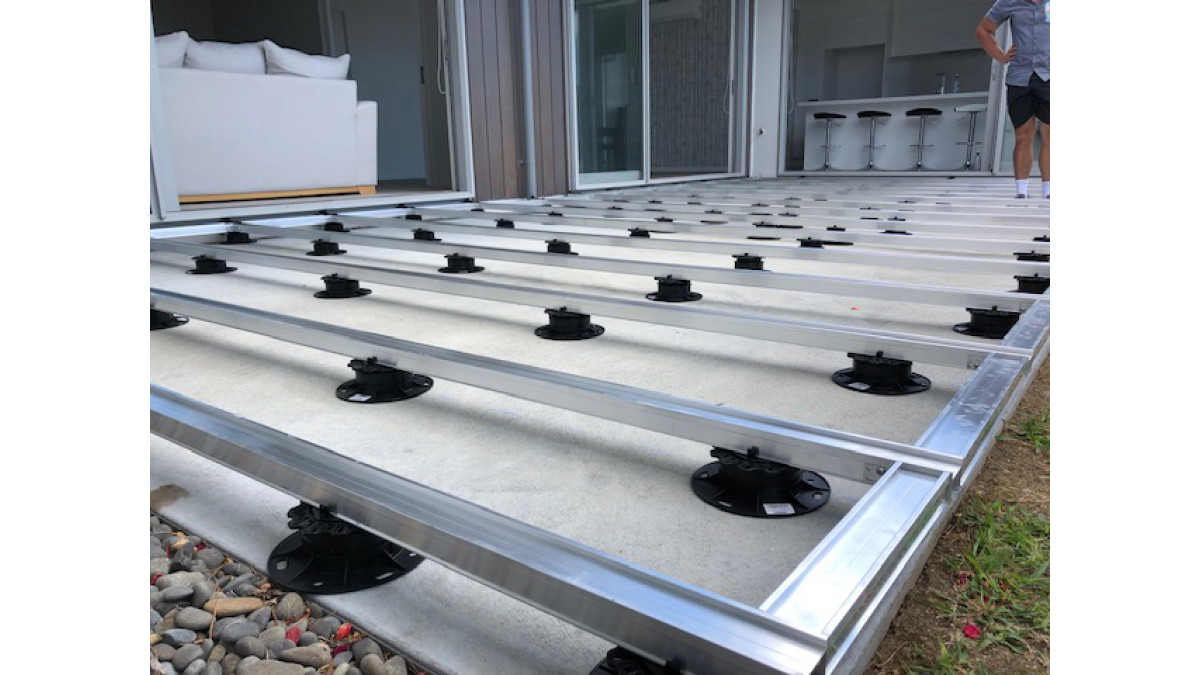

  • Low profile aluminium sub-structure solution for shallow spaces beneath decks
  • Smooth transitions for water drainage
  • Suitable for timber, composite, tiled decking (or transitions between combination)
  • German engineered system with load/span tables available for quick calculation
  • Accessories and in-built design features for varying access solutions



Scope of Use
  • Can be used with a range of different deck finishing options — timber, composite, tiled decking. Suitable for decking of varying sizes or transitions between.

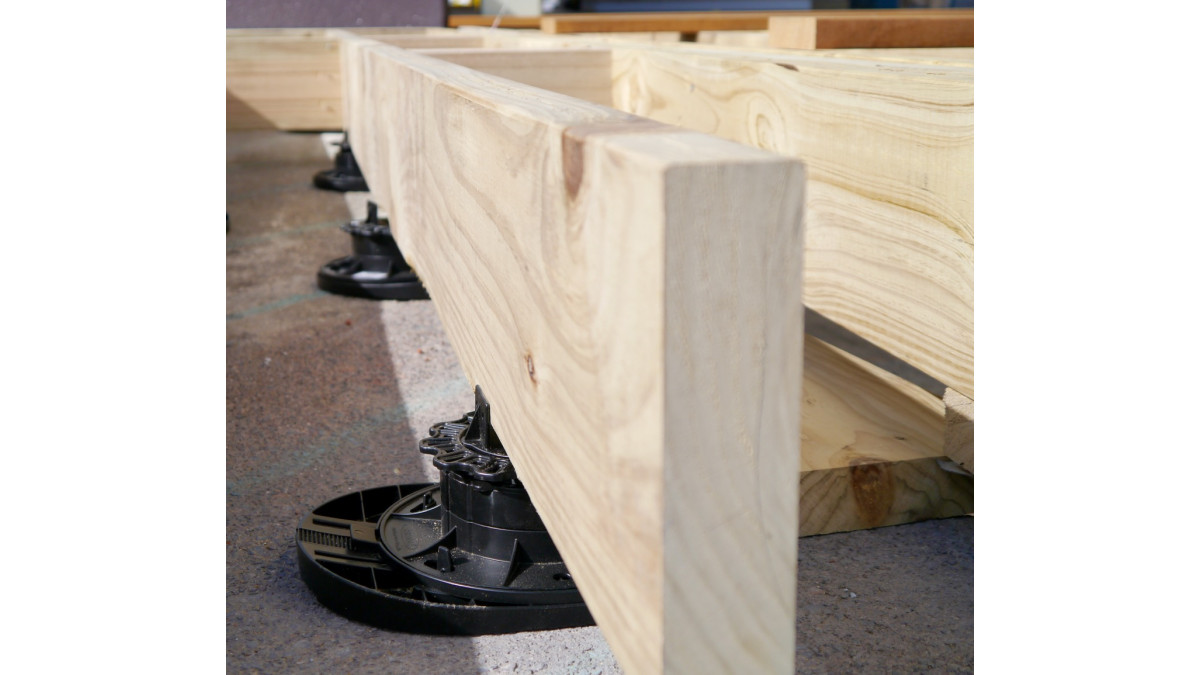

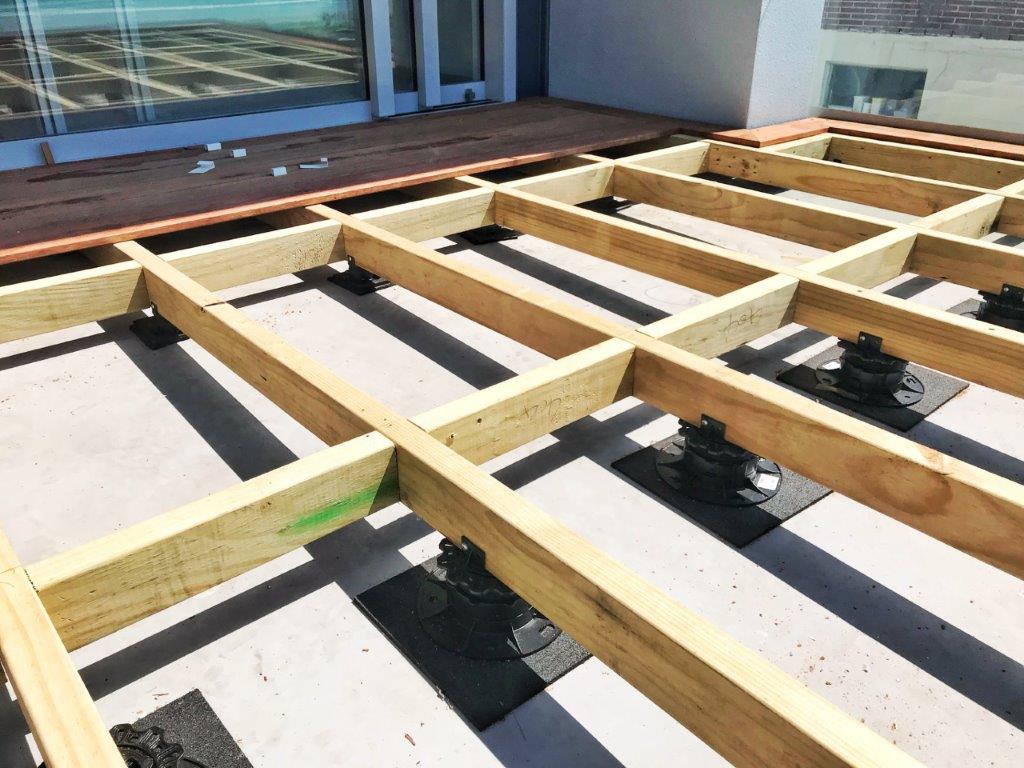

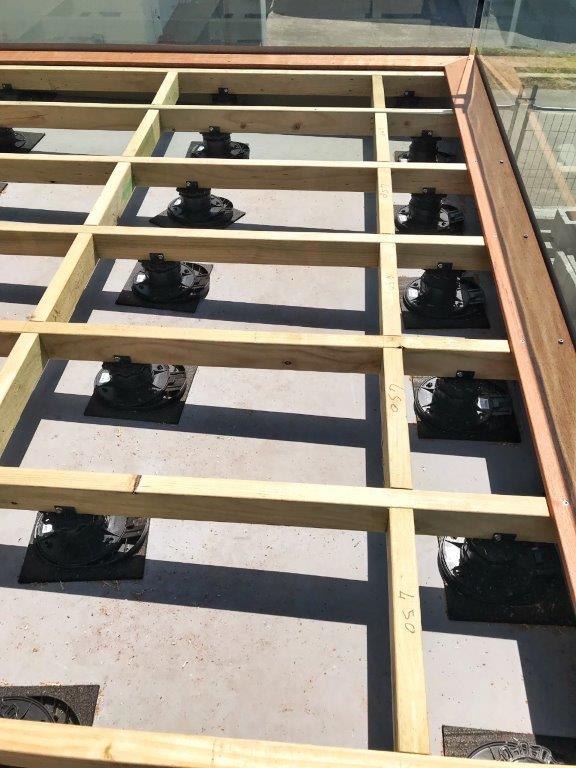

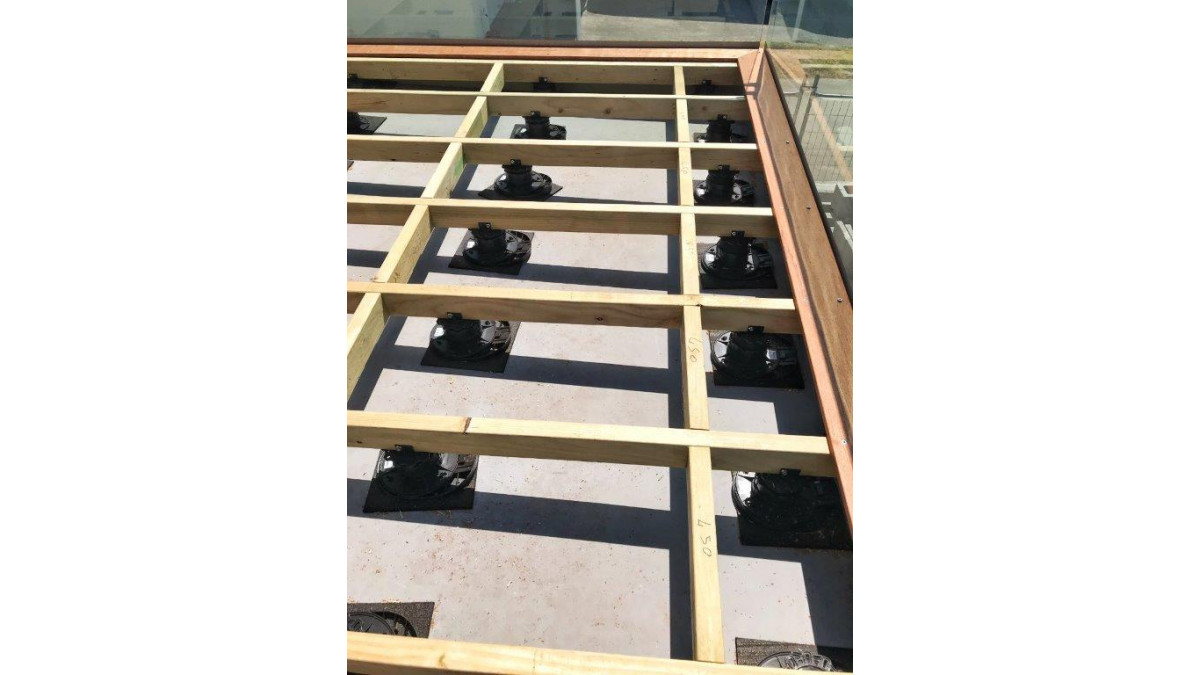

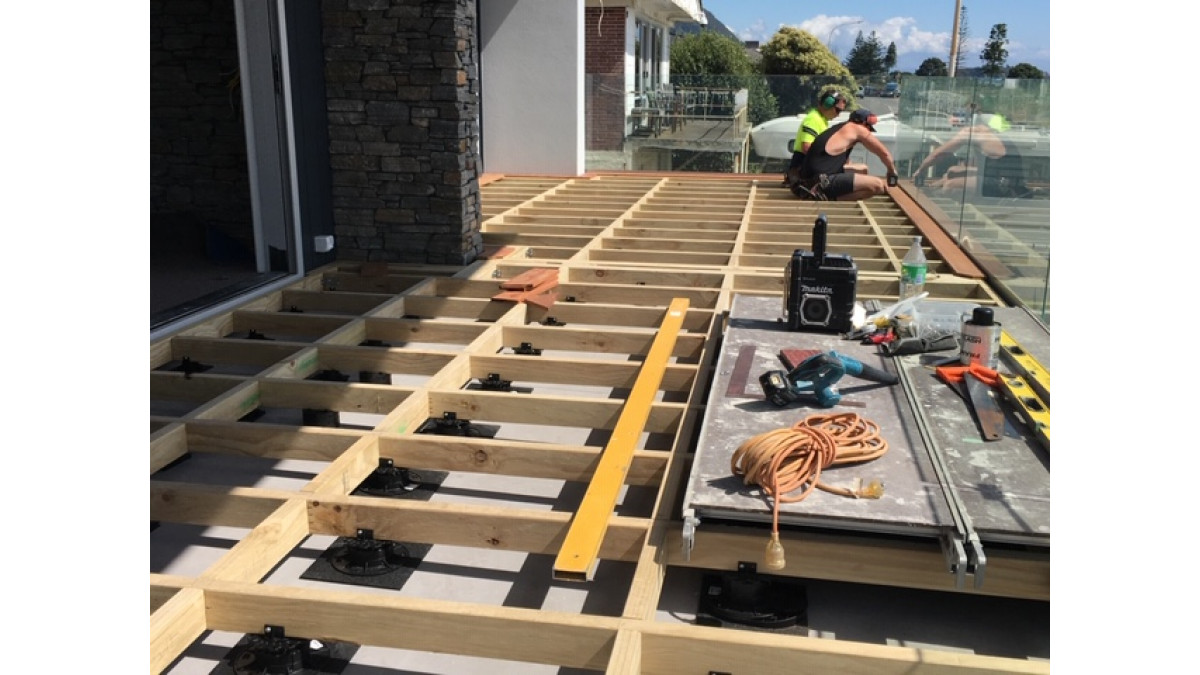

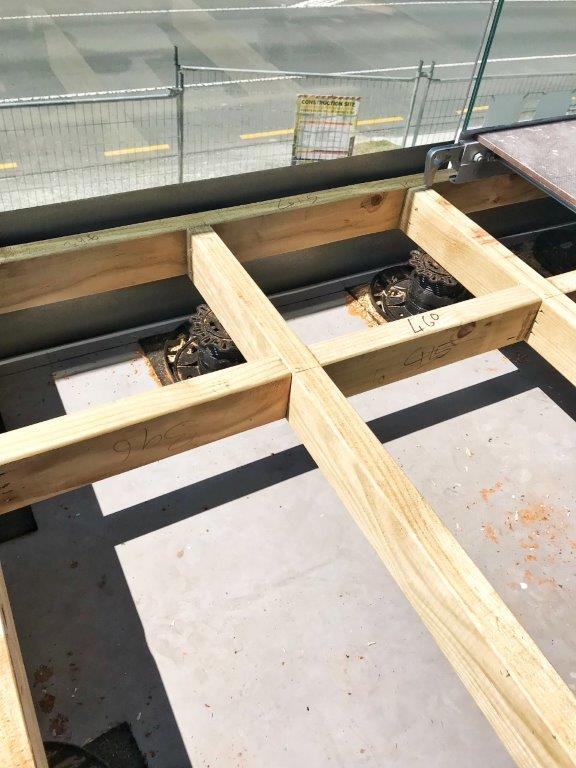

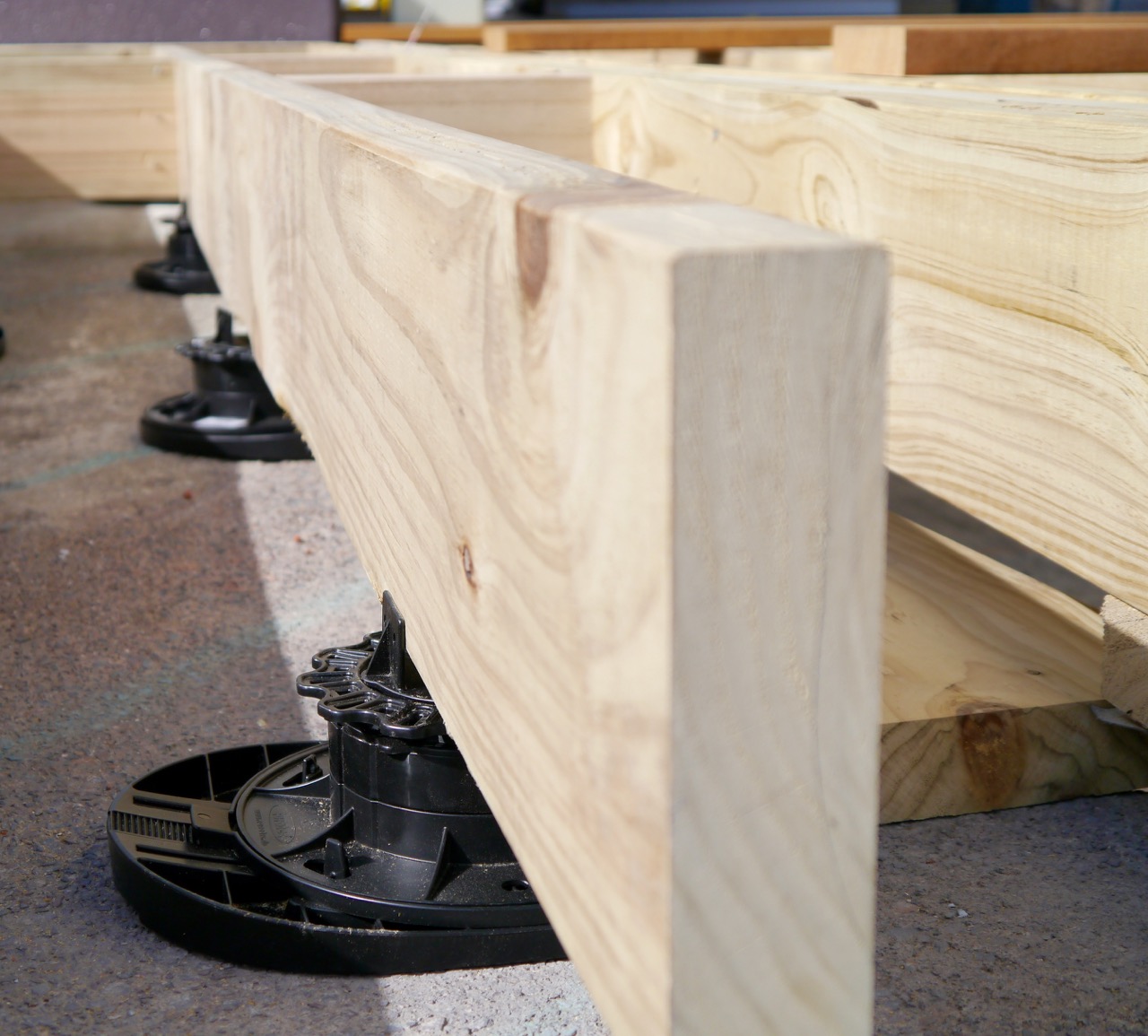

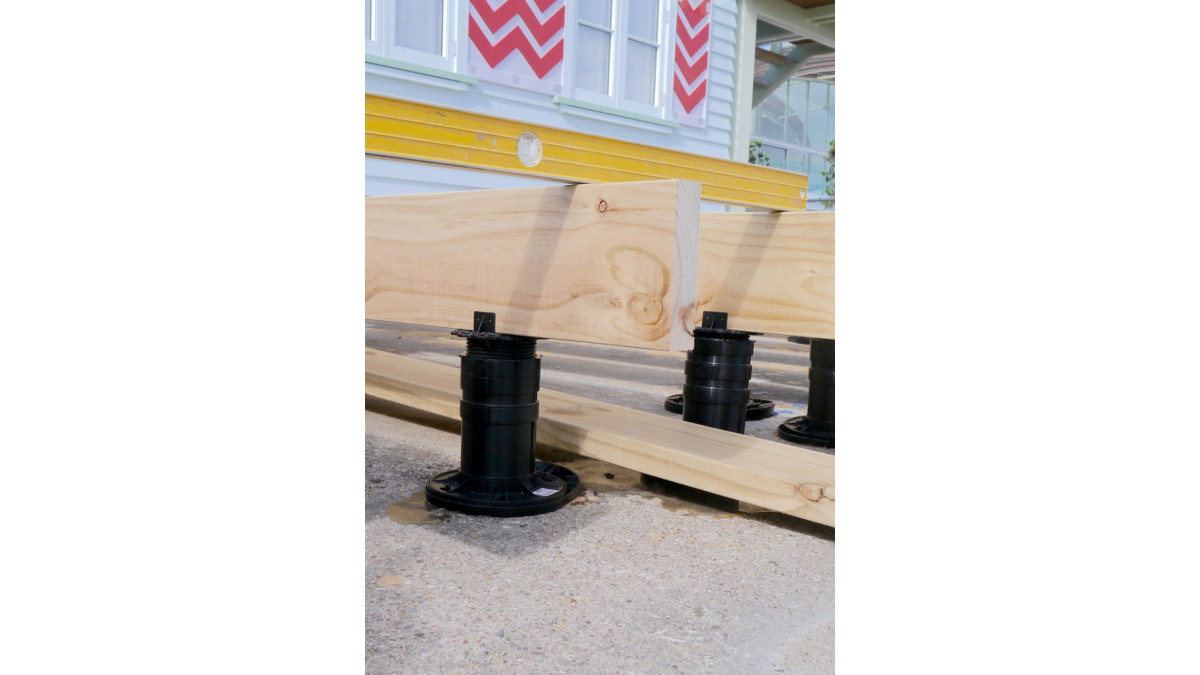

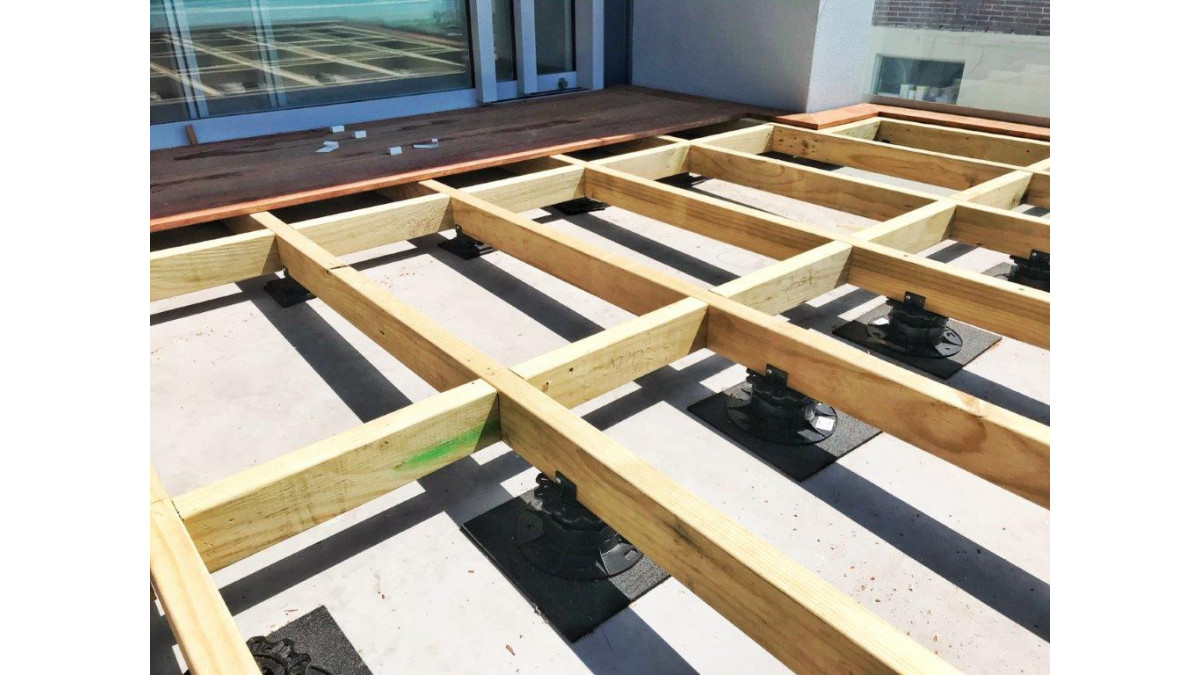

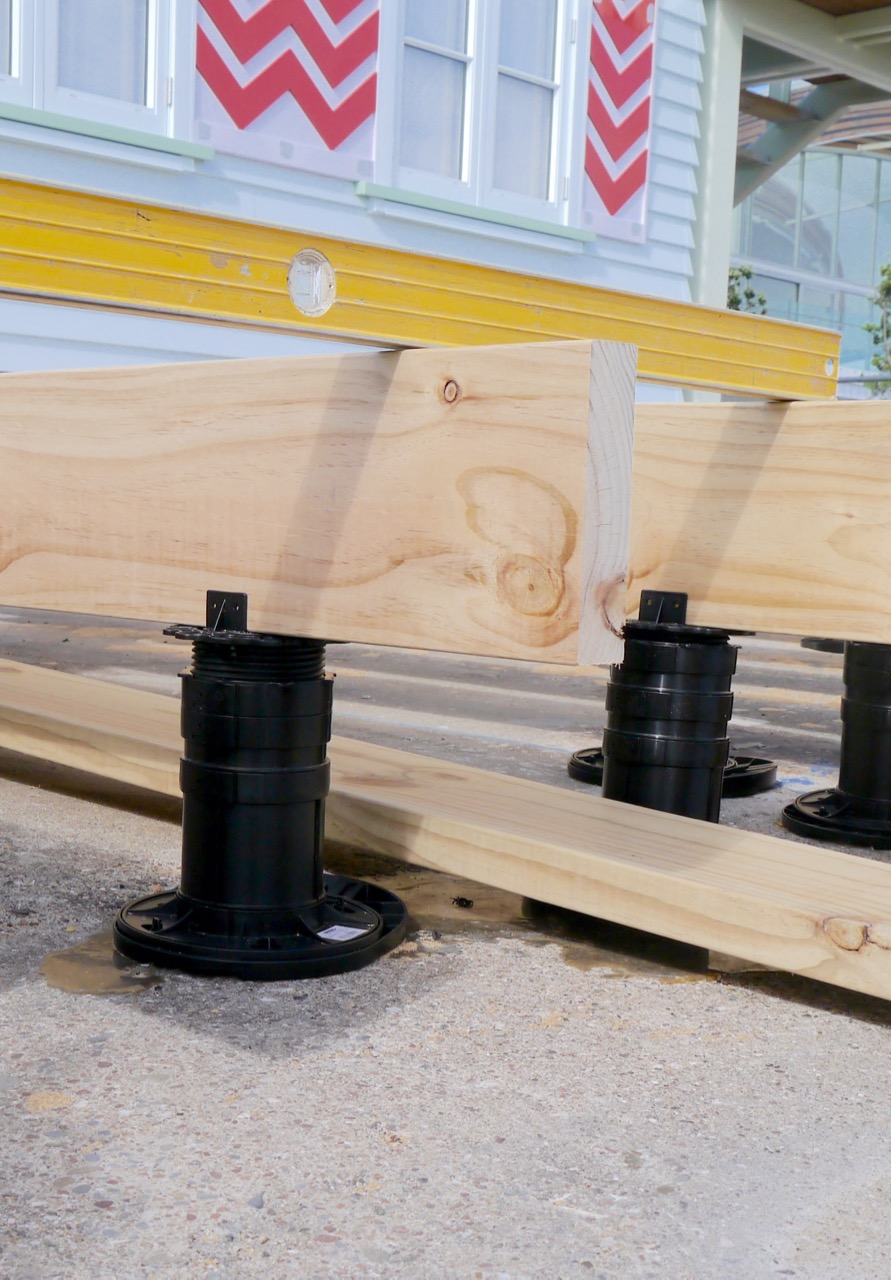

    The pedestals also work with timber joists
  • Adjustable height (range 10mm-500mm+)
  • Low profile aluminium sub-structure solution for shallow spaces beneath decks
  • Smooth transitions for water drainage, accessories and in-built design features for varying access solutions
  • The ProFoot Deck Support System relies on a stable substrate — compacted metal, paved or concrete
  • Also used on membrane decks for applications such as multi-unit residential and apartments
  • Suitable for use in coastal regions
Limitations on Use

Wind uplift and seismic movement:

  • Wind uplift has not generally been an issue, however the question is often asked. Marshall are currently working with their German supplier on a solution for any situations which may have wind uplift issues
  • EVO, EVO Slim and EVO light sub-structure systems can be assembled to allow for seismic movement/expansion (e.g. fix/ float 2 x edges) however no testing has yet been done
In-Service History

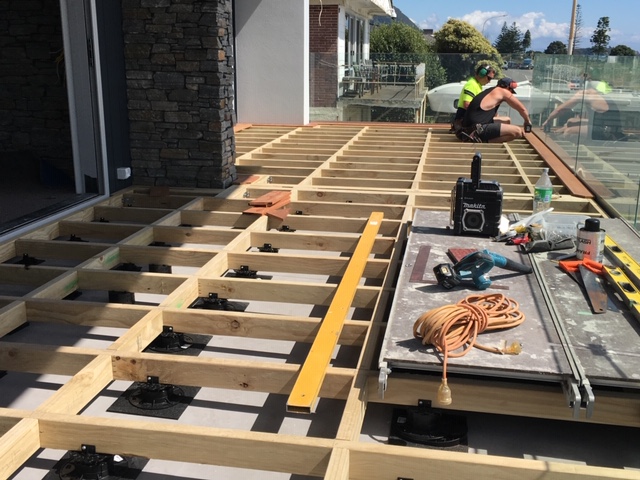

The ProFoot Adjustable deck pedestal system has been available in the New Zealand market for approximately 4 years and has been installed in several projects/ project types throughout various locations in New Zealand:

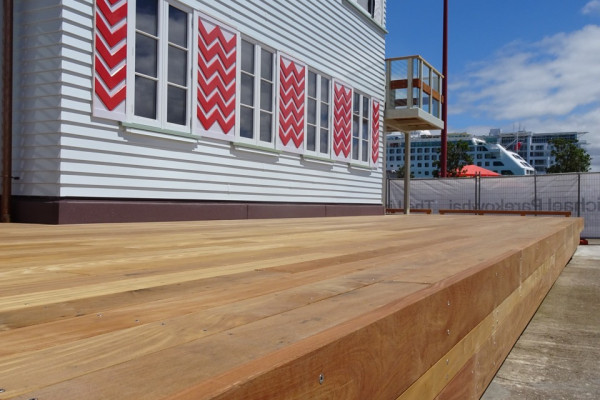

  • The Lighthouse on Auckland's waterfront

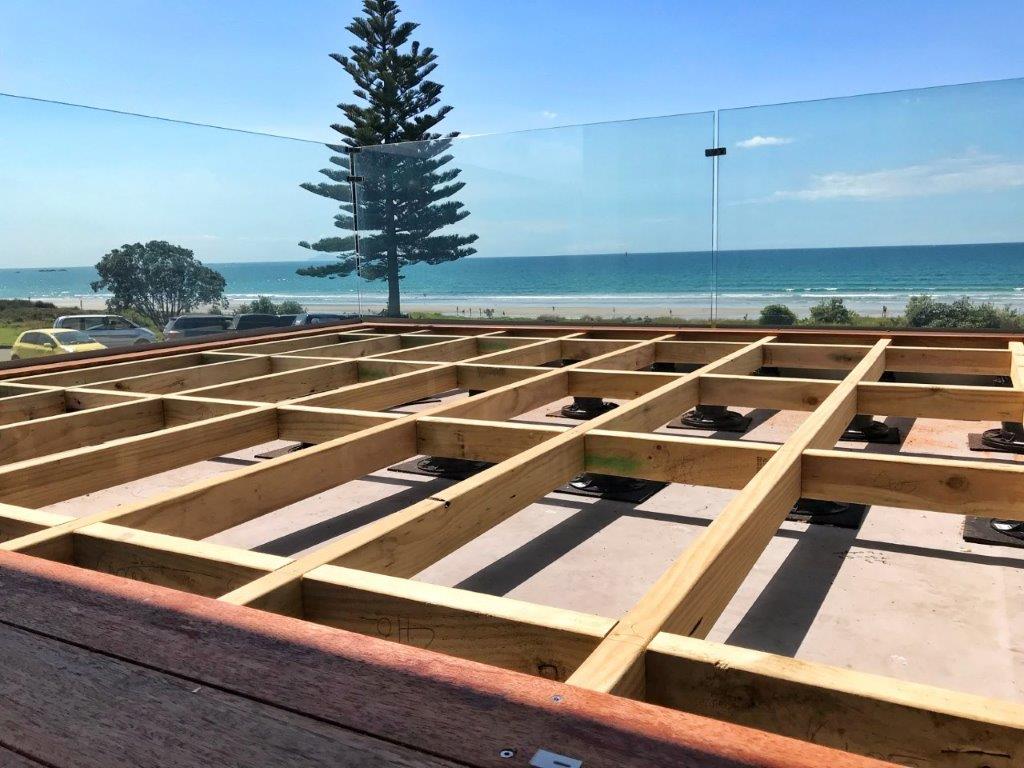

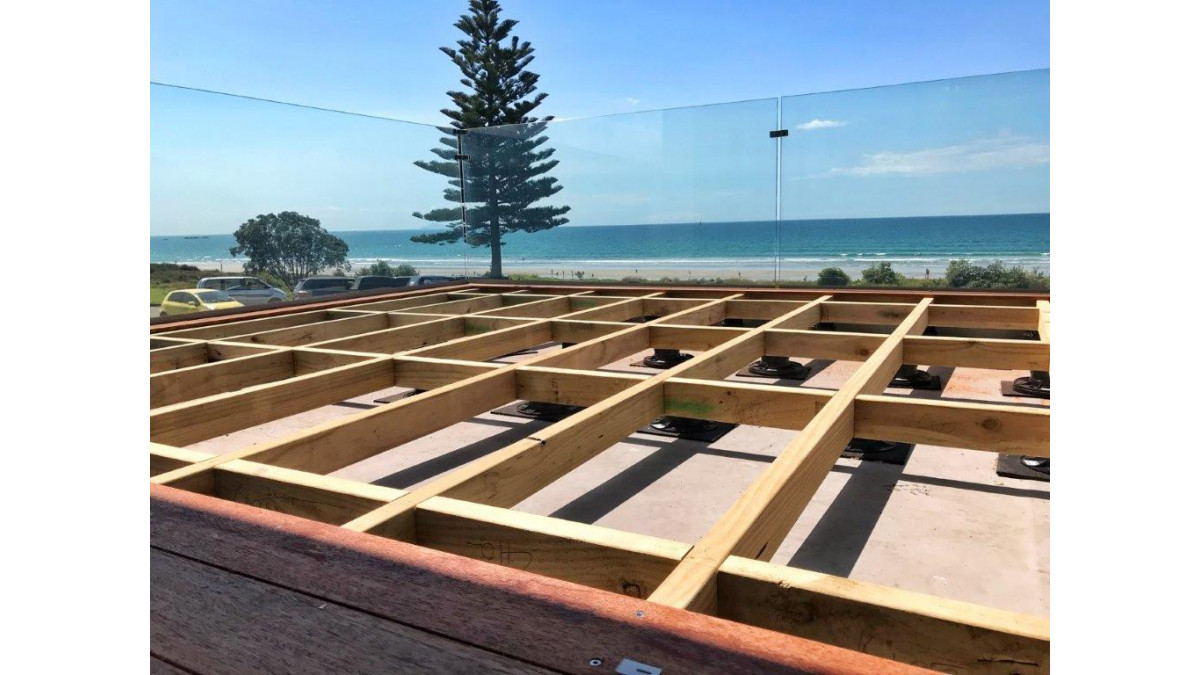

  • Coastal applications including projects in Raglan, Mt. Maunganui, Omokoroa, and Te Puke

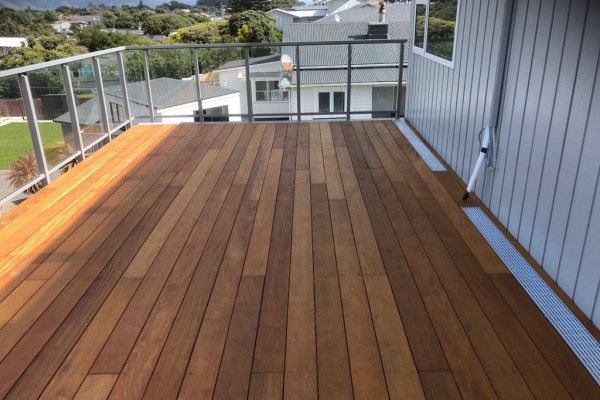

  • Numerous single-dwelling residential applications

The German system has been available internationally a lot longer and has been used in international locations such as Dubai.

Other Performance Attributes
  • Resistant to weather, UV exposure, insects, and rot
