Engineered Timber Flooring Total Installation Systems with Moisture Vapour Barrier, Acoustic and E3 Solutions
Description

Mapei Total Installation Systems for engineered, solid timber and parquetry flooring over concrete, composite timber and hybrid substates incorporating moisture vapour barrier primers for new concrete slabs with high RH residual moisture content (up to 95% reducing) and existing concrete slabs with rising damp (hydrostatic pressure).

Rapid installation includes epoxy crack repair, one-component solvent-free and rapid drying polyurethane moisture vapour barriers, 2-component epoxy moisture barriers (for rising damp) and rapid cementitious levelling systems. Adhesive options include Mapei Ultrbond Eco 995 one-component, moisture curing urethane adhesive for all types of wood flooring with Moisture-Control & Sound-Reduction.

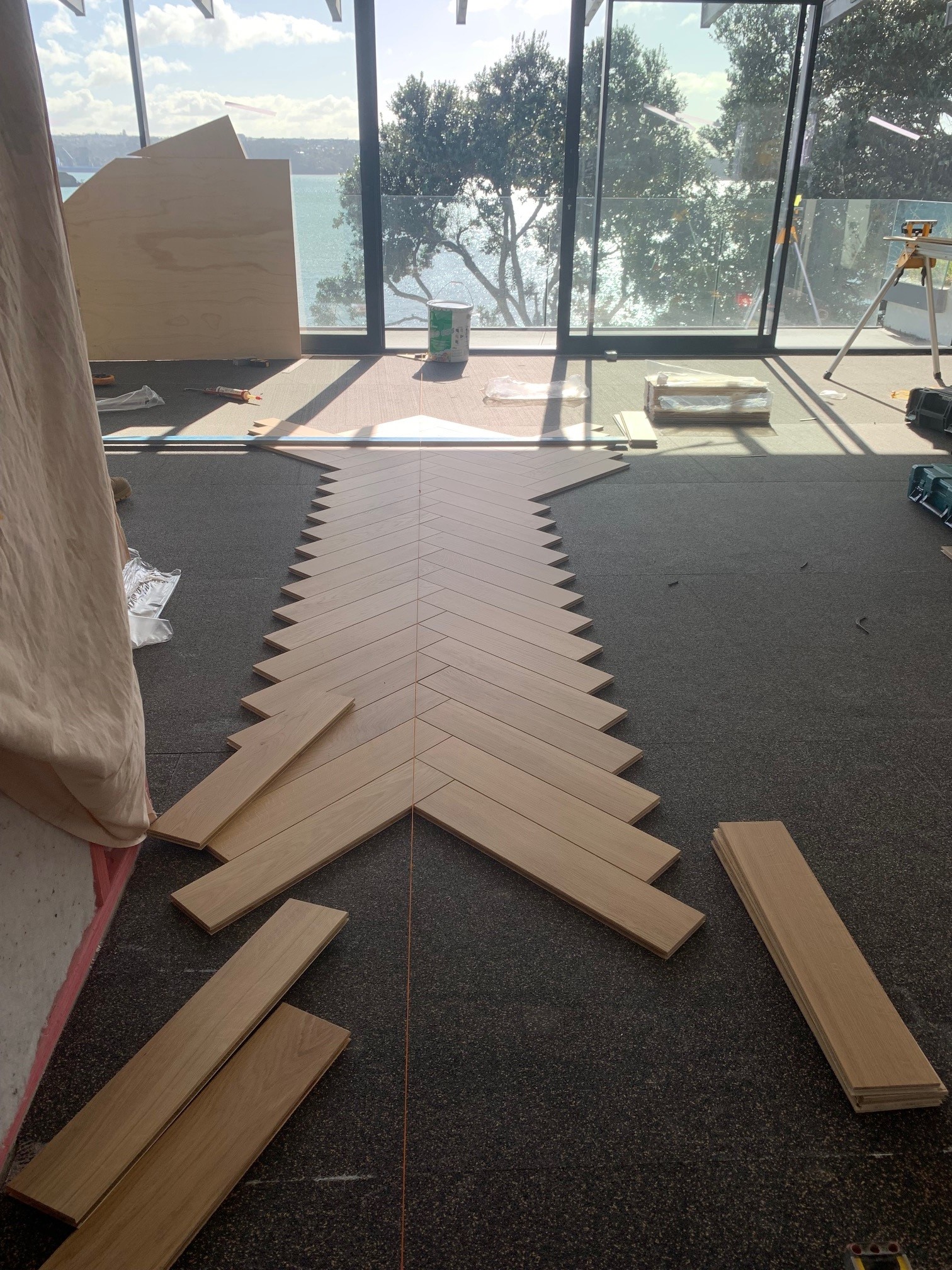

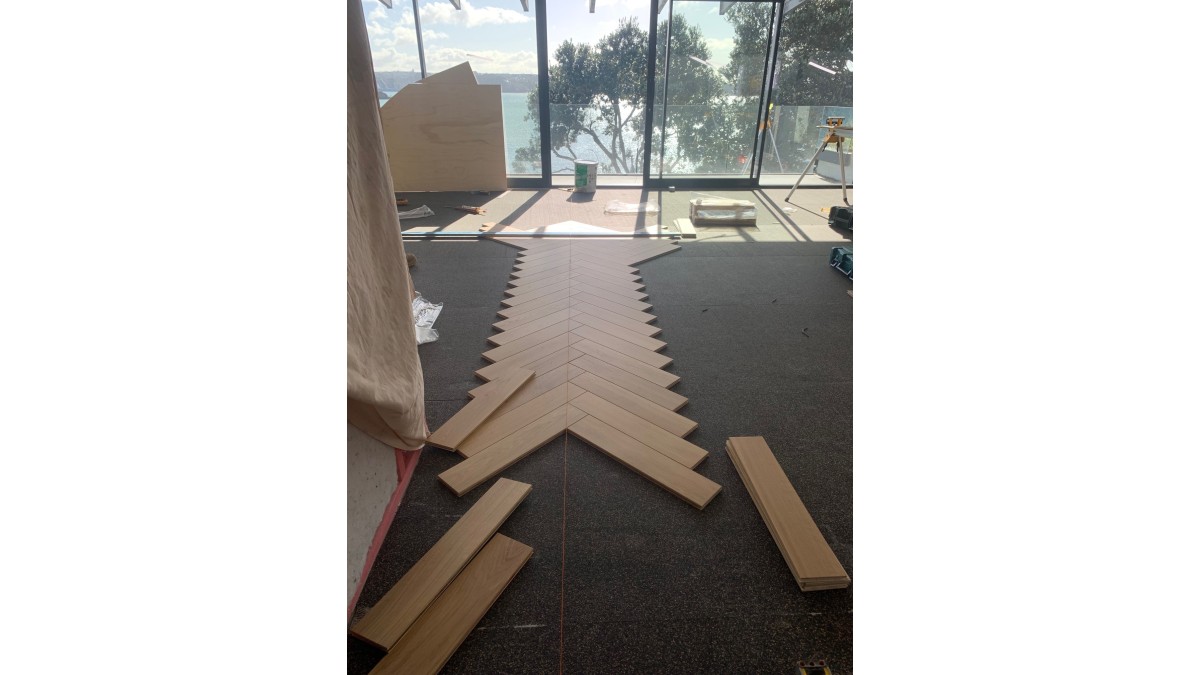

For sound reduction systems Mapesonic CR acoustic underlay is incorporated to achieve IIC ratings requirements.

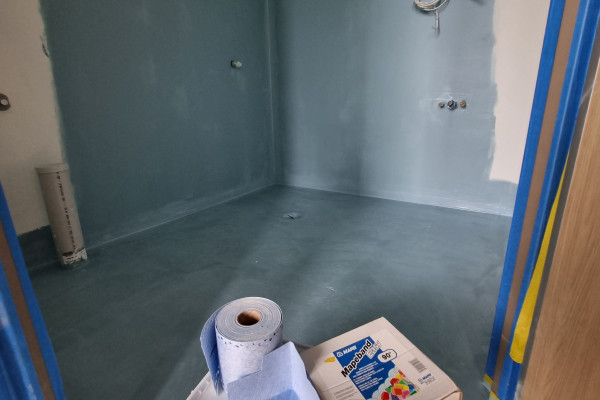

To meet Clause E3 internal moisture, systems include the BRANZ Appraised Mapei Aquadefense waterproof membrane system applied by Mapei trained and certified applicators who provide PS3 Producer statements.

Mapei Total Installation Systems MBP (NZ) Ltd Technical Representative Assistance via Masterspec PartnerNet Work Section Support in sections:

  • 6318MM Mapei Timber Floor Systems
  • 6122MF Mapei Floor Surface Preparation
Key Features
  • Mapei Total Installation Systems can be installed over most subfloor types
  • Mapei Total Installation Systems are ISO Certified
  • All Total Installation System products are LEED V4.1 Low VOC Certified
  • All Total Installation System products have Environmental Product declarations EPD's
  • MBP (NZ) Ltd Technical Representative Assistance your Specifications via Masterspec ParnerNet Work Section Support
  • Mapei Total Sytems technical document available. See Documents for: Engineered Wood Flooring Mapei Product Systems Guide and MBP-NZ-Ltd-Quick Links for Resilient Timber Products
Scope of Use
  • Mapei Total Installation Systems for engineered, solid timber and parquetry flooring over concrete, composite timber and hybrid substates encorporating acoustic underlay, BRANZ Appraised waterproof membrane system, and  moisture vapour barrier primers for new concrete slabs with high RH residual moisture content (up to 95% reducing) and existing concrete slabs with rising damp (hydrostatic pressure)
  • For commercial and residential building installations
Limitations on Use
  • For internal use only
  • Products should not be used in situations where the relative humidity, (RH) of the cementitious substrate exceeds 95% RH or has rising damp. In this case it is recommended to contact  Mapei MBP (NZ) Ltd Technical to give project specific advice. A two-component water bases epoxy moisture barrier such as Mapei Planiseal MR would be advise along with other potential remedial works such a Mapei Eporip epoxy crack repair.
  • Products should not be used in accordance with their Technical Data and Materials Safety Data Documents.
Statement of Building Code Compliance

Building Product Information Requirements Compliance Statements for all applicable products



In-Service History

Mapei systems have been used by timber flooring installers nationwide for many years in both commercial and residential installations.

Other Performance Attributes

All Mapei Total Systems are Low VOC products with the following environmental certification:

  • LEED V4.1 Low VOC Certification
  • Environmental product declarations EPDs



Documents
Engineered Wood Flooring Mapei Product Systems Guide V20124

V20124

MBP-NZ-Ltd-Quick Links for Resilient Timber Products v051223

v051223

Mapei have over 80 years of experience, with innovative quality adhesives, sealants and chemical products and systems for the building industry.
