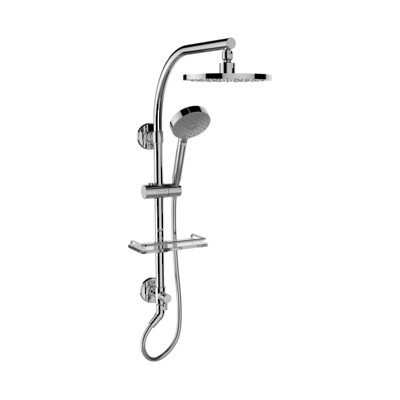

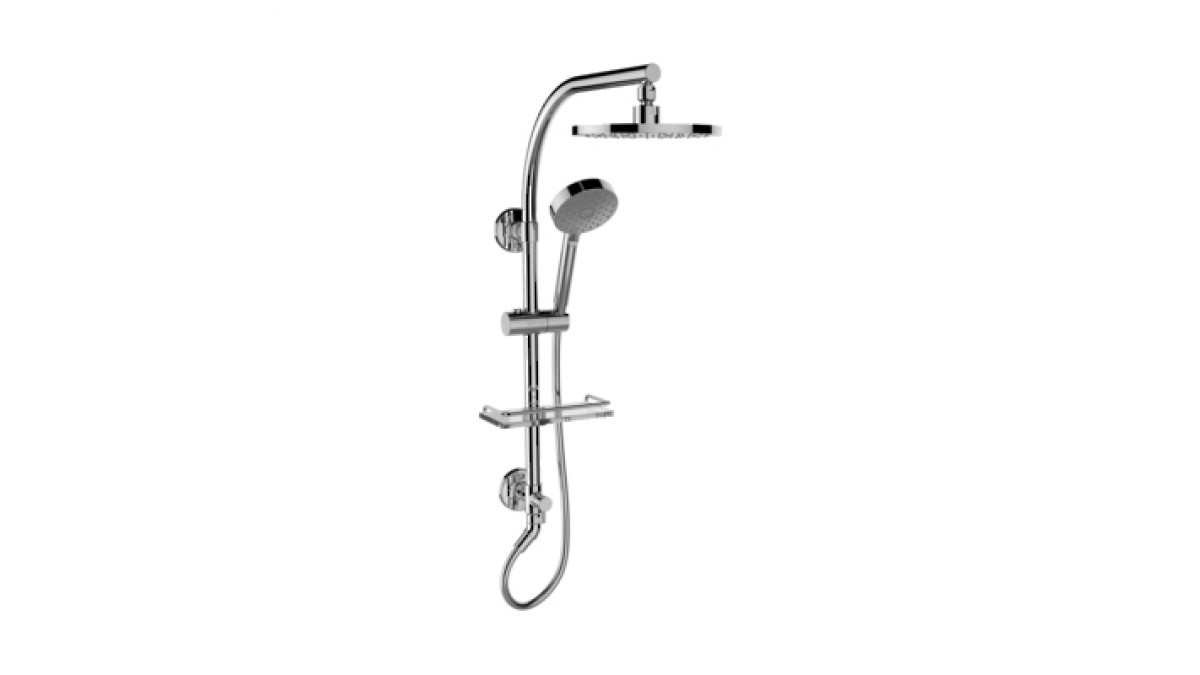

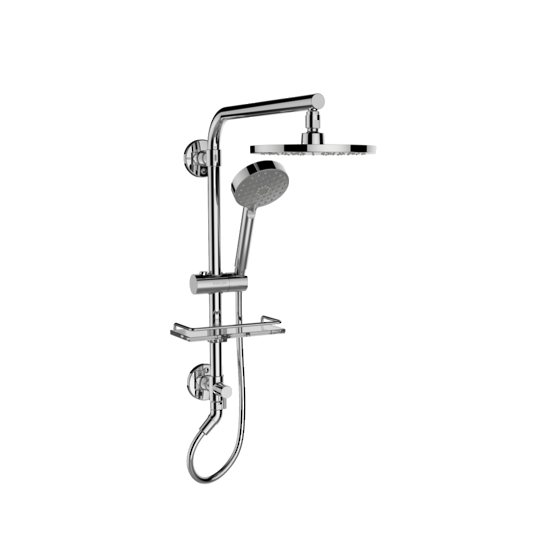

Hydrorail Rain Shower Round or Square (Standard)
Description

The ultimate renovation solution offering a modern slide rail, with or without overhead — to replace an existing fixed shower head without having to pay for behind the wall plumbing changes. Available in round or square columns, in ABS (standard) or Metal (premium) finishes.

Key Features
  • Top inlet retrofits with previous fixed shower head installations
  • Quick and easy to install, no back-of-wall installation required
  • Height adjustable slide bar bracket allows easy angle change of hand-shower
  • Diverter makes it easy to switch between hand-shower and showerhead
  • Suitable for mains pressure
  • Multi-function hand shower, single function shower head
WELS 3 Star Rating
WELS 3 Star Rating
Scope of Use
  • For use in shower-only installations with arched shower arm for increased rainhead clearance.
  • Optimum working pressure 300-500 kPa
  • Maximum working pressure 500 kPa
  • Inline filters should be used to protect tapware from debris that may be present within the plumbing
Other Performance Attributes

WELS rating:

  • Square Column — 3 Star 9 Litres/min
  • Round Column — 3 Star 9 Litres/min
Documents
Data sheet - Hydrorail Rain Shower Round Column
Data sheet - Hydrorail Rain Shower Square Column
Installation and Operation
Warranty
