• For use in hospitality and commercial spaces as well as residential
• Suitable for corrosion zone D (coastal areas)
• Suitable use in High Wind zones. With Extra High available via specific design
• Span maximum 4.3m wide, additional louvre blades can be added for variation of length
• Freestanding, or can be configured with bracing on 1 side, 2 or 3 sides

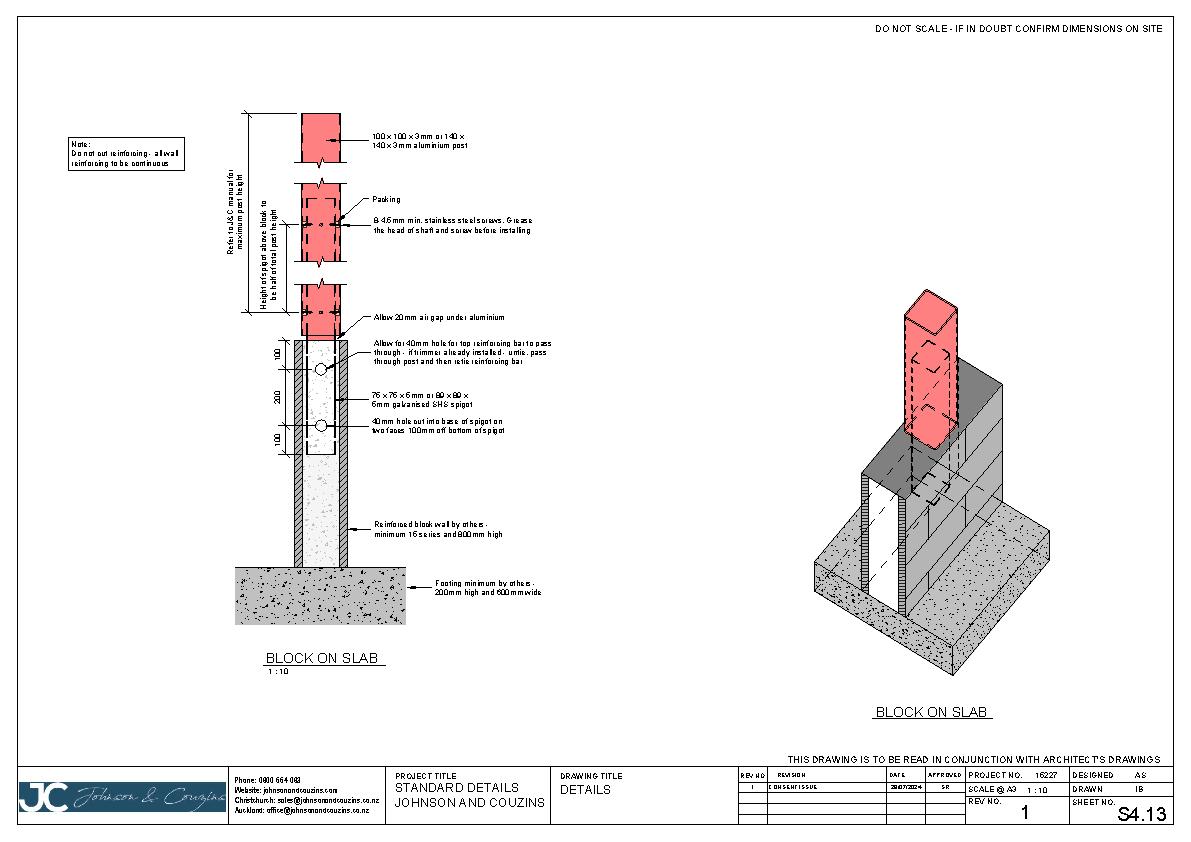

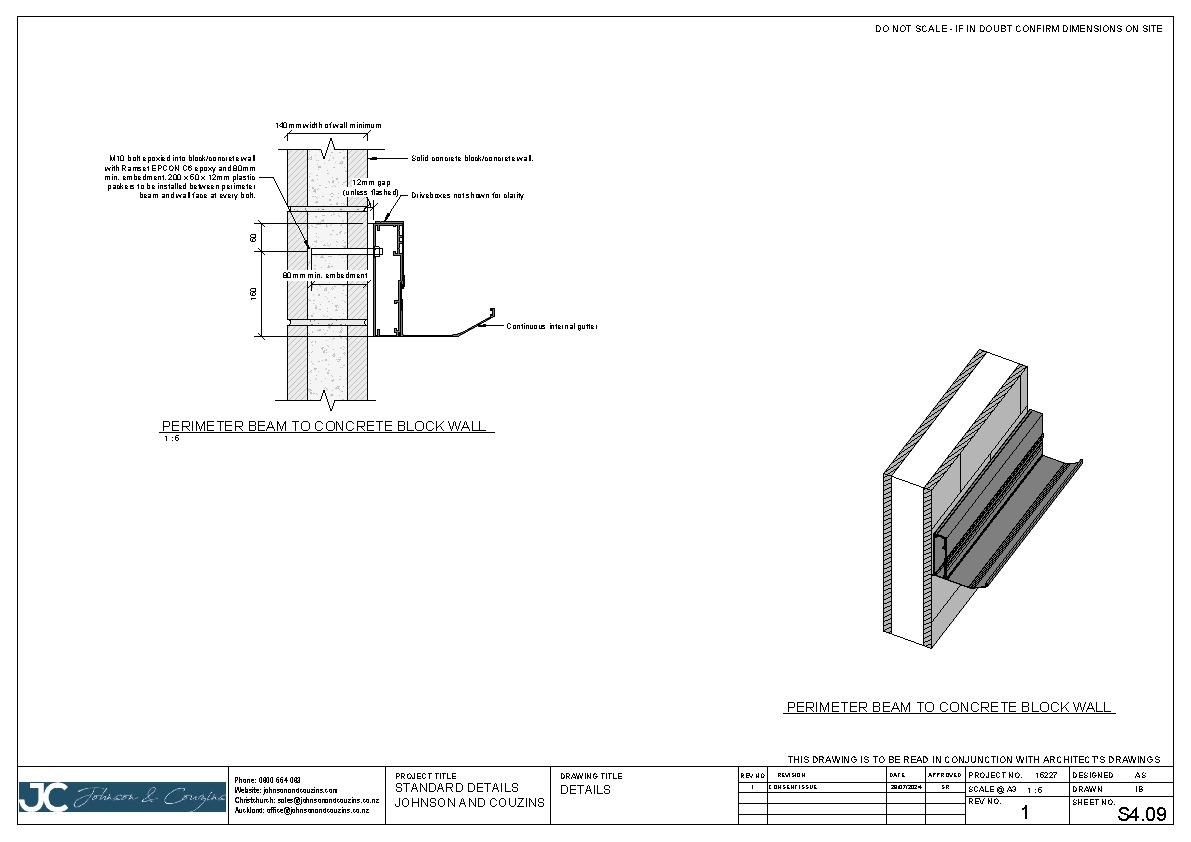

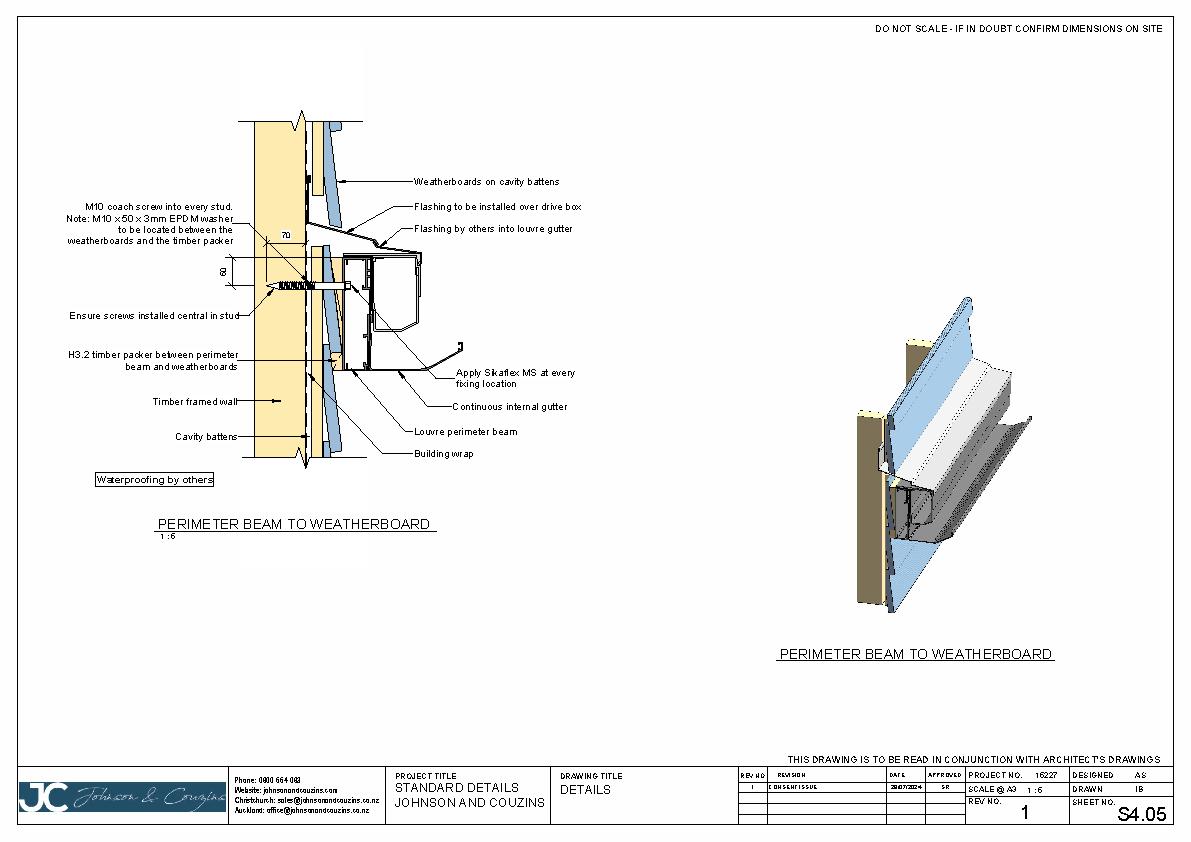

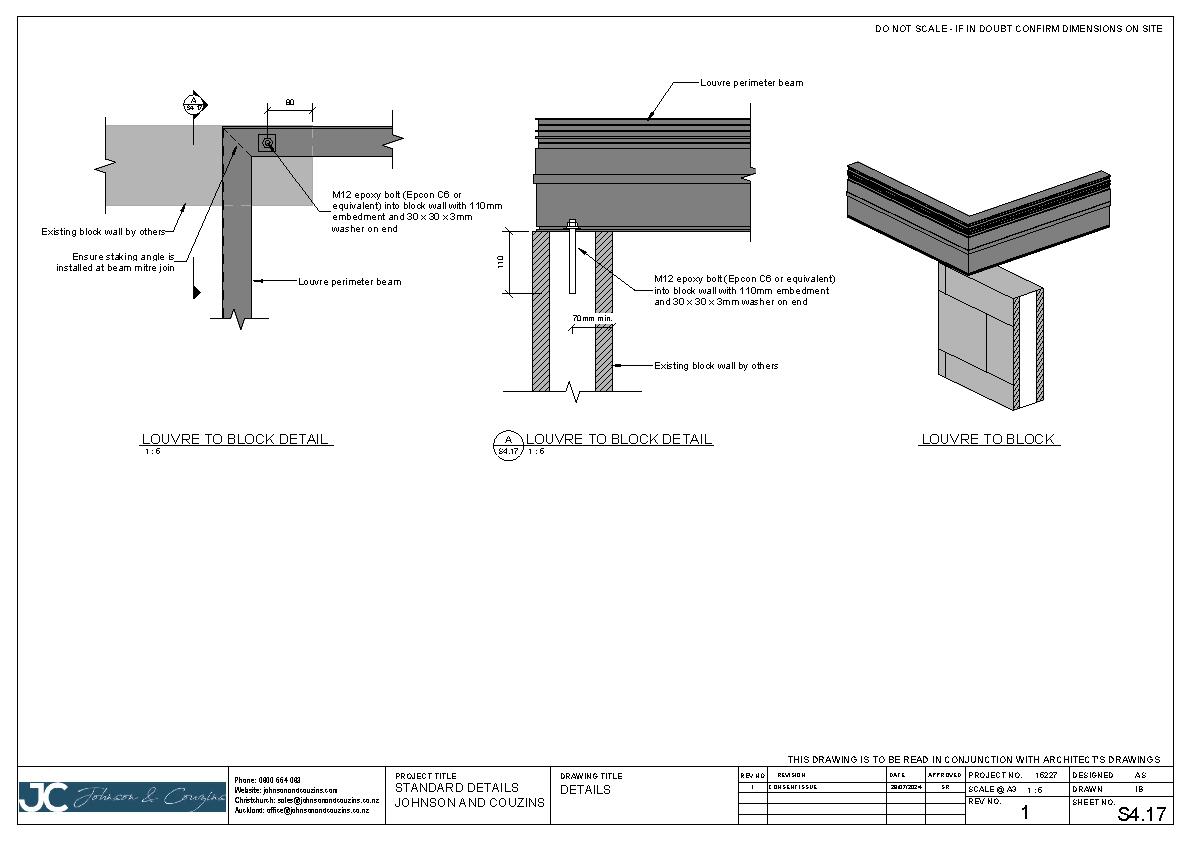

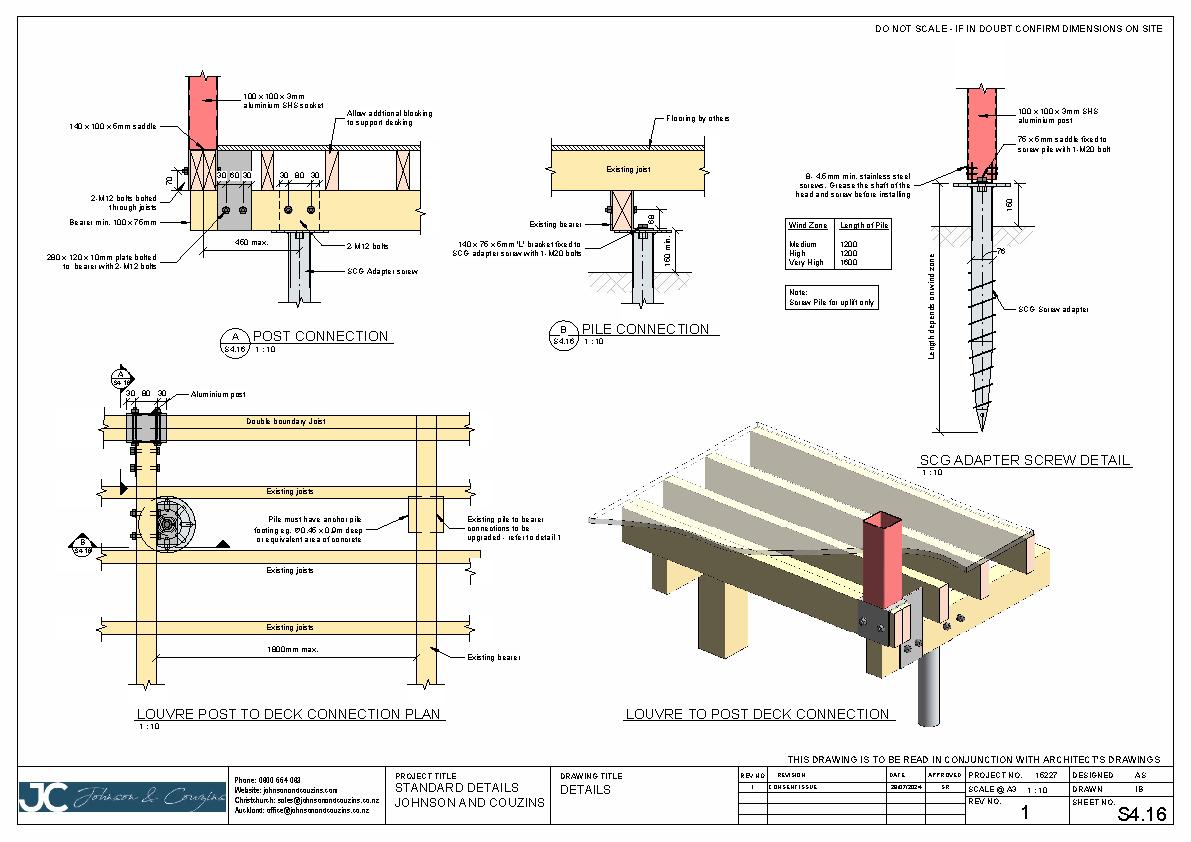

• Suitable for use on deck or patio, can connect to brick cladding, concrete block, weatherboard, and glass facades
• Johnson and Couzins design manual covers the majority of installation situations. If an installation falls outside the standard design manual specific engineering can be supplied

Bracing Options

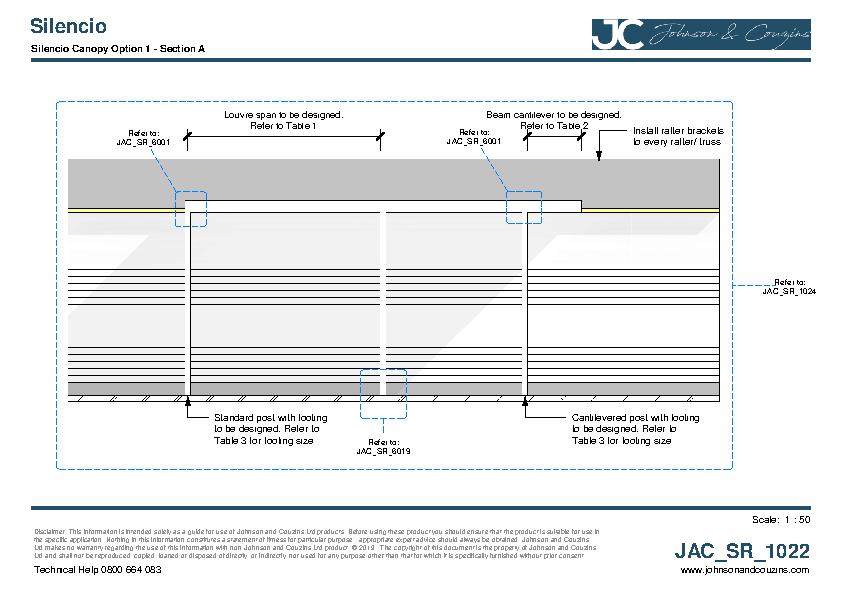

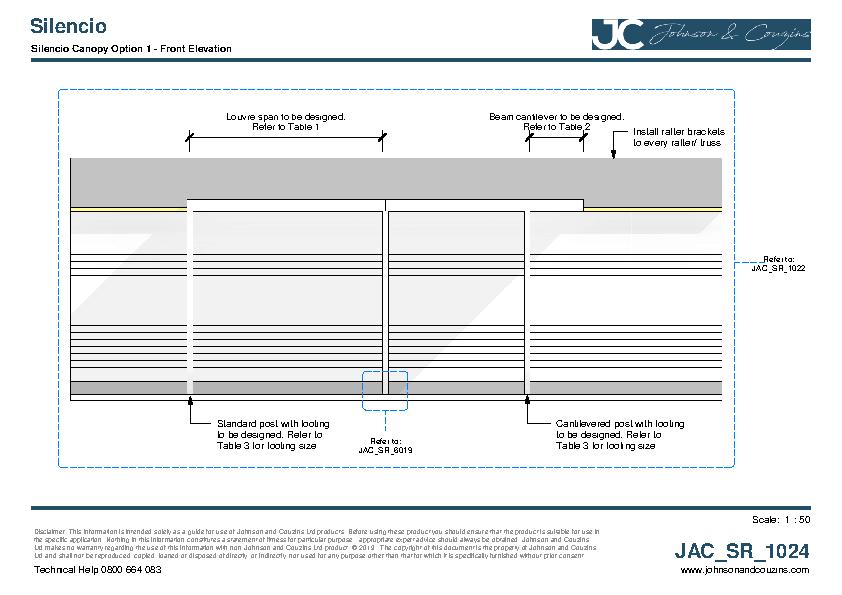

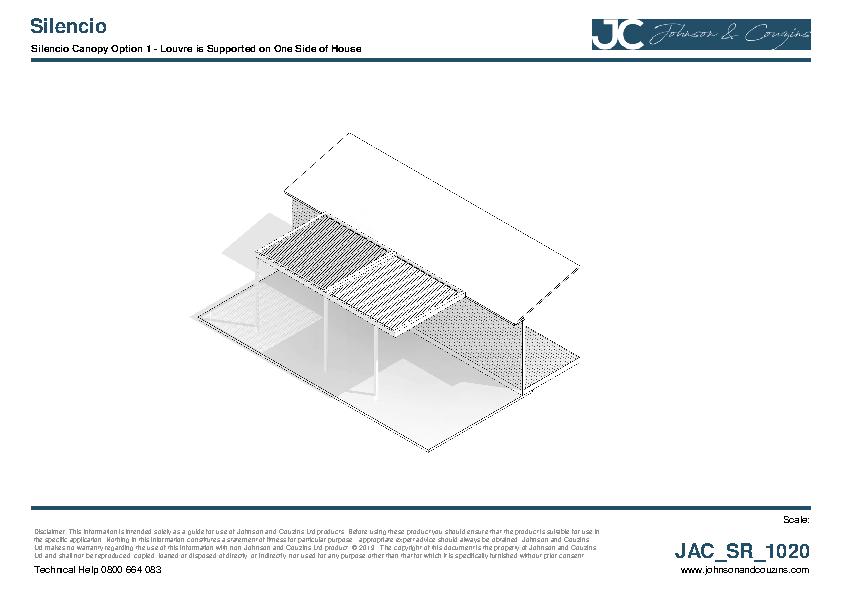

• Option 1: Single-Sided Brace — Louvre is supported by building on one side

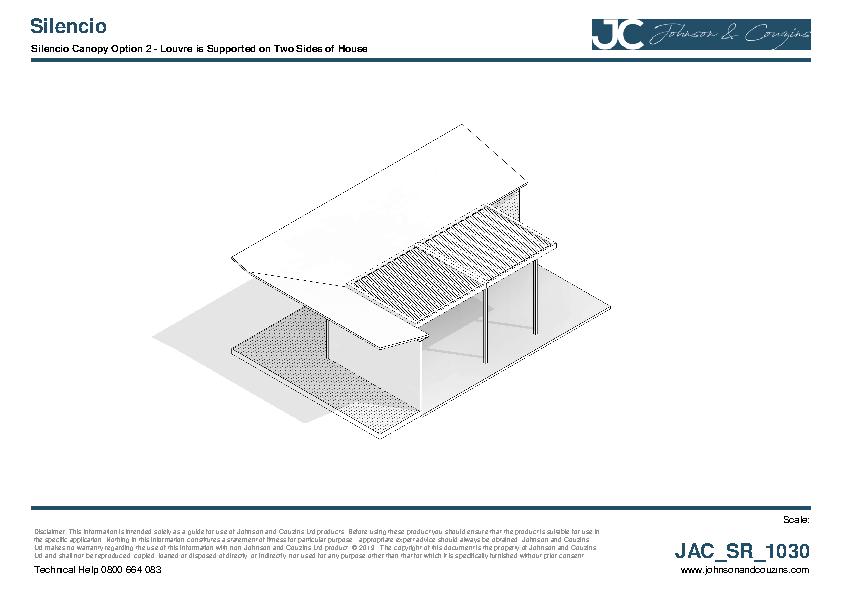

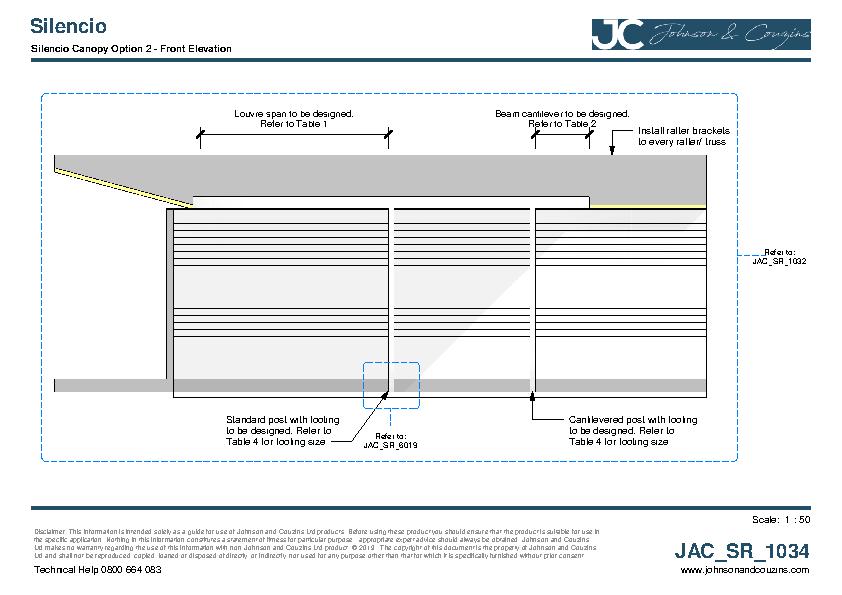

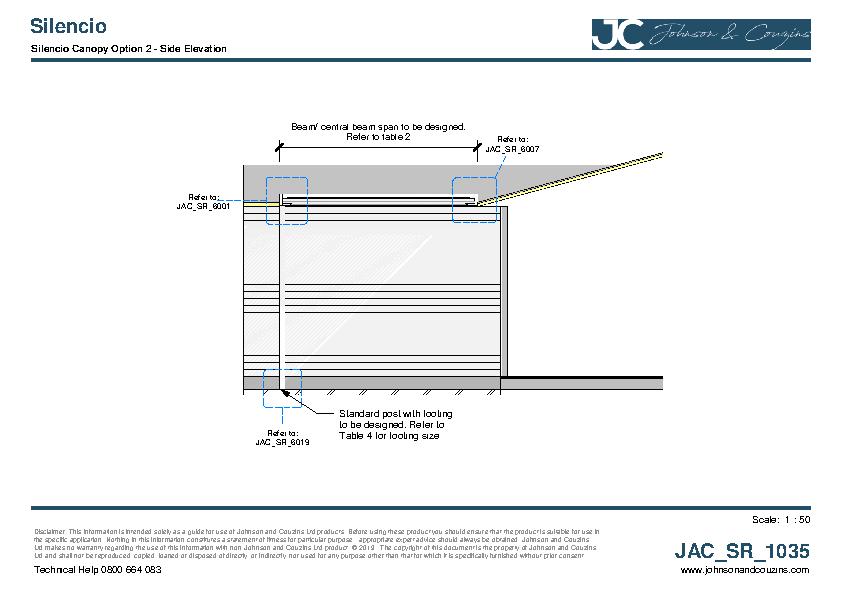

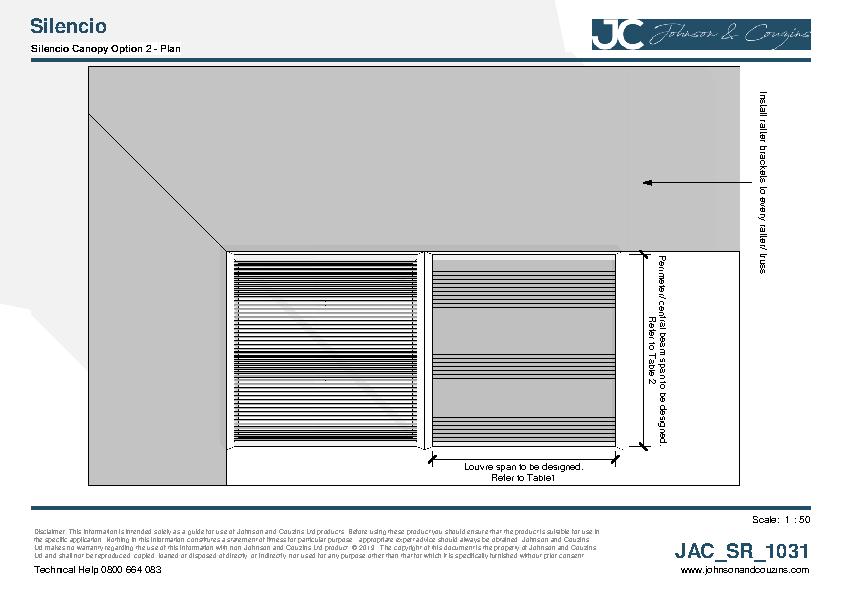

• Option 2: Double-Sided Brace — Louvre is supported on two sides

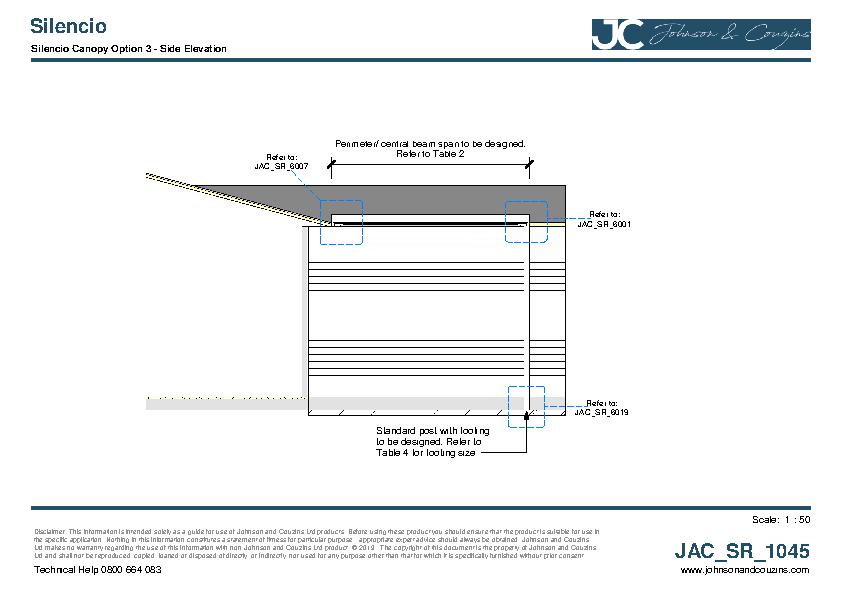

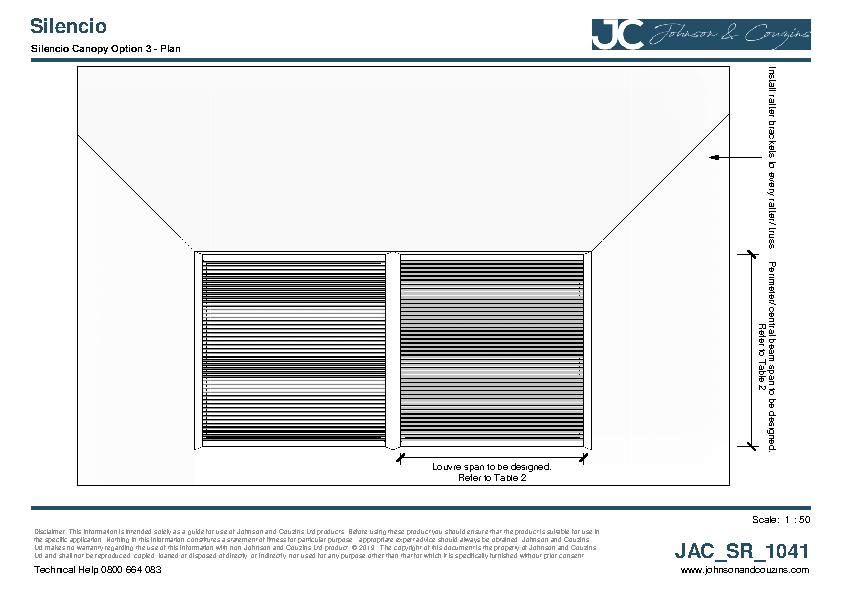

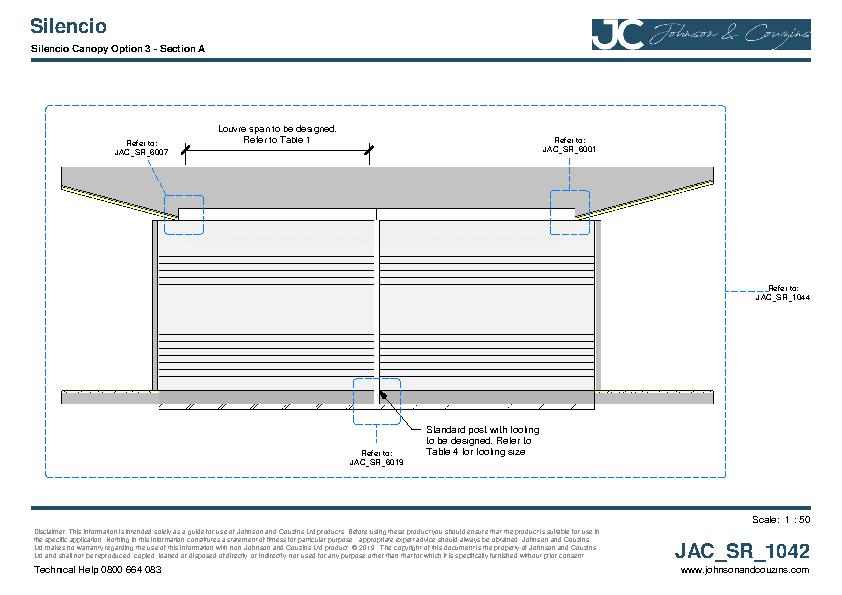

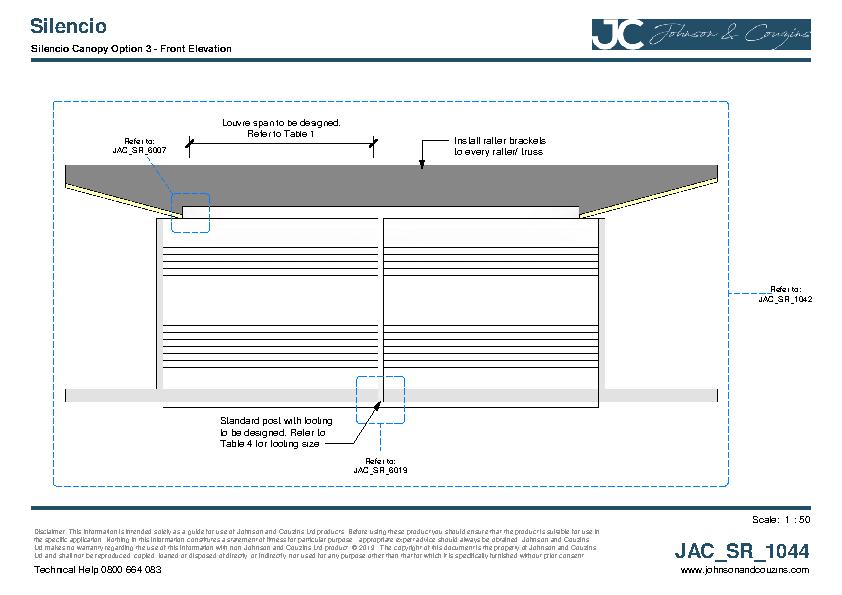

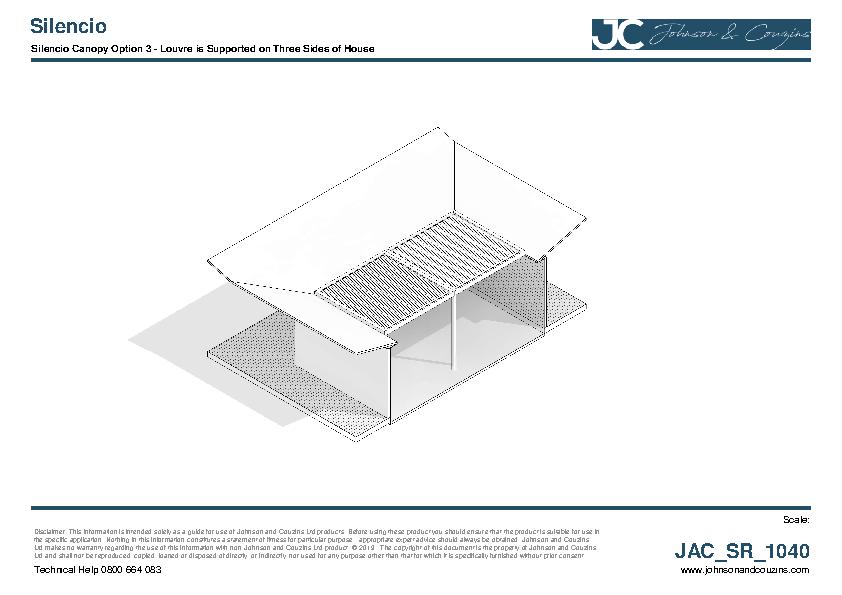

• Option 3: Triple-Sided Brace — Louvre is supported on three sides

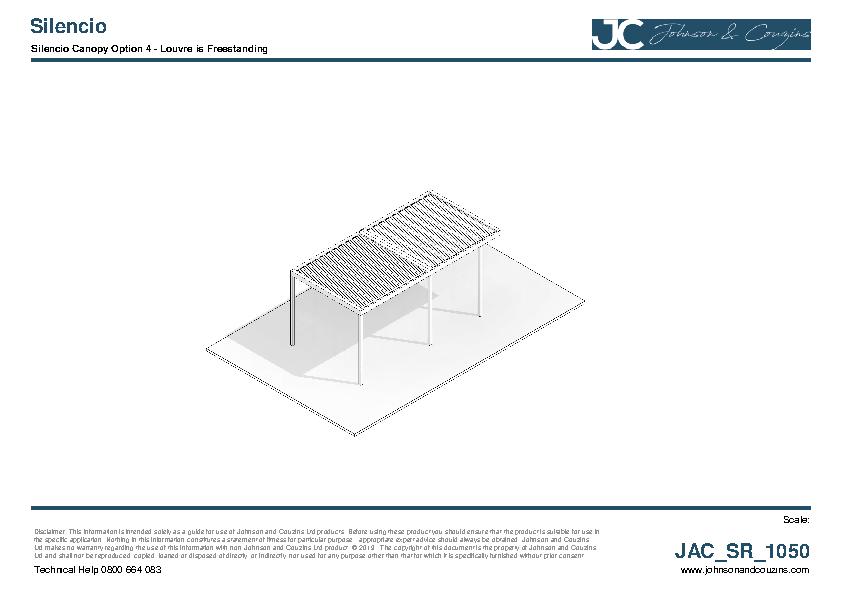

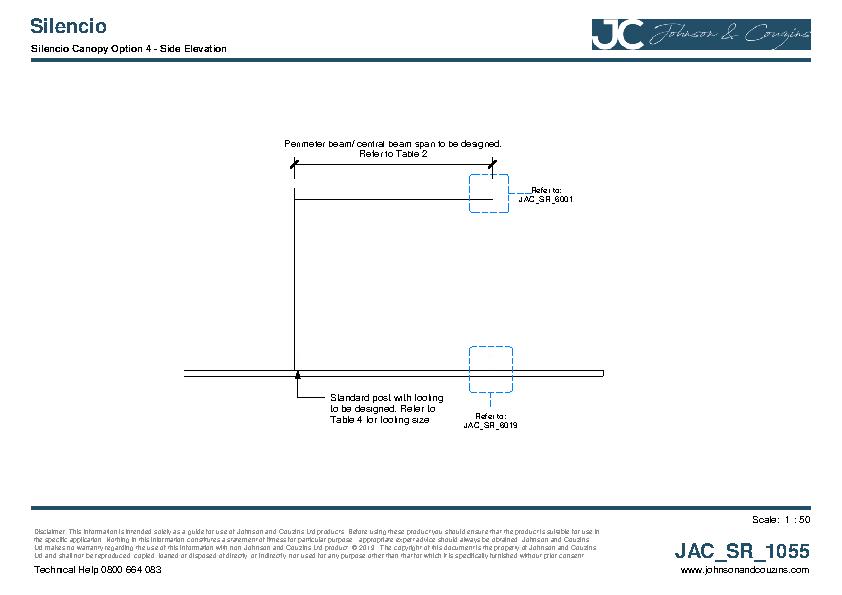

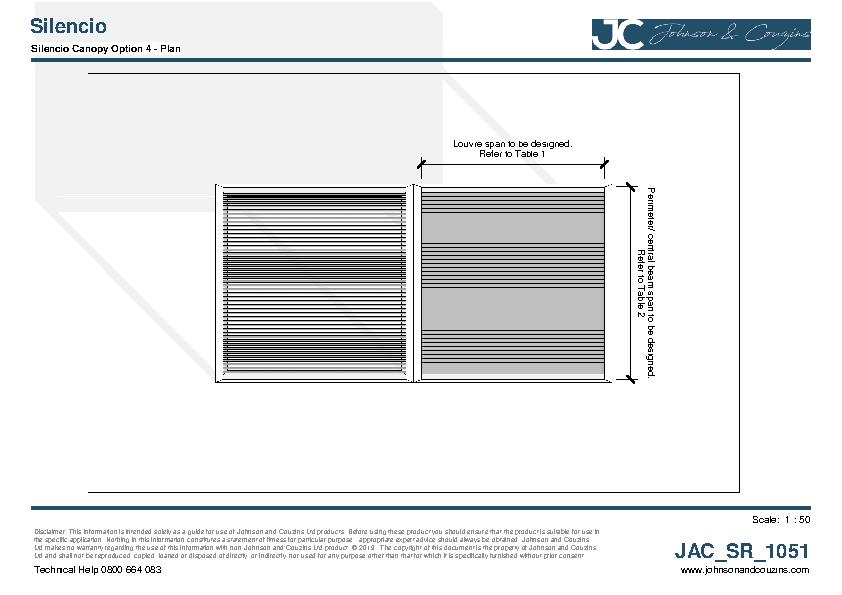

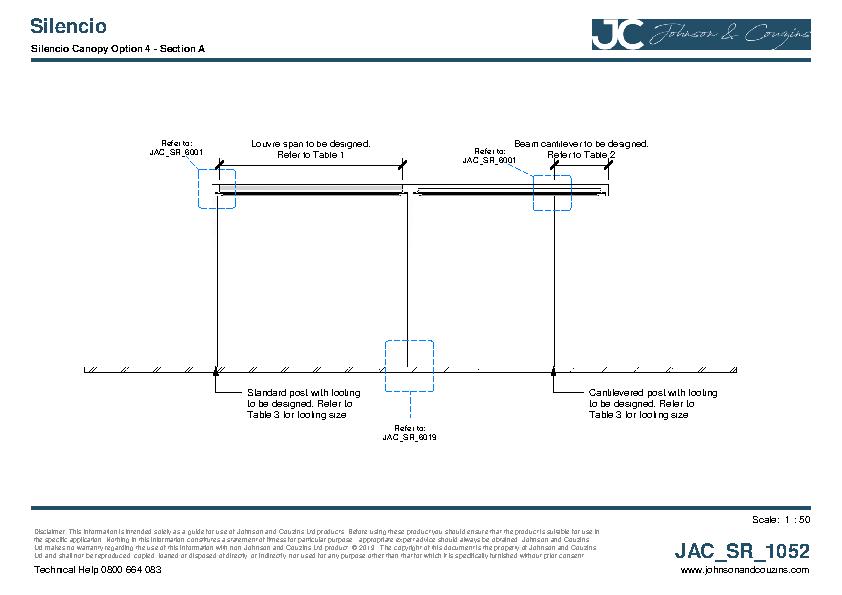

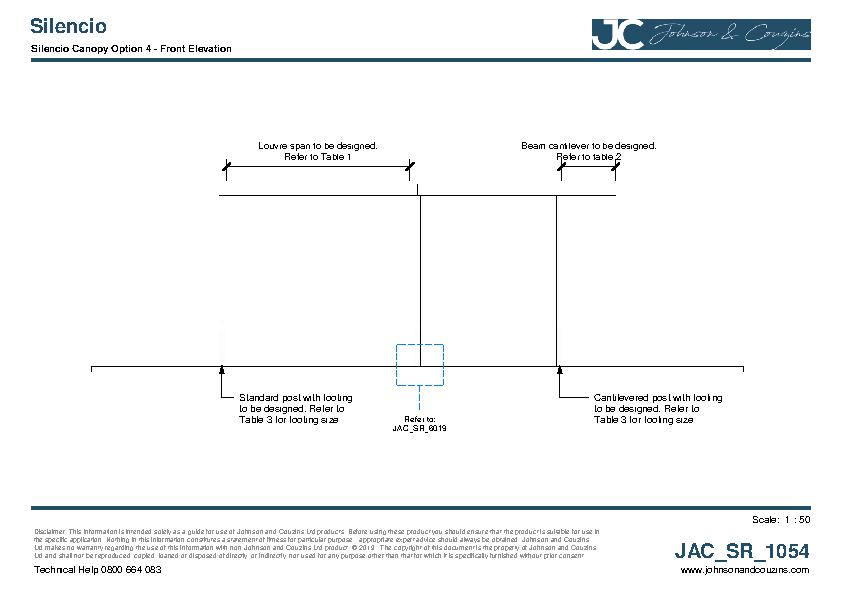

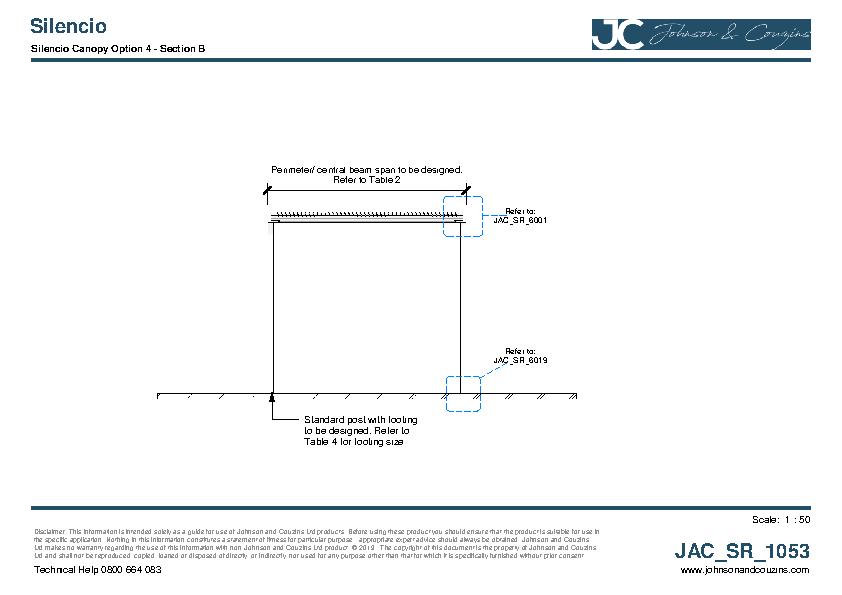

• Option 4: Freestanding

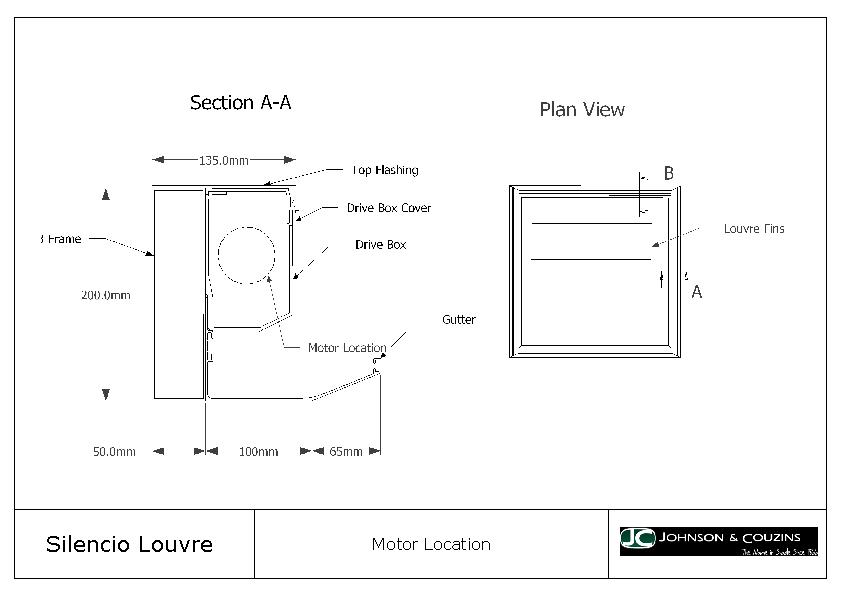

• Frame height is 200mm. Service gap of 100mm is required for installation

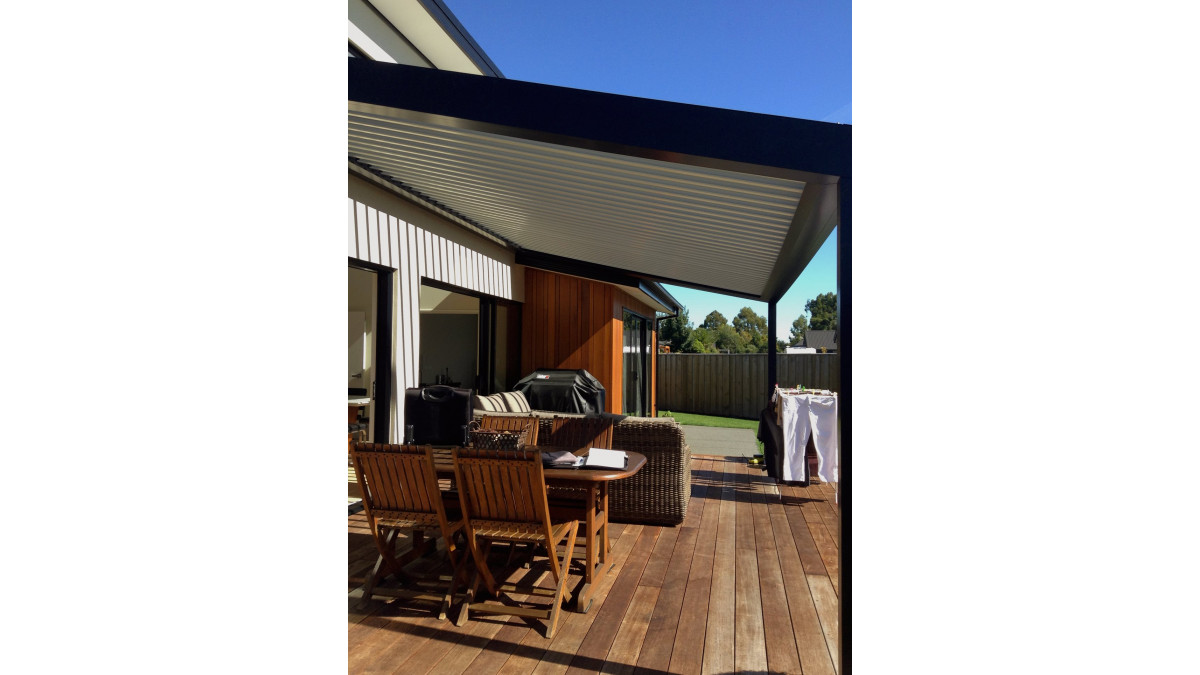

• Slope maximum applies, please contact for further information
• Design must be in accordance with Johnson & Couzins' Concertina Louvre Design Manual and installed by an approved installer
• Additional motor will be required for extensions beyond 6m

• Concertina Louvre is compliant with New Zealand Building Code Section B1 Structure
• Wind speed design in accordance NZS3604:2011
• Snow and associated pressure designed in accordance to AS/NZ1170.2:2011
• Sectional capabilities as per Aluminium Structures  AS/NZ1664.1:1997
• Stainless Steel sections as per Steel structures NZS3404.1:1997

• 3 year warranty
• Powdercoated by a Dulux  accredited applicator
• All engineering done independently by Richards Consulting Engineers
• Licensed Building Practitioner on staff
• Aluminium extrusion standard — AS/NZS 1866:1997
