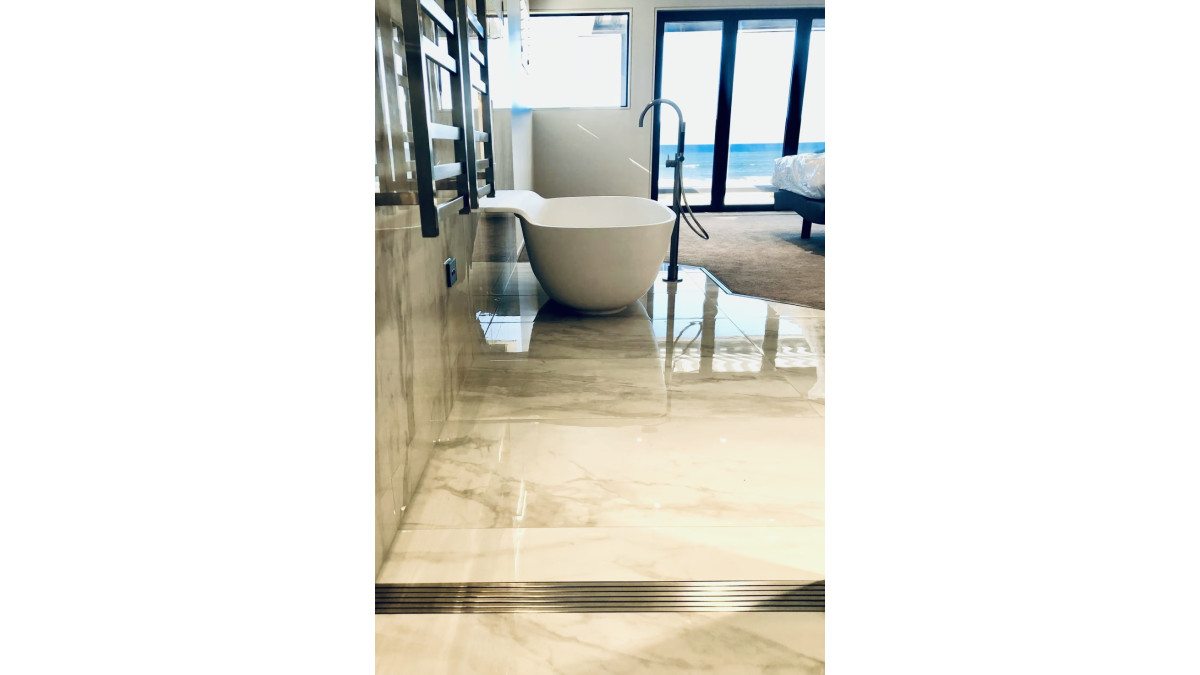

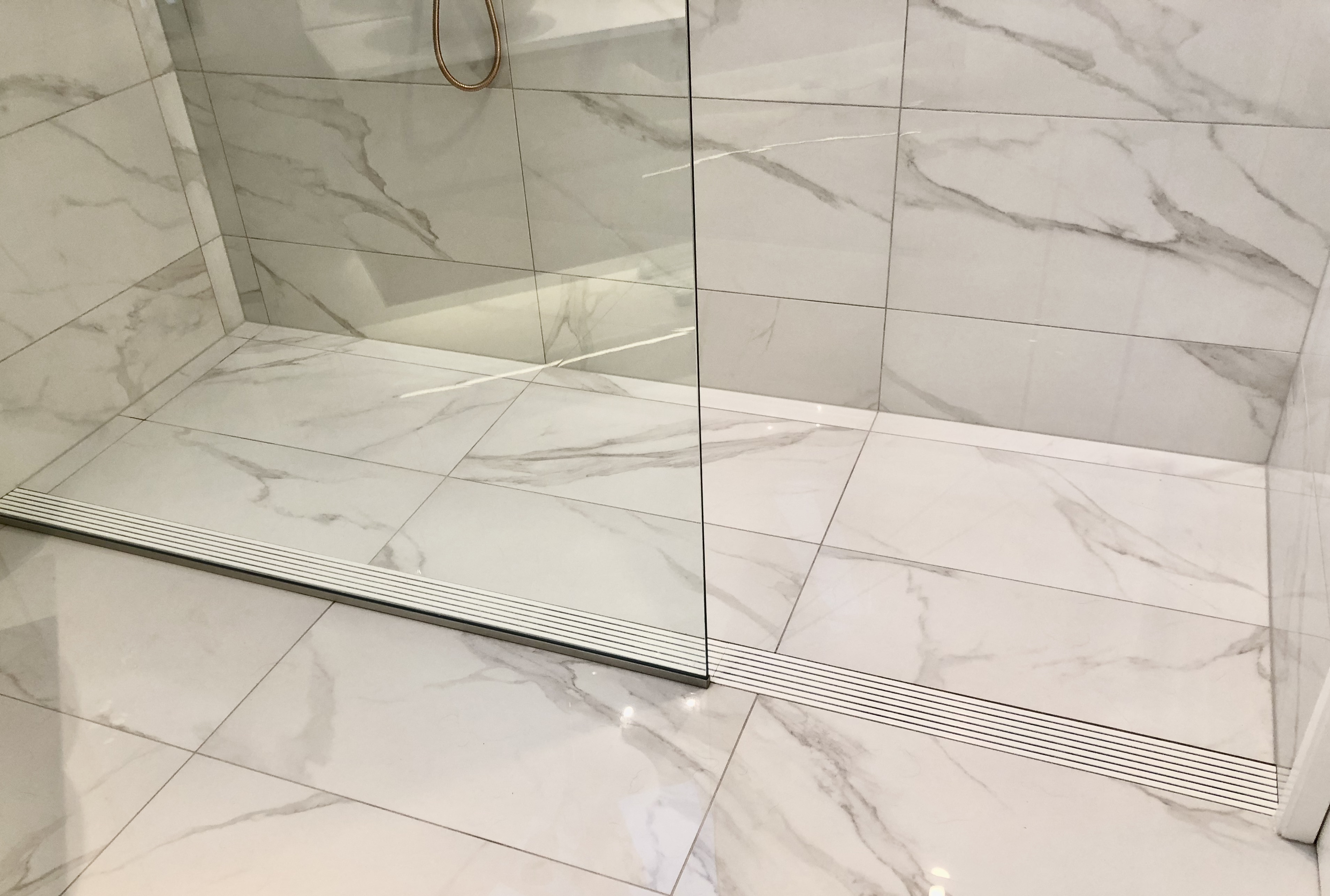

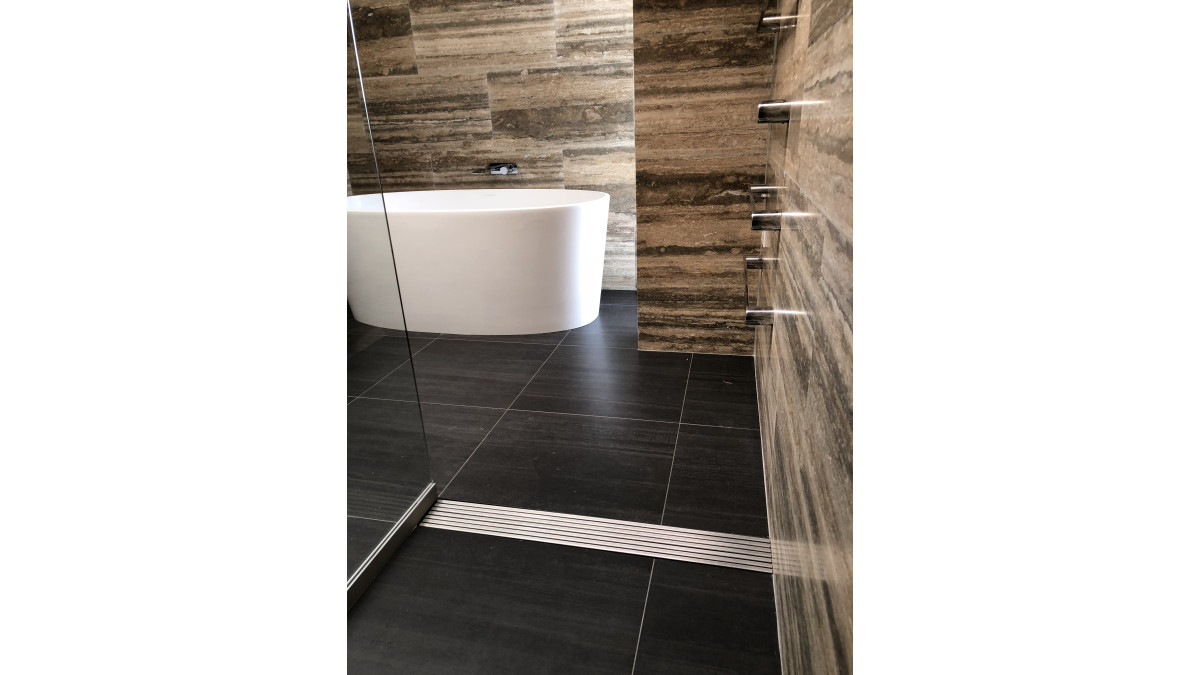

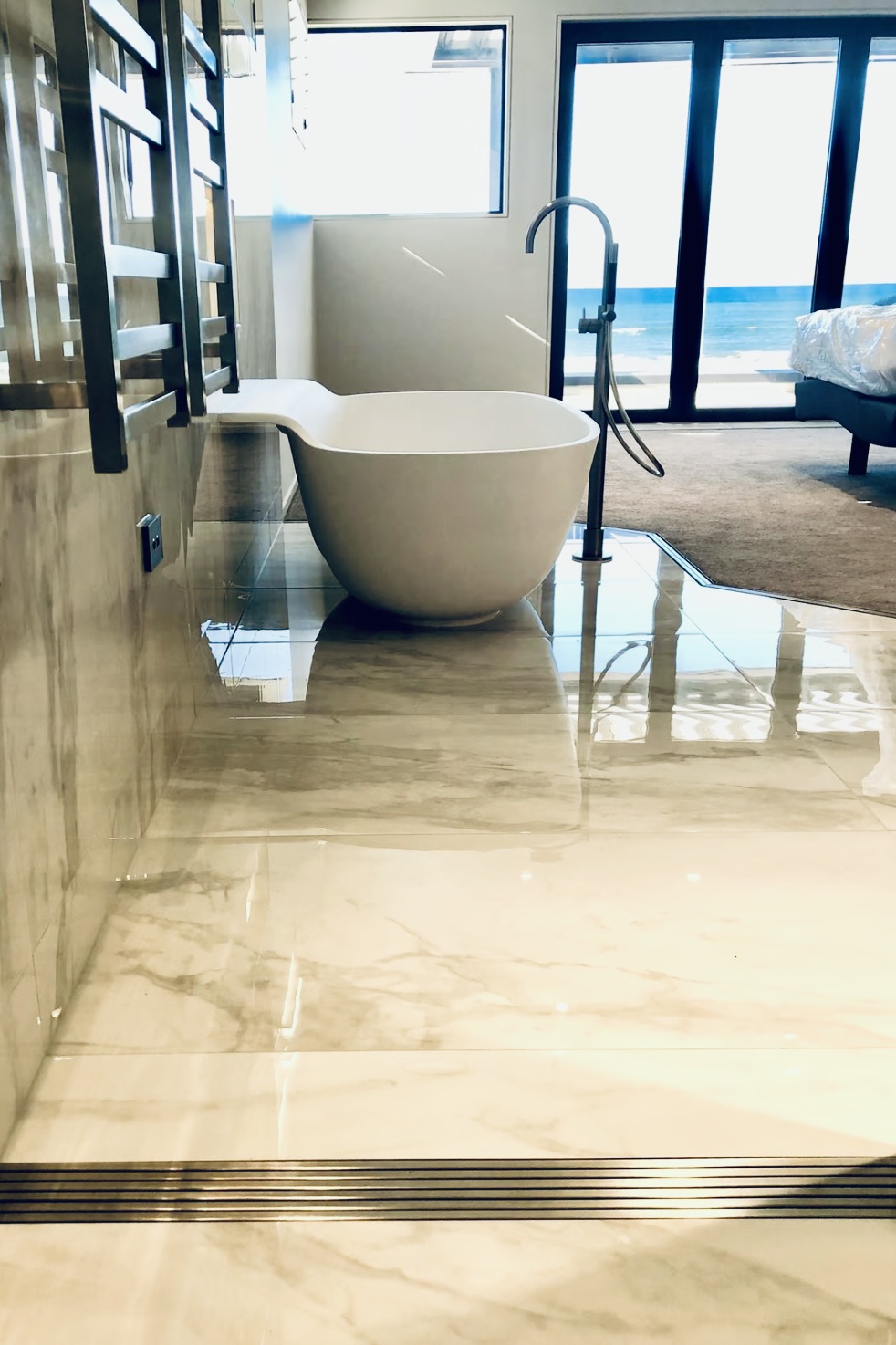

Redefining Level-Entry Wetroom Design with JESANI

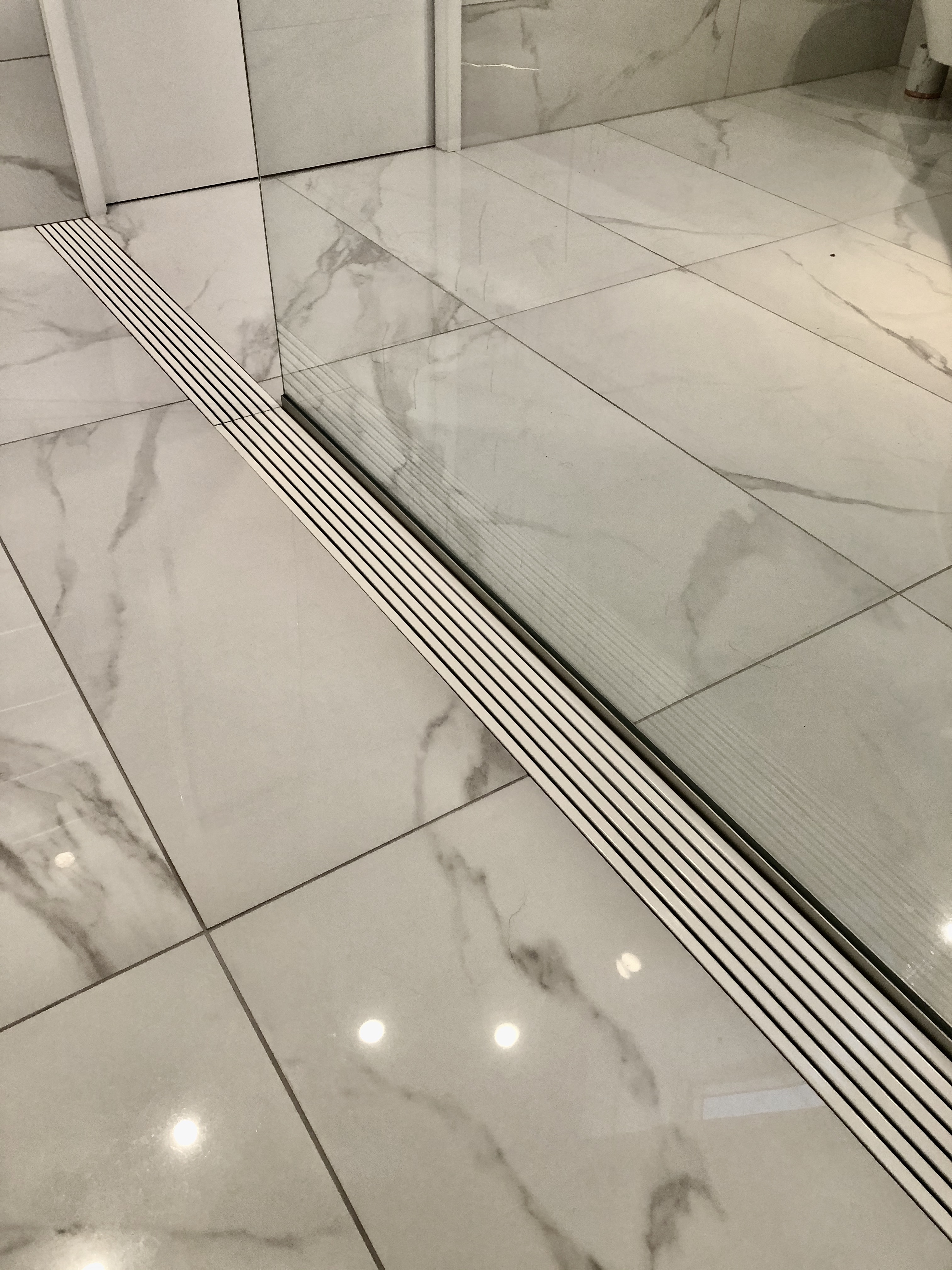

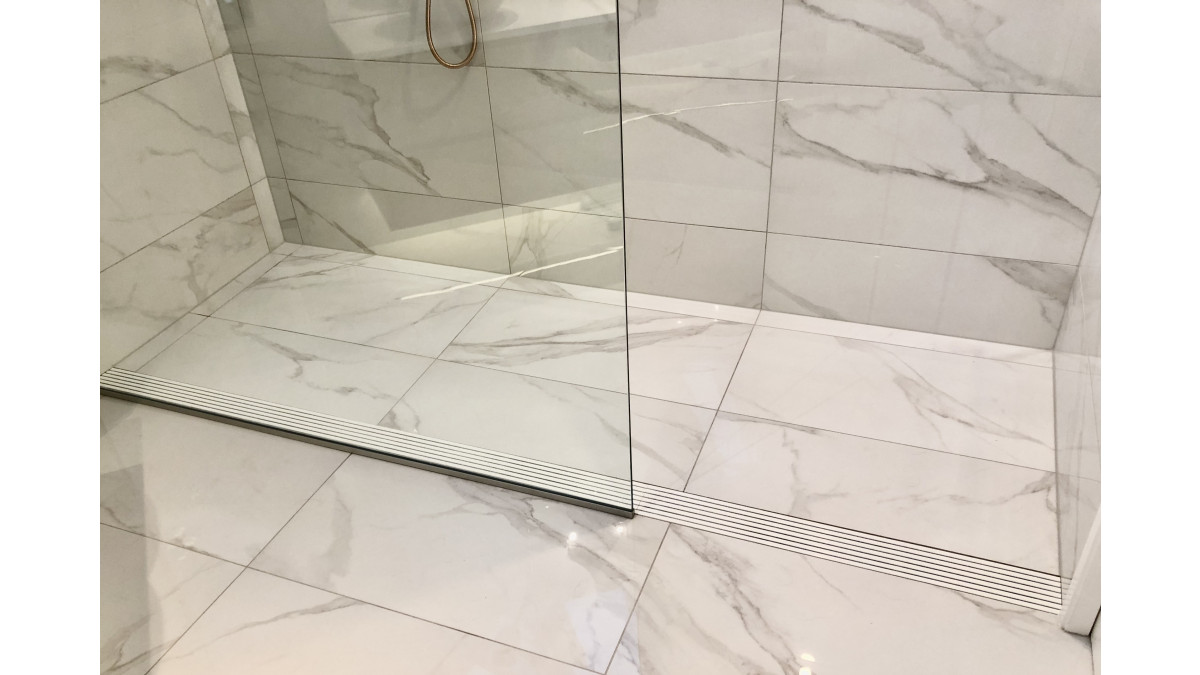

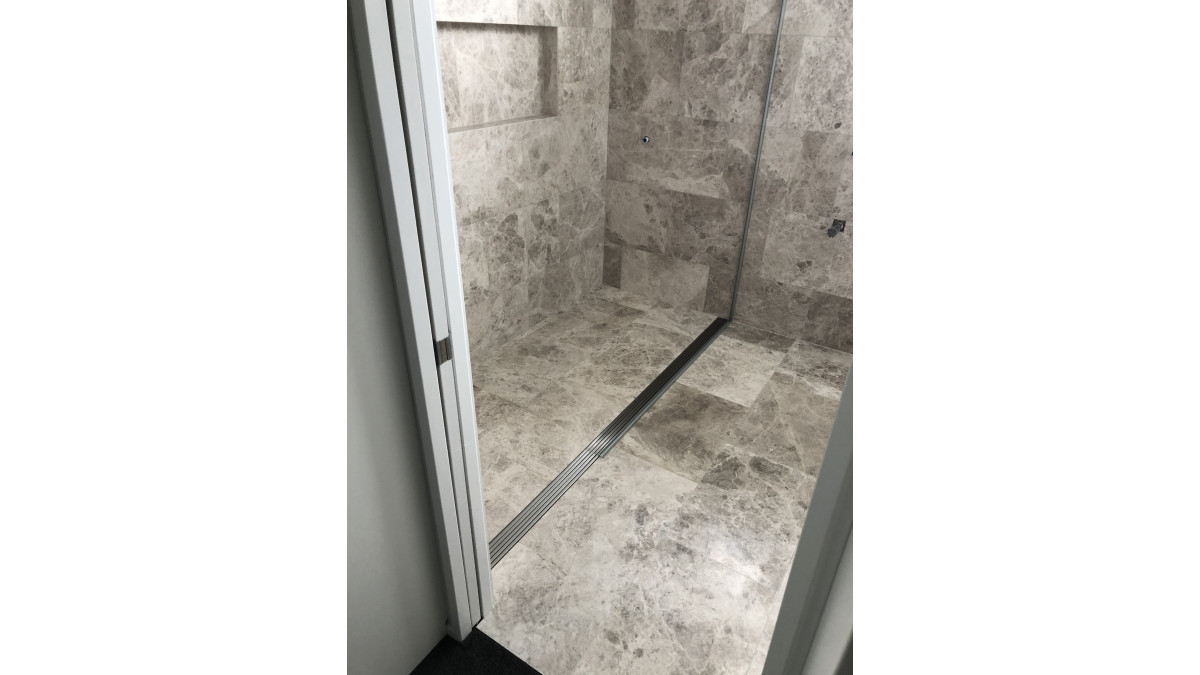

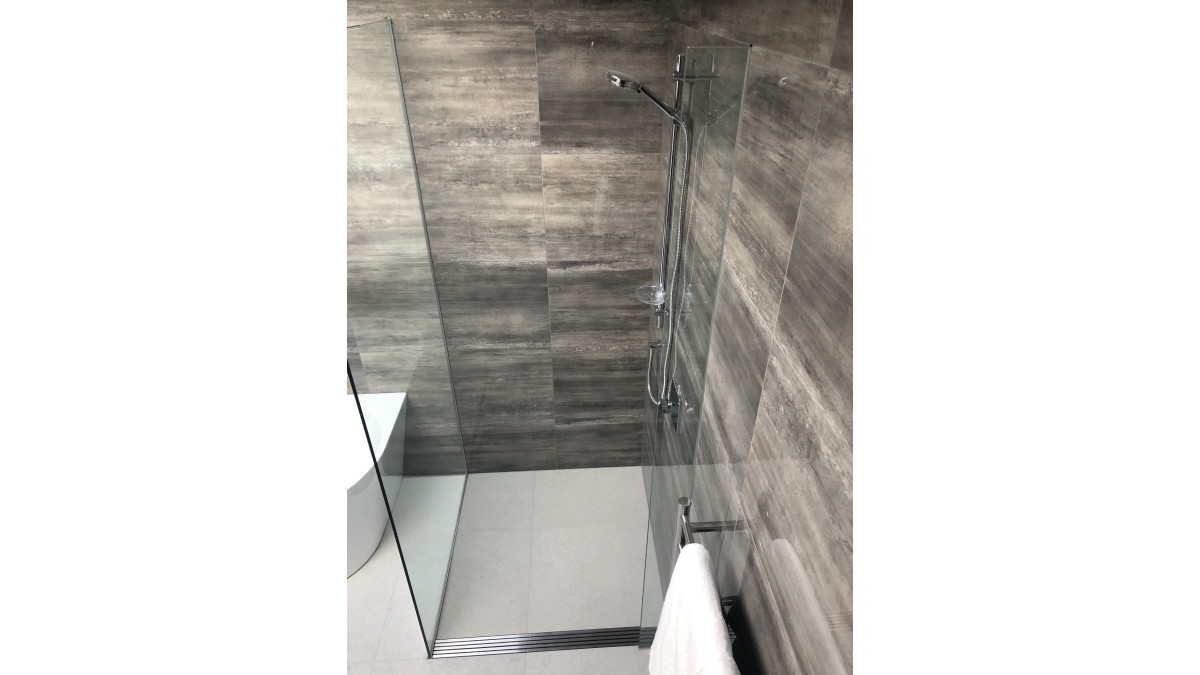

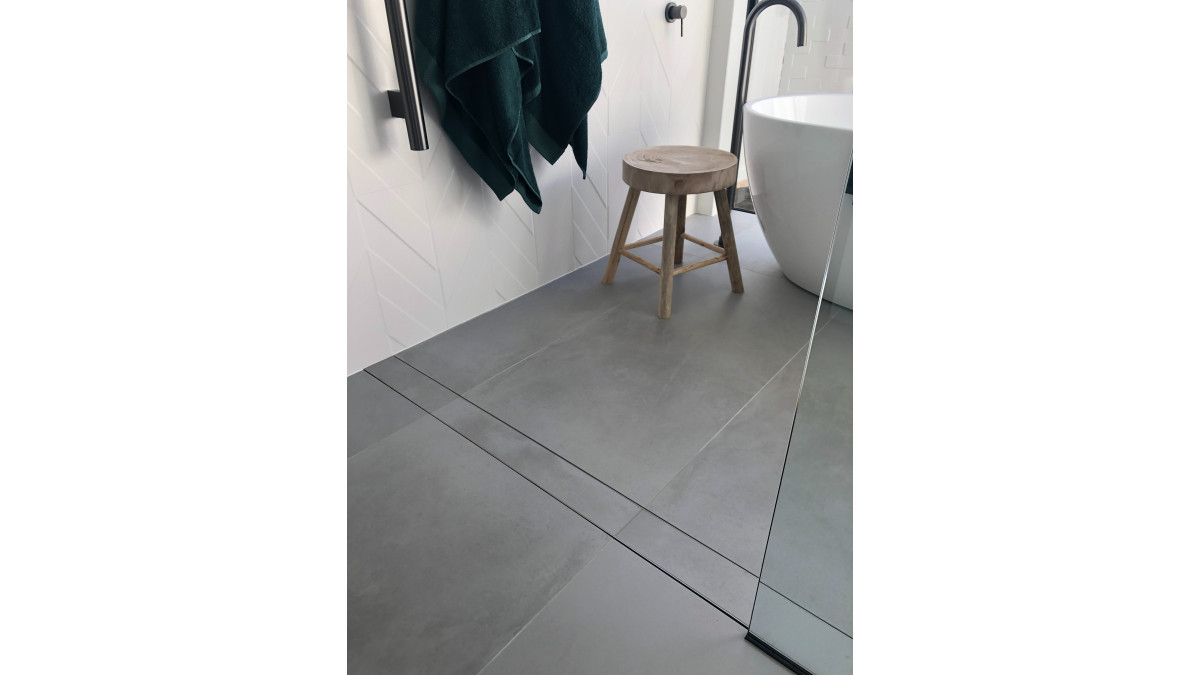

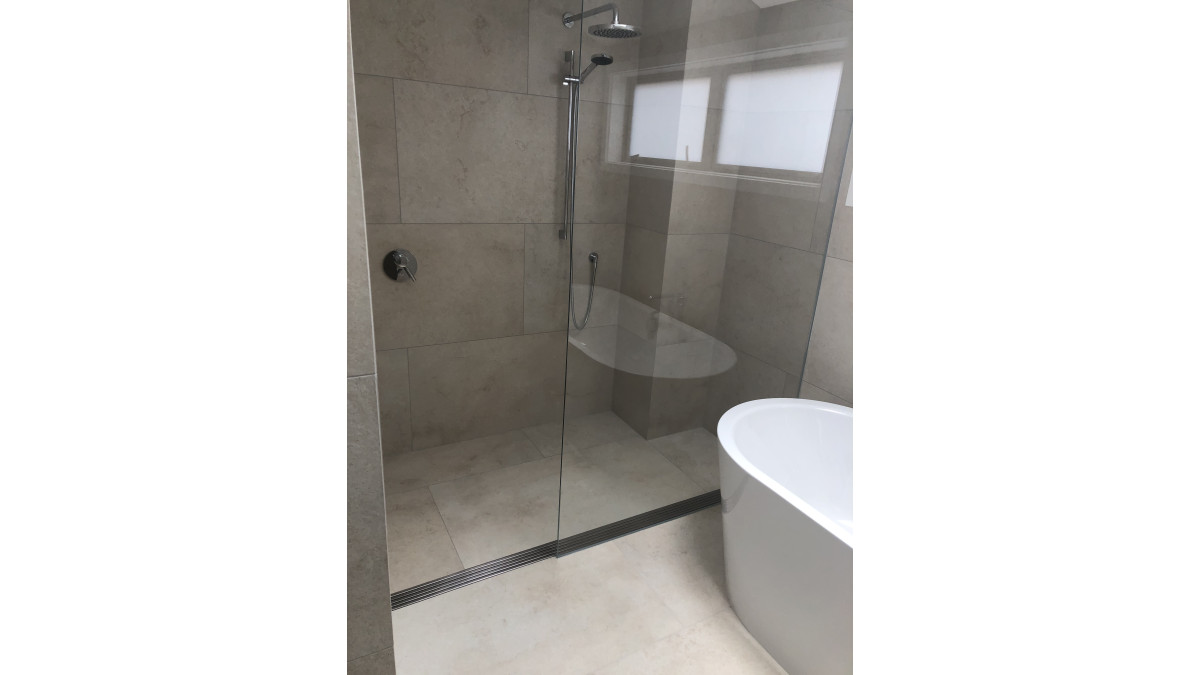

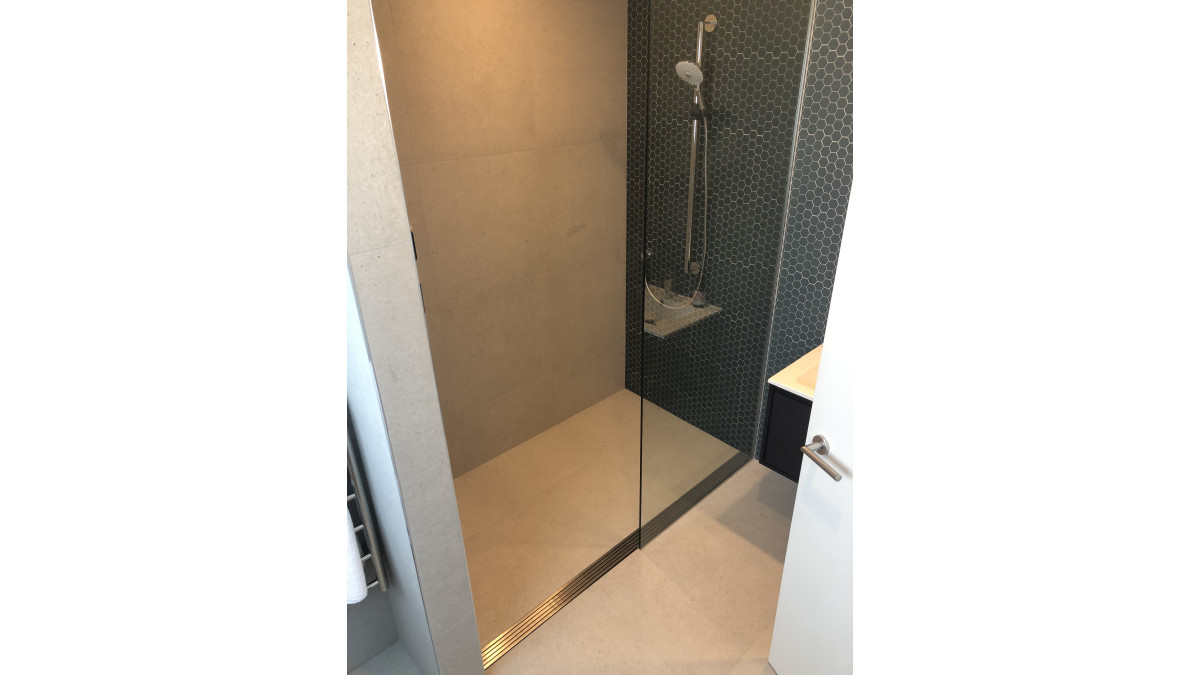

JESANI’s threshold shower channels deliver seamless, level entry in any shower design or location.
Ideal for modern, barrier-free bathrooms, these channels provide 100% water ingress protection and improve free water drainage, making them a go-to solution for any wetroom configuration.

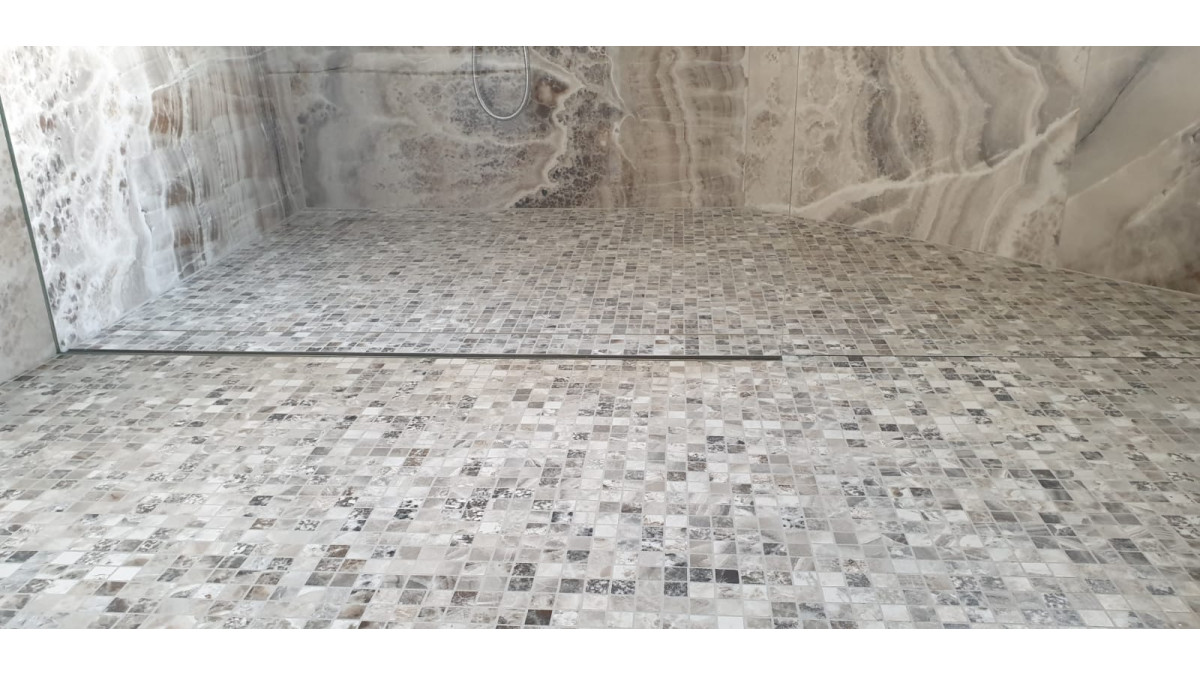

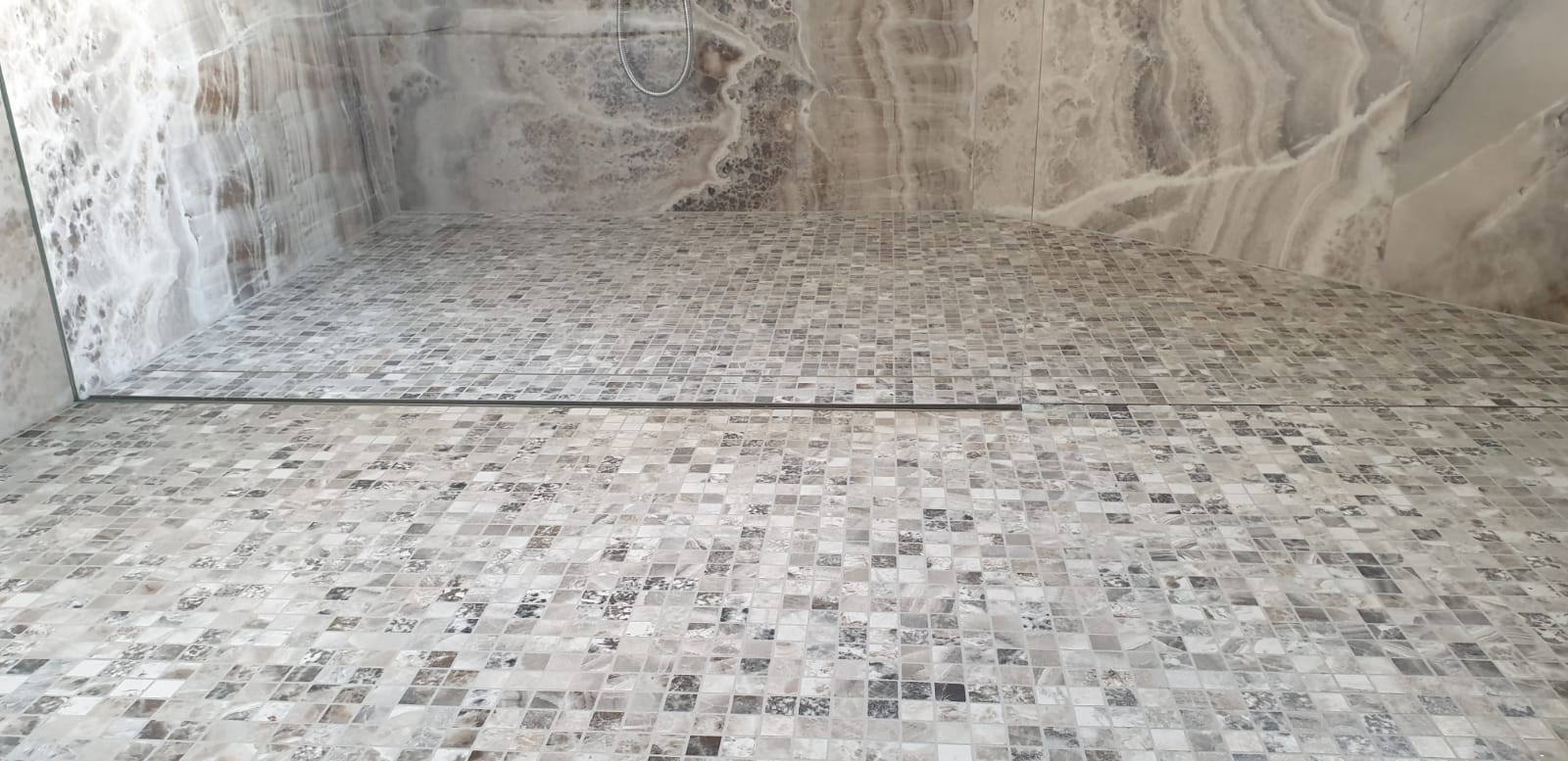

With the channel’s position at the threshold to the shower, the required 1:50 fall of the floor within the shower will commence from the opposite wall and fall back towards the channel. The benefits of utilising this design is the fall will commence above the substrate floor level; this can prove to be an easier option during installation as no floor joists will be compromised.
JESANI's flanged shower channel design is patented, making them the only company that can manufacture a drain of this style.
JESANI channels are suitable for residential and commercial spaces - from private homes to commercial kitchens, educational and medical facilities—JESANI provides stylish, reliable drainage solutions for all users.
The threshold shower channel can be combined with JESANI’s patented Door Channels, designed to capture and drain accidental overflows from sanitary fixtures effectively.
Material:
Grade 304 (or 316 on request) Stainless Steel
Thickness: 1.5 mm
TIG Welded and water tested
Outlet options:
Spigot with o'ring - 50mm, 65mm, 80mm, 100mm
Threaded - 50 mm and 65 mm
Outlet position: either centred or located to suit the project.
For design queries please phone or email the floor plans to discuss your project and requirements. - 0800 537 264 / [email protected]
* The Universal Design approach is about creating spaces that can be used by all and recognises human diversity and designs for life scenarios, such as pregnancy, childhood, injury, disability and old age. JESANI is a LifeMark approved supplier specialising in level entry and accessible wetroom drainage.
Patented flanged design making JESANI the only company that can manufacture a drain of this style
Reverse fall level entry for threshold shower channels with 1:100 trough fall over 1m
Flanged design allows for level-entry on all projects
With 90 mm flanges on all wetroom sides, JESANI channels provide a fully integrated leakproof flange that replaes the need for silicon and protects the substrate integrity in the area most susceptible to water ingress
Single piece stainless steel construction

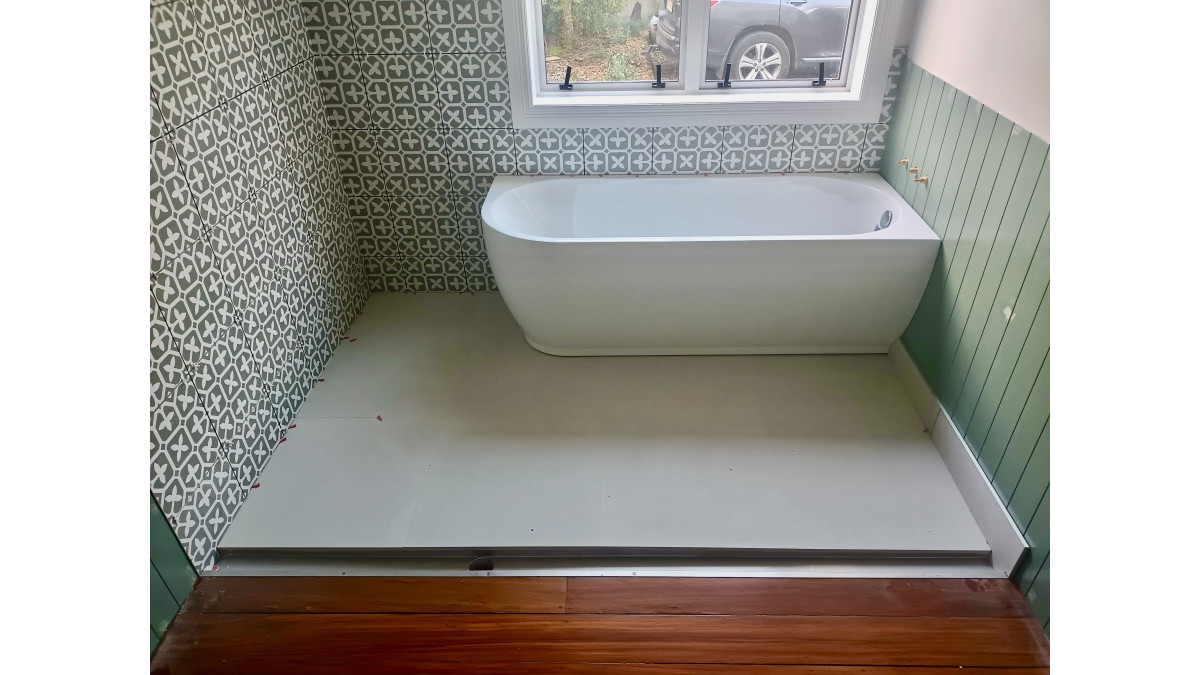

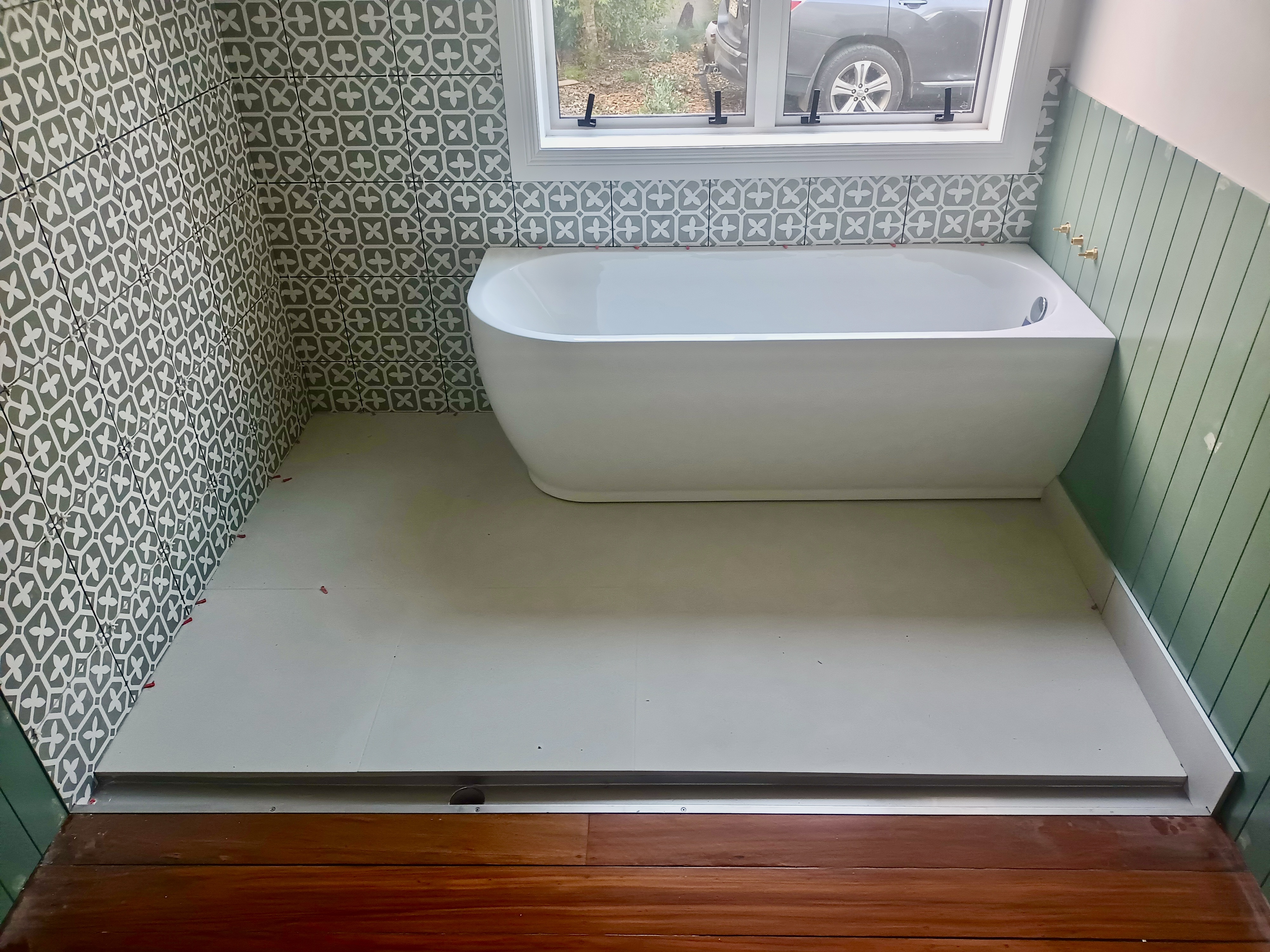

Early installation in the build - protects the plumbing
Post-installation waterproofing

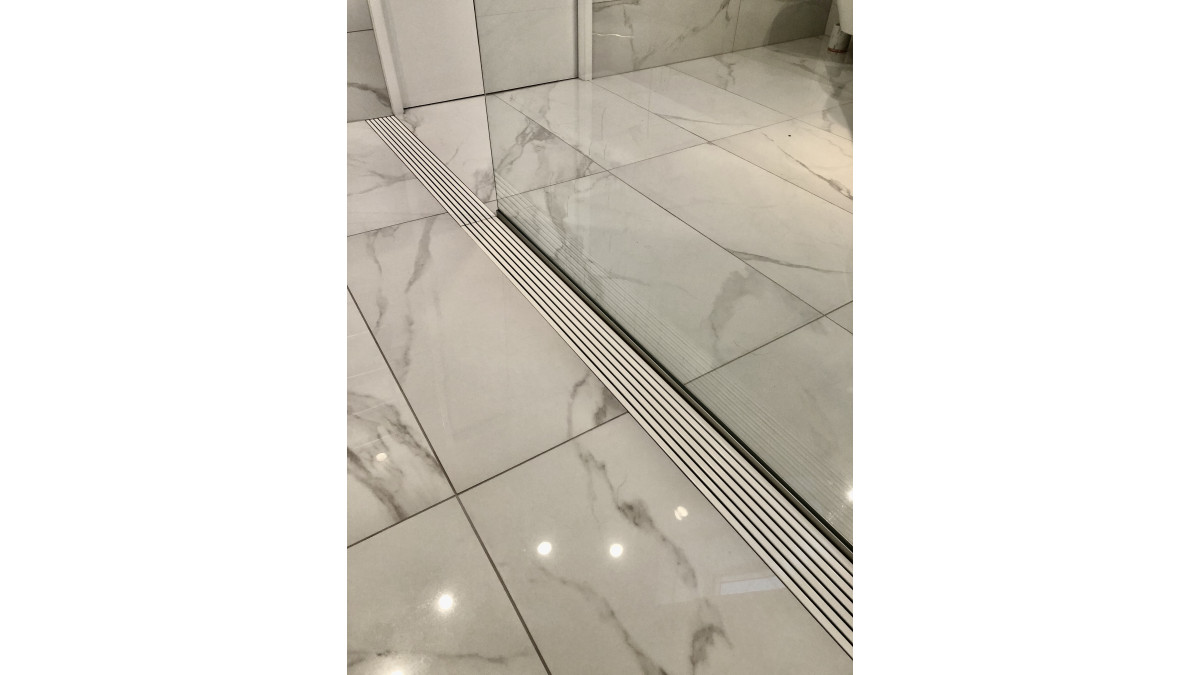

Invisible trough edge - tiles cover the stainless edge
Fully customisable
Easy ordering
100% recyclable
Lifetime product
MADE IN NEW ZEALAND
Manufacturing Lead time: 10 - 14 days
Designed for internal use in residential or commercial wetrooms
BRANZ Appraised
JESANI Shower and Door Channels have been specified and successfully installed since 2010 with the product range growing from two channels to 26 channels as at October 2024.
JESANI deliver New Zealand make custom made linear shower and door channels for residential and commercial use
