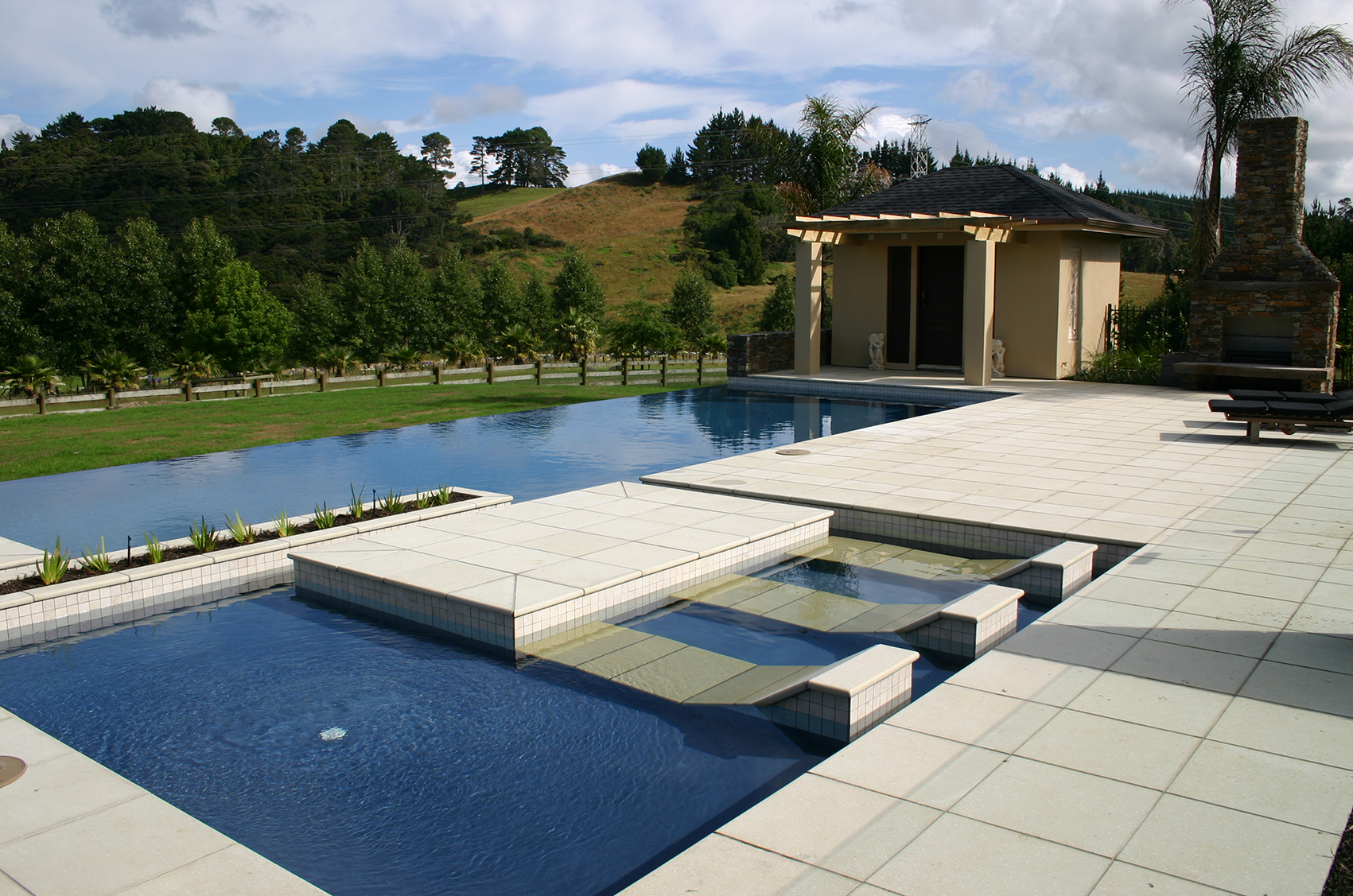

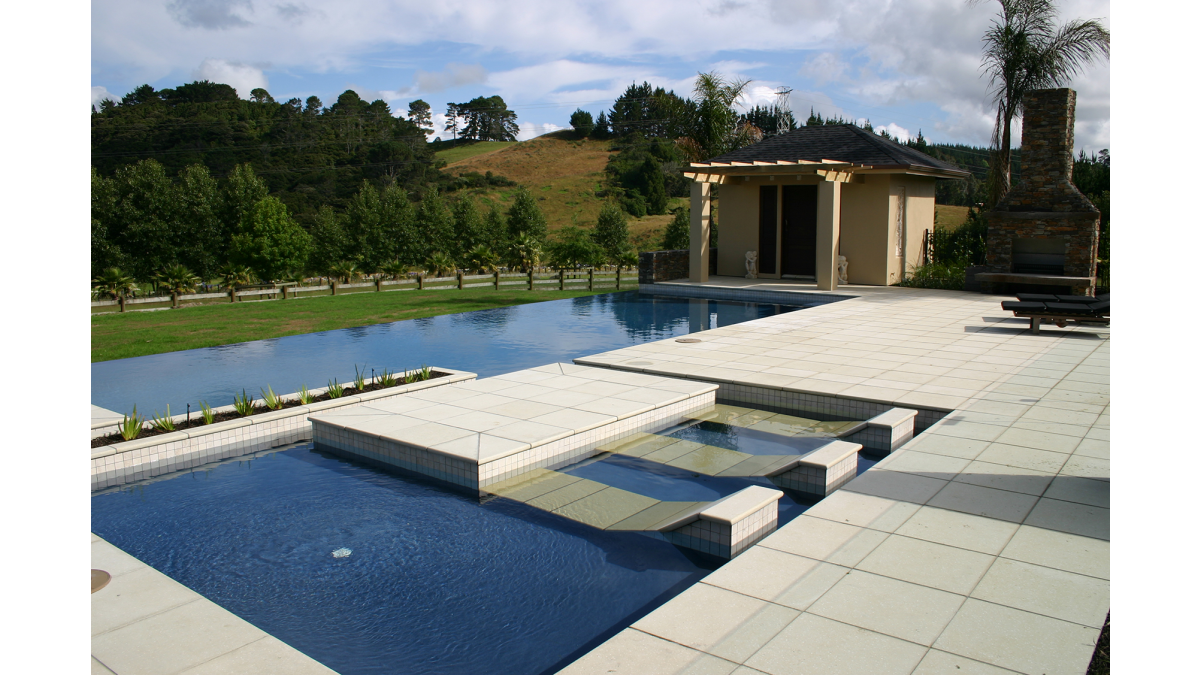

Pool Heat Pump: From 95m2 to Up to 120m2
Description

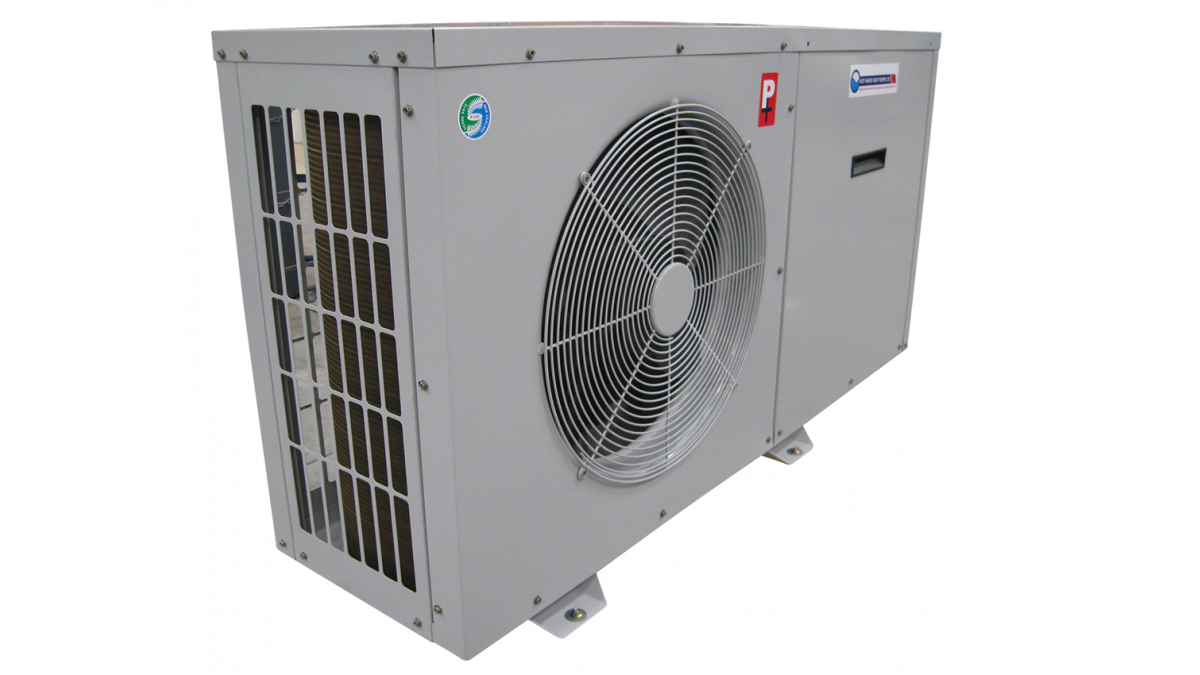

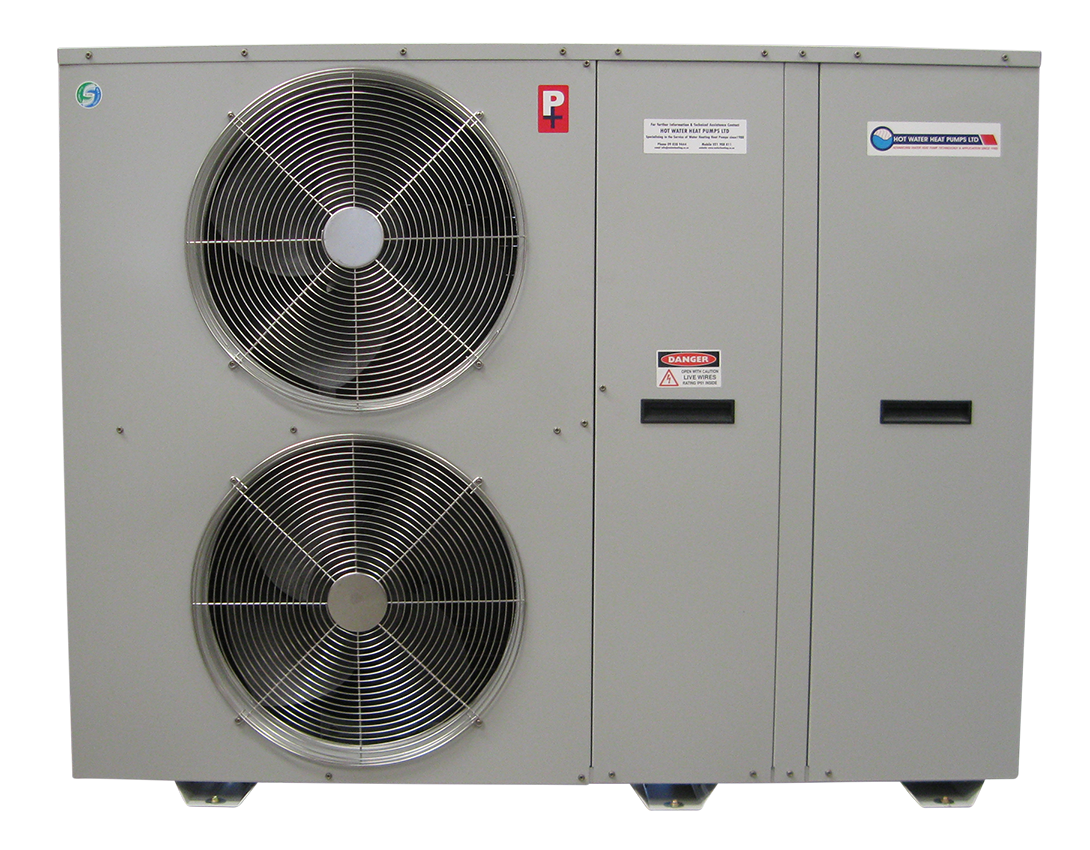

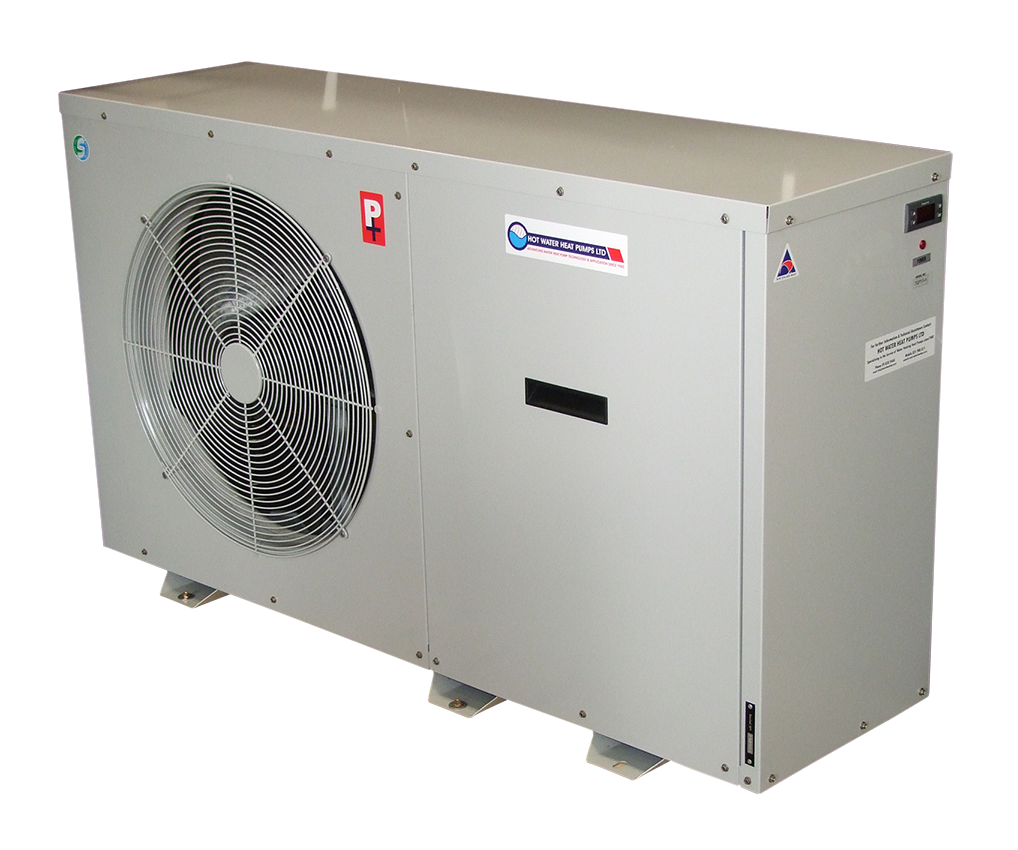

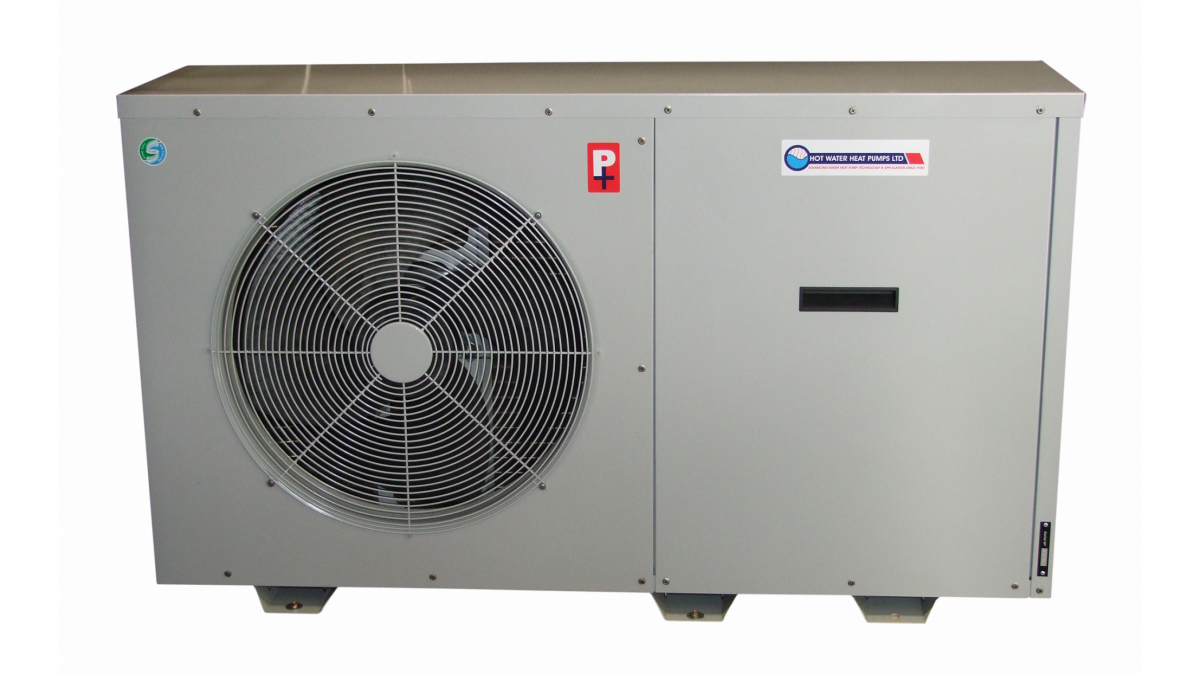

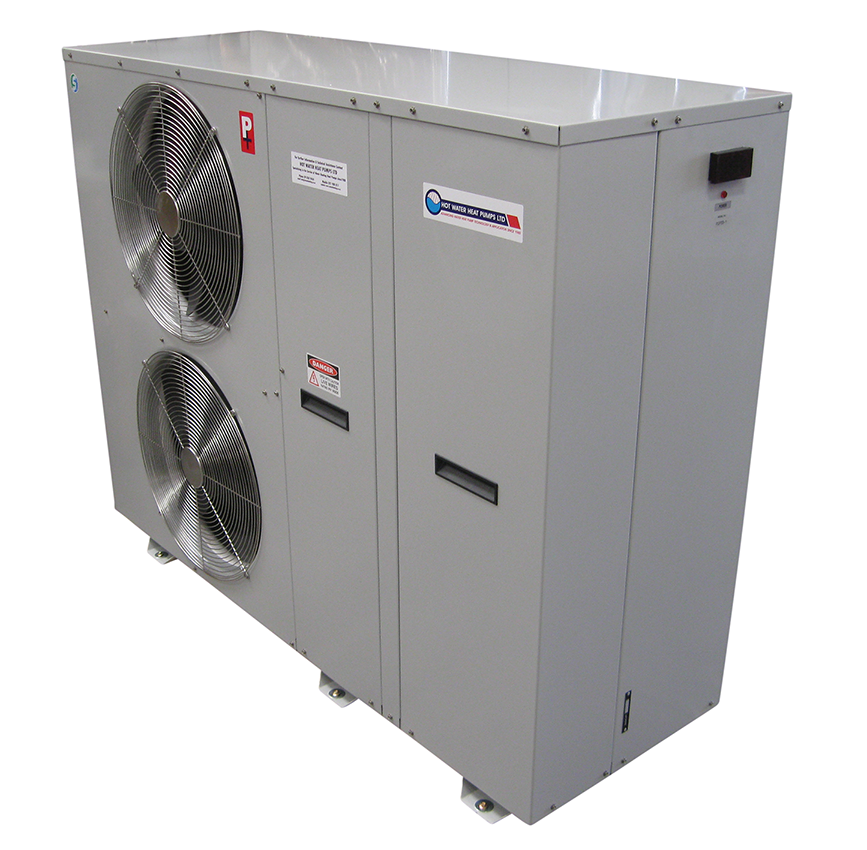

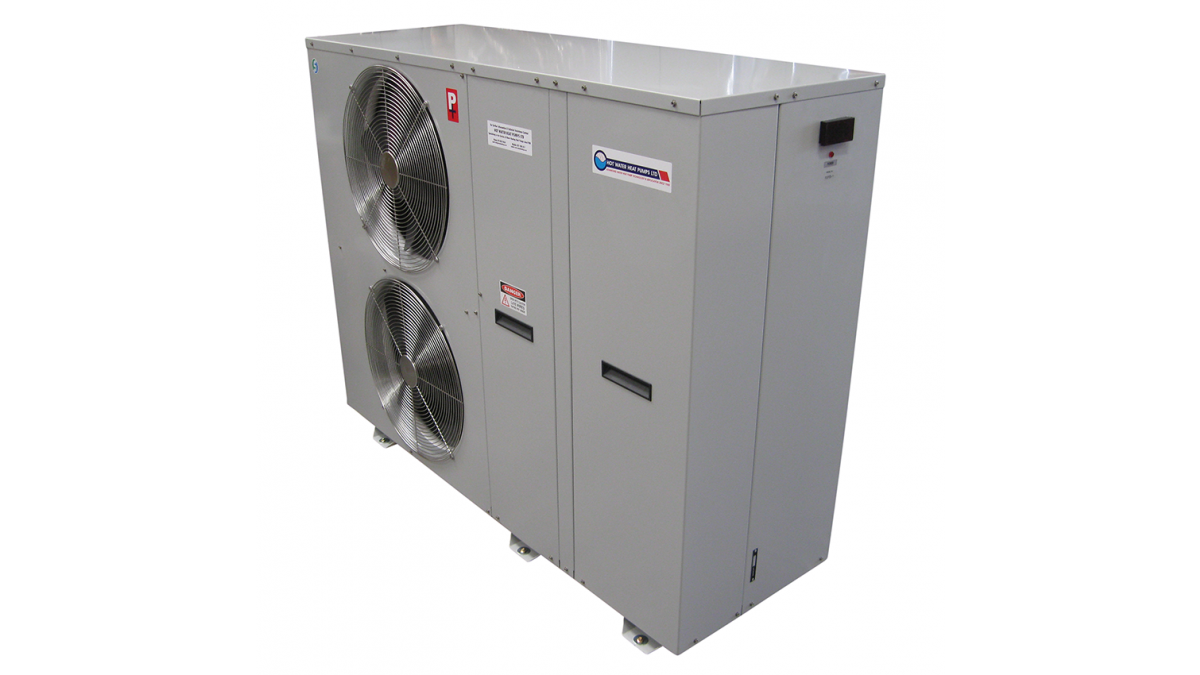

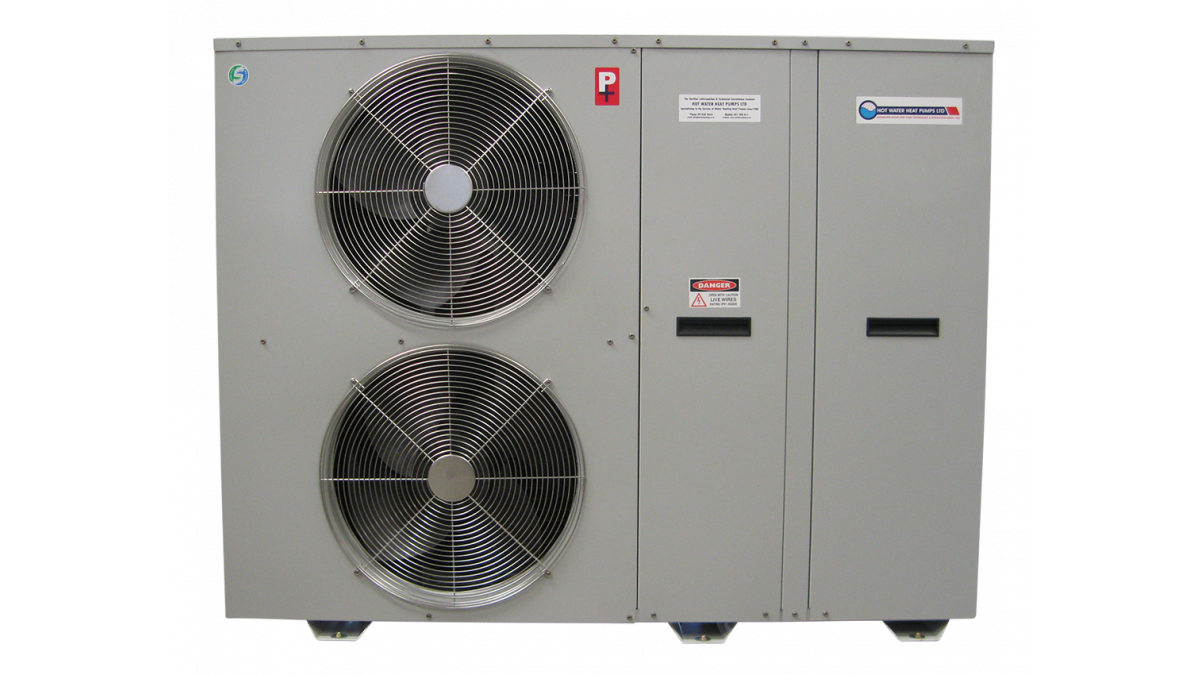

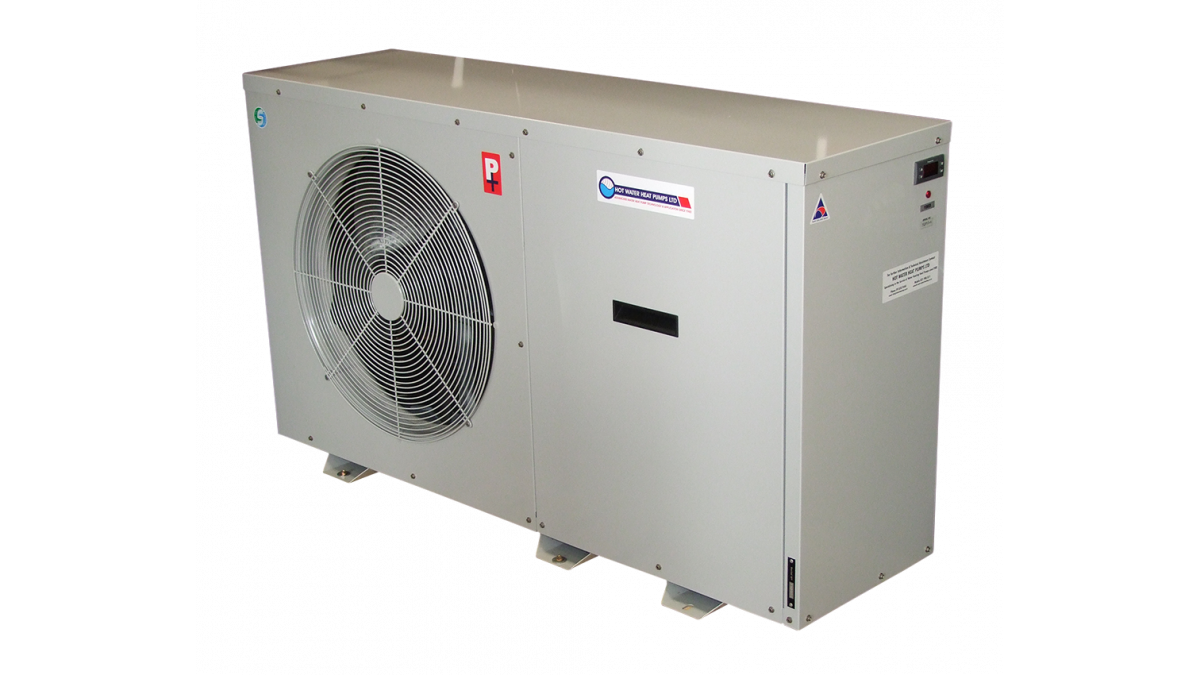

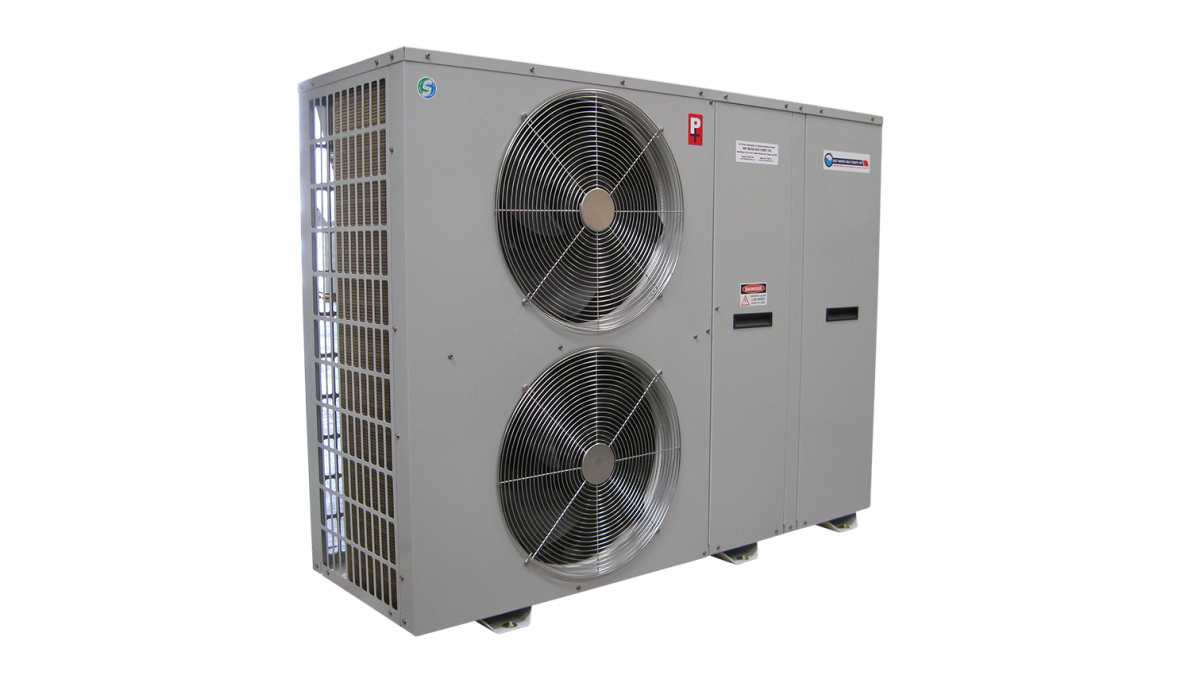

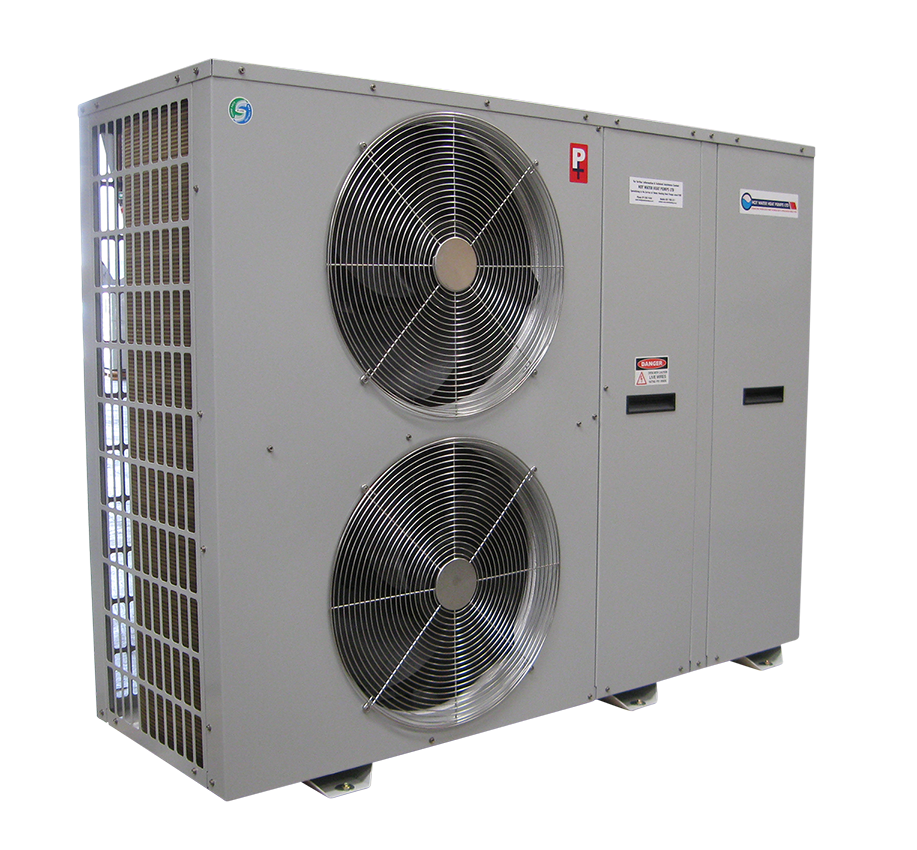

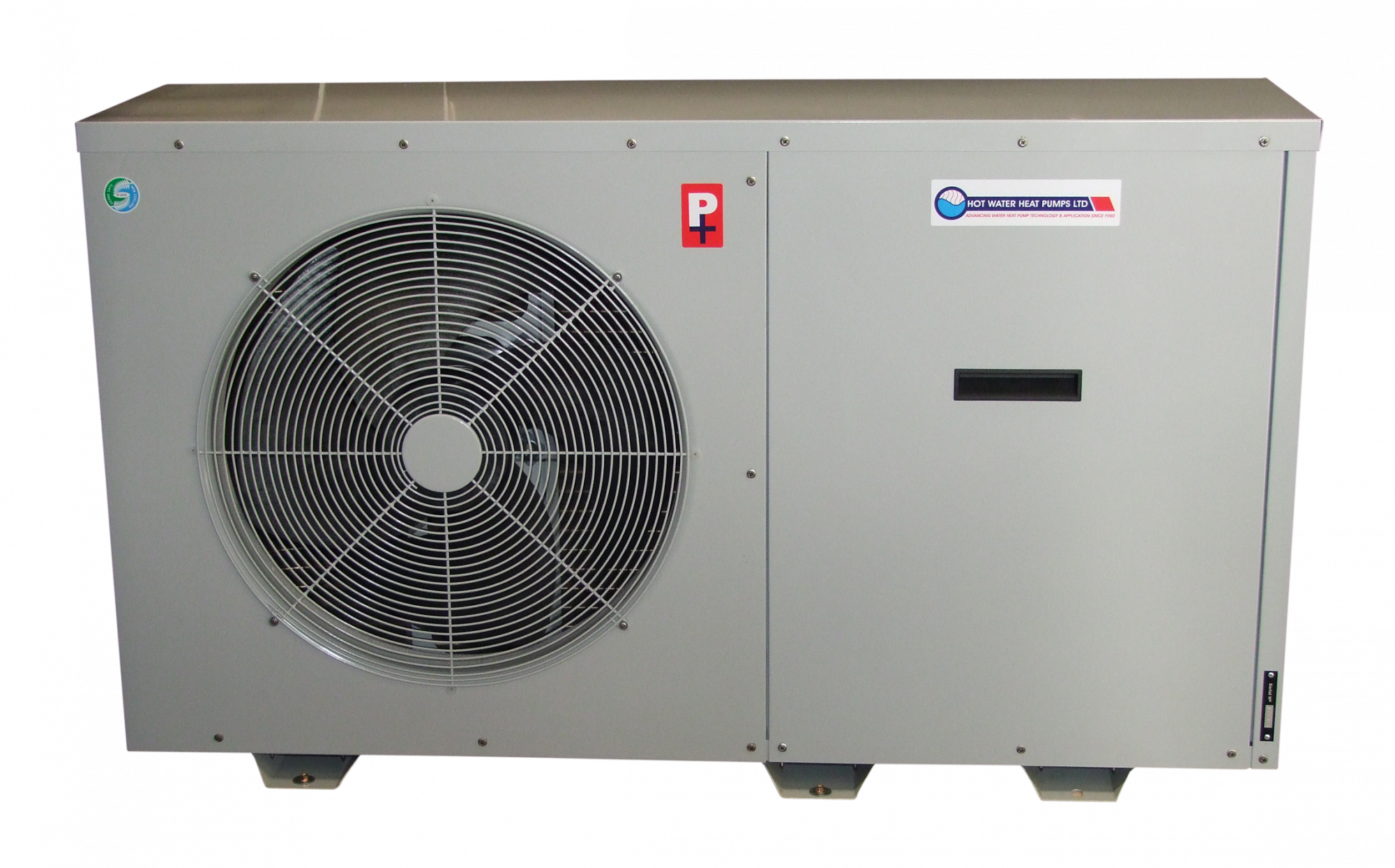

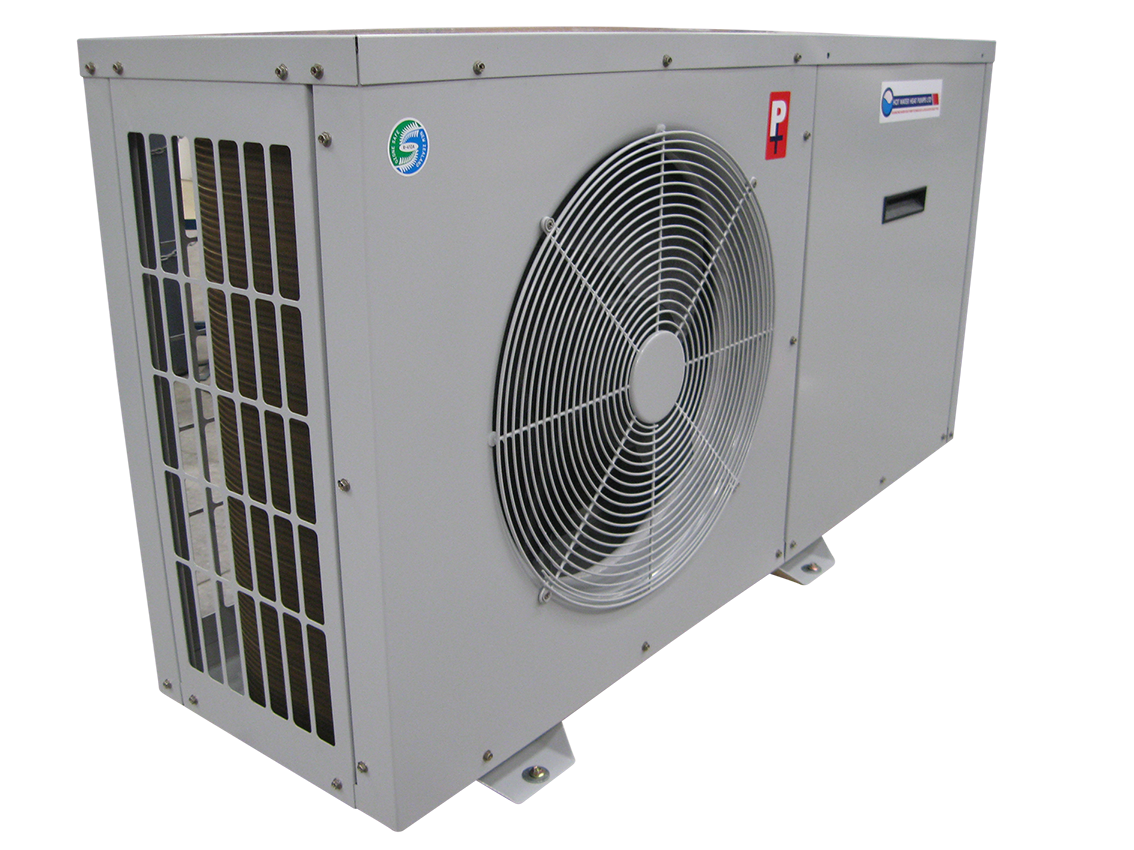

The Titanium Series Swimming Pool or Spa Heaters are part of the Performance Plus range of models. Each unit ensures a constant pool or spa temperature every time. These units are ideal for up to 120m² size pools and spa pools in most of the North Island or up to 105m² size pools in the Central North Island and South Island (see "Scope" for further details). Typically, for every 1kW of electric input, users receive 5kW worth of heat.

Key Features
  • Quiet running
  • Built in drain tray
  • Water flow switch activated
  • Titanium tube heat exchanger
  • Ozone friendly refrigerants
  • Epoxy coated corrosion resistant evaporator coils
  • Built in refrigeration safety switches
  • Electronic reverse cycle de-ice control
  • Easy to operate electronic controller with digital display
  • TX valve for more efficient low ambient operation
  • Compressor has built in internal and external overload

Performance plus BENEFITS

  • Easy to install and operate
  • Low operating costs and high efficiency
  • Environmentally friendly
  • Durable and long life expectancy
  • Engineered and built in New Zealand
  • Automatically maintains any set temperature in all weather
NZ-Owned Business
NZ-Owned Business
Scope of Use

The heat pump most suited to each situation is determined by a number of factors; the surface area of the pool, pool use, whether the pool has a cover and the time the pool is covered, local temperature and weather conditions.

For heat pump sizing for the duration of use your require, please contact Hot Water Heat Pumps. As a general guide to heat pump requirements for an extended season of swimming from mid October to mid April:

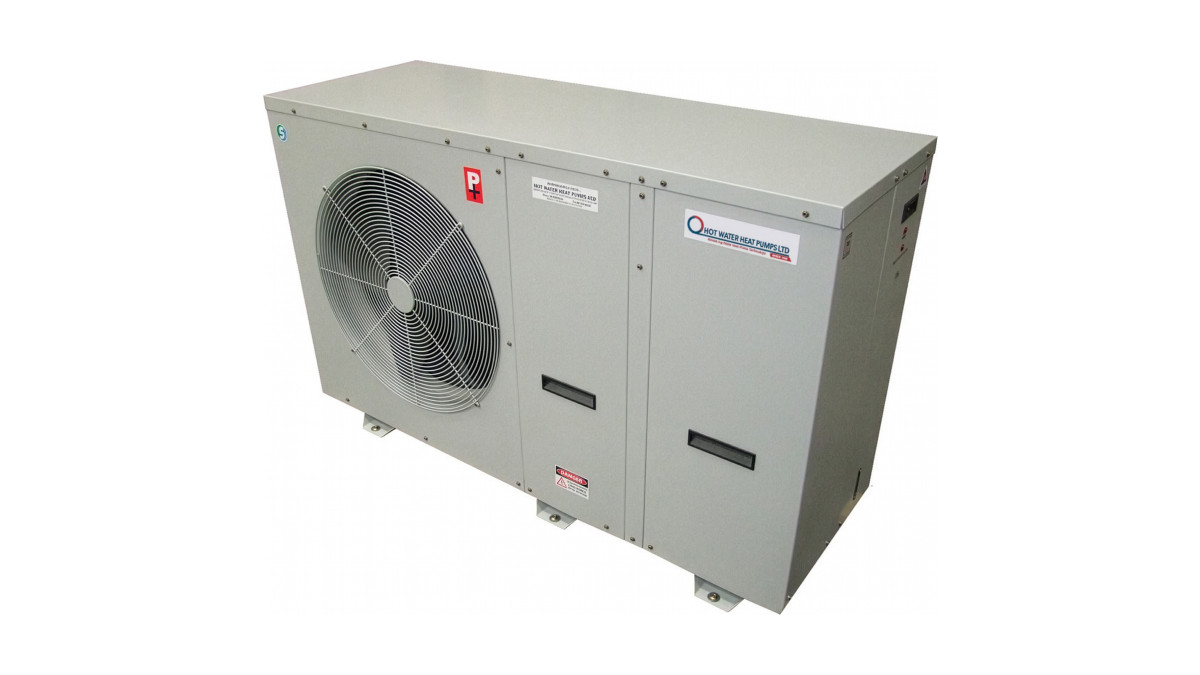

20kW Heat Pump - 7GP20-1 (Single Phase) & 7GP20-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 95m2 for most of the North Island, up to 80m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 67m2 for most of the North Island, up to 58m2 for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 56m2 for most of the North Island, up to 44m2 for the Central North Island and South Island.

23kW Heat Pump - 7GP23-1

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 110m2 for most of the North Island, up to 95m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 82m2 for most of the North Island, up to 71m2 for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 69m2 for most of the North Island, up to 58m2 for the Central North Island and South Island.

25kW Heat Pump - 7GP25-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 120m2 for most of the North Island, up to 105m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 85m2 for most of the North Island, up to 75m2 for the Central North Island and South Island.
  • Commercial Pool (up to 6 hours per day uncovered) with a surface area of up to 74m2 for most of the North Island, up to 63m2 for the Central North Island and South Island.

Ideal applications

  • Swimming pool
  • Spa heating
  • Hydroponics
Other Performance Attributes

All residential heat pump pool heater models carry a comprehensive two year parts and labour warranty, including the compressor, evaporator coils, heat exchanger and refrigeration systems. The titanium tube within the heat exchanger is covered against corrosion for 30 years for residential use and 10 years for commercial use.

Heat pump water heaters are fitted with protection systems to prevent damage in the event of a malfunction. For example a flow switch to ensure the heat pump cannot operate without water flow and other refrigeration safeties. If a problem is identified, the unit automatically shuts down before damage can occur.

Documents
7GP20-1 Residential Technical Specifications
7GP20-3 Commercial Technical Specifications
7GP23-1 Residential Technical Specifications
7GP25-3 Commercial Technical Specifications
Brochure
Additional Information

Products include hot water heat pump solutions for hot water systems, swimming pool and spa heating and indoor pool ventilation.
