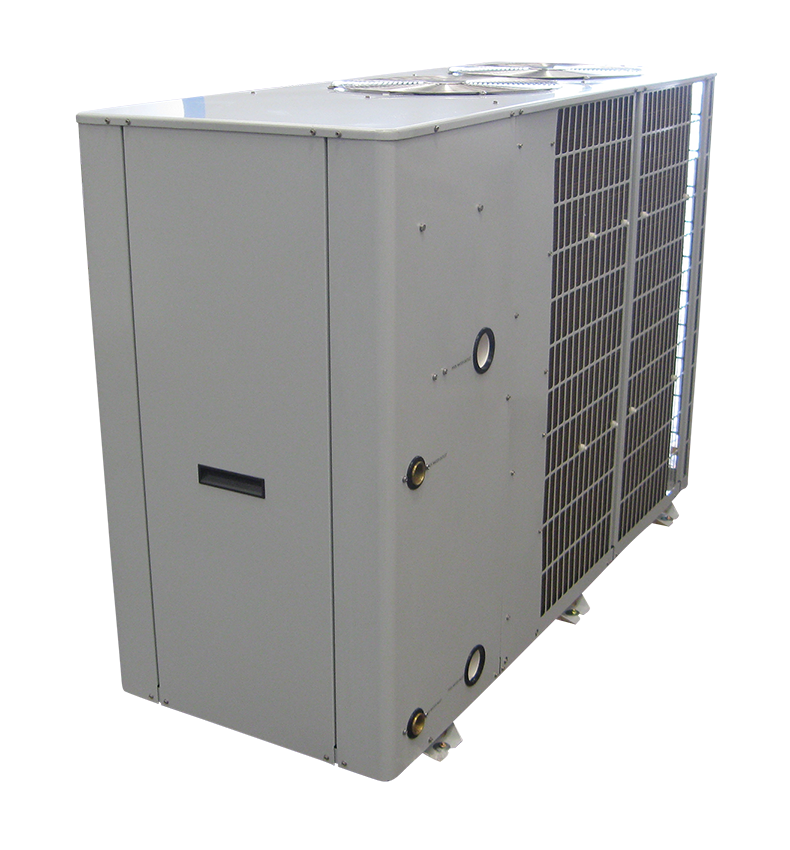

Pool Heat Pump: From 120m2 to Up to 270m2
Description

The Titanium Series Swimming Pool or Spa Heaters are part of the Performance Plus range of models. Each unit ensures a constant pool or spa temperature every time. These units are ideal for up to 270m² size pools and spa pools in most of the North Island or up to 250m² size pools in the Central North Island and South Island (see "Scope" for further details). Typically, for every 1kW of electric input, users receive 5kW worth of heat.

Key Features
  • Quiet running
  • Built in drain tray
  • Water flow switch activated
  • Titanium tube heat exchanger
  • Ozone friendly refrigerants
  • Epoxy coated corrosion resistant evaporator coils
  • Built in refrigeration safety switches
  • Electronic reverse cycle de-ice control
  • Easy to operate electronic controller with digital display
  • TX valve for more efficient low ambient operation
  • Compressor has built in internal and external overload

Performance plus BENEFITS

  • Easy to install and operate
  • Low operating costs and high efficiency
  • Environmentally friendly
  • Durable and long life expectancy
  • Engineered and built in New Zealand
  • Automatically maintains any set temperature in all weather
NZ-Owned Business
NZ-Owned Business
Scope of Use

The heat pump most suited to each situation is determined by a number of factors; the surface area of the pool, pool use, whether the pool has a cover and the time the pool is covered, local temperature and weather conditions

For heat pump sizing for the duration of use your require, please contact Hot Water Heat Pumps.  As a general guide to heat pump requirements for an extended season of swimming from mid October to mid April:

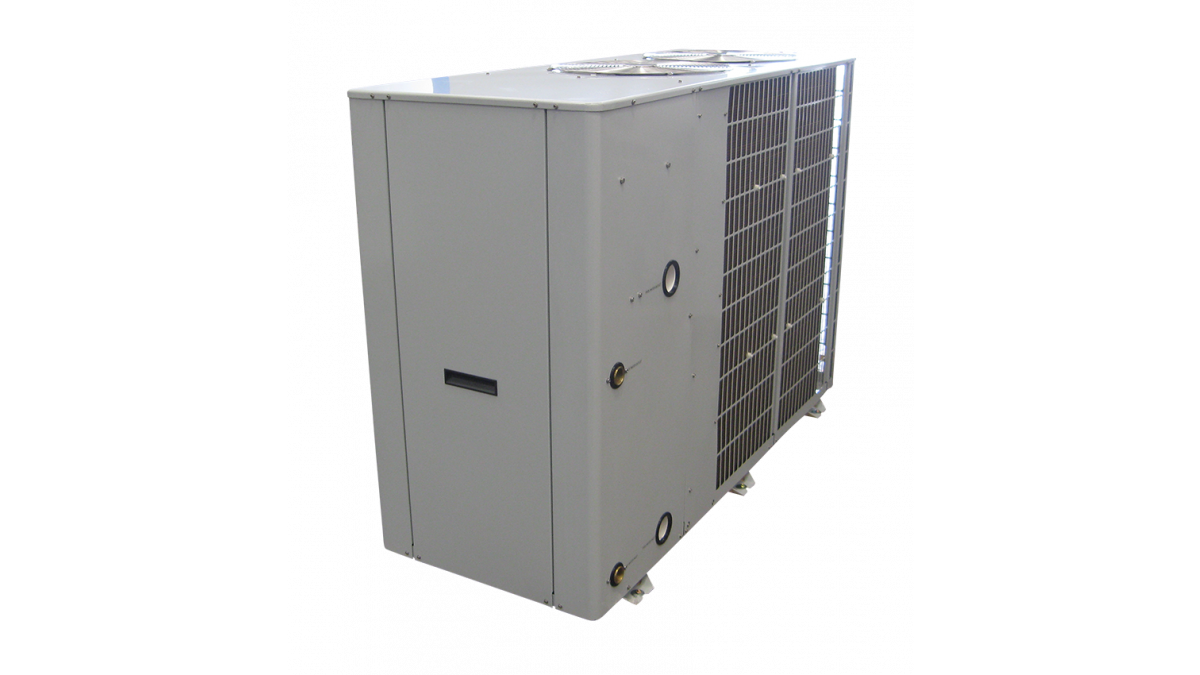

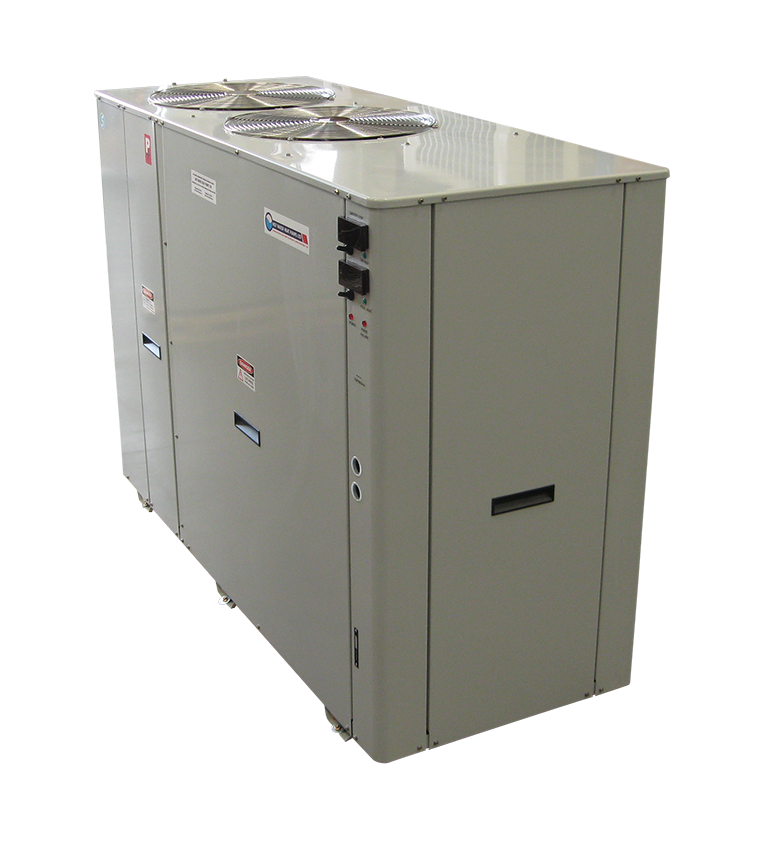

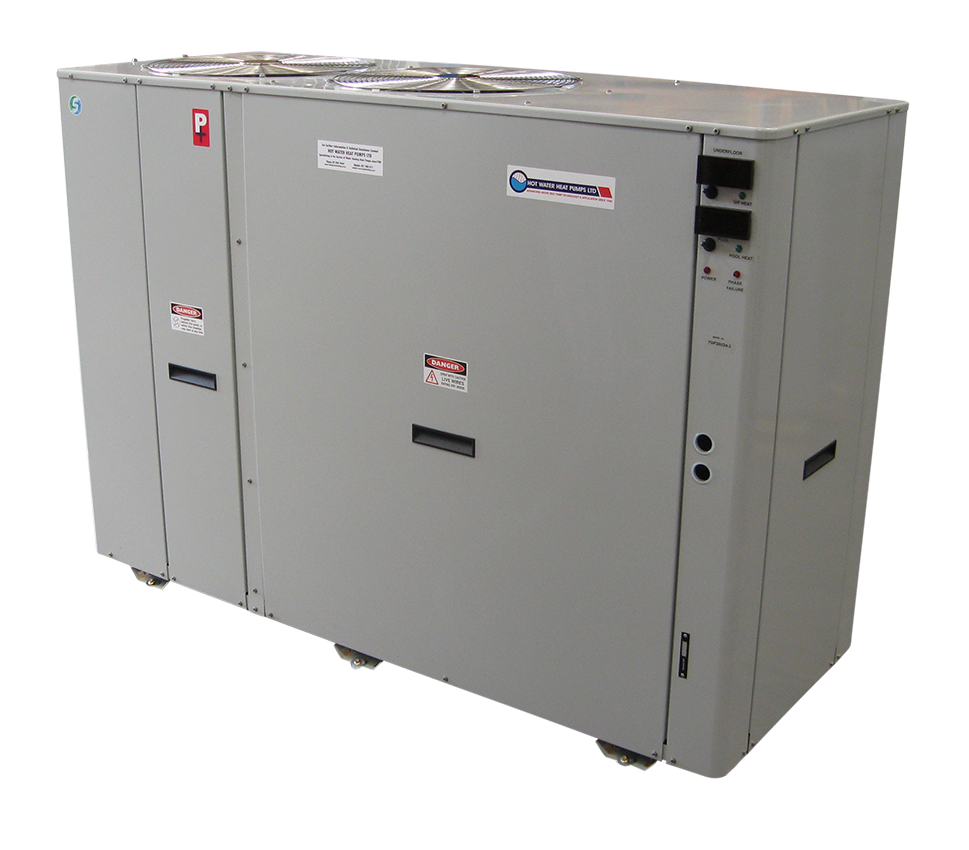

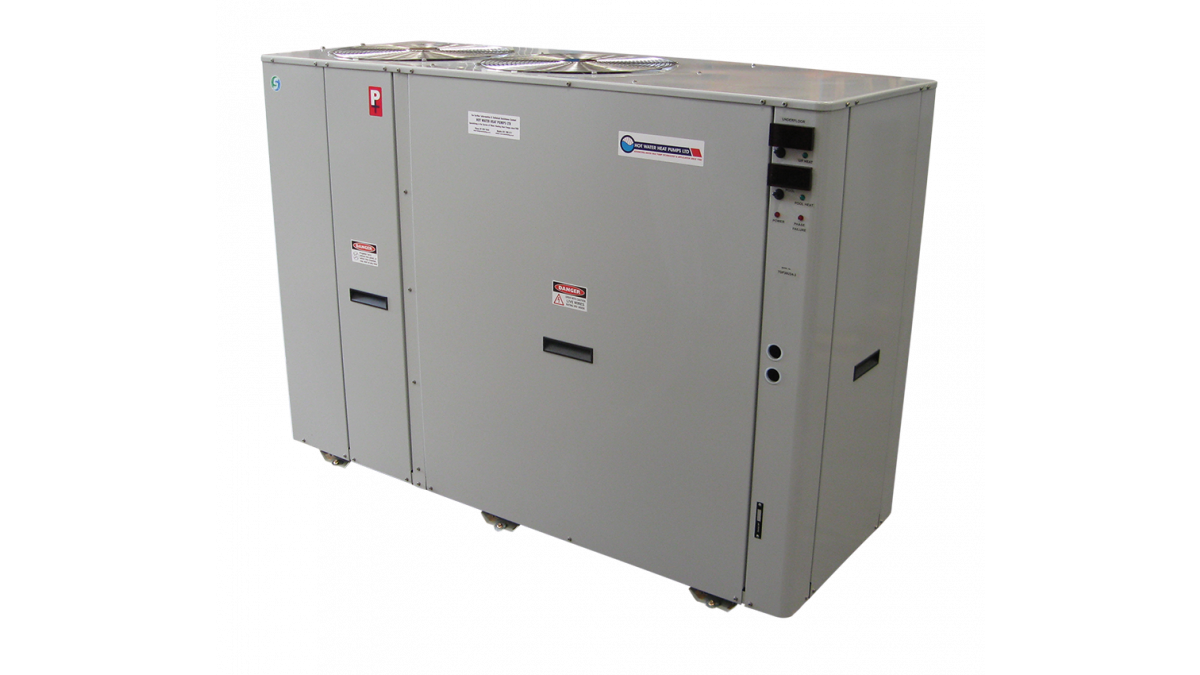

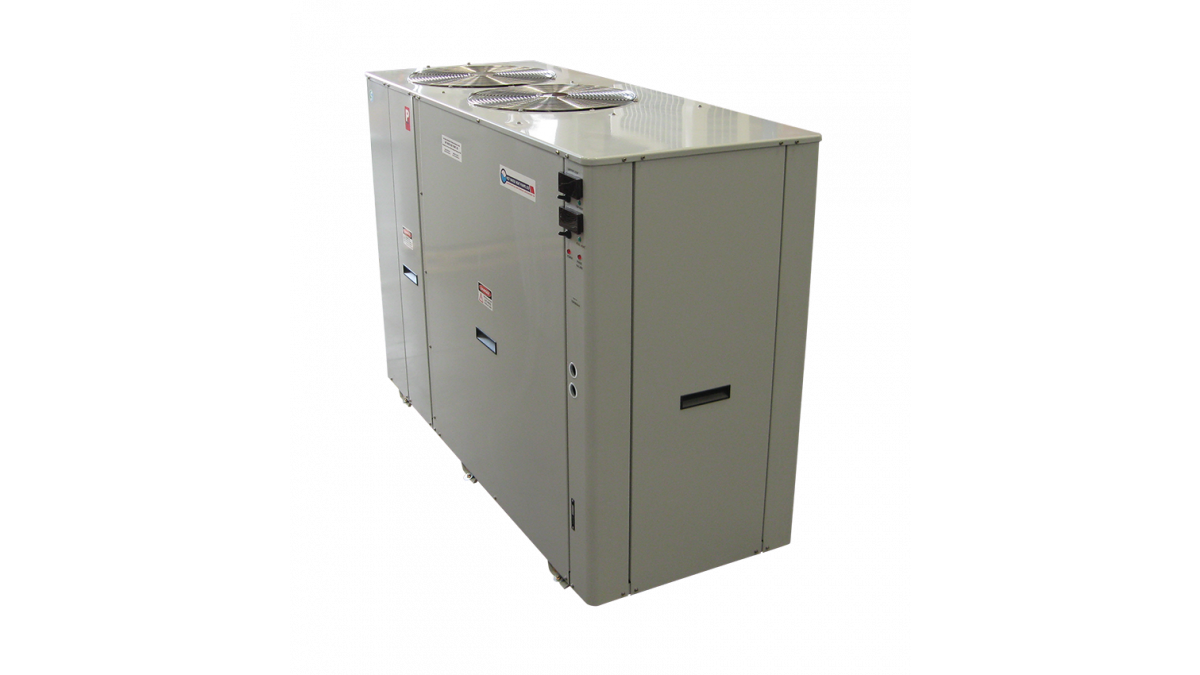

30kW Heat Pump - 7GP30-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 150m2 for most of the North Island, up to 125m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 113m2 for most of the North Island, up to 102m2 for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 91m2 for most of the North Island, up to 75m2 for the Central North Island and South Island.

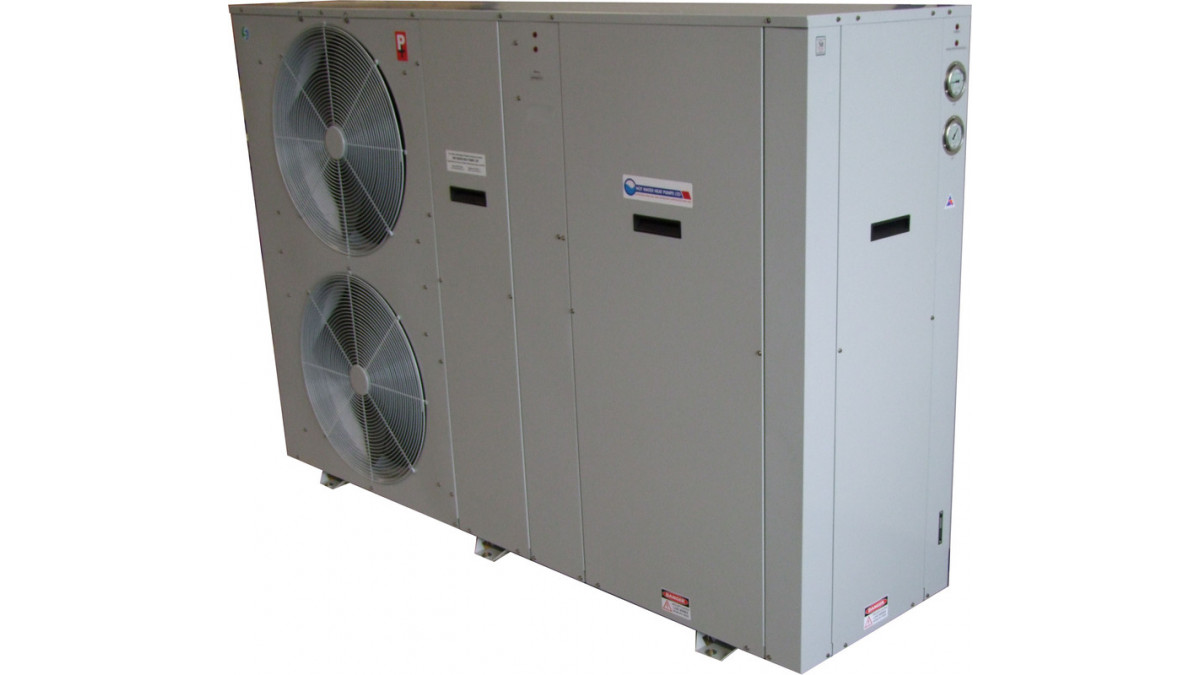

35kW Heat Pump - 7GP35-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 180m2 for most of the North Island, up to 150m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 135m2 for most of the North Island, up to 115m2 for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 101m2 for most of the North Island, up to 90m2 for the Central North Island and South Island.

50kW Heat Pump - 7GP50-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 225m2 for most of the North Island, up to 200m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 189m2 for most of the North Island, up to 161m2 for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 144m2 for most of the North Island, up to 122m2 for the Central North Island and South Island.

65kW Heat Pump - 7GP65-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 270m2 for most of the North Island, up to 250m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 240m2 for most of the North Island, up to 200m2 for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 180m2 for most of the North Island, up to 154m2 for the Central North Island and South Island.

Ideal applications

  • Swimming pool
  • Spa heating
  • Hydroponics
Other Performance Attributes

All residential heat pump pool heater models carry a comprehensive two year parts and labour warranty, including the compressor, evaporator coils, heat exchanger and refrigeration systems. The titanium tube within the heat exchanger is covered against corrosion for 30 years for residential use and 10 years for commercial use.

Heat pump water heaters are fitted with protection systems to prevent damage in the event of a malfunction. For example a flow switch to ensure the heat pump cannot operate without water flow and other refrigeration safeties. If a problem is identified, the unit automatically shuts down before damage can occur.

Documents
7GP30-3 Commercial Technical Specifications
7GP35-3 Commercial Technical Specifications
7GP50-3 Commercial Technical Specifications
7GP65-3 Commercial Technical Specifications
Brochure
