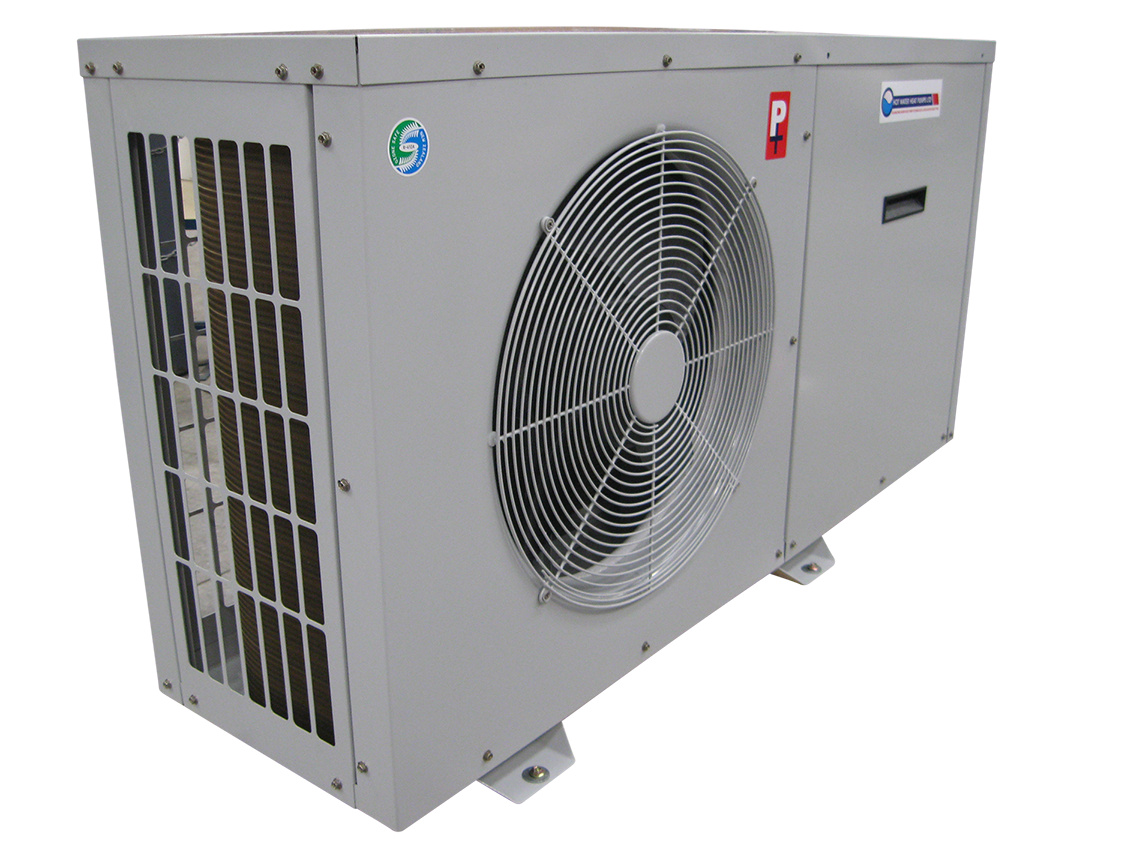

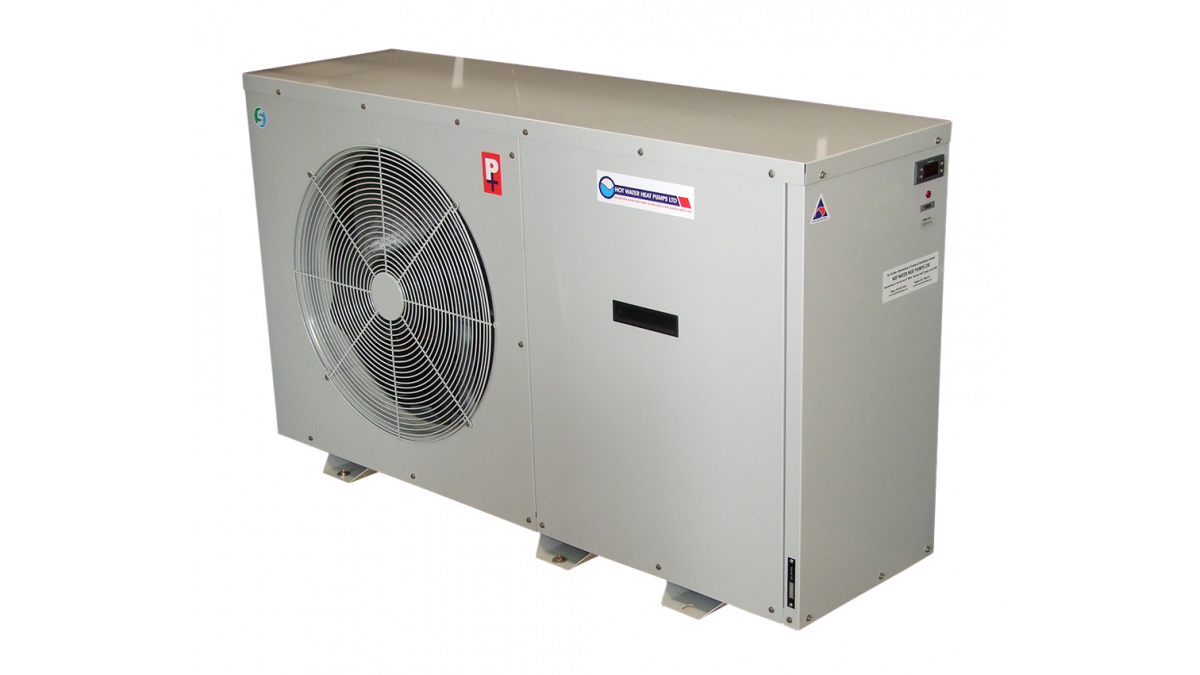

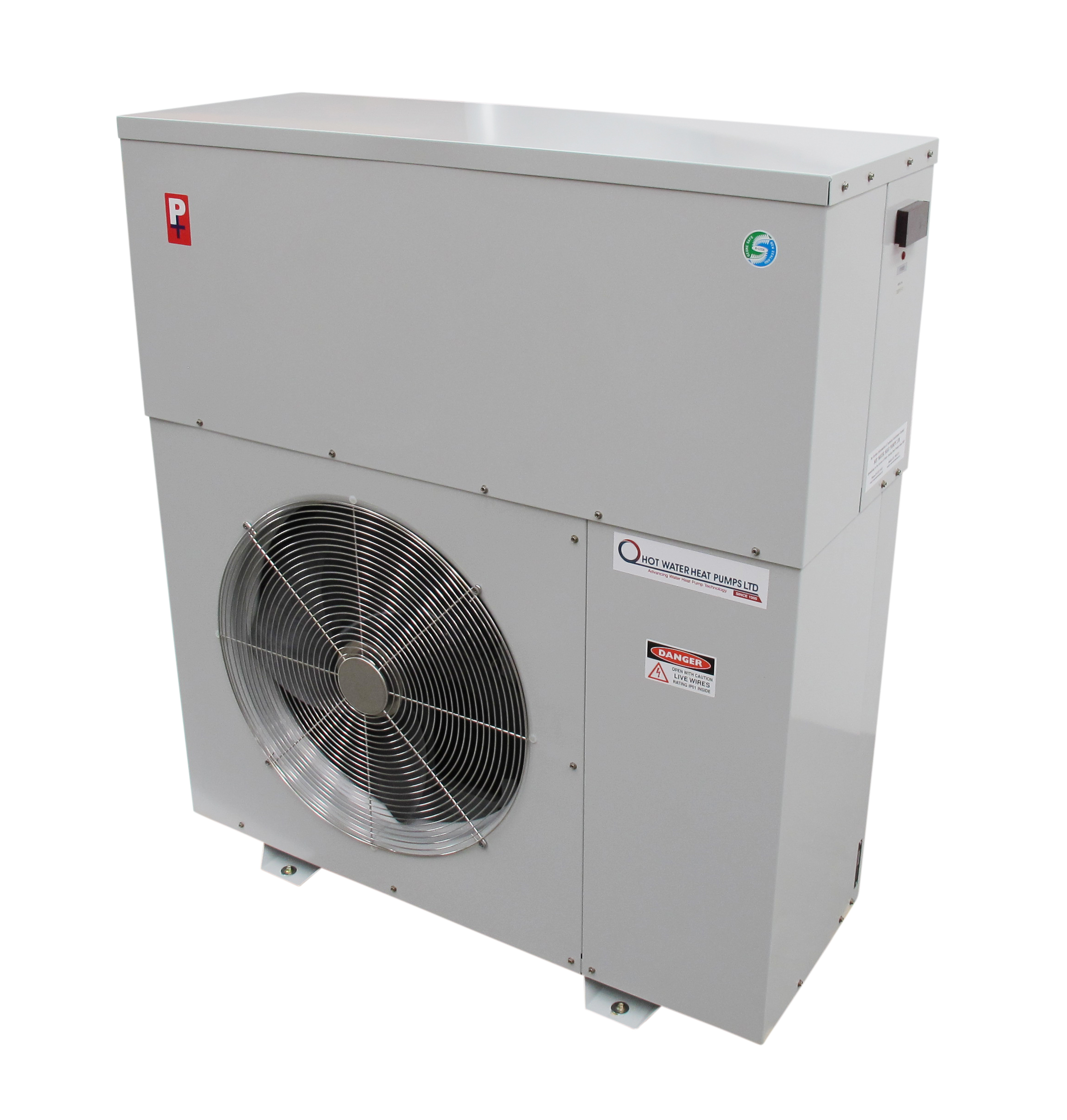

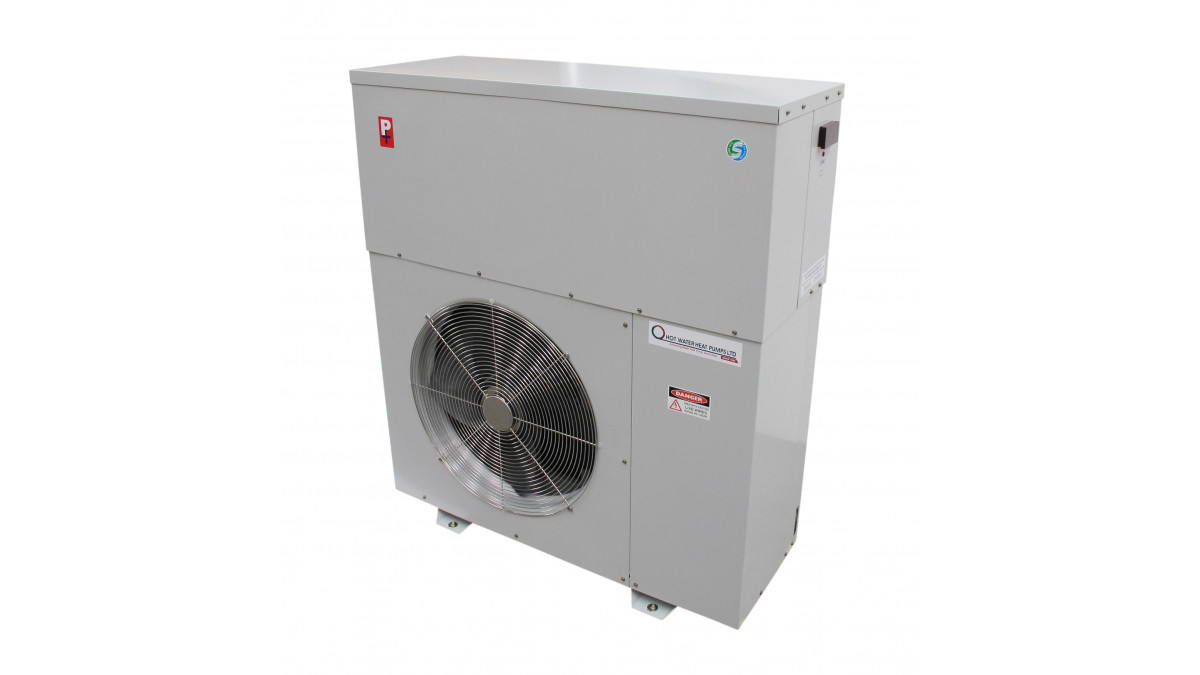

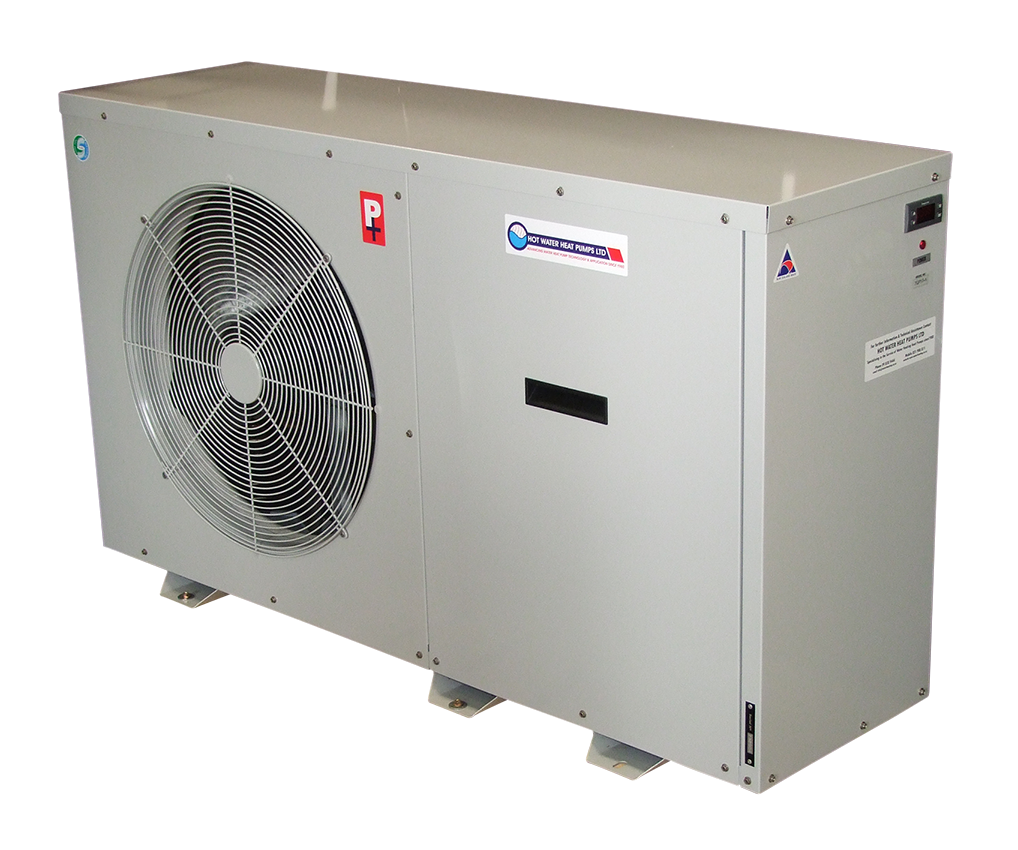

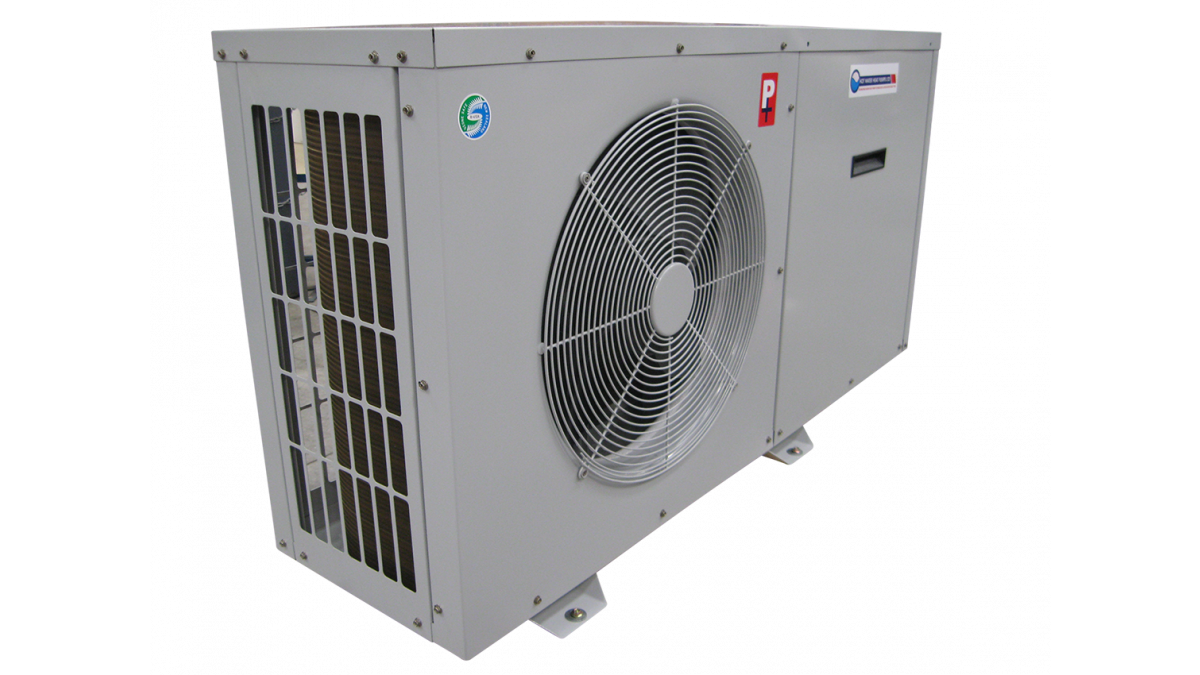

Pool Heat Pump: 65 to 95m2
Description

The Titanium Series Swimming Pool or Spa Heaters are part of the Performance Plus range of models. Each unit ensures a constant pool or spa temperature every time. These units are ideal for up to 95m² size pools and spa pools in most of the North Island or up to 80m² size pools in the Central North Island and South Island (see "Scope" for further details). Typically, for every 1kW of electric input, users receive 5kW worth of heat.

Key Features
  • Quiet running
  • Built in drain tray
  • Water flow switch activated
  • Titanium tube heat exchanger
  • Ozone friendly refrigerants
  • Epoxy coated corrosion resistant evaporator coils
  • Built in refrigeration safety switches
  • Electronic reverse cycle de-ice control
  • Easy to operate electronic controller with digital display
  • TX valve for more efficient low ambient operation
  • Compressor has built in internal and external overload

Performance plus BENEFITS

  • Easy to install and operate
  • Low operating costs and high efficiency
  • Environmentally friendly
  • Durable and long life expectancy
  • Engineered and built in New Zealand
  • Automatically maintains any set temperature in all weather
NZ-Owned Business
NZ-Owned Business
Scope of Use

The heat pump most suited to each situation is determined by a number of factors; the surface area of the pool, pool use, whether the pool has a cover and the time the pool is covered, local temperature and weather conditions

For heat pump sizing for the duration of use your require, please contact Hot Water Heat Pumps.  As a general guide to heat pump requirements for an extended season of swimming from mid October to mid April:

14kW Heat Pump - 7GP14-1

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 65m2 for most of the North Island, up to 60m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 48m2 for most of the North Island, up to 43m2 for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 38m2 for most of the North Island, up to 22m2 for the Central North Island and South Island.

17kW Heat Pump - 7GP17-1 (Single Phase) & 7GP17-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 80m2 for most of the North Island, up to 70m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 63m2 for most of the North Island, up to 54m2 for the Central North Island and South Island.
  • Commercial Pool (up to 6 hours per day uncovered) with a surface area of up to 51m2 for most of the North Island, up to 34m2 for the Central North Island and South Island.

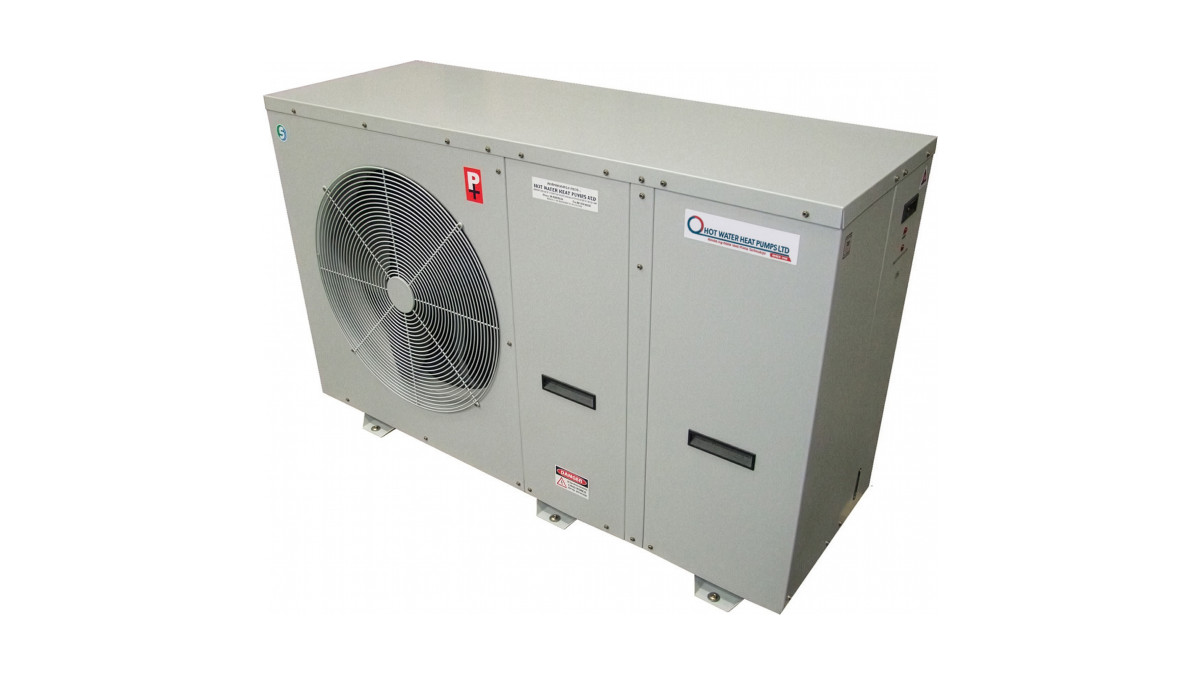

20kW Heat Pump - 7GP20-1 (Single Phase) & 7GP20-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 95m2 for most of the North Island, up to 80m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 67m2 for most of the North Island, up to 58m2 for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 56m2 for most of the North Island, up to 44m2 for the Central North Island and South Island.

Ideal applications

  • Swimming pool
  • Spa heating
  • Hydroponics
Other Performance Attributes

All residential heat pump pool heater models carry a comprehensive two year parts and labour warranty, including the compressor, evaporator coils, heat exchanger and refrigeration systems. The titanium tube within the heat exchanger is covered against corrosion for 30 years for residential use and 10 years for commercial use.

Heat pump water heaters are fitted with protection systems to prevent damage in the event of a malfunction. For example a flow switch to ensure the heat pump cannot operate without water flow and other refrigeration safeties. If a problem is identified, the unit automatically shuts down before damage can occur.

Documents
7GP14-1 Residential Technical Specifications
7GP17-1 Residential Technical Specifications
7GP17-3 Commercial Technical Specifications
7GP20-1 Residential Technical Specifications
7GP20-3 Commercial Technical Specifications
Brochure
