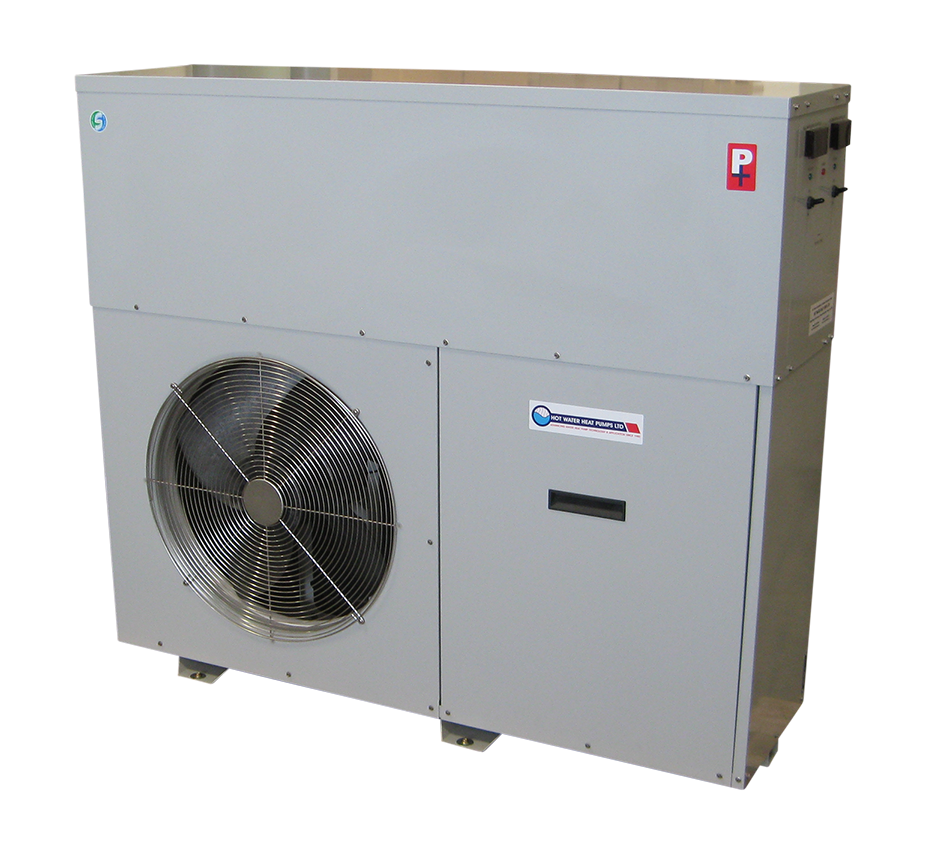

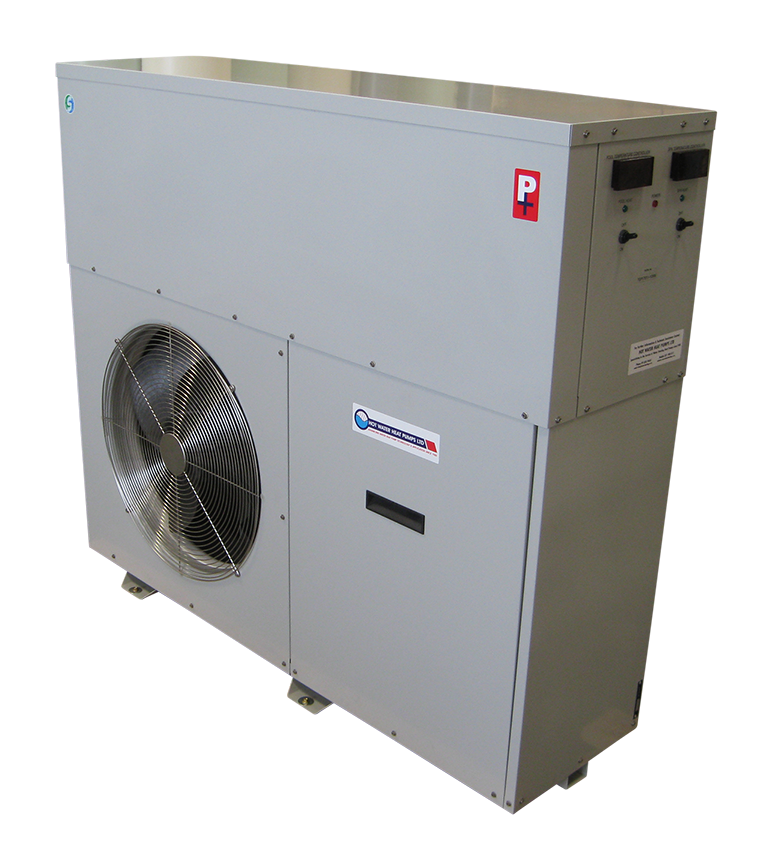

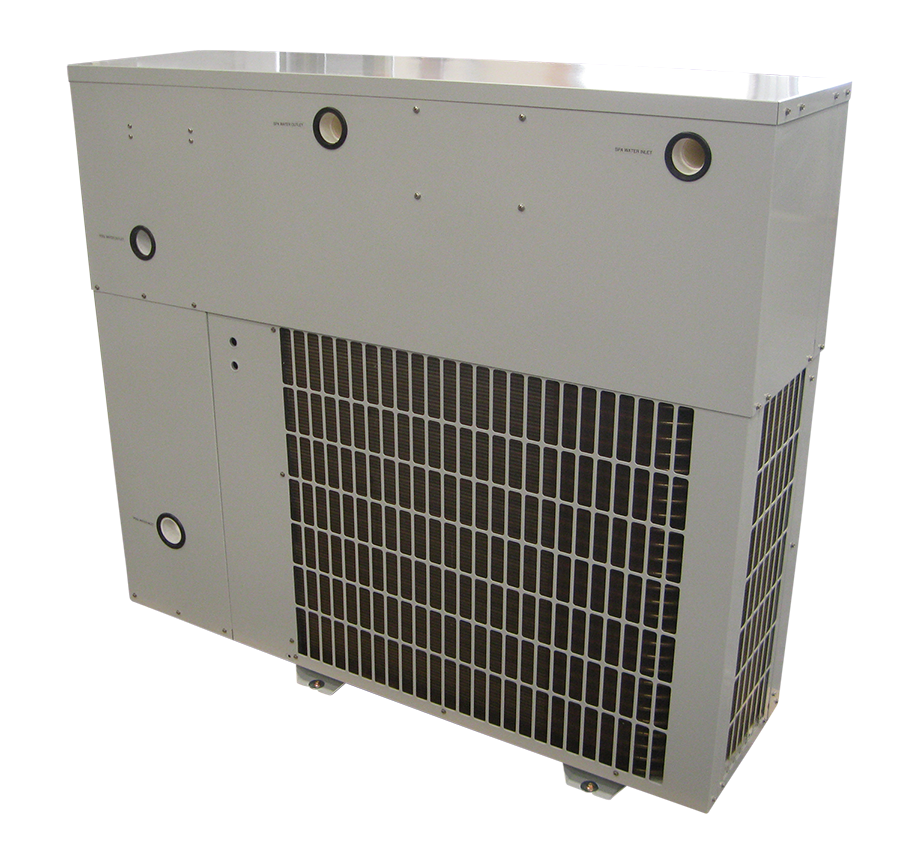

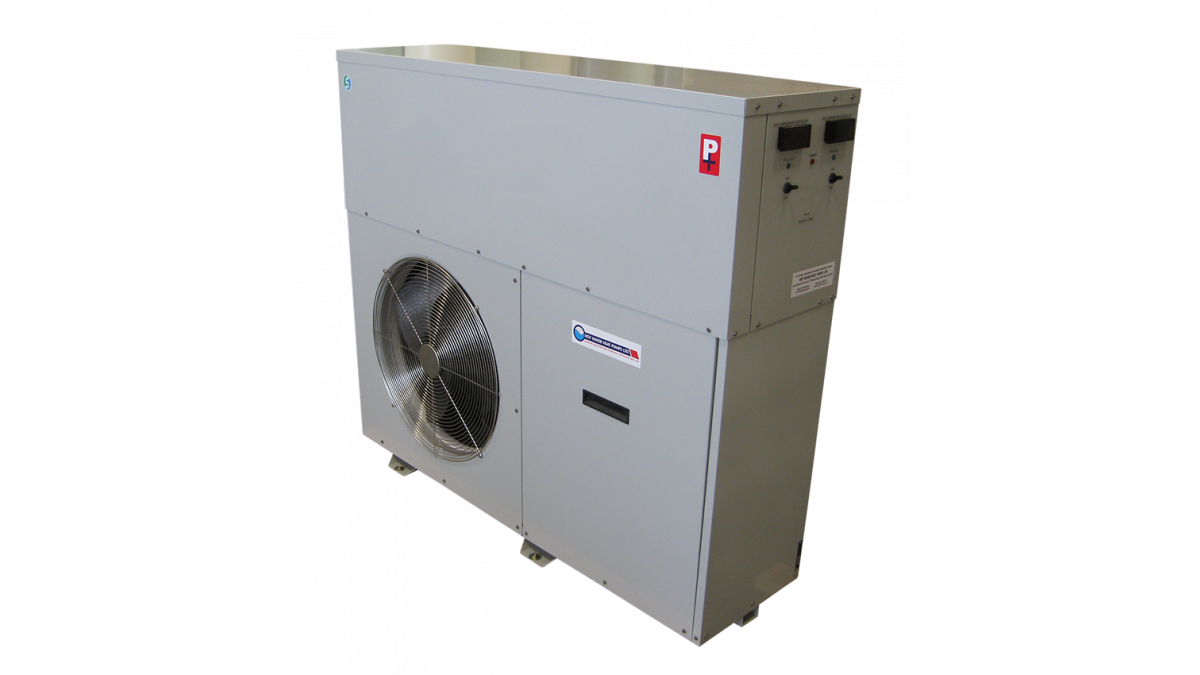

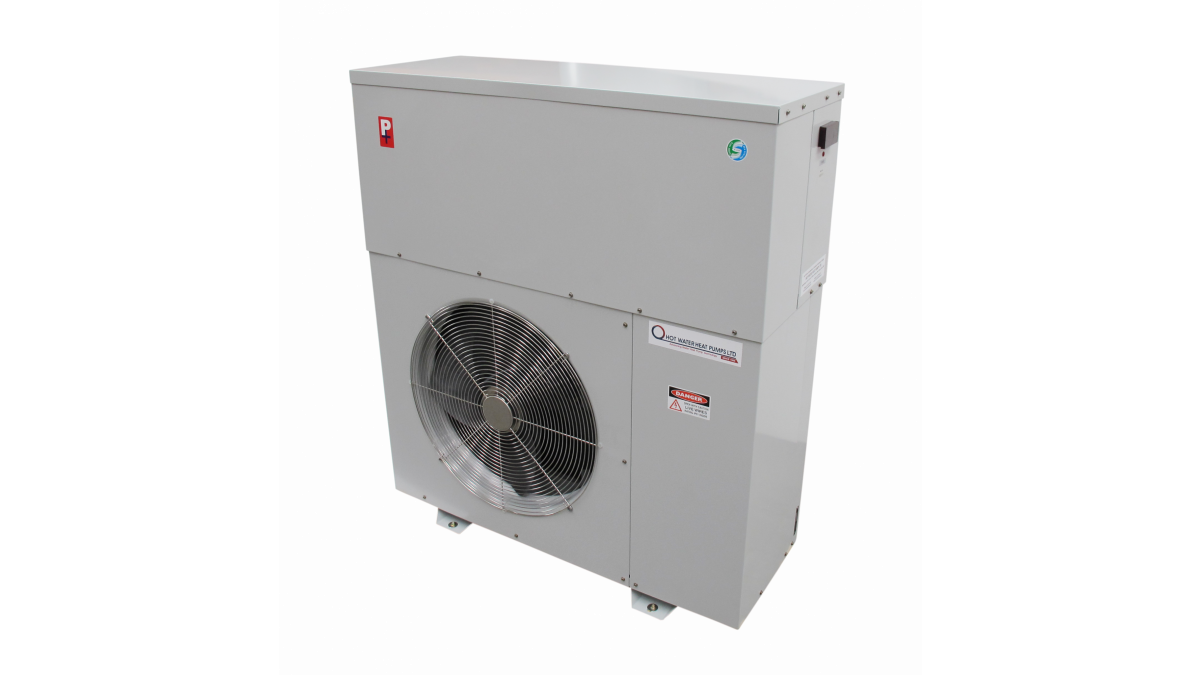

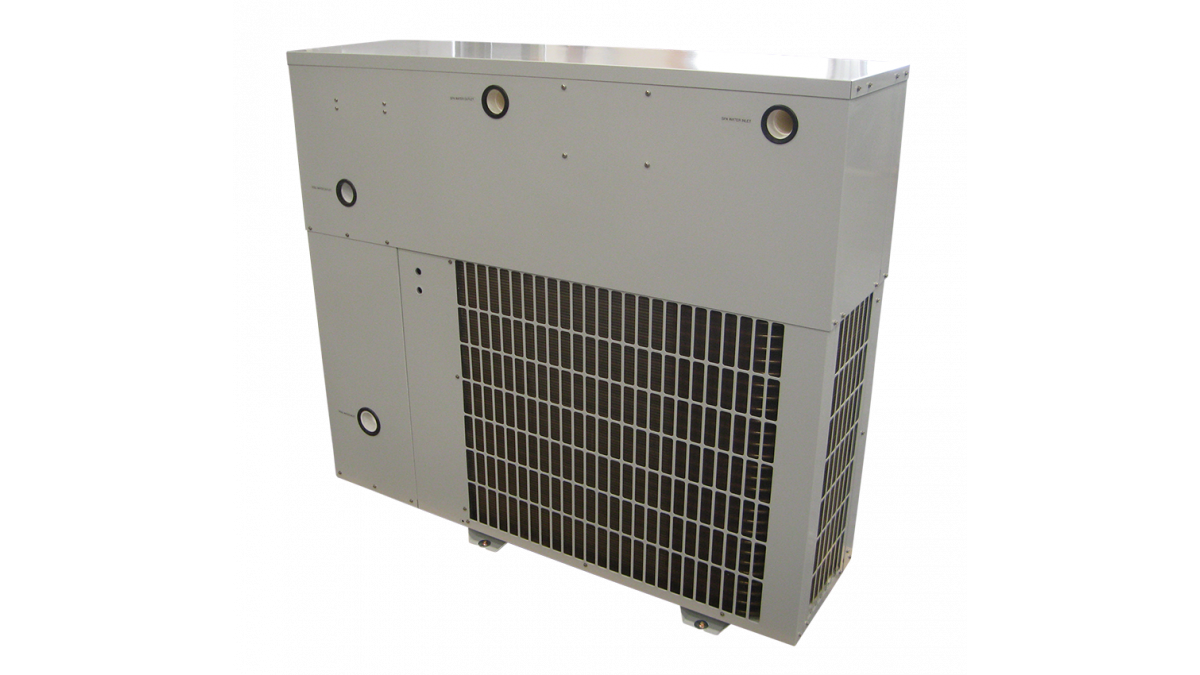

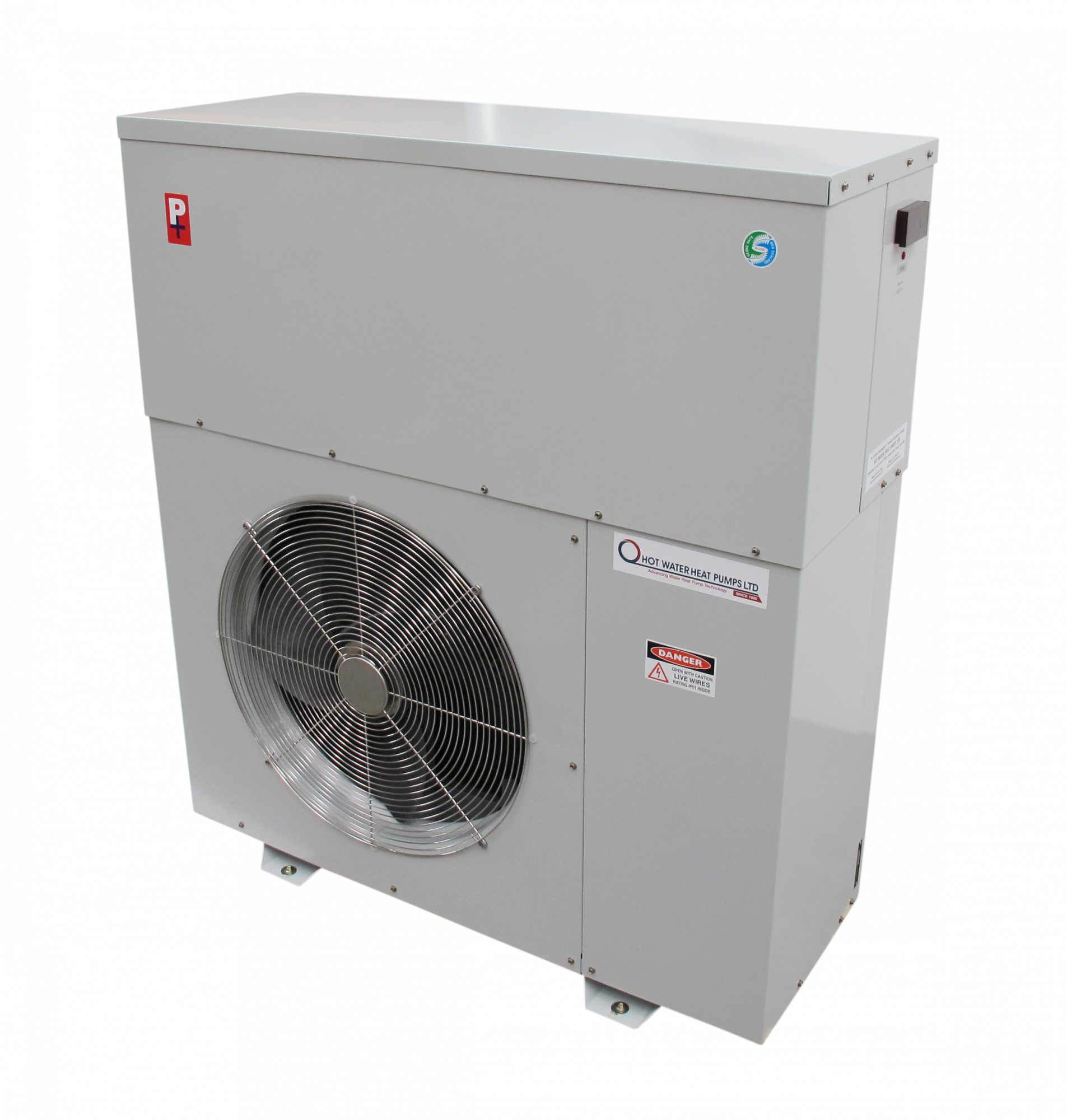

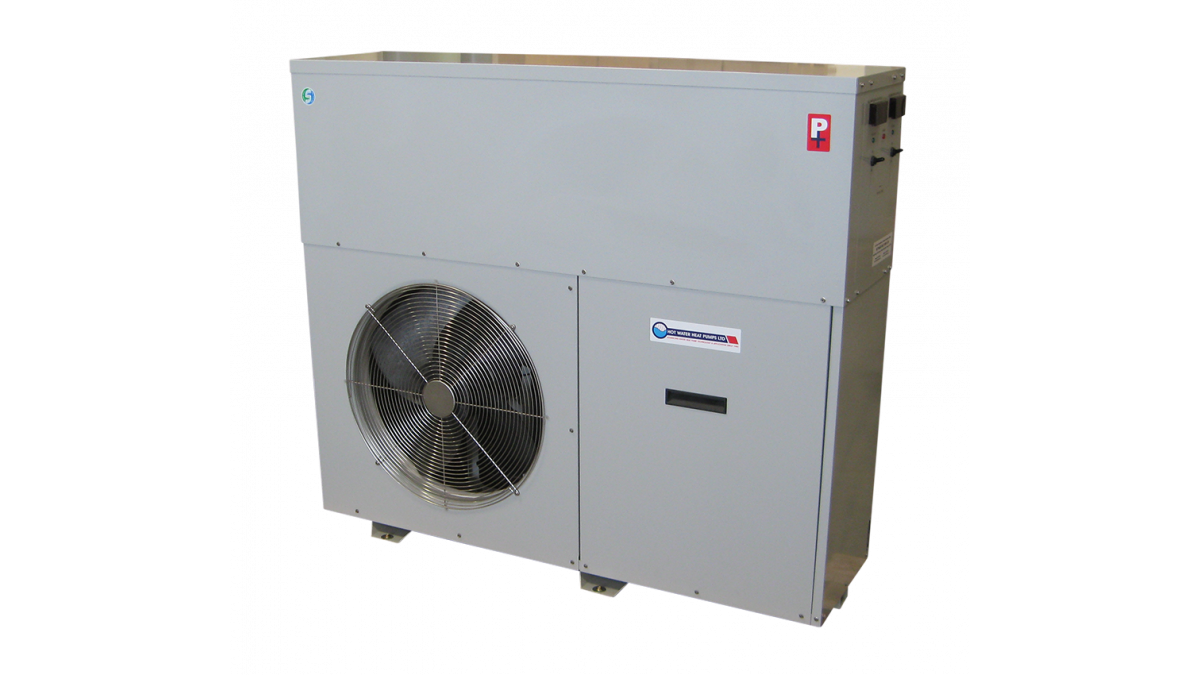

Duoheat Underfloor & Domestic Hot Water Heat Pump: Floor up to 180m²
Description

The Duoheat range of dual-purpose heat pump water heaters eliminates the need to invest in two separate heat pumps. They are ideal for heating both underfloor and domestic hot water needs, reducing unit redundancies and minimising the overall footprint of the equipment.

'Ub' series Duoheat Heat pump water heaters have been developed specifically for use in residential and commercial hydronic floor heating systems.

Key Features
  • Energy efficient
  • Environmentally friendly
  • Easy operation
  • Consistent performance from -10°C to 45°C
  • Engineered and built in New Zealand from local and imported parts

Duoheat BENEFITS

Duoheat heat pump water heaters offer the same advantages of Performance Plus heat pump water heaters with the addition of:

  • Eliminating the need for investing in two or three separate heat pump water heaters
  • Providing a smaller overall footprint
  • Reducing equipment redundancies
  • Lower capital investment over two separate units
NZ-Owned Business
NZ-Owned Business
Scope of Use

The heat pump most suited to each situation is determined by a number of factors. When combining the heating for a underfloor heating and domestic hot water, sizing priority is given to the underfloor as it has the greatest load requirement. These factors include; floor area, insulation, building structure and climate. For more information about heat pump sizing please contact Hot Water Heat Pumps. As a general guide to heat pump requirements:

5KW Underfloor & 4kW Domestic Hot Water HEAT PUMP - 7GU5D4-1 or 7GP5UbD4-1 (Ub model includes buffer tank & circulation pump)

  • Underfloor area of up to 104m² (providing 50 Watts/m²) for Northland, Auckland, and Coastal Bay of Plenty.
  • Underfloor area of up to 80m² (providing 65 Watts/m²) for Hamilton, Gisborne, Taranaki, Coastal Hawkes Bay and Wellington.
  • Underfloor area of up to 61m² (providing 85 Watts/m²) for the Central Plateau and South Island.

8KW Underfloor & 6kW Domestic Hot Water HEAT PUMP - 7GU8D6-1 or 7GP8UbD6-1 (Ub model includes buffer tank & circulation pump)

  • Underfloor area of up to 154m² (providing 50 Watts/m²) for Northland, Auckland, and Coastal Bay of Plenty.
  • Underfloor area of up to 118m² (providing 65 Watts/m²) for Hamilton, Gisborne, Taranaki, Coastal Hawkes Bay and Wellington.
  • Underfloor area of up to 91m² (providing 85 Watts/m²) for the Central Plateau and South Island.

9KW Underfloor & 8kW Domestic Hot Water HEAT PUMP - 7GU9D8-1 or 7GP9UbD8-1 (Ub model includes buffer tank & circulation pump)

  • Underfloor area of up to 180m² (providing 50 Watts/m²) for Northland, Auckland, and Coastal Bay of Plenty.
  • Underfloor area of up to 138m² (providing 65 Watts/m²) for Hamilton, Gisborne, Taranaki, Coastal Hawkes Bay and Wellington.
  • Underfloor area of up to 106m² (providing 85 Watts/m²) for the Central Plateau and South Island.

Ideal applications

  • Underfloor and domestic hot water
Other Performance Attributes

All of Hot Water Heat Pumps' models carry a comprehensive two year parts and labour warranty, including the compressor, evaporator coils, heat exchanger and refrigeration systems. The titanium tube within the heat exchanger is covered against corrosion for 30 years for residential use and 10 years for commercial use.

These heat pump water heaters are fitted with protection systems to prevent damage in the event of a malfunction. Such as a flow switch to ensure the heat pump cannot operate without water flow and other refrigeration safeties. If a problem is identified, the unit automatically shuts down before damage can occur.

Documents
7GU5D4-1 Technical Specifications
7GU8D6-1 Technical Specifications
7GU9D8-1 Technical Specifications
7GUb5D4-1 Technical Specifications
7GUb8D6-1 Technical Specifications
7GUb9D8-1 Technical Specifications
