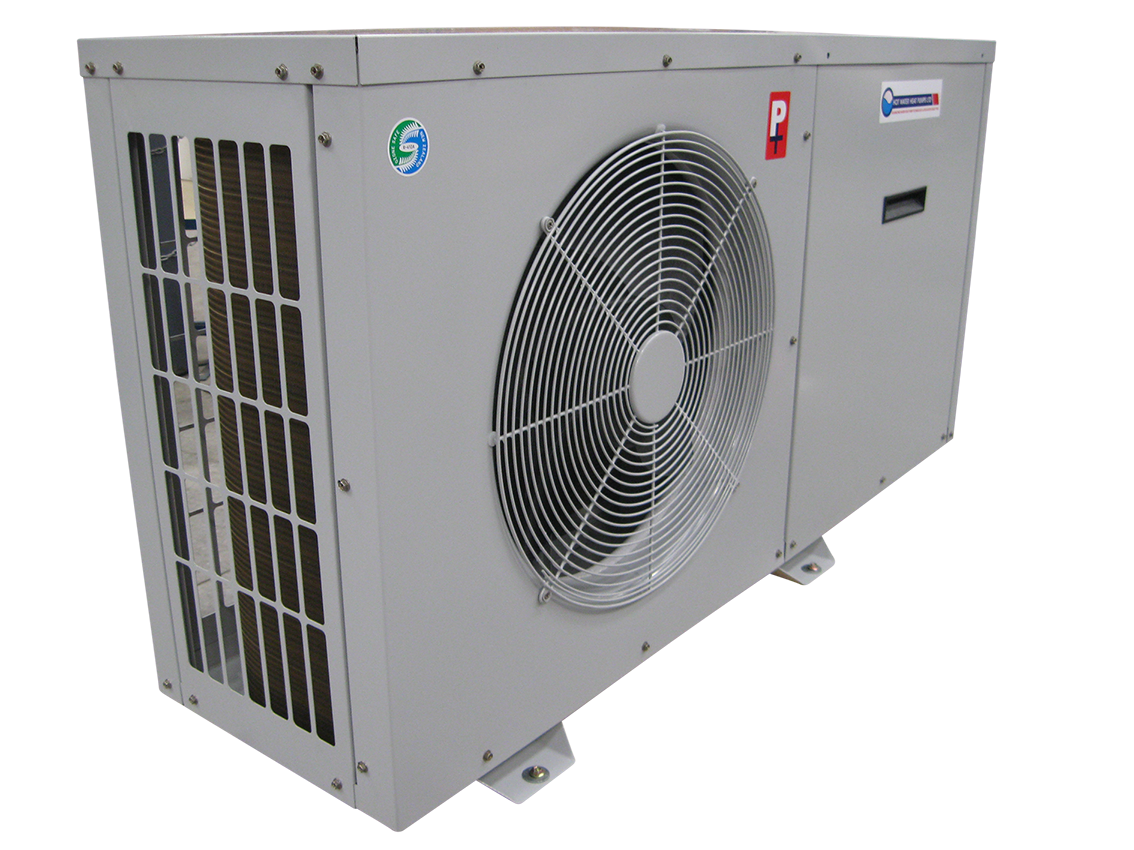

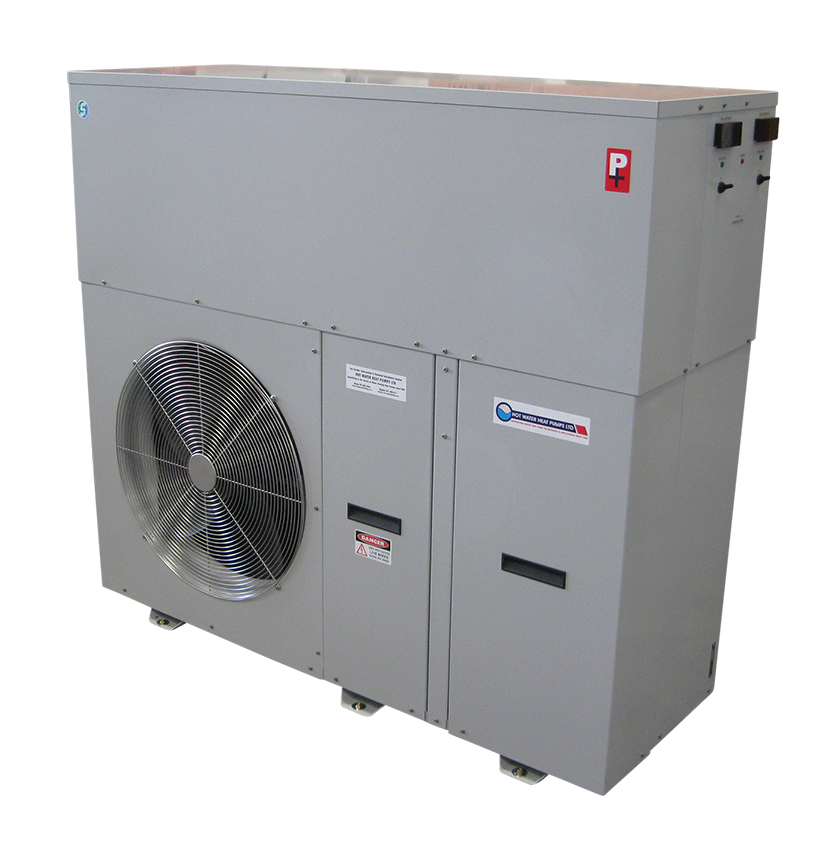

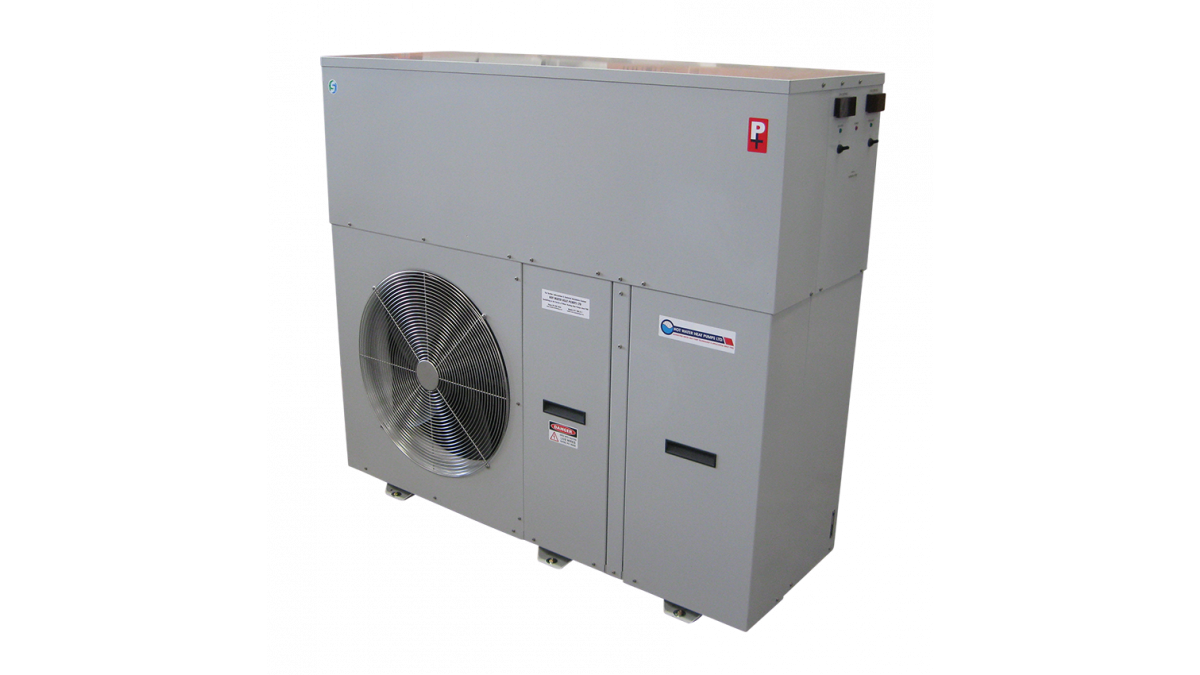

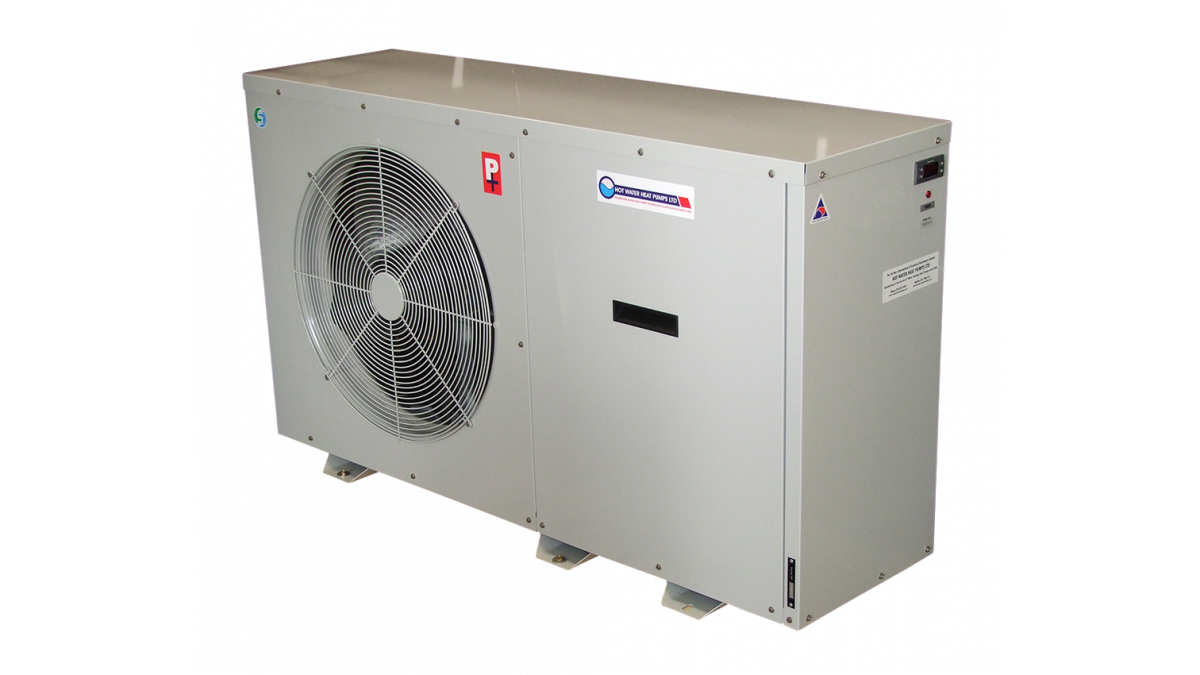

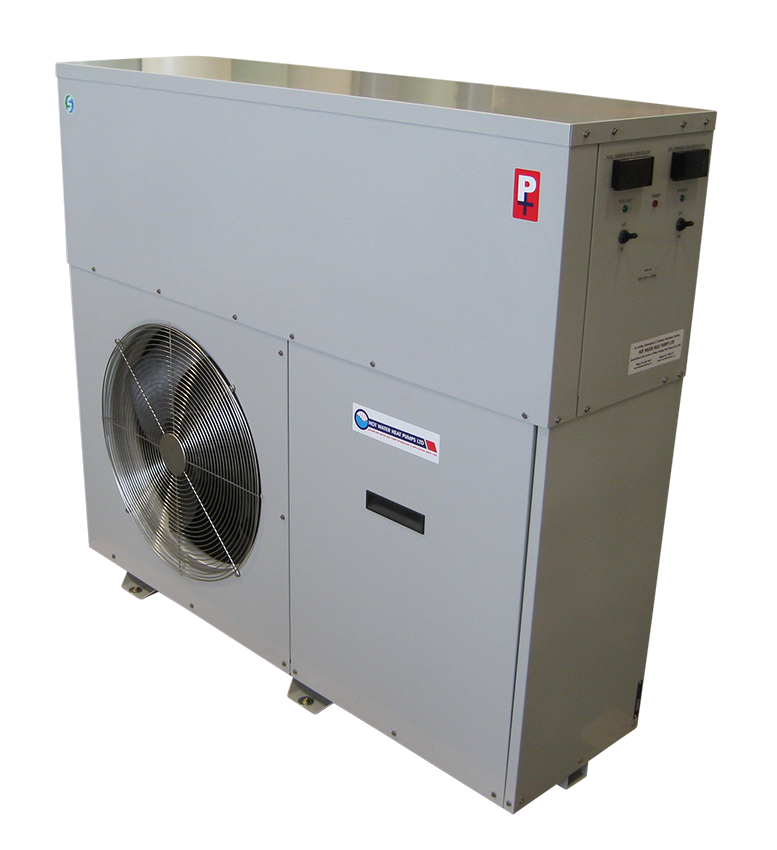

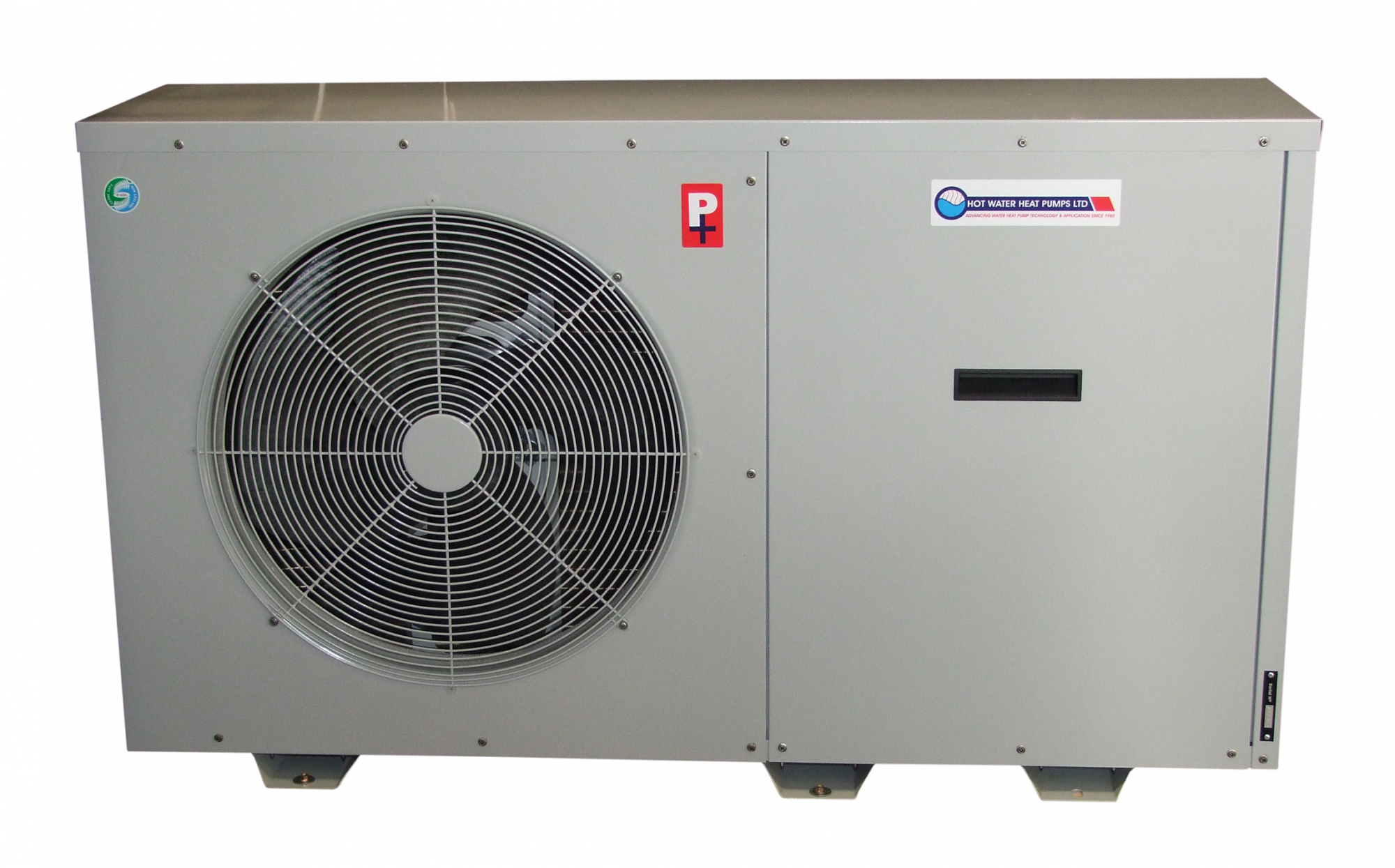

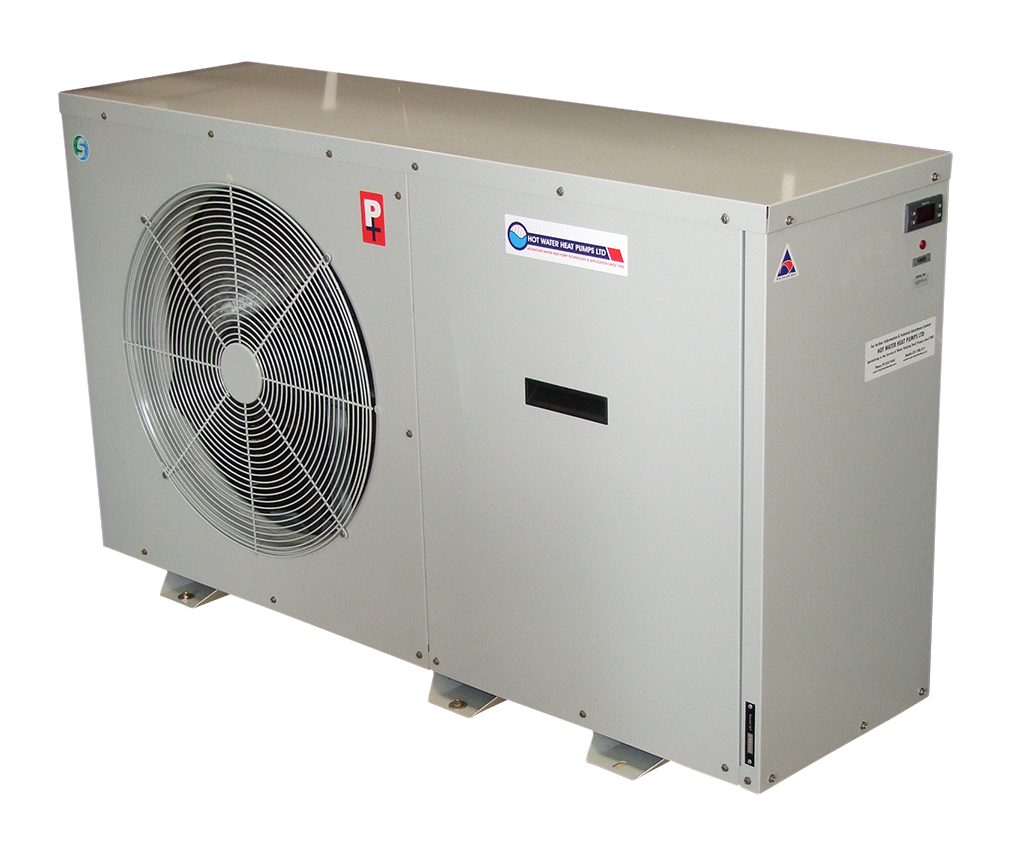

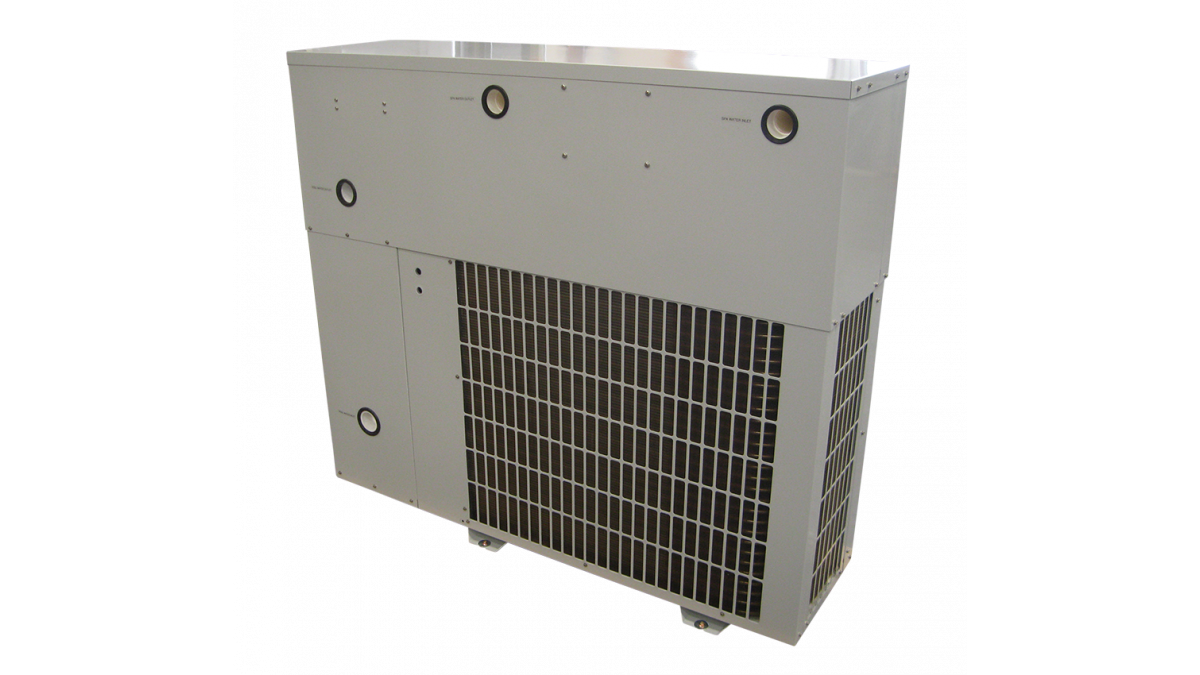

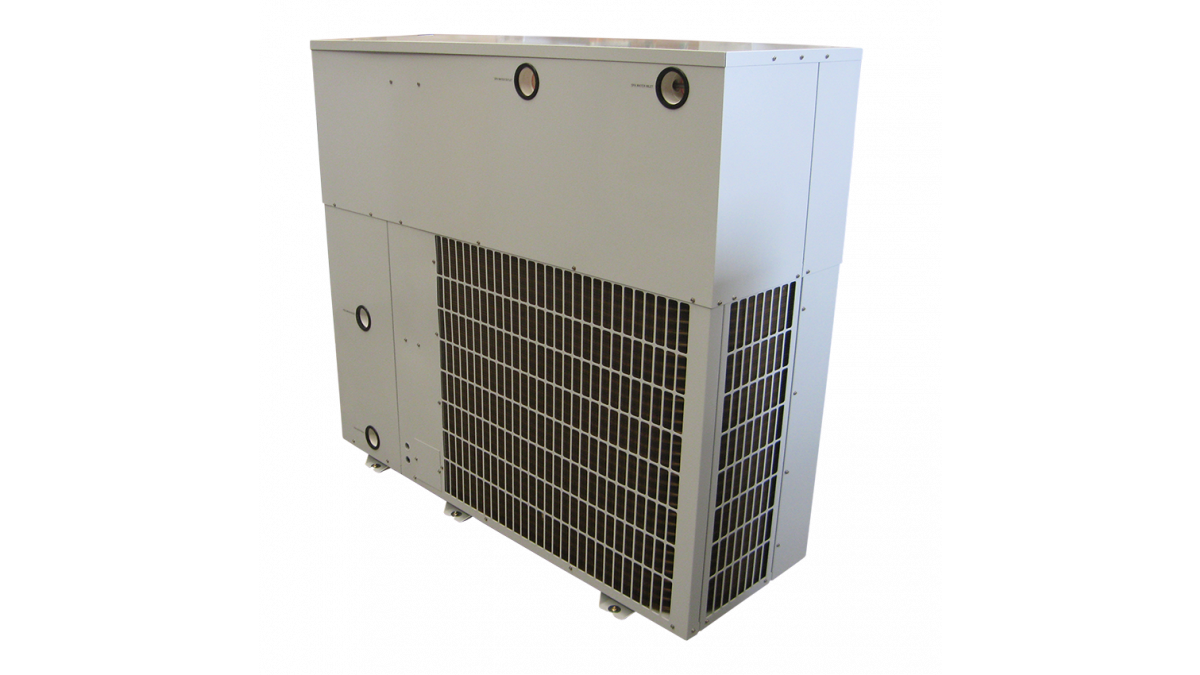

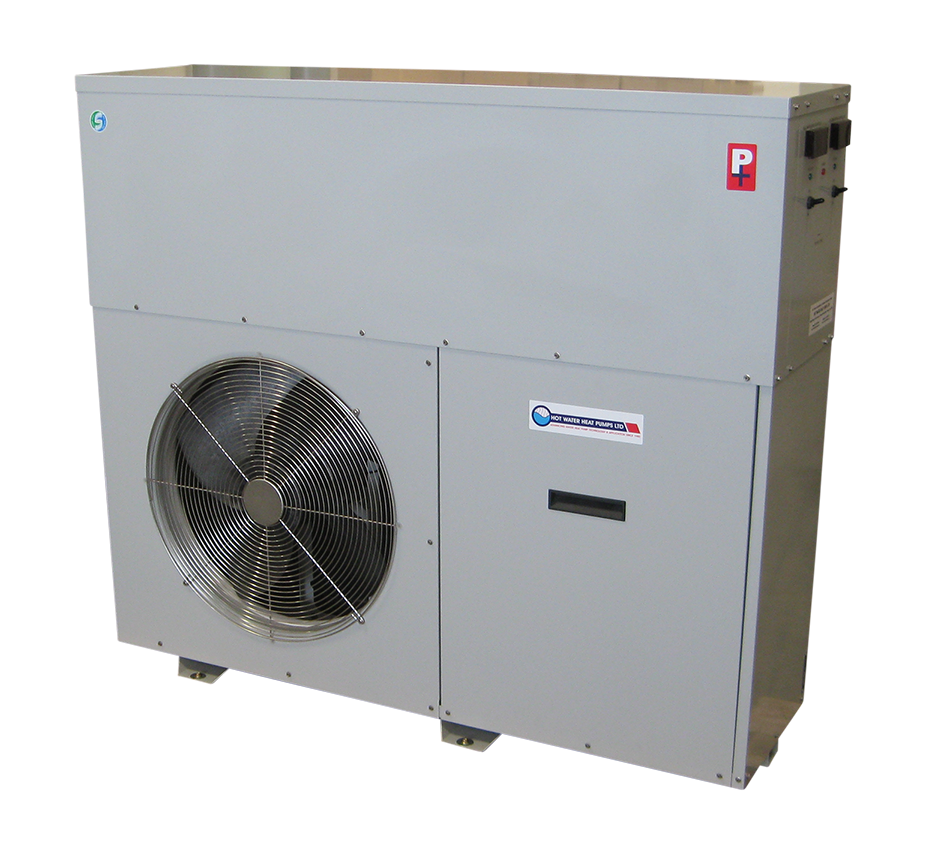

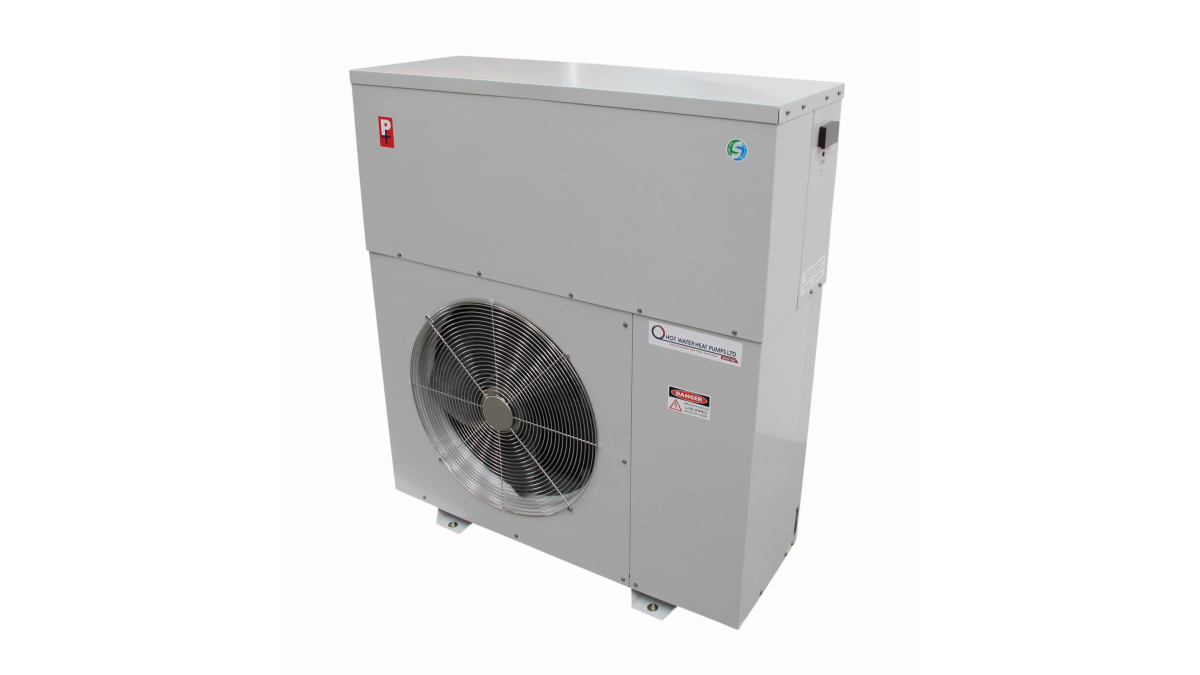

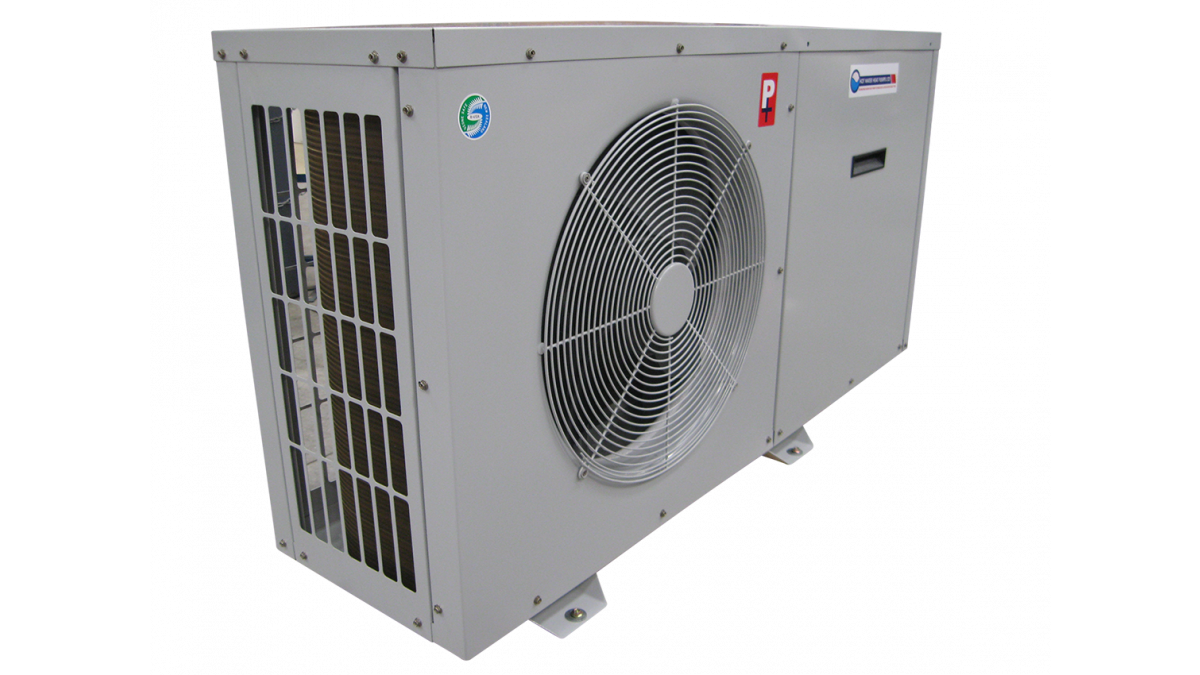

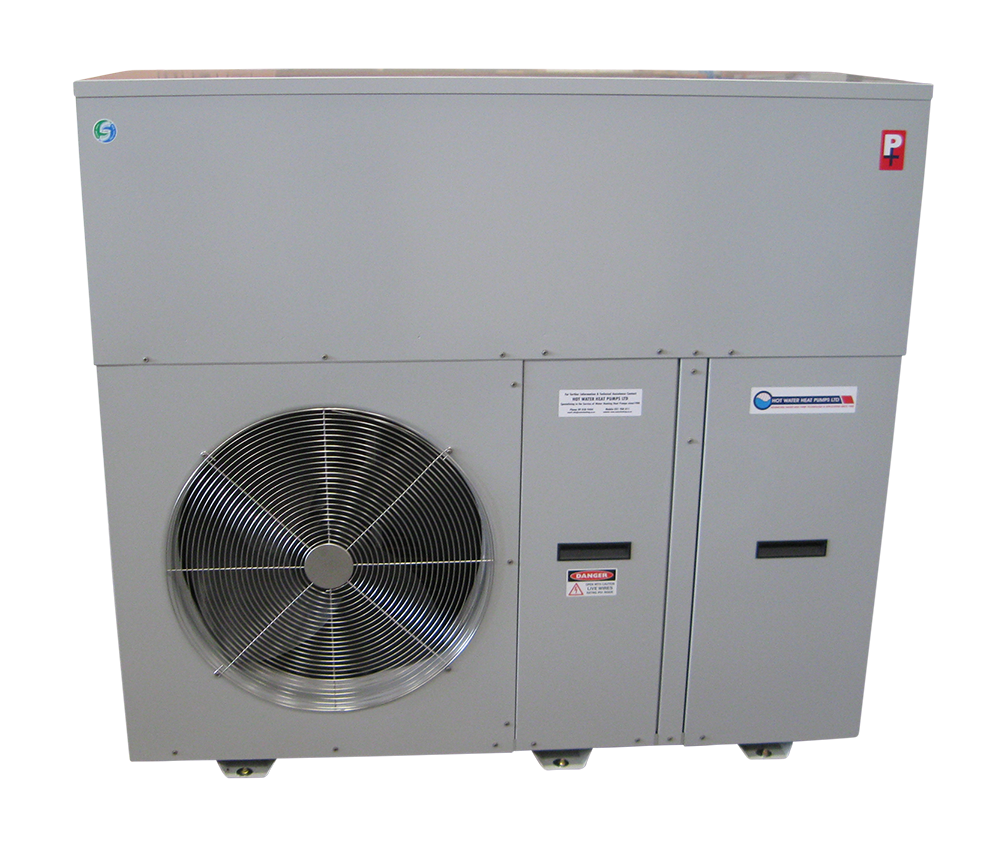

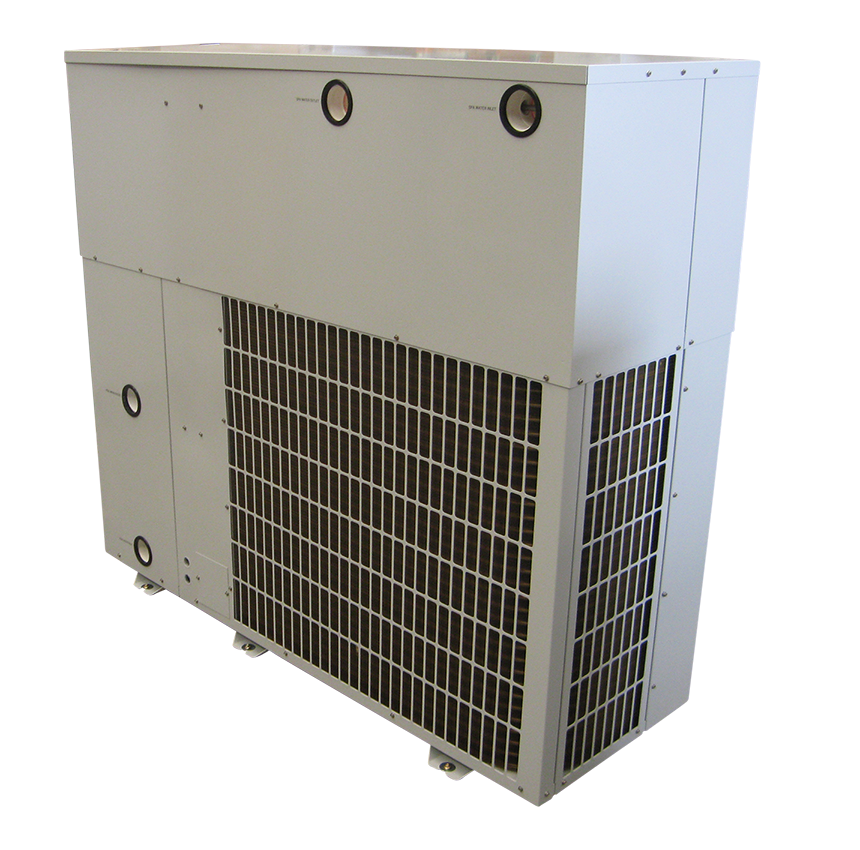

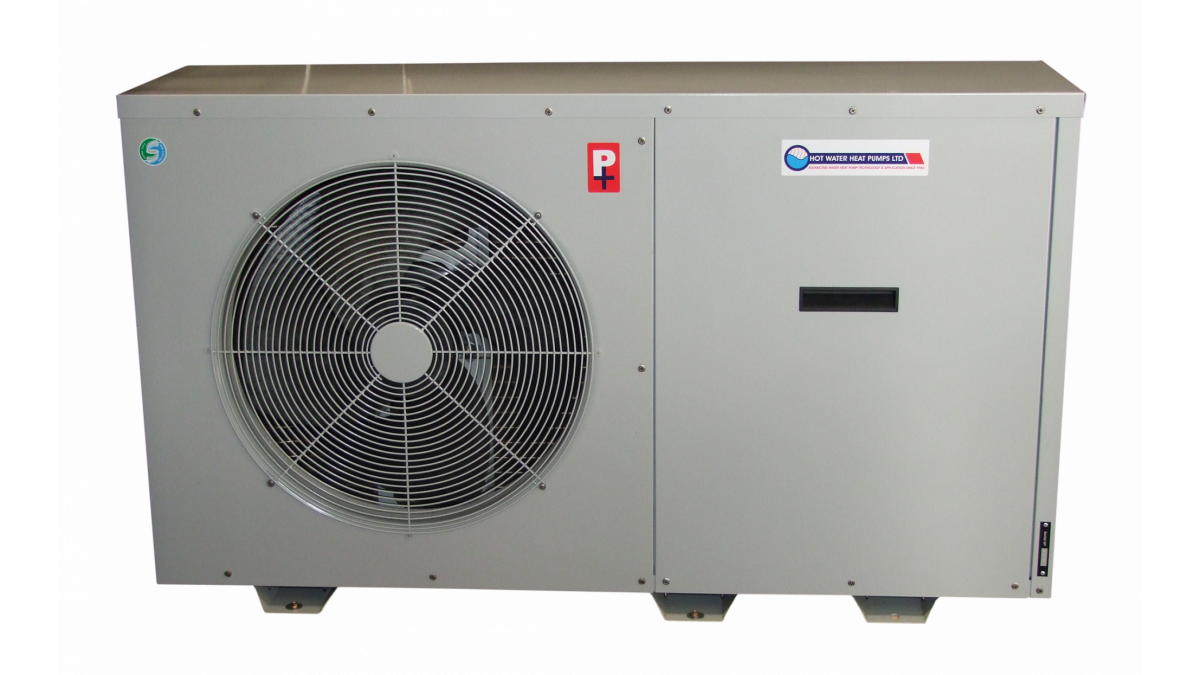

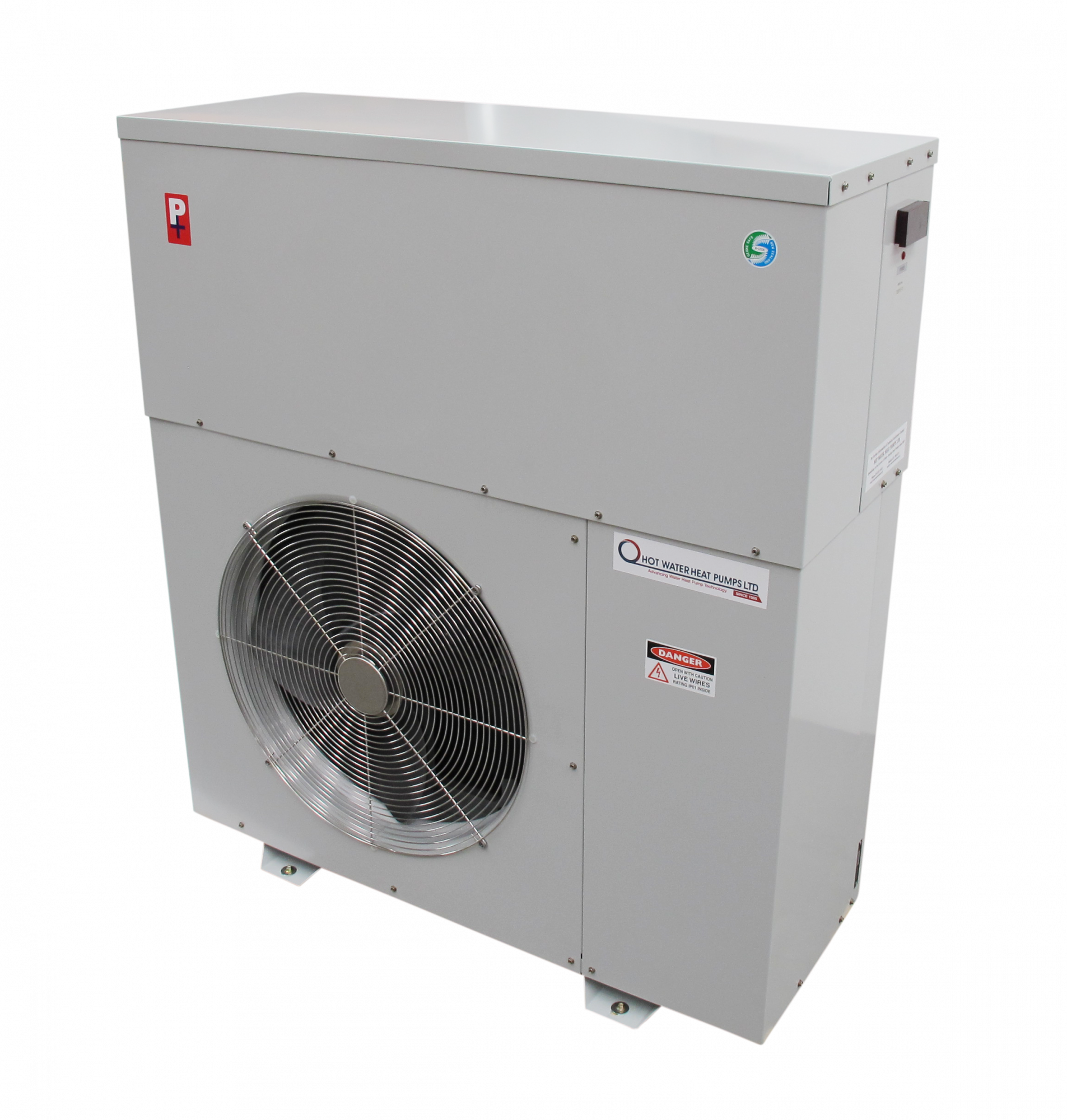

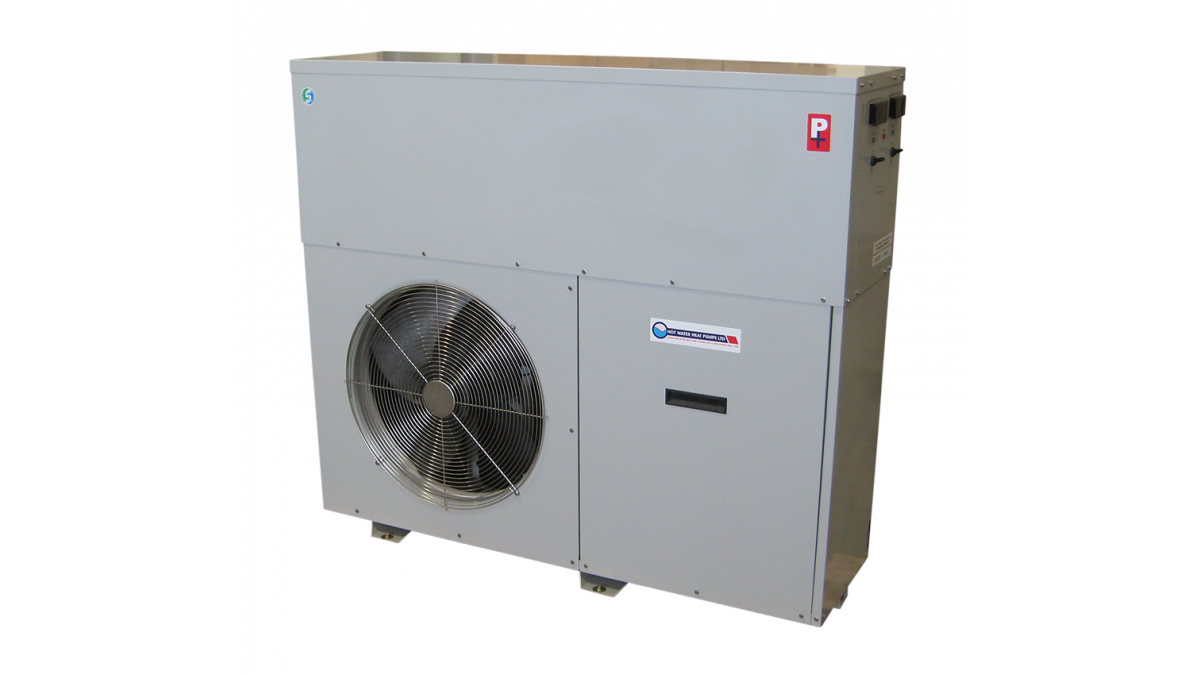

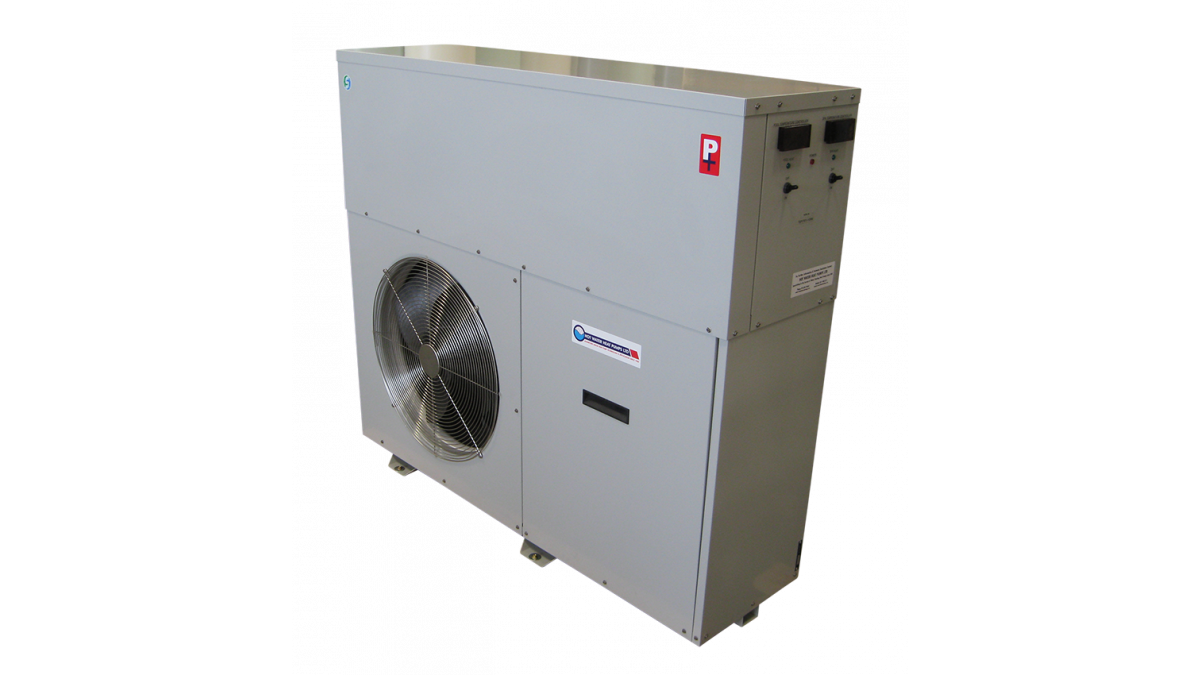

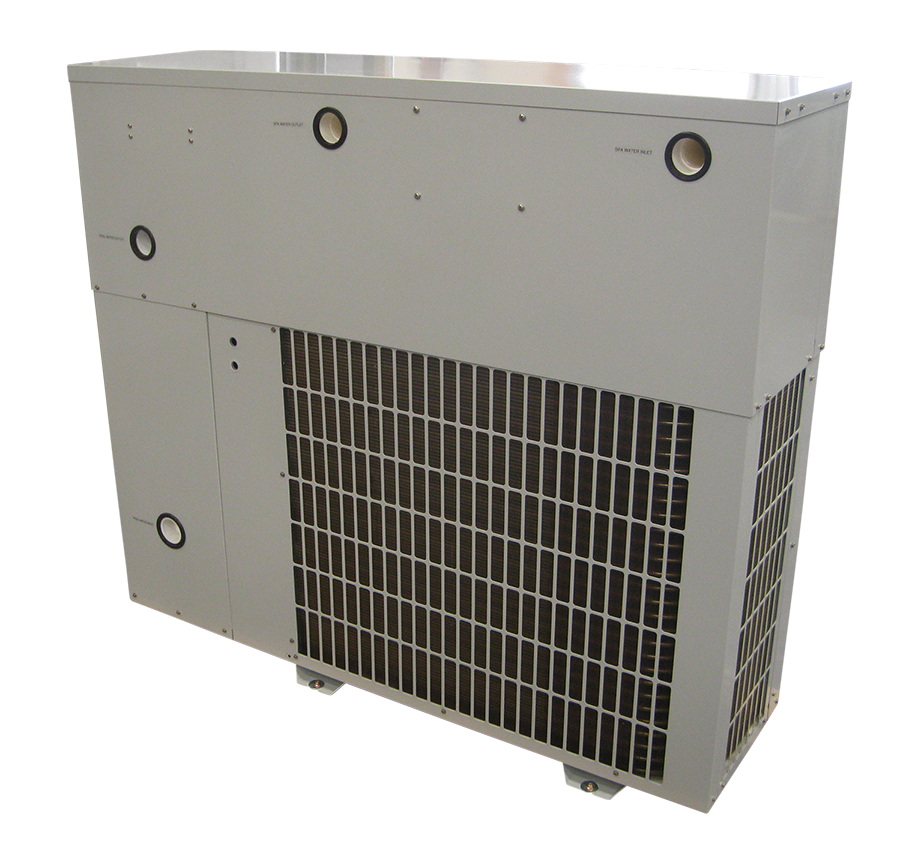

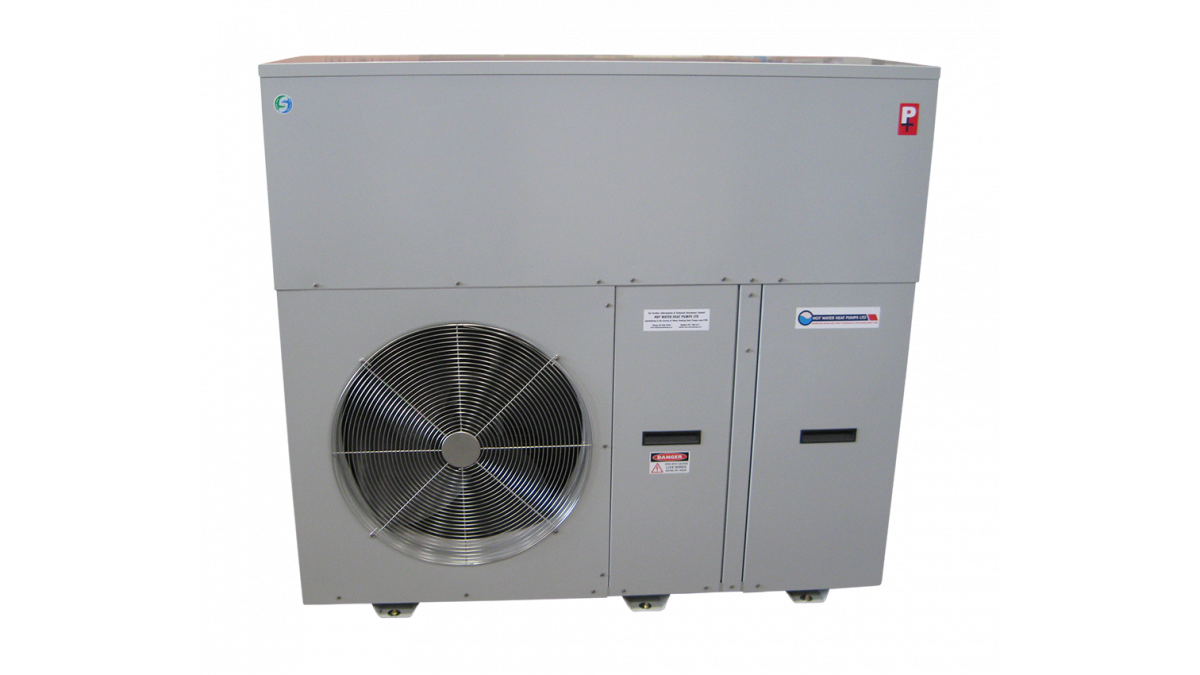

Duoheat Underfloor & Domestic Hot Water Heat Pump: Floor 180m² to 276m²
Description

The Duoheat range of dual-purpose heat pump water heaters eliminates the need to invest in two separate heat pumps. They are ideal for heating both underfloor and domestic hot water needs, reducing unit redundancies and minimising the overall footprint of the equipment.

The Duoheat system pipe work distributes heat to the entire floor area, so there are no hot or cold spots. Separate controls for each zone means you can tailor the water flow for each area to suit individual room or zone requirements night and day. 'Ub' series Duoheat Heat pump water heaters have been developed specifically for use in residential and commercial hydronic floor heating systems.

Key Features

Duoheat Features

  • Energy efficient
  • Environmentally friendly
  • Easy operation
  • Consistent performance from -10°C to 45°C
  • Engineered and built in New Zealand from local and imported parts

Duoheat BENEFITS

Duoheat heat pump water heaters offer the same advantages of Performance Plus heat pump water heaters with the addition of:

  • Eliminating the need for investing in two or three separate heat pump water heaters
  • Providing a smaller overall footprint
  • Reducing equipment redundancies
  • Lower capital investment over two separate units
NZ-Owned Business
NZ-Owned Business
Scope of Use

The heat pump most suited to each situation is determined by a number of factors. When combining the heating for a underfloor heating and domestic hot water, sizing priority is given to the underfloor as it has the greatest load requirement. These factors include; floor area, insulation, building structure and climate. For more information about heat pump sizing please contact us. As a general guide to heat pump requirements:

11KW UNDERFLOOR & 10kW Domestic Hot Water HEAT PUMP — 7GU11D10-1 & 7GUB11D10-1 (SINGLE PHASE) & 7GU11D10-3 & 7GUB11D10-3 (THREE PHASE) Note: Ub Model includes Buffer tank and circulation pump

  • Underfloor area of up to 220m² (providing 50 Watts/m²) for Northland, Auckland, and Coastal Bay of Plenty.
  • Underfloor area of up to 169m² (providing 65 Watts/m²) for Hamilton, Gisborne, Taranaki, Coastal Hawkes Bay and Wellington.
  • Underfloor area of up to 129m² (providing 85 Watts/m²) for the Central Plateau and South Island.

14KW Underfloor & 12kW Domestic Hot Water HEAT PUMP — 7GU14D12-1 & 7GUB14D12-1 (SINGLE PHASE) & 7GU14D12-3 & 7GUb14D12-3 (THREE PHASE) Note: Ub Model includes Buffer tank and circulation pump

  • Underfloor area of up to 276m² (providing 50 Watts/m²) for Northland, Auckland, and Coastal Bay of Plenty.
  • Underfloor area of up to 212m² (providing 65 Watts/m²) for Hamilton, Gisborne, Taranaki, Coastal Hawkes Bay and Wellington.
  • Underfloor area of up to 162m² (providing 85 Watts/m²) for the Central Plateau and South Island.

Ideal applications

  • Underfloor and domestic hot water
Other Performance Attributes

All of Hot Water Heat Pumps' models carry a comprehensive two year parts and labour warranty, including the compressor, evaporator coils, heat exchanger and refrigeration systems. The titanium tube within the heat exchanger is covered against corrosion for 30 years for residential use and 10 years for commercial use.

Their heat pump water heaters are fitted with protection systems to prevent damage in the event of a malfunction. Such as a flow switch to ensure the heat pump cannot operate without water flow and other refrigeration safeties. If a problem is identified, the unit automatically shuts down before damage can occur.

Documents
7GU11D10-1 Technical Specifications
7GU16D13-1 Technical Specifications
7GUb11D10-1 Technical Specifications
7GUb11D10-3 Technical Specifications
7GUb16D13-1 Technical Specifications
Brochure
Additional Information

Products include hot water heat pump solutions for hot water systems, swimming pool and spa heating and indoor pool ventilation.
