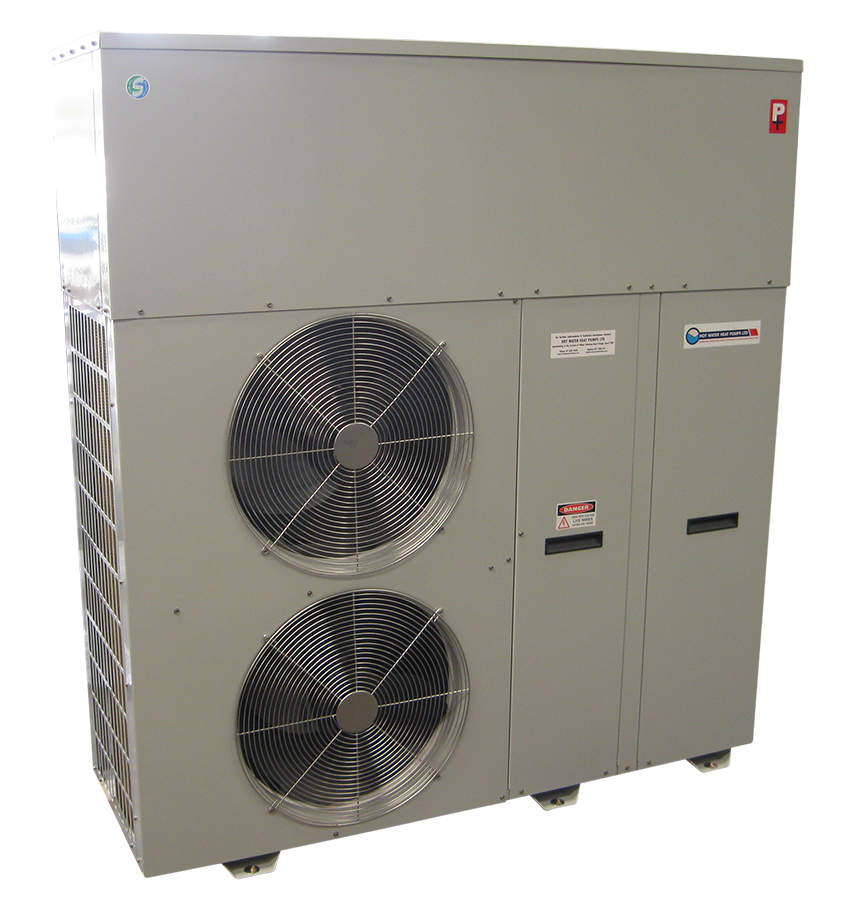

Duoheat Spa & Pool Heat Pump: 95m2 to 150m2 + Spa
Description

The Duoheat range of dual-purpose heat pump water heaters eliminates the need to invest in two separate heat pumps. They are ideal for heating both your swimming pool and spa pool, reducing unit redundancies and minimising the overall footprint of your equipment.

Key Features
  • Energy efficient
  • Environmentally friendly
  • Easy operation
  • Consistent performance from -10°C
  • Engineered and built in New Zealand from local and imported parts

Duoheat BENEFITS

Duoheat heat pump water heaters offer the same advantages of Performance Plus heat pump water heaters with the addition of:

  • Eliminating the need for investing in two or three separate heat pump water heaters
  • Providing a smaller overall footprint
  • Reducing equipment redundancies
  • Lower capital investment over two separate units
NZ-Owned Business
NZ-Owned Business
Scope of Use

The heat pump most suited to each situation is determined by a number of factors. When combining the heating for a swimming and spa pool, sizing consideration of the larger swimming pool is given priority. Surface area of the pool, pool use, whether the pools have a cover and the time they are covered, local temperature and weather conditions all influence heat pump suitability. For heat pump sizing for the duration of use your require, please contact us. As a general guide to heat pump requirements for an extended season of swimming from Mid October to Mid April:

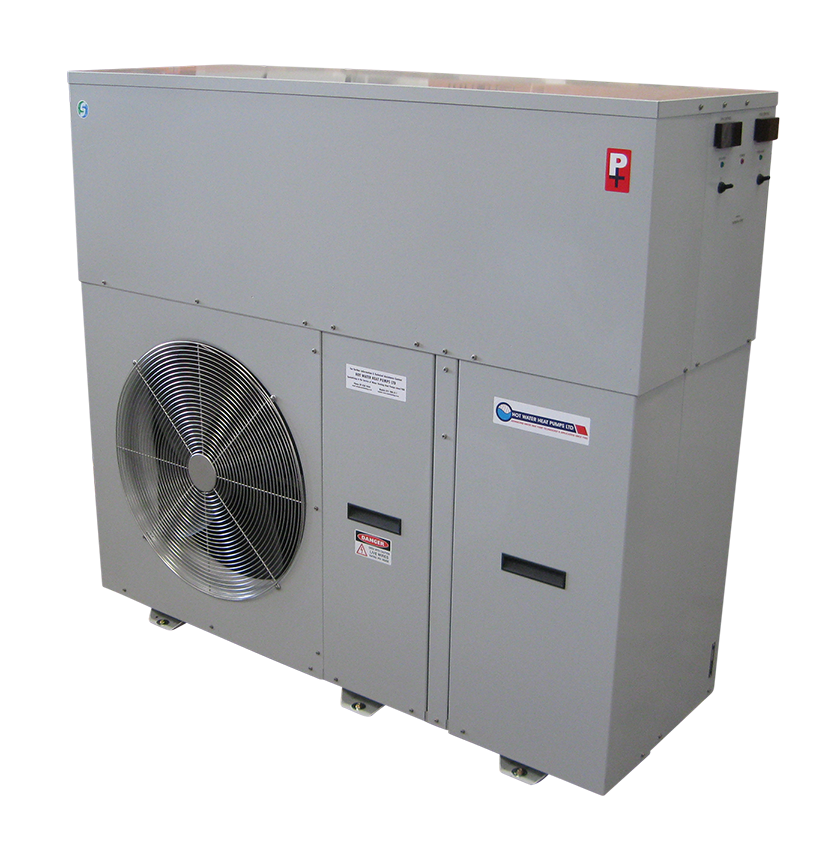

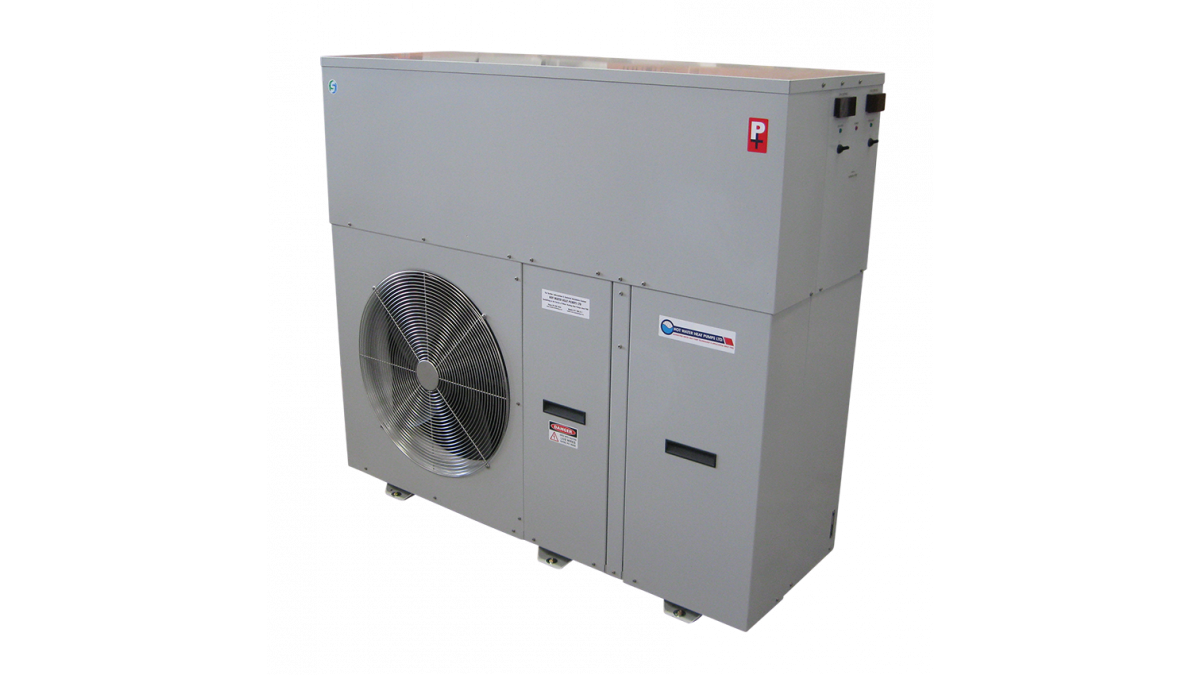

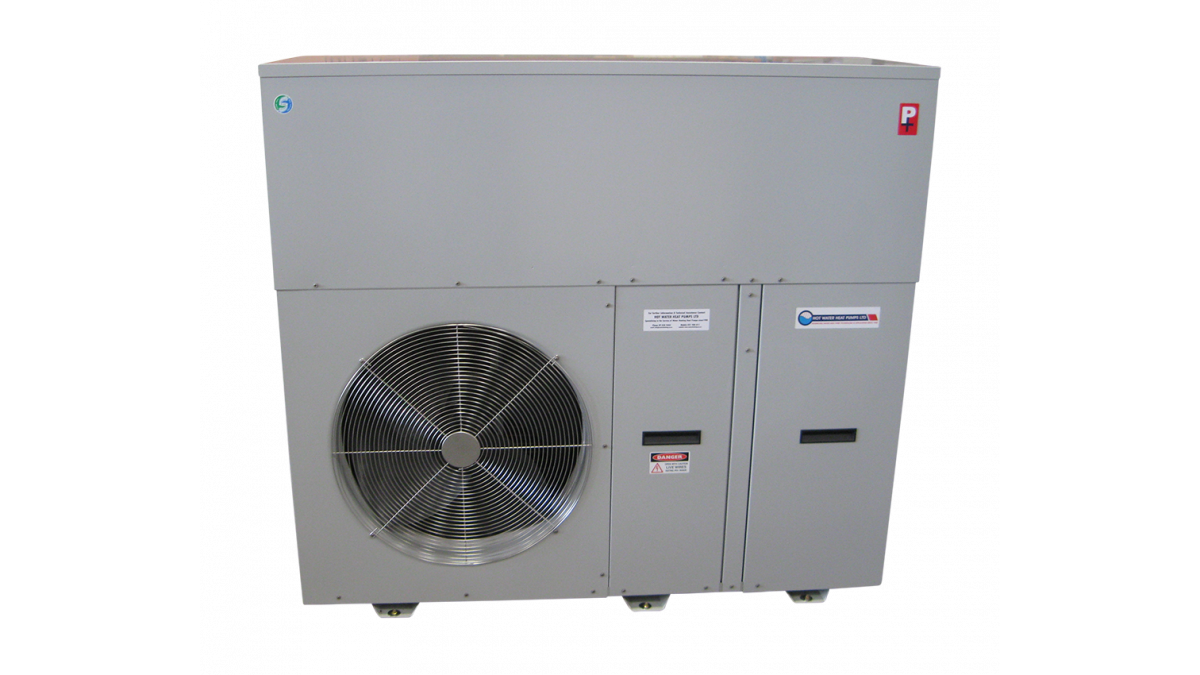

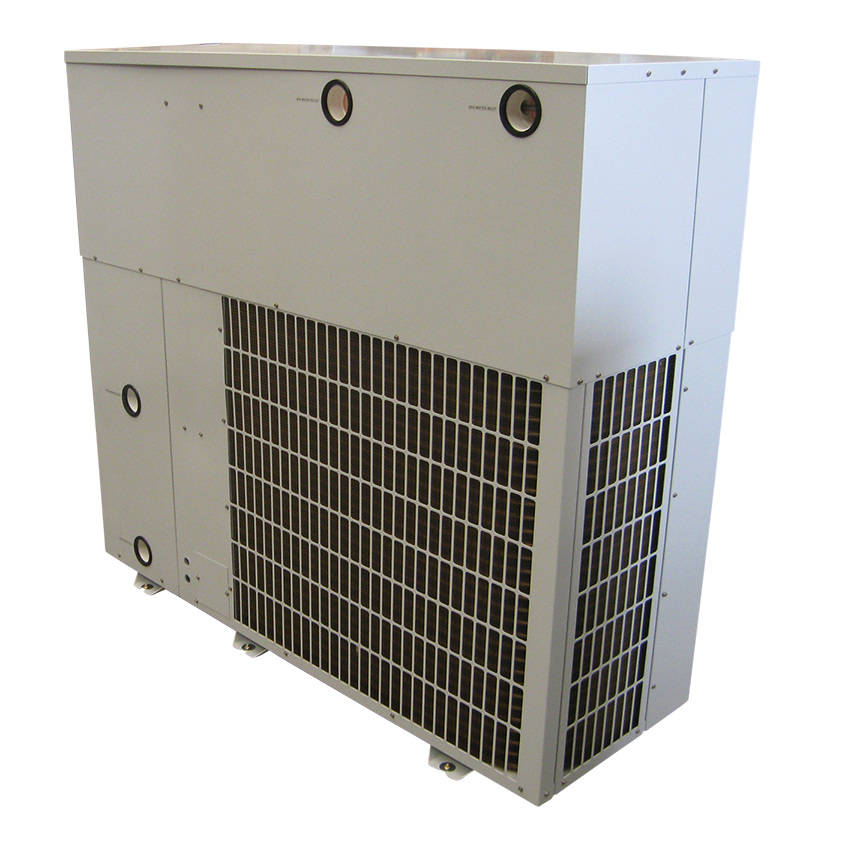

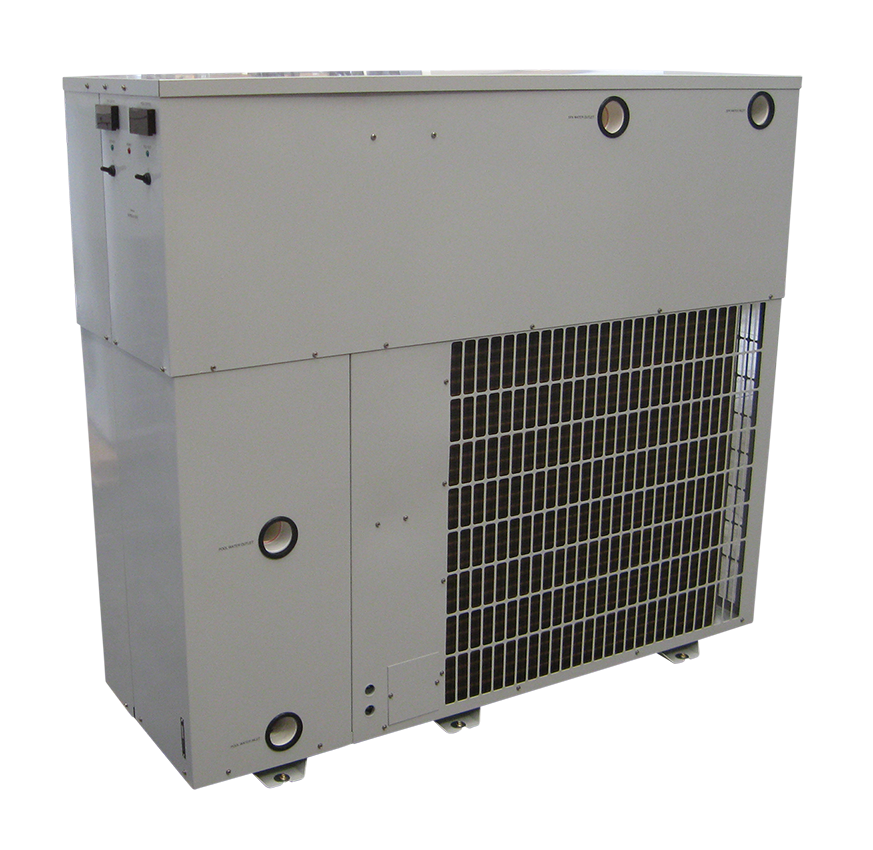

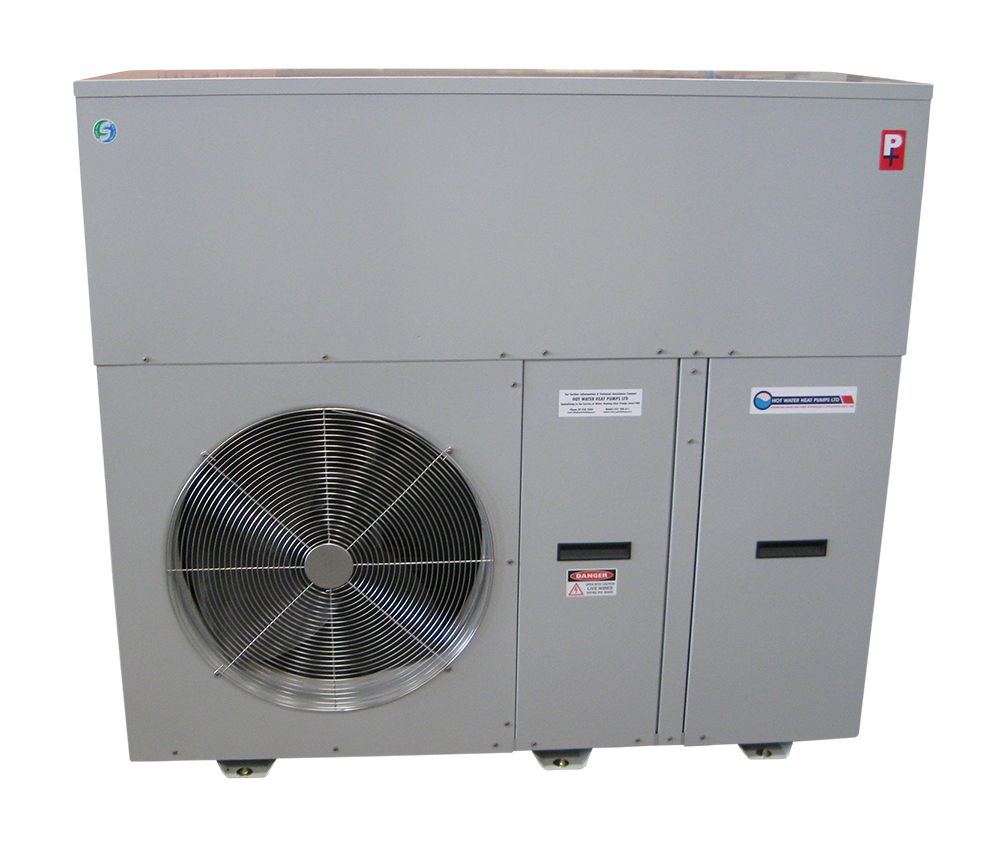

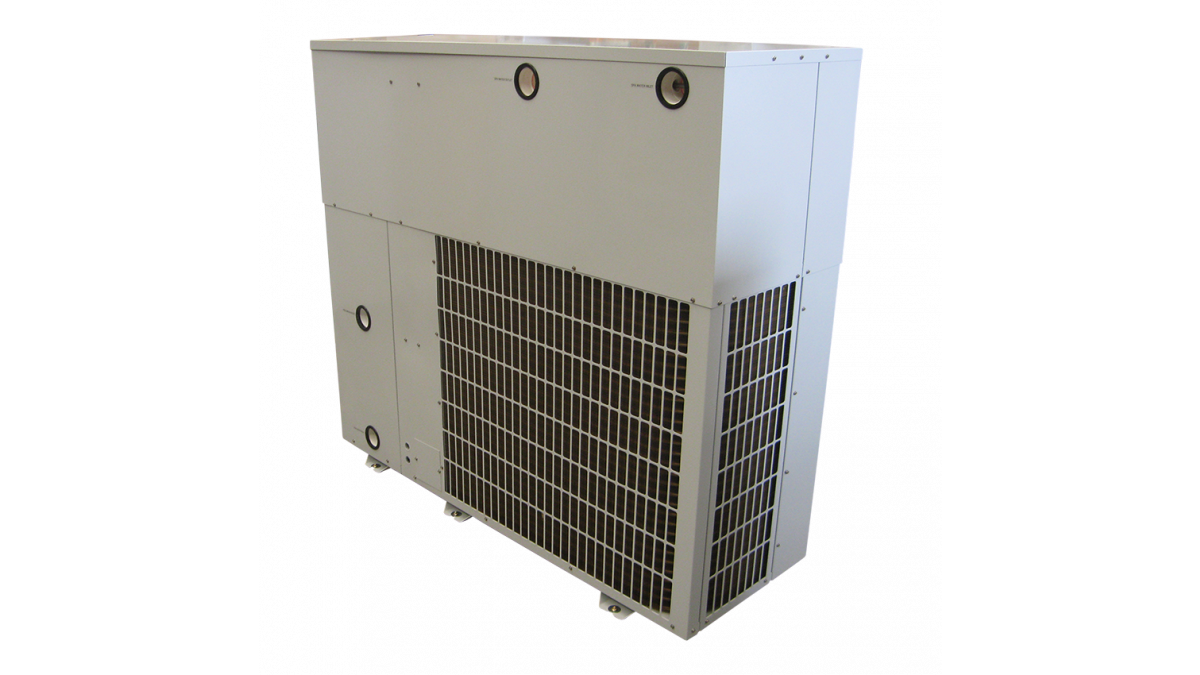

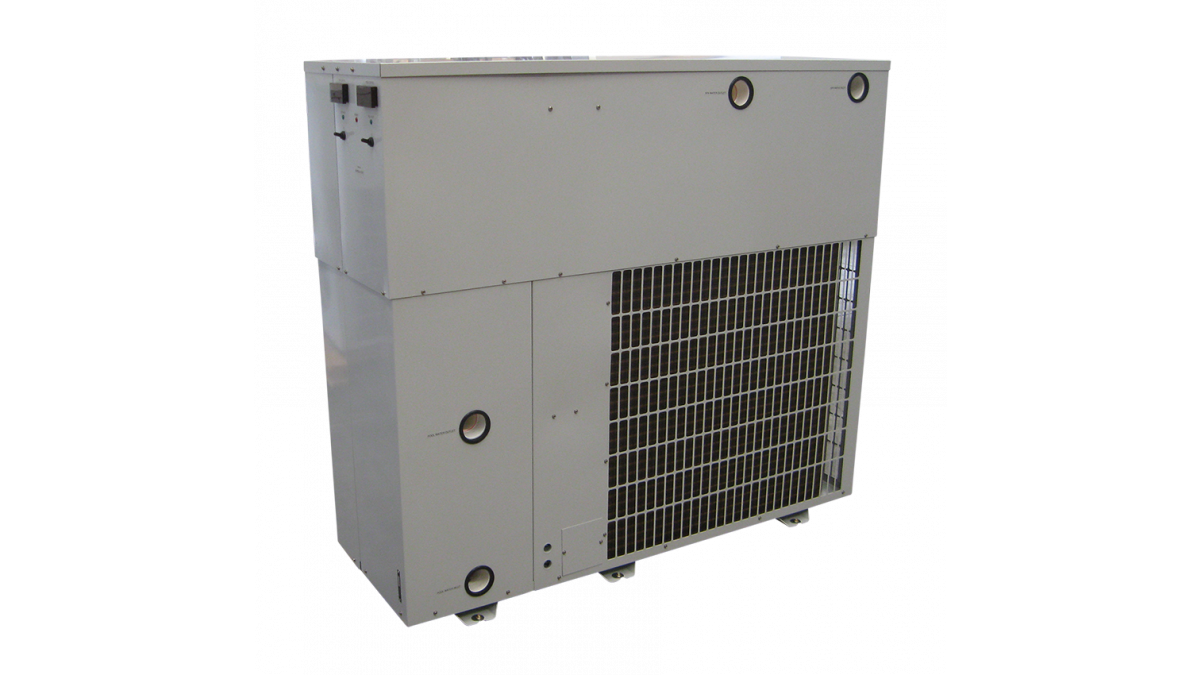

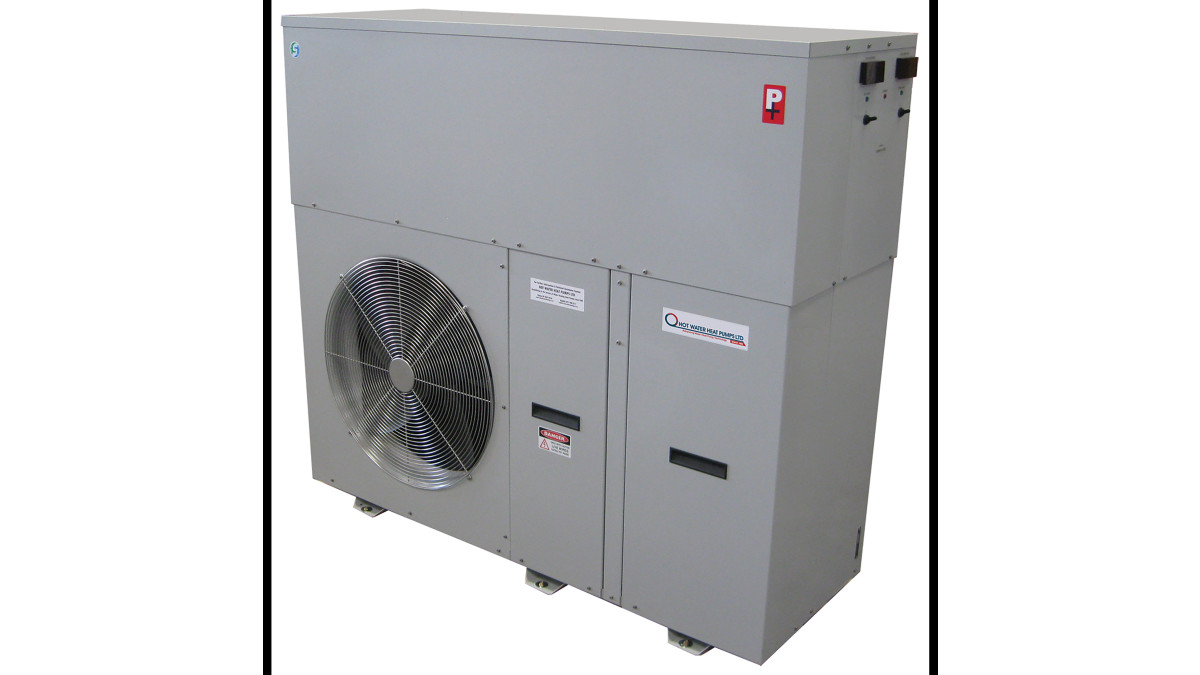

20kW Pool & 9kW Spa Heat Pump - 7GP20S14-1 (Single Phase) & 7GP20S14-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 95m2 for most of the North Island, up to 80m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 67m2 for most of the North Island, up to 58m2 for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 56m2 for most of the North Island, up to 44m2 for the Central North Island and South Island.

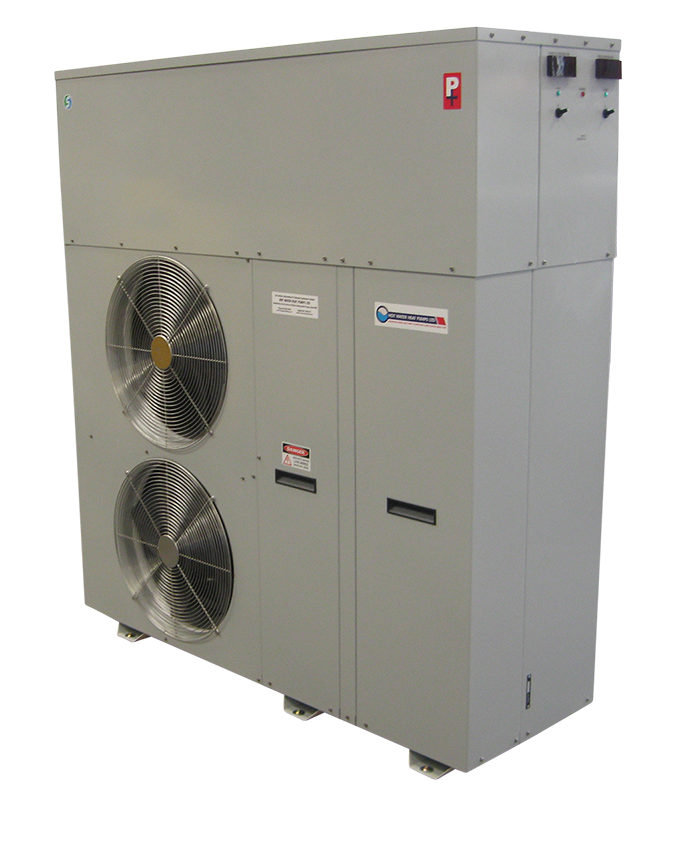

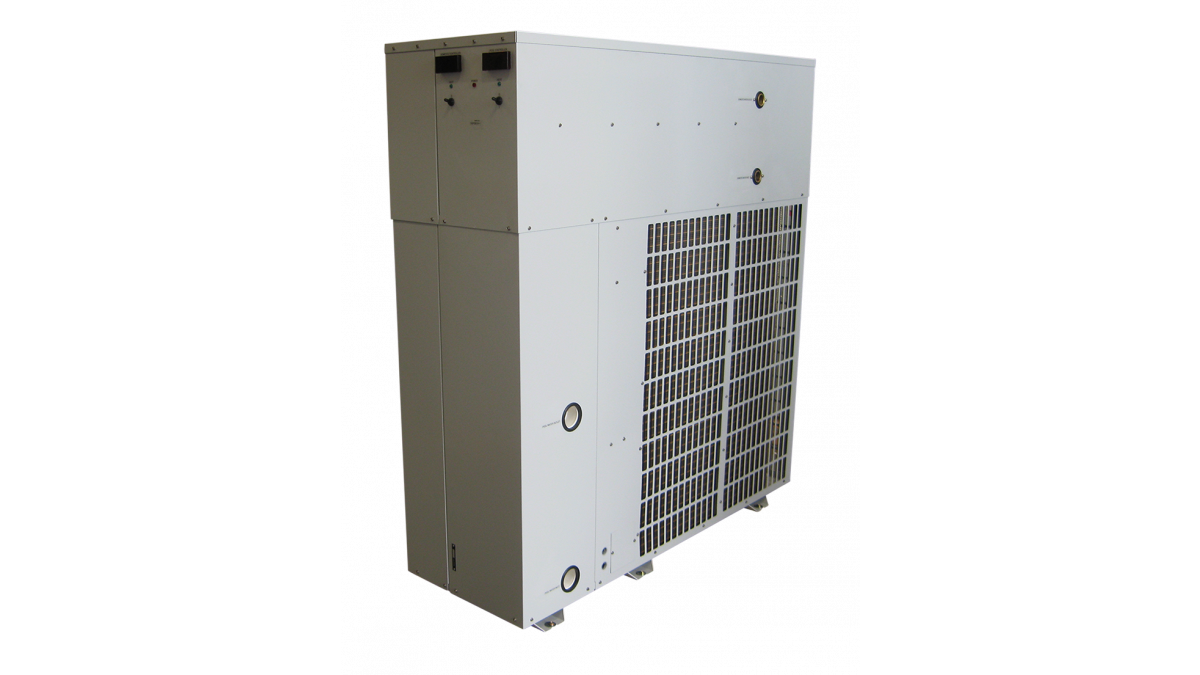

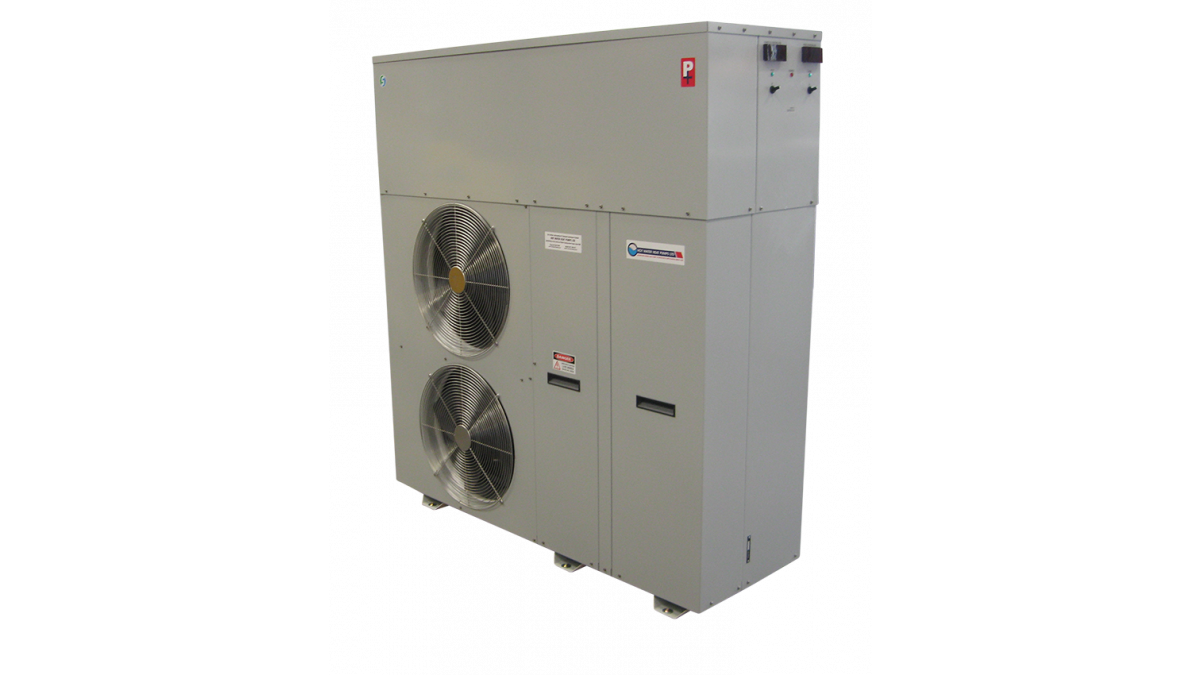

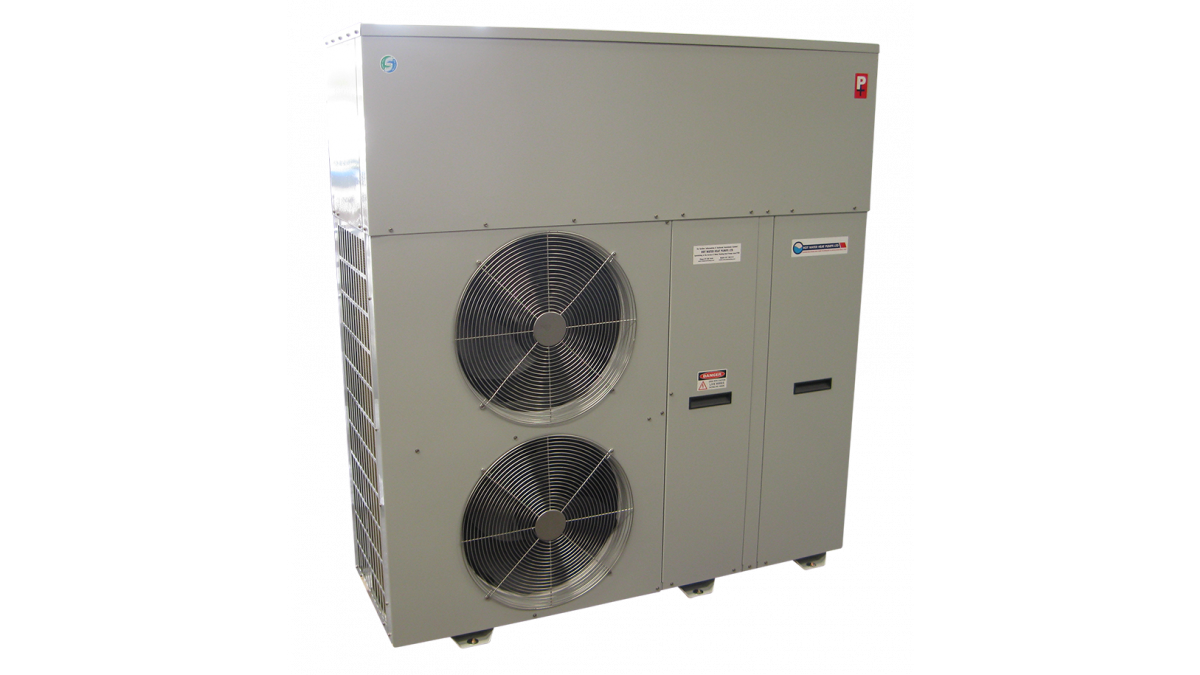

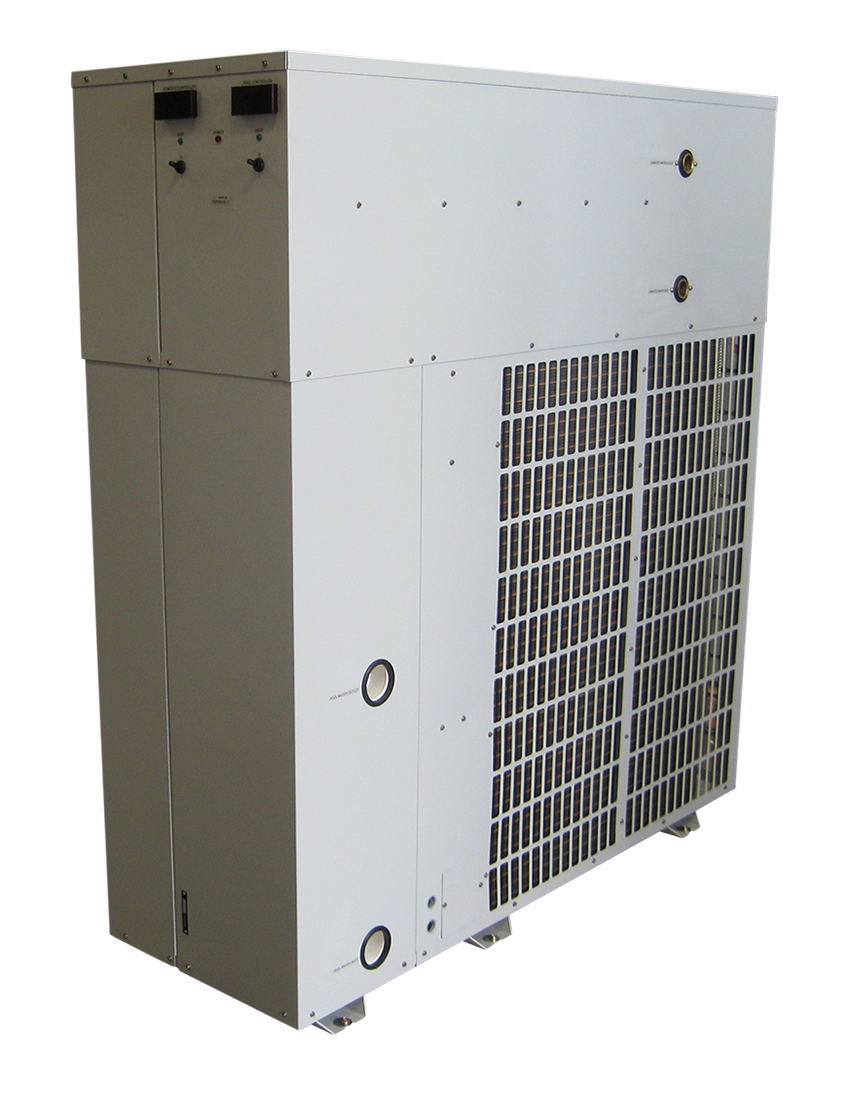

23kW Pool & 16kW Spa Heat Pump - 7GP23S16-1

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 110m2 for most of the North Island, up to 95m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 82m2 for most of the North Island, up to 71m2 for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 69m2 for most of the North Island, up to 58m2 for the Central North Island and South Island.

25KW Pool & 18kW Spa Heat Pump - 7GP25S18-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 120m2 for most of the North Island, up to 105m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 85m2 for most of the North Island, up to 75m2 for the Central North Island and South Island.
  • Commercial Pool (up to 6 hours per day uncovered) with a surface area of up to 74m2 for most of the North Island, up to 63m2 for the Central North Island and South Island.

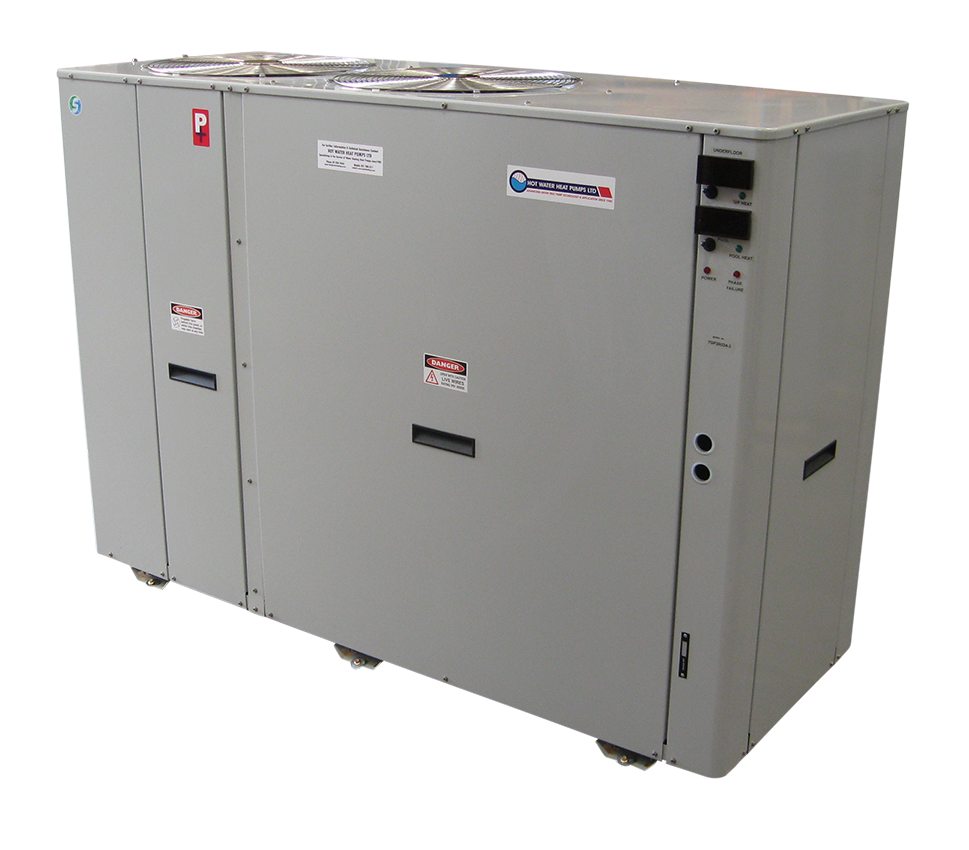

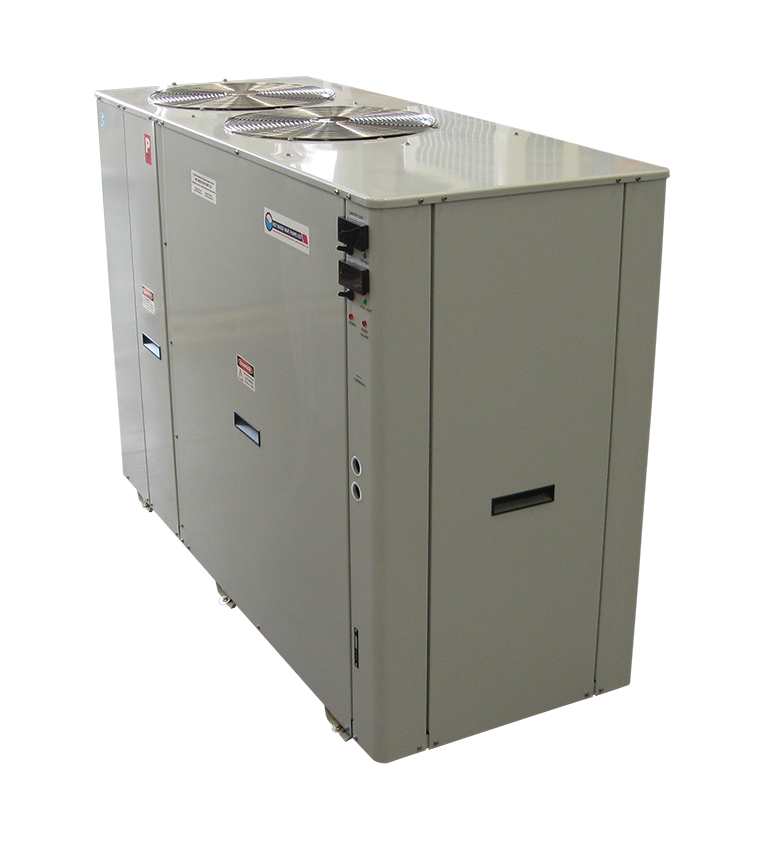

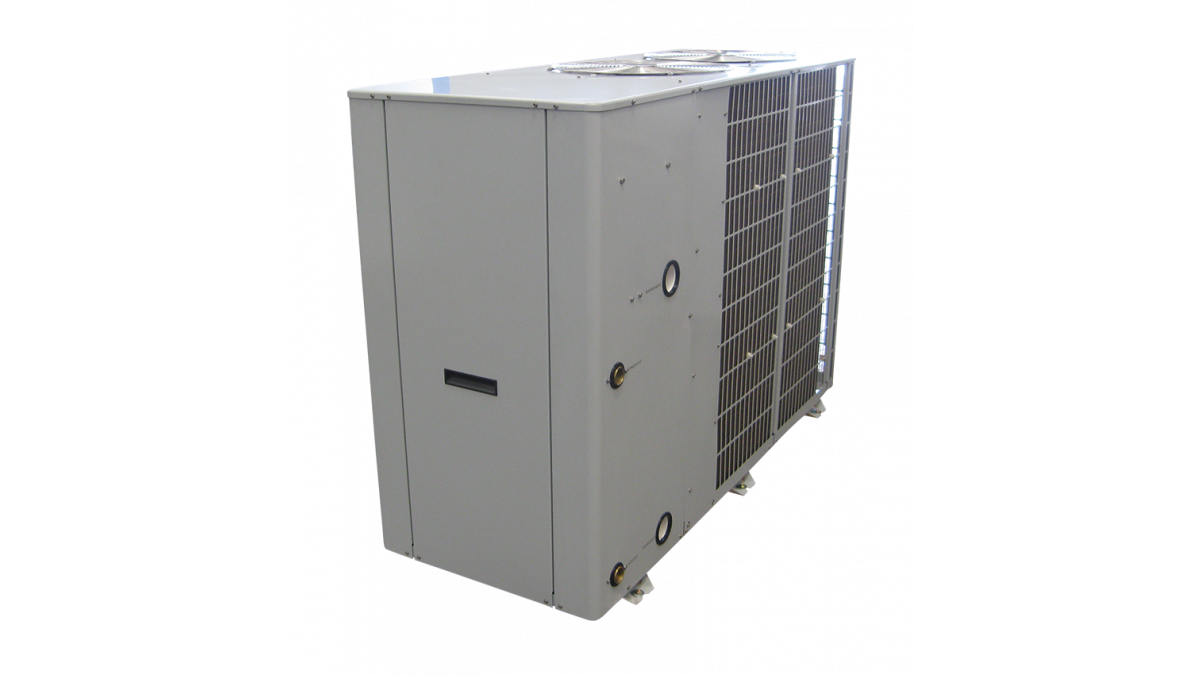

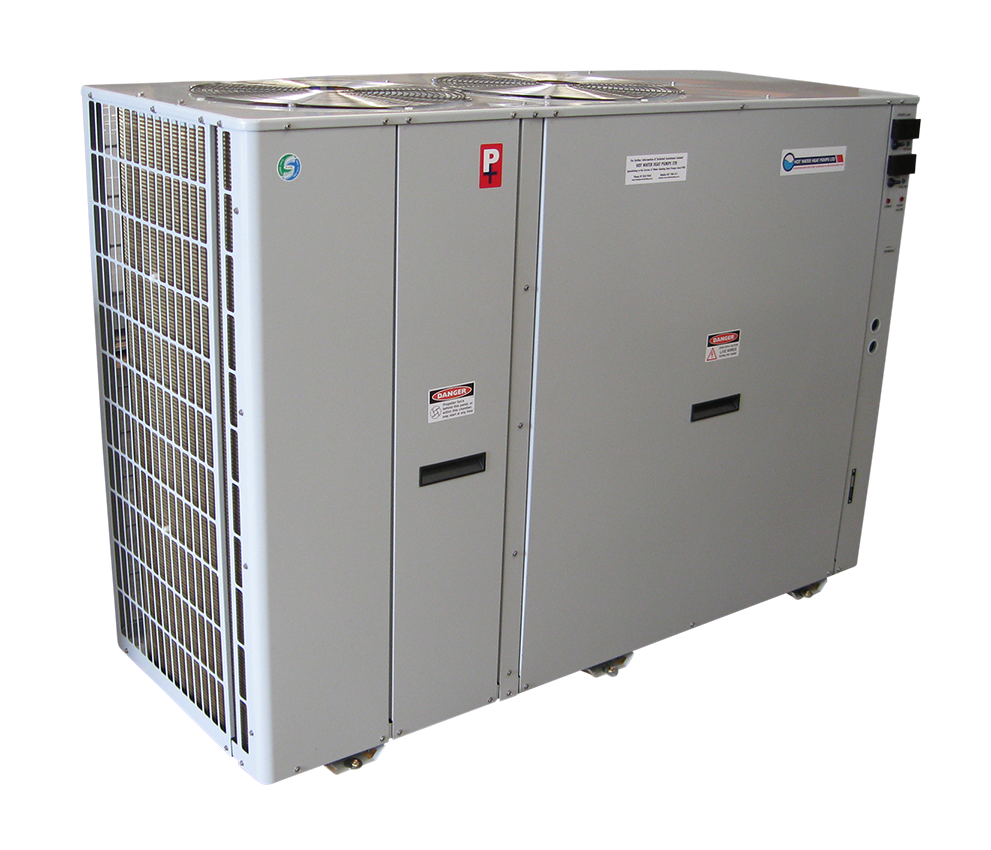

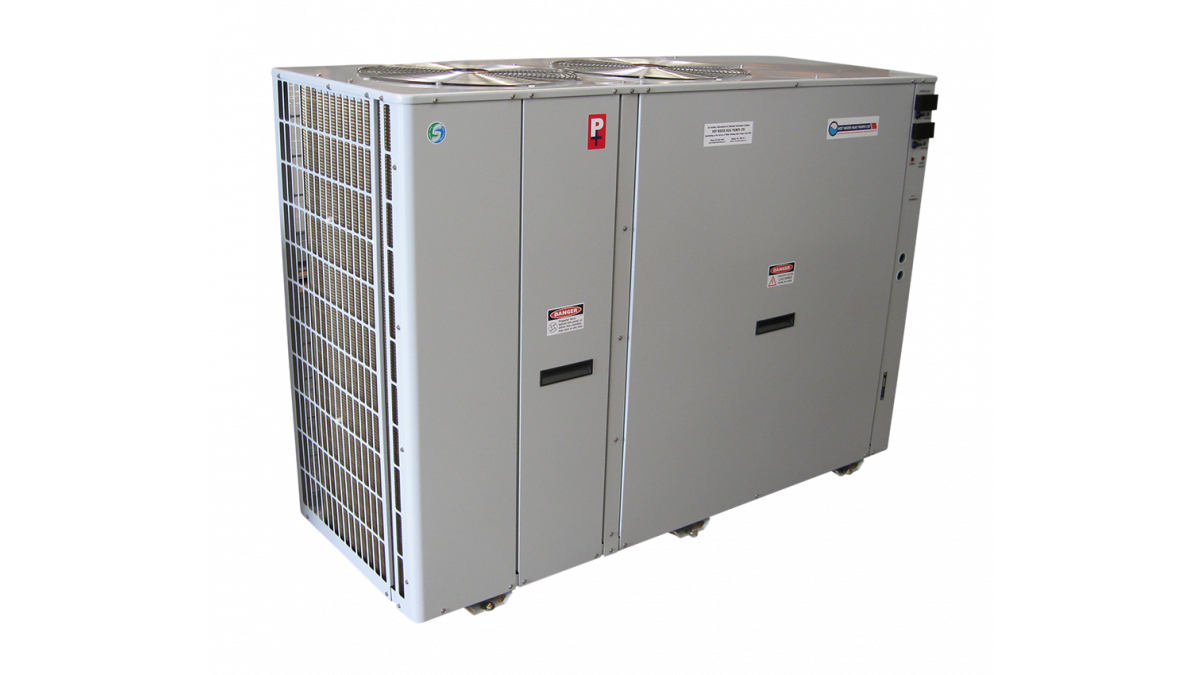

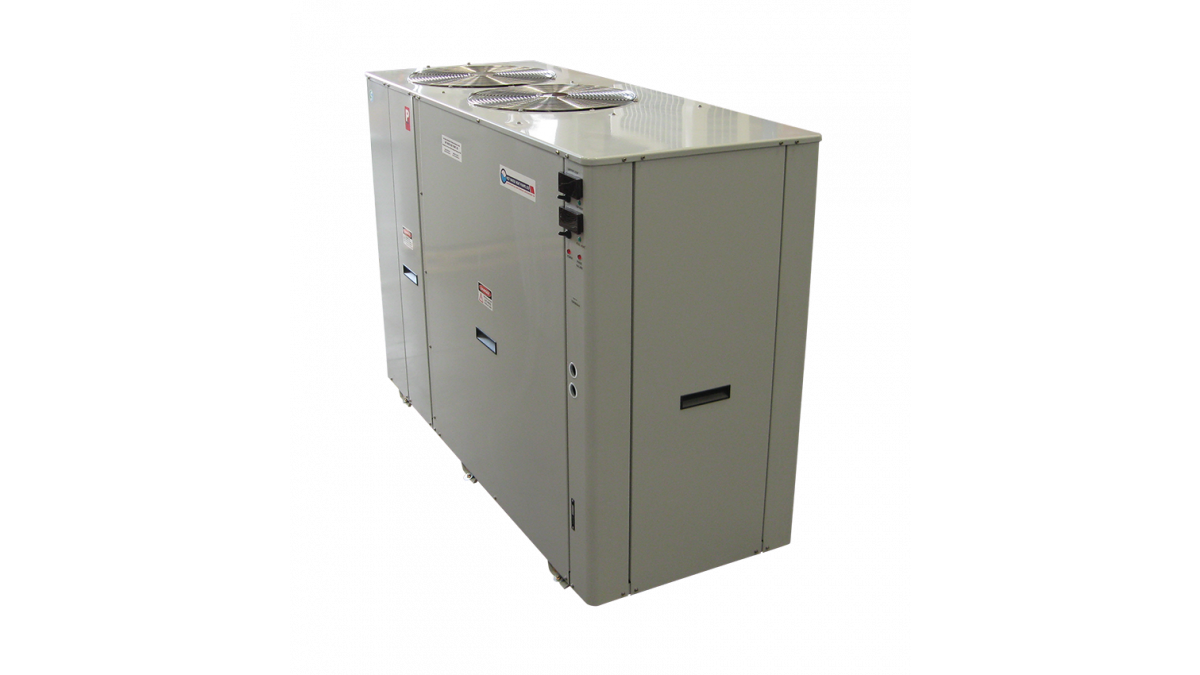

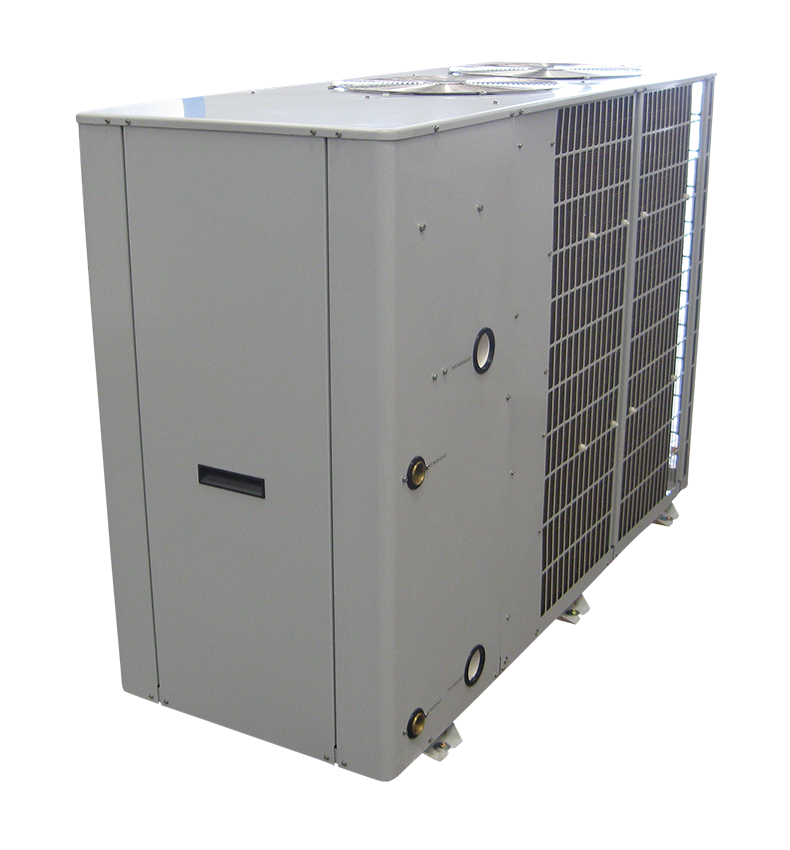

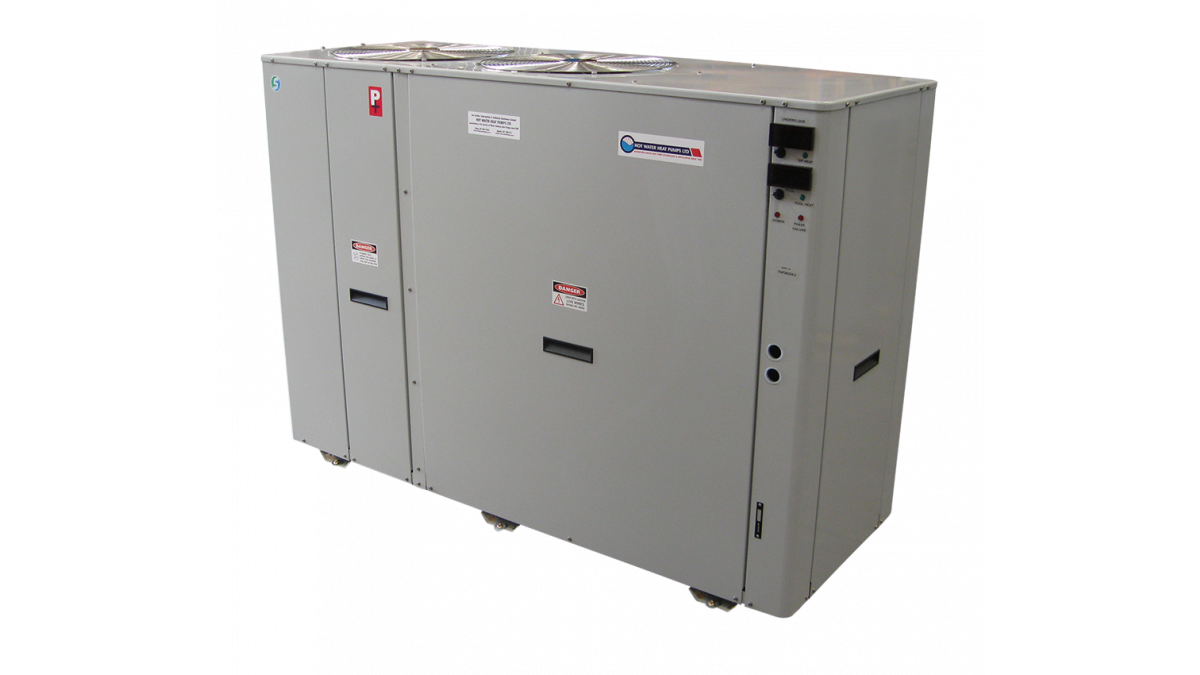

30KW Pool & 24kW Spa Heat Pump - 7GP30S24-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 150m2 for most of the North Island, up to 125m2 for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 113m2 for most of the North Island, up to 102m2 for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 91m2 for most of the North Island, up to 75m2 for the Central North Island and South Island.

Ideal applications

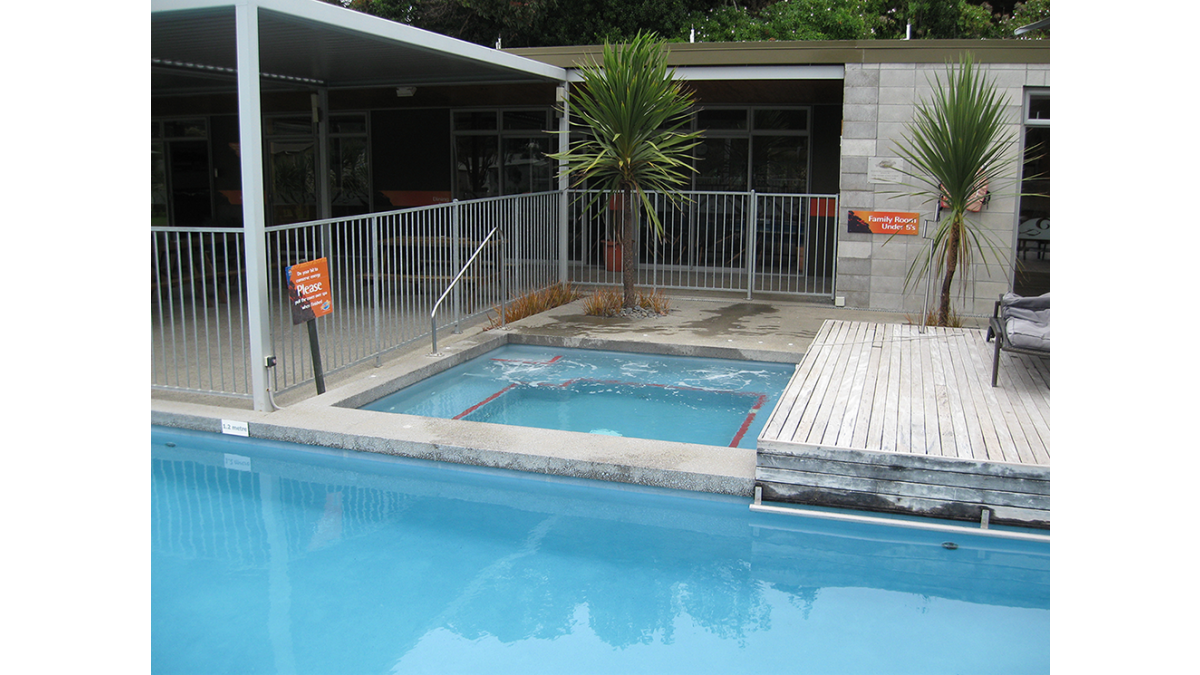

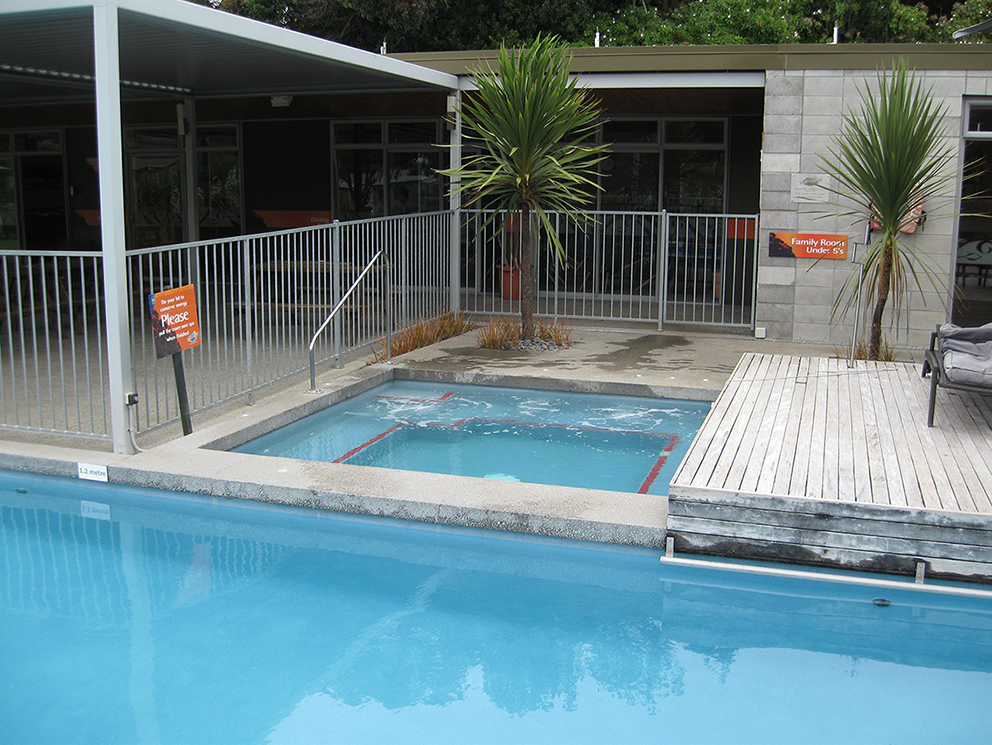

  • Swimming & Spa pool heating
Other Performance Attributes

All heat pump models carry a comprehensive two year parts and labour warranty, including the compressor, evaporator coils, heat exchanger and refrigeration systems. The titanium tube within the heat exchanger is covered against corrosion for 30 years for residential use and 10 years for commercial use.

Heat pump water heaters are fitted with protection systems to prevent damage in the event of a malfunction. Such as a flow switch to ensure the heat pump cannot operate without water flow and other refrigeration safeties. If a problem is identified, the unit automatically shuts down before damage can occur.

Documents
Brochure
Additional Information

Products include hot water heat pump solutions for hot water systems, swimming pool and spa heating and indoor pool ventilation.
