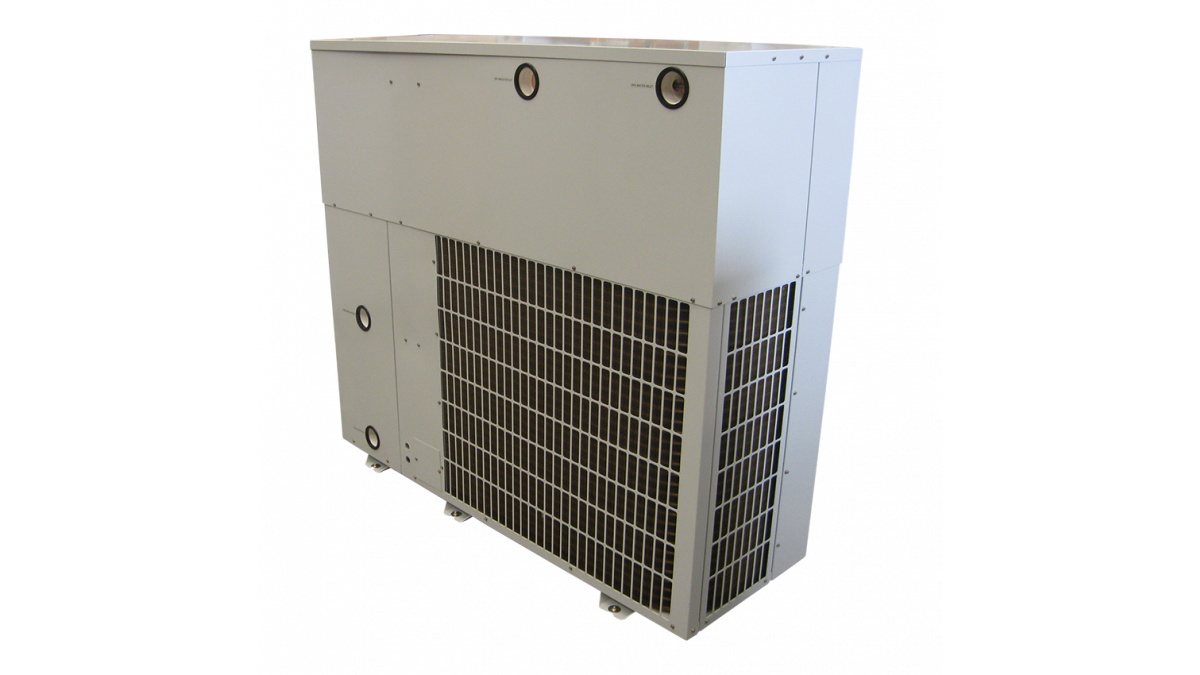

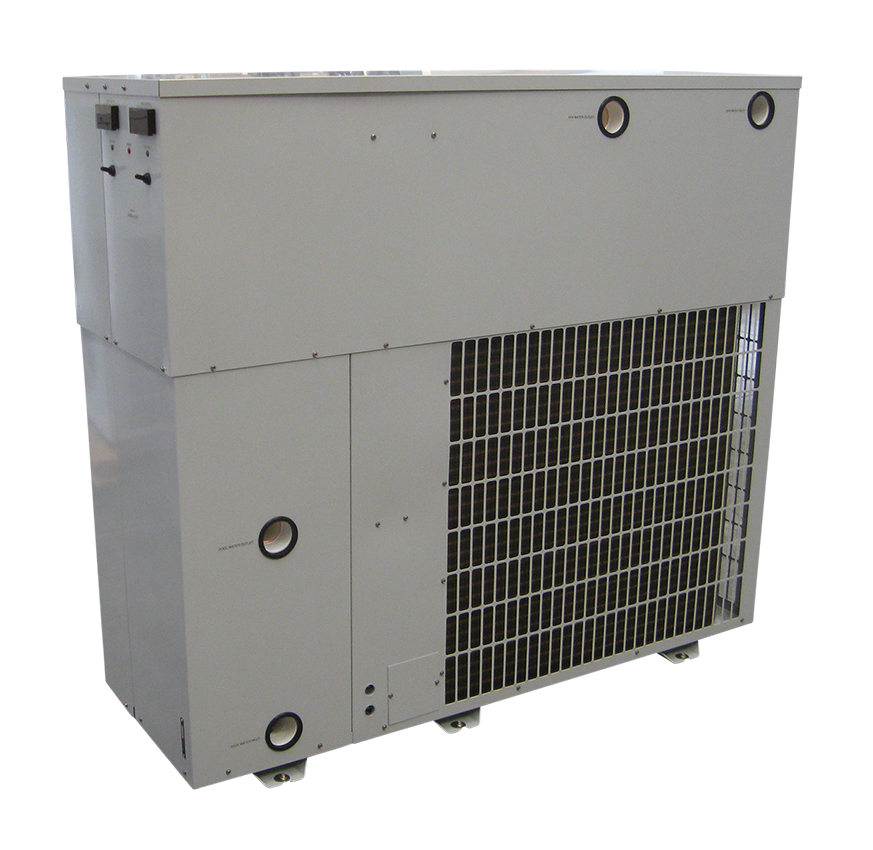

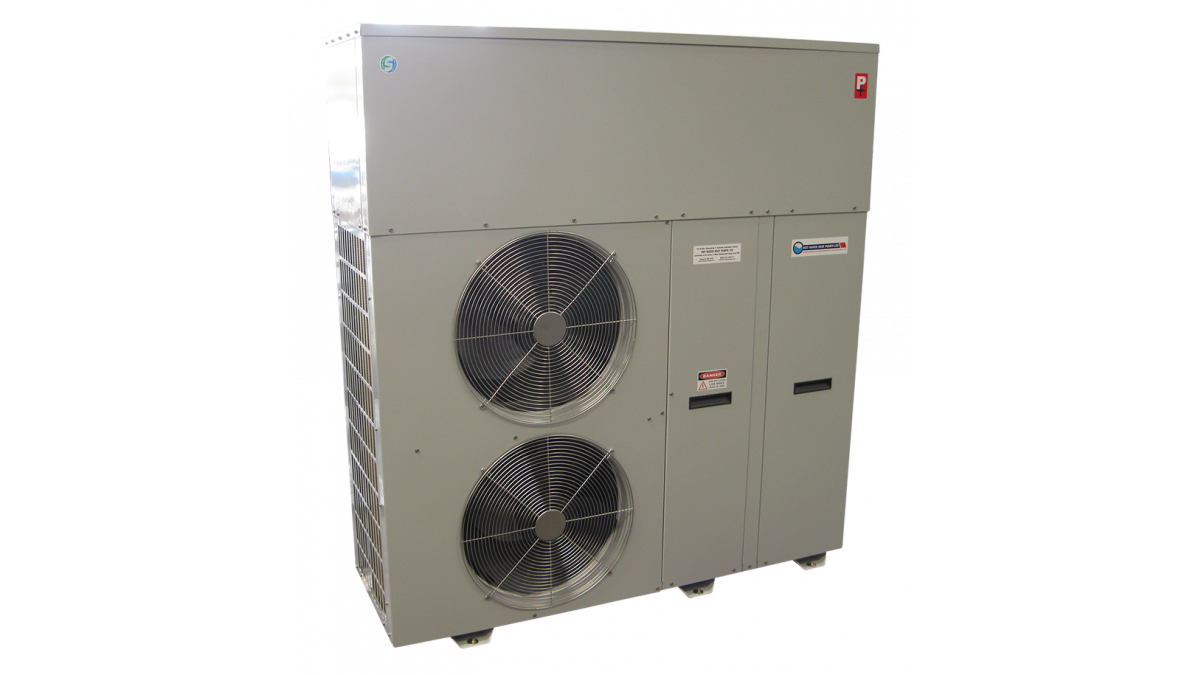

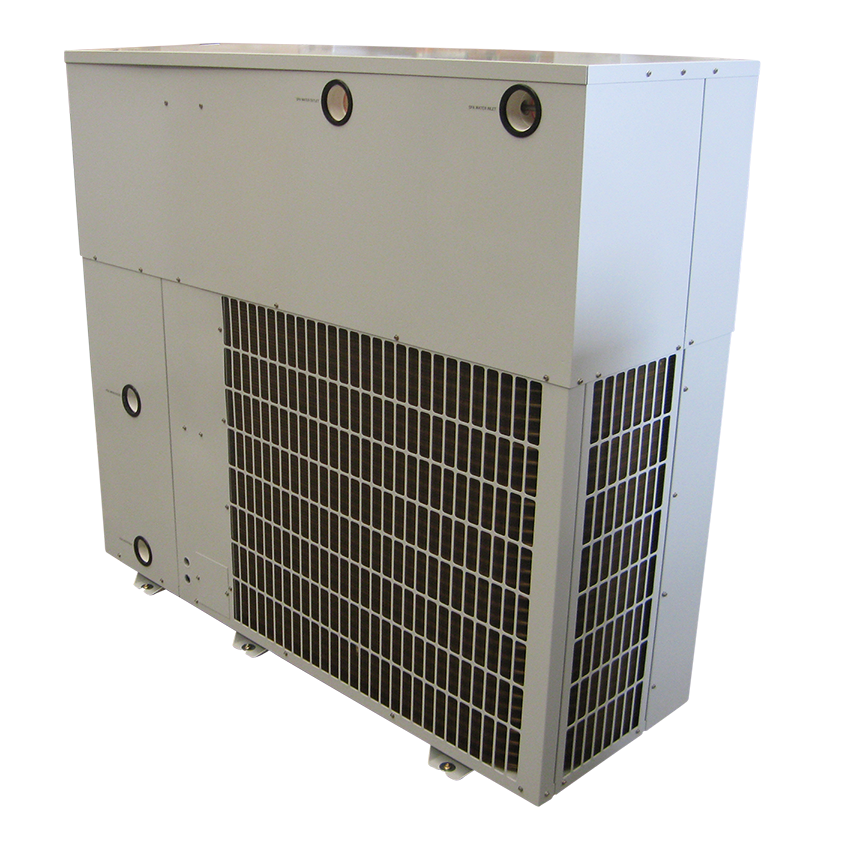

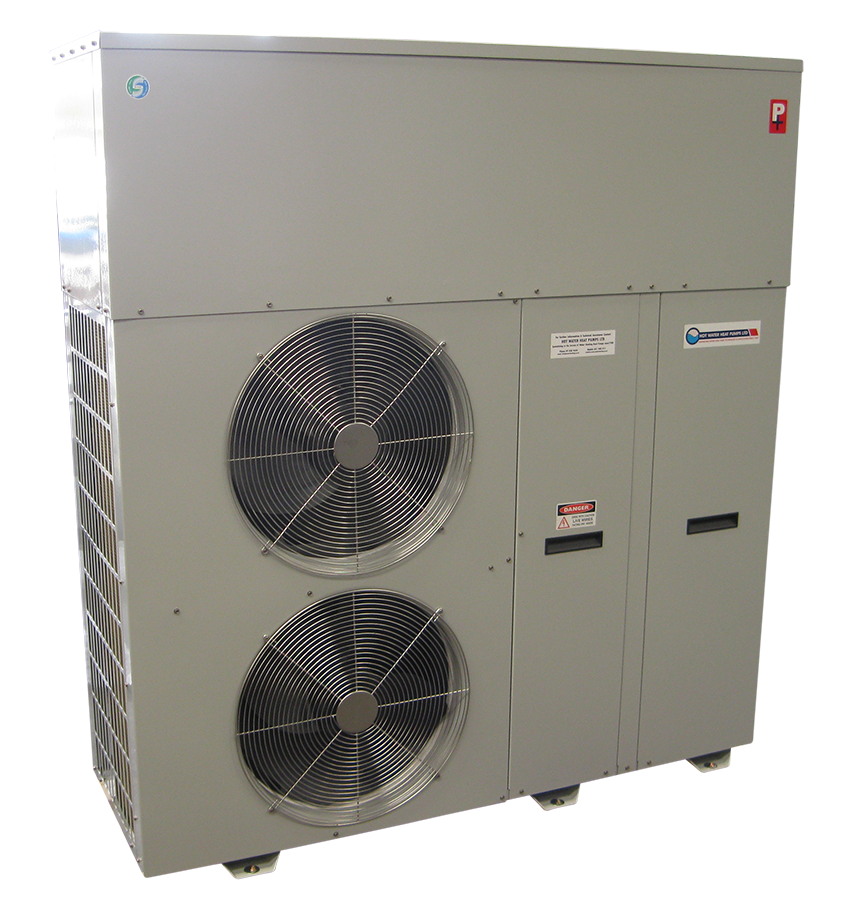

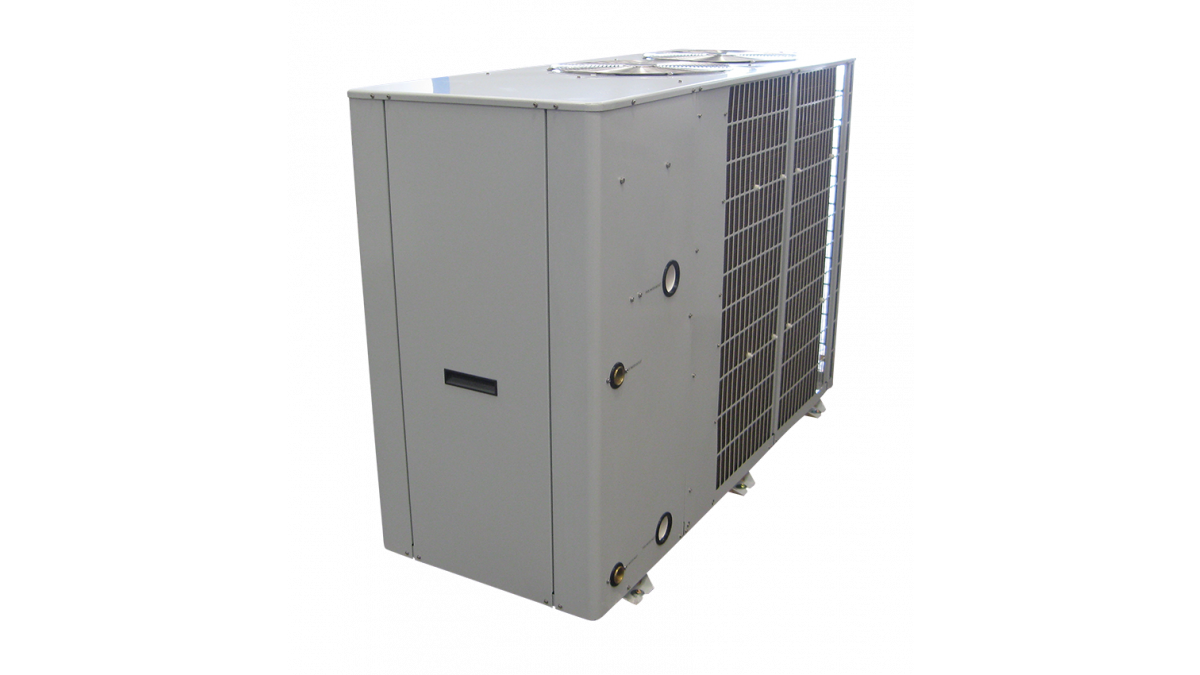

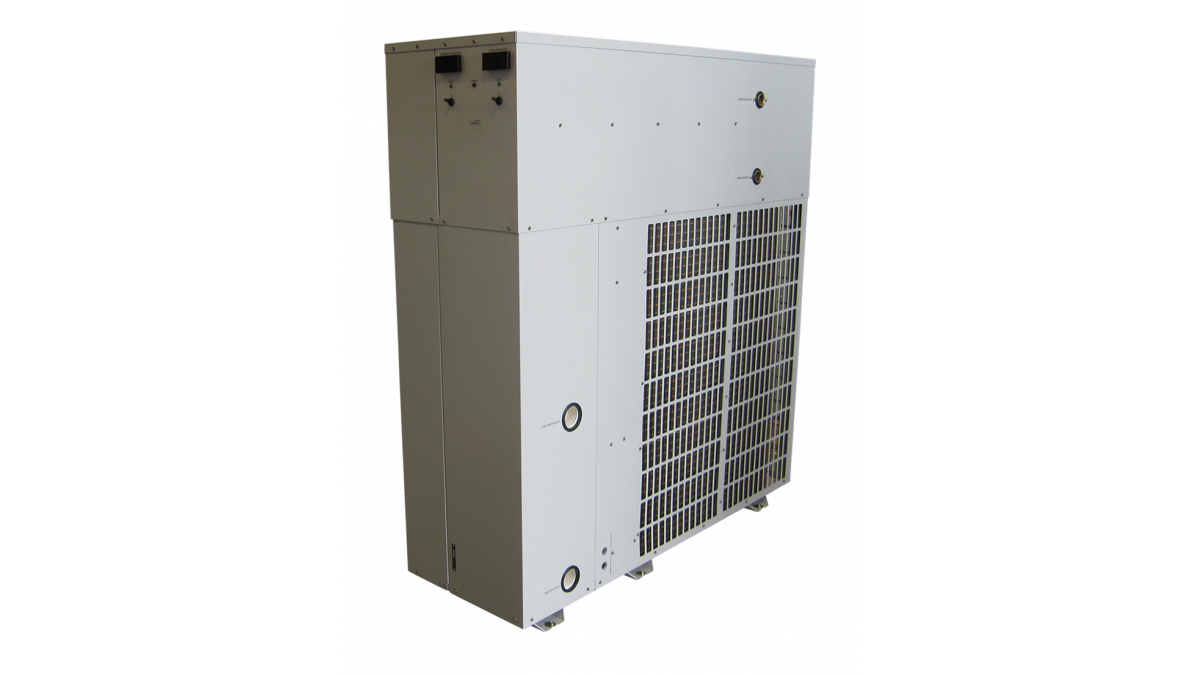

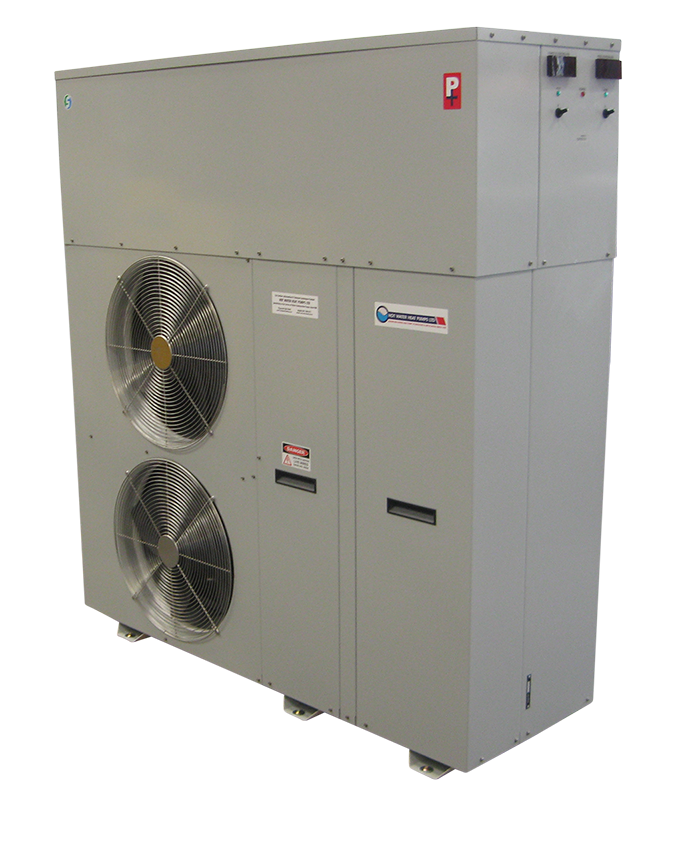

Duoheat Pool & Domestic Hot Water Heat Pump: Pool up to 150m²
Description

The Duoheat range of dual-purpose heat pump water heaters eliminates the need to invest in two separate heat pumps. They are ideal for heating users' pool and domestic hot water needs, reducing unit redundancies and minimising the overall footprint of their equipment.

These units are ideal for swimming pools with a surface area up to 150m² in the Coastal North Island (see 'Scope' for further details). Typically, for every 1kW of electric input, users receive 5kW worth of heat.

Key Features
  • Energy efficient
  • Environmentally friendly
  • Easy operation
  • Consistent performance from -10°C to 45°C
  • Engineered and built in New Zealand from local and imported parts

Duoheat BENEFITS

Duoheat heat pump water heaters offer the same advantages of Performance Plus heat pump water heaters with the addition of:

  • Eliminating the need for investing in two or three separate heat pump water heaters
  • Providing a smaller overall footprint
  • Reducing equipment redundancies
  • Lower capital investment over two separate units
NZ-Owned Business
NZ-Owned Business
Scope of Use

The heat pump most suited to each situation is determined by a number of factors. When combining the heating for a swimming pool and domestic hot water, sizing priority is given to the pool as it has the greatest load requirement. These factors include things such as; surface area of the pool, whether the pool has a cover and the time it is covered, and local temperature and weather conditions.

For more information about heat pump sizing please contact Hot Water Heat Pumps. As a general guide to heat pump requirements for an extended season of swimming from mid October to mid April as listed:

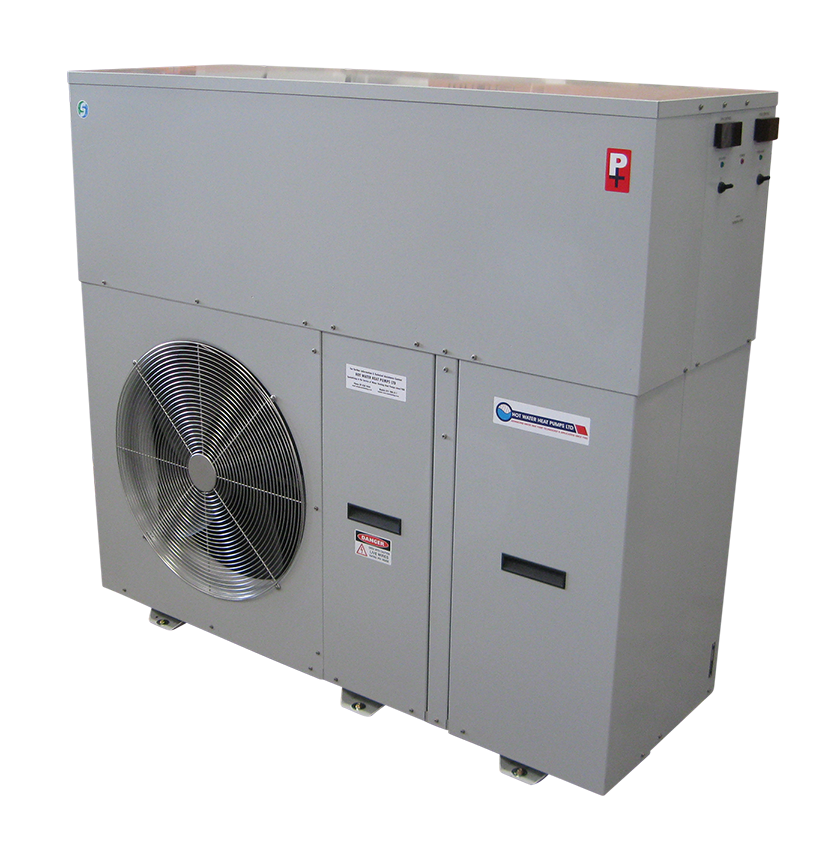

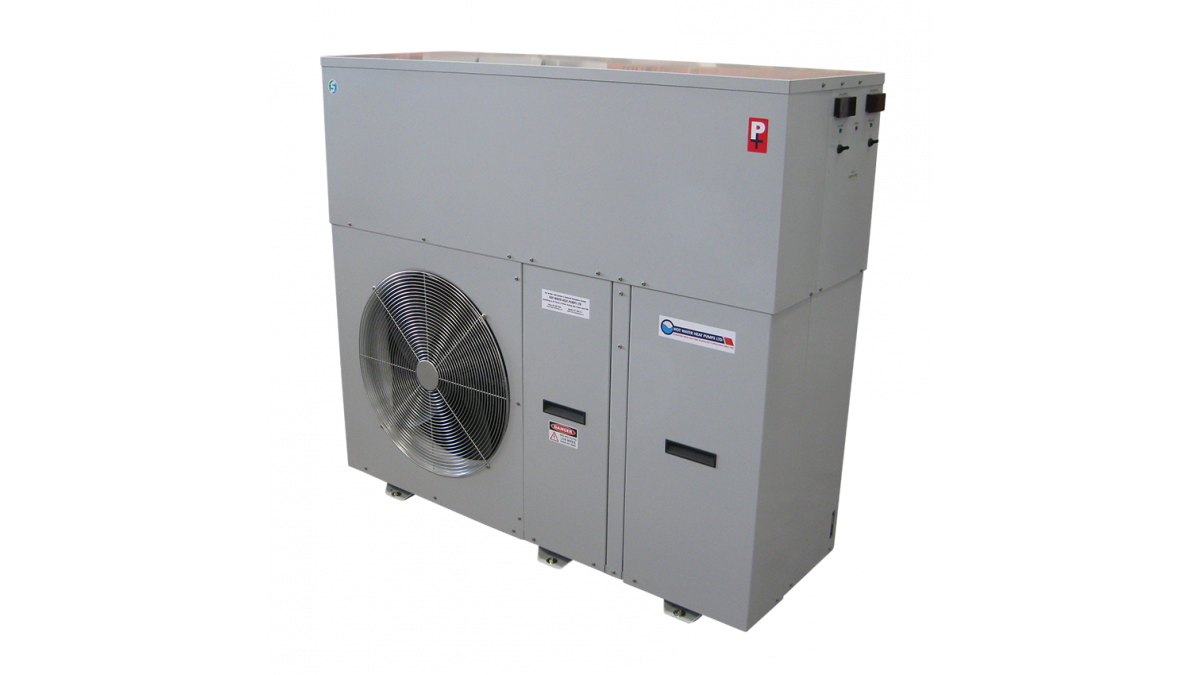

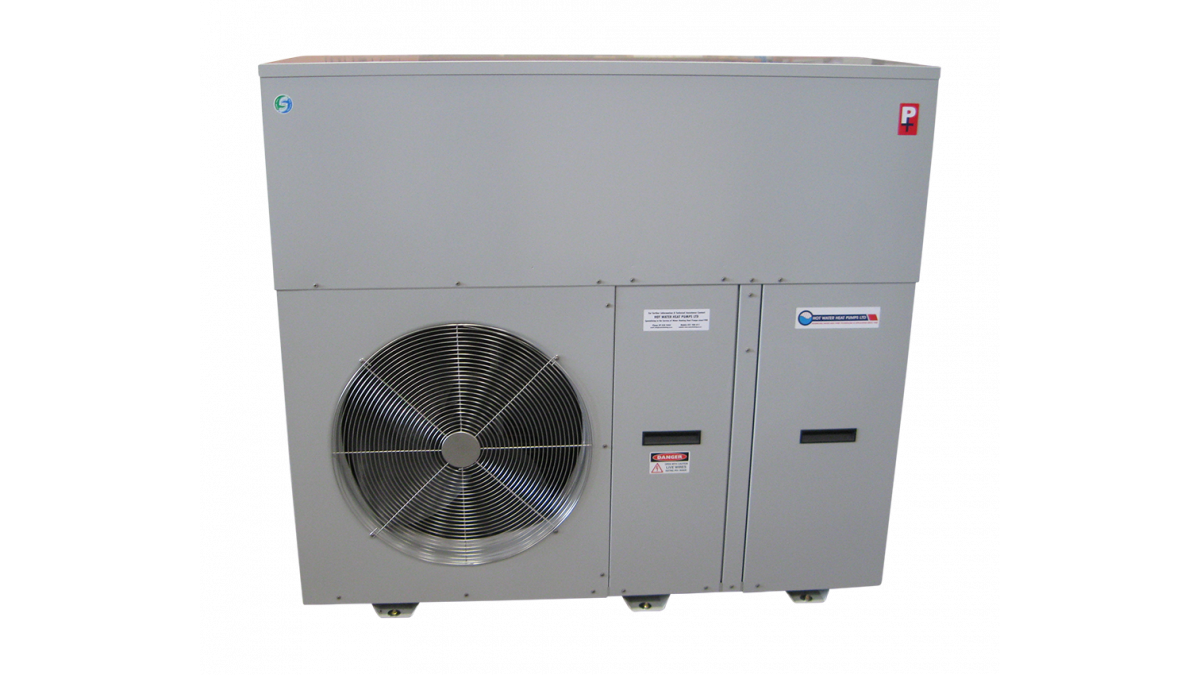

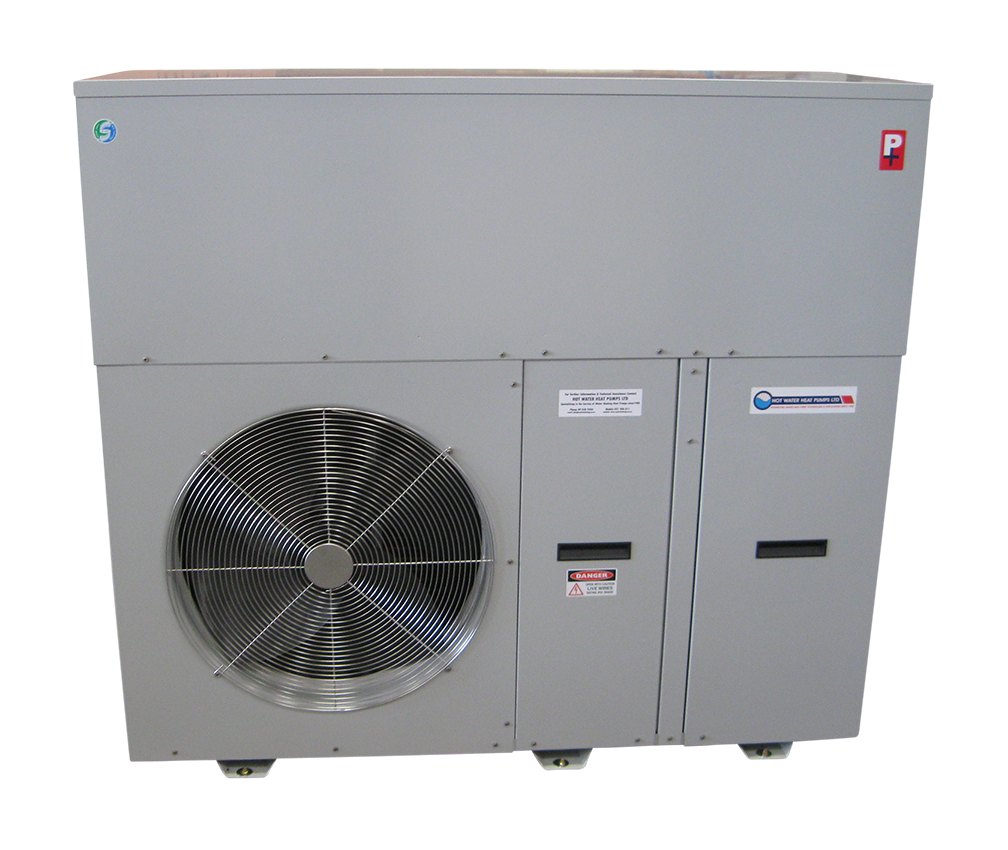

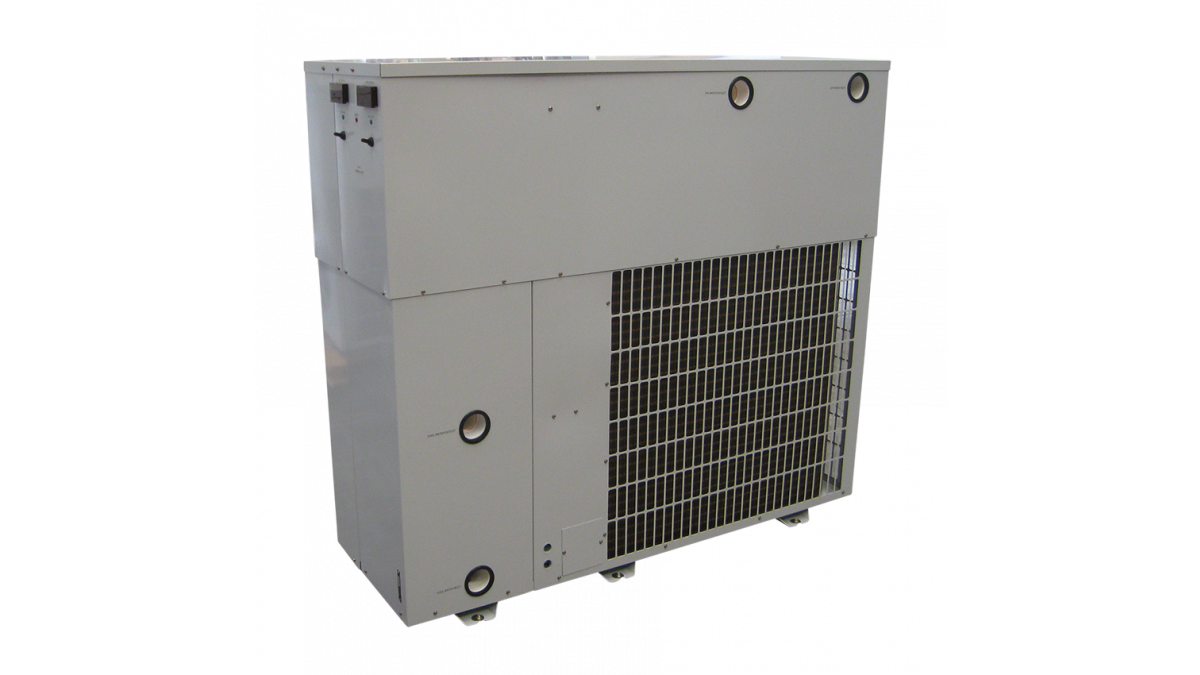

20KW POOL & 10KW DOMESTIC HOT WATER HEAT PUMP - 7GP20D12-1 (SINGLE PHASE) & 7GP20D12-3 (THREE PHASE)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 65m² for most of the North Island, up to 60m² for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 48m² for most of the North Island, up to 43m² for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 38m² for most of the North Island, up to 22m² for the Central North Island and South Island.

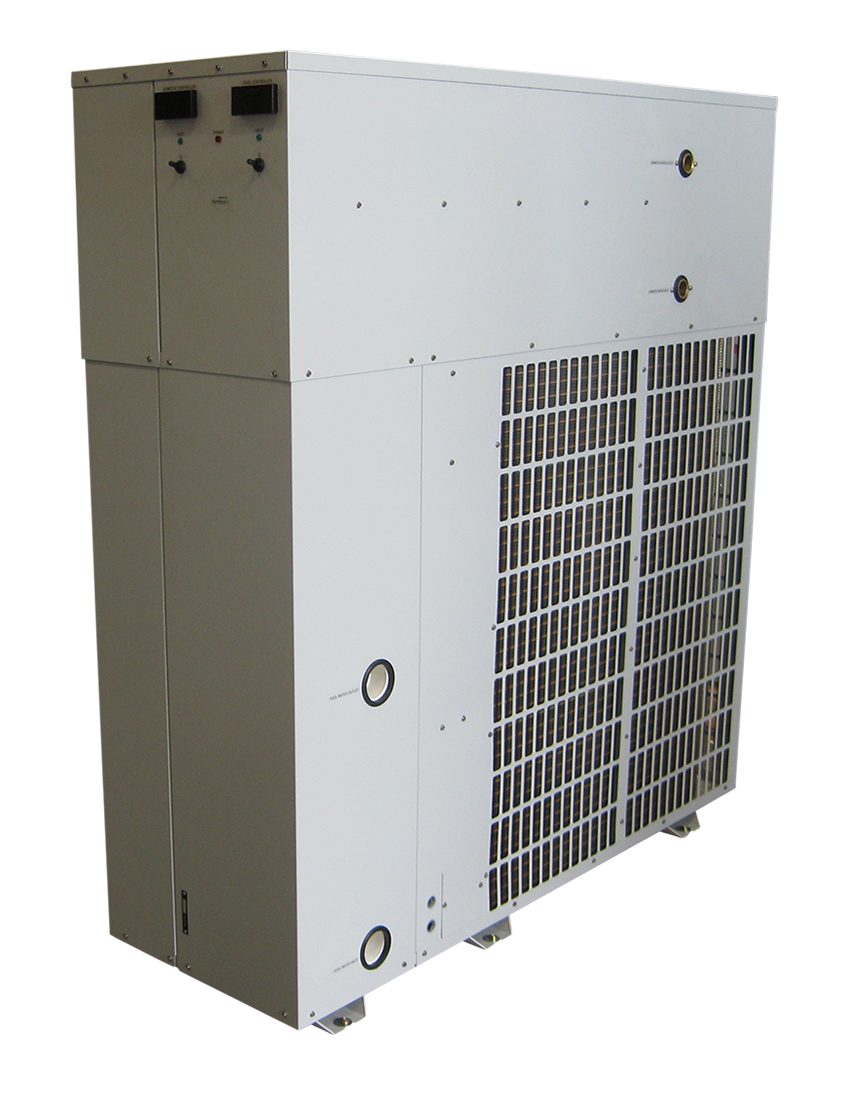

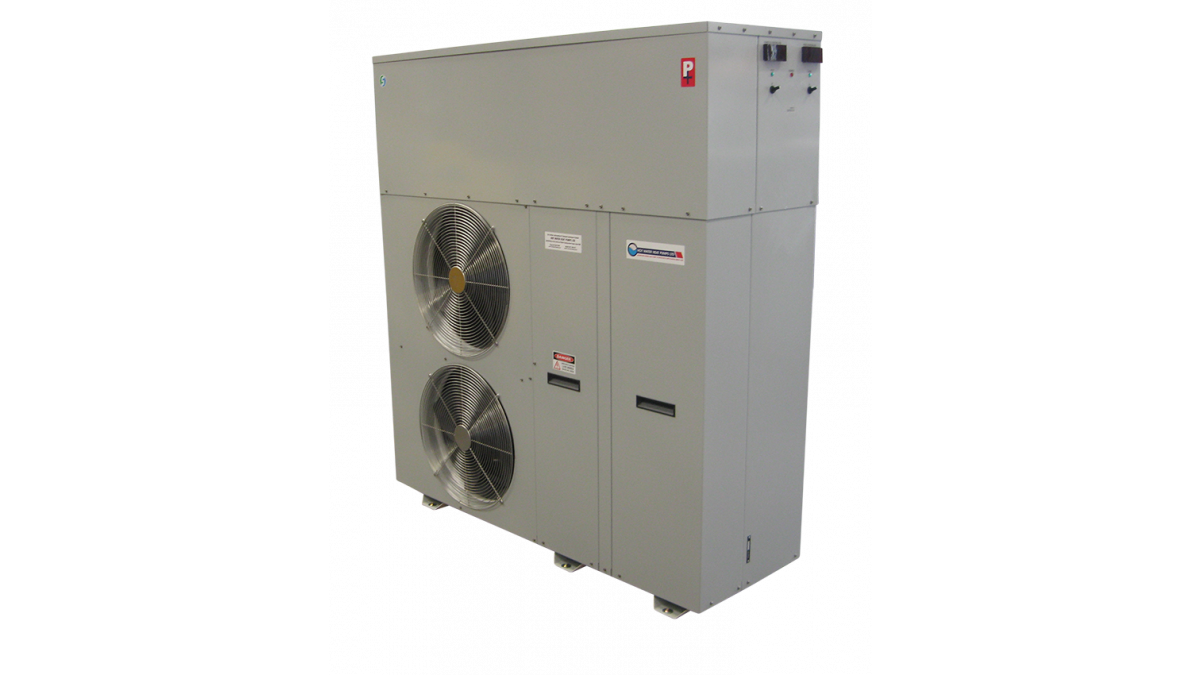

23KW Pool & 13kW Domestic Hot Water HEAT PUMP - 7GP23D13-1

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 110m² for most of the North Island, up to 95m² for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 80m² for most of the North Island, up to 71m² for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 68m² for most of the North Island, up to 58m² for the Central North Island and South Island.

25KW Pool & 15kW Domestic Hot Water HEAT PUMP - 7GP25D15-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 105m² for most of the North Island, up to 50m² for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 85m² for most of the North Island, up to 75m² for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 74m² for most of the North Island, up to 63m² for the Central North Island and South Island.

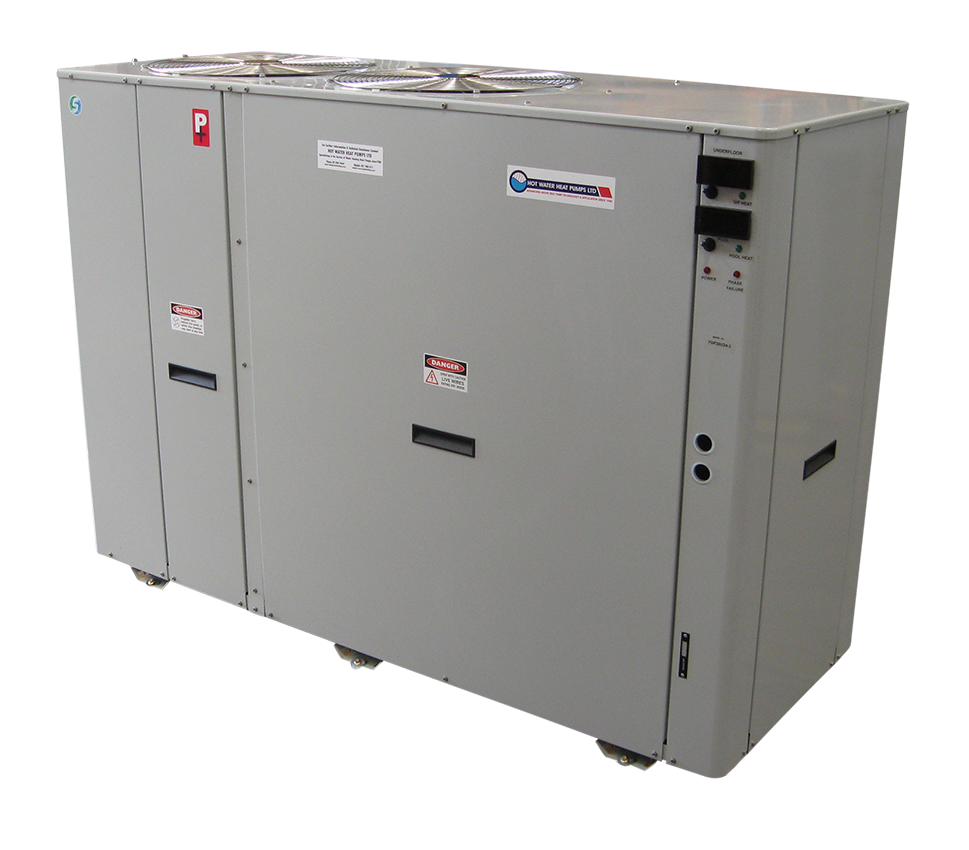

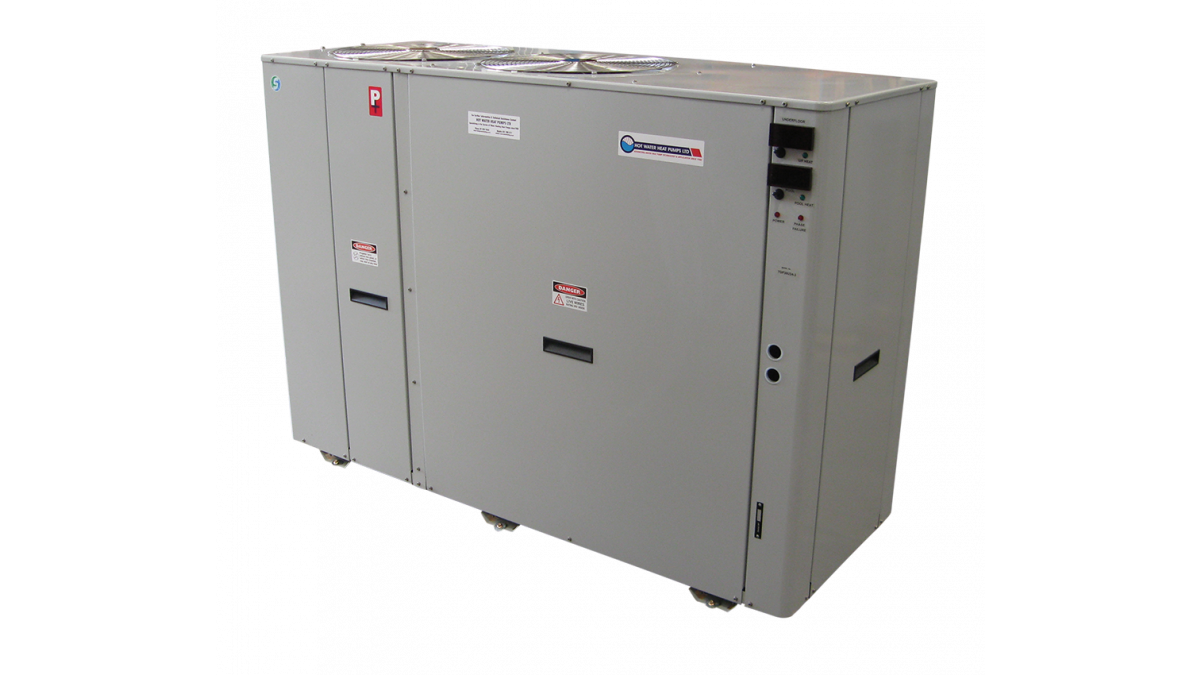

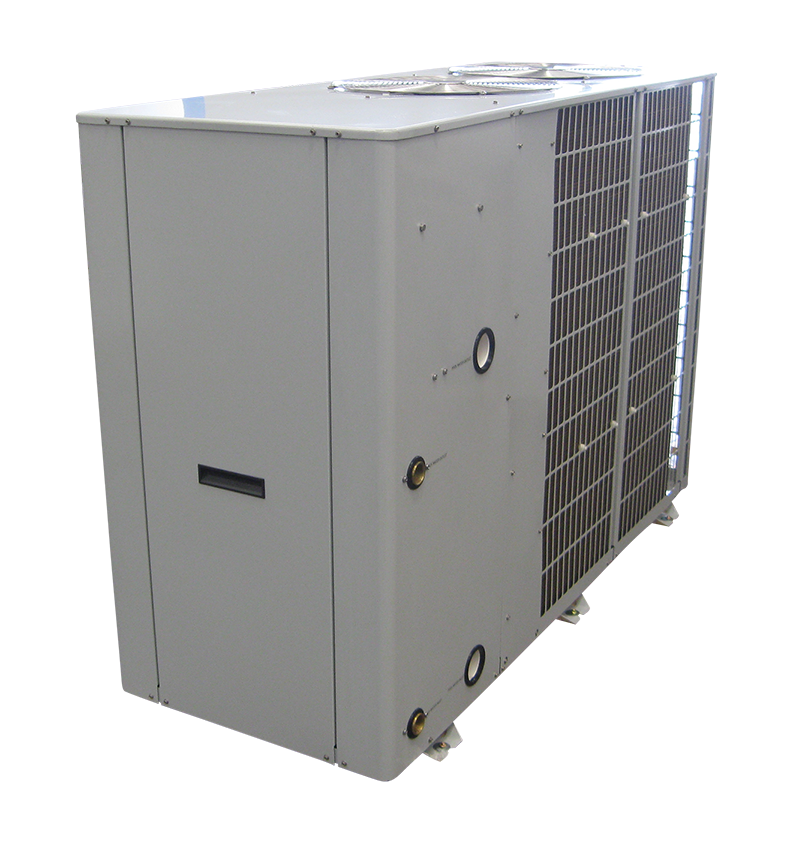

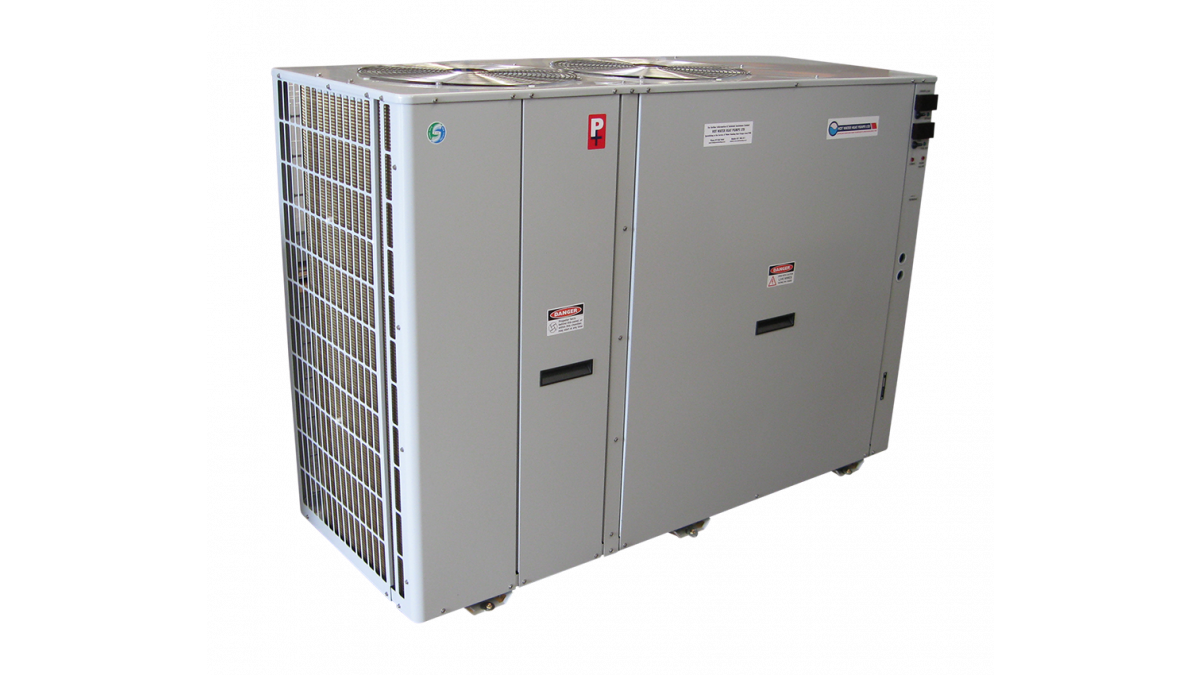

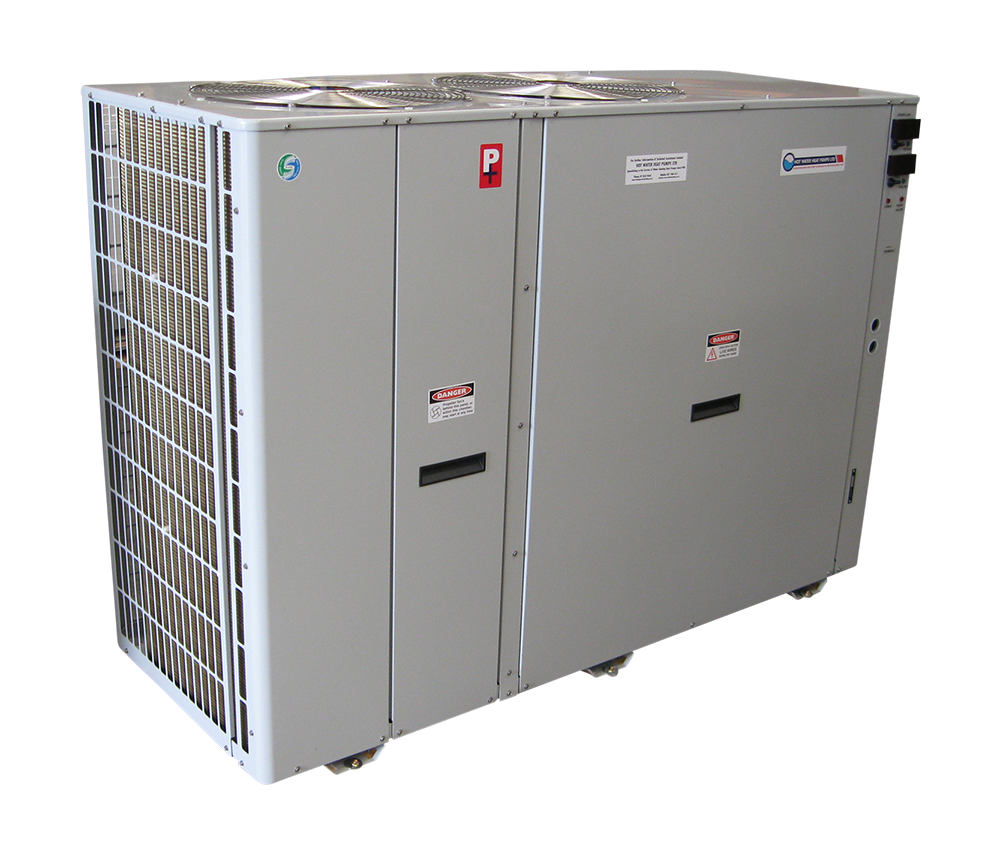

30KW Pool & 18kW Domestic Hot Water HEAT PUMP - 7GP30D18-3 (Three Phase)

  • Residential Pool (up to 4 hours per day uncovered) with a surface area up to 150m² for most of the North Island, up to 125m² for the Central North Island and South Island.
  • School Pool (up to 6 hours per day uncovered) with a surface area up to 113m² for most of the North Island, up to 102m² for the Central North Island and South Island.
  • Commercial Pool (up to 12 hours per day uncovered) with a surface area of up to 91m² for most of the North Island, up to 75m² for the Central North Island and South Island.

Ideal applications

  • Swimming or spa pool.
  • Swimming pool and domestic hot water.
Other Performance Attributes

All heat pump models carry a comprehensive two year parts and labour warranty, including the compressor, evaporator coils, heat exchanger and refrigeration systems. The titanium tube within the heat exchanger is covered against corrosion for 30 years for residential use and 10 years for commercial use.

Heat pump water heaters are fitted with protection systems to prevent damage in the event of a malfunction. Such as a flow switch to ensure the heat pump cannot operate without water flow and other refrigeration safeties. If a problem is identified, the unit automatically shuts down before damage can occur.

Documents
7GP20D12-1 Technical Specifications
7GP20D12-3 Technical Specifications
7GP23D13-1 Technical Specifications
7GP25D15-3 Technical Specifications
7GP30D18-3 Technical Specificaitons
Additional Information

Products include hot water heat pump solutions for hot water systems, swimming pool and spa heating and indoor pool ventilation.
