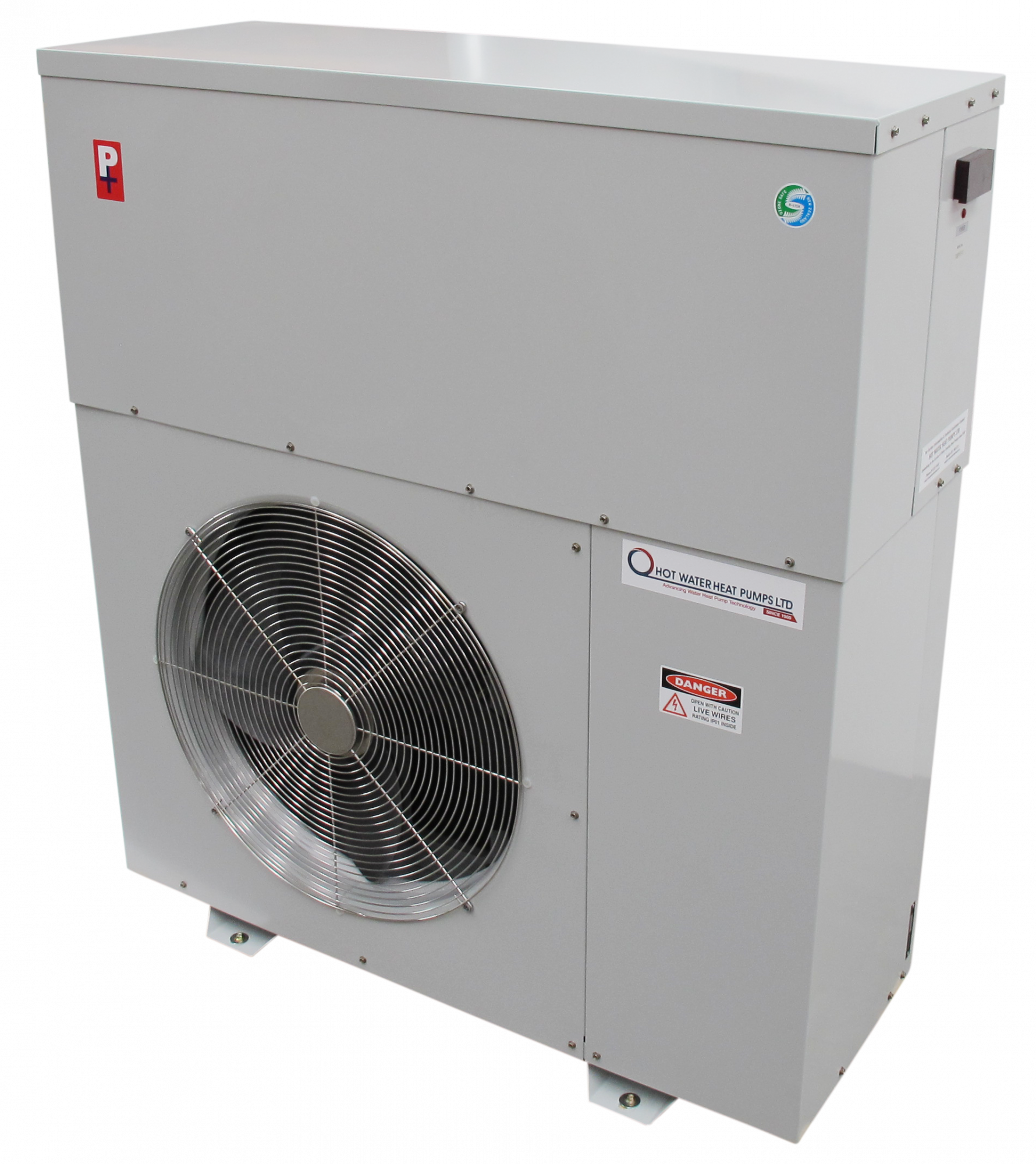

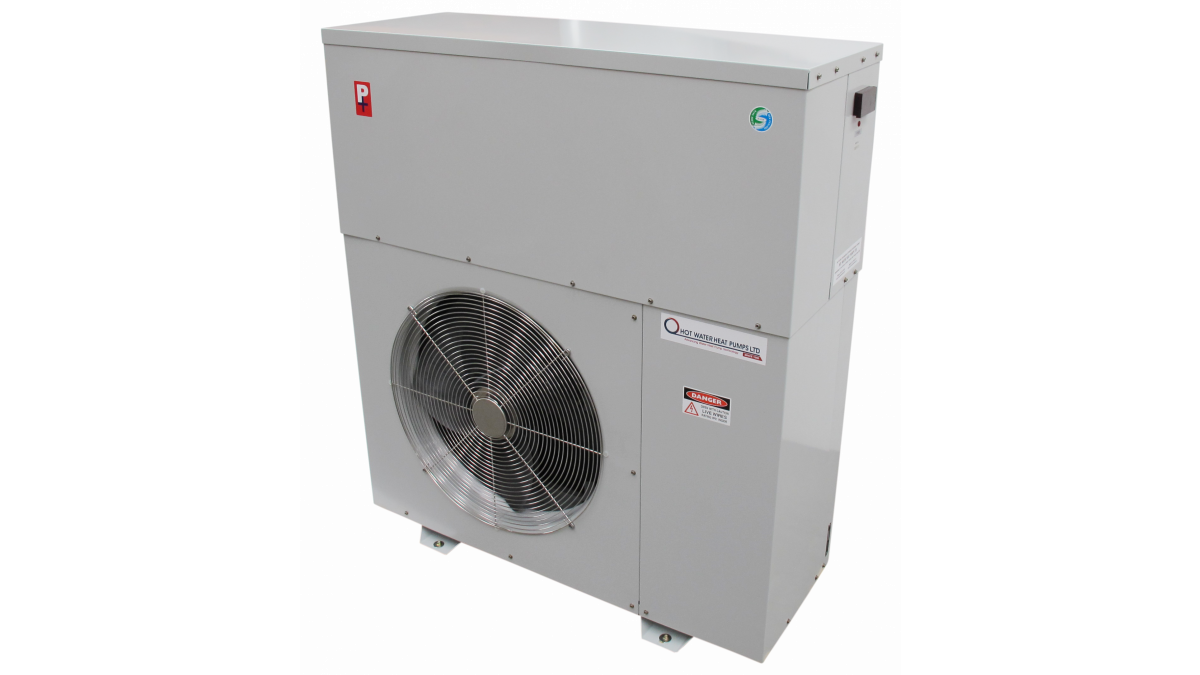

7kW to 16.5kW Single Phase Low Water Temperature Water Heat and Chill
Description

The Titanium Series Heat and Chill are part of our Performance Plus range of models and ensure a constant set temperature every time. Suitable for heating and chilling water or brine.

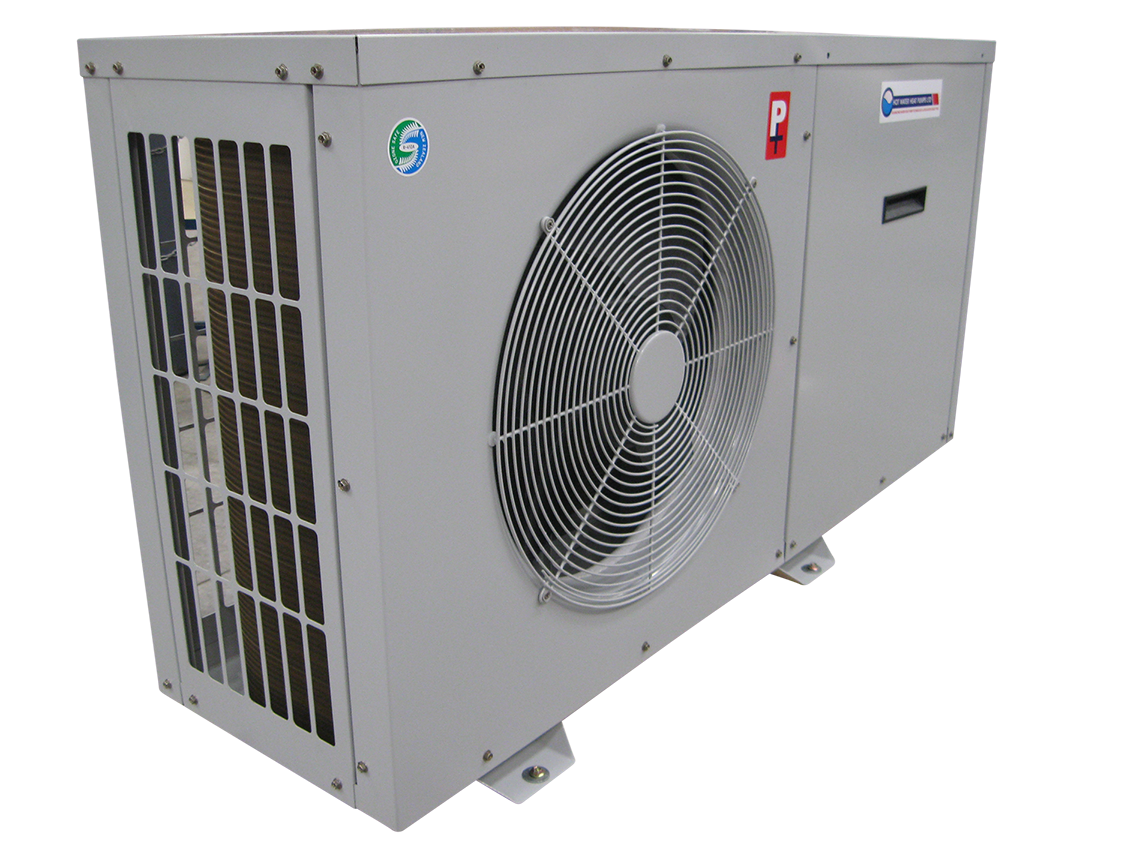

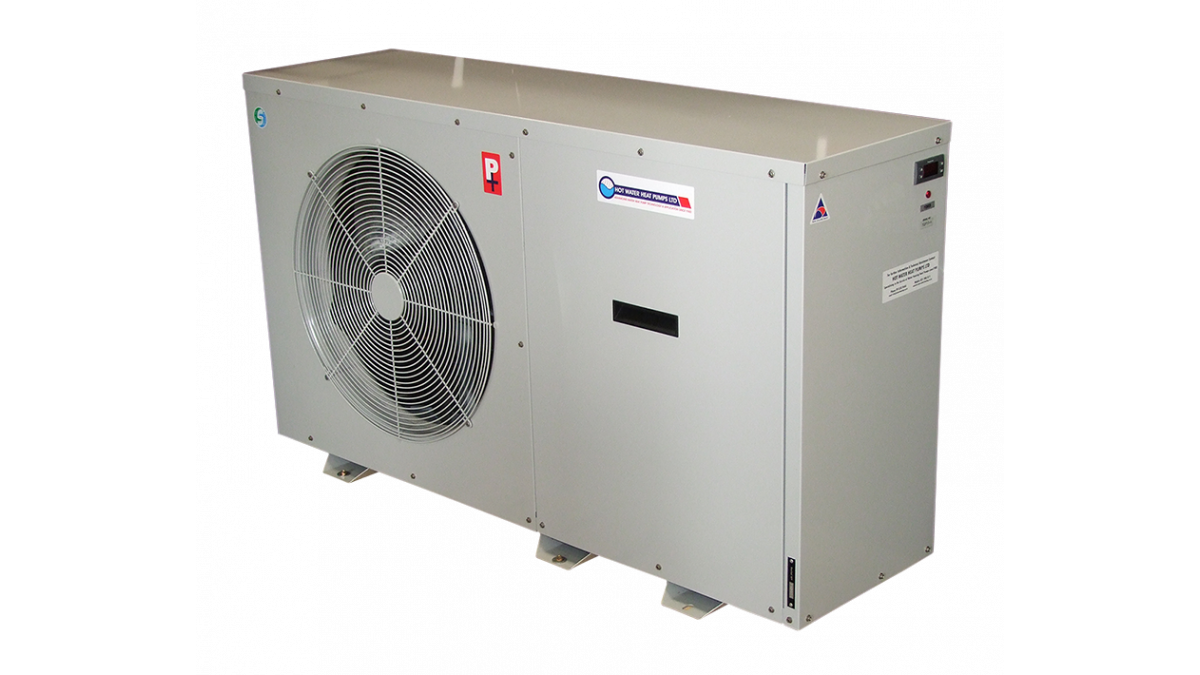

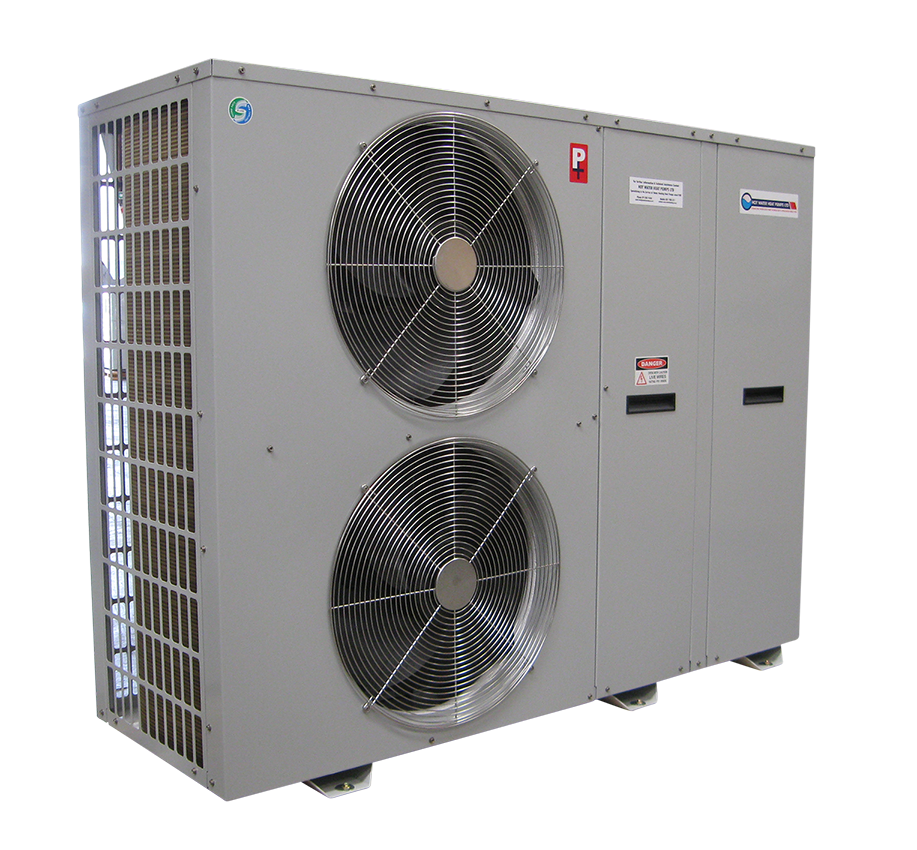

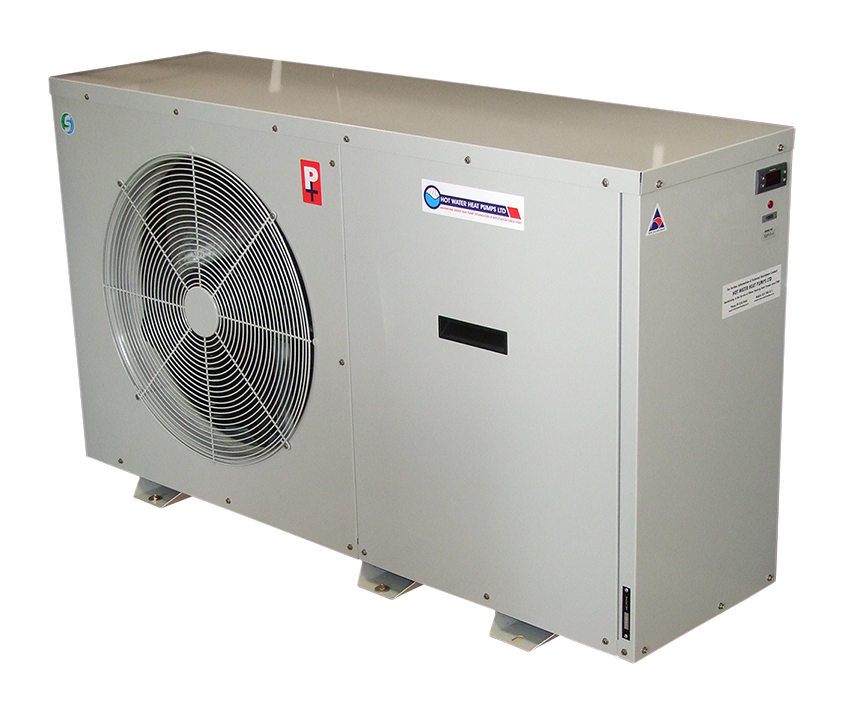

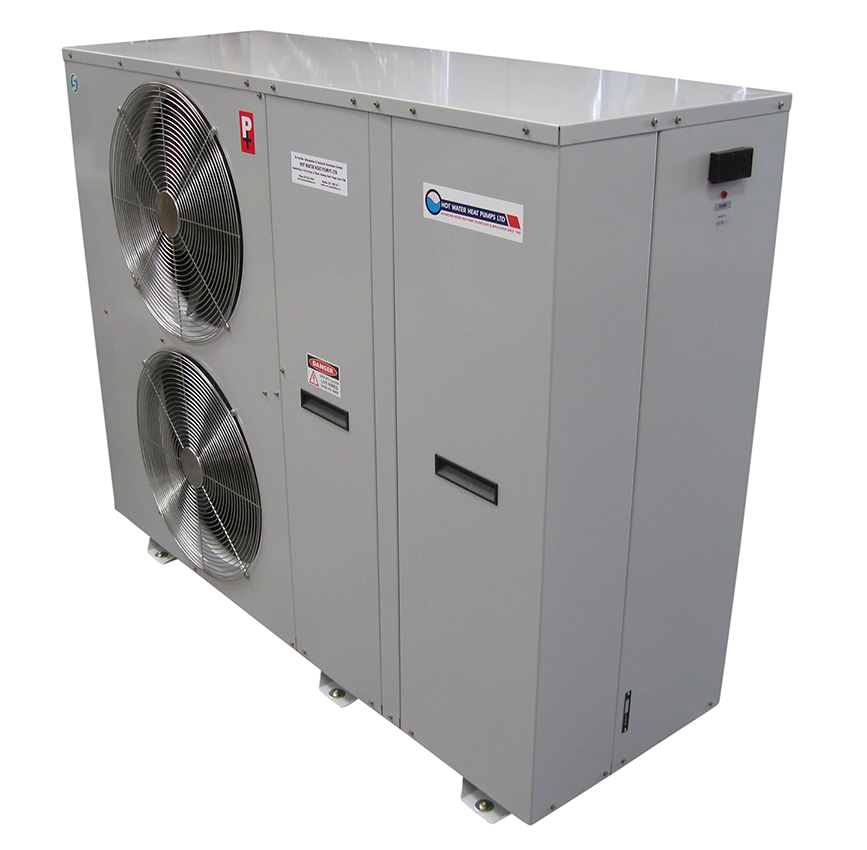

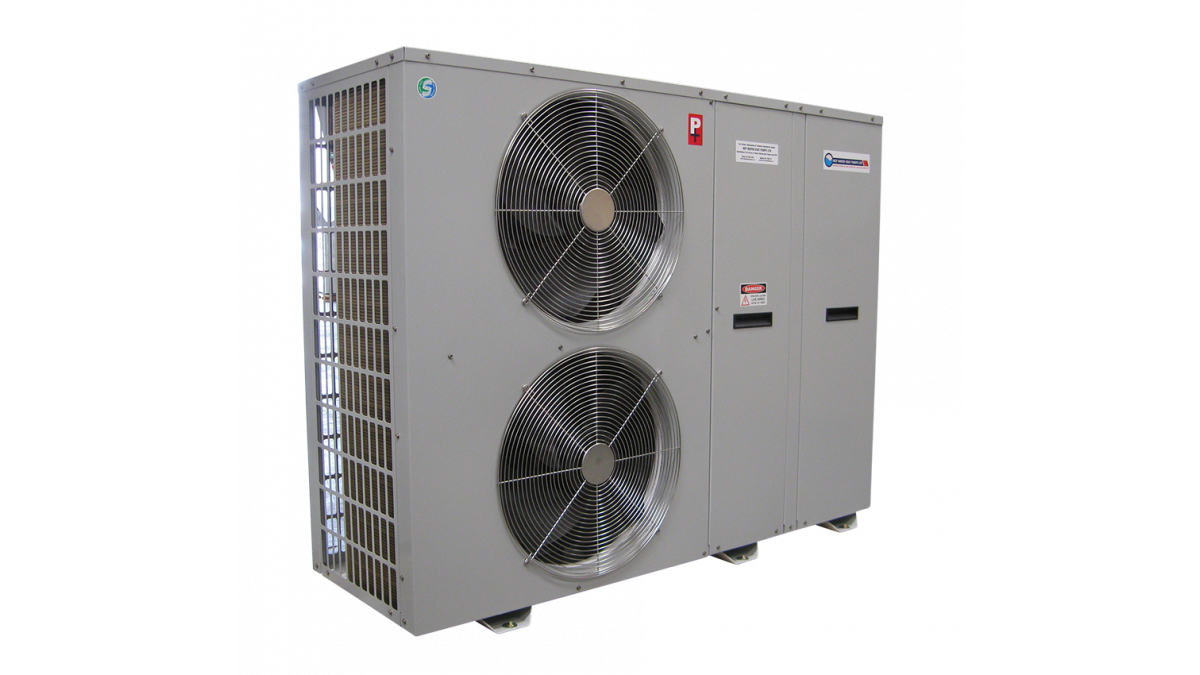

Designed and engineered to perform all year round, even in New Zealand’s harshest environments; the Titanium Series units are made of heavy gauge galvanised steel cabinetry with a polyester powder coat finish which provides superior corrosion resistance. The evaporator coils aluminium fins are epoxy coated giving extra protection in coastal areas where the air is salt-laden. The coil fins are on rifled copper tubes for even better heat transfer.

All 7GP series water chillers are fitted with a titanium tube heat exchanger, as titanium tubes provides superior resistance against corrosion. Due to its high energy efficiency, the Titanium Series water chillers have an extremely low cost of operation.

Key Features

Product features

  • Quiet running
  • Built in drain tray
  • Water flow switch activated
  • Titanium tube heat exchangers
  • Ozone friendly refrigerants
  • Expoxy coated corrosion resistant evaporator coils
  • Built in refrigeration safety switches
  • Optional electronic reverse cycle de-ice control
  • Easy to operate electronic controller with digital display
  • TX valve for more efficient low ambient operation
  • Compressor has built in internal and external overload

Performance plus benefits

  • Easy to install and operate
  • Low operating costs and high efficiency
  • Environmentally friendly
  • Durable and long life expectancy
  • Engineered and built in New Zealand
  • Automatically maintains any set temperature in all weather
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Aquaculture
  • Process Cooling

Single phase Low Water Temperature Water Heat and Chill suitable for chilling water or brine. Low temperature models can be engineered to chill to -5°C with sufficient glycol solution to prevent freezing.

  • 7kW Low Water Temperature Heat and Chill — 7GP7HCL-1
  • 9kW Low Water Temperature Heat and Chill — 7GP11HCL-1
  • 10kW Low Water Temperature Heat and Chill — 7GP14HCL-1
  • 12kW Low Water Temperature Heat and Chill — 7GP17HCL-1
  • 15kW Low Water Temperature Heat and Chill — 7GP20HCL-1
  • 16.5kW Low Water Temperature Heat and Chill — 7GP23HCL-1
In-Service History

Our water chillers are fitted with protection systems to prevent damage in the event of a malfunction. Such as a flow switch to ensure the chillers cannot operate without water flow and other refrigeration safeties. If a problem is identified, the unit automatically shuts down before damage can occur.

All of our industrial water chiller models carry a comprehensive two year parts and labour warranty, including the compressor, evaporator coil, heat exchanger and refrigeration systems. The titanium tube within the heat exchanger is covered against corrosion for 10 years.

Documents
7GP11HCL-1 Technical Specifications
7GP14HCL-1 Technical Specifications
7GP17HCL-1 Technical Specifications
7GP20HCL-1 Technical Specifications
7GP23HCL-1 Technical Specifications
7GP7HCL-1 Technical Specifications
