SlideLine 55 Plus Sliding Door System
Description

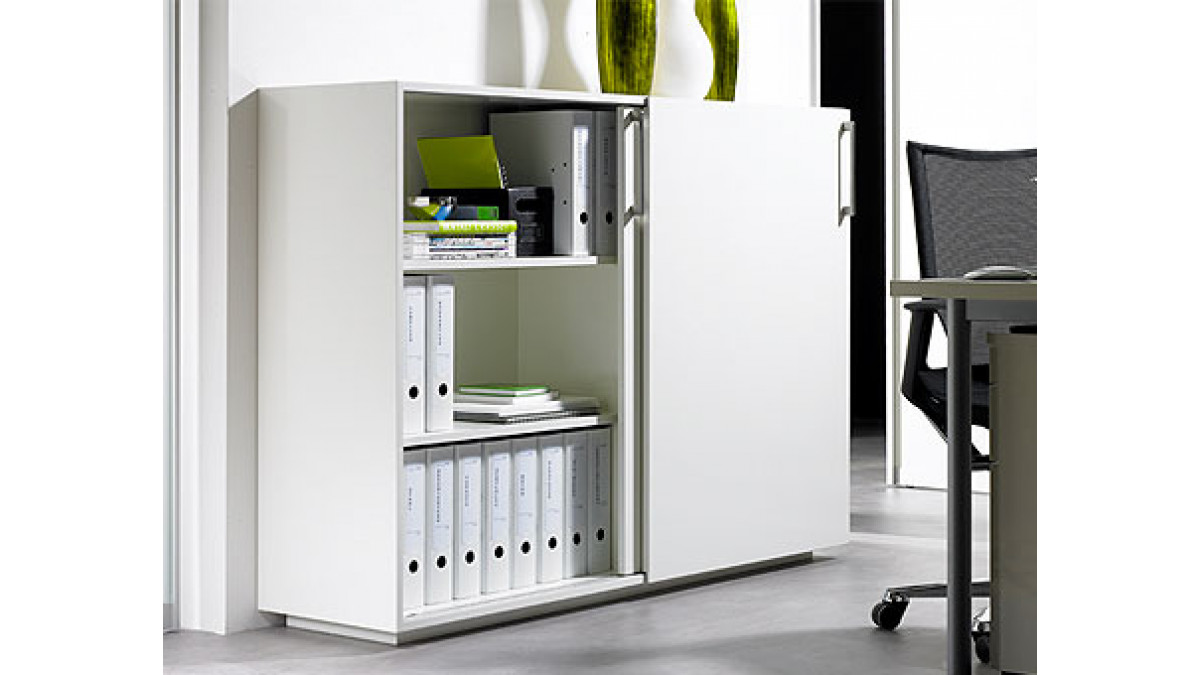

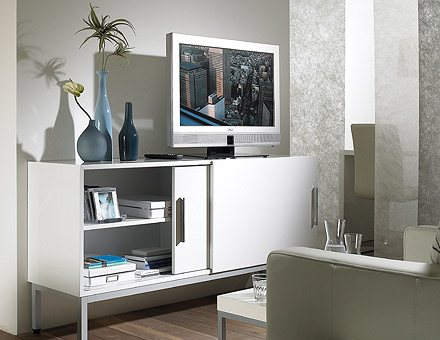

The bottom-running SlideLine 55 sliding door system leaves no margin of doubt with its ease of installation and straightforward handling in everyday use. The System is particularly versatile. Light doors weighing up to 15kg run in plastic profiles, while aluminium profiles are used for heavier doors — up to 30kg. The system can also be fitted with adaptive self-closing Silent System.

Key Features
  • Wide-opening sliding doors for optimum use of storage space.
  • Smooth, quiet running action and efficient use of space.
  • Attractive design from the options of inset or overlay doors.
  • Sliding doors for greater freedom of movement at the workplace.
Scope of Use

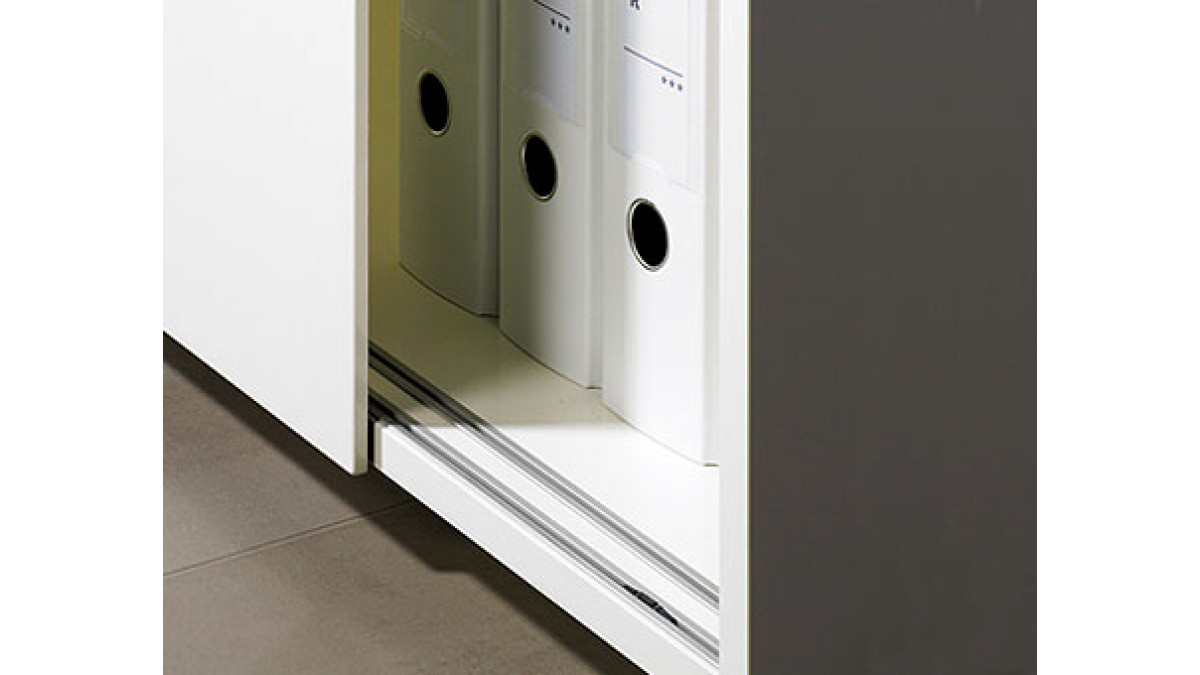

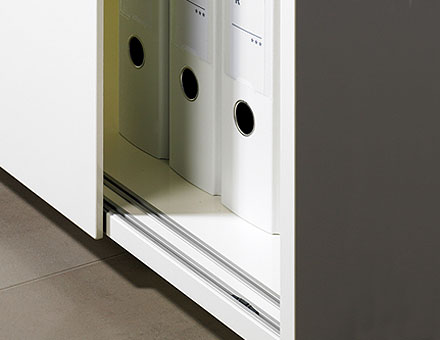

  • 2-track, bottom running sliding door system
  • Inset, overlay door position
  • For wooden doors
  • Door weight up to 15kg with plastic profiles
  • Door weight up to 30kg with aluminium profiles
  • Door height 700mm — 1500mm
  • Door width 400mm — 800mm
  • Door thickness 16mm & 19mm
  • Height adjustment +/- 1.5mm
  • Tested to EN 15706, Level 3
Documents
Sliding Door Systems Catalogue
Environmental Information
Installation and Operation
