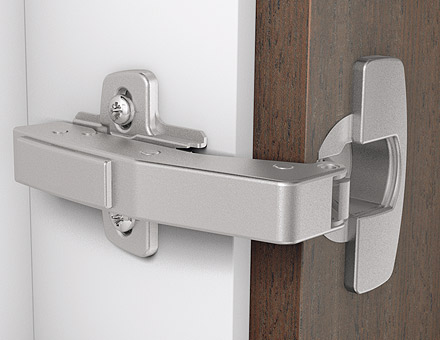

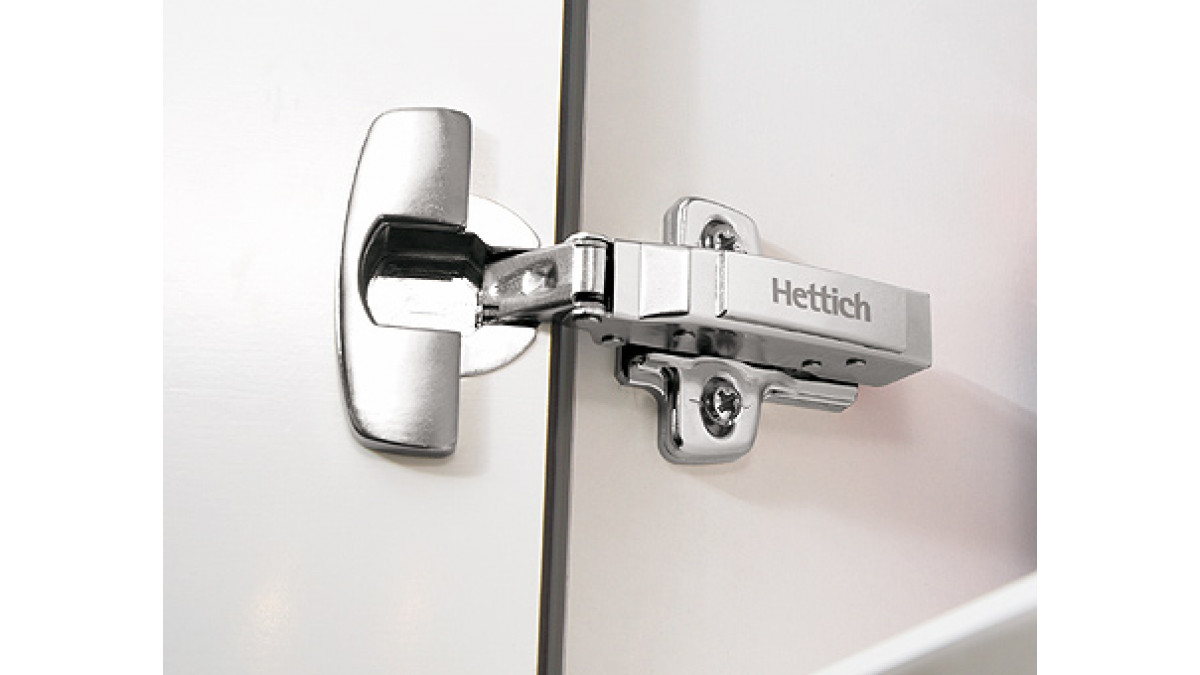

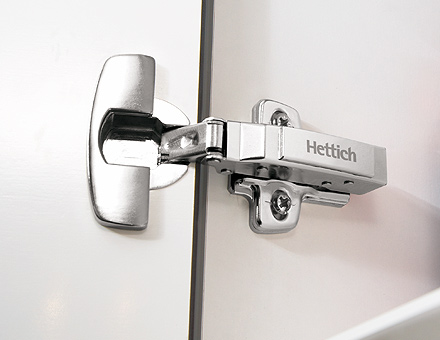

Sensys Concealed Hinges without Soft Close
Description

Sensys hinges without the soft closing function provide an easy way of saving costs without compromising design.

Key Features

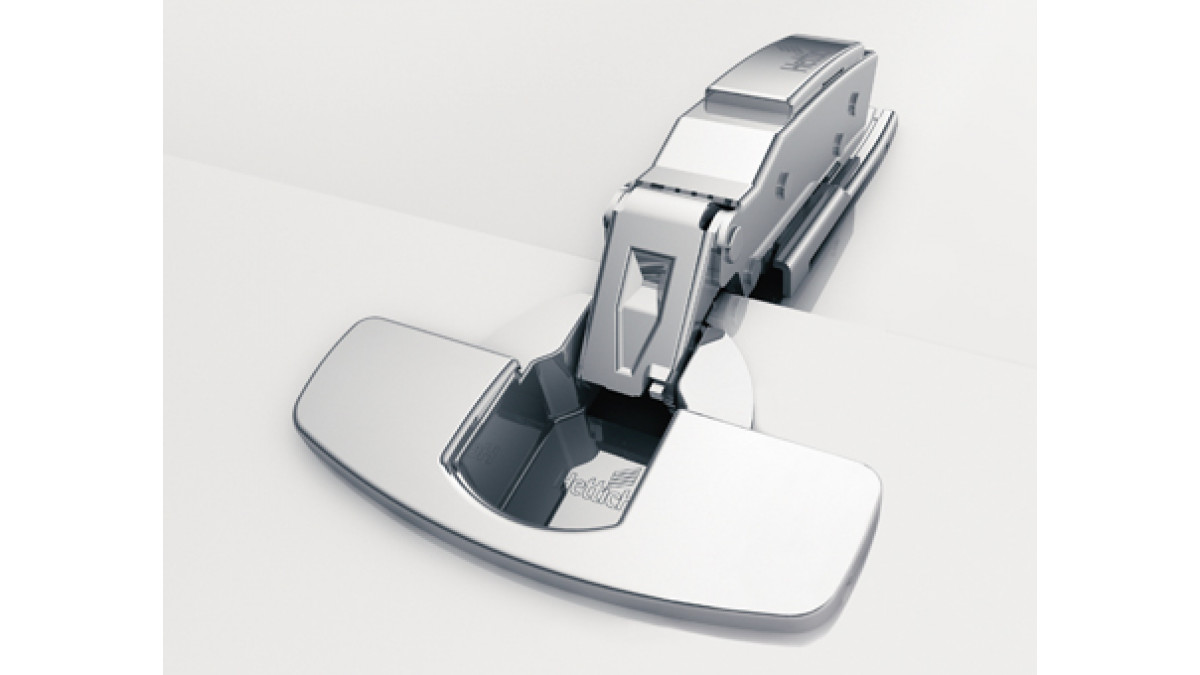

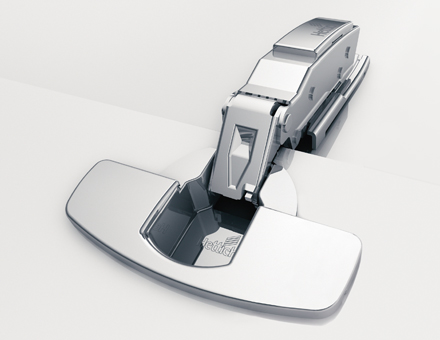

  • Elegant cover cap for the hinge cup, also available for the hinge arm.
  • Integrated depth adjustment for millimetre precision door alignment by direct adjustment.
  • Integrated overlay adjustment with stop limiter for perfect gap alignment.
  • The fast release button is elegantly concealed by the hinge arm. This reliably prevents the door from being released unintentionally.
  • Zero protrusion hinge for optimum use of storage space.
  • Tool-less clip-on assembly means hinge and mounting plate can be put together quickly and easily.
  • Hettich hinges can be used in living room, kitchen, bathroom and office furniture both in the home and business environment.
Categories
Hinges and Runners
Ranges
Hinges
Other Performance Attributes
  • Opening angle: 95° — 165°
  • Door thicknesses: 15mm — 32mm
  • Loading capacity: complies with the requirements of EN 15570 and satisfy the overload tests at the specified level.
  • Corrosion test: Hettich hinges satisfy the corrosion requirements under EN ISO 9227-2012 in accordance with the 48hr neutral salt spray test (NSS) as well as DIN EN ISO 6270-2-2012 in accordance with the 96hr alternating condensation water climate test with alternating humidity and air temperature (AHT).
  • Quality assurance: The processes for assuring the quality of Hettich hinges are certified under EN ISO 9001, Cert. No. DE8000209.
Documents
Data Sheet - Sensys 8645 - 110° Opening Angle
Data Sheet - Sensys 8657 - Zero Protrusion, 165° Opening Angle
Data Sheet - Sensys 8675 - 110° Opening Angle
Environmental Information
Installation and Operation

Hettich manufactures and sells German joinery hardware, including hinges, drawer systems, drawer runners and sliding and folding door systems.
