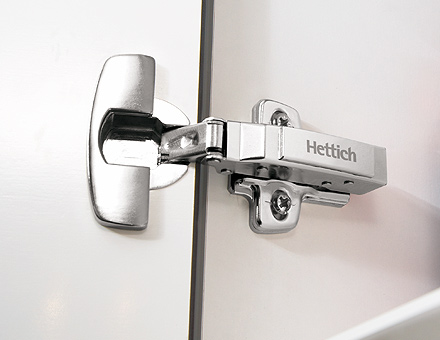

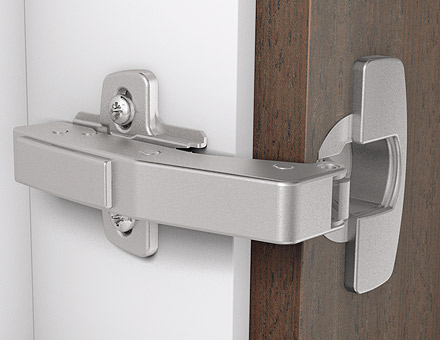

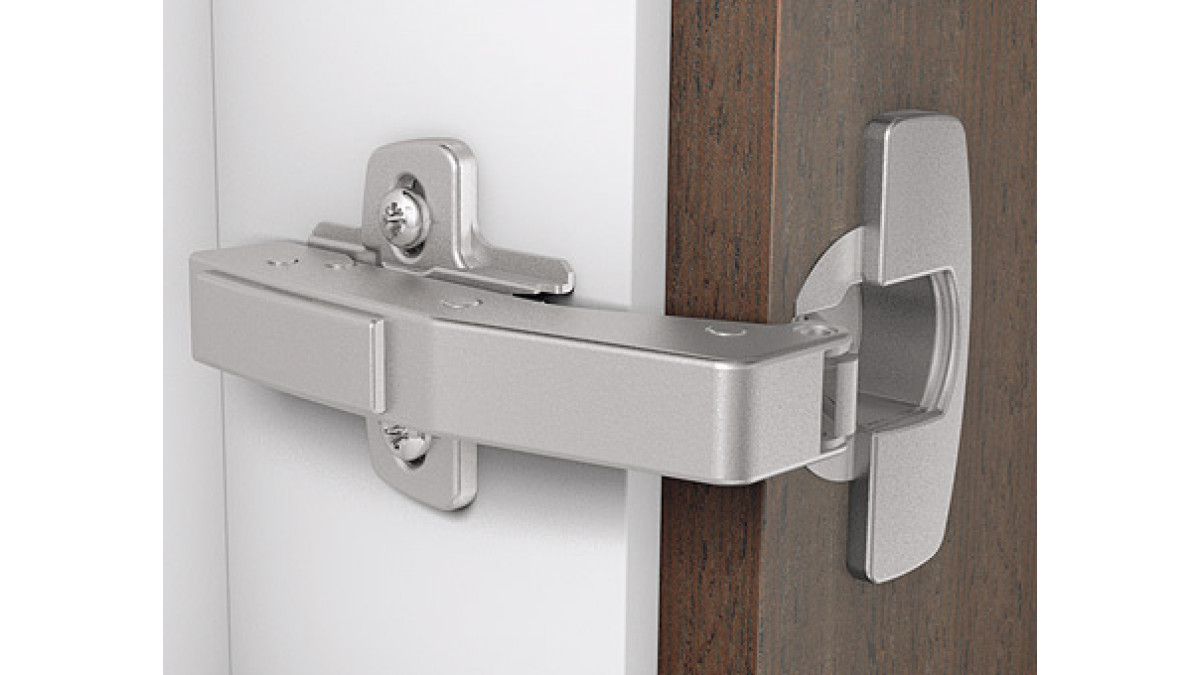

Sensys Concealed Hinges with Soft Close
Description

Sensys, the hinge system with integrated soft-closing mechanism for even more convenience in closing hinged doors. Self-closing from a uniquely wide angle, Sensys takes care of closing doors almost by itself. Innovative, easy, gentle and quiet.

Key Features
  • High-quality Silent System invisibly integrated in the hinge arm.
  • The Silent System is designed for perfect operation across an exceptionally wide temperature range from +5°C to +40°C.

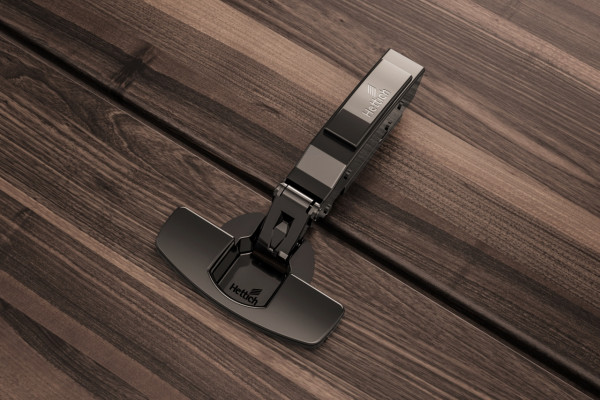

  • Elegant cover cap for the hinge cup, also available for the hinge arm.
  • Integrated depth adjustment for millimetre precision door alignment by direct adjustment.
  • Integrated overlay adjustment with stop limiter for perfect gap alignment.
  • The fast release button is elegantly concealed by the hinge arm. This reliably prevents the door from being released unintentionally.
  • Zero protrusion hinge for optimum use of storage space.
  • Tool-less clip-on assembly means hinge and mounting plate can be put together quickly and easily.
  • Hettich hinges can be used in living room, kitchen, bathroom and office furniture both in the home and business environment.
Other Performance Attributes
  • Opening angle: 95° — 165°
  • Door thicknesses: 15 — 32 mm
  • Loading capacity: complies with the requirements of EN 15570 and satisfy the overload tests at the specified level.
  • Corrosion test: Hettich hinges satisfy the corrosion requirements under EN ISO 9227-2012 in accordance with the 48hr neutral salt spray test (NSS) as well as DIN EN ISO 6270-2-2012 in accordance with the 96hr alternating condensation water climate test with alternating humidity and air temperature (AHT).
  • Quality assurance: The processes for assuring the quality of Hettich hinges are certified under EN ISO 9001, Cert. No. DE8000209.
Documents
Data Sheet - Sensys 8631i - Thick Doors, 95° Opening Angle
Data Sheet - Sensys 8638i for Aluminium Framed Doors - 95° Opening Angle
Data Sheet - Sensys 8639i - 30° Face Angle, 95° Opening Angle
Data Sheet - Sensys 8639i - 45° Face Angles, 95° Opening Angle
Data Sheet - Sensys 8639i W90 - 90° Face Angles, 95° Opening Angle
Data Sheet - Sensys 8645i - 110° Opening Angle

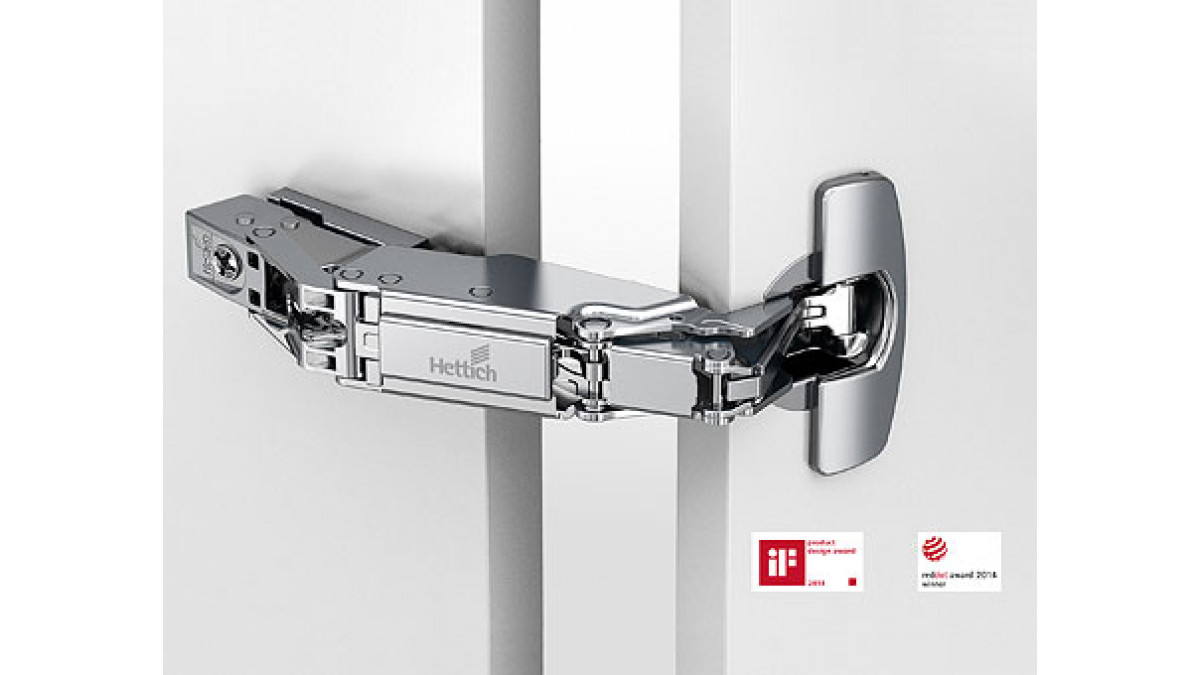

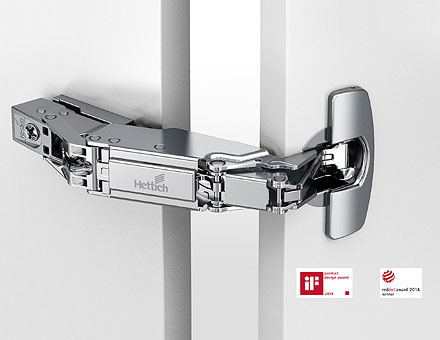

Datasheet - Sensys 86571i - Zero Protrusion, 165° Opening Angle
Environmental Information
Installation and Operation

Hettich manufactures and sells German joinery hardware, including hinges, drawer systems, drawer runners and sliding and folding door systems.
