Brushless Motors for Swing Gates by Edgesmith

Brushless Motors for Swing Gates

Edgesmith

All products

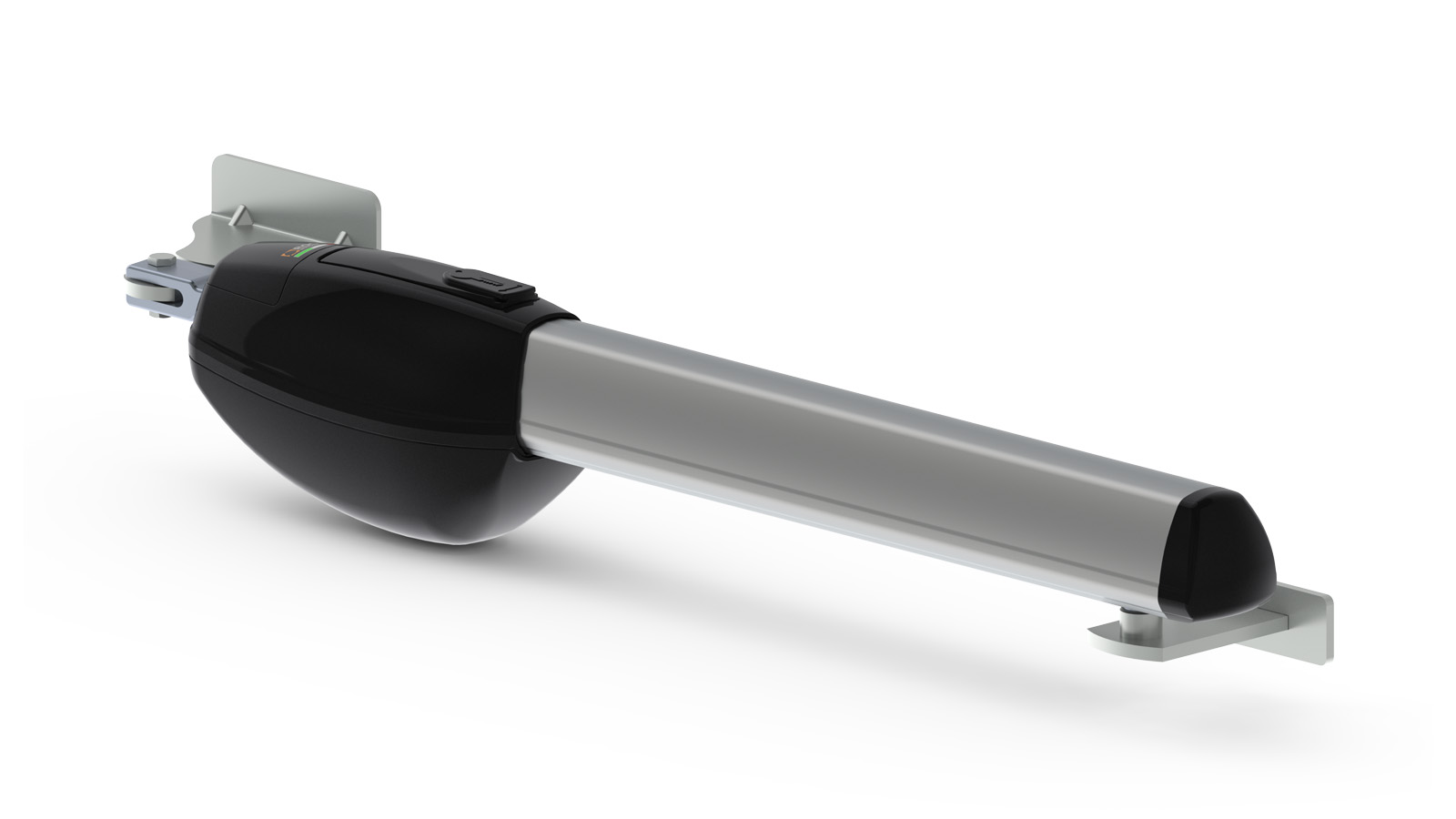

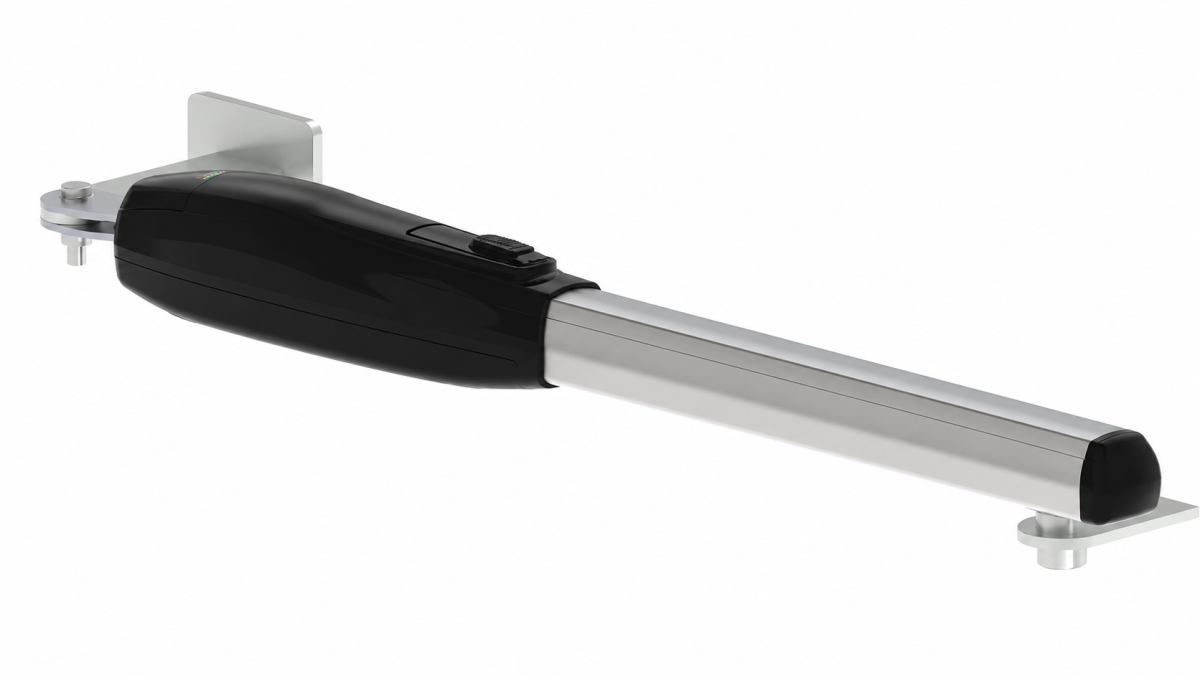

Smarty 4, the Smarty 7 is longer to allow for a larger gate

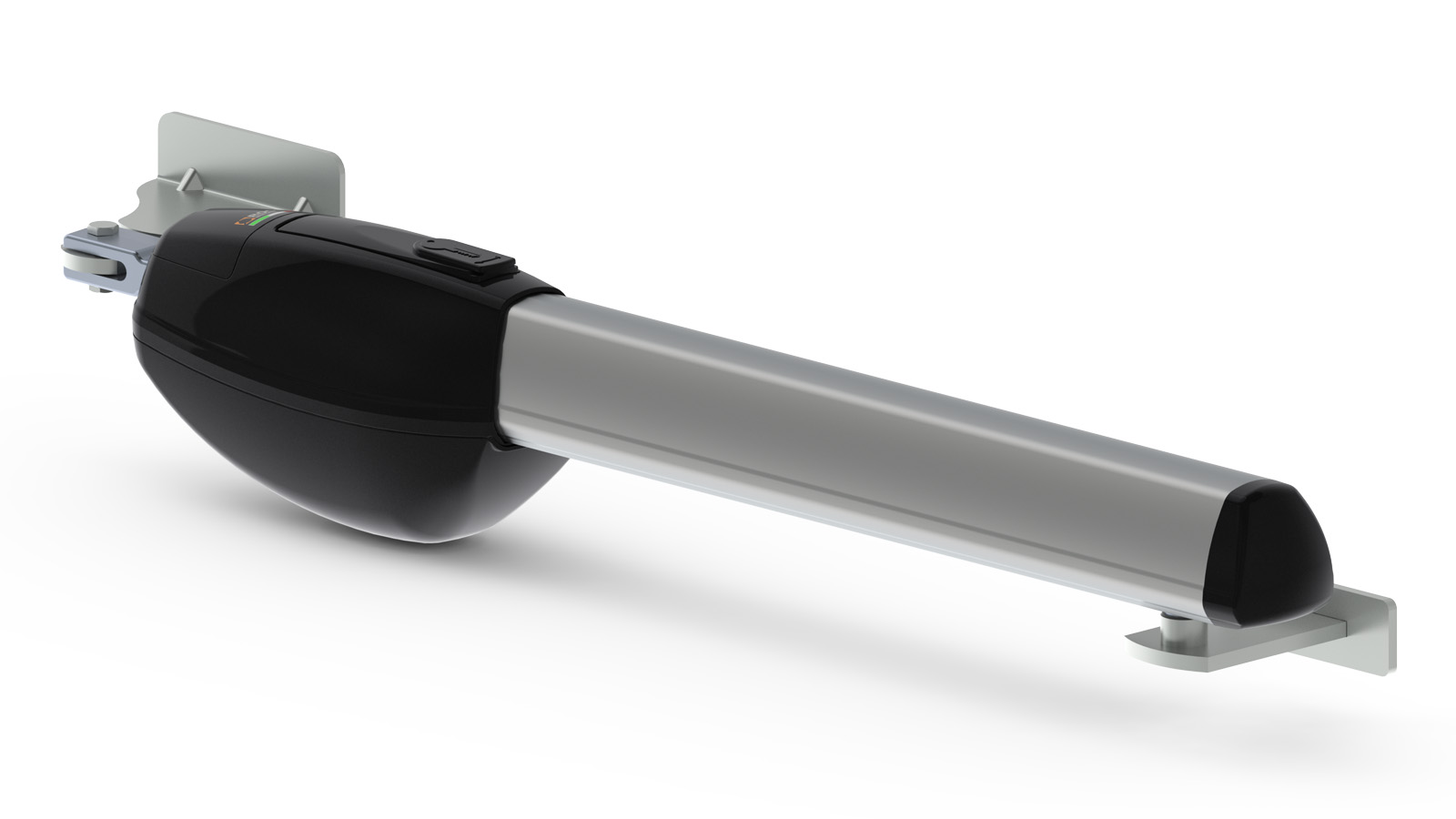

Presto 200, the Presto 400 is longer to allow for a larger gate

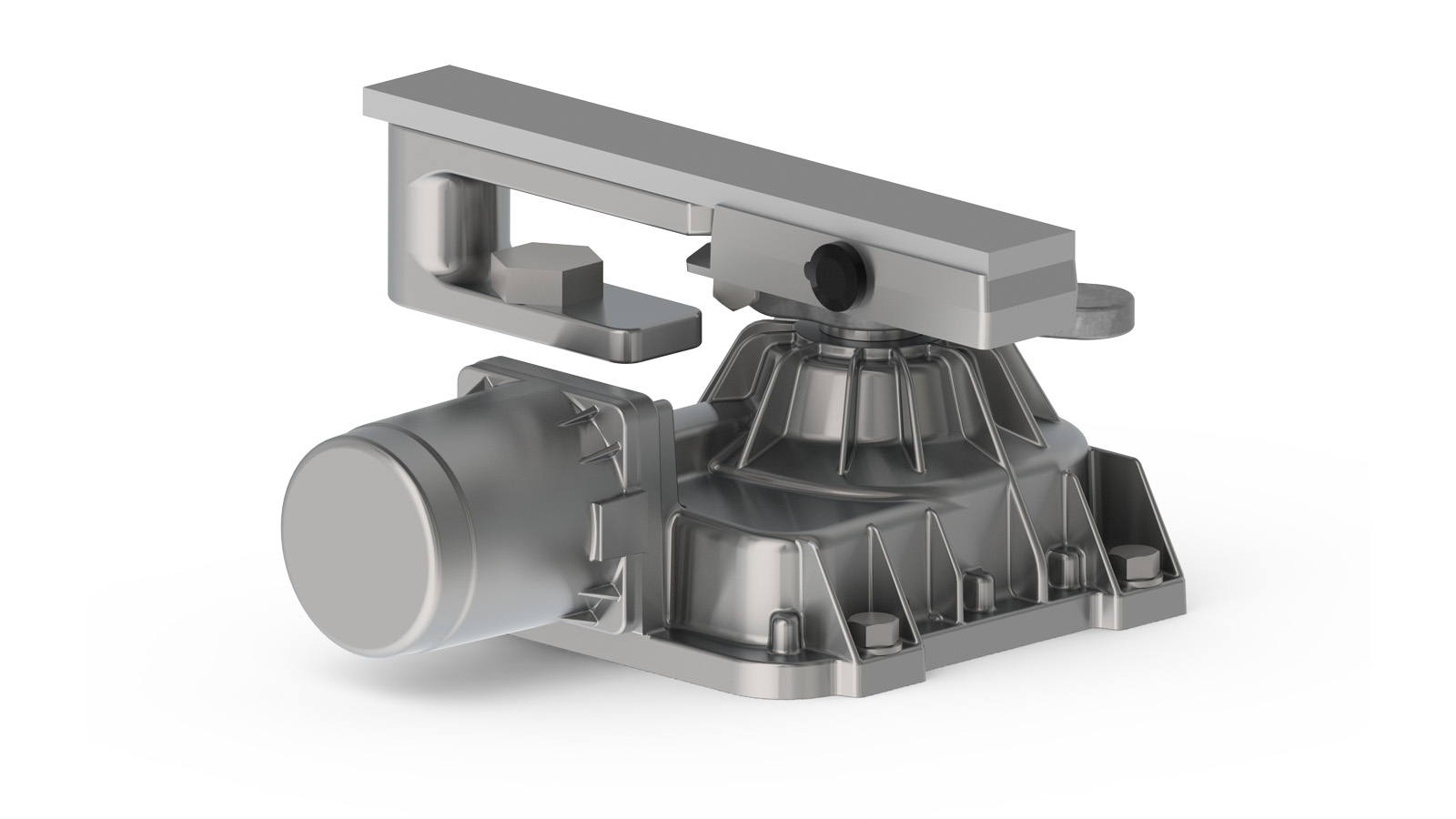

Fantasma underground motor, housed in a galvanised box with IP rating of 67

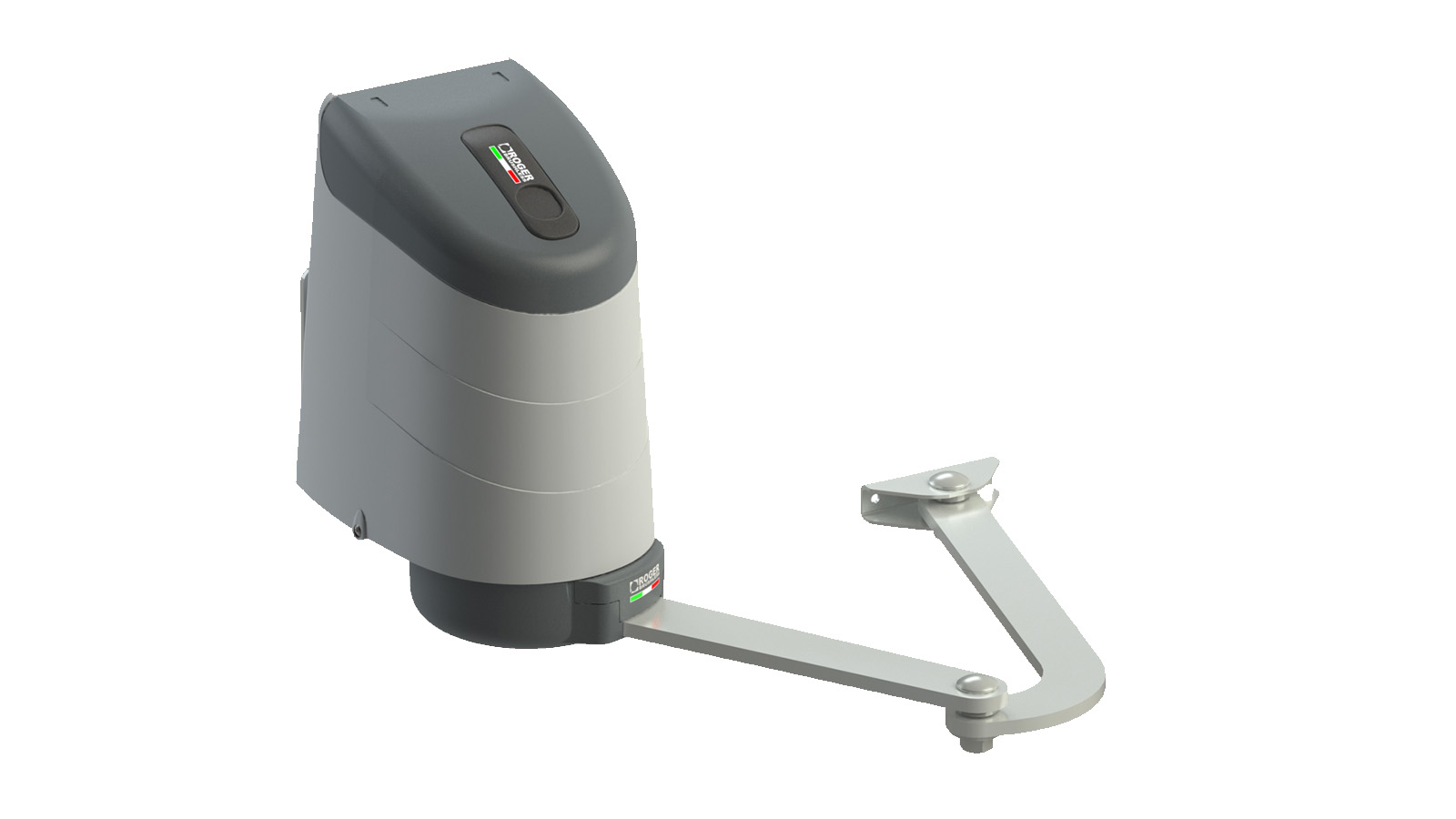

Ayron articulated motor for mounting on Pillars

Product Enquiries

Description

Edgesmith's range of swing gate motors come in three variations, have 100% duty cycle, and have low energy consumption. Variations are standard motors for gates up to 700kg, articulated arms for gates hung on large pillars or block walls, and underground motors where space is limited.

All versions have been developed with a modern design and low impact for the aesthetics of the gate.

Watch the video to see various gates and motors in operation.

Key Features

Smarty 7:

Capable of moving gates up to 700kg
Maximum gate length of 7m
Opening speeds 35-50 seconds to 90°
Motor power supply is a low 200W at 36V

Smarty 4:

Capable of moving gates up to 400kg
Maximum gate length of 4m
Opening speeds of 15-25 seconds to 90°
Motor power supply is a low 200W at 36V

Presto 400:

Capable of moving gates up to 400kg
Maximum gate length of 4m
Opening speeds of 17-26 seconds to 90°
Motor power supply is a low 200W at 36V

Presto 200

Capable of moving gates up to 200kg
Maximum gate length of 2.5m
Opening speeds of 10-15 seconds to 90°
Motor power supply is a low 200W at 36V

Fantasma Underground Motor:

Capable of moving gates up to 800kg
Maximum gate length of 4.5m
Opening speeds of 19-29 seconds to 90°
Motor power supply is a low 200W at 24V
Rated IP 67, housed in a galvanised box neatly hidden underground

Ayron:

Capable of moving gates up to 250kg
Maximum gate length of 2.5m
Opening speeds of 10-18 seconds to 90°
Motor power supply is a low 160W at 24V
Articulated arm allows for mounting on the back of a pillar, wall or large post

Scope of Use

The choice between a Smarty and a Presto motor is determined by the style of the gate, the length, height and weight. Edgesmith's expert team can assist in choosing the correct motor.

The Ayron is designed for gates that are installed on large pillars or the back of a wall. This allows for the motor to be positioned triangularly so that the gate can open and not be impeded by the motor.

The Fantasma is artfully hidden underground. The motor and 'shoe' replaces the bottom hinge and allows the gate to pivot on the axis of the motor. See video of a gate in action.

Limitations on Use

The ratio between gate length & weight need to be considered when choosing the correct motor
Other factors like wind or style of gate (solid infill or open picket) should also be considered
Double gates would require two motors
Contact Edgesmith's expert team for advice on specification

In-Service History

In Service within Europe since 2009 & New Zealand since 2017

Other Performance Attributes

100% duty cycle — motor can function continuously without becoming hot, or needing to rest and cool down

Documents

Ayron articulated motor Technical Spec Sheet

pdf

Fantasma Underground motor Technical Spec Sheet

pdf

Presto 400 & 200 Technical Spec sheet

pdf

Smarty 7 & 4 Technical Spec Sheet

pdf
