Gridlok Two Way

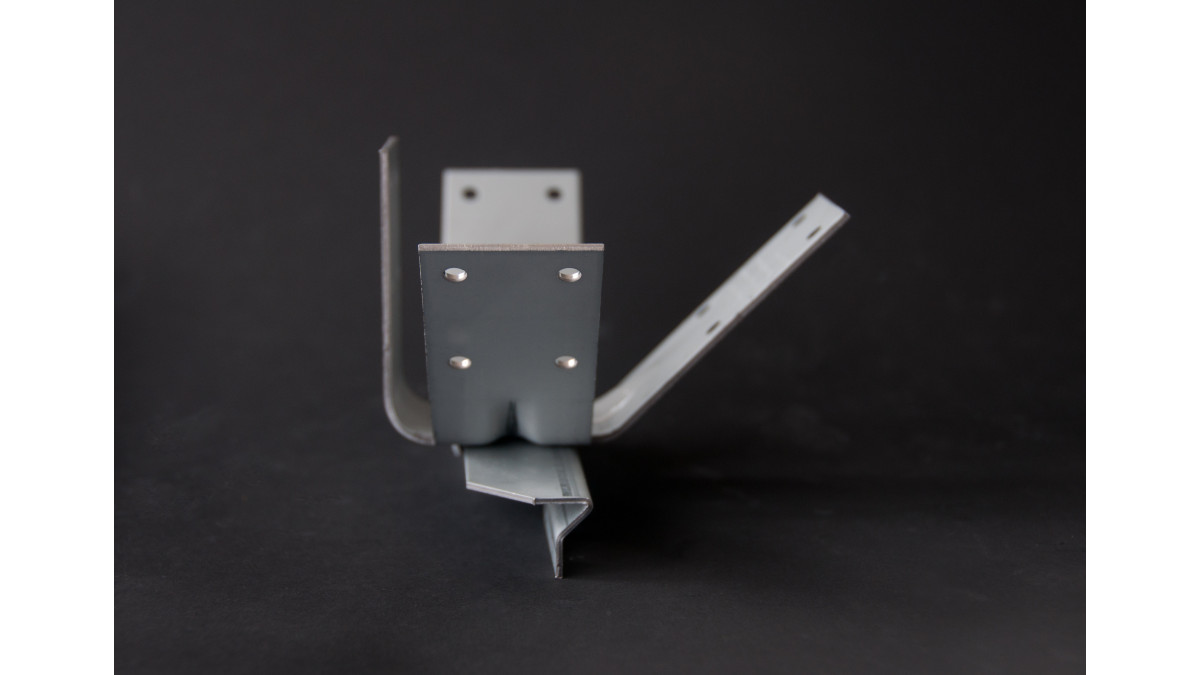

GRIDLOK SCREW FIX TCR
Description

Whether a grid ceiling is large, heavy or high, the need for effective back bracing is extremely important. The need to provide a tested and consistent bracing solution is essential. Gridlok provides consistent performance, every time and is available for two way exposed grid and concealed grid systems.

  • Gridlok GRD-10 for two way and drywall suspended grid ceiling system.
  • Gridlok GRD-10S for concealed grid system using Top Cross rail.
  • Gridlok GRD-10F where connection to the furring channel is required.
  • Gridlok GRD-10U where connection to U profile is required.
  • Gridlok GRD-10C where connection to C channel is required.

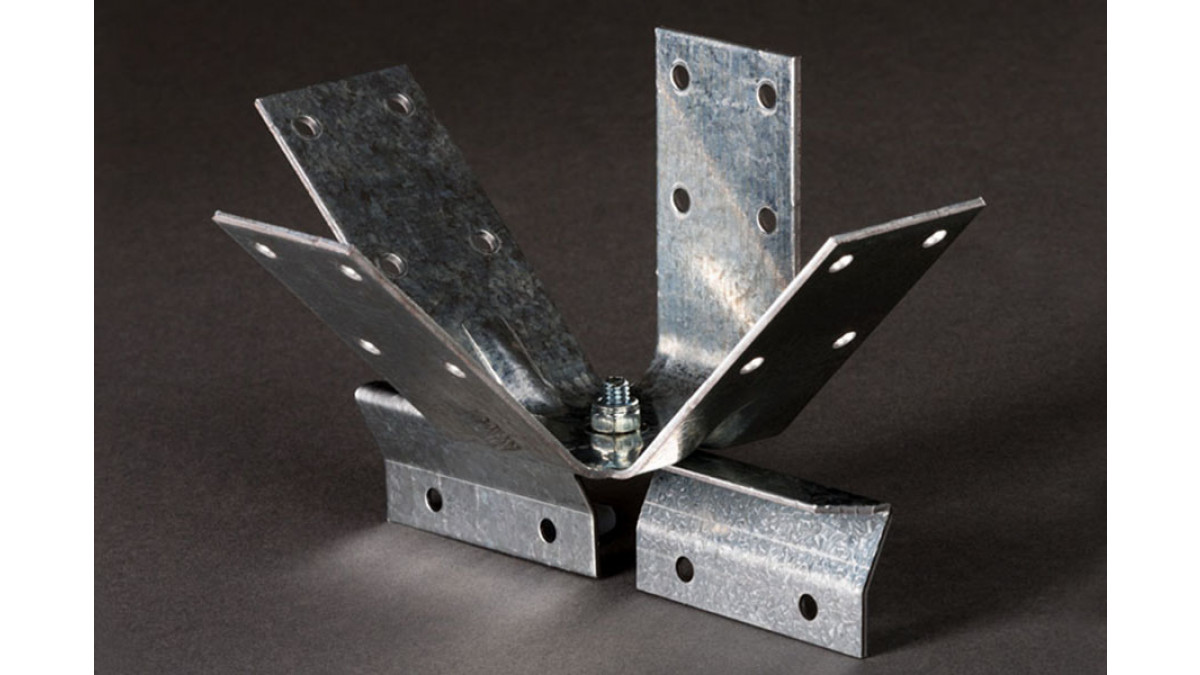

The patented Gridlok connection saddle provides a solid bond to the grid system. It also features the ability to rotate the brace footprint through 360° meaning service clashes are easily avoided.

Download the specification sheet and work with Gridlok and a seismic ceiling designer to produce a quality finish.

Key Features
  • Provides defined capacity for every brace
  • Provides consistency of installation
  • Ensures validity of ceiling installers PS3
  • Tested under ULS and SLS loads to ensure longevity of performance
  • Patented connection saddle applicable to all ceiling main runners
  • Allows for 64mm and 92mm steel stud to be used as bracing
  • Minimises plenum footprint to reduce service clashes
  • Allows rotation of bracing footprint to minimise service clashes
  • Employs .64 BMT, .75 BMT or 1.15 BMT steel stud to minimise waste.
Categories
Partitions Ceiling Ancillaries
Ranges
Bracing Systems
Scope of Use
  • For interior application only
  • Must be installed in accordance with manufacturers specification and within the parameters of AS/NZS1170.5 AS/NZS4219 AS/ NZS2785
  • Construction outside of available information will require consultation and approval
  • Architect and/or Structural engineer plus relevant regulatory bodies must approve variations of installation
Limitations on Use
  • Structural engineer and regulatory body must seismically approve configurations outside of specifications
  • The unit and/or bracing material must not be used as an anchor point or fixing
    point by associated trades
  • All Gridlok units and bracing must be checked after seismic event for signs of wear
  • Gridlok is not intended to replace ceiling suspension wires, which must be installed as per manufacturers specification
  • The unit must not be deformed or altered in any way. Tenancy changes requiring new ceiling installation requires new Gridlok units to be installed



Statement of Building Code Compliance
  • Complies with AS/NZS 2785
  • Complies with AS/NZS 1170.5
  • Complies with AS/NZS 4219
  • Complies with AS/NZS 4600

Complies with NZ Building Code:

  • Clause B1 — Structure —Contributes to compliance with NZ Building Code:
  • Clause F6 — Visibility in Escape Routes
  • Clause D1 — Access Route
In-Service History

Gridlok has been on the market since May 2016.

Documents
Tracklok & Gridlok Installation Guide
pdf
Installation Details
View full
Gridlok+Assembly+Detail 1 pdf

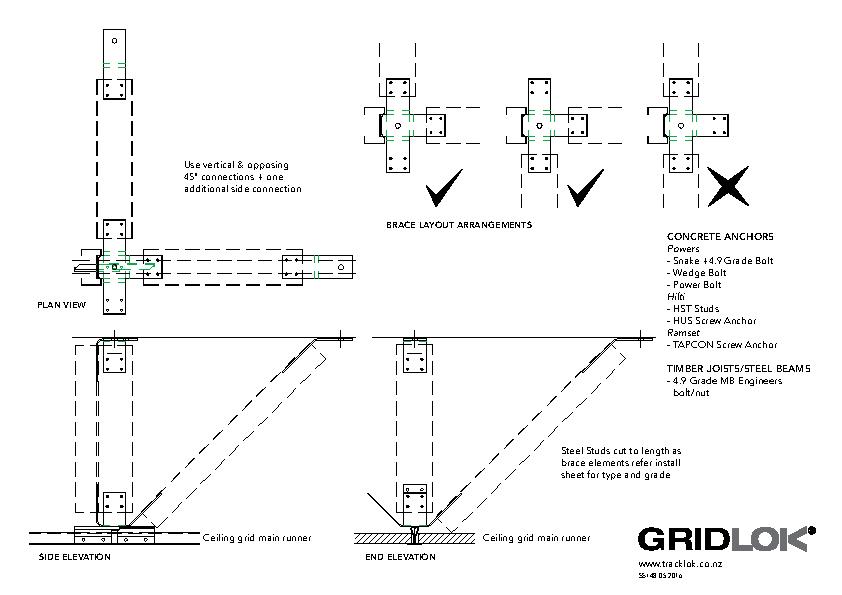

Gridlok Assembly Detail
pdf
