Acoustic Plus Thermo Acoustic Ceiling Tiles
Description

Acoustic Plus Thermo Acoustic is a 50mm thick suspended ceiling tile designed for applications that require a high level of sound absorption (NRC.95) across the frequency spectrum with the added benefit of best in class thermal efficiency at R2.1

The selection of Thermo Acoustic can eliminate the cost of additional thermal bats, blankets or overlays above the ceiling, reducing installation time and helping to save energy costs.

Thermo Acoustic is available in a selection of easy to clean, hygienic surface finishes providing an innovative Thermo Acoustic solution.

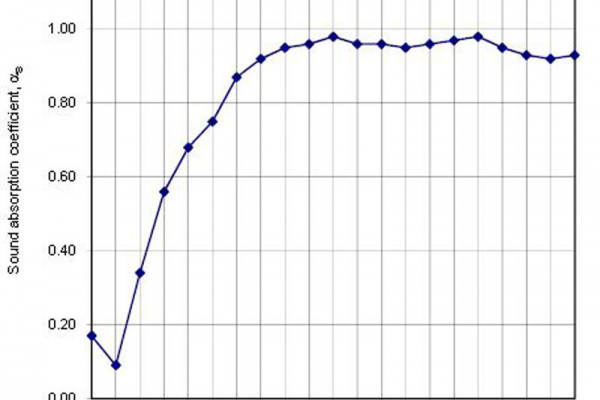

The acoustic performance of this product has been tested and measured by Auckland University Acoustic Services. NRC 0.95 For control of background noise. Fire Classification: NZBC Group 1S.

Key Features
  • Very high sound absorption — NRC 0.95 αw 0.95
  • Thermal efficiency R2.1 m2 K/W
  • Certified non-toxic and low VOC
  • Hygienic surface finish
  • Available in a 1195mm x 1195mm module — Monolithic aesthetic, less visible grid
Homestar / Green Star (Envirospec) Compliant
Homestar / Green Star
Scope of Use
  • Any area requiring thermal efficiency
  • Open plan offices and call centres
  • School halls and classrooms
  • As replacements for the old AHI Monolite tile
Statement of Building Code Compliance
  • Fire Classification: NZBC Group 1S
Other Performance Attributes
  • Thermal Resistance R 2.1 m2 K/W

The acoustic performance of this product has been tested and measured by Auckland University Acoustic Services

  • NRC 0.95
Documents
Data Sheet
Specification Clause (Masterspec)
