Acoustic Plus Dual Bloc 60mm Ceiling Tiles
Description

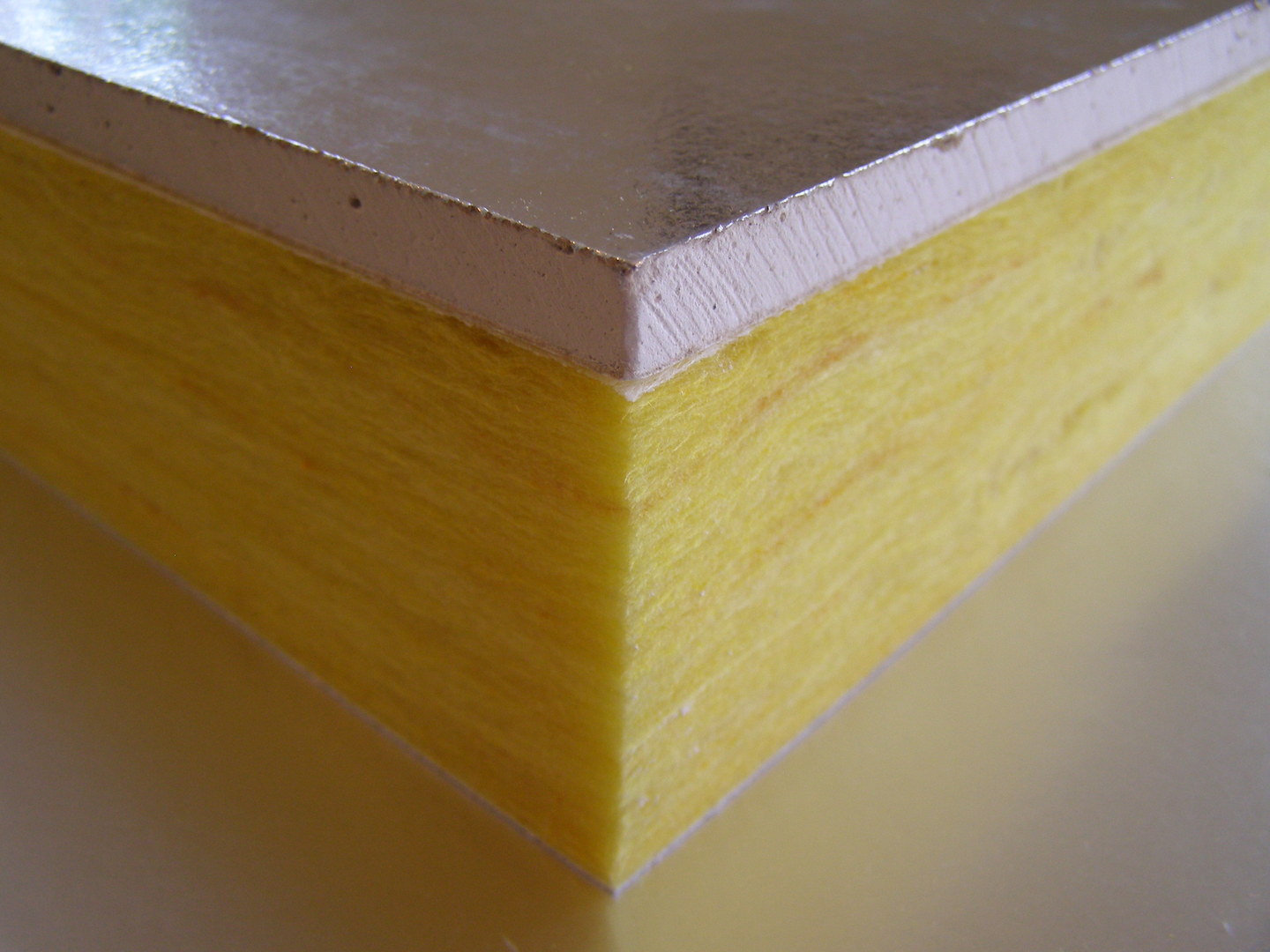

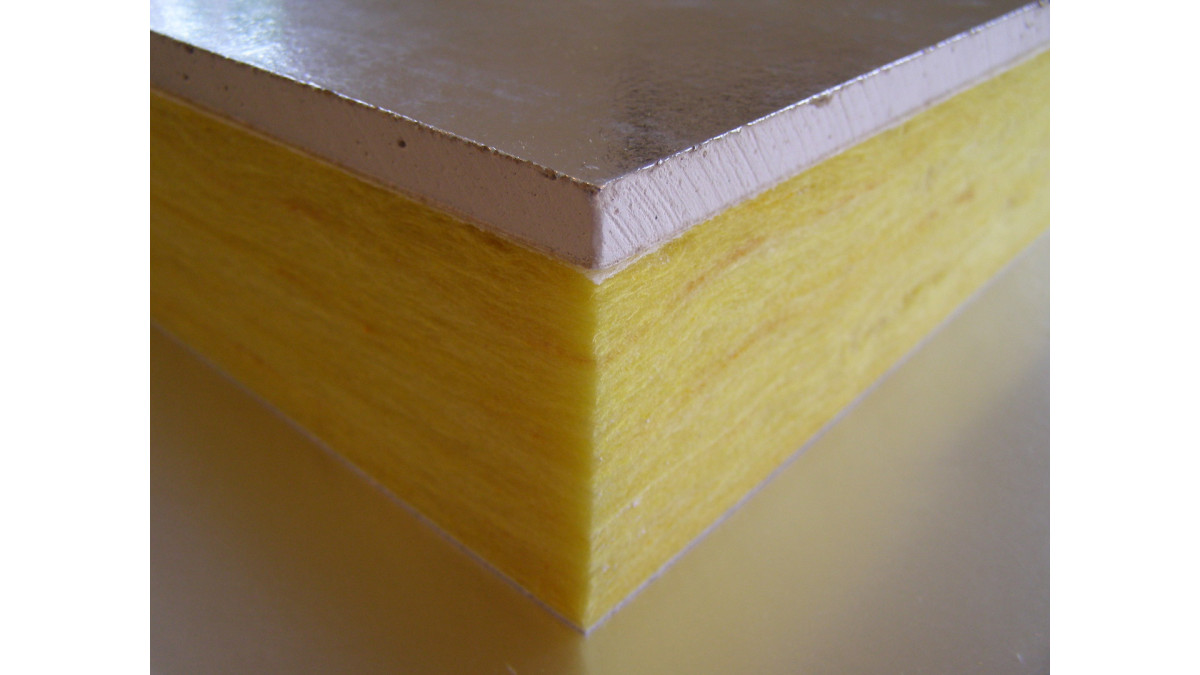

Acoustic Plus Dual Bloc is a 60mm composite thermo acoustic suspended ceiling tile. The combination of sound absorbing glass fibre laminated to a plasterboard attenuator backer is engineered to provide the dual benefit of high levels of sound absorption at NRC 0.90 combined with high levels of attenuation at CAC 46 for control of both reverberation and transmitted noise from adjacent rooms.

Acoustic Plus Dual Bloc will also provide attenuation of rain noise under metal roofing, muffle noise caused by ventilation ducting and provide excellent levels of thermal insulation.

Key Features
  • Acoustic performance tested and measured by Auckland University Acoustic Services
  • Meets Green Star emissions certification
  • Hygienic surface finish resistant to microbial growth
  • Integrate with Acoustic Plus Sound Reflector ceiling tiles as part of the SoundClass matching ceiling system
  • FasTLock Suspended Ceiling Grid is available with a range of seismic expansion clips creating a stronger more durable grid system
Homestar / Green Star (Envirospec) Compliant
Homestar / Green Star
Scope of Use
  • Ideally suited to:
    • Privacy areas — such as doctors surgery

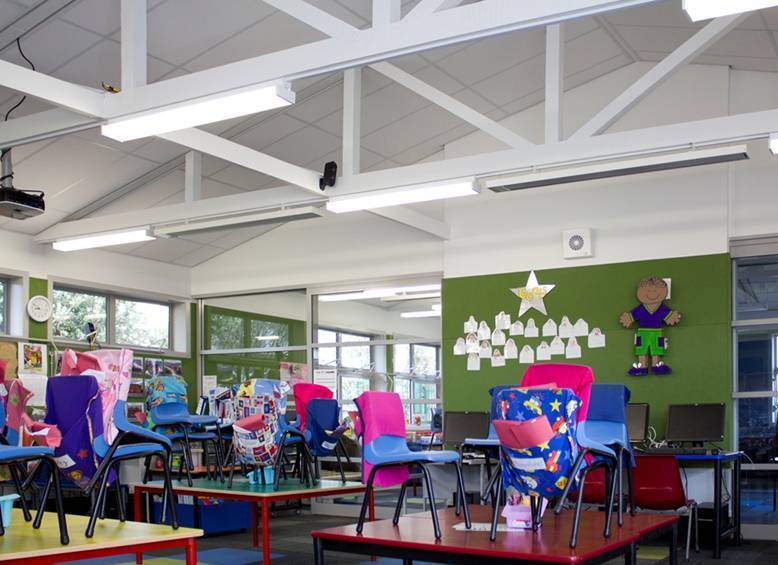

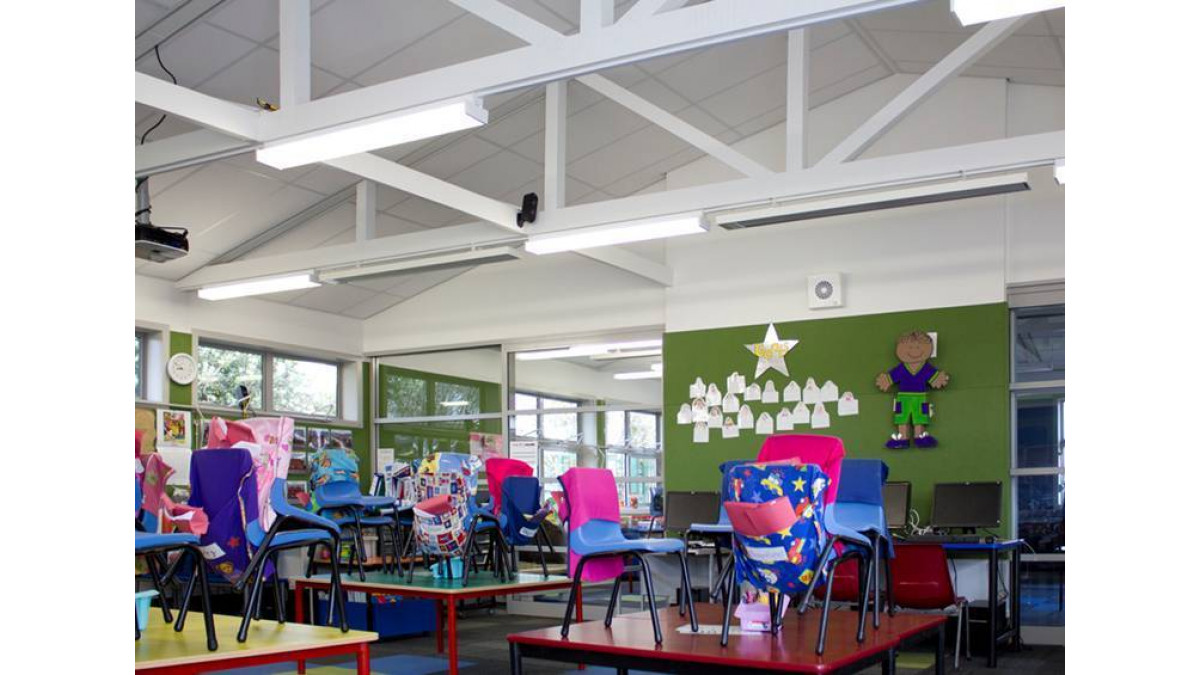

    • Schools / educational facilities
    • Open plan office and call centre environments
    • Under metal roofs to muffle rain noise
  • Integrate with Acoustic Plus Sound Reflector ceiling tiles as part of the SoundClass matching ceiling system
  • FasTLock Suspended Ceiling Grid is available with a range of seismic expansion clips creating a stronger more durable grid system
Statement of Building Code Compliance
  • Fire Classification: NZBC Group 1S
In-Service History
  • Clayton Park School

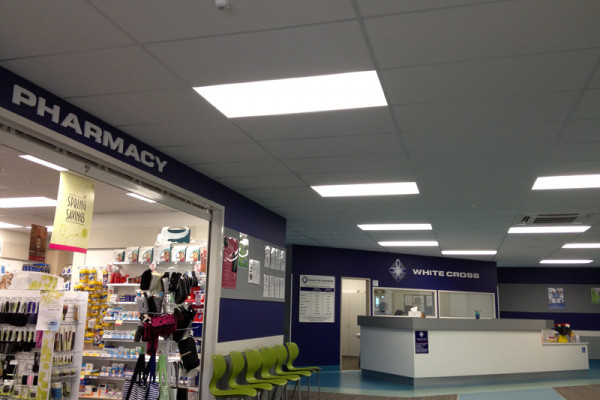

  • Whitecross Medical Centres
  • Watford Medical Centre
Other Performance Attributes
  • Thermal resistance at R2.1

Acoustic performance tested and measured by Auckland University Acoustic Services

  • High NRC 0.90
  • High CAC 46
Documents
Data Sheet
Acoustic Tile Selection Guide
Specification Clause (Masterspec)
Order Samples
Project Case Study: Whitecross Medical
