Kilargo IS7085si Perimeter Seal
Description

The IS7085si is an aesthetic compact perimeter seal, specifically designed for 'clean room' applications. The highly resilient, smooth silicone rubber gasket allows for easy cleaning and assists in preventing the movement of air borne contaminates, whilst also contributing to reduced sound transmission.

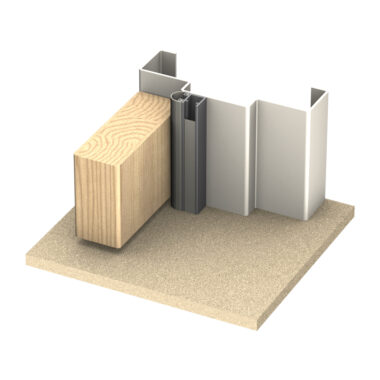

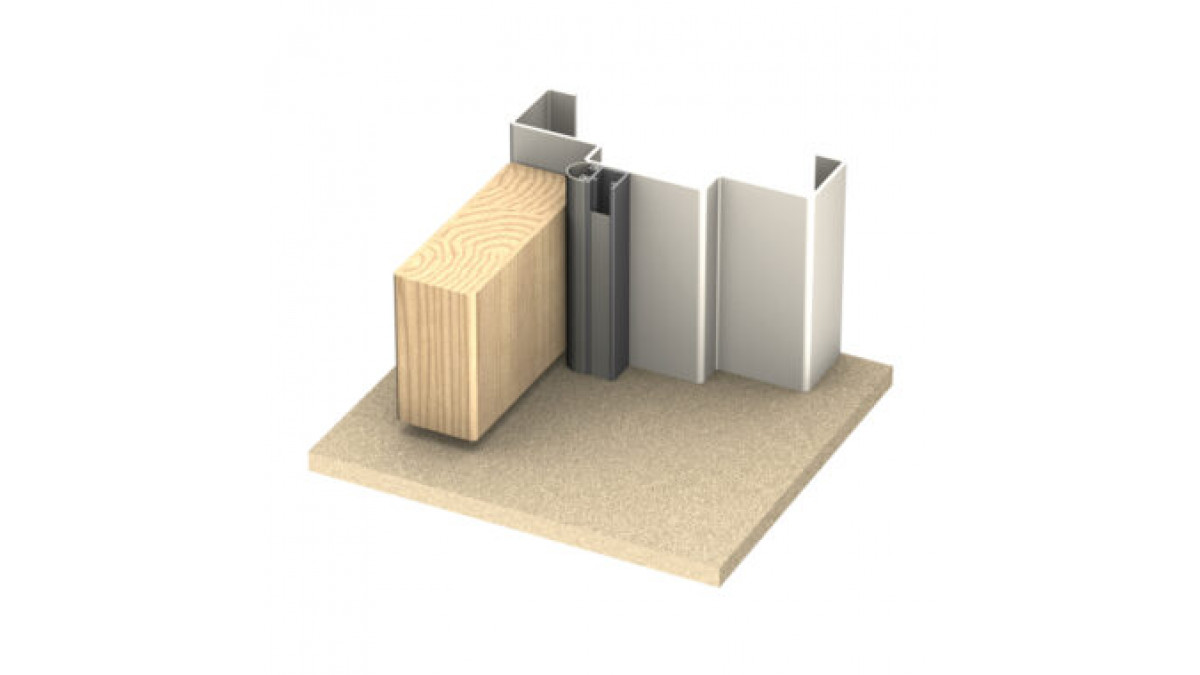

This seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

This seal is also available with antimicrobial silicone gasket(s).

Standard colours:

  • Silver anodised aluminium with grey silicone gasket and grey cover strip
  • Black anodised aluminium with black silicone gasket and black cover strip
Key Features
  • Aesthetic compact perimeter seal, specifically designed for 'clean room' applications
  • Can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated
Scope of Use
  • Specifically designed for ‘clean room’ applications — allows for easy cleaning and assists in preventing the movement of air borne contaminates
  • Can contribute to reduced sound transmission

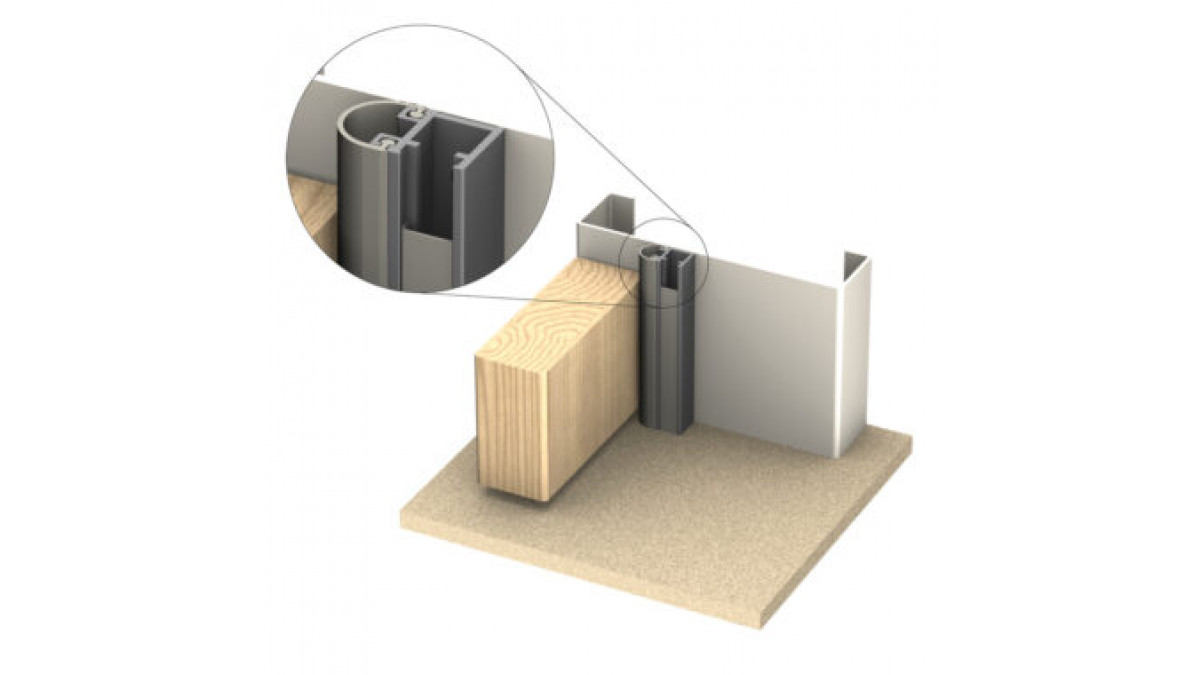

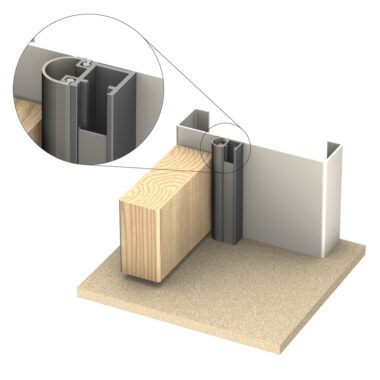

  • Steel and timber door frames, where frames are non fire-rated
  • Also available with antimicrobial silicone gasket(s)

Gap size:

  • Min. 0mm / max. 7mm

Door set standard lengths:

  • Single: 1 x 1000mm, 2 x 2100mm
  • Long Single: 1 x 1000mm, 2 x 2750mm
  • Double: 3 x 2100mm
  • Long Double: 1 x 2100mm, 2 x 2750mm

Standard lengths:

  • 1000mm
  • 2250mm
  • Also available in: 250mm increments from 1000mm to 5000mm
Limitations on Use
  • When fixing the IS7085si seal to rebated frames of single doors, specify a long backset door latch.

Fire doors are a proprietary product. Despite similarities in manufacture and supply, each fire door must have its own test data outlining its field of application as mandated by the Building Code of Australia through the requirements set out in AS1905 Part 1.

Please contact a dormakaba representative for confirmation on which seals are suitable for the specified fire doors.

Statement of Building Code Compliance
  • Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
  • Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
  • Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
In-Service History

Notable projects include:

  • Royal Adelaide Hospital (RAD)
  • Gold Coast University Hospital
  • Adelaide Oval Development
Other Performance Attributes
  • All seals manufactured in Australia
