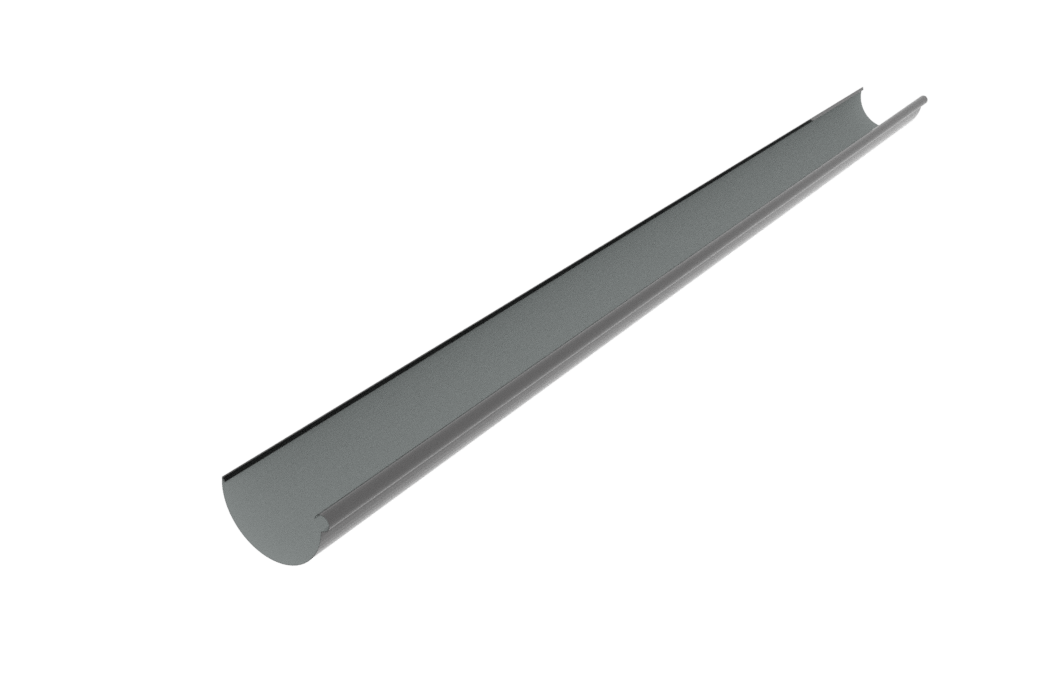

Dimond 150 Half Round Gutter
Description

The Half Round is an excellent finishing touch for any home. Be that a simple kiwi classic home through to a unique architectural home.

Manufactured out of Christchurch this profile is only available in the South Island.

Key Features

Complete with a full range of brackets, stopends and droppers the Dimond Half Round is everything you will need and more.

Scope of Use
  • Available South Island only
  • Effective cross sectional area (with 15mm free board): 6,900mm²
  • Flow capacity: 100 litres/min
  • Minimum recommended fall: 1:500 = (2mm in 1m)
  • Minimum downpipe size:
    • Circular: 80mm

Catchment area per downpipe based on the above flow capacity is given in Table 3.1.M. Use Table 3.1B (Section 3.1.4) to determine the Rainfall Intensity to be used.

Table 3.1.M

Rainfall Intensity, 1 (mm/hr) 40 50 60 70 80 90 100 120 140 160 180 200
Catchment Area per downpipe Aₑ(m2) 150 120 100 85 75 66 60 50 43 37 33 30
Documents
Dimond Roofing & Cladding Technical Manual
Installation and Operation
Dimond Homeowners Brochure
Colour Range
Additional Information

Dimond Roofing are a manufacturer of steel roofing, cladding and rainwater products.
